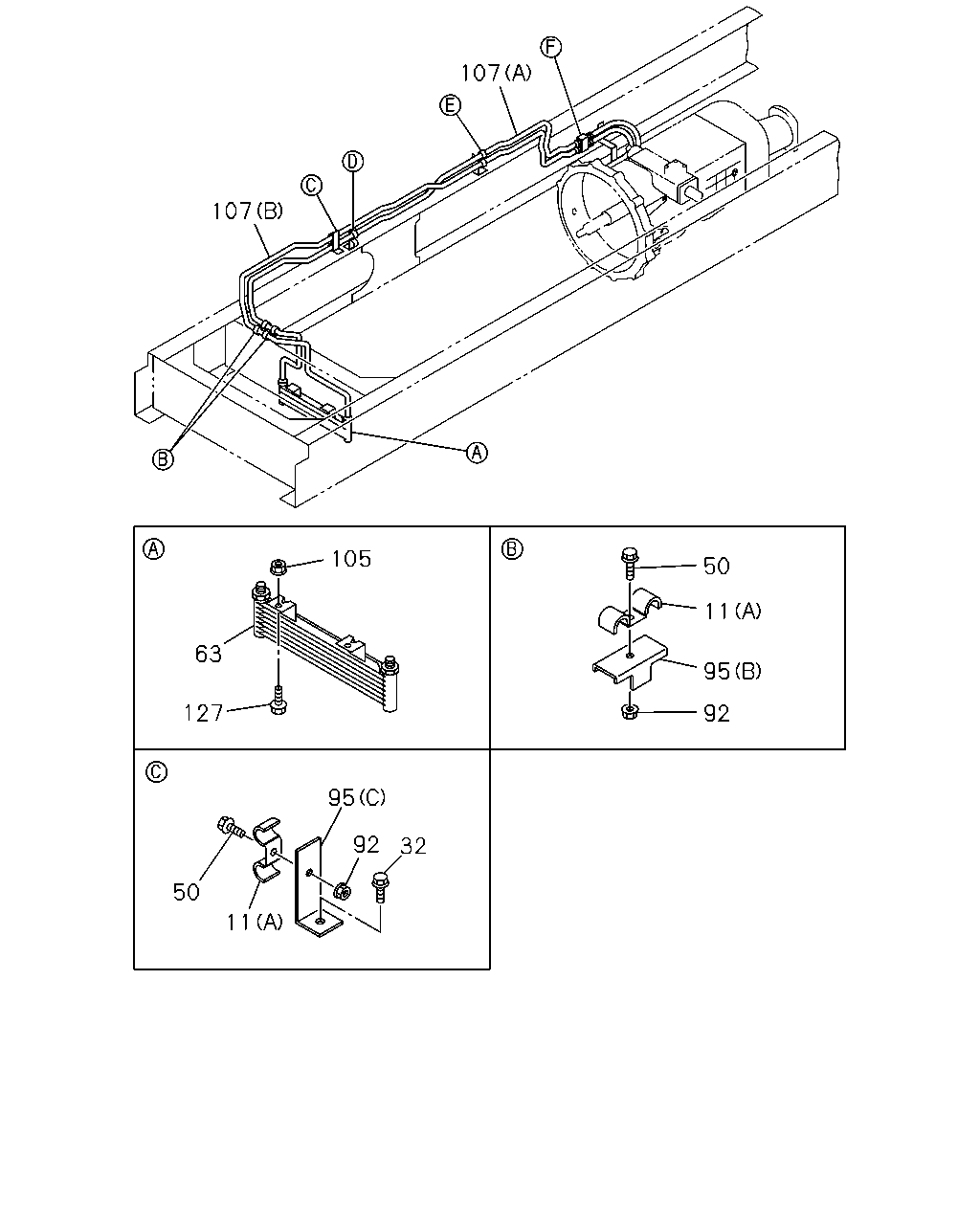

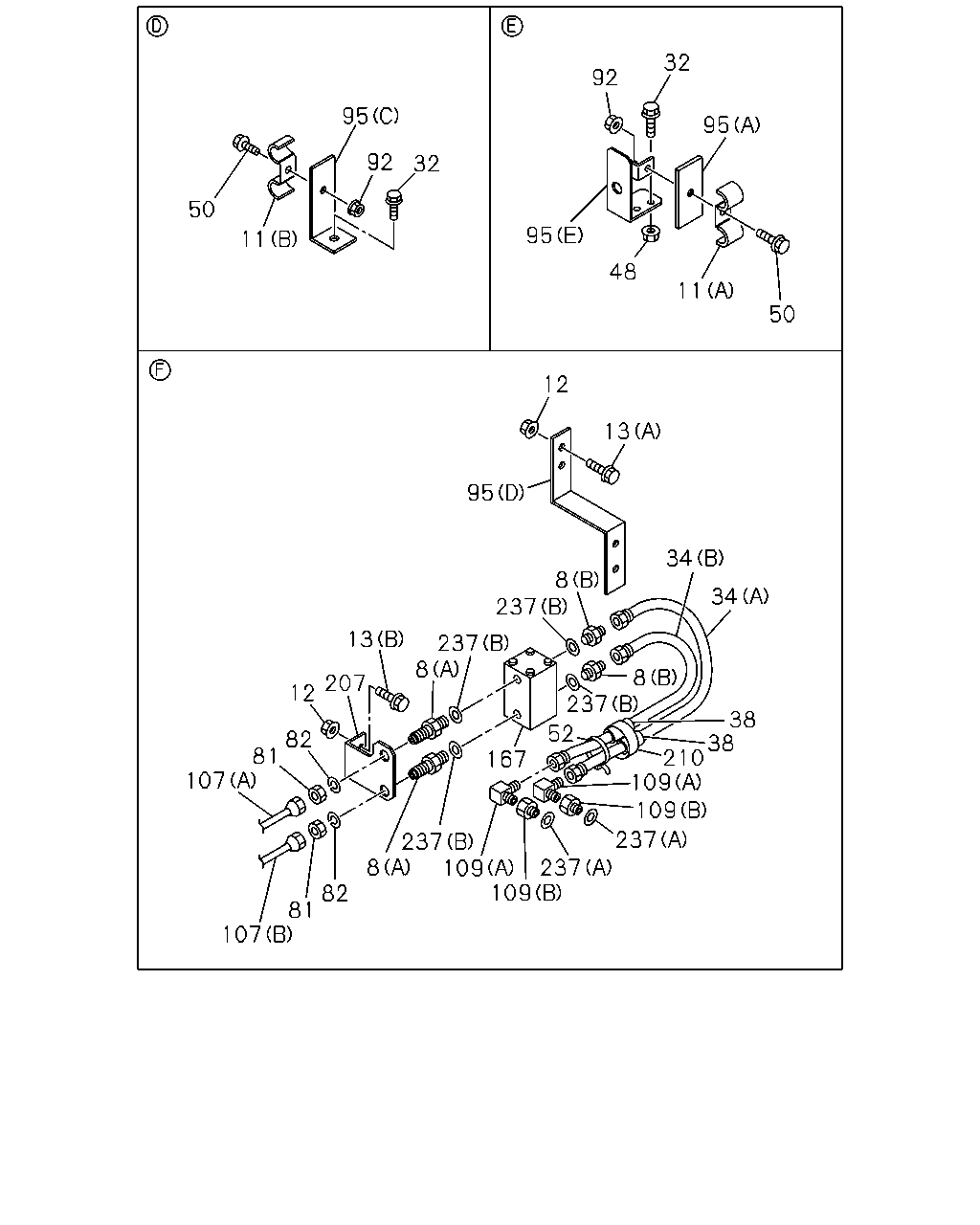

2-53B — TRANSMISSION OIL COOLER SYSTEM (#65111) — 123 parça

32 92 95 95 92 32 50 95 11 48 11 50 12 13 95 34 8 237 34 13 237 8 8 237 207 12 38 38 210 109 109 52 82 81 167 107 237 237 109 8 82 81 107 109 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	UNION TRANSMISSION OIL COOLER<C2C> (A)	1-09654-414-1	02	1	0104-1102	●
8	UNION TRANSMISSION OIL COOLER<C2C> (A)	1-09654-414-1	02	1	1103-	●	●
8	UNION TRANSMISSION OIL COOLER<C2C> (B)	1-09660-011-1	02	1	0104-1102	●
8	UNION TRANSMISSION OIL COOLER<C2C> (B)	1-09660-011-1	02	1	1103-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0104-1102	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0104-1102	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	1103-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	04	1	0104-0602	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	04	1	0603-1102	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8X30 FLANGE	0-28680-830-0	02	1	0104-0512	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-1102	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-	●	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M8X35 FLANGE	0-28680-835-0	02	1	0104-0512	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M8X35 FLANGE	0-28650-835-0	02	1	0601-1102	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M8X35 FLANGE	0-28650-835-0	02	1	1103-	●	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0104-0512	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-1102	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	03	1	0104-0301	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (A)	1-09365-160-0	01	1	0104-0306	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (A)	1-09365-296-0	01	1	0307-1102	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (A)	1-09365-296-0	01	1	1103-	●	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-09365-161-0	01	1	0104-0306	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-09365-297-0	01	1	0307-1102	●
34	HOSE; FLEX,RAD TO OIL COOLER PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-09365-297-0	01	1	1103-	●	●
38	SLEEVE; RUBBER,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=32 OD=36 L=50	1-09337-023-0	01	1	0104-1102	●
38	SLEEVE; RUBBER,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=32 OD=36 L=50	1-09337-023-0	01	1	1103-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0104-0301	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-1102	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE	0-28080-850-0	01	1	0104-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE	0-28050-850-0	01	1	0601-1102	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE	0-28050-850-0	01	1	1103-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	03	1	0104-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28650-820-0	03	1	0601-1102	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28650-820-0	03	1	1103-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28680-840-0	01	1	0104-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28650-840-0	01	1	0601-1102	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28650-840-0	01	1	1103-	●	●
52	CLIP; FLEX HOSE,A/T TRANSMISSION OIL COOLER<C2C> L=140	5-09707-031-1	02	1	0104-0301	●
52	CLIP; FLEX HOSE,A/T TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	02	1	0302-1102	●
52	CLIP; FLEX HOSE,A/T TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	02	1	1103-	●	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	02	1	0104-0512	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	0-91111-522-0	02	1	0601-1102	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	0-91111-522-0	02	1	1103-	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	0104-0603	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	0-91510-522-0	02	1	0604-1102	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	0-91510-522-0	02	1	1103-	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	05	1	0104-0602	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	05	1	0603-1102	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	05	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	01	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	01	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-427-1	02	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-427-1	02	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (C) L=68	1-47475-525-0	02	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (C) L=68	1-47475-525-0	02	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47475-963-1	01	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47475-963-1	01	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (E)	1-47477-639-0	01	1	0104-0301	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-21117-004-1	01	1	0104-1102	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-21117-004-1	01	1	1103-	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-21117-005-1	01	1	0104-1102	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-21117-005-1	01	1	1103-	●	●
109	UNION TRANSMISSION OIL COOLER<C2C> (A) R3/8 & M22 ELBOW	1-09660-612-1	02	1	0104-1102	●
109	UNION TRANSMISSION OIL COOLER<C2C> (A) R3/8 & M22 ELBOW	1-09660-612-1	02	1	1103-	●	●
109	UNION TRANSMISSION OIL COOLER<C2C> (B) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	0104-1102	●
109	UNION TRANSMISSION OIL COOLER<C2C> (B) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	1103-	●	●
167	VALVE; BYPASS TRANSMISSION OIL COOLER<C2C>	1-32569-088-0	01	1	0104-1102	●
167	VALVE; BYPASS TRANSMISSION OIL COOLER<C2C>	1-32569-088-0	01	1	1103-	●	●
207	BRACKET; UNION TRANSMISSION OIL COOLER<C2C>	1-47479-230-0	01	1	0104-1102	●
207	BRACKET; UNION TRANSMISSION OIL COOLER<C2C>	1-47479-230-0	01	1	1103-	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	0104-1102	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	1103-	●	●
237	GASKET; UNION TRANSMISSION OIL COOLER<C2C> (A) ID=16.2	1-09630-086-0	02	1	0104-1102	●
237	GASKET; UNION TRANSMISSION OIL COOLER<C2C> (A) ID=16.2	1-09630-086-0	02	1	1103-	●	●
237	GASKET; UNION TRANSMISSION OIL COOLER<C2C> (B) ID=18.2 OD=24.4	1-09630-087-0	04	1	0104-1102	●
237	GASKET; UNION TRANSMISSION OIL COOLER<C2C> (B) ID=18.2 OD=24.4	1-09630-087-0	04	1	1103-	●	●

107 107 105 50 11 63 95 127 92 95 92 32 50 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0104-1102	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1103-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0104-1102	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	1103-	●	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0104-0512	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-1102	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
32	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	03	1	0104-0301	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE	0-28080-850-0	01	1	0104-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE	0-28050-850-0	01	1	0601-1102	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE	0-28050-850-0	01	1	1103-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	03	1	0104-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28650-820-0	03	1	0601-1102	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28650-820-0	03	1	1103-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28680-840-0	01	1	0104-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28650-840-0	01	1	0601-1102	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28650-840-0	01	1	1103-	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-311-0	01	1	0104-0602	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-395-0	01	1	0603-1102	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-395-1	01	1	1103-	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	05	1	0104-0602	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	05	1	0603-1102	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	05	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	01	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	01	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-427-1	02	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-427-1	02	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (C) L=68	1-47475-525-0	02	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (C) L=68	1-47475-525-0	02	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47475-963-1	01	1	0104-1102	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47475-963-1	01	1	1103-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (E)	1-47477-639-0	01	1	0104-0301	●
105	NUT; OIL COOLER TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0104-0602	●
105	NUT; OIL COOLER TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-1102	●
105	NUT; OIL COOLER TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-21117-004-1	01	1	0104-1102	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-21117-004-1	01	1	1103-	●	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-21117-005-1	01	1	0104-1102	●
107	PIPE; OIL,COOLER TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-21117-005-1	01	1	1103-	●	●
127	BOLT; COOLER TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0104-0512	●
127	BOLT; COOLER TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-1102	●
127	BOLT; COOLER TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
