◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36B - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#65104) — 95 parça

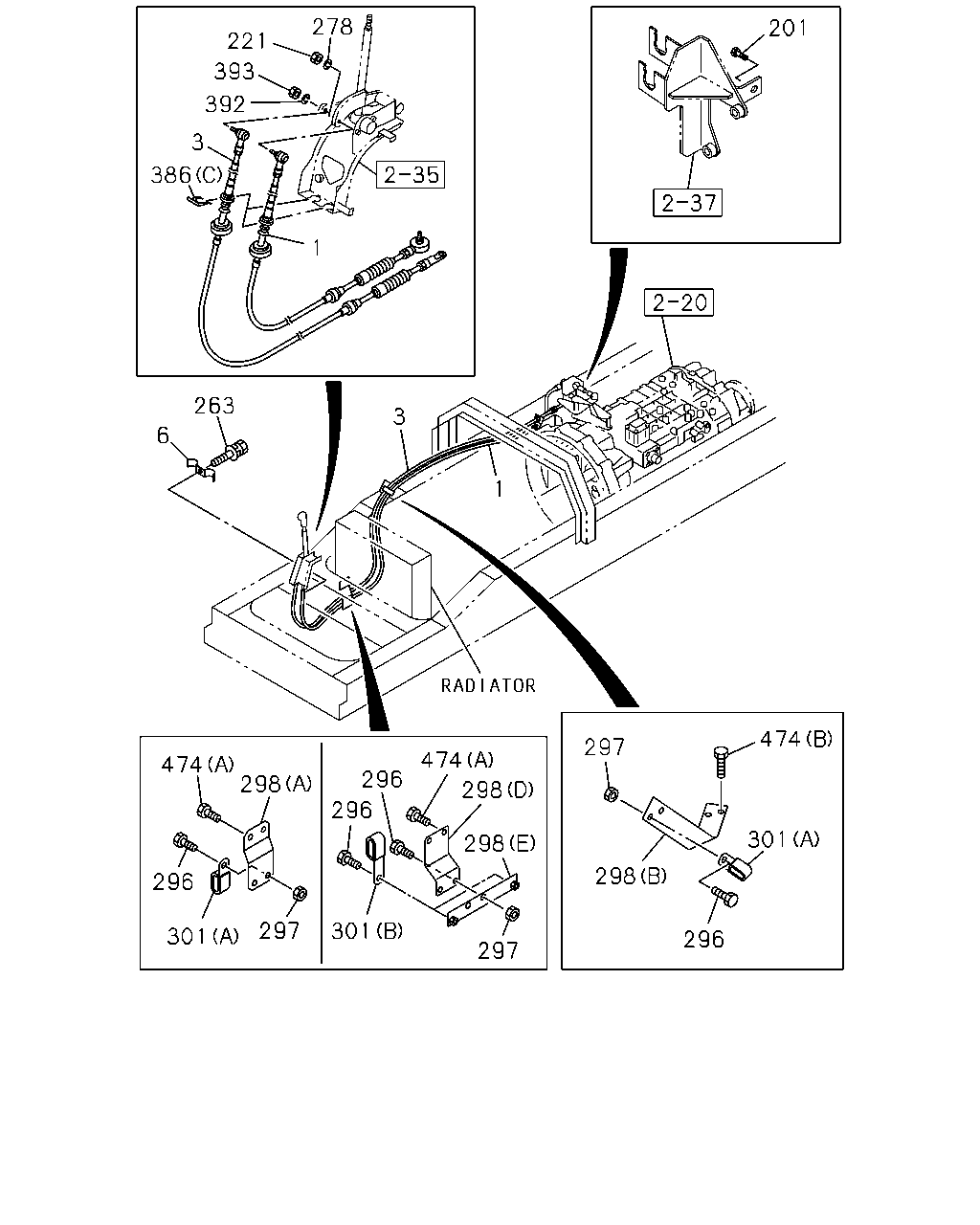

çizim 114012
278 201 221 393 392 3 386 1 263 3 6 1 474 297 474 474 298 296 298 296 301 298 298 296 297 301 301 296 297
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3615 		1-33671-900-0 01 1 0302- ●
1 CABLE; SHIFT,TRANS CONT
L=3664 		1-33670-975-0 01 1 9703-9709 ●
1 CABLE; SHIFT,TRANS CONT
L=3685 		1-33671-187-1 01 1 9710-9810 ●
1 CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG(31L) L=3685 		1-33671-187-1 01 1 9811-9903 ●
1 CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG(31L) L=3685 		1-33671-187-1 01 1 9904-0004 ● ●
1 CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG(31L) EXC. ENGINE REAR PTO<SV1> L=3685 		1-33671-187-1 01 1 0005-0301 ●
1 CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG(31L) EXC. ENGINE REAR PTO<SV1>,FRONT SPRING LONG SPAN<W36> L=3685 		1-33671-187-1 01 1 0302- ●
1 CABLE; SHIFT,TRANS CONT
6SD1 STD ENG(37L) L=3525 		1-33671-461-0 01 1 9811-9903 ●
1 CABLE; SHIFT,TRANS CONT
6SD1 STD ENG(37L) L=3525 		1-33671-461-0 01 1 9904-0004 ● ●
1 CABLE; SHIFT,TRANS CONT
6SD1 STD ENG(37L) EXC. ENGINE REAR PTO<SV1> L=3525 		1-33671-461-0 01 1 0005-1102 ●
1 CABLE; SHIFT,TRANS CONT
6SD1 STD ENG(37L) EXC. ENGINE REAR PTO<SV1> L=3525 		1-33671-461-0 01 1 1103- ● ●
1 CABLE; SHIFT,TRANS CONT
6SD1 TCN ENG(31L) ENGINE REAR PTO<SV1> L=3775 		1-33671-601-0 01 1 0005- ●
3 CABLE; SELECT,TRANS CONT
6SD1 STD ENG(37L) EXC. ENGINE REAR PTO<SV1> L=3410 		8-98183-358-0 01 1 1103- ●
3 CABLE; SELECT,TRANS CONT
6SD1 TCN ENG(31L) FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3490 		1-33671-901-0 01 1 0302- ●
3 CABLE; SELECT,TRANS CONT
L=3548 		1-33670-978-0 01 1 9703-9709 ●
3 CABLE; SELECT,TRANS CONT
L=3560 		1-33671-189-1 01 1 9710-9810 ●
3 CABLE; SELECT,TRANS CONT
6SD1 TCN ENG(31L) L=3560 		1-33671-189-1 01 1 9811-9903 ●
3 CABLE; SELECT,TRANS CONT
6SD1 TCN ENG(31L) L=3560 		1-33671-189-1 01 1 9904-0004 ● ●
3 CABLE; SELECT,TRANS CONT
6SD1 TCN ENG(31L) EXC. ENGINE REAR PTO<SV1> L=3560 		1-33671-189-1 01 1 0005-0301 ●
3 CABLE; SELECT,TRANS CONT
6SD1 TCN ENG(31L) EXC. ENGINE REAR PTO<SV1>,FRONT SPRING LONG SPAN<W36> L=3560 		1-33671-189-1 01 1 0302- ●
3 CABLE; SELECT,TRANS CONT
6SD1 STD ENG(37L) L=3410 		1-33671-462-0 01 1 9811-9903 ●
3 CABLE; SELECT,TRANS CONT
6SD1 STD ENG(37L) L=3410 		1-33671-462-0 01 1 9904-0004 ● ●
3 CABLE; SELECT,TRANS CONT
6SD1 STD ENG(37L) EXC. ENGINE REAR PTO<SV1> L=3410 		1-33671-462-0 01 1 0005- ●
3 CABLE; SELECT,TRANS CONT
6SD1 TCN ENG(31L) ENGINE REAR PTO<SV1> L=3650 		1-33671-603-0 01 1 0005- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9601-9804 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 9805-0004 ● ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0005-0604 ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0605- ● ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 9703-9903 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 9904-0004 ● ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28781-020-0 01 1 0005-0512 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28751-020-0 01 1 0601-1102 ●
201 BOLT; BRKT
M10X20 FLANGE 		0-28751-020-0 01 1 1103- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 		9-09110-408-0 01 1 9601-9804 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 9805-0004 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0005-1011 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9804 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9805-9812 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9901-0004 ● ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0005-0604 ●
263 BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0605- ● ●
278 WASHER; LK,SHIFT WIRE
ID=8.2 		9-09150-508-0 01 1 9601-9804 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9601-9804 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 9805-0004 ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0108 ●
296 BOLT; CLIP,SHIFT & SELECT
FRONT SPRING LONG SPAN<W36> M8X16 FLANGE 		0-28050-816-0 03 1 1103- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28080-816-0 02 1 0109-0512 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0604 ●
296 BOLT; CLIP,SHIFT & SELECT
EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE 		0-28050-816-0 02 1 0605- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-9804 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9805-0004 ● ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0108 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0605-0611 ●
297 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0109-0602 ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-0604 ●
297 NUT; CLIP
EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE 		0-91180-108-0 02 1 0612- ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9601-9804 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 9805-0004 ● ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0005-0108 ●
298 BRACKET
(A) 		1-47477-519-2 01 1 0109-0604 ●
298 BRACKET
EXC. FRONT SPRING LONG SPAN<W36> (A) 		1-47477-519-2 01 1 0605- ● ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9601-9804 ●
298 BRACKET
(B) 		1-47477-520-0 01 1 9805-0004 ● ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0005-0604 ●
298 BRACKET
(B) 		1-47477-520-0 01 1 0605- ● ●
298 BRACKET
FRONT SPRING LONG SPAN<W36> (D) 		1-47478-997-0 01 1 0612-1102 ●
298 BRACKET
FRONT SPRING LONG SPAN<W36> (D) 		1-47478-997-0 01 1 1103- ● ●
298 BRACKET
FRONT SPRING LONG SPAN<W36> (E) 		1-47479-121-0 01 1 0612-1102 ●
298 BRACKET
FRONT SPRING LONG SPAN<W36> (E) 		1-47479-121-0 01 1 1103- ● ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 02 1 9601-9804 ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 02 1 9805-0004 ● ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 02 1 0005-0108 ●
301 CLIP; WIRE
FRONT SPRING LONG SPAN<W36> (A) ID=11X2 L=16 		0-95325-026-0 01 1 1103- ● ●
301 CLIP; WIRE
FRONT SPRING LONG SPAN<W36> (B) ID=11X2 L=32 		0-95325-066-0 02 1 1103- ● ●
301 CLIP; WIRE
(A) ID=11X2 L=16 		9-09535-026-0 02 1 0109-0606 ●
301 CLIP; WIRE
EXC. FRONT SPRING LONG SPAN<W36> (A) ID=11X2 L=16 		0-95325-026-0 02 1 0607- ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9601-9804 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 9805-0004 ● ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0005-0604 ●
386 CLIP; CONT CABLE & TUBE
(C) 		1-09700-966-1 02 1 0605- ● ●
392 WASHER; LK,SELECT CABLE,CAB
ID=8.2 		9-09150-508-0 01 1 9601-9804 ●
393 NUT; SELECT CABLE,CAB
M8 		9-09110-408-0 01 1 9601-9804 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 9805-0004 ● ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-049-0 01 1 0005-1011 ●
393 NUT; SELECT CABLE,CAB
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9611-9804 ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9805-0004 ● ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 0005-0512 ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0601-0604 ●
474 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 02 1 0605- ● ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9607-9804 ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9805-0004 ● ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0604 ●
474 BOLT; BRKT
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0605- ● ●
