Sayfa 2-36A - Isuzu EPC

2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#65103) — 296 parça

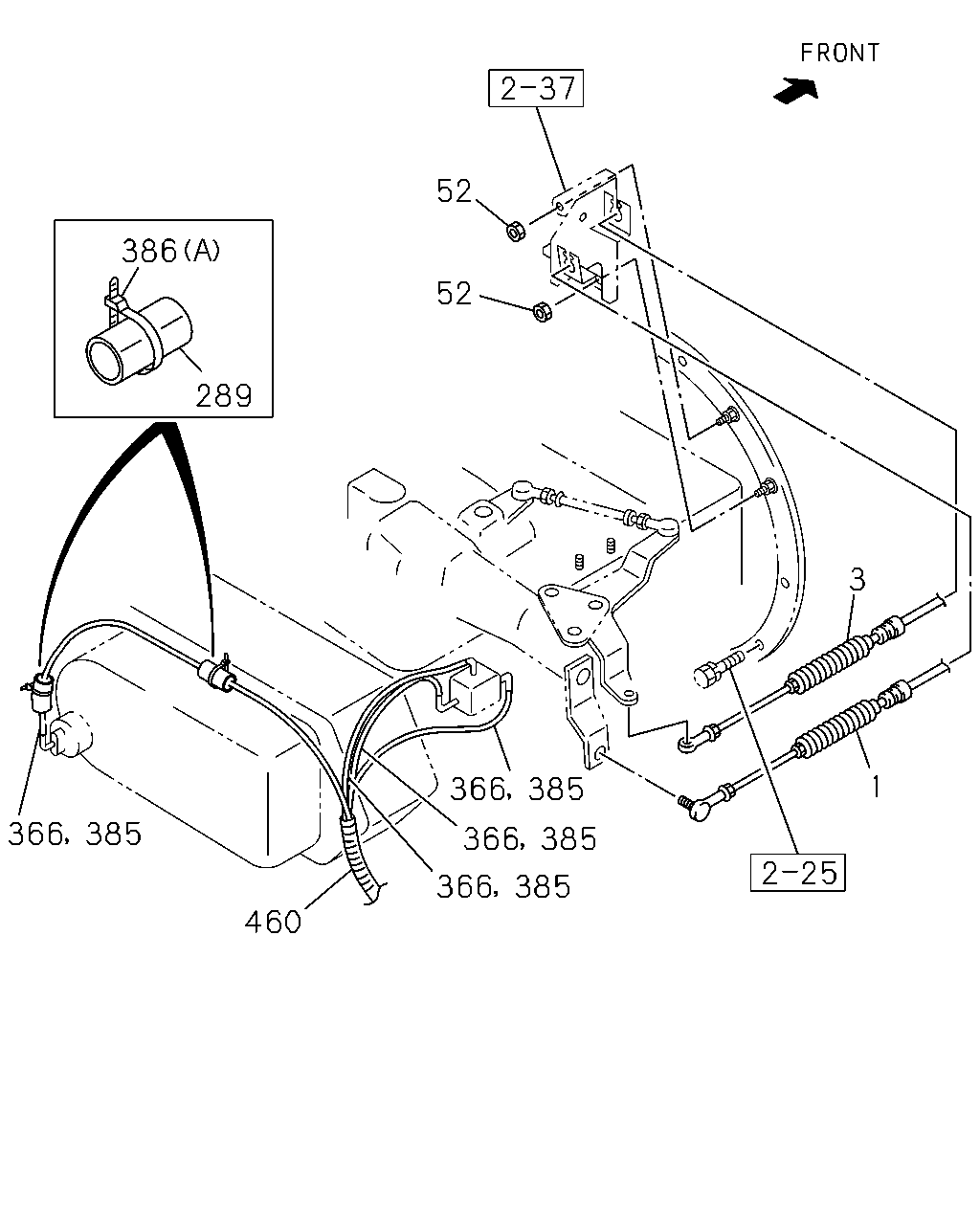

52 386 52 289 3 1 366 385 385 366 366 385 366 385 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3755	8-97383-462-0	01	1	0605-0611
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3745	8-98059-471-1	01	1	0612-
1	CABLE; SHIFT,TRANS CONT L=3722	1-33670-976-0	01	1	9601-9605
1	CABLE; SHIFT,TRANS CONT L=3632	1-33671-003-0	01	1	9606-9607
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3632	1-33671-003-0	01	1	9608-9709
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3645	1-33671-186-1	01	1	9710-0108
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO<SV1>,FRONT SPRING LONG SPAN<W36> L=3645	1-33671-186-1	01	1	0109-
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> L=3722	1-33671-008-0	01	1	9608-9709
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> L=3735	1-33671-193-1	01	1	9710-0108
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> EXC. FRONT SPRING LONG SPAN<W36> L=3735	1-33671-193-1	01	1	0109-
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> FRONT SPRING LONG SPAN<W36> L=3785	1-33671-695-0	01	1	0109-
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3695	1-33671-694-0	01	1	0109-0604
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60),ENGINE REAR PTO<SV1> L=3695	1-33671-694-0	01	1	0605-0611
3	CABLE; SELECT,TRANS CONT L=3619	1-33670-979-0	01	1	9601-9605
3	CABLE; SELECT,TRANS CONT L=3553	1-33671-005-0	01	1	9606-9607
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3553	1-33671-005-0	01	1	9608-9709
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3565	1-33671-191-1	01	1	9710-0108
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO<SV1>,FRONT SPRING LONG SPAN<W36> L=3565	1-33671-191-1	01	1	0109-
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> L=3643	1-33671-009-0	01	1	9608-9709
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> L=3655	1-33671-195-1	01	1	9710-0108
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> EXC. FRONT SPRING LONG SPAN<W36> L=3655	1-33671-195-1	01	1	0109-
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> FRONT SPRING LONG SPAN<W36> L=3705	1-33671-699-0	01	1	0109-
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3615	1-33671-698-0	01	1	0109-0604
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3615	1-33671-698-0	01	1	0605-0611
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3655	8-98059-472-1	01	1	0612-
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9601-0602
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
289	SLEEVE; RUBBER L=150	1-09360-677-1	02	1	9607-
366	TUBE; NYLON,FULLER CONT RED	1-33619-545-0	01	1	9601-9607
366	TUBE; NYLON,FULLER CONT BLUE	1-33619-546-0	01	1	9601-9607
366	TUBE; NYLON,FULLER CONT BLACK	1-33619-547-0	01	1	9601-9607
366	TUBE; NYLON,FULLER CONT GREEN	1-33619-548-0	01	1	9601-9607
385	TUBE; NYLON ENGINE REAR PTO<SV1> RED	1-33619-556-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) RED	1-33619-556-0	01	1	0612-
385	TUBE; NYLON ENGINE REAR PTO<SV1> BLUE	1-33619-557-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLUE	1-33619-557-0	01	1	0612-
385	TUBE; NYLON ENGINE REAR PTO<SV1> BLACK	1-33619-558-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLACK	1-33619-558-0	01	1	0612-
385	TUBE; NYLON ENGINE REAR PTO<SV1> GREEN	1-33619-559-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) GREEN	1-33619-559-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> RED	1-33619-545-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> BLUE	1-33619-546-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> BLACK	1-33619-547-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> GREEN	1-33619-548-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0612-
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9601-9804
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9805-0004
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0005-0604
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0605-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9601-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	12	1	9601-0606
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	11	1	0607-
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9604-0308
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0309-
460	TUBE; CORRUGATE L=830 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	9601-9607
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9608-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9601-9607
460	TUBE; CORRUGATE EXC. ENGINE REAR PTO<SV1> L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9608-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0612-
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9601-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> L=4200 SERVICED BY L=6000	1-83129-337-0	01	1	9608-0611
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=4200 SERVICED BY L=6000	1-83129-337-0	01	1	0612-

386 385 385 441 460 366 385 366 385 387 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
366	TUBE; NYLON,FULLER CONT RED	1-33619-545-0	01	1	9601-9607
366	TUBE; NYLON,FULLER CONT BLUE	1-33619-546-0	01	1	9601-9607
366	TUBE; NYLON,FULLER CONT BLACK	1-33619-547-0	01	1	9601-9607
366	TUBE; NYLON,FULLER CONT GREEN	1-33619-548-0	01	1	9601-9607
385	TUBE; NYLON ENGINE REAR PTO<SV1> RED	1-33619-556-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) RED	1-33619-556-0	01	1	0612-
385	TUBE; NYLON ENGINE REAR PTO<SV1> BLUE	1-33619-557-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLUE	1-33619-557-0	01	1	0612-
385	TUBE; NYLON ENGINE REAR PTO<SV1> BLACK	1-33619-558-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) BLACK	1-33619-558-0	01	1	0612-
385	TUBE; NYLON ENGINE REAR PTO<SV1> GREEN	1-33619-559-0	01	1	9608-0611
385	TUBE; NYLON ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) GREEN	1-33619-559-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> RED	1-33619-545-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> BLUE	1-33619-546-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> BLACK	1-33619-547-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0612-
385	TUBE; NYLON EXC. ENGINE REAR PTO<SV1> GREEN	1-33619-548-0	01	1	9608-0611
385	TUBE; NYLON FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0612-
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9601-9804
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9805-0004
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0005-0604
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0605-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9601-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	12	1	9601-0606
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	11	1	0607-
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9604-0308
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0309-
387	GROMMET; CONT TUBE,FULLER	1-09333-126-0	01	1	9601-
441	CONNECTOR; NYLON TUBE	1-09660-911-0	01	1	9601-9804
441	CONNECTOR; NYLON TUBE	1-09660-961-0	01	1	9805-0604
460	TUBE; CORRUGATE L=830 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	9601-9607
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9608-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9601-9607
460	TUBE; CORRUGATE EXC. ENGINE REAR PTO<SV1> L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9608-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0612-
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9601-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> L=4200 SERVICED BY L=6000	1-83129-337-0	01	1	9608-0611
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=4200 SERVICED BY L=6000	1-83129-337-0	01	1	0612-

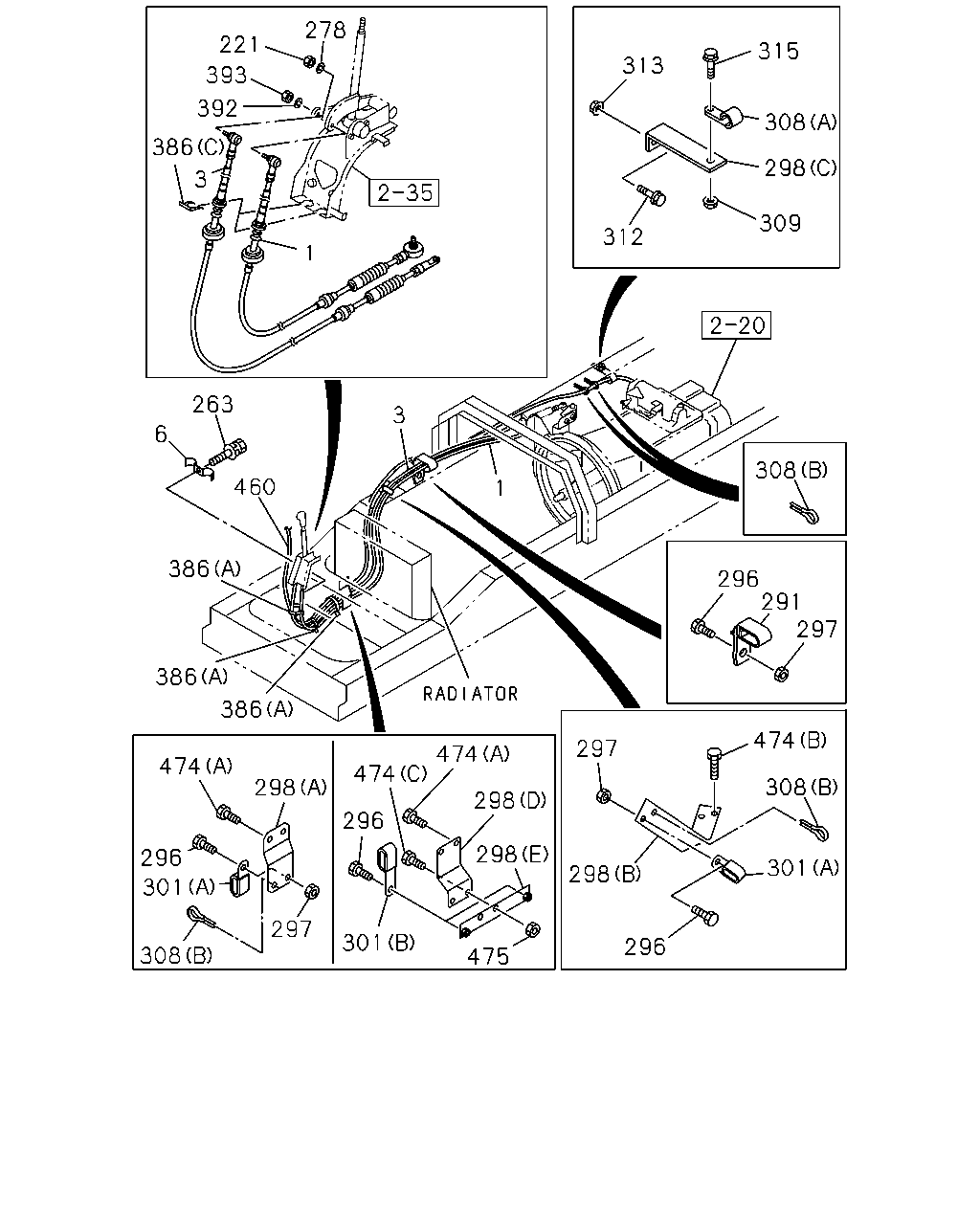

278 221 315 313 393 392 308 386 298 3 309 312 1 263 3 6 308 460 1 386 296 291 297 386 386 474 297 474 474 474 308 298 298 296 298 296 301 298 301 297 301 296 308 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; SHIFT,TRANS CONT AIR CONDITIONER MANUAL CONTROL(C60) L=3755	8-97383-462-0	01	1	0605-0611
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3745	8-98059-471-1	01	1	0612-
1	CABLE; SHIFT,TRANS CONT L=3722	1-33670-976-0	01	1	9601-9605
1	CABLE; SHIFT,TRANS CONT L=3632	1-33671-003-0	01	1	9606-9607
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3632	1-33671-003-0	01	1	9608-9709
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3645	1-33671-186-1	01	1	9710-0108
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO<SV1>,FRONT SPRING LONG SPAN<W36> L=3645	1-33671-186-1	01	1	0109-
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> L=3722	1-33671-008-0	01	1	9608-9709
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> L=3735	1-33671-193-1	01	1	9710-0108
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> EXC. FRONT SPRING LONG SPAN<W36> L=3735	1-33671-193-1	01	1	0109-
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO<SV1> FRONT SPRING LONG SPAN<W36> L=3785	1-33671-695-0	01	1	0109-
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3695	1-33671-694-0	01	1	0109-0604
1	CABLE; SHIFT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60),ENGINE REAR PTO<SV1> L=3695	1-33671-694-0	01	1	0605-0611
3	CABLE; SELECT,TRANS CONT L=3619	1-33670-979-0	01	1	9601-9605
3	CABLE; SELECT,TRANS CONT L=3553	1-33671-005-0	01	1	9606-9607
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3553	1-33671-005-0	01	1	9608-9709
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO<SV1> L=3565	1-33671-191-1	01	1	9710-0108
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO<SV1>,FRONT SPRING LONG SPAN<W36> L=3565	1-33671-191-1	01	1	0109-
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> L=3643	1-33671-009-0	01	1	9608-9709
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> L=3655	1-33671-195-1	01	1	9710-0108
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> EXC. FRONT SPRING LONG SPAN<W36> L=3655	1-33671-195-1	01	1	0109-
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO<SV1> FRONT SPRING LONG SPAN<W36> L=3705	1-33671-699-0	01	1	0109-
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3615	1-33671-698-0	01	1	0109-0604
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3615	1-33671-698-0	01	1	0605-0611
3	CABLE; SELECT,TRANS CONT FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=3655	8-98059-472-1	01	1	0612-
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9601-9804
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9805-0004
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0604
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0605-
221	NUT; SHIFT WIRE TO LEVER M8	9-09110-408-0	01	1	9601-9804
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	9805-0004
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-1011
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-9804
263	BOLT; CLIP,TRANS CONT WIRE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9805-9812
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-0004
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0604
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0605-
278	WASHER; LK,SHIFT WIRE ID=8.2	9-09150-508-0	01	1	9601-9804
291	CLIP; SHIFT TO SELECT,FRAME ID=10 & 10 M8	1-09701-220-0	01	1	9601-0604
291	CLIP; SHIFT TO SELECT,FRAME EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=10 & 10 M8	1-09701-220-0	01	1	0605-0606
291	CLIP; SHIFT TO SELECT,FRAME ID=13 & 13 L=32	8-97389-264-0	01	1	0607-
296	BOLT; CLIP,SHIFT & SELECT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	01	1	0605-0611
296	BOLT; CLIP,SHIFT & SELECT ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	01	1	0612-
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9601-9804
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	9805-0004
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	02	1	0005-0108
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28080-816-0	03	1	0109-0512
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	03	1	0601-0604
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	03	1	0605-0606
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	03	1	0607-1102
296	BOLT; CLIP,SHIFT & SELECT FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	03	1	1103-
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28080-816-0	01	1	9601-0512
296	BOLT; CLIP,SHIFT & SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-0604
296	BOLT; CLIP,SHIFT & SELECT AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28050-816-0	04	1	0605-0606
296	BOLT; CLIP,SHIFT & SELECT EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28080-816-0	02	1	0109-0512
296	BOLT; CLIP,SHIFT & SELECT EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	02	1	0601-0604
296	BOLT; CLIP,SHIFT & SELECT EXC. FRONT SPRING LONG SPAN<W36> M8X16 FLANGE	0-28050-816-0	02	1	0605-
297	NUT; CLIP M8	9-09110-408-0	02	1	9601-9606
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9804
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9805-0004
297	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0108
297	NUT; CLIP FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91150-108-0	03	1	0109-0602
297	NUT; CLIP FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	03	1	0603-
297	NUT; CLIP M8	9-09110-408-0	01	1	9601-9606
297	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-0602
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-0604
297	NUT; CLIP EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0605-0611
297	NUT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0605-0611
297	NUT; CLIP ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0612-
297	NUT; CLIP EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91150-108-0	02	1	0109-0602
297	NUT; CLIP EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0603-0604
297	NUT; CLIP EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0605-0611
297	NUT; CLIP EXC. FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0612-
297	NUT; CLIP FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> M8 FLANGE	0-91180-108-0	02	1	0612-
298	BRACKET AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98044-763-1	01	1	0605-0611
298	BRACKET FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> (D)	8-98044-763-1	01	1	0612-
298	BRACKET AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98044-764-0	01	1	0605-0611
298	BRACKET FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> (E)	8-98044-764-0	01	1	0612-
298	BRACKET (A)	1-47477-519-2	01	1	9601-9804
298	BRACKET (A)	1-47477-519-2	01	1	9805-0004
298	BRACKET (A)	1-47477-519-2	01	1	0005-0108
298	BRACKET EXC. FRONT SPRING LONG SPAN<W36> (A)	1-47477-519-2	01	1	0109-0604
298	BRACKET EXC. FRONT SPRING LONG SPAN<W36> (A)	1-47477-519-2	01	1	0605-
298	BRACKET (B)	1-47477-520-0	01	1	9601-9804
298	BRACKET (B)	1-47477-520-0	01	1	9805-0004
298	BRACKET (B)	1-47477-520-0	01	1	0005-0604
298	BRACKET (B)	1-47477-520-0	01	1	0605-
298	BRACKET (C) L=95	1-82699-085-0	01	1	9607-0604
298	BRACKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=95	1-82699-085-0	01	1	0605-0611
298	BRACKET ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=95	1-82699-085-0	01	1	0612-
298	BRACKET FRONT SPRING LONG SPAN<W36> (D)	1-47478-997-0	01	1	0109-0604
298	BRACKET FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-47478-997-0	01	1	0605-0611
298	BRACKET FRONT SPRING LONG SPAN<W36> ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-47478-997-0	01	1	0612-1102
298	BRACKET FRONT SPRING LONG SPAN<W36> ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-47478-997-0	01	1	1103-
298	BRACKET FRONT SPRING LONG SPAN<W36> (E)	1-47479-121-0	01	1	0109-0604
298	BRACKET FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-47479-121-0	01	1	0605-0611
298	BRACKET FRONT SPRING LONG SPAN<W36> ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-47479-121-0	01	1	0612-1102
298	BRACKET FRONT SPRING LONG SPAN<W36> ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-47479-121-0	01	1	1103-
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11X2 L=16	9-09535-026-0	03	1	0605-0606
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11X2 L=16	0-95325-026-0	03	1	0607-0607
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11X2 L=32	9-09535-066-0	01	1	0605-0606
301	CLIP; WIRE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11X2 L=32	0-95325-066-0	01	1	0607-0607
301	CLIP; WIRE (A) ID=11X2 L=16	9-09535-026-0	02	1	9601-9804
301	CLIP; WIRE (A) ID=11X2 L=16	9-09535-026-0	02	1	9805-0004
301	CLIP; WIRE (A) ID=11X2 L=16	9-09535-026-0	02	1	0005-0108
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> (A) ID=11X2 L=16	9-09535-026-0	01	1	0109-0604
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11X2 L=16	9-09535-026-0	01	1	0605-0606
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-0607
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-1102
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> (A) ID=11X2 L=16	0-95325-026-0	01	1	1103-
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> (B) ID=11X2 L=32	9-09535-066-0	02	1	0109-0604
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11X2 L=32	9-09535-066-0	02	1	0605-0606
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11X2 L=32	0-95325-066-0	02	1	0607-0607
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> (B) ID=11X2 L=32	0-95325-066-0	02	1	0607-1102
301	CLIP; WIRE FRONT SPRING LONG SPAN<W36> (B) ID=11X2 L=32	0-95325-066-0	02	1	1103-
301	CLIP; WIRE EXC. FRONT SPRING LONG SPAN<W36> (A) ID=11X2 L=16	9-09535-026-0	02	1	0109-0606
301	CLIP; WIRE EXC. FRONT SPRING LONG SPAN<W36> (A) ID=11X2 L=16	0-95325-026-0	02	1	0607-
308	CLIP; PIPE (A) ID=15 L=65	1-09700-466-0	02	1	0607-
308	CLIP; PIPE (A) ID=16 L=28	9-09525-556-0	01	1	9601-0606
308	CLIP; PIPE (A) ID=16 L=28	0-95235-556-0	01	1	0607-
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	04	1	9601-0004
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	03	1	0005-0606
308	CLIP; PIPE (B) ID=14 L=44	9-09917-427-0	01	1	0607-
308	CLIP; PIPE (B) ID=16 L=40	9-09525-576-0	01	1	0005-0606
308	CLIP; PIPE (B) ID=16 L=40	0-95235-576-0	01	1	0607-
309	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9601-9606
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-0004
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0602
309	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
312	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	9607-0512
312	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-0604
312	BOLT; CLIP BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28650-830-0	01	1	0605-0611
312	BOLT; CLIP BRKT ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE	0-28650-830-0	01	1	0612-
313	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9607-0602
313	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-0604
313	NUT; CLIP BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0605-0611
313	NUT; CLIP BRKT ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0612-
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-0004
315	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0005-0512
315	BOLT; PIPE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9601-9804
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	9805-0004
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0005-0604
386	CLIP; CONT CABLE & TUBE (C)	1-09700-966-1	02	1	0605-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	01	1	9601-
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	12	1	9601-0606
386	CLIP; CONT CABLE & TUBE (A) L=140	5-09707-031-1	11	1	0607-
386	CLIP; CONT CABLE & TUBE (B) ID=7-10	8-94472-578-0	01	1	9604-0308
386	CLIP; CONT CABLE & TUBE (B) ID=6 & 10-13	8-97069-515-0	01	1	0309-
392	WASHER; LK,SELECT CABLE,CAB ID=8.2	9-09150-508-0	01	1	9601-9804
393	NUT; SELECT CABLE,CAB M8	9-09110-408-0	01	1	9601-9804
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	9805-0004
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-1011
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-
460	TUBE; CORRUGATE L=830 SERVICED BY L=2000 ID=7	1-83129-335-0	01	1	9601-9607
460	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9608-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0612-
460	TUBE; CORRUGATE L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9601-9607
460	TUBE; CORRUGATE EXC. ENGINE REAR PTO<SV1> L=4110 SERVICED BY L=6000	1-83129-337-0	01	1	9608-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> SERVICED BY L=6000 ID=10	1-87411-021-0	01	1	0612-
460	TUBE; CORRUGATE L=370 SERVICED BY L=6000	1-83129-337-0	01	1	9601-0611
460	TUBE; CORRUGATE FRONT SPRING LONG SPAN<W36> EXC. ENGINE REAR PTO<SV1> L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=370 SERVICED BY L=6000	1-83129-337-0	01	1	0612-
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> L=4200 SERVICED BY L=6000	1-83129-337-0	01	1	9608-0611
460	TUBE; CORRUGATE ENGINE REAR PTO<SV1> EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=4200 SERVICED BY L=6000	1-83129-337-0	01	1	0612-
474	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-9606
474	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9610
474	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9611-9804
474	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9805-0004
474	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512
474	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-0604
474	BOLT; BRKT (A) M8X25 FLANGE	0-28050-825-0	02	1	0605-
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9607-9804
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9805-0004
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-0604
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0605-
474	BOLT; BRKT FRONT SPRING LONG SPAN<W36> (C) M8X16 FLANGE	0-28080-816-0	02	1	0109-0512
474	BOLT; BRKT FRONT SPRING LONG SPAN<W36> (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-
475	NUT; BRKT FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91150-108-0	02	1	0109-0602
475	NUT; BRKT FRONT SPRING LONG SPAN<W36> M8 FLANGE	0-91180-108-0	02	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
