2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#65100) — 106 parça

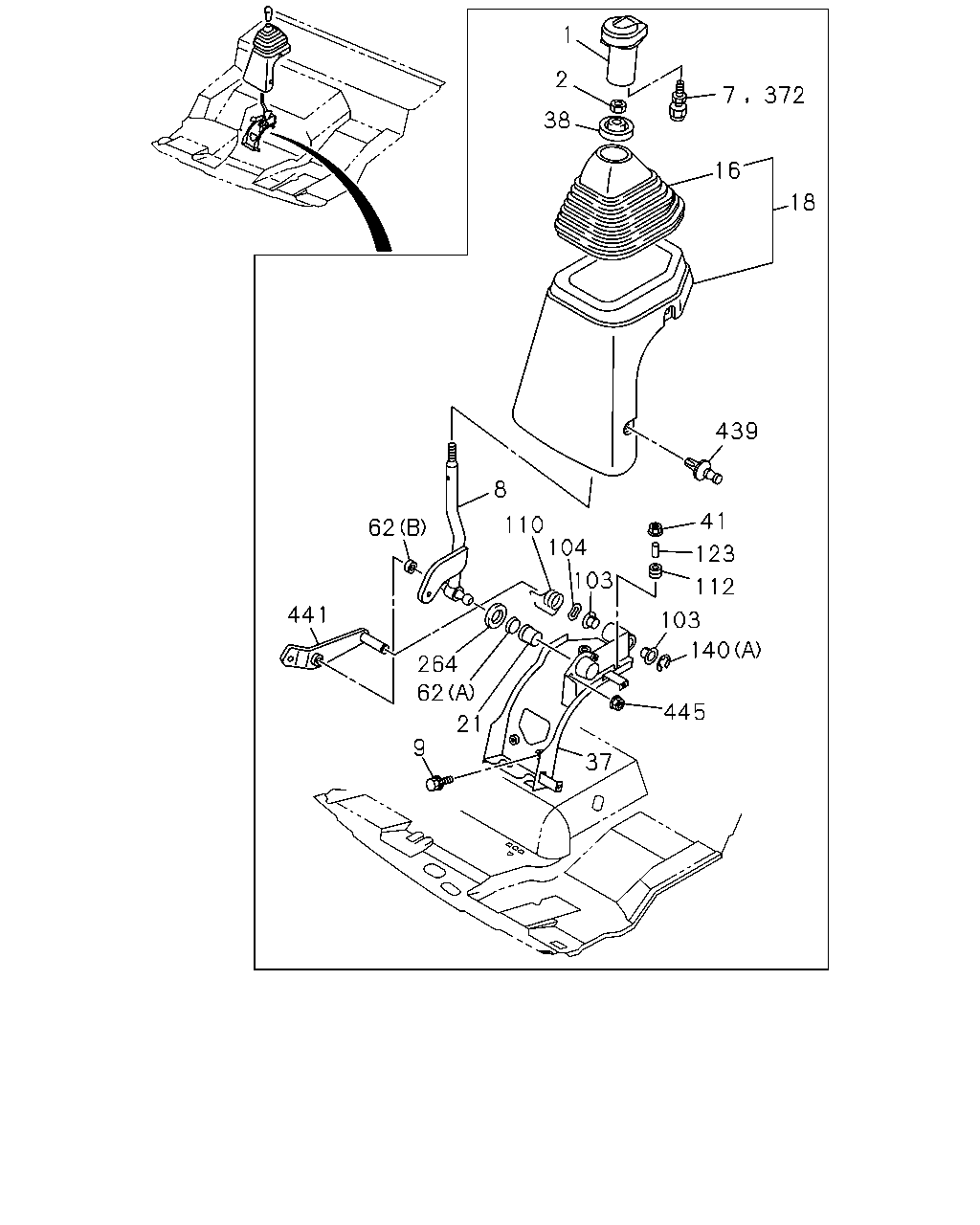

çizim 114214
1 2 372 7 38 16 18 439 8 41 110 104 62 123 103 112 441 103 140 264 62 445 21 37 9
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-043-0 01 1 9601-9610
1 KNOB; CHANGE LEVER 1-33611-110-0 01 1 9611-1401
1 KNOB; CHANGE LEVER 8-98224-292-0 01 1 1402-
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9601-
7 GASKET; CONNECTOR 8-97500-148-0 04 1 9601-9804
8 LEVER; CHANGE 1-33619-503-0 01 1 9601-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9601-9804
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9805-0004
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0005-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0512-
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 9601-9804
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 9805-0004
16 BOOT; CHANGE LEVER 1-79998-751-3 01 1 0005-0511
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 0512-
18 BOOT; CHANGE LEVER 1-79998-761-4 01 1 9601-9804
18 BOOT; CHANGE LEVER 1-79998-761-5 01 1 9805-0004
18 BOOT; CHANGE LEVER 1-79996-394-1 01 1 0005-0511
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9601-9702
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9703-9903
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9904-0004
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0005-1102
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1103-
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 9601-9603
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-552-0 01 1 9604-
38 HOLDER; BOOT CHANGE LEVER 1-79998-915-1 01 1 9603-9709
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 9710-
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9601-9804
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9805-0004
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 0005-0107
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0805
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9601-9702
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9703-9903
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9904-0004
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0005-1102
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1103-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9601-9702
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9703-9903
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9904-0004
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0005-1102
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1103-
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9601-9702
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9703-9903
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9904-0004
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0005-1102
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1103-
104 WASHER; WAVED 1-09550-009-0 01 1 9601-9702
104 WASHER; WAVED 1-09550-009-0 01 1 9703-9903
104 WASHER; WAVED 1-09550-009-0 01 1 9904-0004
104 WASHER; WAVED 1-09550-009-0 01 1 0005-1102
104 WASHER; WAVED 1-09550-009-0 01 1 1103-
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9601-
112 RUBBER; CUSHION 1-33619-442-0 04 1 9601-9702
112 RUBBER; CUSHION 1-33619-442-0 04 1 9703-9903
112 RUBBER; CUSHION 1-33619-442-0 04 1 9904-0004
112 RUBBER; CUSHION 1-33619-442-0 04 1 0005-1102
112 RUBBER; CUSHION 1-33619-442-0 04 1 1103-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9601-9702
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9703-9903
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9904-0004
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0005-1102
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1103-
140 RING; SNAP
(A) ID=10 		9-09185-410-0 01 1 9601-9702
140 RING; SNAP
(A) ID=10 		9-09185-410-0 01 1 9703-9903
140 RING; SNAP
(A) ID=10 		9-09185-410-0 01 1 9904-0004
140 RING; SNAP
(A) ID=10 		9-09185-410-0 01 1 0005-0604
140 RING; SNAP
(A) ID=10 		0-91805-510-0 01 1 0605-1102
140 RING; SNAP
(A) ID=10 		0-91805-510-0 01 1 1103-
264 PLATE; COVER 1-33619-430-0 01 1 9601-9702
264 PLATE; COVER 1-33619-430-0 01 1 9703-9903
264 PLATE; COVER 1-33619-430-0 01 1 9904-0004
264 PLATE; COVER 1-33619-430-0 01 1 0005-1102
264 PLATE; COVER 1-33619-430-0 01 1 1103-
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9805-0804
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 04 1 0805-
439 FASTENER; COVER 1-09987-245-1 04 1 9601-9804
439 FASTENER; COVER 1-09987-245-1 04 1 9805-0004
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005-
441 LEVER; SELECT 1-33619-437-1 01 1 9601-9702
441 LEVER; SELECT 1-33619-437-2 01 1 9703-9903
441 LEVER; SELECT 1-33619-437-2 01 1 9904-0004
441 LEVER; SELECT 1-33619-437-2 01 1 0005-1102
441 LEVER; SELECT 1-33619-437-2 01 1 1103-
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9601-9702
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9703-9903
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9904-0004
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0005-0602
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603-1102
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1103-

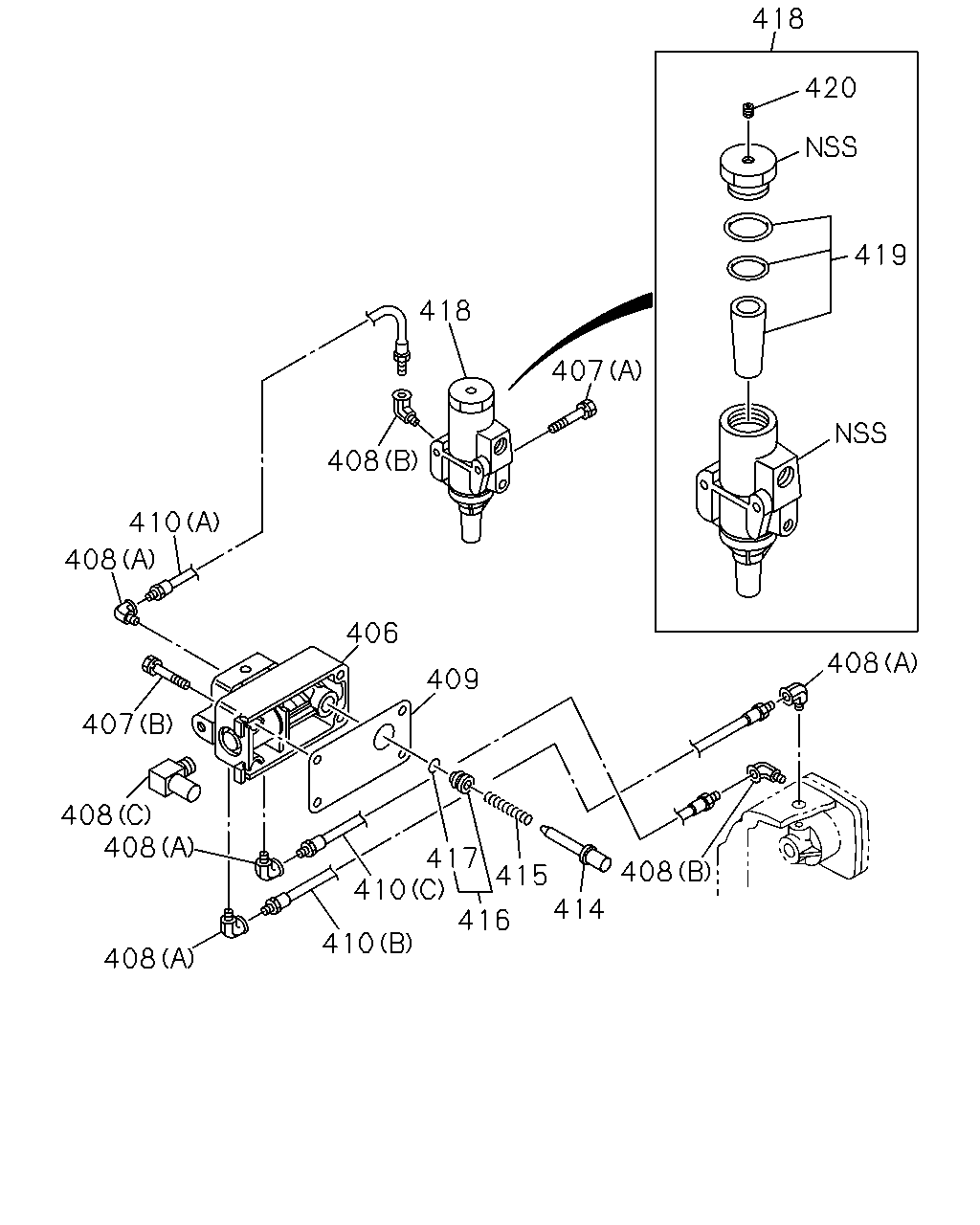

çizim 114220
418 420 419 418 407 408 410 408 406 408 409 407 408 408 417 410 408 415 414 416 410 408
BalonParca AdiParca NoAdetTipApplied Date
406 VALVE ASM; SLAVE 1-87061-508-0 01 1 9601-
407 BOLT; VALVE
(A) 		1-87061-096-0 02 1 9601-
407 BOLT; VALVE
(B) 		1-87061-539-0 04 1 9601-
408 CONNECTOR; AIR HOSE
(C) 		1-33619-533-0 04 1 0604-
408 CONNECTOR; AIR HOSE
(A) 		1-87061-113-0 05 1 9601-
408 CONNECTOR; AIR HOSE
(B) 		1-87061-114-0 02 1 9601-
409 GASKET; SLAVE VALVE 1-87061-170-0 01 1 9601-
410 HOSE; AIR
(C) 		1-87061-496-0 01 1 9601-
410 HOSE; AIR
(B) 		1-87061-497-0 02 1 9601-
410 HOSE; AIR
(A) 		1-87061-498-0 01 1 9601-
414 PIN; SLAVE VALVE 1-87061-466-0 01 1 9601-
415 SPRING; SLAVE VALVE 1-87061-187-0 01 1 9601-
416 SLEEVE; SLAVE VALVE 1-87061-514-0 01 1 9601-
417 GASKET; SLEEVE 1-87060-995-0 01 1 9601-
418 VALVE ASM; AIR FILTER REG 1-87061-240-0 01 1 9601-
419 ELEMENT KIT; REG VLV 1-87061-100-0 01 1 9601-
420 PLUG; VALVE 1-87061-090-0 01 1 9601-
