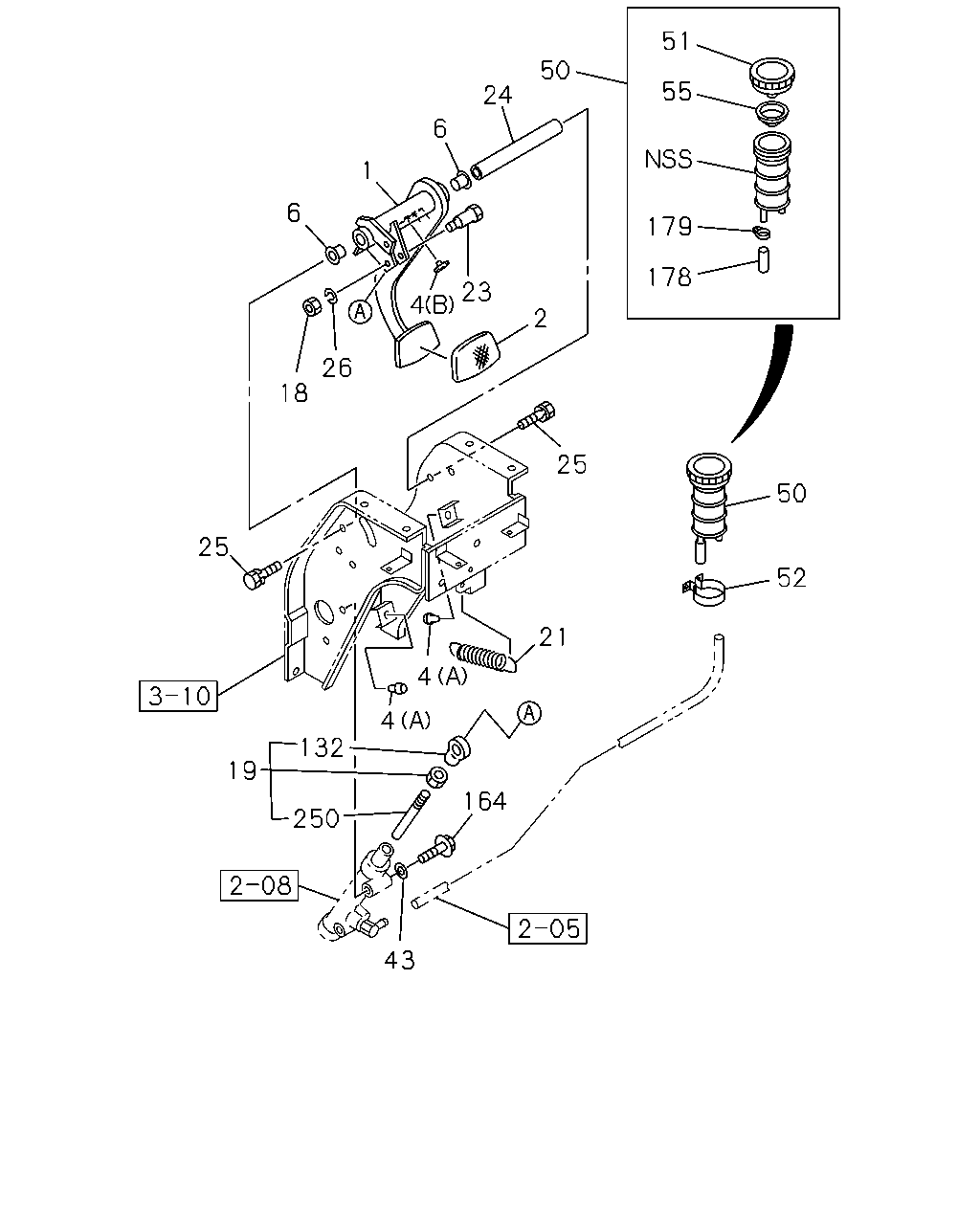

2-03 — CLUTCH PEDAL AND CONTROL
(#6510) — 25 parça
51
50
55
24
6
1
6
179
178
23
4
2
26
18
25
50
25
52
21
4
4
132
19
164
250
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
1-31411-167-1
01
1
9705-
2
COVER; CLU PEDAL
8-94204-810-0
01
1
9705-0106
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0107-
4
STOPPER; CLU PEDAL
(A)
1-47319-014-1
02
1
9705-
4
STOPPER; CLU PEDAL
(B)
5-31419-003-0
01
1
9705-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
9705-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
9705-
19
ROD ASM; PUSH,CLU
1-31422-017-1
01
1
9705-
21
SPRING; RETURN,CLU PEDAL
1-73998-401-1
01
1
9705-
23
BOLT; PUSH ROD
1-09009-145-1
01
1
9705-0003
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
0004-
24
SHAFT; CLU PEDAL
1-31415-007-0
01
1
9705-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
9705-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-808-0
01
1
9705-
43
WASHER; LK,CLU M/CYL
ID=10.2
9-09150-510-0
02
1
9705-
50
TANK; OIL,CLU
1-47530-149-1
01
1
9705-0009
50
TANK; OIL,CLU
1-47530-183-0
01
1
0010-
51
CAP; OIL TANK,CLU
9-47525-032-1
01
1
9705-
52
BRACKET; OIL TANK,CLU M/CYL
9-47537-023-1
01
1
9705-
55
BAFFLE; RUBBER,CLU M/CYL
9-47529-031-0
01
1
9705-
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
9705-
164
BOLT; CLU M/CYL
M10X65
0-10806-065-0
02
1
9705-
178
CAP; OIL TANK HOSE
1-47539-005-0
01
1
9705-
179
CLIP; CAP TO OIL TANK
ID=15
9-09715-098-0
01
1
9705-
250
ROD; PUSH,CLU
1-31422-018-0
01
1
9705-
