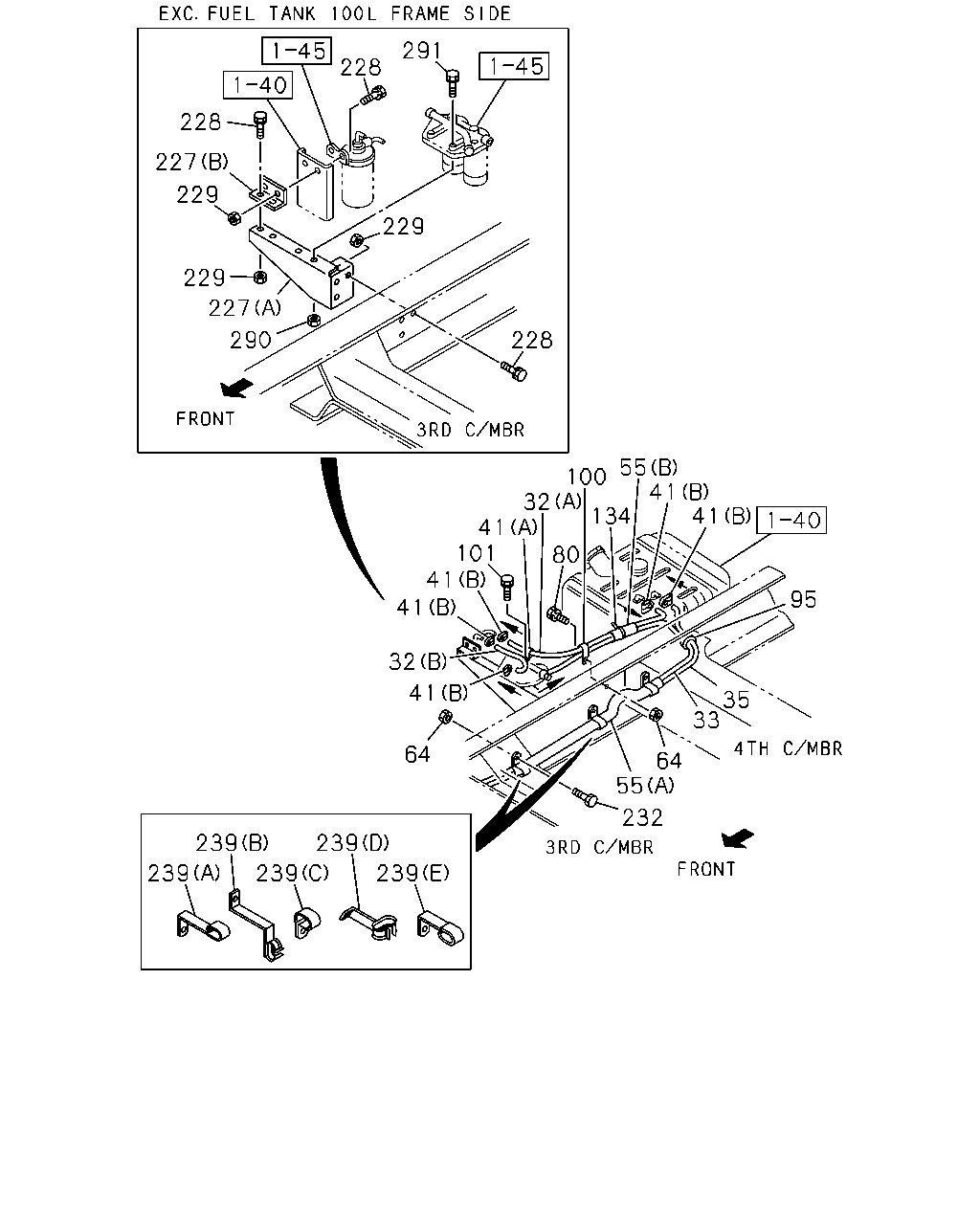

1-41 — FUEL PIPING; CHASSIS (#651) — 138 parça

291 228 228 227 229 229 229 227 290 228 55 41 41 100 32 41 101 41 41 134 80 95 32 41 35 33 64 55 64 232 239 239 239 239 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (B) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 100L FRAME SIDE<N02> ,FUEL TANK 200L FMCSR<PK6> (A) L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9210	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> (A) L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9211-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A) L=1000 SERVICED BY L=10000	9-09914-701-0	01	1	9211-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 100L FRAME SIDE<N02> L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=1440 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9210	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1440 SERVICED BY L=10000	9-09914-701-0	01	1	9211-	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9210	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 100L FRAME SIDE<N02> L=1550 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9207	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 100L FRAME SIDE<N02> L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9304	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9207	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9208-9210	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 200L FRAME SIDE<N20> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9211-9304	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9305-	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=1840 SERVICED BY L=10000	1-09366-161-0	01	1	9211-	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 200L FRAME SIDE<N20> L=2100 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9207	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9207	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9208-9209	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> (A)	9-09535-536-0	01	1	9210-	●
41	CLIP; FUEL PIPE,FUEL TANK (B)	9-09715-098-0	08	1	9202-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> (A) L=700	1-09360-717-1	01	1	9202-9207	●
55	COVER; PIPE,FUEL TANK (B) L=350	1-09360-460-1	01	1	9202-9207	●	●
55	COVER; PIPE,FUEL TANK (A) L=900	1-09360-622-1	01	1	9208-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> (A) L=900	1-09360-622-1	01	1	9202-9207	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=150	1-09369-006-1	01	1	9208-	●	●
55	COVER; PIPE,FUEL TANK (B) L=150	1-09369-006-1	01	1	9208-	●	●
64	NUT; CLIP M8	9-09110-408-0	03	1	9202-	●	●
64	NUT; CLIP FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	01	1	9202-9207	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
80	BOLT; CLIP,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9202-	●	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9209	●	●
100	CLIP; FUEL PIPE	9-09535-536-0	01	1	9210-	●	●
101	BOLT; CLIP,FUEL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9202-	●	●
134	CLIP; BAND,FUEL PIPE L=250	5-09707-030-0	01	1	9202-	●	●
227	BRACKET; FUEL SEDIMENTER (B)	1-19755-108-1	01	1	9202-	●	●
227	BRACKET; FUEL SEDIMENTER (A)	1-22518-124-1	01	1	9202-	●	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9202-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	07	1	9202-	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	02	1	9205-9207	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	03	1	9208-	●	●
232	BOLT; CLIP,PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
232	BOLT; CLIP,PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
232	BOLT; CLIP,PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
239	CLIP; FUEL PIPE (A)	1-09700-926-0	01	1	9202-9207	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-09700-926-0	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9211-		●
239	CLIP; FUEL PIPE (B)	1-15419-210-1	01	1	9202-9207	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B)	1-15419-210-1	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> (C) L=25	1-09700-927-0	02	1	9208-9210	●	●
239	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=25	1-09700-927-0	02	1	9211-	●
239	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) (C) L=25	1-09700-927-0	02	1	9211-		●
239	CLIP; FUEL PIPE FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> (D)	1-15419-291-0	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE (D)	1-15419-291-0	01	1	9211-	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> (E)	1-09700-553-0	01	1	9202-9207	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (E)	1-09700-553-0	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) L=25	1-09700-927-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=25	1-09700-927-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (C) L=25	1-09700-927-0	01	1	9211-		●
290	NUT; FILTER TO BRKT M10	9-09110-510-0	02	1	9202-	●	●
291	BOLT; FILER TO BRKT M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9202-	●	●

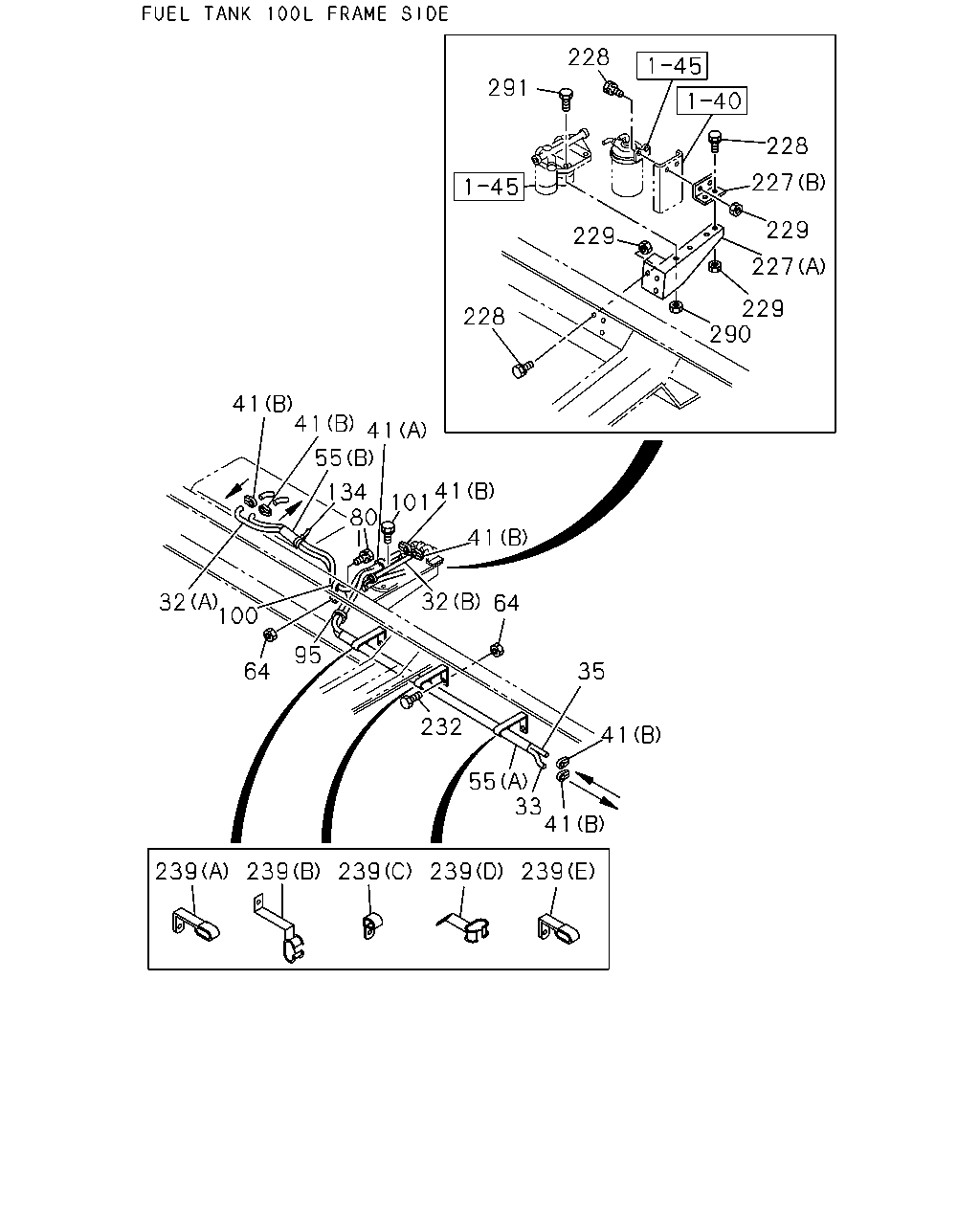

228 291 228 227 229 229 227 229 290 228 41 41 41 55 41 101 134 80 41 100 32 32 64 95 35 64 232 41 55 33 41 239 239 239 239 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (B) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 100L FRAME SIDE<N02> ,FUEL TANK 200L FMCSR<PK6> (A) L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9210	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> (A) L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9211-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A) L=1000 SERVICED BY L=10000	9-09914-701-0	01	1	9211-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 100L FRAME SIDE<N02> L=1300 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=1440 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9210	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER L=1440 SERVICED BY L=10000	9-09914-701-0	01	1	9211-	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9202-9207	●	●
33	PIPE; VINYL,DELIVERY,PRE FILTER FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=1550 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9210	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 100L FRAME SIDE<N02> L=1550 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9207	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 100L FRAME SIDE<N02> L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9208-9304	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9207	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9208-9210	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 200L FRAME SIDE<N20> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9211-9304	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> L=2000 SERVICED BY L=10000	1-09366-161-0	01	1	9305-	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> L=1840 SERVICED BY L=10000	1-09366-161-0	01	1	9211-	●	●
35	PIPE; FUEL TANK,RETURN FUEL TANK 200L FRAME SIDE<N20> L=2100 SERVICED BY L=10000	1-09366-161-0	01	1	9202-9207	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9207	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9208-9209	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> (A)	9-09535-536-0	01	1	9210-	●
41	CLIP; FUEL PIPE,FUEL TANK (B)	9-09715-098-0	08	1	9202-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> (A) L=700	1-09360-717-1	01	1	9202-9207	●
55	COVER; PIPE,FUEL TANK (B) L=350	1-09360-460-1	01	1	9202-9207	●	●
55	COVER; PIPE,FUEL TANK (A) L=900	1-09360-622-1	01	1	9208-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> (A) L=900	1-09360-622-1	01	1	9202-9207	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (B) L=150	1-09369-006-1	01	1	9208-	●	●
55	COVER; PIPE,FUEL TANK (B) L=150	1-09369-006-1	01	1	9208-	●	●
64	NUT; CLIP M8	9-09110-408-0	03	1	9202-	●	●
64	NUT; CLIP FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8	9-09110-408-0	01	1	9202-9207	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
80	BOLT; CLIP,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9202-	●	●
100	CLIP; FUEL PIPE ID=14X29 H=15 L=20	1-09700-744-0	01	1	9202-9209	●	●
100	CLIP; FUEL PIPE	9-09535-536-0	01	1	9210-	●	●
101	BOLT; CLIP,FUEL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9202-	●	●
134	CLIP; BAND,FUEL PIPE L=250	5-09707-030-0	01	1	9202-	●	●
227	BRACKET; FUEL SEDIMENTER (B)	1-19755-108-1	01	1	9202-	●	●
227	BRACKET; FUEL SEDIMENTER (A)	1-22518-124-1	01	1	9202-	●	●
228	BOLT; BRKT,SEDIMENTER M10X30 W/LK WASHER	0-50041-030-0	05	1	9202-	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9202-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	07	1	9202-	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	02	1	9205-9207	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	03	1	9208-	●	●
232	BOLT; CLIP,PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
232	BOLT; CLIP,PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
232	BOLT; CLIP,PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
239	CLIP; FUEL PIPE (A)	1-09700-926-0	01	1	9202-9207	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (A)	1-09700-926-0	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=14X2 H=30 L=25	1-09701-101-0	01	1	9211-		●
239	CLIP; FUEL PIPE (B)	1-15419-210-1	01	1	9202-9207	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (B)	1-15419-210-1	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> (C) L=25	1-09700-927-0	02	1	9208-9210	●	●
239	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=25	1-09700-927-0	02	1	9211-	●
239	CLIP; FUEL PIPE AUSTRALIA EQUIPMENT(RR3) (C) L=25	1-09700-927-0	02	1	9211-		●
239	CLIP; FUEL PIPE FUEL TANK 100L FRAME SIDE<N02>,FUEL TANK 200L FRAME SIDE<N20> (D)	1-15419-291-0	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE (D)	1-15419-291-0	01	1	9211-	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FRAME SIDE<N20> ,FUEL TANK 200L FMCSR<PK6> (E)	1-09700-553-0	01	1	9202-9207	●	●
239	CLIP; FUEL PIPE FUEL TANK 160L<NG6>,FUEL TANK 200L FMCSR<PK6> (E)	1-09700-553-0	01	1	9208-9210	●	●
239	CLIP; FUEL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) L=25	1-09700-927-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=25	1-09700-927-0	01	1	9211-	●
239	CLIP; FUEL PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (C) L=25	1-09700-927-0	01	1	9211-		●
290	NUT; FILTER TO BRKT M10	9-09110-510-0	02	1	9202-	●	●
291	BOLT; FILER TO BRKT M10X40 W/LK&PL WASHER	0-50141-040-0	02	1	9202-	●	●
