◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#65099) — 1177 parça

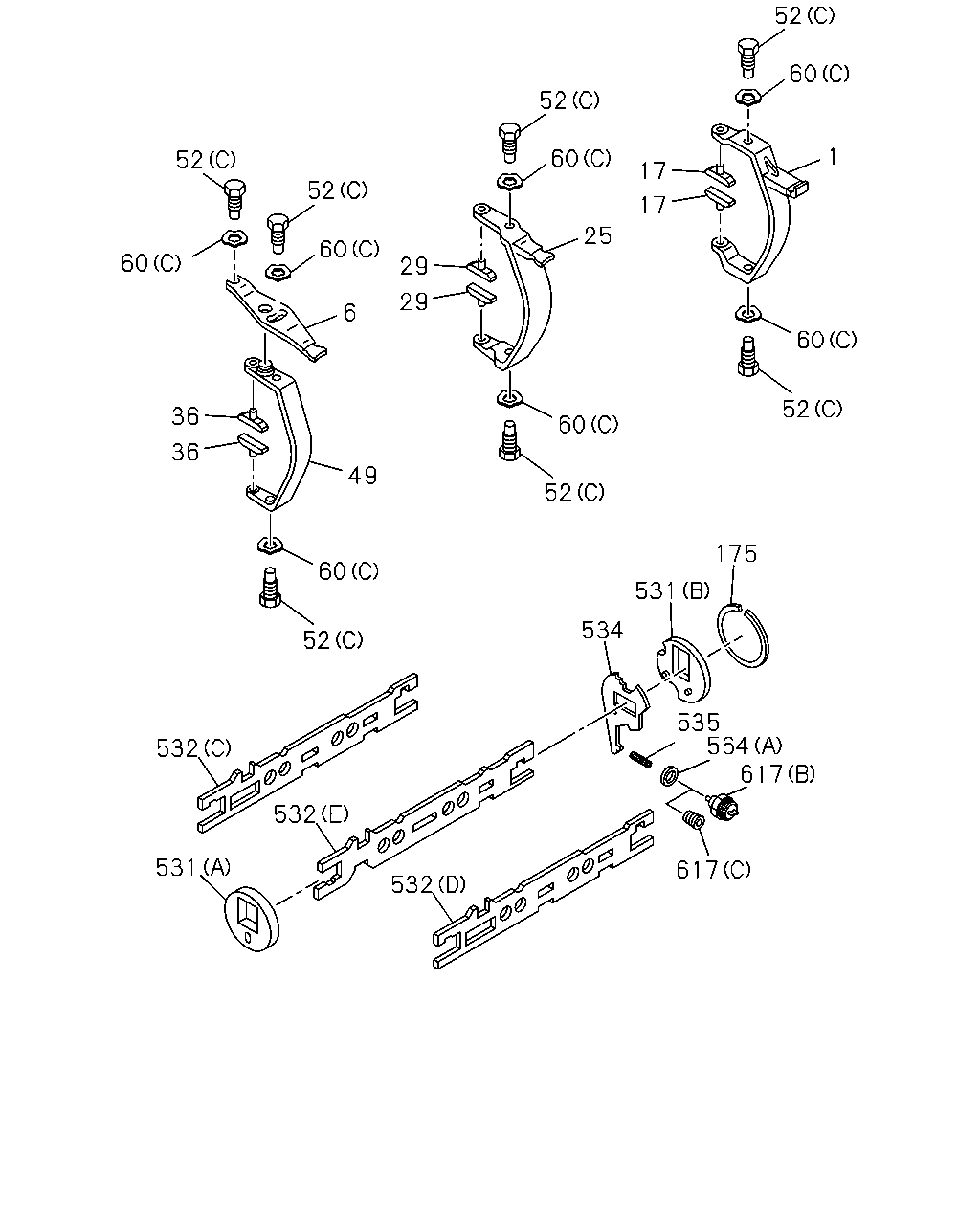

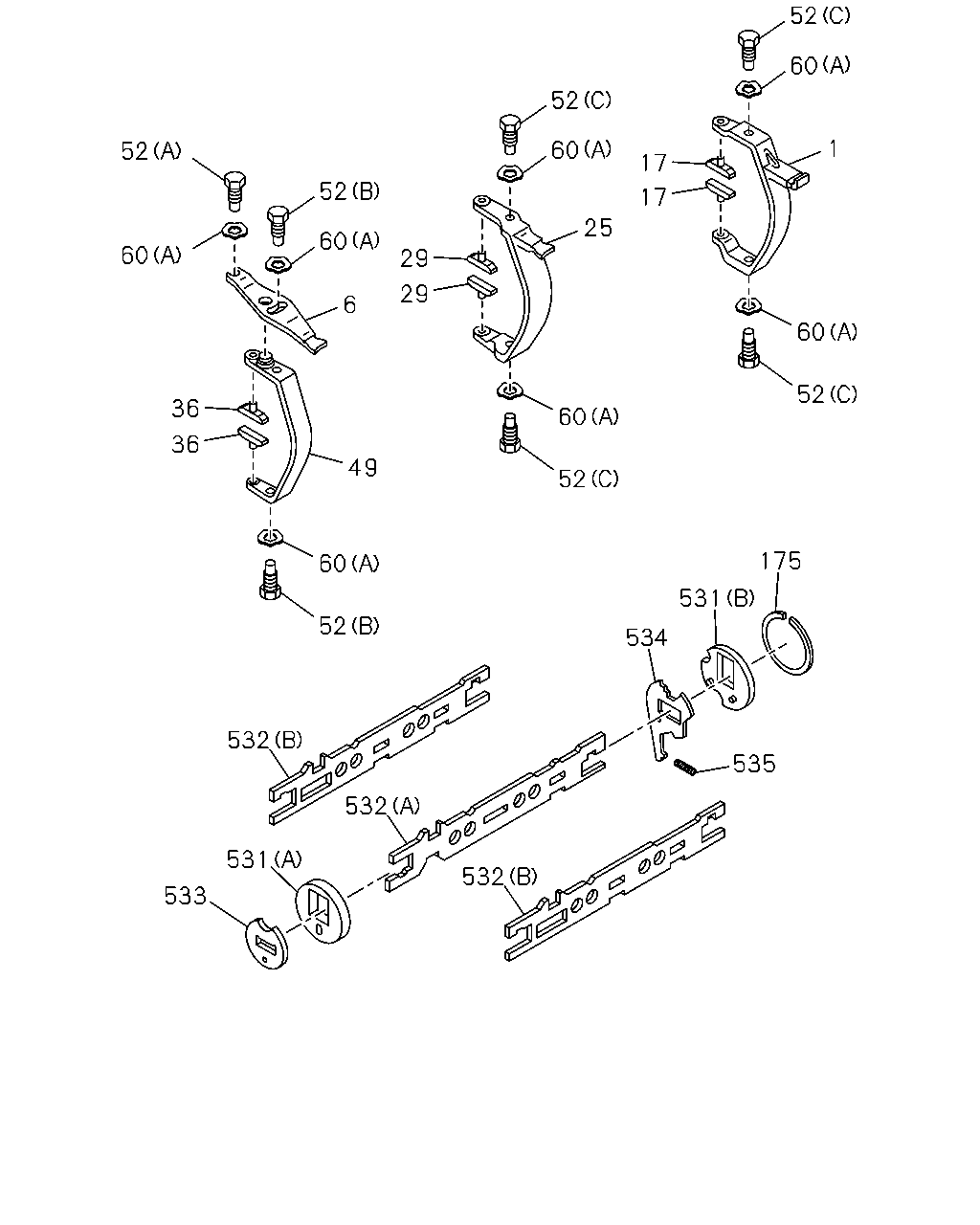

çizim 113779
52 52 1 52 17 52 17 25 60 29 29 6 60 52 36 60 36 49 52 175 60 531 52 534 532 535 532 531 532 533 60 60 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1103- ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 9703-9903 ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 9904-0004 ● ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 0005- ●
6 LEVER; RELAY 1-33511-658-0 01 1 1103- ●
6 LEVER; RELAY 1-33511-526-0 01 1 9703-9903 ●
6 LEVER; RELAY 1-33511-526-0 01 1 9904-0004 ● ●
6 LEVER; RELAY 1-33511-526-0 01 1 0005- ●
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1103- ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 9703-9903 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 9904-0004 ● ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 0005- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1103- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 9703-9903 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 9904-0004 ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 0005- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 9703-9903 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 9904-0004 ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0005-1102 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1103- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1103- ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 9703-9903 ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 9904-0004 ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 0005- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1103- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 9703-9903 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 9904-0004 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 07 1 1103-1305 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-190-0 07 1 1306- ●
52 BOLT; SHIFT ARM
(E) 		1-33519-187-0 02 1 1103-1305 ●
52 BOLT; SHIFT ARM
(E) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9703-9903 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9703-9903 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0005- ●
60 WASHER; LK
(C) 		1-36129-024-0 07 1 1103-1305 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9703-9903 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9904-0004 ● ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0005- ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9703-9903 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9904-0004 ● ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0005- ●
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1103- ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 9703-9903 ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 9904-0004 ● ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 0005- ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 9703-9903 ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 9904-0004 ● ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 0005-1102 ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1103- ● ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 9703-9903 ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 9904-0004 ● ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 0005-1102 ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1103- ● ●
532 PLATE; SHIFT FORK
(D) 		1-33531-492-0 01 1 1103- ●
532 PLATE; SHIFT FORK
(E) 		1-33531-493-0 01 1 1103- ●
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1103- ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 9703-9903 ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 9904-0004 ● ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 0005- ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 9703-9903 ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 9904-0004 ● ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 0005- ●
533 STOPPER; PLATE 1-33539-045-0 01 1 9703-9903 ●
533 STOPPER; PLATE 1-33539-045-0 01 1 9904-0004 ● ●
533 STOPPER; PLATE 1-33539-045-0 01 1 0005- ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1103- ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 9703-9903 ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 9904-0004 ● ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 0005- ●
535 SPRING; LEVER 1-33539-049-0 01 1 9703-9903 ●
535 SPRING; LEVER 1-33539-049-0 01 1 9904-0004 ● ●
535 SPRING; LEVER 1-33539-049-0 01 1 0005-1102 ●
535 SPRING; LEVER 1-33539-049-0 01 1 1103- ● ●

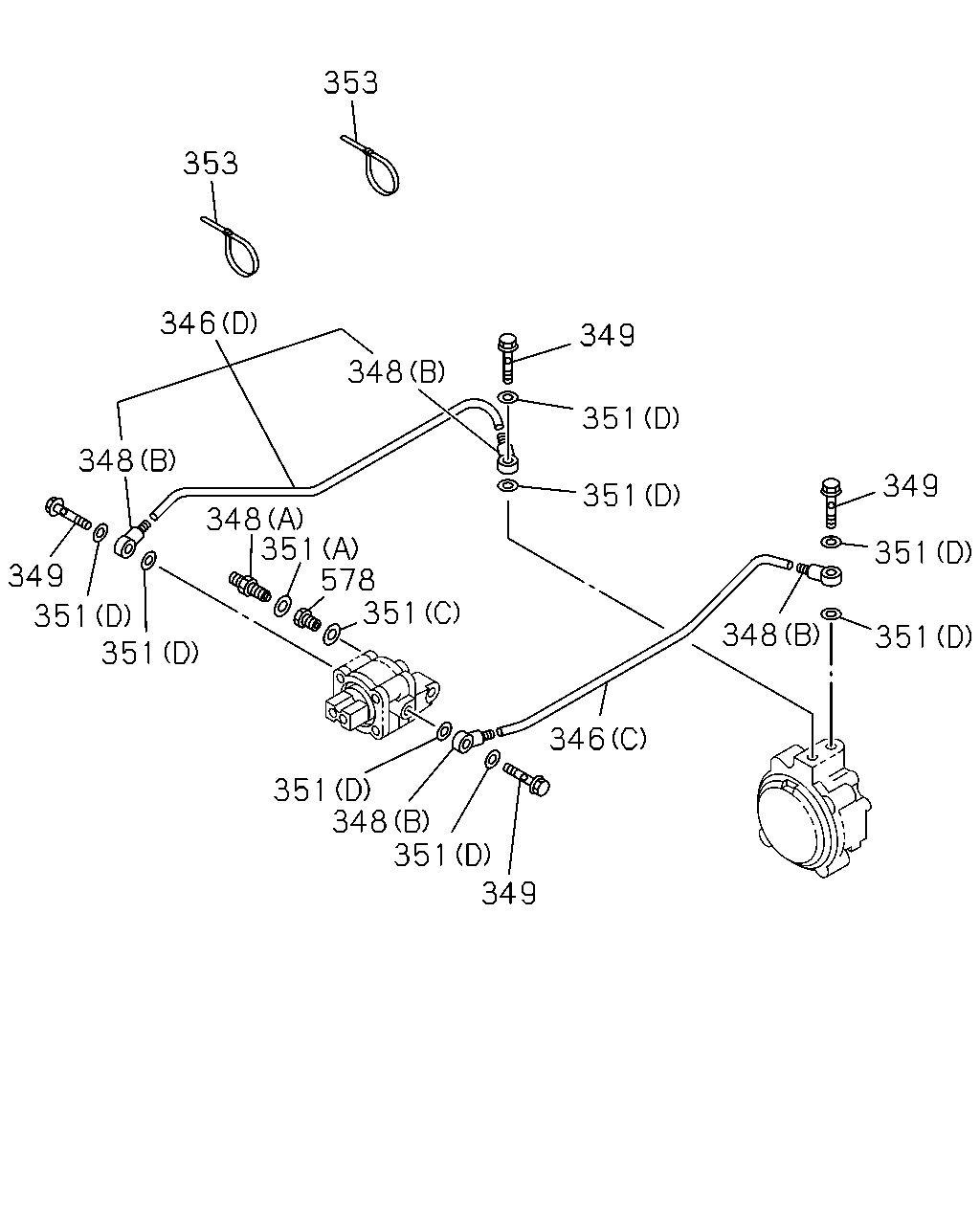

çizim 113811
353 353 346 349 348 351 348 349 351 348 351 578 351 351 349 351 351 348 351 346 351 348 351 349
BalonParca AdiParca NoAdetTipApplied Date A B C

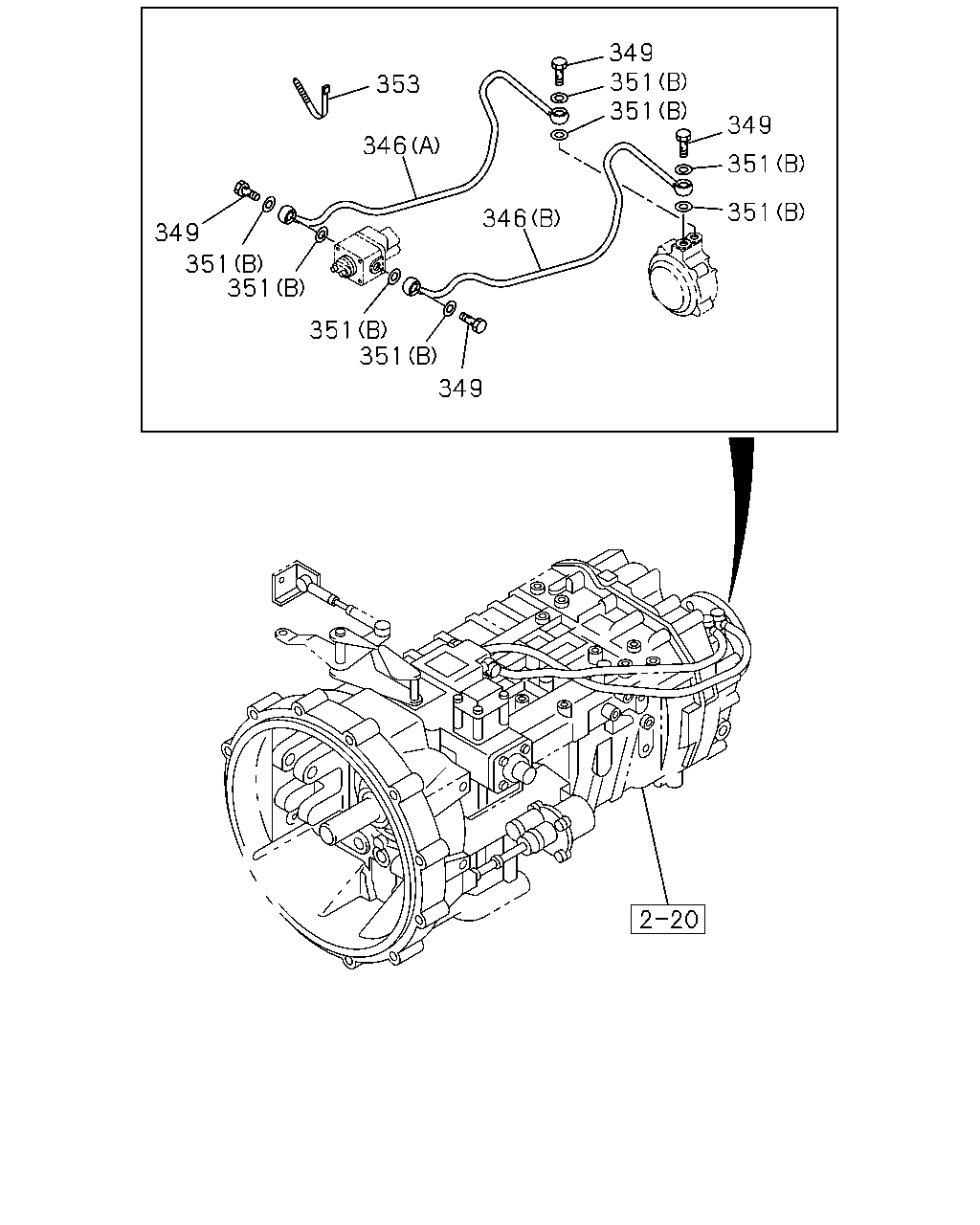

346 HOSE; AIR
(C) 		1-33549-400-0 01 1 1103-1305 ●
346 HOSE; AIR
(C) 		1-33549-618-0 01 1 1306- ●
346 HOSE; AIR
(D) 		1-33549-443-0 01 1 1103-1305 ●
346 HOSE; AIR
(D) 		1-33549-598-0 01 1 1306- ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 9703-9903 ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 9904-0004 ● ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 0005- ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 9703-9903 ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 9904-0004 ● ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 0005- ●
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1103- ● ●
348 CONNECTOR; AIR HOSE
(A) 		1-09660-678-0 01 1 9703-9903 ●
348 CONNECTOR; AIR HOSE
(A) 		1-09660-678-0 01 1 9904-0004 ● ●
348 CONNECTOR; AIR HOSE
(A) 		1-09660-678-0 01 1 0005-0407 ●
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 0408-1102 ●
348 CONNECTOR; AIR HOSE
(B) 		1-33549-139-0 04 1 1103-1305 ●
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 04 1 1306- ●
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1103-1305 ●
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1306- ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 9703-9903 ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 9904-0004 ● ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 0005- ●
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1103- ●
351 GASKET; CONNECTOR
(D) 		1-33549-578-0 08 1 1103- ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9703-9903 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 0005-1102 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 1103-1312 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9703-9903 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0005- ●
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1103- ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 9703-9903 ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 9904-0004 ● ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 0005- ●
578 CONNECTOR 1-33549-553-0 01 1 1103- ●

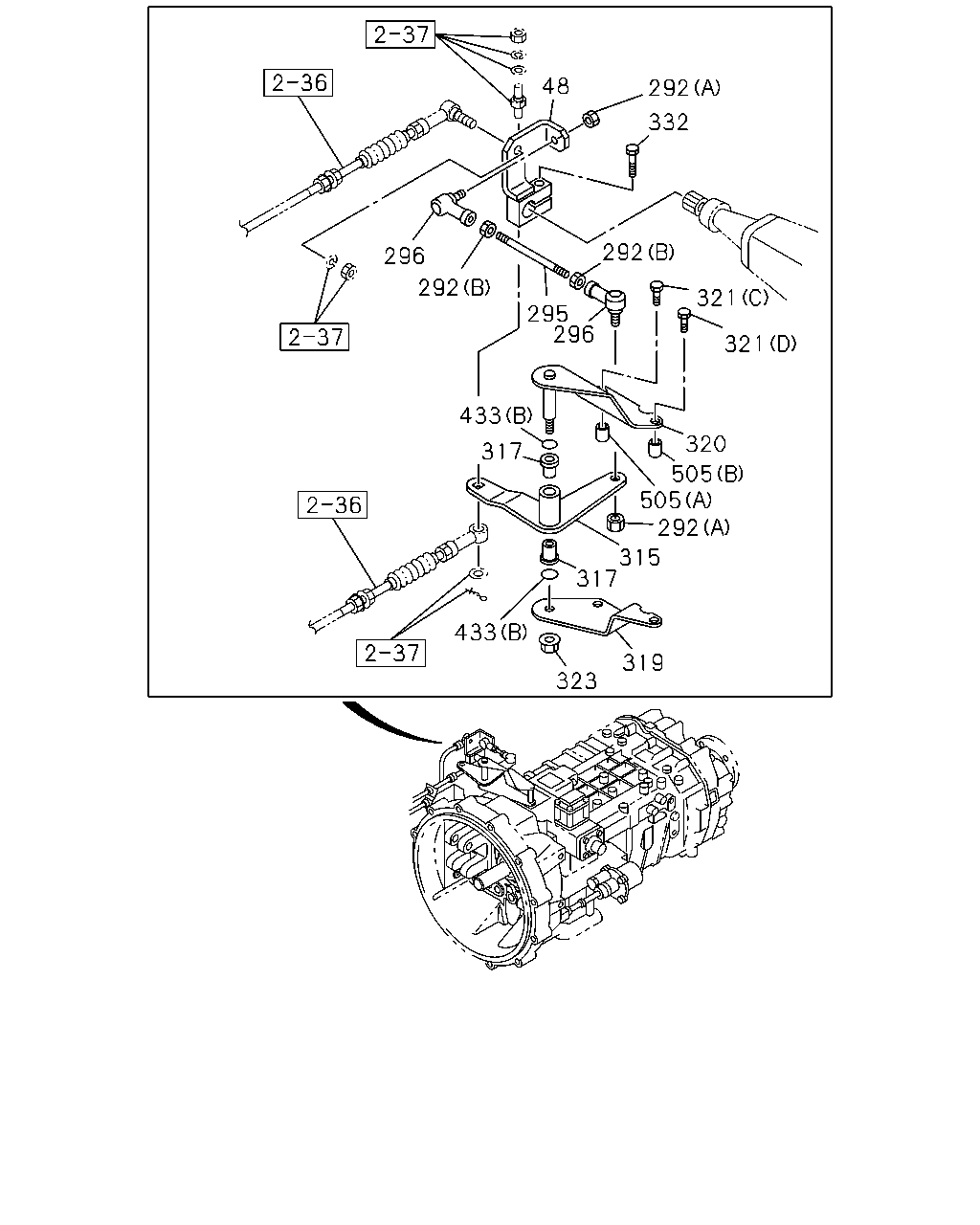

çizim 113879
48 292 332 292 296 321 292 295 296 321 433 320 317 505 505 292 315 317 433 319 323
BalonParca AdiParca NoAdetTipApplied Date A B C
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 9703-9903 ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 9904-0004 ● ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 0005-1102 ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 1103- ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9703-9804 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0005-1102 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 1103- ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9703-9903 ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0005-0512 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-1102 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 1103- ● ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 9703-9903 ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 9904-0004 ● ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 0005-1102 ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1103- ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9703-9903 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-1102 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 1103- ● ●
315 LEVER; SELECT 8-98061-898-0 01 1 1103- ●
315 LEVER; SELECT 1-33651-660-1 01 1 9703-9903 ●
315 LEVER; SELECT 1-33651-660-1 01 1 9904-0004 ● ●
315 LEVER; SELECT 1-33651-660-1 01 1 0005- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9703-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-1102 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1103- ● ●
319 BRACKET; SELECT LEVER 8-98065-843-0 01 1 1103- ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 9703-9903 ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 9904-0004 ● ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 0005- ●
320 SHAFT; LEVER 8-98065-840-0 01 1 1103- ●
320 SHAFT; LEVER 1-33619-524-0 01 1 9703-9903 ●
320 SHAFT; LEVER 1-33619-524-0 01 1 9904-0004 ● ●
320 SHAFT; LEVER 1-33619-524-0 01 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
(C) M8X110 FLANGE 		0-28055-811-0 01 1 1103- ●
321 BOLT; BRKT,RELAY LEVER
(D) 		8-97380-893-0 01 1 1103- ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 9703-9903 ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 9904-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 9703-9903 ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 9904-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 0005- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1103- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9703-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005- ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9703-9903 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9904-0004 ● ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0512 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 0601-1102 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 1103- ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9703-9903 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9904-0004 ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-1102 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 1103- ● ●
505 SPACER; BRKT
(B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1103- ●
505 SPACER; BRKT
(A) L=28 		9-83625-376-0 01 1 1103- ●
505 SPACER; BRKT
(C) 		1-11349-149-0 02 1 9703-9903 ●
505 SPACER; BRKT
(C) 		1-11349-149-0 02 1 9904-0004 ● ●
505 SPACER; BRKT
(C) 		1-11349-149-0 02 1 0005- ●
çizim 113910
361 359 355 357 356 355 354 363 345 347 358 345 60 352 52 52 60
BalonParca AdiParca NoAdetTipApplied Date A B C
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 07 1 1103-1305 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-190-0 07 1 1306- ●
52 BOLT; SHIFT ARM
(E) 		1-33519-187-0 02 1 1103-1305 ●
52 BOLT; SHIFT ARM
(E) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9703-9903 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9703-9903 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0005- ●
60 WASHER; LK
(C) 		1-36129-024-0 07 1 1103-1305 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9703-9903 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9904-0004 ● ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0005- ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9703-9903 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9904-0004 ● ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0005- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 9703-9903 ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 9904-0004 ● ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0005-1102 ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1103- ● ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 9703-9903 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 9904-0004 ● ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0005-1102 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1103- ● ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1103-1305 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 9703-9903 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 9904-0004 ● ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 0005- ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 9703-9903 ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 9904-0004 ● ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 0005-1102 ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 1103- ● ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 9703-9903 ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 9904-0004 ● ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 0005-1102 ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1103-1305 ● ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1306- ●
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306- ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 9703-9903 ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 9904-0004 ● ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 0005-1102 ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 1103-1305 ● ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 1306- ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 9703-9903 ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 9904-0004 ● ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 0005-1102 ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1103-1305 ● ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1306- ●
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1103- ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 9703-9903 ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 9904-0004 ● ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 0005- ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 9703-9903 ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 9904-0004 ● ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 0005-1102 ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 1103- ● ●
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 9703-1102 ●
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1103- ● ●
361 CYLINDER; AIR,SHIFT 1-33519-091-0 01 1 9904-0004 ●
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1103- ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 9703-9903 ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 9904-0004 ● ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 0005- ●

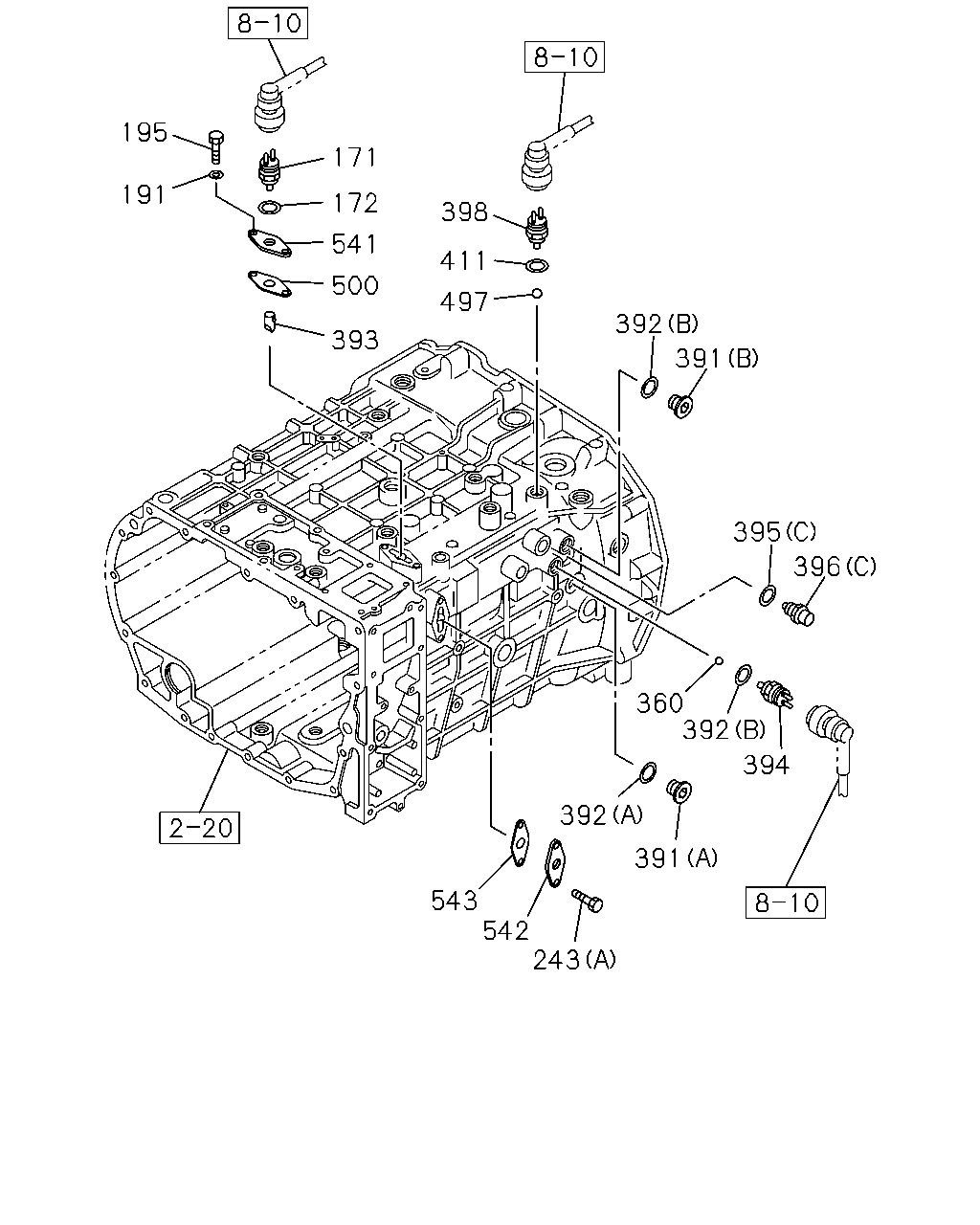

çizim 113963
195 171 191 172 398 541 411 500 497 392 393 391 395 396 360 392 394 392 391 543 542 243
BalonParca AdiParca NoAdetTipApplied Date A B C
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1103-1305 ●
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1306- ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9703-9903 ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9904-0004 ● ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 0005- ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9703-9903 ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9904-0004 ● ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0005-1102 ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1103- ● ●
191 WASHER; LK 1-33549-577-0 02 1 1103-1305 ●
191 WASHER; LK 1-33549-583-0 02 1 1306- ●
191 WASHER; LK 1-36129-007-0 02 1 9703-9903 ●
191 WASHER; LK 1-36129-007-0 02 1 9904-0004 ● ●
191 WASHER; LK 1-36129-007-0 02 1 0005- ●
195 BOLT 1-33119-593-0 02 1 1103- ●
195 BOLT 1-33119-301-0 02 1 9703-9903 ●
195 BOLT 1-33119-301-0 02 1 9904-0004 ● ●
195 BOLT 1-33119-301-0 02 1 0005- ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9703-9903 ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 0005- ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9703-9903 ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 0005- ●
360 BALL; AIR CYL 1-33119-252-0 01 1 9703-9903 ●
360 BALL; AIR CYL 1-33119-252-0 01 1 9904-0004 ● ●
360 BALL; AIR CYL 1-33119-252-0 01 1 0005-1102 ●
360 BALL; AIR CYL 1-33119-252-0 01 1 1103- ● ●
391 PLUG; SW HOLE
(B) 		1-33119-171-0 02 1 9703-9903 ●
391 PLUG; SW HOLE
(B) 		1-33119-171-0 02 1 9904-0004 ● ●
391 PLUG; SW HOLE
(B) 		1-33119-171-0 02 1 0005- ●
391 PLUG; SW HOLE
(A) 		1-34129-061-0 01 1 9703-9903 ●
391 PLUG; SW HOLE
(A) 		1-34129-061-0 01 1 9904-0004 ● ●
391 PLUG; SW HOLE
(A) 		1-34129-061-0 01 1 0005- ●
392 GASKET; PLUG & SW
(B) 		1-33119-249-0 01 1 1103- ●
392 GASKET; PLUG & SW
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 9703-9903 ●
392 GASKET; PLUG & SW
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 9904-0004 ● ●
392 GASKET; PLUG & SW
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 0005- ●
392 GASKET; PLUG & SW
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-184-0 01 1 9703-9903 ●
392 GASKET; PLUG & SW
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-184-0 01 1 9904-0004 ● ●
392 GASKET; PLUG & SW
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-184-0 01 1 0005- ●
393 PIN; SW 1-33119-298-0 01 1 9703-9903 ●
393 PIN; SW 1-33119-298-0 01 1 9904-0004 ● ●
393 PIN; SW 1-33119-298-0 01 1 0005-1102 ●
393 PIN; SW 1-33119-298-0 01 1 1103- ● ●
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1103-1305 ●
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1306- ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 9703-9903 ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 9904-0004 ● ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 0005- ●
395 GASKET; PLUNGER
(D) 		1-33549-497-0 01 1 1103- ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0005- ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0005- ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9703-9903 ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9904-0004 ● ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1103- ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005-1102 ●
396 PLUNGER; SHIFT ROD
(E) 		1-33519-189-0 01 1 1103- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1103- ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 9703-9903 ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 9904-0004 ● ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 0005- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9703-9903 ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9904-0004 ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0005-1102 ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1103- ● ●
497 BALL; SWITCH 1-33119-252-0 01 1 9703-9903 ●
497 BALL; SWITCH 1-33119-252-0 01 1 9904-0004 ● ●
497 BALL; SWITCH 1-33119-252-0 01 1 0005-1102 ●
497 BALL; SWITCH 1-33119-252-0 01 1 1103- ● ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 9703-9903 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 9904-0004 ● ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 0005-1102 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 1103- ● ●
541 PLATE; SWITCH 1-33119-300-0 01 1 9703-9903 ●
541 PLATE; SWITCH 1-33119-300-0 01 1 9904-0004 ● ●
541 PLATE; SWITCH 1-33119-300-0 01 1 0005-1102 ●
541 PLATE; SWITCH 1-33119-300-0 01 1 1103- ● ●
542 COVER; SWITCH HOLE 1-33119-302-0 01 1 9703-9903 ●
542 COVER; SWITCH HOLE 1-33119-302-0 01 1 9904-0004 ● ●
542 COVER; SWITCH HOLE 1-33119-302-0 01 1 0005- ●
543 GASKET; PLATE 1-33119-299-0 01 1 9703-9903 ●
543 GASKET; PLATE 1-33119-299-0 01 1 9904-0004 ● ●
543 GASKET; PLATE 1-33119-299-0 01 1 0005- ●
çizim 113992
349 351 351 353 349 346 351 351 346 349 351 351 351 351 349
BalonParca AdiParca NoAdetTipApplied Date A B C
346 HOSE; AIR
(C) 		1-33549-400-0 01 1 1103-1305 ●
346 HOSE; AIR
(C) 		1-33549-618-0 01 1 1306- ●
346 HOSE; AIR
(D) 		1-33549-443-0 01 1 1103-1305 ●
346 HOSE; AIR
(D) 		1-33549-598-0 01 1 1306- ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 9703-9903 ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 9904-0004 ● ●
346 HOSE; AIR
(A) 		1-33549-214-0 01 1 0005- ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 9703-9903 ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 9904-0004 ● ●
346 HOSE; AIR
(B) 		1-33549-215-0 01 1 0005- ●
349 BOLT; EYE,AIR HOSE 1-33549-573-0 04 1 1103-1305 ●
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1306- ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 9703-9903 ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 9904-0004 ● ●
349 BOLT; EYE,AIR HOSE 1-33549-155-0 04 1 0005- ●
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1103- ●
351 GASKET; CONNECTOR
(D) 		1-33549-578-0 08 1 1103- ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9703-9903 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 0005-1102 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 1103-1312 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9703-9903 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0005- ●
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1103- ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 9703-9903 ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 9904-0004 ● ●
353 CLIP; AIR HOSE 1-33549-142-0 02 1 0005- ●

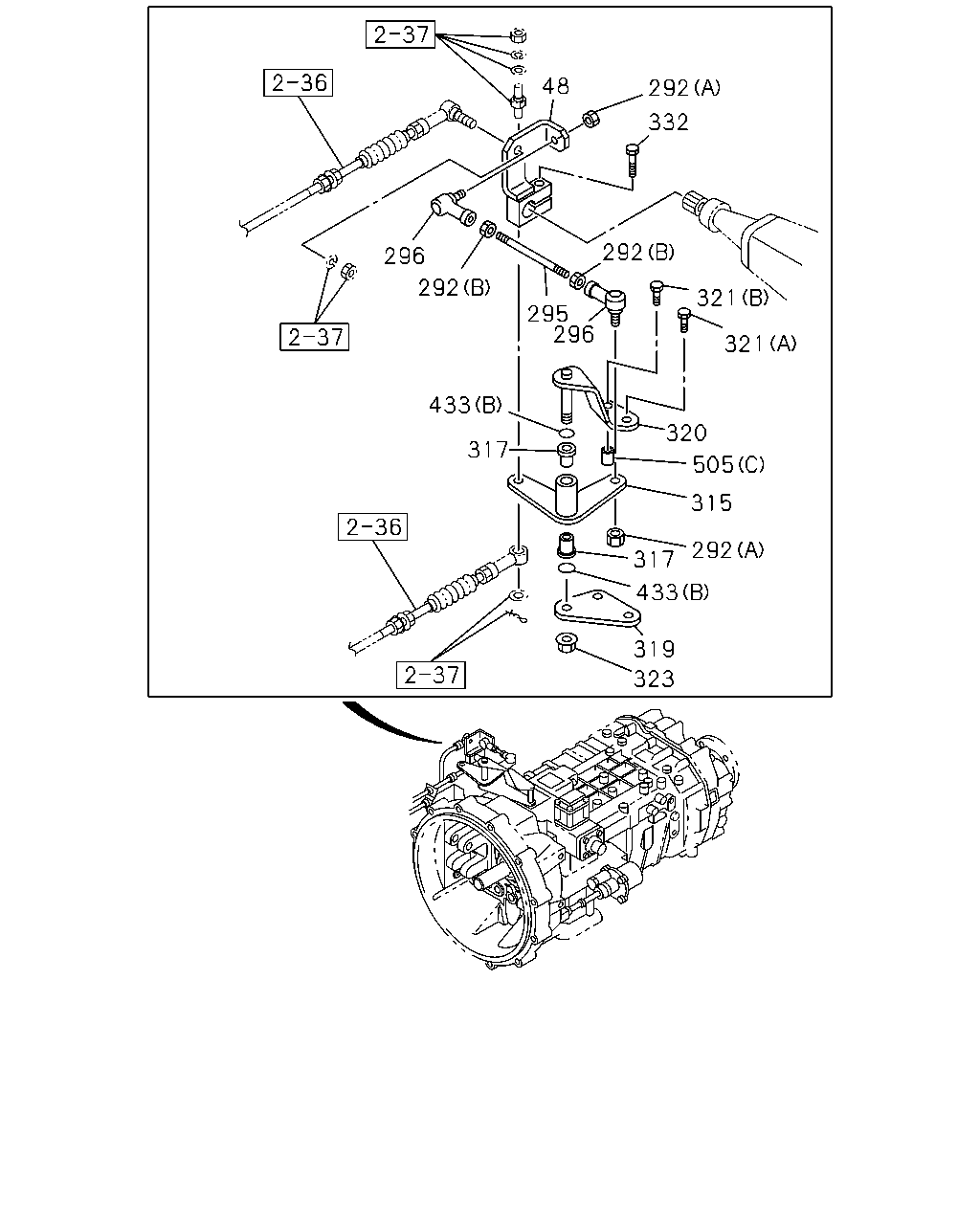

çizim 114025
48 292 332 292 296 321 292 295 296 321 433 320 317 505 315 292 317 433 319 323
BalonParca AdiParca NoAdetTipApplied Date A B C
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 9703-9903 ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 9904-0004 ● ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 0005-1102 ●
48 LEVER; 4TH,SHIFT 1-33651-661-1 01 1 1103- ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9703-9804 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9903 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0005-1102 ●
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 1103- ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9703-9903 ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9904-0004 ● ●
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0005-0512 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-1102 ●
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 1103- ● ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 9703-9903 ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 9904-0004 ● ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 0005-1102 ●
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1103- ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9703-9903 ●
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-1102 ●
296 ROD END
L=45.5 		1-09760-118-1 02 1 1103- ● ●
315 LEVER; SELECT 8-98061-898-0 01 1 1103- ●
315 LEVER; SELECT 1-33651-660-1 01 1 9703-9903 ●
315 LEVER; SELECT 1-33651-660-1 01 1 9904-0004 ● ●
315 LEVER; SELECT 1-33651-660-1 01 1 0005- ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9703-9903 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004 ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-1102 ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1103- ● ●
319 BRACKET; SELECT LEVER 8-98065-843-0 01 1 1103- ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 9703-9903 ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 9904-0004 ● ●
319 BRACKET; SELECT LEVER 1-33657-612-0 01 1 0005- ●
320 SHAFT; LEVER 8-98065-840-0 01 1 1103- ●
320 SHAFT; LEVER 1-33619-524-0 01 1 9703-9903 ●
320 SHAFT; LEVER 1-33619-524-0 01 1 9904-0004 ● ●
320 SHAFT; LEVER 1-33619-524-0 01 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
(C) M8X110 FLANGE 		0-28055-811-0 01 1 1103- ●
321 BOLT; BRKT,RELAY LEVER
(D) 		8-97380-893-0 01 1 1103- ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 9703-9903 ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 9904-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
(A) 		1-09040-100-0 01 1 0005- ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 9703-9903 ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 9904-0004 ● ●
321 BOLT; BRKT,RELAY LEVER
(B) M8X20,M8X104 L=132 		1-09049-026-0 01 1 0005- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1103- ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9703-9903 ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004 ● ●
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005- ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9703-9903 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 9904-0004 ● ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0512 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 0601-1102 ●
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 1103- ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9703-9903 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9904-0004 ● ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-1102 ●
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 1103- ● ●
505 SPACER; BRKT
(B) ID=9 OD=18 T=5 		9-14149-173-0 01 1 1103- ●
505 SPACER; BRKT
(A) L=28 		9-83625-376-0 01 1 1103- ●
505 SPACER; BRKT
(C) 		1-11349-149-0 02 1 9703-9903 ●
505 SPACER; BRKT
(C) 		1-11349-149-0 02 1 9904-0004 ● ●
505 SPACER; BRKT
(C) 		1-11349-149-0 02 1 0005- ●
çizim 114120
303 277 19 19 277 277 303 19 157 298 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(E) 		1-33539-030-0 02 1 1103- ●
19 SPRING; COIL COMP
(F) 		1-33539-092-0 01 1 1103- ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 0005- ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 0005-1102 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 1103- ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 0005- ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 0005-1102 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 1103- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1103- ●
157 BOX; QUAD,TRANS
(B) 		1-33549-588-0 01 1 1103-1305 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9703-9903 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9904-0004 ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 0005- ●
277 PLATE; SPRING SEAT
(C) 		1-33539-107-0 02 1 1103- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-108-0 01 1 1103-1305 ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 9703-9903 ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 9904-0004 ● ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 0005- ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 9703-9903 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 9904-0004 ● ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 0005- ●
298 SHAFT; SHIFT LEVER 1-33522-211-0 01 1 1103- ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9703-9903 ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9904-0004 ● ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 0005- ●
303 RING; SNAP,SHAFT 1-33539-040-0 02 1 1103- ●

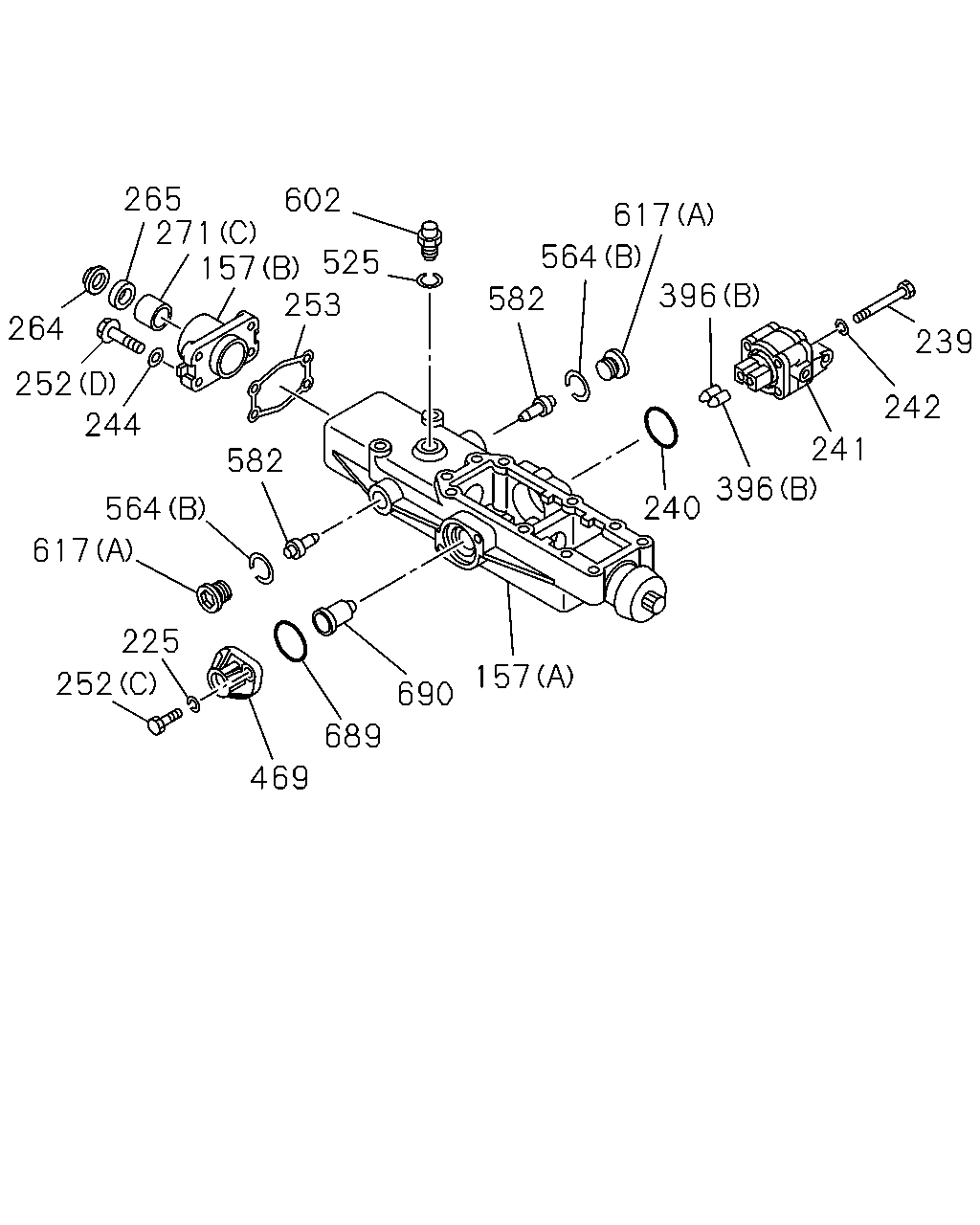

çizim 114153
265 271 157 253 602 617 564 525 396 582 264 239 252 242 244 241 396 582 240 564 617 225 157 252 690 689 469
BalonParca AdiParca NoAdetTipApplied Date A B C
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1103- ●
157 BOX; QUAD,TRANS
(B) 		1-33549-588-0 01 1 1103-1305 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9703-9903 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9904-0004 ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 0005- ●
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1103- ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9703-9903 ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9904-0004 ● ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 0005- ●
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1103- ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9703-9903 ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9904-0004 ● ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 0005- ●
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1103- ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 9703-9903 ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 9904-0004 ● ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 0005- ●
241 VALVE; CUT OFF 1-33549-495-0 01 1 1103- ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 9703-9903 ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 9904-0004 ● ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 0005- ●
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1103- ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 9703-9903 ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 9904-0004 ● ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 0005- ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1103- ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9703-9903 ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9904-0004 ● ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 0005- ●
252 BOLT; SIDE COVER
(C) M8X30 		1-33549-581-0 02 1 1103- ●
252 BOLT; SIDE COVER
(D) M8X35 		1-33549-586-0 04 1 1103- ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 9703-9903 ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 9904-0004 ● ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 0005- ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 9703-9903 ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 9904-0004 ● ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 0005- ●
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1103- ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 9703-9903 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 9904-0004 ● ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 0005- ●
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 1103- ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9703-9903 ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9904-0004 ● ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 0005- ●
265 SEAL; OIL,SHIFT 1-33549-328-0 01 1 1103- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 9703-9903 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 9904-0004 ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 0005- ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 1103- ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9703-9903 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 0005-1102 ●
271 BUSHING; QUAD BOX
(C) 		1-33549-537-0 01 1 1103- ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9703-9903 ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1103- ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005-1102 ●
396 PLUNGER; SHIFT ROD
(E) 		1-33519-189-0 01 1 1103- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 9703-9903 ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 9904-0004 ● ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 0005-1102 ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1103- ● ●
525 RING; DETENT 1-33119-286-0 01 1 1103- ●
564 SEAL; RING
(B) 		1-33119-249-0 02 1 1103- ●
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1103- ●
582 BOLT; SPRING GUIDE 1-33549-487-0 02 1 1103- ●
602 PLUNGER; DETENT 1-34539-113-0 01 1 1103-1305 ●
602 PLUNGER; DETENT 1-33119-618-0 01 1 1306- ●
617 PLUG
(A) 		1-33119-171-0 02 1 1103-1305 ●
617 PLUG
(A) 		1-33119-619-0 02 1 1306- ●
617 PLUG
(B) 		1-34129-061-0 01 1 1103-1305 ●
617 PLUG
(C) 		1-33539-109-0 01 1 1306- ●
689 GASKET; COVER 1-33542-063-0 01 1 1103- ●
690 PIN; STOP 1-33549-496-0 01 1 1103- ●

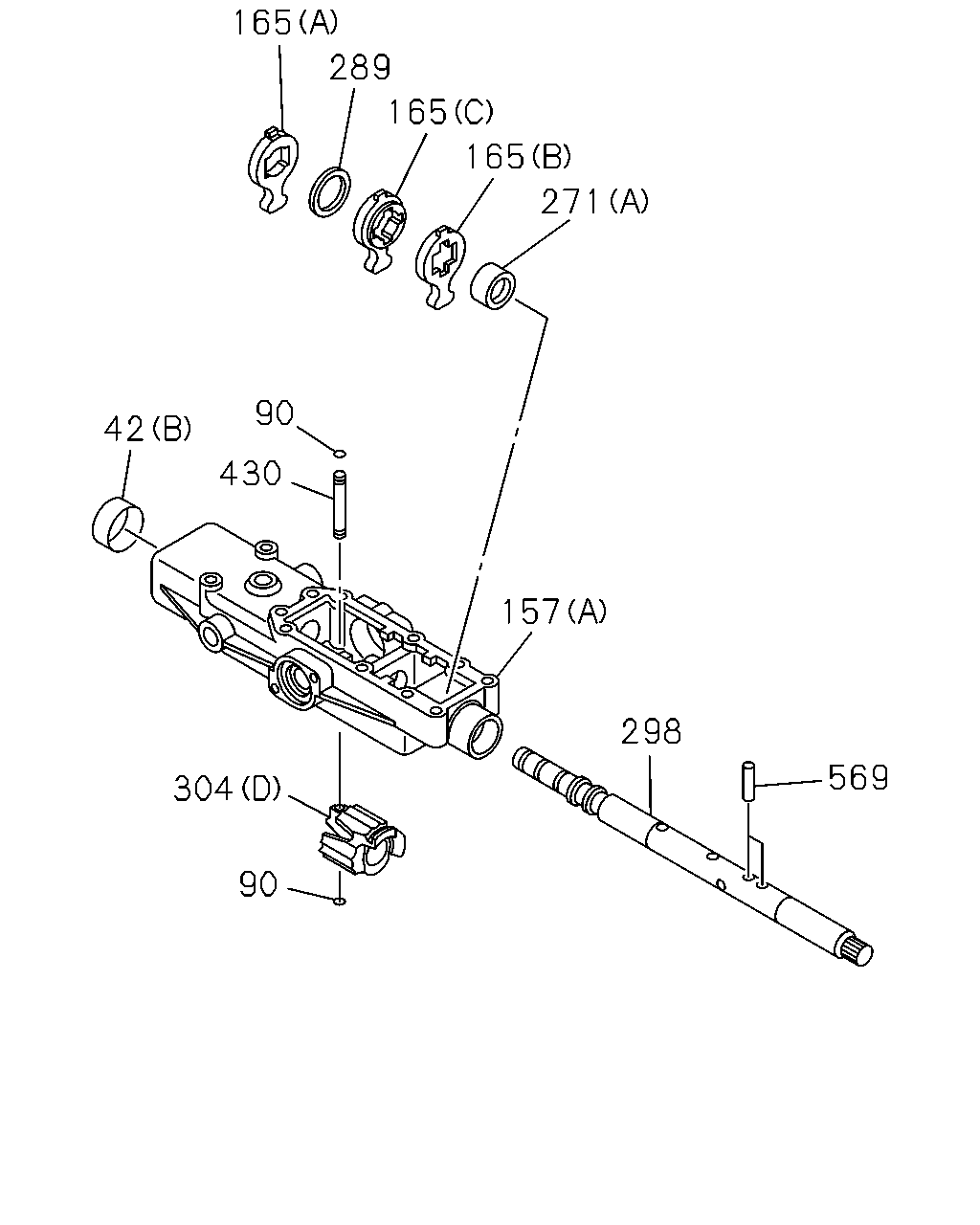

çizim 114182
165 289 165 165 271 90 42 430 157 298 569 304 90
BalonParca AdiParca NoAdetTipApplied Date A B C
42 CAP; QUAD BOX
(B) 		1-33549-589-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1103-1305 ● ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 9703-9903 ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 9904-0004 ● ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 0005-1102 ●
42 CAP; QUAD BOX
(A) 		1-33549-538-0 01 1 1103- ●
90 RING; SNAP,SHIFT ROD 1-33549-494-0 02 1 1103- ●
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1103- ●
157 BOX; QUAD,TRANS
(B) 		1-33549-588-0 01 1 1103-1305 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9703-9903 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9904-0004 ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 0005- ●
165 LEVER; SHIFT
(B) 		1-33549-488-0 01 1 1103- ●
165 LEVER; SHIFT
(C) 		1-33549-489-0 01 1 1103- ●
165 LEVER; SHIFT
(A) 		1-33549-490-0 01 1 1103-1305 ●
165 LEVER; SHIFT
(A) 		1-33549-603-0 01 1 1306- ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 1103- ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9703-9903 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 0005-1102 ●
271 BUSHING; QUAD BOX
(C) 		1-33549-537-0 01 1 1103- ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9703-9903 ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 0005- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX 1-33549-491-0 01 1 1103- ●
298 SHAFT; SHIFT LEVER 1-33522-211-0 01 1 1103- ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9703-9903 ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9904-0004 ● ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(D) 		1-33549-492-0 01 1 1103- ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 9703-9903 ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 9703-9903 ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 9703-9903 ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 0005- ●
430 PIN; SPR,SHIFT ROD 1-33549-493-0 01 1 1103- ●
569 PIN; QUADRANT BOX 1-33529-128-0 02 1 1103- ●

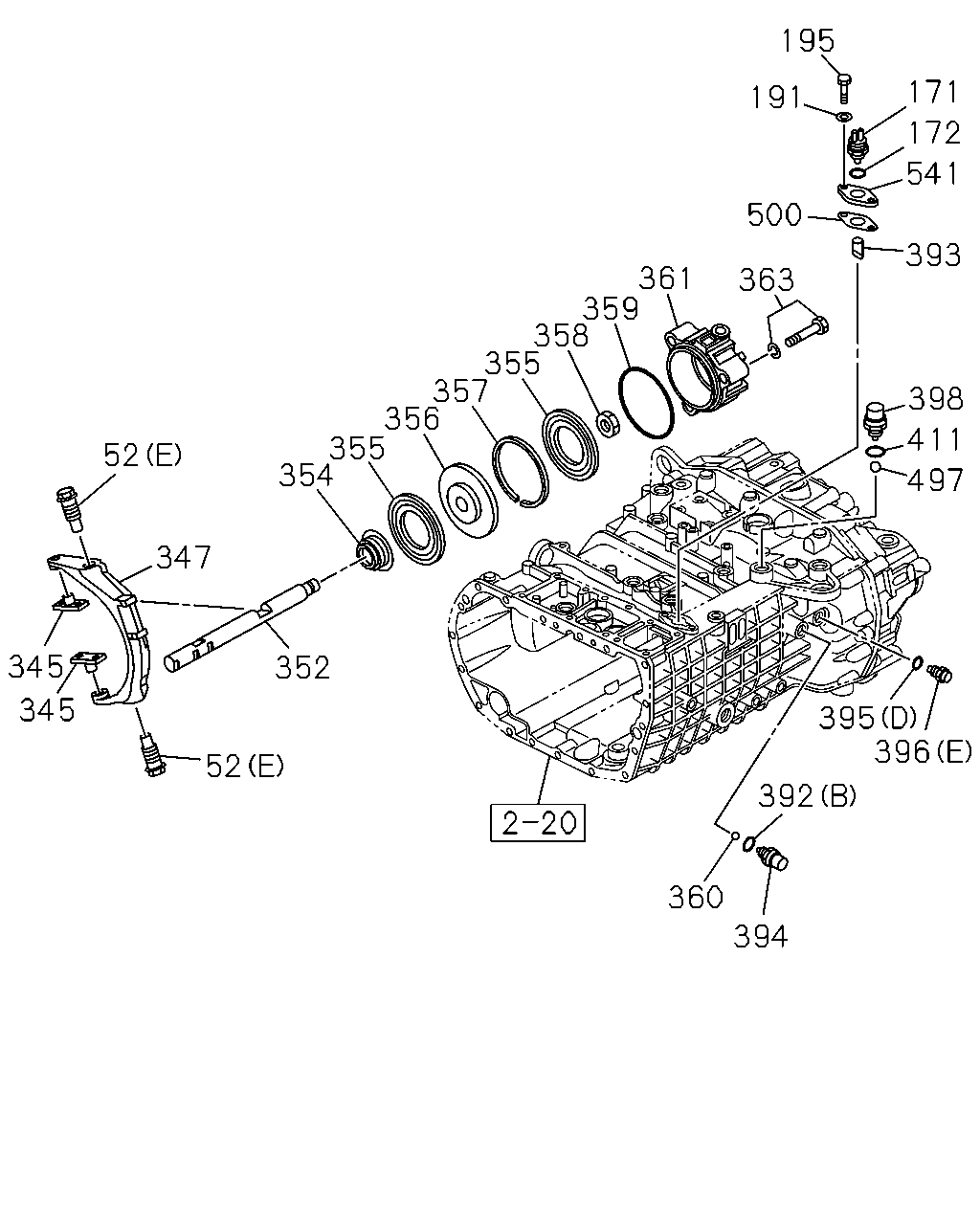

çizim 114210
195 171 191 172 541 500 393 361 359 358 355 357 356 355 354 363 398 411 52 497 347 345 352 345 395 396 52 392 360 394
BalonParca AdiParca NoAdetTipApplied Date A B C
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 07 1 1103-1305 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-190-0 07 1 1306- ●
52 BOLT; SHIFT ARM
(E) 		1-33519-187-0 02 1 1103-1305 ●
52 BOLT; SHIFT ARM
(E) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9703-9903 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9703-9903 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0005- ●
171 SWITCH; NEUTRAL 1-33119-587-0 01 1 1103-1305 ●
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1306- ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9703-9903 ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 9904-0004 ● ●
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 0005- ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9703-9903 ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9904-0004 ● ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0005-1102 ●
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1103- ● ●
191 WASHER; LK 1-33549-577-0 02 1 1103-1305 ●
191 WASHER; LK 1-33549-583-0 02 1 1306- ●
191 WASHER; LK 1-36129-007-0 02 1 9703-9903 ●
191 WASHER; LK 1-36129-007-0 02 1 9904-0004 ● ●
191 WASHER; LK 1-36129-007-0 02 1 0005- ●
195 BOLT 1-33119-593-0 02 1 1103- ●
195 BOLT 1-33119-301-0 02 1 9703-9903 ●
195 BOLT 1-33119-301-0 02 1 9904-0004 ● ●
195 BOLT 1-33119-301-0 02 1 0005- ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 9703-9903 ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 9904-0004 ● ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 0005-1102 ●
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1103- ● ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 9703-9903 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 9904-0004 ● ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 0005-1102 ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1103- ● ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-495-0 01 1 1103-1305 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 9703-9903 ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 9904-0004 ● ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-392-0 01 1 0005- ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 9703-9903 ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 9904-0004 ● ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 0005-1102 ●
354 SEAL; AIR CYL 1-33519-045-0 01 1 1103- ● ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 9703-9903 ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 9904-0004 ● ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 0005-1102 ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1103-1305 ● ●
355 CUP; PISTON,AIR CYL 1-33519-088-0 02 1 1306- ●
356 PISTON; AIR CYL 1-33519-197-0 01 1 1306- ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 9703-9903 ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 9904-0004 ● ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 0005-1102 ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 1103-1305 ● ●
356 PISTON; AIR CYL 1-33519-087-0 01 1 1306- ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 9703-9903 ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 9904-0004 ● ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 0005-1102 ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1103-1305 ● ●
357 RING; GUIDE,AIR CYL 1-33519-090-0 01 1 1306- ●
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1103- ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 9703-9903 ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 9904-0004 ● ●
358 NUT; SHIFT ROD 1-33519-049-0 01 1 0005- ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 9703-9903 ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 9904-0004 ● ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 0005-1102 ●
359 GASKET; AIR CYL 1-33519-093-0 01 1 1103- ● ●
360 BALL; AIR CYL 1-33119-252-0 01 1 9703-9903 ●
360 BALL; AIR CYL 1-33119-252-0 01 1 9904-0004 ● ●
360 BALL; AIR CYL 1-33119-252-0 01 1 0005-1102 ●
360 BALL; AIR CYL 1-33119-252-0 01 1 1103- ● ●
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 9703-1102 ●
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1103- ● ●
361 CYLINDER; AIR,SHIFT 1-33519-091-0 01 1 9904-0004 ●
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1103- ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 9703-9903 ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 9904-0004 ● ●
363 BOLT; AIR CYL 1-33519-103-0 03 1 0005- ●
392 GASKET; PLUG & SW
(B) 		1-33119-249-0 01 1 1103- ●
392 GASKET; PLUG & SW
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 9703-9903 ●
392 GASKET; PLUG & SW
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 9904-0004 ● ●
392 GASKET; PLUG & SW
(B) ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 03 1 0005- ●
392 GASKET; PLUG & SW
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-184-0 01 1 9703-9903 ●
392 GASKET; PLUG & SW
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-184-0 01 1 9904-0004 ● ●
392 GASKET; PLUG & SW
(A) ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-184-0 01 1 0005- ●
393 PIN; SW 1-33119-298-0 01 1 9703-9903 ●
393 PIN; SW 1-33119-298-0 01 1 9904-0004 ● ●
393 PIN; SW 1-33119-298-0 01 1 0005-1102 ●
393 PIN; SW 1-33119-298-0 01 1 1103- ● ●
394 SWITCH; RANGE CHANGE 1-33119-587-0 01 1 1103-1305 ●
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1306- ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 9703-9903 ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 9904-0004 ● ●
394 SWITCH; RANGE CHANGE 1-82440-095-0 01 1 0005- ●
395 GASKET; PLUNGER
(D) 		1-33549-497-0 01 1 1103- ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0005- ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0005- ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9703-9903 ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9904-0004 ● ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1103- ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005-1102 ●
396 PLUNGER; SHIFT ROD
(E) 		1-33519-189-0 01 1 1103- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1103- ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 9703-9903 ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 9904-0004 ● ●
398 SWITCH; REV LAMP 1-82440-080-1 01 1 0005- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9703-9903 ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 9904-0004 ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0005-1102 ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1103- ● ●
497 BALL; SWITCH 1-33119-252-0 01 1 9703-9903 ●
497 BALL; SWITCH 1-33119-252-0 01 1 9904-0004 ● ●
497 BALL; SWITCH 1-33119-252-0 01 1 0005-1102 ●
497 BALL; SWITCH 1-33119-252-0 01 1 1103- ● ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 9703-9903 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 9904-0004 ● ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 0005-1102 ●
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-299-0 01 1 1103- ● ●
541 PLATE; SWITCH 1-33119-300-0 01 1 9703-9903 ●
541 PLATE; SWITCH 1-33119-300-0 01 1 9904-0004 ● ●
541 PLATE; SWITCH 1-33119-300-0 01 1 0005-1102 ●
541 PLATE; SWITCH 1-33119-300-0 01 1 1103- ● ●
çizim 184715
264 265 271 251 473 473 271 270 283 446 277 19 252 244 253 42 37 37 396 395 277 446 19 38 277 38 178 121 157 304 304 298 313 313 313 304 270 253 251 244 252
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(E) 		1-33539-030-0 02 1 1103- ●
19 SPRING; COIL COMP
(F) 		1-33539-092-0 01 1 1103- ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 0005- ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 0005-1102 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 1103- ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 0005- ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 0005-1102 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 1103- ● ●
37 PIN; STOPPER ARM
(B) 		1-33549-207-0 01 1 9703-9903 ●
37 PIN; STOPPER ARM
(B) 		1-33549-207-0 01 1 9904-0004 ● ●
37 PIN; STOPPER ARM
(B) 		1-33549-207-0 01 1 0005- ●
37 PIN; STOPPER ARM
(A) 		1-33549-208-0 01 1 9703-9903 ●
37 PIN; STOPPER ARM
(A) 		1-33549-208-0 01 1 9904-0004 ● ●
37 PIN; STOPPER ARM
(A) 		1-33549-208-0 01 1 0005- ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9703-9903 ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9904-0004 ● ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 0005- ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9703-9903 ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9904-0004 ● ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 0005- ●
42 CAP; QUAD BOX
(B) 		1-33549-589-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1103-1305 ● ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 9703-9903 ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 9904-0004 ● ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 0005-1102 ●
42 CAP; QUAD BOX
(A) 		1-33549-538-0 01 1 1103- ●
121 PLUG; DETENT SPR 1-33119-171-0 02 1 9703-9903 ●
121 PLUG; DETENT SPR 1-33119-171-0 02 1 9904-0004 ● ●
121 PLUG; DETENT SPR 1-33119-171-0 02 1 0005- ●
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1103- ●
157 BOX; QUAD,TRANS
(B) 		1-33549-588-0 01 1 1103-1305 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9703-9903 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9904-0004 ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 0005- ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 02 1 9703-9903 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 02 1 9904-0004 ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 02 1 0005- ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1103- ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9703-9903 ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9904-0004 ● ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 0005- ●
251 COVER; SIDE
(A) 		1-33543-046-0 01 1 9703-9903 ●
251 COVER; SIDE
(A) 		1-33543-046-0 01 1 9904-0004 ● ●
251 COVER; SIDE
(A) 		1-33543-046-0 01 1 0005- ●
251 COVER; SIDE
(B) 		1-33543-047-0 01 1 9703-9903 ●
251 COVER; SIDE
(B) 		1-33543-047-0 01 1 9904-0004 ● ●
251 COVER; SIDE
(B) 		1-33543-047-0 01 1 0005- ●
252 BOLT; SIDE COVER
(C) M8X30 		1-33549-581-0 02 1 1103- ●
252 BOLT; SIDE COVER
(D) M8X35 		1-33549-586-0 04 1 1103- ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 9703-9903 ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 9904-0004 ● ●
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-172-0 04 1 0005- ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 9703-9903 ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 9904-0004 ● ●
252 BOLT; SIDE COVER
(A) 		1-33549-185-0 04 1 0005- ●
253 GASKET; SIDE COVER 1-33544-054-0 01 1 1103- ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 9703-9903 ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 9904-0004 ● ●
253 GASKET; SIDE COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-044-0 02 1 0005- ●
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 1103- ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9703-9903 ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 9904-0004 ● ●
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 0005- ●
265 SEAL; OIL,SHIFT 1-33549-328-0 01 1 1103- ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 9703-9903 ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 9904-0004 ● ●
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-118-0 01 1 0005- ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 02 1 9703-9903 ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 02 1 9904-0004 ● ●
270 BEARING; NEEDLE,QUAD BOX 1-33549-162-0 02 1 0005- ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 1103- ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9703-9903 ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(A) 		1-33549-124-0 01 1 0005-1102 ●
271 BUSHING; QUAD BOX
(C) 		1-33549-537-0 01 1 1103- ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9703-9903 ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 9904-0004 ● ●
271 BUSHING; QUAD BOX
(B) 		1-33549-209-0 01 1 0005- ●
277 PLATE; SPRING SEAT
(C) 		1-33539-107-0 02 1 1103- ●
277 PLATE; SPRING SEAT
(D) 		1-33539-108-0 01 1 1103-1305 ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 9703-9903 ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 9904-0004 ● ●
277 PLATE; SPRING SEAT
(A) 		1-33539-026-0 02 1 0005- ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 9703-9903 ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 9904-0004 ● ●
277 PLATE; SPRING SEAT
(B) 		1-33539-029-0 01 1 0005- ●
283 STOPPER; SHIFT SHAFT 1-33549-204-0 01 1 9703-9903 ●
283 STOPPER; SHIFT SHAFT 1-33549-204-0 01 1 9904-0004 ● ●
283 STOPPER; SHIFT SHAFT 1-33549-204-0 01 1 0005- ●
298 SHAFT; SHIFT LEVER 1-33522-211-0 01 1 1103- ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9703-9903 ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 9904-0004 ● ●
298 SHAFT; SHIFT LEVER 1-33522-155-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(D) 		1-33549-492-0 01 1 1103- ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 9703-9903 ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(C) 		1-33529-087-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 9703-9903 ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(B) 		1-33529-088-0 01 1 0005- ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 9703-9903 ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 9904-0004 ● ●
304 BLOCK; SHIFT SHAFT
(A) 		1-33529-089-0 01 1 0005- ●
313 ROLLER; SHAFT 1-33529-090-0 09 1 9703-9903 ●
313 ROLLER; SHAFT 1-33529-090-0 09 1 9904-0004 ● ●
313 ROLLER; SHAFT 1-33529-090-0 09 1 0005- ●
395 GASKET; PLUNGER
(D) 		1-33549-497-0 01 1 1103- ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0005- ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0005- ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9703-9903 ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9904-0004 ● ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1103- ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005-1102 ●
396 PLUNGER; SHIFT ROD
(E) 		1-33519-189-0 01 1 1103- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
446 RING; SNAP,SPR SEAT 1-33539-050-0 02 1 9703-9903 ●
446 RING; SNAP,SPR SEAT 1-33539-050-0 02 1 9904-0004 ● ●
446 RING; SNAP,SPR SEAT 1-33539-050-0 02 1 0005- ●
473 PIN; ROLL
(B) 		1-33519-044-0 01 1 9703-9903 ●
473 PIN; ROLL
(B) 		1-33519-044-0 01 1 9904-0004 ● ●
473 PIN; ROLL
(B) 		1-33519-044-0 01 1 0005- ●
473 PIN; ROLL
(A) 		1-33529-054-0 01 1 9703-9903 ●
473 PIN; ROLL
(A) 		1-33529-054-0 01 1 9904-0004 ● ●
473 PIN; ROLL
(A) 		1-33529-054-0 01 1 0005- ●
çizim 184723
142 272 225 524 142 225 274 142 225 148 688 42 157 256
BalonParca AdiParca NoAdetTipApplied Date A B C
42 CAP; QUAD BOX
(B) 		1-33549-589-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1103-1305 ● ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 1306- ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 9703-9903 ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 9904-0004 ● ●
42 CAP; QUAD BOX
(B) 		1-33549-111-0 01 1 0005-1102 ●
42 CAP; QUAD BOX
(A) 		1-33549-538-0 01 1 1103- ●
142 BOLT; QUAD BOX
(E) M8X100 		1-33549-582-0 06 1 1103- ●
142 BOLT; QUAD BOX
(D) M8X75 		1-33549-584-0 02 1 1103- ●
142 BOLT; QUAD BOX
(C) M8X40 		1-33549-587-0 04 1 1103- ●
142 BOLT; QUAD BOX
(B) M8X75 		1-09089-015-0 04 1 9703-9903 ●
142 BOLT; QUAD BOX
(B) M8X75 		1-09089-015-0 04 1 9904-0004 ● ●
142 BOLT; QUAD BOX
(B) M8X75 		1-09089-015-0 04 1 0005- ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 9703-9903 ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 9904-0004 ● ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 0005- ●
148 GASKET; QUAD BOX 1-33542-064-0 01 1 1103- ●
157 BOX; QUAD,TRANS
(A) 		1-33549-570-0 01 1 1103- ●
157 BOX; QUAD,TRANS
(B) 		1-33549-588-0 01 1 1103-1305 ●
157 BOX; QUAD,TRANS
(B) 		1-33549-604-0 01 1 1306- ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9703-9903 ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 9904-0004 ● ●
157 BOX; QUAD,TRANS
(C) 		1-33541-485-0 01 1 0005- ●
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1103- ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9703-9903 ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9904-0004 ● ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 0005- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-065-0 01 1 1103- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 9703-9903 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 9904-0004 ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 0005- ●
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 1103- ●
274 COVER; SHAFT,QUAD BOX 1-33549-579-0 01 1 1103- ●
524 DETENT; QUAD BOX 1-33549-501-0 01 1 1103- ●
688 SHIFT; INTERLOCK 1-33549-572-0 01 1 1103- ●
çizim 184735
142 225 538 374 348 351 38 239 242 142 536 396 240 225 241 396 395 395 539 19 537 39 537 39 396 19 256 526 470 469 244 243 526 537 537
BalonParca AdiParca NoAdetTipApplied Date A B C
19 SPRING; COIL COMP
(E) 		1-33539-030-0 02 1 1103- ●
19 SPRING; COIL COMP
(F) 		1-33539-092-0 01 1 1103- ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(B) 		1-33539-027-0 01 1 0005- ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 0005-1102 ●
19 SPRING; COIL COMP
(A) 		1-33539-028-0 01 1 1103- ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(C) 		1-33549-220-0 01 1 0005- ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9703-9903 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 9904-0004 ● ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 0005-1102 ●
19 SPRING; COIL COMP
(D) 		1-33549-221-0 01 1 1103- ● ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9703-9903 ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 9904-0004 ● ●
38 SPRING; DETENT
(A) 		1-33549-189-0 02 1 0005- ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9703-9903 ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 9904-0004 ● ●
38 SPRING; DETENT
(B) 		1-33549-201-0 03 1 0005- ●
39 BALL; DETENT 1-33549-210-0 04 1 9703-9903 ●
39 BALL; DETENT 1-33549-210-0 04 1 9904-0004 ● ●
39 BALL; DETENT 1-33549-210-0 04 1 0005- ●
142 BOLT; QUAD BOX
(E) M8X100 		1-33549-582-0 06 1 1103- ●
142 BOLT; QUAD BOX
(D) M8X75 		1-33549-584-0 02 1 1103- ●
142 BOLT; QUAD BOX
(C) M8X40 		1-33549-587-0 04 1 1103- ●
142 BOLT; QUAD BOX
(B) M8X75 		1-09089-015-0 04 1 9703-9903 ●
142 BOLT; QUAD BOX
(B) M8X75 		1-09089-015-0 04 1 9904-0004 ● ●
142 BOLT; QUAD BOX
(B) M8X75 		1-09089-015-0 04 1 0005- ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 9703-9903 ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 9904-0004 ● ●
142 BOLT; QUAD BOX
(A) 		1-33549-205-0 04 1 0005- ●
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1103- ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9703-9903 ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 9904-0004 ● ●
225 WASHER; LK,QUAD BOX 1-36129-007-0 08 1 0005- ●
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1103- ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9703-9903 ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 9904-0004 ● ●
239 BOLT; CUT OFF VALVE 1-33549-168-0 04 1 0005- ●
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1103- ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 9703-9903 ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 9904-0004 ● ●
240 GASKET; CUT OFF VALVE 1-33549-127-0 01 1 0005- ●
241 VALVE; CUT OFF 1-33549-495-0 01 1 1103- ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 9703-9903 ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 9904-0004 ● ●
241 VALVE; CUT OFF 1-33549-213-0 01 1 0005- ●
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1103- ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 9703-9903 ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 9904-0004 ● ●
242 WASHER; CUT OFF VALVE 1-36129-007-0 04 1 0005- ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9703-9903 ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(A) 		1-33119-296-0 02 1 0005- ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9703-9903 ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 9904-0004 ● ●
243 BOLT; COVER
(B) M8X30 		1-33549-172-0 02 1 0005- ●
244 WASHER; LK,COVER 1-33549-583-0 04 1 1103- ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9703-9903 ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 9904-0004 ● ●
244 WASHER; LK,COVER 1-36129-007-0 10 1 0005- ●
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-065-0 01 1 1103- ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 9703-9903 ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 9904-0004 ● ●
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-058-0 01 1 0005- ●
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1103- ● ●
348 CONNECTOR; AIR HOSE
(A) 		1-09660-678-0 01 1 9703-9903 ●
348 CONNECTOR; AIR HOSE
(A) 		1-09660-678-0 01 1 9904-0004 ● ●
348 CONNECTOR; AIR HOSE
(A) 		1-09660-678-0 01 1 0005-0407 ●
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 0408-1102 ●
348 CONNECTOR; AIR HOSE
(B) 		1-33549-139-0 04 1 1103-1305 ●
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 04 1 1306- ●
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1103- ●
351 GASKET; CONNECTOR
(D) 		1-33549-578-0 08 1 1103- ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9703-9903 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 0005-1102 ●
351 GASKET; CONNECTOR
(A) ID=12.2 		1-09630-084-0 01 1 1103-1312 ● ●
351 GASKET; CONNECTOR
(A) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9703-9903 ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 9904-0004 ● ●
351 GASKET; CONNECTOR
(B) 		1-33549-184-0 08 1 0005- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-295-0 01 1 9703-9903 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-295-0 01 1 9904-0004 ● ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-295-0 01 1 0005- ●
395 GASKET; PLUNGER
(D) 		1-33549-497-0 01 1 1103- ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(B) 		1-33529-093-0 01 1 0005- ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9703-9903 ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 9904-0004 ● ●
395 GASKET; PLUNGER
(A) 		1-33549-127-0 01 1 0005- ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9703-9903 ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 9904-0004 ● ●
395 GASKET; PLUNGER
(C) 		1-36289-021-0 02 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1103- ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(C) 		1-33119-251-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0005-1102 ●
396 PLUNGER; SHIFT ROD
(E) 		1-33519-189-0 01 1 1103- ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(D) 		1-33529-094-0 01 1 0005- ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9703-9903 ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 9904-0004 ● ●
396 PLUNGER; SHIFT ROD
(A) 		1-33549-218-0 01 1 0005- ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 9703-9903 ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 9904-0004 ● ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 0005-1102 ●
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1103- ● ●
470 GASKET; SPRING COVER 1-33549-217-0 01 1 9703-9903 ●
470 GASKET; SPRING COVER 1-33549-217-0 01 1 9904-0004 ● ●
470 GASKET; SPRING COVER 1-33549-217-0 01 1 0005- ●
526 LEVER; DETENT 1-33549-187-0 02 1 9703-9903 ●
526 LEVER; DETENT 1-33549-187-0 02 1 9904-0004 ● ●
526 LEVER; DETENT 1-33549-187-0 02 1 0005- ●
536 PLATE; DETENT 1-33549-212-0 03 1 9703-9903 ●
536 PLATE; DETENT 1-33549-212-0 03 1 9904-0004 ● ●
536 PLATE; DETENT 1-33549-212-0 03 1 0005- ●
537 PIN; DETENT
(A) 		1-33549-206-0 04 1 9703-9903 ●
537 PIN; DETENT
(A) 		1-33549-206-0 04 1 9904-0004 ● ●
537 PIN; DETENT
(A) 		1-33549-206-0 04 1 0005- ●
537 PIN; DETENT
(B) 		1-33549-211-0 02 1 9703-9903 ●
537 PIN; DETENT
(B) 		1-33549-211-0 02 1 9904-0004 ● ●
537 PIN; DETENT
(B) 		1-33549-211-0 02 1 0005- ●
538 COVER; DETENT 1-33543-045-0 01 1 9703-9903 ●
538 COVER; DETENT 1-33543-045-0 01 1 9904-0004 ● ●
538 COVER; DETENT 1-33543-045-0 01 1 0005- ●
539 HOLDER; PLUNGER 1-33529-092-0 01 1 9703-9903 ●
539 HOLDER; PLUNGER 1-33529-092-0 01 1 9904-0004 ● ●
539 HOLDER; PLUNGER 1-33529-092-0 01 1 0005- ●
çizim 184791
52 60 1 17 17 60 52 175 531 534 535 564 617 617 532 532 52 60 49 6 532 531 60 52 52 60 29 29 52 60 25 60 52 36 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1103- ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 9703-9903 ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 9904-0004 ● ●
1 ARM; SHIFT,1ST & REV 1-33511-528-0 01 1 0005- ●
6 LEVER; RELAY 1-33511-658-0 01 1 1103- ●
6 LEVER; RELAY 1-33511-526-0 01 1 9703-9903 ●
6 LEVER; RELAY 1-33511-526-0 01 1 9904-0004 ● ●
6 LEVER; RELAY 1-33511-526-0 01 1 0005- ●
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1103- ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 9703-9903 ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 9904-0004 ● ●
17 BLOCK; SHIFT,1ST & REV 1-33519-081-0 02 1 0005- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1103- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 9703-9903 ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 9904-0004 ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-527-0 01 1 0005- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 9703-9903 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 9904-0004 ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 0005-1102 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1103- ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1103- ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 9703-9903 ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 9904-0004 ● ●
36 BLOCK; SHIFT,4TH & 5TH 1-33519-081-0 02 1 0005- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1103- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 9703-9903 ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 9904-0004 ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-525-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 07 1 1103-1305 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-190-0 07 1 1306- ●
52 BOLT; SHIFT ARM
(E) 		1-33519-187-0 02 1 1103-1305 ●
52 BOLT; SHIFT ARM
(E) 		1-33519-196-0 02 1 1306- ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(D) 		1-33519-058-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9703-9903 ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(A) 		1-33519-082-0 01 1 0005- ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9703-9903 ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(B) 		1-33519-083-0 02 1 0005- ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9703-9903 ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 9904-0004 ● ●
52 BOLT; SHIFT ARM
(C) 		1-33519-084-0 04 1 0005- ●
60 WASHER; LK
(C) 		1-36129-024-0 07 1 1103-1305 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9703-9903 ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 9904-0004 ● ●
60 WASHER; LK
(B) 		1-33519-059-0 02 1 0005- ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9703-9903 ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 9904-0004 ● ●
60 WASHER; LK
(A) 		1-33519-085-0 07 1 0005- ●
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1103- ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 9703-9903 ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 9904-0004 ● ●
175 RING; STOPPER,SHIFT LEVER 1-33539-048-0 01 1 0005- ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 9703-9903 ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 9904-0004 ● ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 0005-1102 ●
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1103- ● ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 9703-9903 ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 9904-0004 ● ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 0005-1102 ●
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1103- ● ●
532 PLATE; SHIFT FORK
(D) 		1-33531-492-0 01 1 1103- ●
532 PLATE; SHIFT FORK
(E) 		1-33531-493-0 01 1 1103- ●
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1103- ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 9703-9903 ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 9904-0004 ● ●
532 PLATE; SHIFT FORK
(A) 		1-33531-390-0 01 1 0005- ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 9703-9903 ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 9904-0004 ● ●
532 PLATE; SHIFT FORK
(B) 		1-33531-391-0 02 1 0005- ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1103- ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 9703-9903 ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 9904-0004 ● ●
534 LEVER; LOCK,SHIFT PLATE 1-33539-046-0 01 1 0005- ●
535 SPRING; LEVER 1-33539-049-0 01 1 9703-9903 ●
535 SPRING; LEVER 1-33539-049-0 01 1 9904-0004 ● ●
535 SPRING; LEVER 1-33539-049-0 01 1 0005-1102 ●
535 SPRING; LEVER 1-33539-049-0 01 1 1103- ● ●
564 SEAL; RING
(B) 		1-33119-249-0 02 1 1103- ●
564 SEAL; RING
(A) 		1-33549-578-0 01 1 1103- ●
617 PLUG
(A) 		1-33119-171-0 02 1 1103-1305 ●
617 PLUG
(A) 		1-33119-619-0 02 1 1306- ●
617 PLUG
(B) 		1-34129-061-0 01 1 1103-1305 ●
617 PLUG
(C) 		1-33539-109-0 01 1 1306- ●
çizim 184794
513 512
BalonParca AdiParca NoAdetTipApplied Date A B C
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1103- ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 9703-9903 ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 9904-0004 ● ●
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 03 1 0005- ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1103- ●
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 9703-9903 ●
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 9904-0004 ● ●
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
