◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#65098) — 156 parça

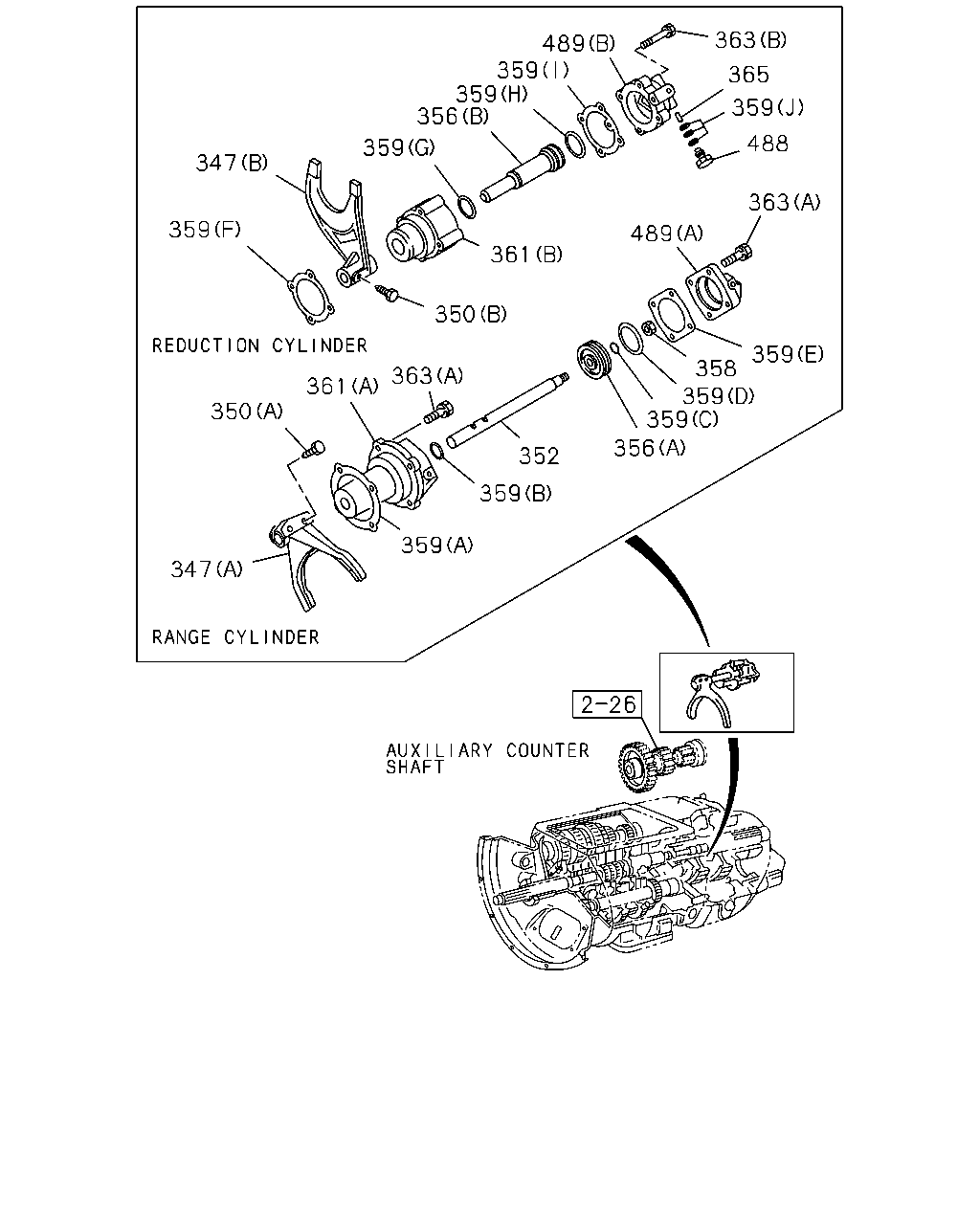

çizim 113324
363 489 359 359 356 365 359 488 359 347 363 359 489 361 350 359 358 359 359 363 361 350 356 352 359 359 347
BalonParca AdiParca NoAdetTipApplied Date
347 ARM; SHIFT,RANGE CHANGE
(A) 		1-87061-260-0 01 1 9601-
347 ARM; SHIFT,RANGE CHANGE
(B) 		1-87061-432-0 01 1 9601-
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9601-
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9601-
352 ROD; SHIFT,RANGE CHANGE 1-87061-261-0 01 1 9601-
356 PISTON; AIR CYL
(A) 		1-87061-121-0 01 1 9601-
356 PISTON; AIR CYL
(B) 		1-87061-477-0 01 1 9601-
358 NUT; SHIFT ROD 1-87061-222-0 01 1 9601-
359 GASKET; AIR CYL
(J) 		1-87060-994-0 03 1 9601-
359 GASKET; AIR CYL
(D) 		1-87061-122-0 01 1 9601-
359 GASKET; AIR CYL
(C) 		1-87061-123-0 01 1 9601-
359 GASKET; AIR CYL
(B) 		1-87061-136-0 01 1 9601-
359 GASKET; AIR CYL
(A) 		1-87061-256-0 01 1 9601-
359 GASKET; AIR CYL
(E) 		1-87061-258-0 01 1 9601-
359 GASKET; AIR CYL
(F) 		1-87061-264-0 01 1 9601-
359 GASKET; AIR CYL
(I) 		1-87061-268-0 01 1 9601-
359 GASKET; AIR CYL
(G) 		1-87061-474-0 01 1 9601-
359 GASKET; AIR CYL
(H) 		1-87061-475-0 01 1 9601-
361 CYLINDER; AIR,SHIFT
(A) 		1-87061-262-0 01 1 9601-
361 CYLINDER; AIR,SHIFT
(B) 		1-87061-476-0 01 1 9601-
363 BOLT; AIR CYL
(A) 		1-87060-778-0 08 1 9601-
363 BOLT; AIR CYL
(B) 		1-87061-270-0 04 1 9601-
365 VALVE; AIR CYL 1-87060-997-0 01 1 9601-
488 PLUG; AIR CYL 1-87060-998-0 01 1 9601-
489 COVER; AIR CYL
(A) 		1-87061-259-0 01 1 9601-
489 COVER; AIR CYL
(B) 		1-87061-269-0 01 1 9601-
çizim 113424
492 492 485 486 486 492 485 486
BalonParca AdiParca NoAdetTipApplied Date
485 TROUGH; OIL
(A) 		1-87061-489-0 01 1 9601-
485 TROUGH; OIL
(B) 		1-87061-490-0 01 1 9601-
486 BOLT; OIL TROUGH
(A) 		1-87061-527-0 02 1 9601-
486 BOLT; OIL TROUGH
(B) 		1-87061-528-0 01 1 9601-
492 SPACER; OIL TROUGH 1-87061-494-0 03 1 9601-

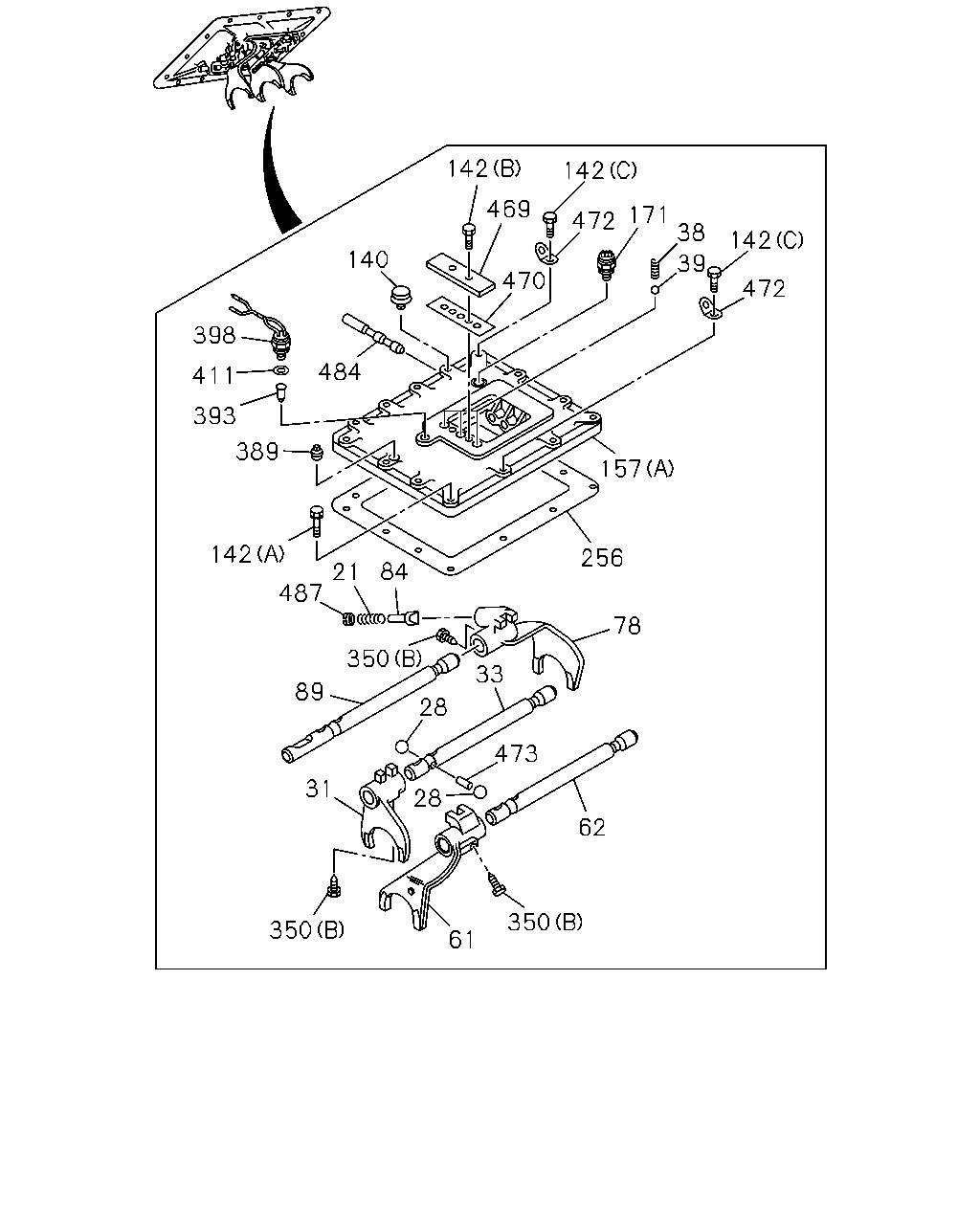

çizim 184714
142 142 469 171 472 38 142 470 140 39 472 398 484 411 393 389 157 142 84 256 21 487 78 350 33 89 28 473 31 28 62 350 350 61
BalonParca AdiParca NoAdetTipApplied Date
21 SPRING; COIL COMP SLEEVE 1-87061-207-0 01 1 9601-
28 BALL; INTER LK 1-87061-224-0 02 1 9601-
31 ARM; SHIFT,LOW & 2ND 1-87061-463-0 01 1 9601-
33 ROD; SHIFT,LOW & 2ND 1-87061-417-0 01 1 9601-
38 SPRING; DETENT 1-87060-785-0 03 1 9601-
39 BALL; DETENT 1-87060-789-0 03 1 9601-
61 ARM; SHIFT,3RD & 4TH 1-87061-462-0 01 1 9601-
62 ROD; SHIFT,3RD & 4TH 1-87061-418-0 01 1 9601-
78 ARM; SHIFT,REV 1-87061-464-0 01 1 9601-
84 SLEEVE; REV 1-87061-112-0 01 1 9601-
89 ROD; SHIFT,REV 1-87061-424-0 01 1 9601-
140 BREATHER; AIR,TRANS 1-87060-780-0 01 1 9601-
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9601-0906
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907-
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9601-
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9601-
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9601-
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9601-
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9601-
171 SWITCH; NEUTRAL 1-87061-488-0 01 1 9601-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-87061-421-0 01 1 9601-
350 SCREW; SHIFT ARM
(B) 		1-87061-202-0 04 1 9601-
350 SCREW; SHIFT ARM
(A) 		1-87061-257-0 02 1 9601-
389 PLUG; QUAD BOX,NEUTRAL SW 1-87061-091-0 01 1 9601-
393 PIN; SW 1-87061-139-0 01 1 9601-
398 SWITCH; REV LAMP 1-82440-102-0 01 1 9601-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-87060-781-0 01 1 9601-
469 COVER; SPRING,QUAD BOX 1-87061-419-0 01 1 9601-
470 GASKET; SPRING COVER 1-87061-420-0 01 1 9601-
472 EYE; LIFTING 1-87060-783-0 02 1 9601-
473 PIN; ROLL 1-87060-808-0 01 1 9601-
484 SHAFT; AIR VALVE 1-87061-164-0 01 1 9601-
487 PLUG; SHIFT BLOCK 1-87061-213-0 01 1 9601-

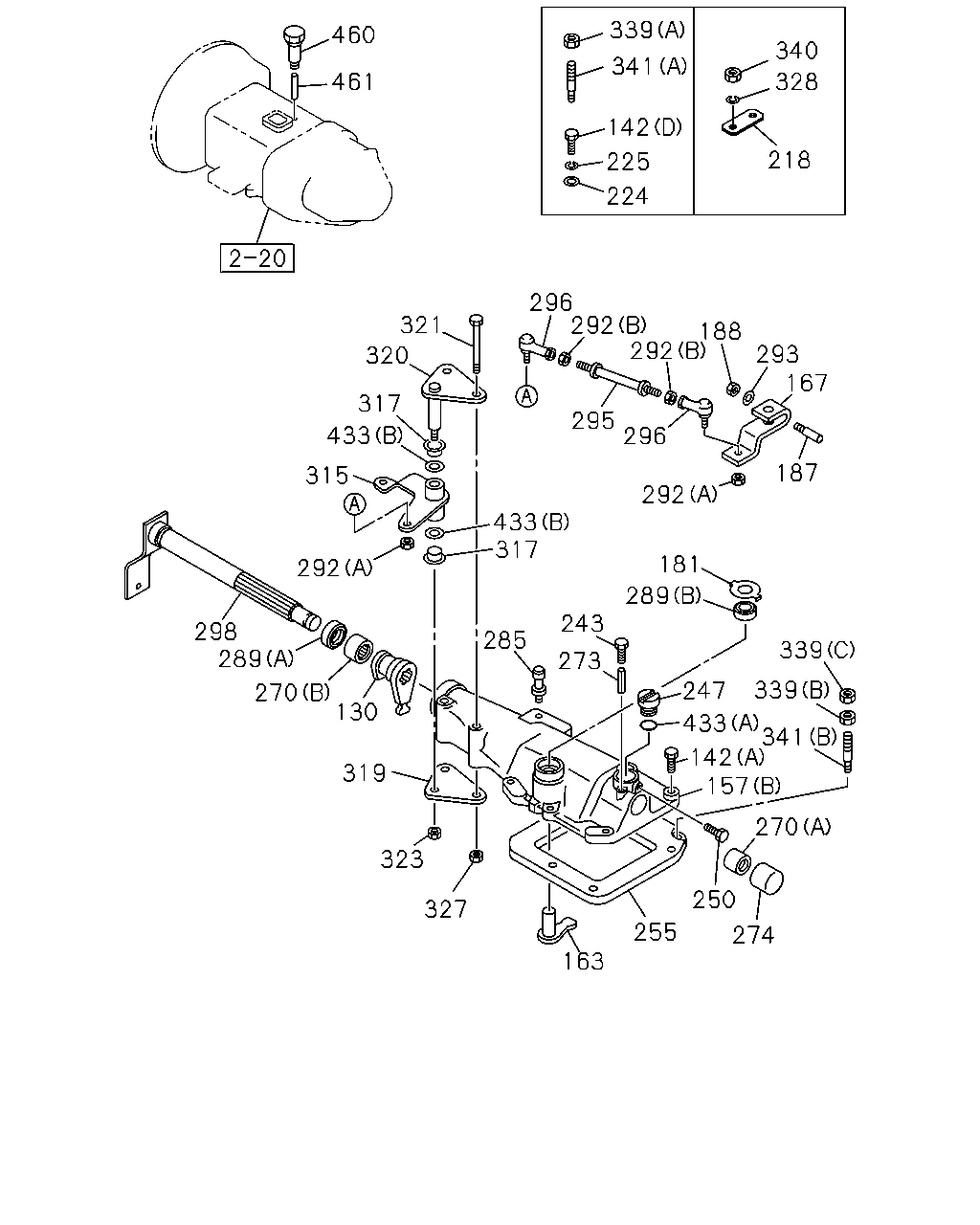

çizim 184721
339 460 340 341 328 461 142 218 225 224 296 292 188 292 321 293 167 320 317 295 296 433 187 315 292 433 317 181 292 289 243 298 289 285 339 273 339 247 270 130 341 142 157 433 319 270 323 250 327 255 274 163
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-109-0 01 1 9601-
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9601-0906
142 BOLT; QUAD BOX
(D) M10X28 W/LK&PL WASHER 		0-50641-028-0 04 1 0907-
142 BOLT; QUAD BOX
(A) 		1-87060-778-0 11 1 9601-
142 BOLT; QUAD BOX
(B) 		1-87060-786-0 02 1 9601-
142 BOLT; QUAD BOX
(C) 		1-87061-229-0 02 1 9601-
157 BOX; QUAD,TRANS
(B) 		1-33541-398-1 01 1 9601-
157 BOX; QUAD,TRANS
(A) 		1-87061-518-0 01 1 9601-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9601-
167 LEVER; SELECT,EXTERNAL 1-33521-070-0 01 1 9601-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9601-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9601-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9601-9804
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9805-
218 BRACKET; HARNESS CLIP,QUAD BOX
L=59 		1-82699-228-0 01 1 9601-
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9601-0605
224 WASHER; PL,QUAD BOX
ID=10.5 		0-91610-510-0 02 1 0606-
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9601-0603
225 WASHER; LK,QUAD BOX
ID=10.2 		0-91510-510-0 02 1 0604-
243 BOLT; COVER
M6X10 FLANGE 		0-28080-610-0 01 1 9601-0512
243 BOLT; COVER
M6X10 FLANGE 		0-28050-610-0 01 1 0601-
247 BUSHING ASM; DETENT 1-33529-019-0 01 1 9601-
250 SCREW; BUSHING 9-06130-618-0 01 1 9601-
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9601-
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9601-
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9601-
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9601-
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9601-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9601-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9601-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9601-0307
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9601-
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9601-9702
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-049-0 02 1 9703-9804
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9805-9903
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 9904-0004
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0005-1102
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 1103-
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9601-9702
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9703-9903
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 9904-0004
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0005-0512
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-1102
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 1103-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9601-0605
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9601-
296 ROD END
L=48 		1-09760-038-1 02 1 9601-9702
296 ROD END
L=48 		1-09760-038-1 02 1 9703-9903
296 ROD END
L=48 		1-09760-038-1 02 1 9904-0004
296 ROD END
L=48 		1-09760-038-1 02 1 0005-0309
296 ROD END
L=45.5 		1-09760-118-1 02 1 0310-1102
296 ROD END
L=45.5 		1-09760-118-1 02 1 1103-
298 SHAFT; SHIFT LEVER 1-33522-148-0 01 1 9601-
315 LEVER; SELECT 1-33651-670-0 01 1 9601-
317 BUSHING; LEVER 1-09330-119-0 02 1 9601-9702
317 BUSHING; LEVER 1-09330-119-0 02 1 9703-9903
317 BUSHING; LEVER 1-09330-119-0 02 1 9904-0004
317 BUSHING; LEVER 1-09330-119-0 02 1 0005-1102
317 BUSHING; LEVER 1-09330-119-0 02 1 1103-
319 BRACKET; SELECT LEVER 1-33657-631-0 01 1 9601-
320 SHAFT; LEVER 1-33619-511-0 01 1 9601-
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9601-0512
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10856-080-0 02 1 0601-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9601-9702
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9703-9903
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 9904-0004
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0005-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9601-0602
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91180-210-0 02 1 0603-
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 04 1 9601-9605
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9606-0603
328 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 01 1 0604-
339 NUT; QUAD BOX
(B) 3/8 UNF 		1-33549-068-0 02 1 0604-
339 NUT; QUAD BOX
(C) 5/8 UNF 		1-33549-069-0 02 1 0604-
339 NUT; QUAD BOX
(A) M10 		9-09110-510-0 02 1 9601-0512
339 NUT; QUAD BOX
(A) M10 		0-91110-510-0 02 1 0601-
340 NUT; BRKT
M10 		9-09110-510-0 04 1 9601-9605
340 NUT; BRKT
M10 		9-09110-510-0 01 1 9606-0512
340 NUT; BRKT
M10 		0-91110-510-0 01 1 0601-
341 STUD; QUAD BOX
(B) 		1-33549-067-0 02 1 0604-
341 STUD; QUAD BOX
(A) ISUZU 		1-09305-006-0 06 1 0604-
341 STUD; QUAD BOX
(A) EATON 		1-09305-004-0 02 1 9601-
433 GASKET; BUSHING
(A) 		1-09623-130-0 01 1 9601-
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9601-9702
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9703-9903
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 9904-0004
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 0005-1102
433 GASKET; BUSHING
(B) 		1-09623-594-0 02 1 1103-
460 ADAPTER; NEUTRAL SW 1-09660-460-2 01 1 9601-
461 ROD; ADAPTER 1-82446-001-0 01 1 9601-
