2-26B — MANUAL TRANSMISSION GEAR (#65097) — 1682 parça

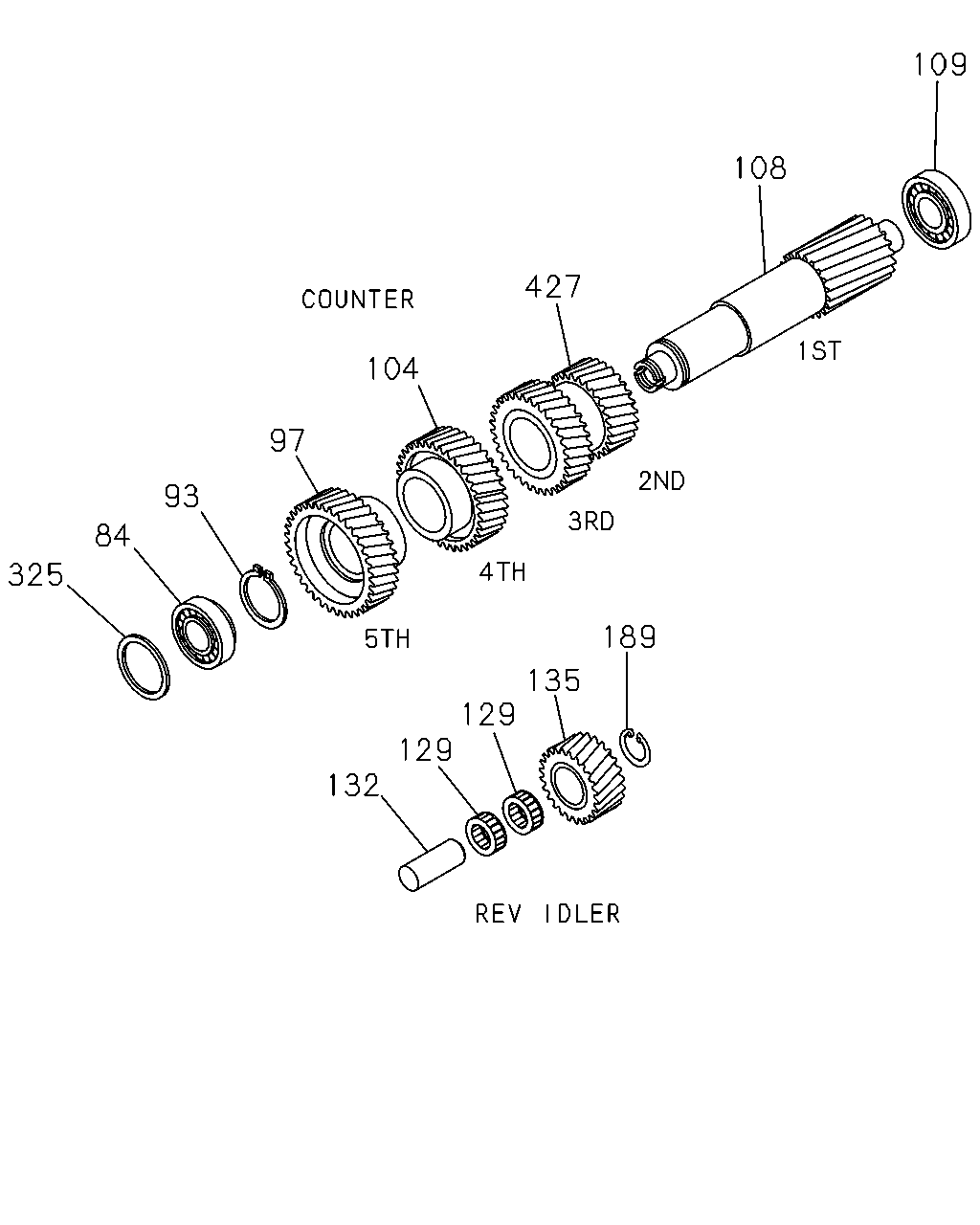

çizim 109811
109 108 427 104 97 93 30 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date A B C
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1103- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 9703-9903 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 9904-0004 ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 0005- ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1103- ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-009-0 01 1 9703-9903 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-009-0 01 1 9904-0004 ● ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-009-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-135-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-135-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-135-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-136-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-136-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-136-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-137-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-137-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-137-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-138-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-138-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-138-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-139-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-139-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-139-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-140-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-140-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-140-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-141-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-141-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-141-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.9 		1-33319-142-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.9 		1-33319-142-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.9 		1-33319-142-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.8 		1-33319-143-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.8 		1-33319-143-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.8 		1-33319-143-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.65 		1-33319-144-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.65 		1-33319-144-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.65 		1-33319-144-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.75 		1-47139-104-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.75 		1-47139-104-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.75 		1-47139-104-0 01 1 0005- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1103- ●
97 GEAR; 5TH,COUNTER 1-33338-337-0 01 1 9703-9903 ●
97 GEAR; 5TH,COUNTER 1-33338-337-0 01 1 9904-0004 ● ●
97 GEAR; 5TH,COUNTER 1-33338-337-0 01 1 0005- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1103- ●
104 GEAR; 4TH,COUNTER 1-33338-336-0 01 1 9703-9903 ●
104 GEAR; 4TH,COUNTER 1-33338-336-0 01 1 9904-0004 ● ●
104 GEAR; 4TH,COUNTER 1-33338-336-0 01 1 0005- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 1103- ●
108 SHAFT; COUNTER 1-33311-294-0 01 1 9703-9903 ●
108 SHAFT; COUNTER 1-33311-294-0 01 1 9904-0004 ● ●
108 SHAFT; COUNTER 1-33311-294-0 01 1 0005- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 9703-9903 ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 9904-0004 ● ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0005-1102 ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1103- ● ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1103- ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 9703-9903 ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 9904-0004 ● ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0005- ●
132 SHAFT; REV 1-33351-024-0 01 1 9703-9903 ●
132 SHAFT; REV 1-33351-024-0 01 1 9904-0004 ● ●
132 SHAFT; REV 1-33351-024-0 01 1 0005-1102 ●
132 SHAFT; REV 1-33351-024-0 01 1 1103- ● ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1103- ●
135 GEAR; REV IDLER 1-33361-077-0 01 1 9703-9903 ●
135 GEAR; REV IDLER 1-33361-077-0 01 1 9904-0004 ● ●
135 GEAR; REV IDLER 1-33361-077-0 01 1 0005- ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 9703-9903 ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 9904-0004 ● ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0005-1102 ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1103- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 0005- ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 1103-1305 ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306- ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-119-0 01 1 9703-9903 ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-119-0 01 1 9904-0004 ● ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-119-0 01 1 0005- ●

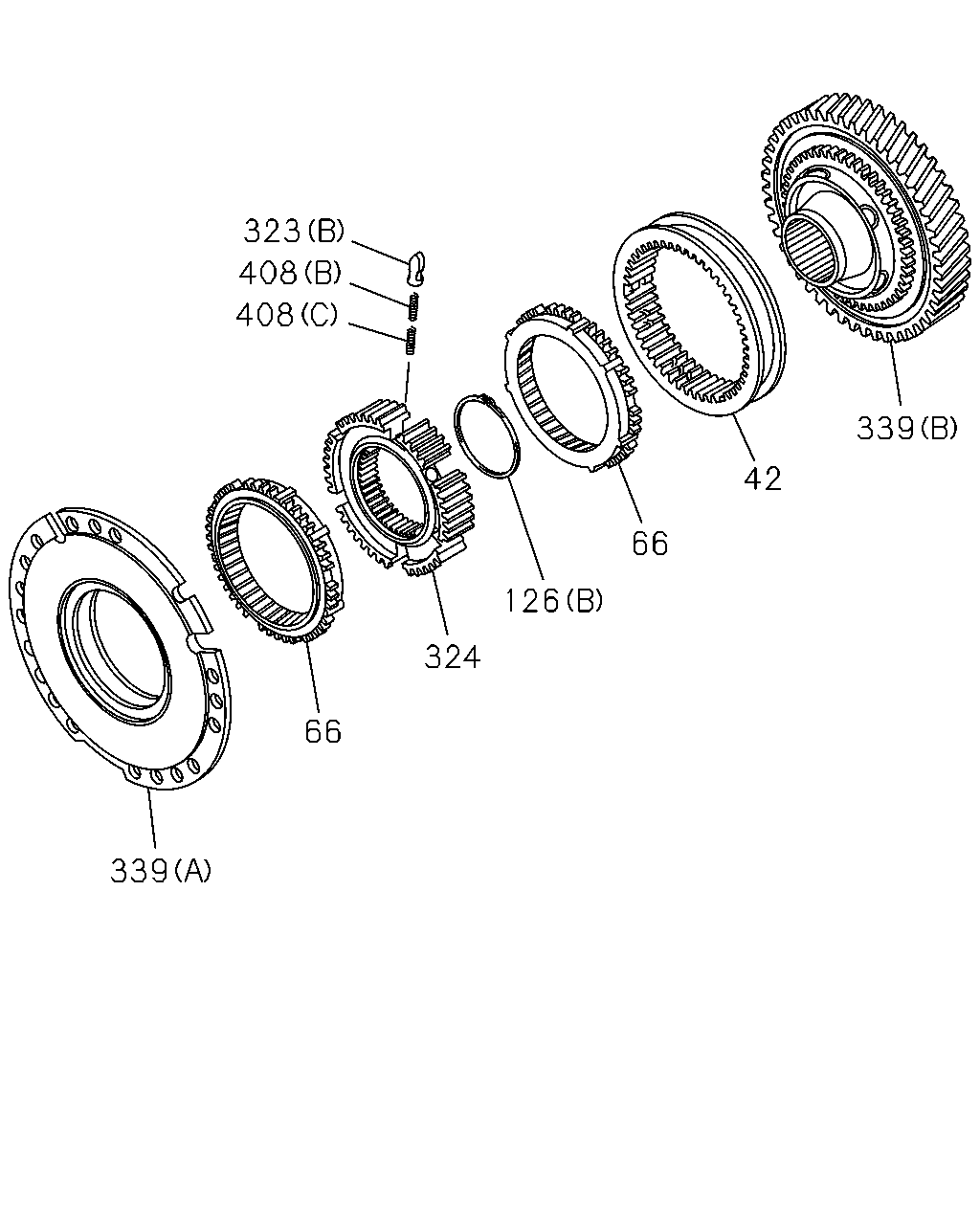

çizim 109813
323 408 408 339 42 66 126 324 66 339
BalonParca AdiParca NoAdetTipApplied Date A B C
42 SLEEVE 1-33262-195-0 01 1 9703-9903 ●
42 SLEEVE 1-33262-195-0 01 1 9904-0004 ● ●
42 SLEEVE 1-33262-195-0 01 1 0005-1102 ●
42 SLEEVE 1-33262-195-0 01 1 1103- ● ●
66 RING; BLOCK,SYN 1-33339-019-0 02 1 9703-9710 ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 9711-9903 ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 9904-0004 ● ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0005-1102 ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1103- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 1103- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 9703-9903 ●
323 INSERT
(B) 		1-33263-027-0 09 1 9904-0004 ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0005-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
323 INSERT
(A) 		1-33263-030-0 03 1 9703-9903 ●
323 INSERT
(A) 		1-33263-030-0 03 1 9904-0004 ● ●
323 INSERT
(A) 		1-33263-030-0 03 1 0005- ●
323 INSERT
(C) 		1-33263-031-0 03 1 9703-9903 ●
323 INSERT
(C) 		1-33263-031-0 03 1 9904-0004 ● ●
323 INSERT
(C) 		1-33263-031-0 03 1 0005- ●
324 HUB; CLU 1-33261-230-0 01 1 9703-9903 ●
324 HUB; CLU 1-33261-230-0 01 1 9904-0004 ● ●
324 HUB; CLU 1-33261-230-0 01 1 0005-1102 ●
324 HUB; CLU 1-33261-230-0 01 1 1103- ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-649-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1103-1305 ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 9703-9903 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 9904-0004 ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0005-1102 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1103- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-454-0 01 1 9703-9903 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-454-0 01 1 9904-0004 ● ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-454-0 01 1 0005- ●
408 SPRING
(B) 		1-33269-038-0 09 1 9703-9903 ●
408 SPRING
(B) 		1-33269-038-0 09 1 9904-0004 ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0005-1102 ●
408 SPRING
(B) 		1-33269-038-0 09 1 1103- ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 9703-9903 ●
408 SPRING
(C) 		1-33269-039-0 09 1 9904-0004 ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 0005-1102 ●
408 SPRING
(C) 		1-33269-039-0 09 1 1103- ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 9703-9903 ●
408 SPRING
(A) 		1-33269-042-0 06 1 9904-0004 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 0005-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ● ●

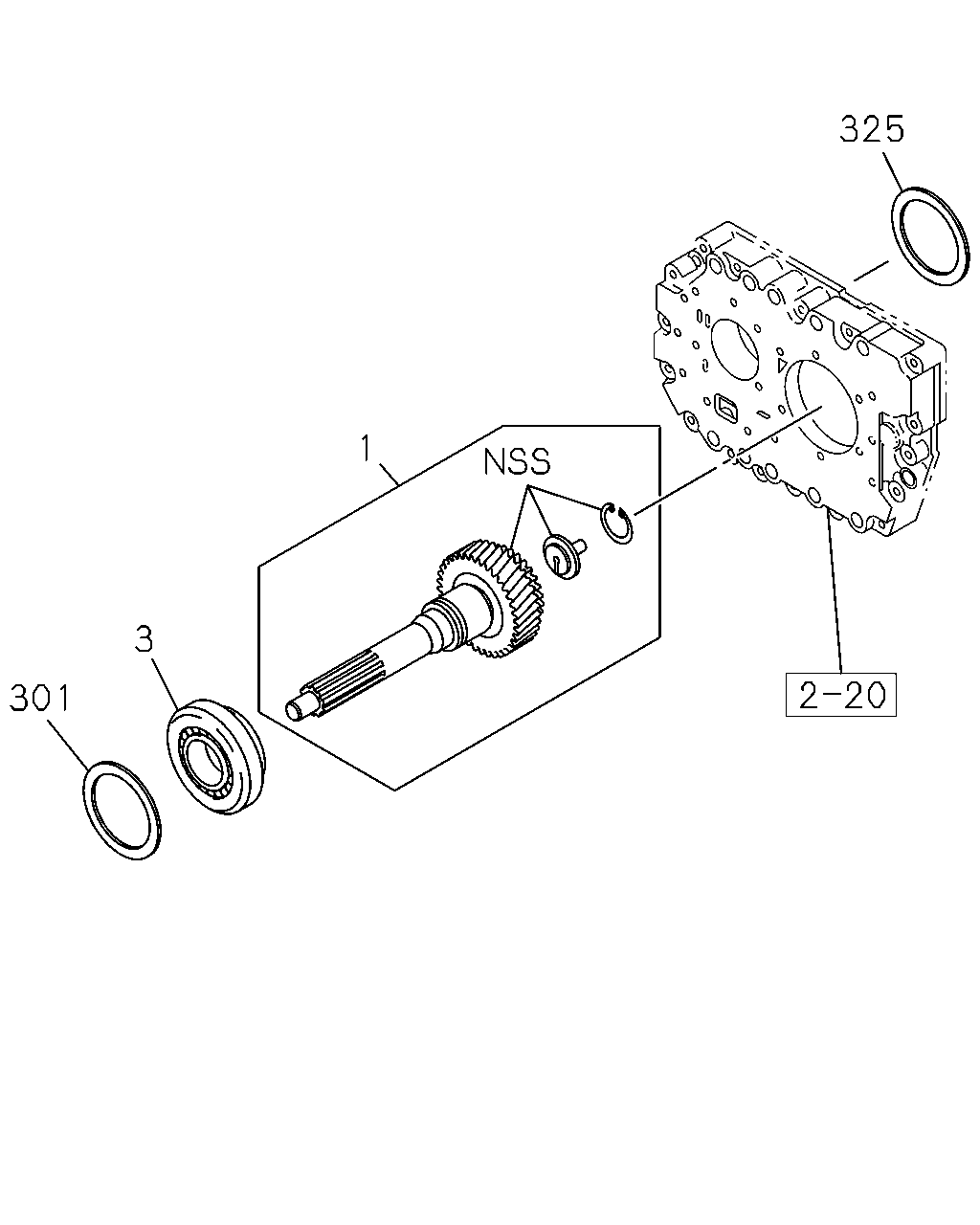

çizim 109863
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1103- ●
1 SHAFT; TOP GEAR,TRANS 1-33211-913-0 01 1 9703-9903 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-913-0 01 1 9904-0004 ● ●
1 SHAFT; TOP GEAR,TRANS 1-33211-913-0 01 1 0005- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1103- ●
3 BEARING; TOP GEAR SHAFT 1-33219-160-0 01 1 9703-9903 ●
3 BEARING; TOP GEAR SHAFT 1-33219-160-0 01 1 9904-0004 ● ●
3 BEARING; TOP GEAR SHAFT 1-33219-160-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=3.20 		1-33219-161-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.20 		1-33219-161-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.20 		1-33219-161-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.15 		1-33219-162-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.15 		1-33219-162-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.15 		1-33219-162-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.10 		1-33219-163-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.10 		1-33219-163-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.10 		1-33219-163-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.05 		1-33219-164-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.05 		1-33219-164-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.05 		1-33219-164-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.00 		1-33219-165-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.00 		1-33219-165-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.00 		1-33219-165-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.95 		1-33219-166-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.95 		1-33219-166-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.95 		1-33219-166-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.90 		1-33219-167-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.90 		1-33219-167-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.90 		1-33219-167-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.85 		1-33219-168-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.85 		1-33219-168-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.85 		1-33219-168-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.80 		1-33219-169-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.80 		1-33219-169-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.80 		1-33219-169-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.75 		1-33219-170-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.75 		1-33219-170-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.75 		1-33219-170-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.70 		1-33219-171-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.70 		1-33219-171-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.70 		1-33219-171-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.65 		1-33219-172-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.65 		1-33219-172-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.65 		1-33219-172-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.60 		1-33219-173-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.60 		1-33219-173-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.60 		1-33219-173-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.55 		1-33219-174-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.55 		1-33219-174-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.55 		1-33219-174-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.50 		1-33219-175-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.50 		1-33219-175-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.50 		1-33219-175-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.45 		1-33219-176-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.45 		1-33219-176-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.45 		1-33219-176-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.40 		1-33219-177-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.40 		1-33219-177-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.40 		1-33219-177-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.35 		1-33219-178-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.35 		1-33219-178-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.35 		1-33219-178-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33219-179-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33219-179-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33219-179-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33219-180-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33219-180-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33219-180-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-181-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-181-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-181-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-182-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-182-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-182-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-183-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-183-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-183-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-184-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-184-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-184-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-185-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-185-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-185-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 0005- ●

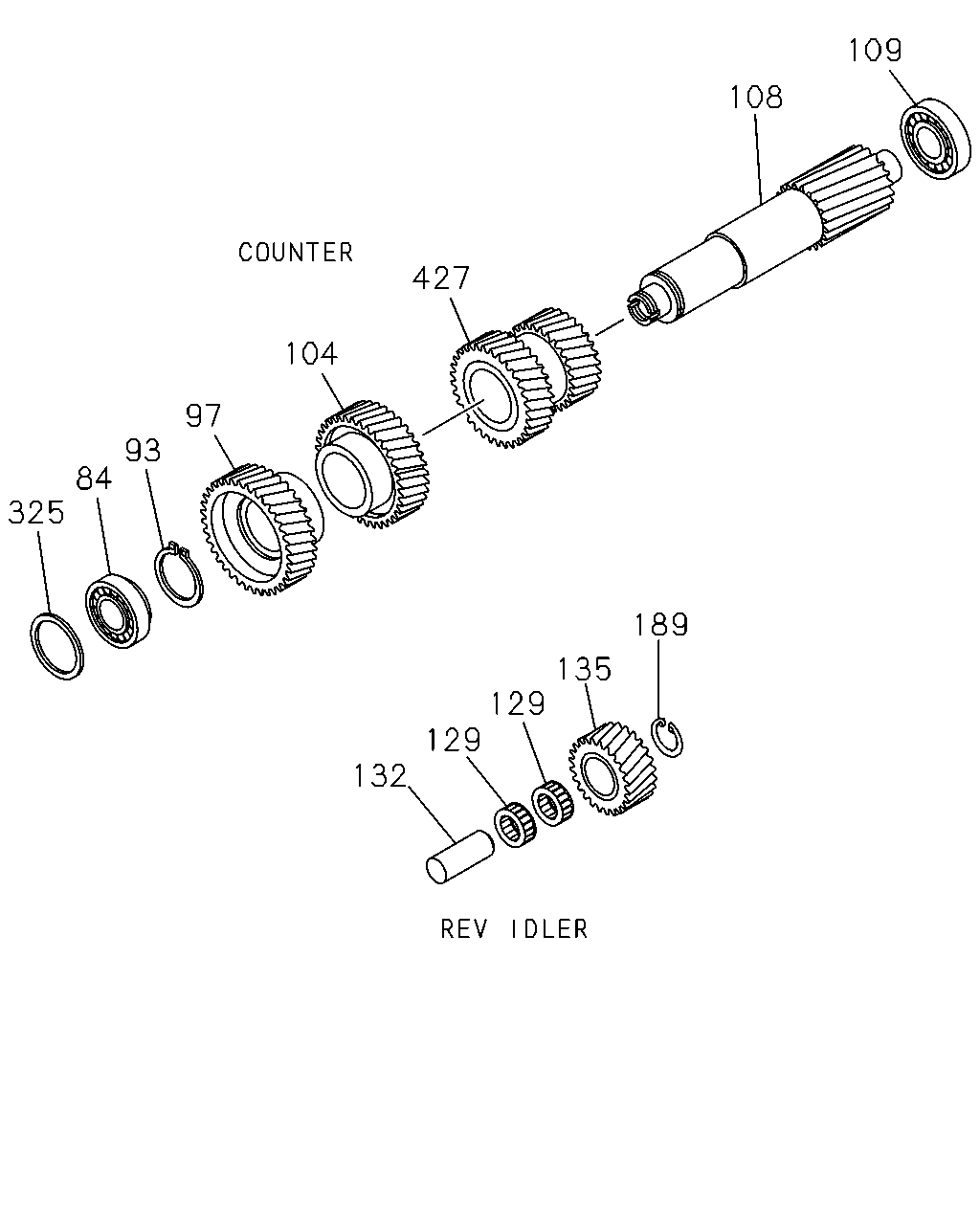

çizim 109864
109 108 427 104 97 93 84 325 189 135 129 129 132
BalonParca AdiParca NoAdetTipApplied Date A B C
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1103- ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-009-0 01 1 9703-9903 ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-009-0 01 1 9904-0004 ● ●
84 BEARING; COUNTER SHAFT,FRT 1-33312-009-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1306- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1103- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-135-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-135-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-135-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-136-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-136-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-136-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-137-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-137-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-137-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-138-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-138-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-138-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-139-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-139-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-139-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-140-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-140-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-140-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-141-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-141-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-141-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.9 		1-33319-142-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.9 		1-33319-142-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.9 		1-33319-142-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.8 		1-33319-143-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.8 		1-33319-143-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.8 		1-33319-143-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.65 		1-33319-144-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.65 		1-33319-144-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.65 		1-33319-144-0 01 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.75 		1-47139-104-0 01 1 9703-9903 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.75 		1-47139-104-0 01 1 9904-0004 ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.75 		1-47139-104-0 01 1 0005- ●
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1103- ●
97 GEAR; 5TH,COUNTER 1-33338-337-0 01 1 9703-9903 ●
97 GEAR; 5TH,COUNTER 1-33338-337-0 01 1 9904-0004 ● ●
97 GEAR; 5TH,COUNTER 1-33338-337-0 01 1 0005- ●
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1103- ●
104 GEAR; 4TH,COUNTER 1-33338-336-0 01 1 9703-9903 ●
104 GEAR; 4TH,COUNTER 1-33338-336-0 01 1 9904-0004 ● ●
104 GEAR; 4TH,COUNTER 1-33338-336-0 01 1 0005- ●
108 SHAFT; COUNTER 1-33311-347-0 01 1 1103- ●
108 SHAFT; COUNTER 1-33311-294-0 01 1 9703-9903 ●
108 SHAFT; COUNTER 1-33311-294-0 01 1 9904-0004 ● ●
108 SHAFT; COUNTER 1-33311-294-0 01 1 0005- ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 9703-9903 ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 9904-0004 ● ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 0005-1102 ●
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1103- ● ●
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1103- ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 9703-9903 ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 9904-0004 ● ●
129 BEARING; NEEDLE,IDLER 1-33369-013-0 02 1 0005- ●
132 SHAFT; REV 1-33351-024-0 01 1 9703-9903 ●
132 SHAFT; REV 1-33351-024-0 01 1 9904-0004 ● ●
132 SHAFT; REV 1-33351-024-0 01 1 0005-1102 ●
132 SHAFT; REV 1-33351-024-0 01 1 1103- ● ●
135 GEAR; REV IDLER 1-33361-096-0 01 1 1103- ●
135 GEAR; REV IDLER 1-33361-077-0 01 1 9703-9903 ●
135 GEAR; REV IDLER 1-33361-077-0 01 1 9904-0004 ● ●
135 GEAR; REV IDLER 1-33361-077-0 01 1 0005- ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 9703-9903 ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 9904-0004 ● ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 0005-1102 ●
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1103- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1103- ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.10 		1-33315-042-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33315-043-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33315-044-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33315-045-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33315-046-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33315-047-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33315-048-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33315-049-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33315-050-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33315-051-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33315-052-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33315-053-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33315-054-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33315-055-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33315-056-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33315-057-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33315-058-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33315-059-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33315-060-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33315-061-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33315-062-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33315-063-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33315-064-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33315-065-0 01 1 0005- ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 9703-9903 ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 9904-0004 ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33315-066-0 01 1 0005- ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-131-0 01 1 1103-1305 ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1306- ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-119-0 01 1 9703-9903 ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-119-0 01 1 9904-0004 ● ●
427 GEAR; 2ND & 3RD,COUNTER 1-33332-119-0 01 1 0005- ●

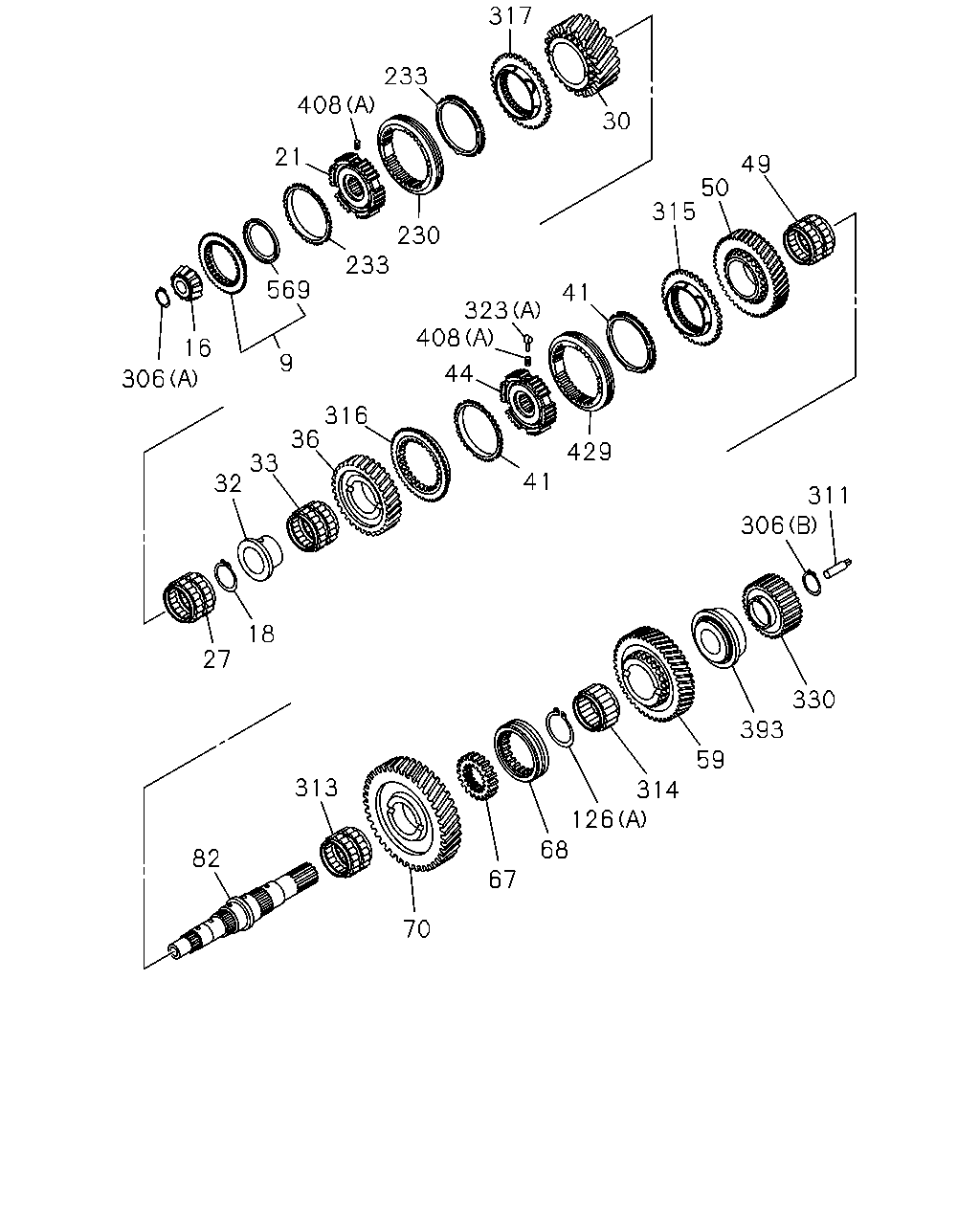

çizim 109865
317 233 408 30 21 49 50 315 230 233 569 41 323 408 16 9 44 306 316 36 429 33 32 41 311 306 18 27 330 393 59 313 314 126 68 82 67 70
BalonParca AdiParca NoAdetTipApplied Date A B C
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1103- ●
9 CLUTCH; DOG,TOP GEAR 1-33265-451-0 01 1 9703-9903 ●
9 CLUTCH; DOG,TOP GEAR 1-33265-451-0 01 1 9904-0004 ● ●
9 CLUTCH; DOG,TOP GEAR 1-33265-451-0 01 1 0005- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1103- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-229-0 01 1 9703-9903 ●
16 BEARING; PILOT,MAINSHAFT 1-33239-229-0 01 1 9904-0004 ● ●
16 BEARING; PILOT,MAINSHAFT 1-33239-229-0 01 1 0005- ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1103- ● ●
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1103- ●
21 HUB; CLU,4TH & 5TH 1-33261-232-0 01 1 9703-9903 ●
21 HUB; CLU,4TH & 5TH 1-33261-232-0 01 1 9904-0004 ● ●
21 HUB; CLU,4TH & 5TH 1-33261-232-0 01 1 0005- ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1103- ●
27 BEARING; 4TH GEAR 1-33259-066-0 02 1 9703-9903 ●
27 BEARING; 4TH GEAR 1-33259-066-0 02 1 9904-0004 ● ●
27 BEARING; 4TH GEAR 1-33259-066-0 02 1 0005- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1103- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 9703-9903 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 9904-0004 ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 0005- ●
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306- ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 9703-9903 ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 9904-0004 ● ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0005-1102 ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1103-1305 ● ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1103- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 9703-9903 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 9904-0004 ● ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0005- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1103- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-452-0 01 1 9703-9903 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-452-0 01 1 9904-0004 ● ●
36 GEAR; 3RD,MAINSHAFT 1-33252-452-0 01 1 0005- ●
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1103- ●
41 RING; BLOCK,2ND & 3RD 1-33265-501-0 02 1 9703-9903 ●
41 RING; BLOCK,2ND & 3RD 1-33265-501-0 02 1 9904-0004 ● ●
41 RING; BLOCK,2ND & 3RD 1-33265-501-0 02 1 0005- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1103- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 9703-9903 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 9904-0004 ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0005- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1103- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 9703-9903 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 9904-0004 ● ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0005- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1103- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-374-0 01 1 9703-9903 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-374-0 01 1 9904-0004 ● ●
50 GEAR; 2ND,MAINSHAFT 1-33251-374-0 01 1 0005- ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1103- ●
59 GEAR; REV MAINSHAFT 1-33257-077-0 01 1 9703-9903 ●
59 GEAR; REV MAINSHAFT 1-33257-077-0 01 1 9904-0004 ● ●
59 GEAR; REV MAINSHAFT 1-33257-077-0 01 1 0005- ●
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1103- ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 9703-9903 ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 9904-0004 ● ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0005- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 9703-9903 ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 9904-0004 ● ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0005-1102 ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1103- ● ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1103- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-373-0 01 1 9703-9903 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-373-0 01 1 9904-0004 ● ●
70 GEAR; 1ST,MAINSHAFT 1-33251-373-0 01 1 0005- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1103- ●
82 SHAFT; MAIN,TRANS 1-33231-283-0 01 1 9703-9903 ●
82 SHAFT; MAIN,TRANS 1-33231-283-0 01 1 9904-0004 ● ●
82 SHAFT; MAIN,TRANS 1-33231-283-0 01 1 0005- ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1103- ● ●
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1103- ●
230 SLEEVE; 4TH TO 5TH 1-33262-193-0 01 1 9703-9903 ●
230 SLEEVE; 4TH TO 5TH 1-33262-193-0 01 1 9904-0004 ● ●
230 SLEEVE; 4TH TO 5TH 1-33262-193-0 01 1 0005- ●
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1103- ●
233 RING; BLOCK 4TH TO 5TH 1-33265-452-0 02 1 9703-9903 ●
233 RING; BLOCK 4TH TO 5TH 1-33265-452-0 02 1 9904-0004 ● ●
233 RING; BLOCK 4TH TO 5TH 1-33265-452-0 02 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 01 1 1103-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 01 1 1103-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.5 		1-43319-021-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.4 		1-43319-101-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.3 		1-43319-102-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-43319-103-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.1 		1-43319-104-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.2 		1-43319-105-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-33239-227-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-33239-227-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-33239-227-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(A) T=1.9 		1-33239-228-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(A) T=1.9 		1-33239-228-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(A) T=1.9 		1-33239-228-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 02 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 02 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 02 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 02 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 02 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 02 1 0005- ●
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1103- ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9703-9903 ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9904-0004 ● ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 0005- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1103- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 9703-9903 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 9904-0004 ● ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0005- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1103- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 9703-9903 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 9904-0004 ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 0005- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1103- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-447-0 01 1 9703-9903 ●
315 CLUTCH; DOG,2ND GEAR 1-33265-447-0 01 1 9904-0004 ● ●
315 CLUTCH; DOG,2ND GEAR 1-33265-447-0 01 1 0005- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1103- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-447-0 01 1 9703-9903 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-447-0 01 1 9904-0004 ● ●
316 CLUTCH; DOG,3RD GEAR 1-33265-447-0 01 1 0005- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1103- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-451-0 01 1 9703-9903 ●
317 CLUTCH; DOG,4TH GEAR 1-33265-451-0 01 1 9904-0004 ● ●
317 CLUTCH; DOG,4TH GEAR 1-33265-451-0 01 1 0005- ●
323 INSERT
(B) 		1-33263-027-0 09 1 1103- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 9703-9903 ●
323 INSERT
(B) 		1-33263-027-0 09 1 9904-0004 ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0005-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
323 INSERT
(A) 		1-33263-030-0 03 1 9703-9903 ●
323 INSERT
(A) 		1-33263-030-0 03 1 9904-0004 ● ●
323 INSERT
(A) 		1-33263-030-0 03 1 0005- ●
323 INSERT
(C) 		1-33263-031-0 03 1 9703-9903 ●
323 INSERT
(C) 		1-33263-031-0 03 1 9904-0004 ● ●
323 INSERT
(C) 		1-33263-031-0 03 1 0005- ●
330 GEAR; SUN 1-33259-134-0 01 1 1103- ●
330 GEAR; SUN 1-33259-057-0 01 1 9703-9903 ●
330 GEAR; SUN 1-33259-057-0 01 1 9904-0004 ● ●
330 GEAR; SUN 1-33259-057-0 01 1 0005- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1103- ●
393 BEARING; MAINSHAFT END 1-33259-056-0 01 1 9703-9903 ●
393 BEARING; MAINSHAFT END 1-33259-056-0 01 1 9904-0004 ● ●
393 BEARING; MAINSHAFT END 1-33259-056-0 01 1 0005- ●
408 SPRING
(B) 		1-33269-038-0 09 1 9703-9903 ●
408 SPRING
(B) 		1-33269-038-0 09 1 9904-0004 ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0005-1102 ●
408 SPRING
(B) 		1-33269-038-0 09 1 1103- ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 9703-9903 ●
408 SPRING
(C) 		1-33269-039-0 09 1 9904-0004 ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 0005-1102 ●
408 SPRING
(C) 		1-33269-039-0 09 1 1103- ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 9703-9903 ●
408 SPRING
(A) 		1-33269-042-0 06 1 9904-0004 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 0005-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ● ●
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1103- ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 9703-9903 ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 9904-0004 ● ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0005- ●
569 DAM; OIL 1-33269-097-0 01 1 1103- ●
çizim 109866
336 337 333 337 333 337 336 332 332 334 331 327 341 335 328 338 348 347 346 342 345 400 340
BalonParca AdiParca NoAdetTipApplied Date A B C
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1103- ●
327 CARRIER; PLANETARY GEAR 1-33231-285-0 01 1 9703-9903 ●
327 CARRIER; PLANETARY GEAR 1-33231-285-0 01 1 9904-0004 ● ●
327 CARRIER; PLANETARY GEAR 1-33231-285-0 01 1 0005- ●
328 BEARING; CARRIER 1-33339-094-0 01 1 1103- ●
328 BEARING; CARRIER 1-33339-025-0 01 1 9703-9903 ●
328 BEARING; CARRIER 1-33339-025-0 01 1 9904-0004 ● ●
328 BEARING; CARRIER 1-33339-025-0 01 1 0005- ●
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1103- ●
331 GEAR SET; PLANETARY 1-33239-230-0 01 1 9703-9903 ●
331 GEAR SET; PLANETARY 1-33239-230-0 01 1 9904-0004 ● ●
331 GEAR SET; PLANETARY 1-33239-230-0 01 1 0005- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1103- ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1103- ●
332 PIN; LOCK,SHAFT
(C) 		1-33239-234-0 04 1 9703-9903 ●
332 PIN; LOCK,SHAFT
(C) 		1-33239-234-0 04 1 9904-0004 ● ●
332 PIN; LOCK,SHAFT
(C) 		1-33239-234-0 04 1 0005- ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 9703-9903 ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 9904-0004 ● ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0005-1102 ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1103- ● ●
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1103- ●
334 SHAFT; PLANETARY GEAR 1-33239-233-0 04 1 9703-9903 ●
334 SHAFT; PLANETARY GEAR 1-33239-233-0 04 1 9904-0004 ● ●
334 SHAFT; PLANETARY GEAR 1-33239-233-0 04 1 0005- ●
335 RING; SNAP,BEARING
(C) T=2.50 		1-33339-075-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.40 		1-33339-076-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.30 		1-33339-077-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.20 		1-33339-078-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.10 		1-33339-079-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.00 		1-33339-080-0 01 1 1103- ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 01 1 0005- ●
335 RING; SNAP,BEARING
(A) 		1-33339-050-0 01 1 9904-0004 ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1103- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-231-0 08 1 9703-9903 ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-231-0 08 1 9904-0004 ● ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-231-0 08 1 0005- ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 9703-9903 ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 9904-0004 ● ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0005-1102 ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1103- ● ●
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1103- ●
338 CARRIER; RING GEAR 1-33331-241-0 01 1 9703-9903 ●
338 CARRIER; RING GEAR 1-33331-241-0 01 1 9904-0004 ● ●
338 CARRIER; RING GEAR 1-33331-241-0 01 1 0005- ●
340 GEAR; RING 1-33339-099-0 01 1 1103- ●
340 GEAR; RING 1-33339-047-0 01 1 9703-9903 ●
340 GEAR; RING 1-33339-047-0 01 1 9904-0004 ● ●
340 GEAR; RING 1-33339-047-0 01 1 0005- ●
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1103- ●
341 WIRE; LOCK,CARRIER 1-33339-048-0 01 1 9703-9903 ●
341 WIRE; LOCK,CARRIER 1-33339-048-0 01 1 9904-0004 ● ●
341 WIRE; LOCK,CARRIER 1-33339-048-0 01 1 0005- ●
342 FLANGE; OUTPUT
(C) 		1-37243-429-0 01 1 1103- ●
342 FLANGE; OUTPUT
(A) 		1-37243-301-0 01 1 9703- ●
342 FLANGE; OUTPUT
(B) 		1-37243-309-0 02 1 9904-0004 ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1103- ●
345 BOLT; FLANGE TO YOKE
M16X55 		1-46219-039-0 08 1 9904-0004 ●
346 GASKET; FLANGE 1-37249-156-0 01 1 9703-1102 ●
346 GASKET; FLANGE 1-37249-156-0 01 1 1103- ● ●
346 GASKET; FLANGE 1-33339-051-0 02 1 9904-0004 ●
347 WASHER; FLANGE 1-09509-060-0 01 1 1103- ●
347 WASHER; FLANGE 1-37249-157-0 01 1 9703- ●
347 WASHER; FLANGE 1-09509-060-0 01 1 9904-0004 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1103- ●
348 BOLT; SHAFT 1-37249-155-0 02 1 9703- ●
348 BOLT; SHAFT 1-09009-168-0 02 1 9904-0004 ●
400 BEARING; OUTPUT SHAFT RR
(C) 		1-33139-212-0 01 1 1103- ●
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-063-0 01 1 9703-9903 ●
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-063-0 01 1 9904-0004 ● ●
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-063-0 01 1 0005- ●
400 BEARING; OUTPUT SHAFT RR
(B) 		1-33339-049-0 01 1 9904-0004 ●
çizim 109892
323 408 408 126 339 66 42 324 66 339
BalonParca AdiParca NoAdetTipApplied Date A B C
42 SLEEVE 1-33262-195-0 01 1 9703-9903 ●
42 SLEEVE 1-33262-195-0 01 1 9904-0004 ● ●
42 SLEEVE 1-33262-195-0 01 1 0005-1102 ●
42 SLEEVE 1-33262-195-0 01 1 1103- ● ●
66 RING; BLOCK,SYN 1-33339-019-0 02 1 9703-9710 ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 9711-9903 ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 9904-0004 ● ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 0005-1102 ●
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1103- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 1103- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 9703-9903 ●
323 INSERT
(B) 		1-33263-027-0 09 1 9904-0004 ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0005-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
323 INSERT
(A) 		1-33263-030-0 03 1 9703-9903 ●
323 INSERT
(A) 		1-33263-030-0 03 1 9904-0004 ● ●
323 INSERT
(A) 		1-33263-030-0 03 1 0005- ●
323 INSERT
(C) 		1-33263-031-0 03 1 9703-9903 ●
323 INSERT
(C) 		1-33263-031-0 03 1 9904-0004 ● ●
323 INSERT
(C) 		1-33263-031-0 03 1 0005- ●
324 HUB; CLU 1-33261-230-0 01 1 9703-9903 ●
324 HUB; CLU 1-33261-230-0 01 1 9904-0004 ● ●
324 HUB; CLU 1-33261-230-0 01 1 0005-1102 ●
324 HUB; CLU 1-33261-230-0 01 1 1103- ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-649-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1103-1305 ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1306- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 9703-9903 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 9904-0004 ● ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 0005-1102 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1103- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-454-0 01 1 9703-9903 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-454-0 01 1 9904-0004 ● ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-454-0 01 1 0005- ●
408 SPRING
(B) 		1-33269-038-0 09 1 9703-9903 ●
408 SPRING
(B) 		1-33269-038-0 09 1 9904-0004 ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0005-1102 ●
408 SPRING
(B) 		1-33269-038-0 09 1 1103- ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 9703-9903 ●
408 SPRING
(C) 		1-33269-039-0 09 1 9904-0004 ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 0005-1102 ●
408 SPRING
(C) 		1-33269-039-0 09 1 1103- ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 9703-9903 ●
408 SPRING
(A) 		1-33269-042-0 06 1 9904-0004 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 0005-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ● ●
çizim 109914
434 2 1 435 3 301
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1103- ●
1 SHAFT; TOP GEAR,TRANS 1-33211-913-0 01 1 9703-9903 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-913-0 01 1 9904-0004 ● ●
1 SHAFT; TOP GEAR,TRANS 1-33211-913-0 01 1 0005- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-159-0 01 1 9703-9903 ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-159-0 01 1 9904-0004 ● ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-159-0 01 1 0005- ●
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1103- ●
3 BEARING; TOP GEAR SHAFT 1-33219-160-0 01 1 9703-9903 ●
3 BEARING; TOP GEAR SHAFT 1-33219-160-0 01 1 9904-0004 ● ●
3 BEARING; TOP GEAR SHAFT 1-33219-160-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1306- ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1103- ●
301 SHIM; TOP GEAR SHAFT
T=3.20 		1-33219-161-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.20 		1-33219-161-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.20 		1-33219-161-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.15 		1-33219-162-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.15 		1-33219-162-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.15 		1-33219-162-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.10 		1-33219-163-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.10 		1-33219-163-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.10 		1-33219-163-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.05 		1-33219-164-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.05 		1-33219-164-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.05 		1-33219-164-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=3.00 		1-33219-165-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=3.00 		1-33219-165-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=3.00 		1-33219-165-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.95 		1-33219-166-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.95 		1-33219-166-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.95 		1-33219-166-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.90 		1-33219-167-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.90 		1-33219-167-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.90 		1-33219-167-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.85 		1-33219-168-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.85 		1-33219-168-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.85 		1-33219-168-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.80 		1-33219-169-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.80 		1-33219-169-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.80 		1-33219-169-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.75 		1-33219-170-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.75 		1-33219-170-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.75 		1-33219-170-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.70 		1-33219-171-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.70 		1-33219-171-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.70 		1-33219-171-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.65 		1-33219-172-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.65 		1-33219-172-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.65 		1-33219-172-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.60 		1-33219-173-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.60 		1-33219-173-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.60 		1-33219-173-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.55 		1-33219-174-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.55 		1-33219-174-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.55 		1-33219-174-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.50 		1-33219-175-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.50 		1-33219-175-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.50 		1-33219-175-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.45 		1-33219-176-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.45 		1-33219-176-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.45 		1-33219-176-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.40 		1-33219-177-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.40 		1-33219-177-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.40 		1-33219-177-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.35 		1-33219-178-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.35 		1-33219-178-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.35 		1-33219-178-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33219-179-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33219-179-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33219-179-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33219-180-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33219-180-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33219-180-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-181-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-181-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-181-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-182-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-182-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-182-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-183-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-183-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-183-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-184-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-184-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-184-0 01 1 0005- ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-185-0 01 1 9703-9903 ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-185-0 01 1 9904-0004 ● ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-185-0 01 1 0005- ●
434 GASKET; INPUTSHAFT 1-33239-172-0 01 1 9703-9903 ●
434 GASKET; INPUTSHAFT 1-33239-172-0 01 1 9904-0004 ● ●
434 GASKET; INPUTSHAFT 1-33239-172-0 01 1 0005- ●
435 PIPE; INPUTSHAFT 1-33219-158-0 01 1 9703-9903 ●
435 PIPE; INPUTSHAFT 1-33219-158-0 01 1 9904-0004 ● ●
435 PIPE; INPUTSHAFT 1-33219-158-0 01 1 0005- ●
çizim 184717
336 337 333 337 333 337 336 332 334 331 252 327 345 341 252 338 342 328 346 346 335 400 340 335 440 349 348 347 349 348 347 346 342 80 402 400
BalonParca AdiParca NoAdetTipApplied Date A B C
80 GEAR; SPD DRIVE 1-33371-064-0 01 1 9703-9903 ●
80 GEAR; SPD DRIVE 1-33371-064-0 01 1 9904-0004 ● ●
80 GEAR; SPD DRIVE 1-33371-064-0 01 1 0005- ●
252 SPACER
(A) 		1-33239-235-0 01 1 9703-9903 ●
252 SPACER
(A) 		1-33239-235-0 01 1 9904-0004 ● ●
252 SPACER
(A) 		1-33239-235-0 01 1 0005- ●
252 SPACER
(B) 		1-37249-188-0 01 1 9904-0004 ●
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1103- ●
327 CARRIER; PLANETARY GEAR 1-33231-285-0 01 1 9703-9903 ●
327 CARRIER; PLANETARY GEAR 1-33231-285-0 01 1 9904-0004 ● ●
327 CARRIER; PLANETARY GEAR 1-33231-285-0 01 1 0005- ●
328 BEARING; CARRIER 1-33339-094-0 01 1 1103- ●
328 BEARING; CARRIER 1-33339-025-0 01 1 9703-9903 ●
328 BEARING; CARRIER 1-33339-025-0 01 1 9904-0004 ● ●
328 BEARING; CARRIER 1-33339-025-0 01 1 0005- ●
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1103- ●
331 GEAR SET; PLANETARY 1-33239-230-0 01 1 9703-9903 ●
331 GEAR SET; PLANETARY 1-33239-230-0 01 1 9904-0004 ● ●
331 GEAR SET; PLANETARY 1-33239-230-0 01 1 0005- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1103- ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1103- ●
332 PIN; LOCK,SHAFT
(C) 		1-33239-234-0 04 1 9703-9903 ●
332 PIN; LOCK,SHAFT
(C) 		1-33239-234-0 04 1 9904-0004 ● ●
332 PIN; LOCK,SHAFT
(C) 		1-33239-234-0 04 1 0005- ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 9703-9903 ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 9904-0004 ● ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 0005-1102 ●
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1103- ● ●
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1103- ●
334 SHAFT; PLANETARY GEAR 1-33239-233-0 04 1 9703-9903 ●
334 SHAFT; PLANETARY GEAR 1-33239-233-0 04 1 9904-0004 ● ●
334 SHAFT; PLANETARY GEAR 1-33239-233-0 04 1 0005- ●
335 RING; SNAP,BEARING
(C) T=2.50 		1-33339-075-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.40 		1-33339-076-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.30 		1-33339-077-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.20 		1-33339-078-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.10 		1-33339-079-0 01 1 1103- ●
335 RING; SNAP,BEARING
(C) T=2.00 		1-33339-080-0 01 1 1103- ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-005-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-006-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-007-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-008-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-009-0 01 1 0005- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 01 1 9703-9903 ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 01 1 9904-0004 ● ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-010-0 01 1 0005- ●
335 RING; SNAP,BEARING
(A) 		1-33339-050-0 01 1 9904-0004 ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1103- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-231-0 08 1 9703-9903 ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-231-0 08 1 9904-0004 ● ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-231-0 08 1 0005- ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 9703-9903 ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 9904-0004 ● ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 0005-1102 ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1103- ● ●
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1103- ●
338 CARRIER; RING GEAR 1-33331-241-0 01 1 9703-9903 ●
338 CARRIER; RING GEAR 1-33331-241-0 01 1 9904-0004 ● ●
338 CARRIER; RING GEAR 1-33331-241-0 01 1 0005- ●
340 GEAR; RING 1-33339-099-0 01 1 1103- ●
340 GEAR; RING 1-33339-047-0 01 1 9703-9903 ●
340 GEAR; RING 1-33339-047-0 01 1 9904-0004 ● ●
340 GEAR; RING 1-33339-047-0 01 1 0005- ●
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1103- ●
341 WIRE; LOCK,CARRIER 1-33339-048-0 01 1 9703-9903 ●
341 WIRE; LOCK,CARRIER 1-33339-048-0 01 1 9904-0004 ● ●
341 WIRE; LOCK,CARRIER 1-33339-048-0 01 1 0005- ●
342 FLANGE; OUTPUT
(C) 		1-37243-429-0 01 1 1103- ●
342 FLANGE; OUTPUT
(A) 		1-37243-301-0 01 1 9703- ●
342 FLANGE; OUTPUT
(B) 		1-37243-309-0 02 1 9904-0004 ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1103- ●
345 BOLT; FLANGE TO YOKE
M16X55 		1-46219-039-0 08 1 9904-0004 ●
346 GASKET; FLANGE 1-37249-156-0 01 1 9703-1102 ●
346 GASKET; FLANGE 1-37249-156-0 01 1 1103- ● ●
346 GASKET; FLANGE 1-33339-051-0 02 1 9904-0004 ●
347 WASHER; FLANGE 1-09509-060-0 01 1 1103- ●
347 WASHER; FLANGE 1-37249-157-0 01 1 9703- ●
347 WASHER; FLANGE 1-09509-060-0 01 1 9904-0004 ●
348 BOLT; SHAFT 1-37249-215-0 02 1 1103- ●
348 BOLT; SHAFT 1-37249-155-0 02 1 9703- ●
348 BOLT; SHAFT 1-09009-168-0 02 1 9904-0004 ●
349 WASHER; LK,SHAFT 1-37249-153-0 01 1 9703-9903 ●
349 WASHER; LK,SHAFT 1-37249-153-0 01 1 9904-0004 ● ●
349 WASHER; LK,SHAFT 1-37249-153-0 01 1 0005- ●
400 BEARING; OUTPUT SHAFT RR
(C) 		1-33139-212-0 01 1 1103- ●
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-063-0 01 1 9703-9903 ●
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-063-0 01 1 9904-0004 ● ●
400 BEARING; OUTPUT SHAFT RR
(A) 		1-33139-063-0 01 1 0005- ●
400 BEARING; OUTPUT SHAFT RR
(B) 		1-33339-049-0 01 1 9904-0004 ●
402 SHIM
T=2.20 		1-33139-064-0 01 1 9703-9903 ●
402 SHIM
T=2.20 		1-33139-064-0 01 1 9904-0004 ● ●
402 SHIM
T=2.20 		1-33139-064-0 01 1 0005- ●
402 SHIM
T=2.10 		1-33139-065-0 01 1 9703-9903 ●
402 SHIM
T=2.10 		1-33139-065-0 01 1 9904-0004 ● ●
402 SHIM
T=2.10 		1-33139-065-0 01 1 0005- ●
402 SHIM
T=2.00 		1-33139-066-0 01 1 9703-9903 ●
402 SHIM
T=2.00 		1-33139-066-0 01 1 9904-0004 ● ●
402 SHIM
T=2.00 		1-33139-066-0 01 1 0005- ●
402 SHIM
T=1.90 		1-33139-067-0 01 1 9703-9903 ●
402 SHIM
T=1.90 		1-33139-067-0 01 1 9904-0004 ● ●
402 SHIM
T=1.90 		1-33139-067-0 01 1 0005- ●
402 SHIM
T=1.80 		1-33139-068-0 01 1 9703-9903 ●
402 SHIM
T=1.80 		1-33139-068-0 01 1 9904-0004 ● ●
402 SHIM
T=1.80 		1-33139-068-0 01 1 0005- ●
402 SHIM
T=1.70 		1-33139-069-0 01 1 9703-9903 ●
402 SHIM
T=1.70 		1-33139-069-0 01 1 9904-0004 ● ●
402 SHIM
T=1.70 		1-33139-069-0 01 1 0005- ●
402 SHIM
T=1.60 		1-33139-070-0 01 1 9703-9903 ●
402 SHIM
T=1.60 		1-33139-070-0 01 1 9904-0004 ● ●
402 SHIM
T=1.60 		1-33139-070-0 01 1 0005- ●
402 SHIM
T=1.50 		1-33139-071-0 01 1 9703-9903 ●
402 SHIM
T=1.50 		1-33139-071-0 01 1 9904-0004 ● ●
402 SHIM
T=1.50 		1-33139-071-0 01 1 0005- ●
440 COVER; FLANGE 1-37249-152-0 01 1 9904-0004 ●
çizim 184720
311 306 330 68 67 393 70 59 314 313 126 82 429 323 41 408 49 36 44 50 33 41 315 174 32 18 27 323 30 428 316 317 408 9 233 306 16 230 21 233 234
BalonParca AdiParca NoAdetTipApplied Date A B C
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1103- ●
9 CLUTCH; DOG,TOP GEAR 1-33265-451-0 01 1 9703-9903 ●
9 CLUTCH; DOG,TOP GEAR 1-33265-451-0 01 1 9904-0004 ● ●
9 CLUTCH; DOG,TOP GEAR 1-33265-451-0 01 1 0005- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1103- ●
16 BEARING; PILOT,MAINSHAFT 1-33239-229-0 01 1 9703-9903 ●
16 BEARING; PILOT,MAINSHAFT 1-33239-229-0 01 1 9904-0004 ● ●
16 BEARING; PILOT,MAINSHAFT 1-33239-229-0 01 1 0005- ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1103- ● ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 9703-9903 ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 9904-0004 ● ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 0005-1102 ●
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1103- ● ●
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1103- ●
21 HUB; CLU,4TH & 5TH 1-33261-232-0 01 1 9703-9903 ●
21 HUB; CLU,4TH & 5TH 1-33261-232-0 01 1 9904-0004 ● ●
21 HUB; CLU,4TH & 5TH 1-33261-232-0 01 1 0005- ●
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1103- ●
27 BEARING; 4TH GEAR 1-33259-066-0 02 1 9703-9903 ●
27 BEARING; 4TH GEAR 1-33259-066-0 02 1 9904-0004 ● ●
27 BEARING; 4TH GEAR 1-33259-066-0 02 1 0005- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1103- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 9703-9903 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 9904-0004 ● ●
30 GEAR; 4TH,MAINSHAFT 1-33252-453-0 01 1 0005- ●
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1306- ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 9703-9903 ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 9904-0004 ● ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 0005-1102 ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1103-1305 ● ●
32 COLLAR; 3RD GEAR 1-33259-059-0 01 1 1306- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1103- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 9703-9903 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 9904-0004 ● ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-065-0 01 1 0005- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1103- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-452-0 01 1 9703-9903 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-452-0 01 1 9904-0004 ● ●
36 GEAR; 3RD,MAINSHAFT 1-33252-452-0 01 1 0005- ●
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1103- ●
41 RING; BLOCK,2ND & 3RD 1-33265-501-0 02 1 9703-9903 ●
41 RING; BLOCK,2ND & 3RD 1-33265-501-0 02 1 9904-0004 ● ●
41 RING; BLOCK,2ND & 3RD 1-33265-501-0 02 1 0005- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1103- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 9703-9903 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 9904-0004 ● ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-231-0 01 1 0005- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1103- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 9703-9903 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 9904-0004 ● ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-058-0 02 1 0005- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1103- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-374-0 01 1 9703-9903 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-374-0 01 1 9904-0004 ● ●
50 GEAR; 2ND,MAINSHAFT 1-33251-374-0 01 1 0005- ●
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1103- ●
59 GEAR; REV MAINSHAFT 1-33257-077-0 01 1 9703-9903 ●
59 GEAR; REV MAINSHAFT 1-33257-077-0 01 1 9904-0004 ● ●
59 GEAR; REV MAINSHAFT 1-33257-077-0 01 1 0005- ●
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1103- ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 9703-9903 ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 9904-0004 ● ●
67 HUB; CLU,1ST TO REV 1-33259-048-0 01 1 0005- ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 9703-9903 ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 9904-0004 ● ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 0005-1102 ●
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1103- ● ●
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1103- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-373-0 01 1 9703-9903 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-373-0 01 1 9904-0004 ● ●
70 GEAR; 1ST,MAINSHAFT 1-33251-373-0 01 1 0005- ●
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1103- ●
82 SHAFT; MAIN,TRANS 1-33231-283-0 01 1 9703-9903 ●
82 SHAFT; MAIN,TRANS 1-33231-283-0 01 1 9904-0004 ● ●
82 SHAFT; MAIN,TRANS 1-33231-283-0 01 1 0005- ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1103- ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9703-9903 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 9904-0004 ● ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 0005-1102 ●
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1103- ● ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-145-0 01 1 9703-9903 ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-145-0 01 1 9904-0004 ● ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33260-145-0 01 1 0005- ●
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1103- ●
230 SLEEVE; 4TH TO 5TH 1-33262-193-0 01 1 9703-9903 ●
230 SLEEVE; 4TH TO 5TH 1-33262-193-0 01 1 9904-0004 ● ●
230 SLEEVE; 4TH TO 5TH 1-33262-193-0 01 1 0005- ●
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1103- ●
233 RING; BLOCK 4TH TO 5TH 1-33265-452-0 02 1 9703-9903 ●
233 RING; BLOCK 4TH TO 5TH 1-33265-452-0 02 1 9904-0004 ● ●
233 RING; BLOCK 4TH TO 5TH 1-33265-452-0 02 1 0005- ●
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-146-0 01 1 9703-9903 ●
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-146-0 01 1 9904-0004 ● ●
234 SYNCHRONIZER ASM; 4TH TO 5TH 1-33260-146-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 01 1 1103-1305 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 01 1 1103-1305 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.5 		1-43319-021-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.4 		1-43319-101-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.3 		1-43319-102-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-43319-103-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.1 		1-43319-104-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.2 		1-43319-105-0 01 1 1103- ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-33239-227-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-33239-227-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(A) T=2.0 		1-33239-227-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(A) T=1.9 		1-33239-228-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(A) T=1.9 		1-33239-228-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(A) T=1.9 		1-33239-228-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.20 		1-33319-061-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.15 		1-33319-062-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.10 		1-33319-063-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.05 		1-33319-064-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=3.00 		1-33319-065-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.95 		1-33319-066-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.90 		1-33319-067-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.85 		1-33319-068-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.80 		1-33319-069-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.75 		1-33319-070-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.70 		1-33319-071-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.65 		1-33319-072-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.60 		1-33319-073-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.55 		1-33319-074-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.50 		1-33319-075-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.45 		1-33319-076-0 01 1 1103- ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.40 		1-33319-077-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.35 		1-33319-078-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.30 		1-33319-079-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.25 		1-33319-080-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 02 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 02 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.20 		1-33319-081-0 02 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 0005-1102 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 1103-1305 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.15 		1-33319-082-0 01 1 1306- ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 02 1 9703-9903 ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 02 1 9904-0004 ● ●
306 RING; SNAP,MAINSHAFT
(B) T=2.10 		1-33319-083-0 02 1 0005- ●
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1103- ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9703-9903 ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 9904-0004 ● ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 0005- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1103- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 9703-9903 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 9904-0004 ● ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-047-0 01 1 0005- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1103- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 9703-9903 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 9904-0004 ● ●
314 BEARING; NEEDLE,REV GEAR 1-33259-055-0 01 1 0005- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1103- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-447-0 01 1 9703-9903 ●
315 CLUTCH; DOG,2ND GEAR 1-33265-447-0 01 1 9904-0004 ● ●
315 CLUTCH; DOG,2ND GEAR 1-33265-447-0 01 1 0005- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1103- ●
316 CLUTCH; DOG,3RD GEAR 1-33265-447-0 01 1 9703-9903 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-447-0 01 1 9904-0004 ● ●
316 CLUTCH; DOG,3RD GEAR 1-33265-447-0 01 1 0005- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1103- ●
317 CLUTCH; DOG,4TH GEAR 1-33265-451-0 01 1 9703-9903 ●
317 CLUTCH; DOG,4TH GEAR 1-33265-451-0 01 1 9904-0004 ● ●
317 CLUTCH; DOG,4TH GEAR 1-33265-451-0 01 1 0005- ●
323 INSERT
(B) 		1-33263-027-0 09 1 1103- ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 9703-9903 ●
323 INSERT
(B) 		1-33263-027-0 09 1 9904-0004 ● ●
323 INSERT
(B) 		1-33263-027-0 09 1 0005-1102 ●
323 INSERT
(A) 		1-33263-030-0 06 1 1103- ●
323 INSERT
(A) 		1-33263-030-0 03 1 9703-9903 ●
323 INSERT
(A) 		1-33263-030-0 03 1 9904-0004 ● ●
323 INSERT
(A) 		1-33263-030-0 03 1 0005- ●
323 INSERT
(C) 		1-33263-031-0 03 1 9703-9903 ●
323 INSERT
(C) 		1-33263-031-0 03 1 9904-0004 ● ●
323 INSERT
(C) 		1-33263-031-0 03 1 0005- ●
330 GEAR; SUN 1-33259-134-0 01 1 1103- ●
330 GEAR; SUN 1-33259-057-0 01 1 9703-9903 ●
330 GEAR; SUN 1-33259-057-0 01 1 9904-0004 ● ●
330 GEAR; SUN 1-33259-057-0 01 1 0005- ●
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1103- ●
393 BEARING; MAINSHAFT END 1-33259-056-0 01 1 9703-9903 ●
393 BEARING; MAINSHAFT END 1-33259-056-0 01 1 9904-0004 ● ●
393 BEARING; MAINSHAFT END 1-33259-056-0 01 1 0005- ●
408 SPRING
(B) 		1-33269-038-0 09 1 9703-9903 ●
408 SPRING
(B) 		1-33269-038-0 09 1 9904-0004 ● ●
408 SPRING
(B) 		1-33269-038-0 09 1 0005-1102 ●
408 SPRING
(B) 		1-33269-038-0 09 1 1103- ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 9703-9903 ●
408 SPRING
(C) 		1-33269-039-0 09 1 9904-0004 ● ●
408 SPRING
(C) 		1-33269-039-0 09 1 0005-1102 ●
408 SPRING
(C) 		1-33269-039-0 09 1 1103- ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 9703-9903 ●
408 SPRING
(A) 		1-33269-042-0 06 1 9904-0004 ● ●
408 SPRING
(A) 		1-33269-042-0 06 1 0005-1102 ●
408 SPRING
(A) 		1-33269-042-0 06 1 1103- ● ●
428 BALL; LK,SLEEVE 1-33269-051-0 03 1 9703-9903 ●
428 BALL; LK,SLEEVE 1-33269-051-0 03 1 9904-0004 ● ●
428 BALL; LK,SLEEVE 1-33269-051-0 03 1 0005- ●
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1103- ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 9703-9903 ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 9904-0004 ● ●
429 SLEEVE; 2ND & 3RD 1-33262-192-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
