2-26A — MANUAL TRANSMISSION GEAR (#65096) — 83 parça

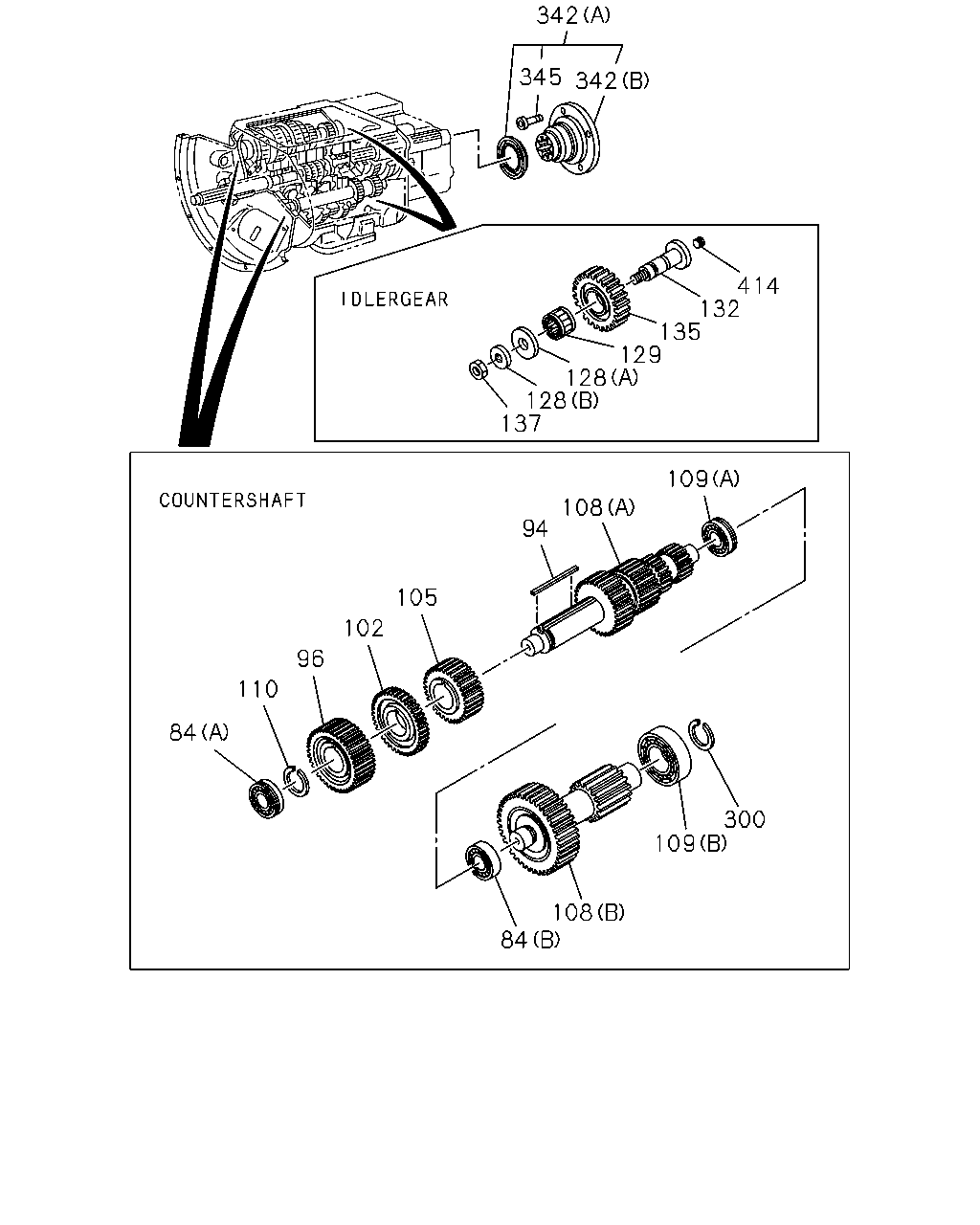

çizim 109653
342 345 342 414 132 135 129 128 128 137 109 108 94 105 102 96 110 84 300 109 108 84
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 9601-
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 9601-
94 KEY; FEATHER,COUNTER SHAFT 1-87061-450-0 02 1 9601-
96 GEAR; COUNTER DRIVE 1-87061-444-0 02 1 9601-
102 GEAR; PTO DRIVE,COUNTER 1-87061-446-0 02 1 9601-
105 GEAR; 3RD,COUNTER 1-87061-447-0 02 1 9601-
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 9601-
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 9601-
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 9601-
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 9601-
110 RING; SNAP,COUNTER BRG 1-87061-410-0 02 1 9601-
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 9601-
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 9601-
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 9601-
132 SHAFT; REV 1-87061-452-0 02 1 9601-
135 GEAR; REV IDLER 1-87061-451-0 02 1 9601-
137 NUT; REV GEAR 1-87061-221-0 02 1 9601-
300 RING; SNAP,COUNTER SHAFT,RR END 1-87061-295-0 02 1 9601-
342 FLANGE; OUTPUT
(A) 		1-37243-221-0 01 1 9601-
342 FLANGE; OUTPUT
(B) 		1-37243-222-1 01 1 9601-
345 BOLT; FLANGE TO YOKE
M16X51 W/MARK 		1-46219-086-0 04 1 9601-
414 PLUG; REV SHAFT 1-87061-203-0 02 1 9601-

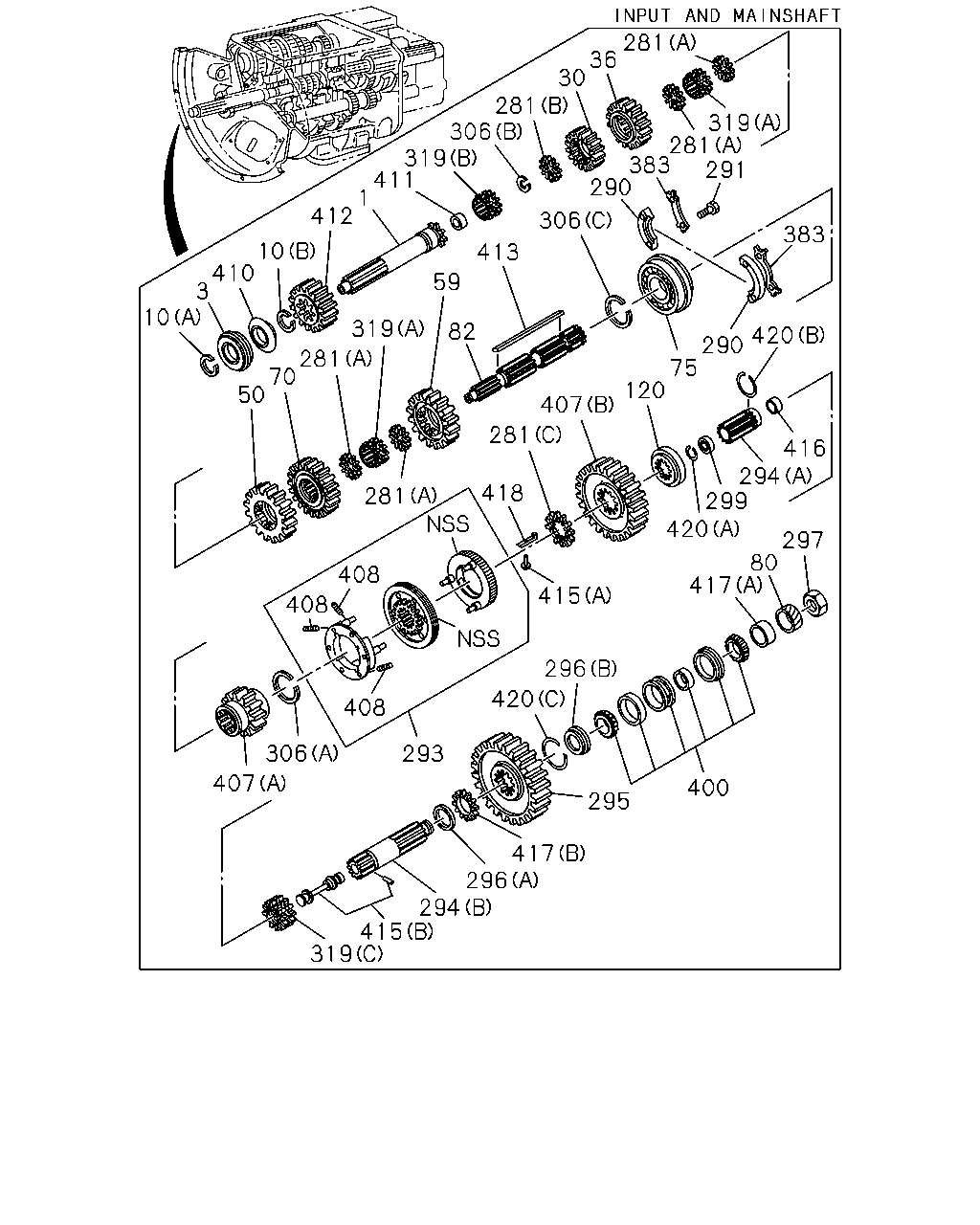

çizim 184722
281 36 30 281 306 319 411 1 412 319 281 383 291 290 306 383 10 410 3 413 59 10 319 82 420 290 75 120 281 70 50 407 281 416 294 299 420 418 281 297 80 417 408 415 408 296 420 408 306 293 407 400 295 417 296 294 415 319
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 9601-0603
1 SHAFT; TOP GEAR,TRANS 1-33211-763-0 01 1 0604-
3 BEARING; TOP GEAR SHAFT 1-87061-501-0 01 1 9601-
10 RING; SNAP,PILOT BRG
(A) 		1-87061-295-0 01 1 9601-
10 RING; SNAP,PILOT BRG
(B) 		1-87061-426-0 01 1 9601-
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 9601-
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 9601-
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 9601-
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 9601-
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 9601-
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 9601-
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 9601-
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 9601-
120 SLEEVE 1-87061-436-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(C) T=0.203 		1-87061-273-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(C) T=0.207 		1-87061-274-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(C) T=0.211 		1-87061-275-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(A) T=0.260 		1-87061-457-0 04 1 9601-
281 WASHER; THRUST,MAINSHAFT
(A) T=0.264 		1-87061-458-0 04 1 9601-
281 WASHER; THRUST,MAINSHAFT
(A) T=0.269 		1-87061-459-0 04 1 9601-
281 WASHER; THRUST,MAINSHAFT
(A) T=0.274 		1-87061-460-0 04 1 9601-
281 WASHER; THRUST,MAINSHAFT
(A) T=0.279 		1-87061-461-0 04 1 9601-
281 WASHER; THRUST,MAINSHAFT
(B) T=0.260 		1-87061-479-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(B) T=0.264 		1-87061-480-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(B) T=0.269 		1-87061-481-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(B) T=0.274 		1-87061-482-0 01 1 9601-
281 WASHER; THRUST,MAINSHAFT
(B) T=0.279 		1-87061-483-0 01 1 9601-
290 RETAINER; BRG 1-87061-492-0 02 1 9601-
291 BOLT; RET 1-87061-529-0 04 1 9601-
293 SYNCHRONIZER; LOW HIGH 1-87061-216-0 01 1 9601-
294 SHAFT; OUTPUT
(A) 		1-87061-280-0 01 1 9601-
294 SHAFT; OUTPUT
(B) 		1-87061-506-0 01 1 9601-
295 GEAR; LOW,DRIVEN 1-87061-441-0 01 1 9601-
296 WASHER; THRUST
(A) 		1-87061-411-0 01 1 9601-
296 WASHER; THRUST
(B) 		1-87061-430-0 01 1 9601-
297 NUT; LOCK 1-87061-291-0 01 1 9601-
299 BEARING; OUTPUT SHAFT FRT 1-87061-279-0 01 1 9601-
306 RING; SNAP,MAINSHAFT
(A) 		1-87061-415-0 01 1 9601-
306 RING; SNAP,MAINSHAFT
(B) 		1-87061-428-0 01 1 9601-
306 RING; SNAP,MAINSHAFT
(C) 		1-87061-429-0 01 1 9601-
319 CLUTCH; SLIDING
(C) 		1-87061-425-0 01 1 9601-
319 CLUTCH; SLIDING
(A) 		1-87061-456-0 02 1 9601-
319 CLUTCH; SLIDING
(B) 		1-87061-478-0 01 1 9601-
383 WASHER; LK 1-87061-493-0 02 1 9601-
400 BEARING; OUTPUT SHAFT RR 1-87061-413-0 01 1 9601-
407 GEAR; PRIMARY MAIN
(B) 		1-87061-486-0 01 1 9601-
407 GEAR; PRIMARY MAIN
(A) 		1-87061-487-0 01 1 9601-
408 SPRING 1-87061-137-0 03 1 9601-
410 SPACER; TOP GEAR SHAFT 1-87061-467-0 01 1 9601-
411 BUSHING; TOP GEAR SHAFT 1-87061-427-0 01 1 9601-
412 GEAR; DRIVE 1-87060-718-0 01 1 9601-
413 KEY; MAIN SHAFT 1-87061-507-0 01 1 9601-
415 PIN; OUTPUT SHAFT
(A) 		1-87061-271-0 01 1 9601-
415 PIN; OUTPUT SHAFT
(B) 		1-87061-284-0 01 1 9601-
416 BUSHING; OUTPUT SHAFT 1-87061-282-0 01 1 9601-
417 SPACER; OUTPUT SHAFT
(A) 		1-87061-414-0 01 1 9601-
417 SPACER; OUTPUT SHAFT
(B) 		1-87061-439-0 01 1 9601-
418 KEY; OUTPUT SHAFT 1-87061-272-0 01 1 9601-
420 RING; SNAP,OUTPUT SHAFT
(A) 		1-87061-278-0 01 1 9601-
420 RING; SNAP,OUTPUT SHAFT
(B) 		1-87061-281-0 01 1 9601-
420 RING; SNAP,OUTPUT SHAFT
(C) 		1-87061-289-0 01 1 9601-
