2-25A — SPEEDOMETER DRIVEN GEAR (#65093) — 14 parça

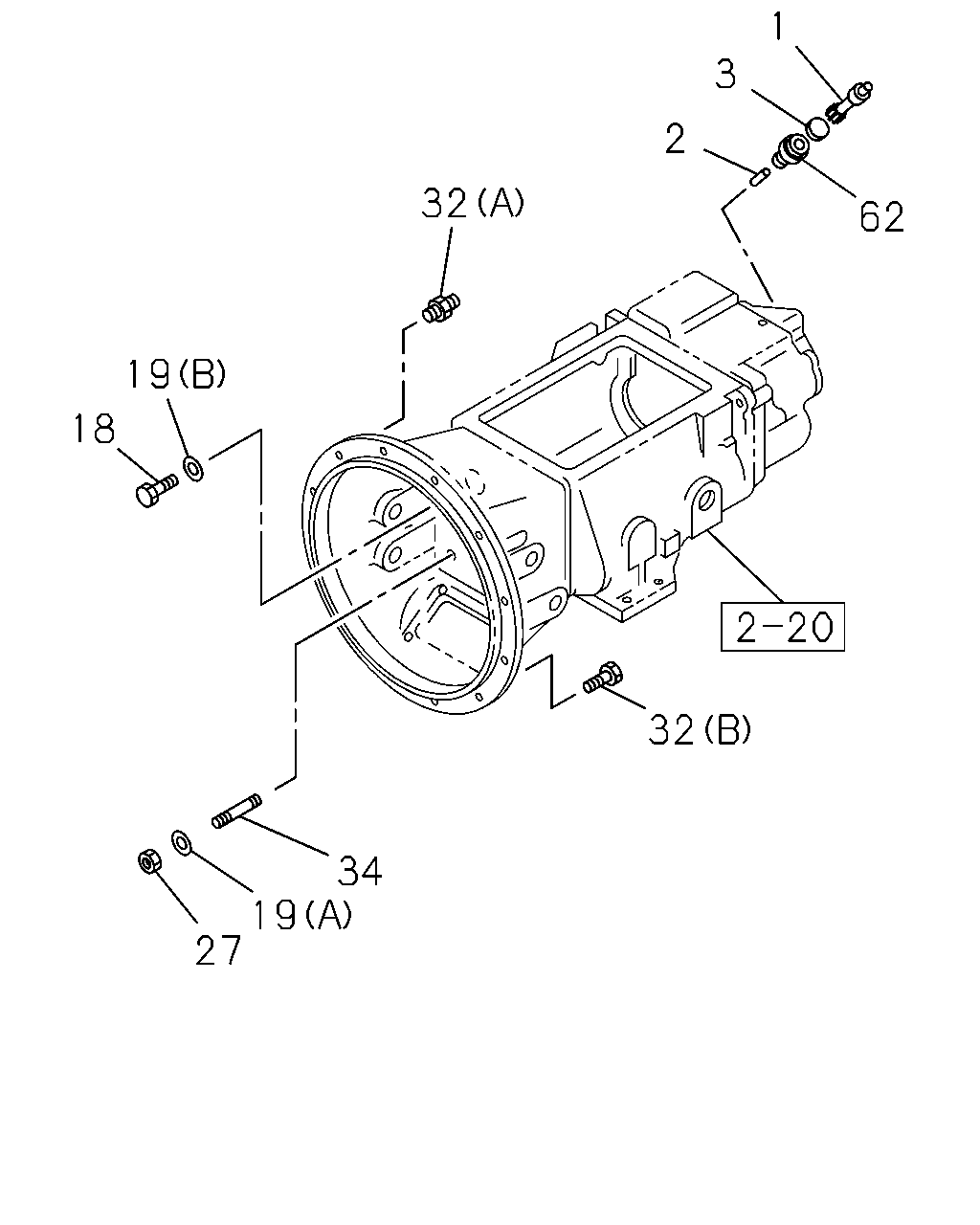

çizim 108112
1 3 2 32 62 19 18 32 34 19 27
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; DRIVEN,SPD
Z=14 		1-33372-158-0 01 1 9601-
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-87060-757-0 01 1 9601-
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-87060-995-0 01 1 9601-
18 BOLT; CLU HSG TO TRANS 1-87061-537-0 02 1 9601-
19 WASHER; PL,CLU HSG TO TRANS
(A) 		1-87060-770-0 06 1 9601-
19 WASHER; PL,CLU HSG TO TRANS
(B) 		1-87061-525-0 02 1 9601-
27 NUT; CLU HSG TO TRANS 1-87061-220-0 06 1 9601-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X32 W/LK&PL WASHER 		0-50151-032-0 10 1 9601-9606
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X30 FLANGE 		0-28781-030-0 10 1 9607-0512
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M10X30 FLANGE 		0-28751-030-0 10 1 0601-
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X26 L=56 		1-09049-014-1 02 1 9601-0805
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X20,M10X26 L=56 		8-98010-334-0 02 1 0806-
34 STUD; CLU HSG 1-87061-431-0 06 1 9601-
62 SLEEVE; DRIVEN GEAR 1-87061-234-0 01 1 9601-
