Isuzu WW
▶
BUSES
▶
LV
▶
10772 - LV280(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#6509) — 49 parça
◀

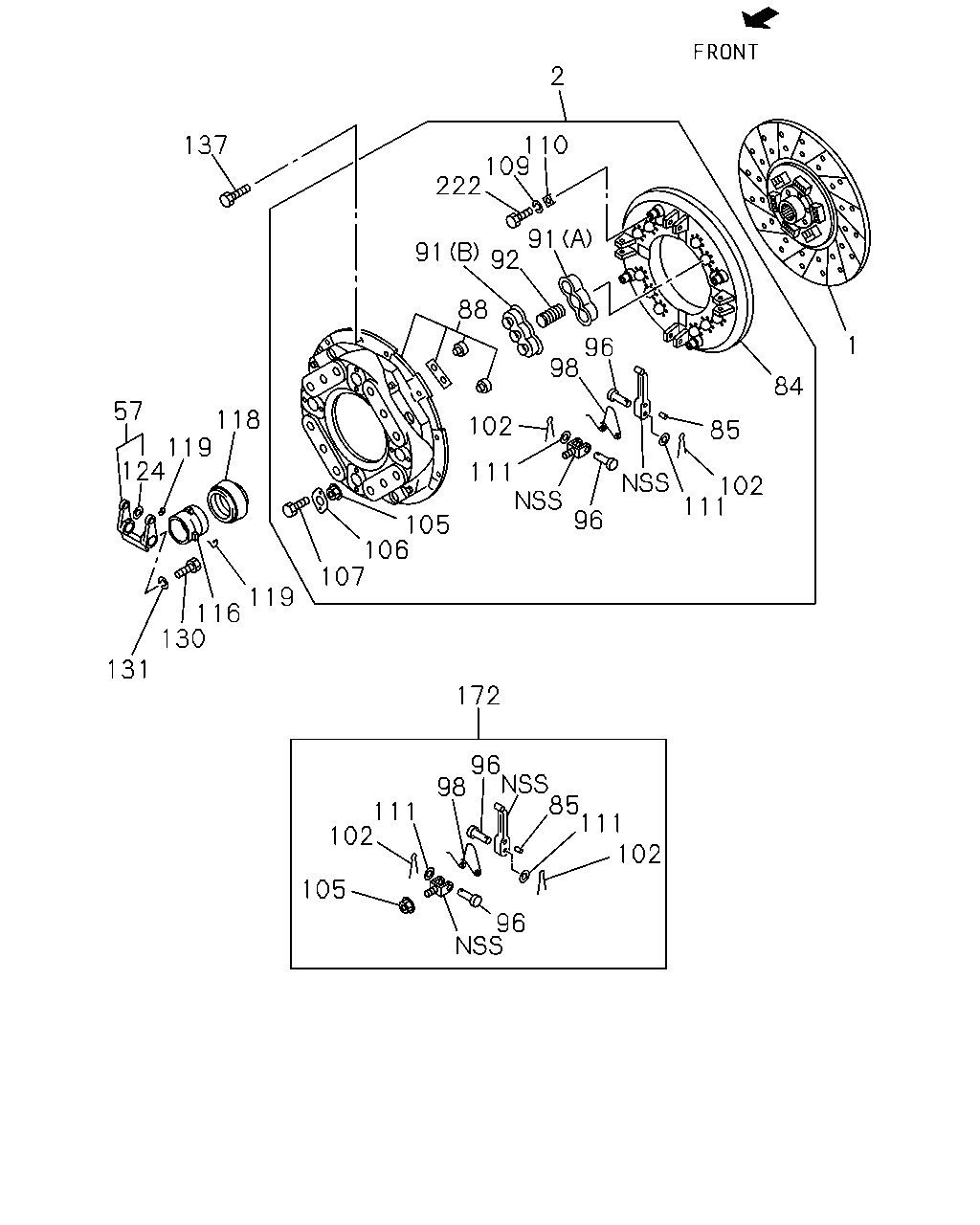

[201A] NO.1 (31 parça)
[201A] NO.2 (18 parça)
▶
2
110
109
222
137
91
92
91
88
1
96
98
84
57
118
119
124
102
85
111
102
111
96
105
106
107
119
116
130
131
172
96
98
85
111
102
111
102
105
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
17"
1-31240-734-2
01
1
9705-
2
PLATE ASM; PRESSURE,CLU
1-31220-227-1
01
1
9705-
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
9705-
84
PLATE; PRESSURE
1-31221-041-0
01
1
9705-
85
BUSHING; RELEASE LEVER
1-31239-003-0
08
1
9705-
88
COVER SUB ASM; CLU
1-31210-008-0
02
1
9705-
91
SEAT; SPR
(A)
1-31219-032-0
04
1
9705-
91
SEAT; SPR
(B)
1-31219-033-0
04
1
9705-
92
SPRING; CLU
1-31214-026-0
12
1
9705-
96
PIN; RELEASE LEVER
L=77
1-31232-010-0
08
1
9705-
98
SPRING; RETURN
1-31233-001-0
04
1
9705-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
9705-
105
NUT; SUPPORT
9-31235-061-0
04
1
9705-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
9705-
107
BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER
1-31239-020-0
08
1
9705-
109
WASHER; LK,STRAP
ID=12.2
9-09150-512-0
04
1
9705-
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
9705-
111
WASHER; PL,STRAP
ID=14
9-09651-098-0
08
1
9705-
116
BLOCK; SHIFT,CLU
1-31321-073-2
01
1
9705-
118
BEARING; CLU RELEASE
9-00095-044-1
01
1
9705-0002
118
BEARING; CLU RELEASE
1-09820-112-0
01
1
0003-0110
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
0111-
119
SPRING; SHIFT FORK
1-31329-019-0
01
1
9705-
119
SPRING; SHIFT FORK
1-31329-018-0
01
1
9705-
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
9705-
130
SCREW; SHIFT FORK
M8X14
9-06120-814-0
01
1
9705-
131
WASHER; LK,SHIFT FORK
ID=8.2
9-09150-508-0
01
1
9705-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28181-020-0
12
1
9705-
172
LEVER KIT; RELEASE,CLU
1-87830-526-1
01
1
9705-0205
172
LEVER KIT; RELEASE,CLU
1-87831-118-0
01
1
0206-
222
BOLT; STRAP
M12X30
1-09040-016-0
04
1
9705-
120
13
123
122
128
154
125
127
134
127
148
122
170
149
148
157
155
155
220
170
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
9705-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09364-870-0
01
1
9705-0003
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0004-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 & M10
1-09660-710-0
01
1
9705-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5 DEGREES
9-09031-110-0
01
1
9705-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
9-09524-835-0
01
1
9705-
125
SHAFT; CLU
1-31342-258-0
01
1
9705-
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
9-09031-210-0
02
1
9705-
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
9705-
134
NUT; JOINT BALL
1-09400-091-0
01
1
9705-
148
SPRING; CLU RETURN
L=192
1-09583-266-0
02
1
9705-
149
EYE; SPRING,RETURN SPRING
1-31426-031-0
01
1
9705-
154
PIN; JAW JOINT
L=15.7
1-31424-005-0
01
1
9705-
155
BRACKET; MINIPACK
(A)
1-31429-205-1
01
1
9705-
155
BRACKET; MINIPACK
(B)
1-31429-373-0
01
1
9705-
157
BOLT; BRKT
M10X18 FLANGE
0-28181-018-0
03
1
9705-
170
NUT; BOOSTER FIX
M10 FLANGE
0-91150-210-0
03
1
9705-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-332-0
01
1
9705-
