2-07B — CLUTCH BOOSTER; MINIPACK (#65085) — 221 parça

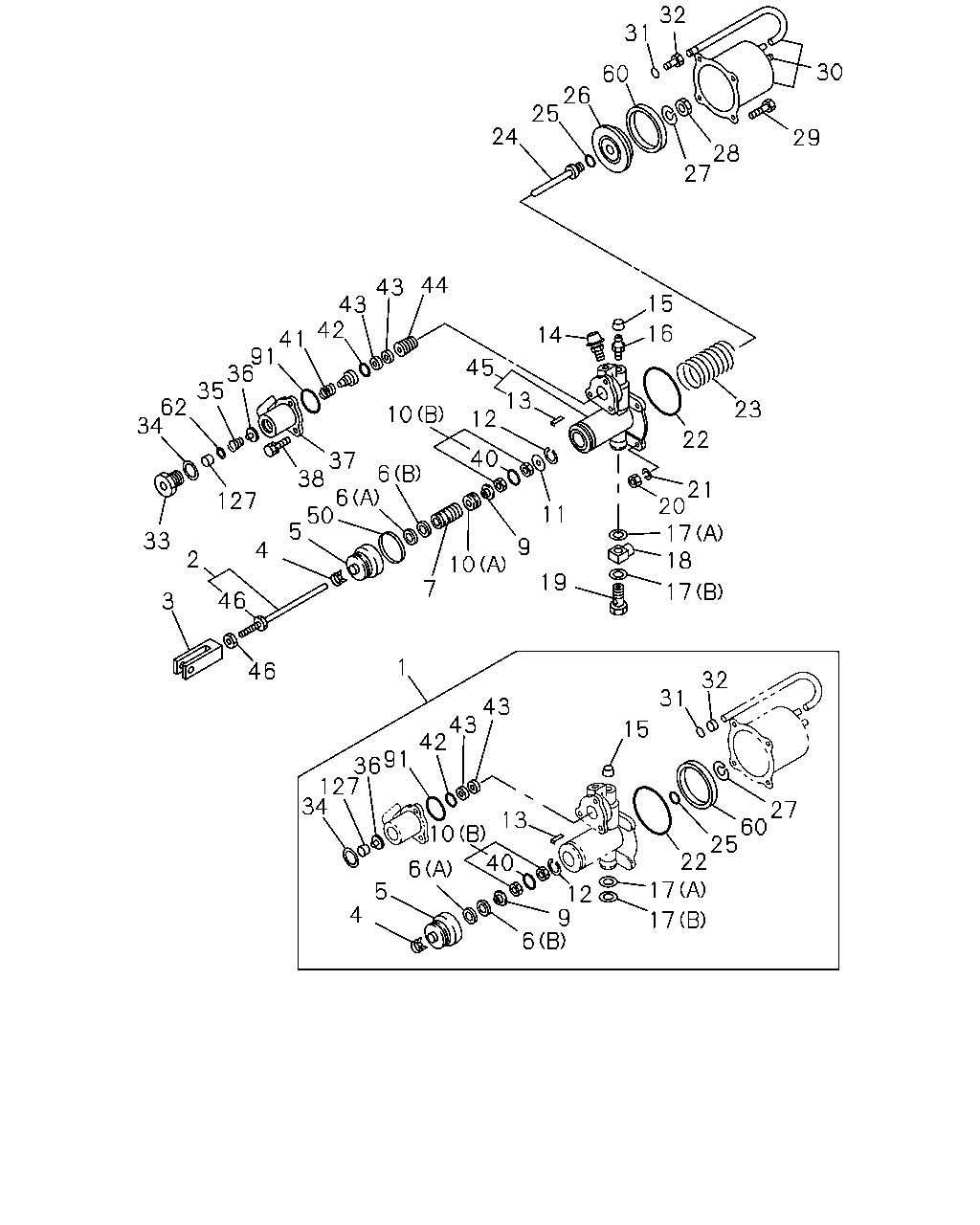

çizim 184705
32 31 30 60 26 25 24 29 28 27 44 43 43 42 15 16 14 41 91 36 35 62 34 45 13 23 10 12 22 40 37 38 6 21 20 17 18 6 50 5 127 11 33 9 4 2 10 19 7 17 46 3 1 46 32 31 43 43 42 15 91 36 127 34 13 27 60 25 22 17 10 40 6 12 9 6 5 4 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 REPAIR KIT; CLU BOOSTER 1-31829-326-0 01 1 9703-9903 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-326-0 01 1 9904-0004 ● ●
1 REPAIR KIT; CLU BOOSTER 1-31829-326-0 01 1 0005-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0107-1102 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 1103- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9703-9903 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9904-0004 ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 0005-0106 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0107-0501 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0502-1102 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1103- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9703-9903 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9904-0004 ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0005-0106 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0308-1102 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1103- ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9703-9903 ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9904-0004 ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0005-0106 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9703-9903 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9904-0004 ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0005-0106 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0107-1102 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1103- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9703-9903 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9904-0004 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0005-1102 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1103- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9703-9903 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9904-0004 ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0005-1102 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1103- ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9703-9903 ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9904-0004 ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 0005-0106 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-1102 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1103- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9703-9903 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9904-0004 ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 0005-1102 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1103- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 9703-9903 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 9904-0004 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 0005-1102 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1103- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 9703-9903 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 9904-0004 ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 0005-1102 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1103- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9703-9903 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9904-0004 ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0005-1102 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1103- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9703-9903 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9904-0004 ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0005-1102 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1103- ● ●
13 PIN; SPR 1-31829-109-0 01 1 9703-9903 ●
13 PIN; SPR 1-31829-109-0 01 1 9904-0004 ● ●
13 PIN; SPR 1-31829-109-0 01 1 0005-1102 ●
13 PIN; SPR 1-31829-109-0 01 1 1103- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9703-9903 ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9904-0004 ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 0005-0106 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-1102 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1103- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9703-9903 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9904-0004 ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0005-1102 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1103- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9703-9903 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9904-0004 ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0005-1102 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1103- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9703-9903 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9904-0004 ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0005-1102 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1103- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9703-9903 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9904-0004 ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0005-1102 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1103- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9703-9903 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9904-0004 ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0005-1102 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1103- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9703-9903 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9904-0004 ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0005-1102 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1103- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9703-9903 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9904-0004 ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0005-1102 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1103- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9703-9903 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9904-0004 ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0005-1102 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1103- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9703-9903 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9904-0004 ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 0005-1102 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1103- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9703-9903 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9904-0004 ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 0005-0106 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-1102 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1103- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 9703-9903 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 9904-0004 ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 0005-1102 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1103- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9703-9903 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9904-0004 ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0005-1102 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1103- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 9703-9903 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 9904-0004 ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 0005-0106 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0107-1102 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1103- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9703-9903 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9904-0004 ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0005-1102 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1103- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9703-9903 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9904-0004 ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0005-1102 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1103- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9703-9903 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9904-0004 ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0005-1102 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1103- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-061-0 01 1 9703-9903 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-061-0 01 1 9904-0004 ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-061-0 01 1 0005-0106 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0107-1102 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1103- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9703-9903 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9904-0004 ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0005-1102 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1103- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9703-9903 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9904-0004 ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0005-1102 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1103- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9703-9903 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9904-0004 ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0005-1102 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1103- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9703-9903 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9904-0004 ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0005-1102 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1103- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9703-9903 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9904-0004 ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0005-0106 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-1102 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1103- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9703-9903 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9904-0004 ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0005-0106 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-1102 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1103- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-053-0 01 1 9703-9903 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-053-0 01 1 9904-0004 ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-053-0 01 1 0005-0106 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107-1102 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1103- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9703-9903 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9904-0004 ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0005-1102 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1103- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9703-9903 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9904-0004 ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0005-1102 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1103-1412 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9703-9903 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9904-0004 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 0005-0106 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0107-1102 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1103- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 9703-9903 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 9904-0004 ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 0005-1102 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1103- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9703-9903 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9904-0004 ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0005-1102 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1103- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 9703-9903 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 9904-0004 ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 0005-0307 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0308-1102 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1103- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 9703-9903 ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 9904-0004 ● ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 0005-1102 ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 1103- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9703-9903 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9904-0004 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0005-0106 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0107-0501 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0502-1102 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1103- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0107-1102 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1103- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9703-9903 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9904-0004 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 0005-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0107-1102 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1103- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-1102 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1103- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9703-9903 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9904-0004 ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0005-1102 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1103- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107-1102 ●
127 FILTER; POPPET 1-31829-495-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
