Sayfa 2-05B - Isuzu EPC

2-05B — CLUTCH PIPING (#65082) — 275 parça

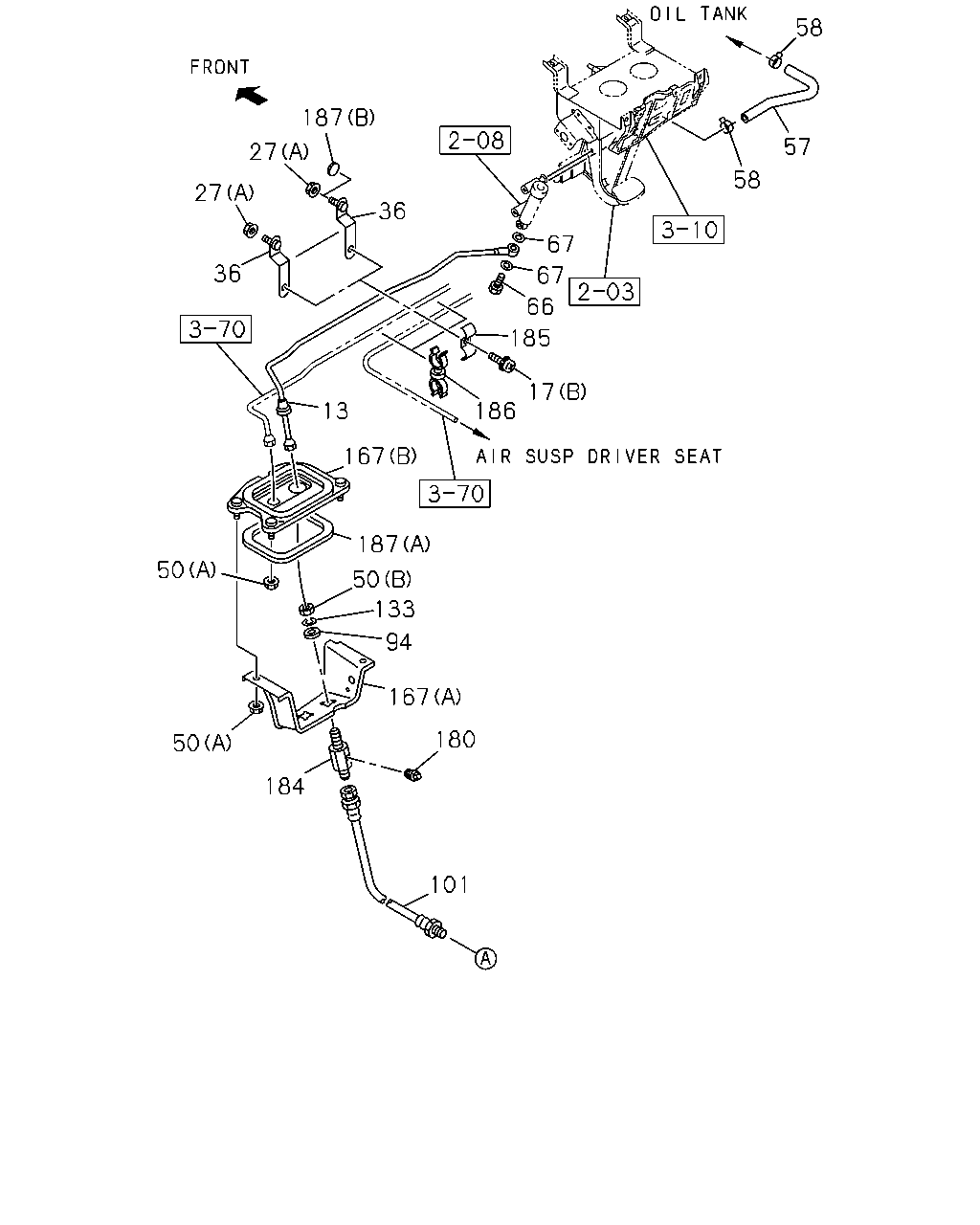

58 187 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 180 50 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9601-9804	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9805-0004	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-0604	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0605-	●		●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0604	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0605-	●		●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0604	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0605-	●		●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9903-0004	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0604	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0605-	●		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0605-	●		●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0604	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0605-	●		●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9903-0004	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0604	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0605-	●		●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	9601-9804	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>	1-79738-186-1	02	1	9805-9810	●	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	9811-0004	●	●	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	0005-0010	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0011-0604	●
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0605-	●		●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9601-9804	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9903-0004	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	0005-0010	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0011-0604	●
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0605-	●		●
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9804	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9805-0004	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0604	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0605-	●		●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-9804	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9805-0004	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-0604	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0605-	●		●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9804	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9805-0004	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0604	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0605-	●		●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9804	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9805-0004	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0604	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0605-	●		●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9804	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9805-0004	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0604	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-1312	●		●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-0001	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0002-0004	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9804	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9805-0004	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●		●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-9804	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9805-0004	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-0604	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0605-	●		●
167	BRACKET; UNION (A)	1-79738-193-4	01	1	9601-9804	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9805-0004	●	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0604	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0605-	●		●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9601-9804	●
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9805-9911	●	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0005-0604	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0605-	●		●
180	PLUG; PIPE	9-09204-510-0	01	1	9601-9804	●
180	PLUG; PIPE	9-09204-510-0	01	1	9805-0004	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9601-9804	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9805-0004	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0005-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●		●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	9601-9804	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=5 & 8	5-09700-165-0	02	1	9805-9810	●	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	9811-0004	●	●	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	0005-0010	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0011-0604	●
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0605-	●		●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9601-9804	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9805-0004	●	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	0005-0010	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-0604	●
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0605-	●		●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9601-9706	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9804	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=6 & 4.8	8-94313-325-0	02	1	9805-9810	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004	●	●	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0005-0010	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-0604	●
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0605-	●		●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9601-9804	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9805-0004	●	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0604	●
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0605-	●		●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9601-9902	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0010	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-0604	●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0605-	●		●
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9903-0004	●	●

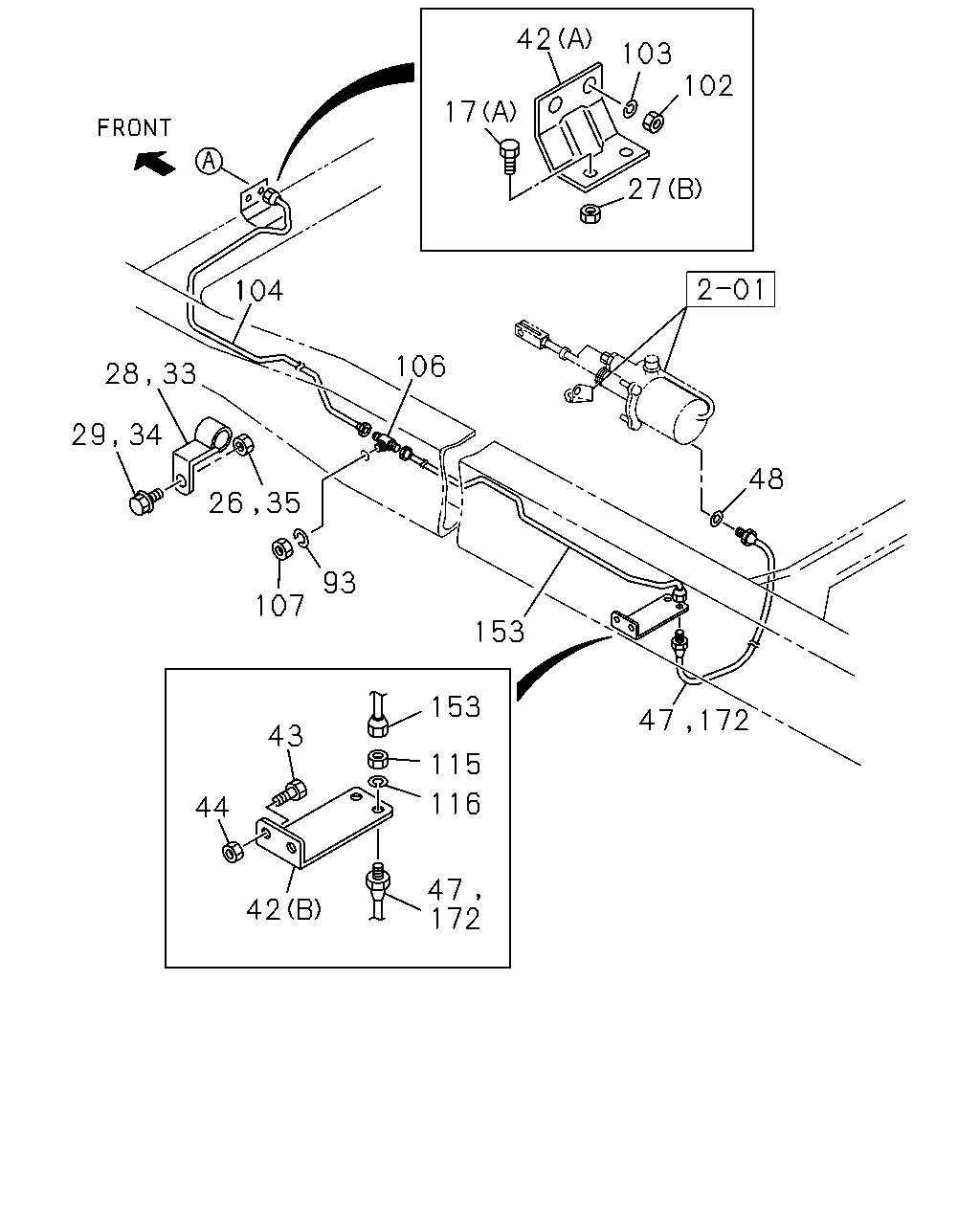

42 103 102 17 27 104 106 48 93 107 153 153 43 115 116 44 47 172 42 28 33 29 34 26 35 47 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0604	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0605-	●		●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004	●	●	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0604	●
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0605-	●		●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9903-0004	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0604	●
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0605-	●		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0605-	●		●
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0605-	●		●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004	●	●	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0604	●
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0605-	●		●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9903-0004	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0604	●
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0605-	●		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9804	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9805-0004	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0604	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0605-	●		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9804	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9805-0004	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-0604	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0605-	●		●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9804	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9805-0004	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0604	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0605-	●		●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9804	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9805-0004	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0005-0512	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-0604	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0605-	●		●
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9601-9606	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9804	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9805-0004	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-0604	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0605-	●		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9702	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9804	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9805-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0604	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0605-	●		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9804	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9805-0004	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0604	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0605-	●		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9804	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9805-0004	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-0604	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0605-	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9804	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0605-	●		●
47	HOSE; FLEX,CLU CONT L=350	1-09364-446-0	01	1	9703-9804	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-9804	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9805-0004	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0604	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0605-	●		●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9601-9804	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9805-0004	●	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	0005-0603	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0604-0604	●
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0605-	●		●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9804	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9805-0004	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0604	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0605-	●		●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9804	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9805-0004	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0604	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0605-	●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9601-9804	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9805-0004	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0005-0101	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0102-0604	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0605-	●		●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9601-9804	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9805-0004	●	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0005-0604	●
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0605-	●		●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9601-9804	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9805-0004	●	●
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	0005-0512	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0601-0604	●
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0605-	●		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9804	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9805-0004	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0604	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0605-	●		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9804	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9805-0004	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0604	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0605-	●		●
153	PIPE ASM; CLU,UNION TO FLEX L=1322 SERVICED BY L=1400	1-47426-389-0	01	1	9601-9607	●
153	PIPE ASM; CLU,UNION TO FLEX L=1349 SERVICED BY L=1400	1-47426-389-0	01	1	0005-0202	●
153	PIPE ASM; CLU,UNION TO FLEX L=1342 SERVICED BY L=1400	1-47426-389-0	01	1	0203-0604	●
153	PIPE ASM; CLU,UNION TO FLEX L=1342 SERVICED BY L=1400	1-47426-389-0	01	1	0605-	●		●
153	PIPE ASM; CLU,UNION TO FLEX L=1326 SERVICED BY L=1400	1-47426-389-0	01	1	9608-9804	●
153	PIPE ASM; CLU,UNION TO FLEX L=1326 SERVICED BY L=1400	1-47426-389-0	01	1	9805-0004	●	●
172	HOSE; FLEX,CLU BOOSTER L=390	1-09364-475-0	01	1	1103-			●
172	HOSE; FLEX,CLU BOOSTER L=350	1-09364-446-0	01	1	9805-9903	●
172	HOSE; FLEX,CLU BOOSTER L=350	1-09364-446-0	01	1	9904-0004	●	●
172	HOSE; FLEX,CLU BOOSTER L=350	1-09364-446-0	01	1	0005-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
