Sayfa 2-05A - Isuzu EPC

2-05A — CLUTCH PIPING (#65081) — 283 parça

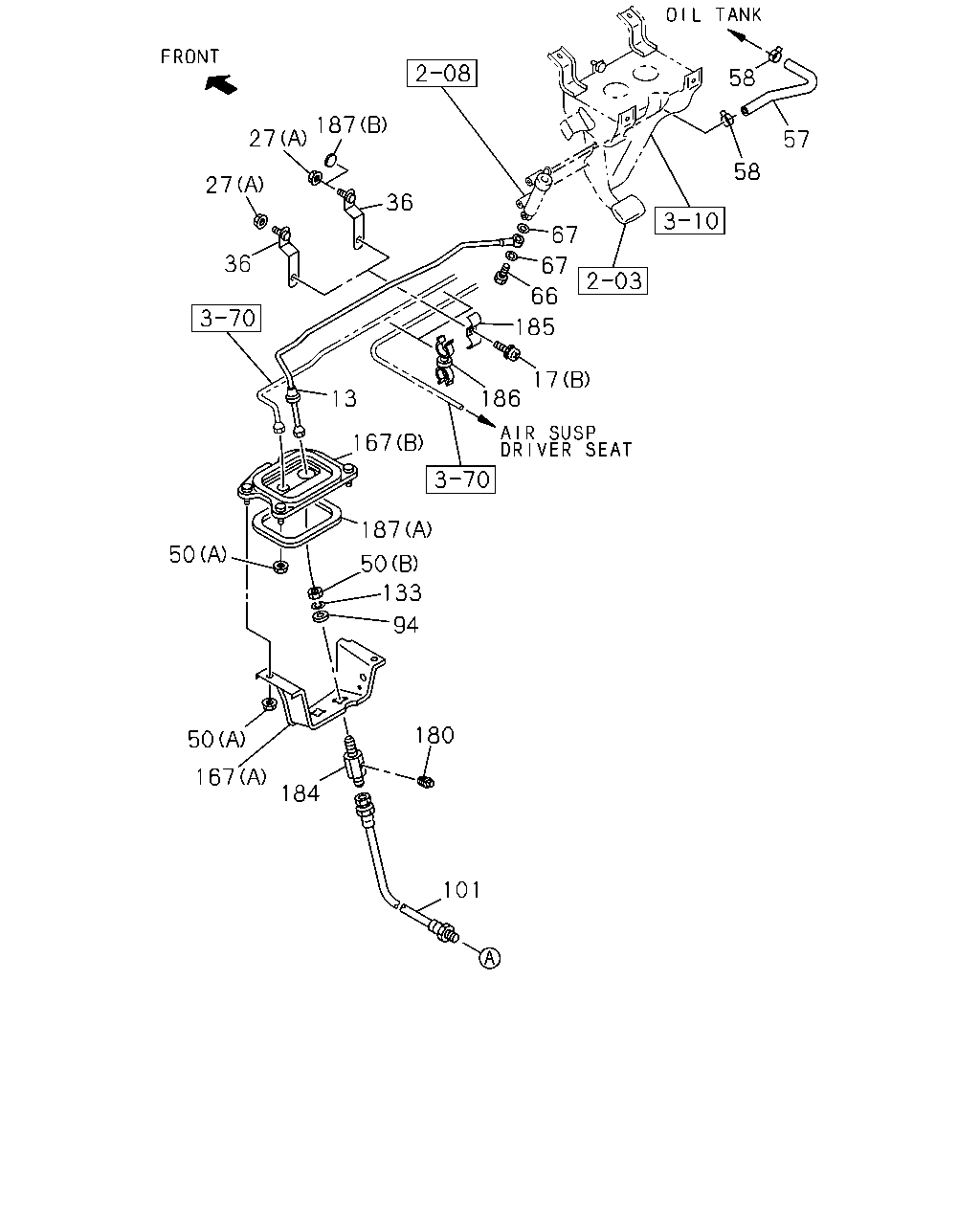

58 187 27 57 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 180 50 167 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9601-9804
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	9805-0004
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-0604
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0605-
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0604
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0605-
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0604
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0605-
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9903-0004
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0604
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0605-
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0604
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0605-
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0604
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0605-
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9903-0004
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0604
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0605-
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	9601-9804
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>	1-79738-186-1	02	1	9805-9810
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	9811-0004
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	02	1	0005-0010
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0011-0604
36	BRACKET; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	02	1	0605-
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	9601-9804
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	9903-0004
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>	1-79738-186-1	01	1	0005-0010
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0011-0604
36	BRACKET; CLIP EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA>	1-79738-186-1	01	1	0605-
50	NUT; UNION (A) M8 FLANGE	8-94279-517-0	03	1	9601-9611
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-9804
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9805-0004
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0604
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0605-
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9601-9804
50	NUT; UNION (B) M14	9-99111-414-0	01	1	9805-0004
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0512
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-0604
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0605-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9601-9804
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9805-0004
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0604
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0605-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9601-9804
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9805-0004
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0604
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0605-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9601-9804
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9805-0004
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9804
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-0004
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0604
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	9601-0001
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0002-0004
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0605
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9601-9804
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-0	01	1	9805-0004
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9601-9804
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9805-0004
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-0604
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0605-
167	BRACKET; UNION EURO3 SPECIFICATION<NJX> (A)	1-79738-847-2	01	1	0605-
167	BRACKET; UNION (A)	1-79738-193-4	01	1	9601-9804
167	BRACKET; UNION (A)	1-79738-193-6	01	1	9805-0004
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0604
167	BRACKET; UNION EXC. EURO3 SPECIFICATION<NJX> (A)	1-79738-193-6	01	1	0605-
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9601-9804
167	BRACKET; UNION (B)	1-79738-204-2	01	1	9805-9911
167	BRACKET; UNION (B)	1-79738-845-0	01	1	9912-0004
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0005-0604
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0605-
180	PLUG; PIPE	9-09204-510-0	01	1	9601-9804
180	PLUG; PIPE	9-09204-510-0	01	1	9805-0004
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9601-9804
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	9805-0004
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0005-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	9601-9804
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=5 & 8	5-09700-165-0	02	1	9805-9810
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	9811-0004
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	02	1	0005-0010
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0011-0604
185	CLIP; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	02	1	0605-
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	9601-9804
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	9805-0004
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56> ID=5 & 8	5-09700-165-0	01	1	0005-0010
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0011-0604
185	CLIP; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=5 & 8	5-09700-165-0	01	1	0605-
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=4.75 & 6	8-94165-403-0	02	1	9601-9706
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	9707-9804
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> ID=6 & 4.8	8-94313-325-0	02	1	9805-9810
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	9811-0004
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	02	1	0005-0010
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0011-0604
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> ID=6 & 4.8	8-94313-325-0	02	1	0605-
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9601-9804
187	SEAL; BRKT (A)	1-79738-190-0	01	1	9805-0004
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0005-0604
187	SEAL; BRKT (A)	1-79738-190-0	01	1	0605-
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	9601-9902
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) OD=25 BLACK	1-76798-019-0	01	1	0005-0010
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0011-0604
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	0605-
187	SEAL; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) OD=25 BLACK	1-76798-019-0	01	1	9903-0004

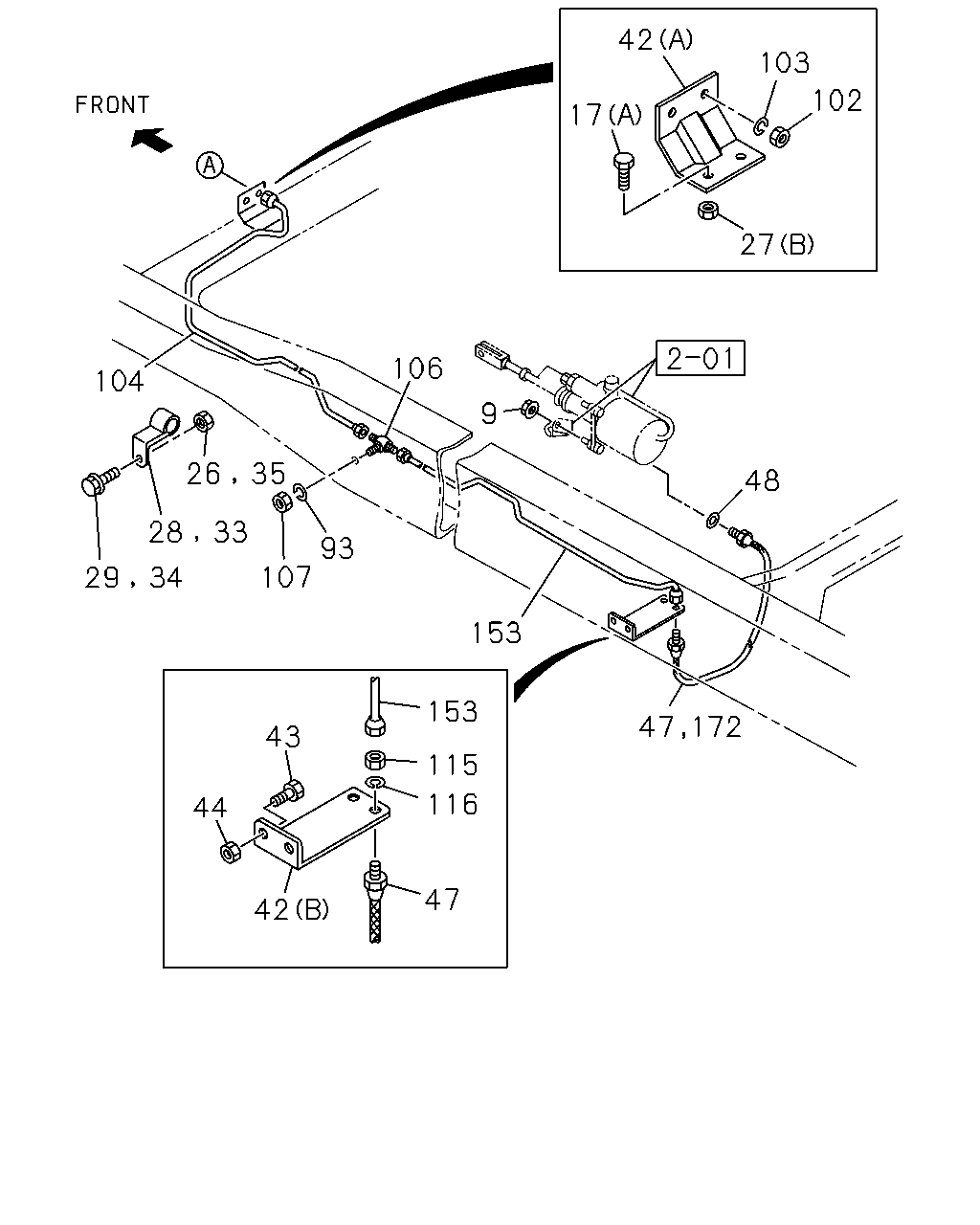

42 103 102 17 27 106 104 9 26 35 48 28 33 93 107 34 29 153 153 43 115 116 44 47 42 47 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	01	1	9601-0602
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	01	1	0603-
17	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
17	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9710
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9711-9804
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0604
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0605-
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-9804
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9805-9810
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9811-0004
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0010
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-0604
17	BOLT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0605-
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9804
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9903-0004
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0005-0010
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0011-0604
17	BOLT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0605-
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9601-9606
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9607-9804
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	9805-0004
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0602
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-0604
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0605-
27	NUT; BRKT (B) M8	9-09110-408-0	02	1	9601-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9804
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9805-0004
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0602
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0604
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0605-
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9601-9804
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9805-9810
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>, DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9811-0004
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0010
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-0604
27	NUT; BRKT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0605-
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9601-9804
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,AIR CONTROL SEAT<A60>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9903-0004
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0005-0010
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0011-0604
27	NUT; BRKT EXC. AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0605-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9601-9804
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	9805-0004
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0005-0604
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0605-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-9804
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9805-0004
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0512
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-0604
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0605-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9601-9804
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	9805-0004
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0005-0604
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0605-
33	CLIP; OIL PIPE ENGINE REAR PTO<SV1> D=18 H=30	1-09701-028-0	01	1	9608-
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9601-9606
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9607-9804
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	9805-0004
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	03	1	0005-0512
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-0604
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	0605-
34	BOLT; PIPE CLIP ENGINE REAR PTO<SV1> M8X30 FLANGE	0-28680-830-0	01	1	9608-0512
34	BOLT; PIPE CLIP ENGINE REAR PTO<SV1> M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9601-9606
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9804
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	9805-0004
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0602
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-0604
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0605-
35	NUT; PIPE CLIP ENGINE REAR PTO<SV1> M8 FLANGE	0-91150-108-0	01	1	9608-0602
35	NUT; PIPE CLIP ENGINE REAR PTO<SV1> M8 FLANGE	0-91180-108-0	01	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47476-047-0	01	1	9601-9702
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9703-9804
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	9805-0004
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0005-0604
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0605-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9601-9804
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	9805-0004
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0604
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0605-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9607-9804
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	9805-0004
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0005-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0601-0604
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	0605-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9601-9606
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9804
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9805-0004
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-0604
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0605-
47	HOSE; FLEX,CLU CONT L=415	1-09364-490-0	01	1	9601-9804
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9601-9804
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9805-0004
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0604
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0605-
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9601-9804
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	9805-0004
93	WASHER; LK,UNION,OIL PIPE ID=12.2	9-09150-512-0	01	1	0005-0603
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0604-0604
93	WASHER; LK,UNION,OIL PIPE ID=12.2	0-91510-512-0	01	1	0605-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9804
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9805-0004
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0604
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0605-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9804
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9805-0004
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0604
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0605-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9601-9804
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	9805-0004
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0005-0101
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. FRONT SPRING LONG SPAN<W36> L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0102-0604
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. FRONT SPRING LONG SPAN<W36> L=1535 SERVICED BY L=1550	1-47426-390-0	01	1	0605-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FRONT SPRING LONG SPAN<W36> L=1574 SERVICED BY L=1700	1-47426-391-0	01	1	0102-
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9601-9804
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	9805-0004
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0005-0604
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0605-
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9601-9804
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	9805-0004
107	NUT; UNION,OIL PIPE M12	9-99111-412-0	01	1	0005-0512
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0601-0604
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0605-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9601-9804
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9805-0004
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-0604
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0605-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9601-9804
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9805-0004
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0604
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0605-
153	PIPE ASM; CLU,UNION TO FLEX EURO3 SPECIFICATION<NJX> L=1421 SERVICED BY L=1550	1-47426-390-0	01	1	0605-
153	PIPE ASM; CLU,UNION TO FLEX L=1322 SERVICED BY L=1400	1-47426-389-0	01	1	9601-9607
153	PIPE ASM; CLU,UNION TO FLEX ENGINE REAR PTO<SV1> L=1326 SERVICED BY L=1400	1-47426-389-0	01	1	9608-0004
153	PIPE ASM; CLU,UNION TO FLEX L=1349 SERVICED BY L=1400	1-47426-389-0	01	1	0005-0202
153	PIPE ASM; CLU,UNION TO FLEX L=1342 SERVICED BY L=1400	1-47426-389-0	01	1	0203-0604
153	PIPE ASM; CLU,UNION TO FLEX EXC. EURO3 SPECIFICATION<NJX> L=1342 SERVICED BY L=1400	1-47426-389-0	01	1	0605-
153	PIPE ASM; CLU,UNION TO FLEX EXC. ENGINE REAR PTO<SV1> L=1326 SERVICED BY L=1400	1-47426-389-0	01	1	9608-9804
153	PIPE ASM; CLU,UNION TO FLEX EXC. ENGINE REAR PTO<SV1> L=1326 SERVICED BY L=1400	1-47426-389-0	01	1	9805-0004
172	HOSE; FLEX,CLU BOOSTER L=415	1-09364-490-0	01	1	9805-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
