◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01A - CLUTCH ▶
2-01A — CLUTCH (#65078) — 196 parça

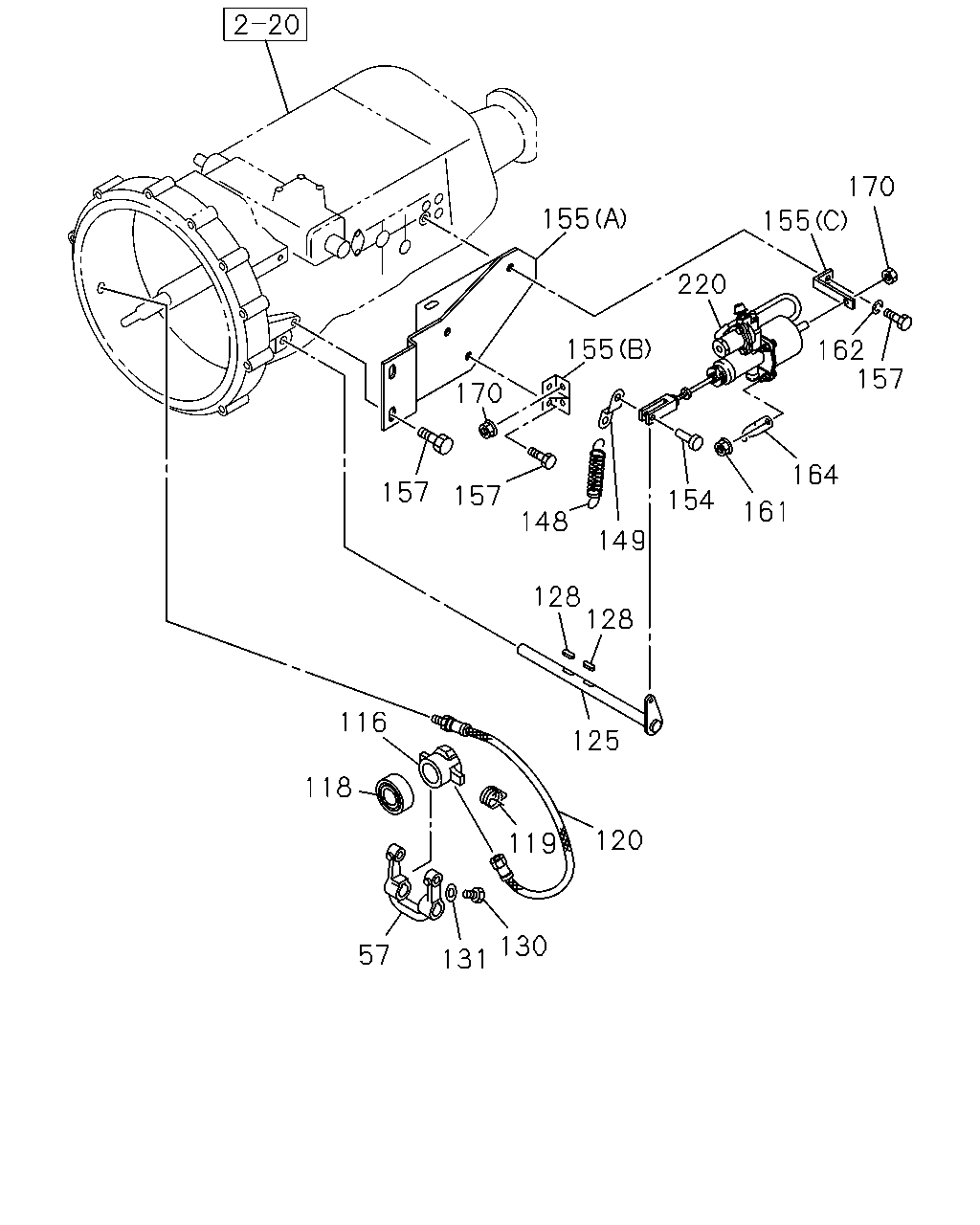

çizim 97648
170 155 155 220 155 162 157 170 164 157 157 154 161 148 149 128 128 116 125 118 120 119 130 57 131
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 9601-9903
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 9904-0004
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 0005-1102
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 1103-
116 BLOCK; SHIFT,CLU 1-31321-063-1 01 1 9601-
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9601-9702
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9703-9903
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 9904-0004
118 BEARING; CLU RELEASE 1-09820-081-0 01 1 0005-0111
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0112-1102
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 1103-
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 0112-1102
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 1103-
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9601-9702
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9703-9903
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 9904-0004
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 0005-1102
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 1103-
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9601-9702
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9703-9903
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 9904-0004
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 0005-1102
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 1103-
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=204 		1-09364-633-0 01 1 9601-
125 SHAFT; CLU 1-31342-287-0 01 1 9601-
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9601-9702
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9703-9903
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 9904-0004
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0005-1102
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1103-
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 9601-9702
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 9703-9903
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 9904-0004
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 0005-1102
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 1103-
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9601-9702
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9703-9903
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 9904-0004
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0005-0603
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604-1102
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1103-
148 SPRING; CLU RETURN
L=137.7 		1-09583-284-0 01 1 9601-9702
148 SPRING; CLU RETURN
L=137.7 		1-09583-284-0 01 1 9703-9710
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9711-9903
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 9904-0004
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0005-1102
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1103-
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 9601-9702
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 9703-9903
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 9904-0004
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 0005-1102
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 1103-
154 PIN; JAW JOINT 1-31424-009-0 01 1 9601-9702
154 PIN; JAW JOINT 1-31424-009-0 01 1 9703-9903
154 PIN; JAW JOINT 1-31424-009-0 01 1 9904-0004
154 PIN; JAW JOINT 1-31424-009-0 01 1 0005-1102
154 PIN; JAW JOINT 1-31424-009-0 01 1 1103-
155 BRACKET; MINIPACK
(C) 		1-31429-289-1 01 1 9601-9702
155 BRACKET; MINIPACK
(C) 		1-31429-289-1 01 1 9703-9903
155 BRACKET; MINIPACK
(C) 		1-31429-289-1 01 1 9904-0004
155 BRACKET; MINIPACK
(C) 		1-31429-289-1 01 1 0005-
155 BRACKET; MINIPACK
(B) 		1-31429-355-0 01 1 9601-9702
155 BRACKET; MINIPACK
(B) 		1-31429-355-0 01 1 9703-9903
155 BRACKET; MINIPACK
(B) 		1-31429-355-0 01 1 9904-0004
155 BRACKET; MINIPACK
(B) 		1-31429-355-0 01 1 0005-
155 BRACKET; MINIPACK
(A) 		1-31429-375-0 01 1 9601-
157 BOLT; BRKT
M10X22 FLANGE 		0-28181-022-0 03 1 0301-
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 03 1 9601-9702
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 03 1 9703-9903
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 03 1 9904-0004
157 BOLT; BRKT
M10X25 FLANGE 		0-28181-025-0 03 1 0005-0212
157 BOLT; BRKT
3/4"-10UNC 		1-09087-033-0 02 1 9601-
161 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9601-0602
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
162 WASHER; LK,BRKT
ID=20.2 		9-09150-520-0 02 1 9601-0603
162 WASHER; LK,BRKT
ID=20.2 		0-91510-520-0 02 1 0604-
164 EYE; SPRING 1-31426-050-0 01 1 9601-9702
164 EYE; SPRING 1-31426-050-0 01 1 9703-9903
164 EYE; SPRING 1-31426-050-0 01 1 9904-0004
164 EYE; SPRING 1-31426-050-0 01 1 0005-1102
164 EYE; SPRING 1-31426-050-0 01 1 1103-
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9601-9702
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9703-9903
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 9904-0004
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91150-210-0 03 1 0005-0602
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 0603-1102
170 NUT; BOOSTER FIX
M10 FLANGE 		0-91180-210-0 03 1 1103-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 0005-1102
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 1103-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-0 01 1 9601-9702
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-0 01 1 9703-9903
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-0 01 1 9904-0004
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-3 01 1 0005-1102
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-387-4 01 1 1103-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 9601-9702
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 9703-9903
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-088-0 01 1 9904-0004

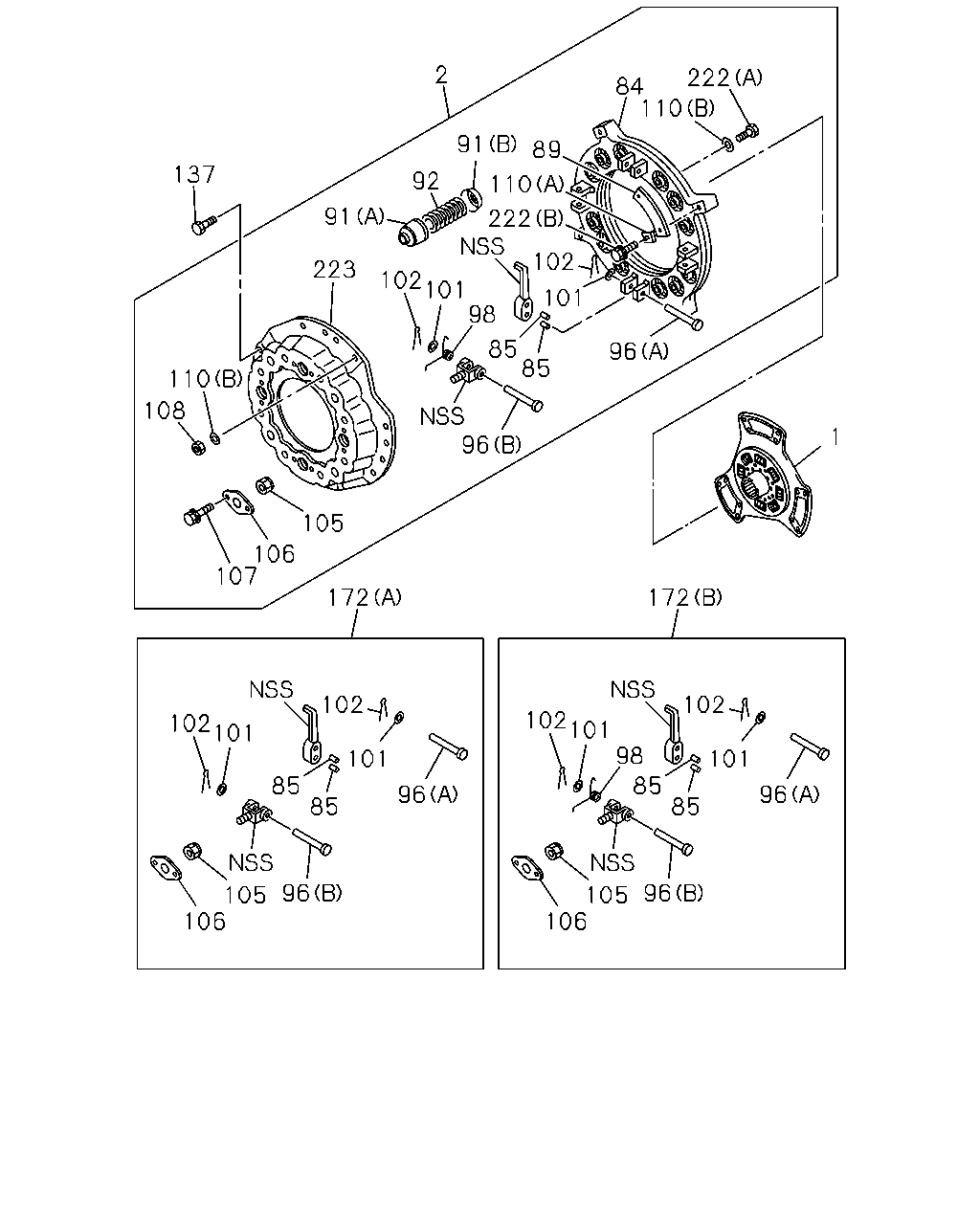

çizim 184703
2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 108 96 1 105 106 107 172 172 102 102 102 101 98 102 101 101 101 85 85 85 85 96 96 96 96 105 106 105 106
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 9601-9810
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 9811-0004
1 DISC; CLUTCH
15" 		1-31240-735-2 01 1 0005-
2 PLATE ASM; PRESSURE,CLU 1-31220-306-0 01 1 9601-9810
2 PLATE ASM; PRESSURE,CLU 1-31220-306-0 01 1 9811-0004
2 PLATE ASM; PRESSURE,CLU 1-31220-306-0 01 1 0005-0109
2 PLATE ASM; PRESSURE,CLU 1-31220-380-2 01 1 0110-
2 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		1-87610-145-0 01 1 0110-
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9601-9810
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 9811-0004
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0005-0604
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0605-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9601-9810
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 9811-0004
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0005-0604
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0605-
89 PLATE; STRAP 1-31229-050-0 16 1 9601-9810
89 PLATE; STRAP 1-31229-050-0 16 1 9811-0004
89 PLATE; STRAP 1-31229-050-0 16 1 0005-0604
89 PLATE; STRAP 1-31229-050-0 16 1 0605-
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9601-9810
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 9811-0004
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0005-0604
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0605-
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9601-9810
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 9811-0004
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0005-0604
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0605-
92 SPRING; CLU 1-31214-053-0 12 1 9601-9810
92 SPRING; CLU 1-31214-053-0 12 1 9811-0004
92 SPRING; CLU 1-31214-053-0 12 1 0005-
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9601-9810
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 9811-0004
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-008-0 04 1 0005-0308
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 9601-9810
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 9811-0004
96 PIN; RELEASE LEVER
(B) 		1-31232-016-0 04 1 0005-0308
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0309-0604
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0605-
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0309-0604
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0605-
98 SPRING; RETURN 1-31233-003-0 04 1 9601-9810
98 SPRING; RETURN 1-31233-003-0 04 1 9811-0004
98 SPRING; RETURN 1-31233-003-0 04 1 0005-0604
98 SPRING; RETURN 1-31233-003-0 04 1 0605-
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9601-9810
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 9811-0004
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0005-0109
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110-0604
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0605-
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9601-9810
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 9811-0004
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0005-0604
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0605-
105 NUT; SUPPORT 9-31235-061-0 04 1 9601-9810
105 NUT; SUPPORT 9-31235-061-0 04 1 9811-0004
105 NUT; SUPPORT 9-31235-061-0 04 1 0005-0109
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0308
105 NUT; SUPPORT 1-31235-014-0 04 1 0309-0604
105 NUT; SUPPORT 1-31235-014-0 04 1 0605-
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 9601-9810
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 9811-0004
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0005-0604
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 0605-
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9601-9810
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 9811-0004
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0005-0308
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309-0604
107 BOLT; LK PLATE 1-31239-061-0 08 1 0605-
108 NUT; STRAP 1-09449-036-0 04 1 9601-9810
108 NUT; STRAP 1-09449-036-0 04 1 9811-0004
108 NUT; STRAP 1-09449-036-0 04 1 0005-0604
108 NUT; STRAP 1-09449-036-0 04 1 0605-
110 WASHER; SPECIAL,STRAP
(A) T=3.2 		1-09503-095-0 08 1 9601-9810
110 WASHER; SPECIAL,STRAP
(A) T=3.2 		1-09503-095-0 08 1 9811-0004
110 WASHER; SPECIAL,STRAP
(A) T=3.2 		1-09503-095-0 08 1 0005-0403
110 WASHER; SPECIAL,STRAP
(A) T=3.2 		8-97374-512-0 08 1 0404-0604
110 WASHER; SPECIAL,STRAP
(A) T=3.2 		8-97374-512-0 08 1 0605-
110 WASHER; SPECIAL,STRAP
(B) T=1.2 		1-31229-009-0 04 1 9601-9810
110 WASHER; SPECIAL,STRAP
(B) T=1.2 		1-31229-009-0 04 1 9811-0004
110 WASHER; SPECIAL,STRAP
(B) T=1.2 		1-31229-009-0 04 1 0005-0604
110 WASHER; SPECIAL,STRAP
(B) T=1.2 		1-31229-009-0 04 1 0605-
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 9601-0512
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601-0604
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0605-
172 LEVER KIT; RELEASE,CLU
(A) 		1-87830-813-0 01 1 9601-9810
172 LEVER KIT; RELEASE,CLU
(A) 		1-87830-813-0 01 1 9811-0004
172 LEVER KIT; RELEASE,CLU
(B) 		1-87830-813-1 01 1 0005-0308
172 LEVER KIT; RELEASE,CLU
(B) 		1-87831-172-1 01 1 0309-
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9601-9810
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 9811-0004
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0005-0604
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0605-
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9601-9810
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 9811-0004
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0005-0604
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0605-
223 COVER; CLU 1-31211-019-1 01 1 9601-0604
223 COVER; CLU 1-31211-019-1 01 1 0605-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
