Sayfa 1-55 - Isuzu EPC

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#65076) — 310 parça

42 83 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
42	HOSE; FLEX,EXH BRK L=520	1-09363-589-1	01	1	9811-0212	●
42	HOSE; FLEX,EXH BRK L=560	1-09363-914-0	01	1	0301-	●
47	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9811-0512	●
47	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
83	CLIP; FLEX HOSE ID=11 H=20 L=20	5-09700-351-0	01	1	9811-0707	●
83	CLIP; FLEX HOSE ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●

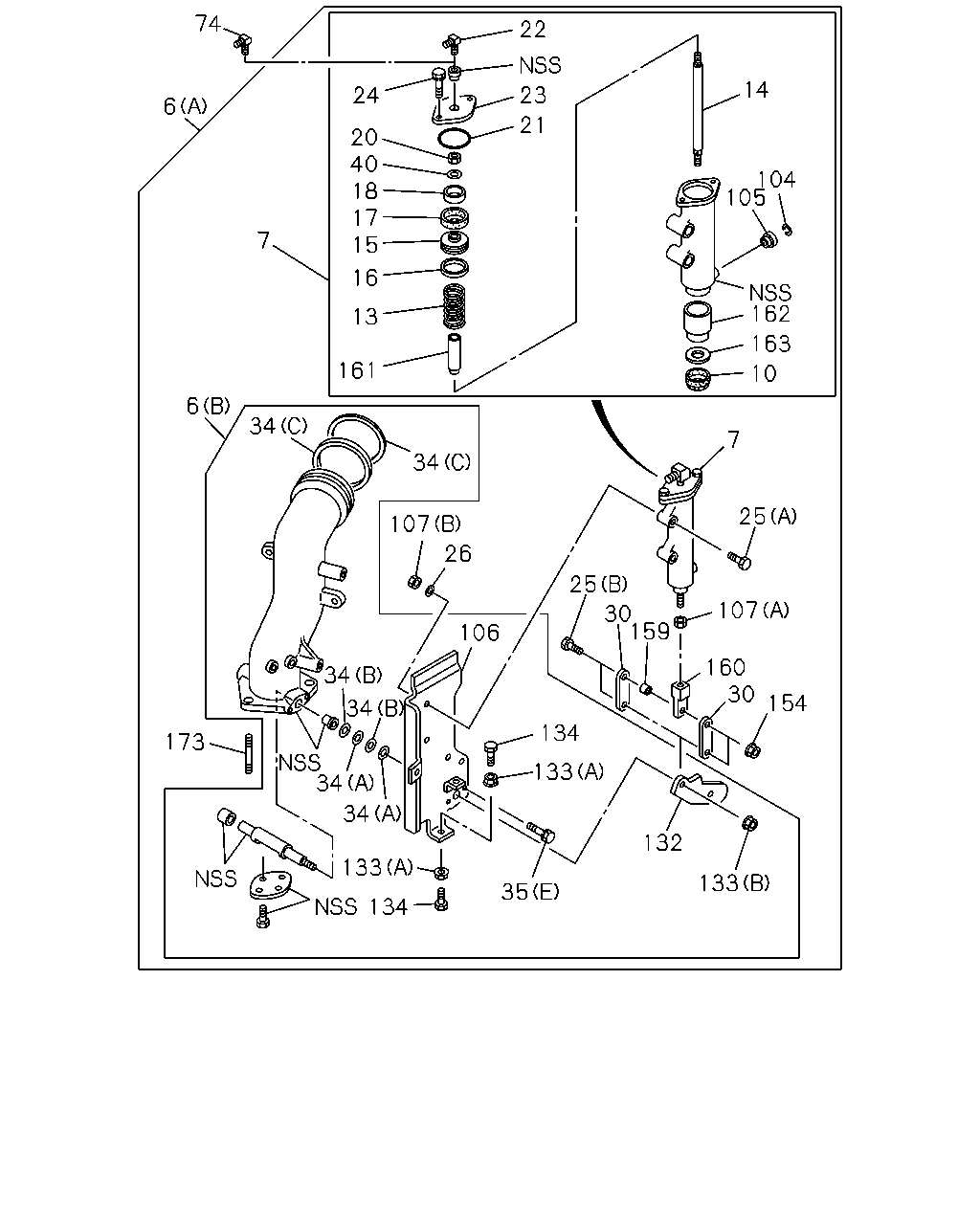

74 22 14 23 24 6 21 20 40 18 17 15 104 105 7 16 162 13 163 161 10 6 34 7 34 25 107 26 25 107 30 159 106 160 30 34 154 34 134 173 34 133 34 132 133 133 35 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (A)	1-14144-608-3	01	1	9601-0206		●
6	VALVE; EXH BRAKE (A)	1-14144-636-1	01	1	0207-0604		●
6	VALVE; EXH BRAKE EXC. EURO3 SPECIFICATION<NJX> (A)	1-14144-636-2	01	1	0605-		●
6	VALVE; EXH BRAKE (B)	1-22181-141-0	01	1	9601-0604		●
6	VALVE; EXH BRAKE EXC. EURO3 SPECIFICATION<NJX> (B)	1-22181-141-0	01	1	0605-		●
6	VALVE; EXH BRAKE (D)	1-22181-134-0	01	1	9811-0211	●
6	VALVE; EXH BRAKE (C)	8-94395-246-2	01	1	9811-0211	●
6	VALVE; EXH BRAKE (E)	8-97602-527-0	01	1	0212-0604	●
6	VALVE; EXH BRAKE EURO3 SPECIFICATION<NJX> (E)	8-97602-527-1	01	1	0605-		●
6	VALVE; EXH BRAKE (E)	8-97602-527-1	01	1	0605-	●
7	CYLINDER ASM; CONT	1-22190-635-0	01	1	9601-0206		●
7	CYLINDER ASM; CONT	1-22190-650-1	01	1	0207-0604		●
7	CYLINDER ASM; CONT EXC. EURO3 SPECIFICATION<NJX>	1-22190-650-1	01	1	0605-		●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	9811-0211	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9601-9810		●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9811-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0212-0604		●
10	SEAL; DUST,CONT EXC. EURO3 SPECIFICATION<NJX>	1-22199-071-0	01	1	0605-		●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9601-0604		●
13	SPRING; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-077-0	01	1	0605-		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9811-0211	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9601-9810		●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9811-0211	●	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	0212-0604		●
14	SHAFT; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-158-0	01	1	0605-		●
15	PLATE; CONT CYL	8-97600-316-0	01	1	0207-0604		●
15	PLATE; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	8-97600-316-0	01	1	0605-		●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9601-9810		●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9811-0206	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	0207-0211	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0207-0604		●
16	RING; WEAR,CONT CYL EXC. EURO3 SPECIFICATION<NJX>	8-97600-317-0	01	1	0605-		●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9601-9810		●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9811-0206	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	0207-0211	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0207-0604		●
17	GASKET; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	8-97600-318-0	01	1	0605-		●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9601-9810		●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9811-0206	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	0207-0211	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9601-9810		●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9811-0206	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	0207-0211	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0207-0604		●
20	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	01	1	0605-		●
20	NUT; CONT CYL	9-83315-085-0	01	1	9601-9810		●
20	NUT; CONT CYL	9-83315-085-0	01	1	9811-0206	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	0207-0211	●
21	GASKET; COVER	1-22199-072-0	01	1	9601-9810		●
21	GASKET; COVER	1-22199-072-0	01	1	9811-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	0212-0604		●
21	GASKET; COVER EXC. EURO3 SPECIFICATION<NJX>	1-22199-072-0	01	1	0605-		●
22	CONNECTOR; CONT CYL PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9601-0206		●
22	CONNECTOR; CONT CYL M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0207-0604		●
22	CONNECTOR; CONT CYL EXC. EURO3 SPECIFICATION<NJX> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0605-		●
23	COVER; CONT CYL	1-22199-066-0	01	1	9601-9810		●
23	COVER; CONT CYL	1-22199-066-0	01	1	9811-0211	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	0212-0604		●
23	COVER; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-066-0	01	1	0605-		●
24	BOLT; COVER	1-22199-217-0	02	1	0207-0604		●
24	BOLT; COVER EXC. EURO3 SPECIFICATION<NJX>	1-22199-217-0	02	1	0605-		●
24	BOLT; COVER	1-22199-155-0	02	1	9601-9810		●
24	BOLT; COVER	1-22199-155-0	02	1	9811-0206	●	●
24	BOLT; COVER	1-22199-155-0	02	1	0207-0211	●
25	BOLT; CONT CYL (A) M10X60 FLANGE	0-28081-060-0	02	1	9601-9810		●
25	BOLT; CONT CYL (A) M10X60 FLANGE	0-28081-060-0	02	1	9811-0211	●	●
25	BOLT; CONT CYL (A) M10X60 FLANGE	0-28081-060-0	02	1	0212-0604		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE	0-28081-060-0	02	1	0605-1301		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE	1-22199-160-0	02	1	1302-		●
25	BOLT; CONT CYL (B)	1-33739-200-0	02	1	9601-0604		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B)	1-33739-200-0	02	1	0605-1301		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B)	1-22199-211-0	02	1	1302-		●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9601-0206		●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9601-0604		●
30	ROD; LINK,CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-162-0	02	1	0605-		●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9811-0211	●
34	RING; SEAL (C)	1-14149-207-0	02	1	9601-0604		●
34	RING; SEAL EXC. EURO3 SPECIFICATION<NJX> (C)	1-14149-207-0	02	1	0605-		●
34	RING; SEAL (B)	1-22189-272-0	02	1	9601-0604		●
34	RING; SEAL EXC. EURO3 SPECIFICATION<NJX> (B)	1-22189-272-0	02	1	0605-		●
34	RING; SEAL (A)	1-22189-273-0	02	1	9601-0604		●
34	RING; SEAL EXC. EURO3 SPECIFICATION<NJX> (A)	1-22189-273-0	02	1	0605-		●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9811-0211	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9811-0211	●
35	BOLT; PLATE FIX (E) M8X16 FLANGE	0-28080-816-0	04	1	9601-0206		●
35	BOLT; PLATE FIX (E)	1-22189-308-0	04	1	0207-0604		●
35	BOLT; PLATE FIX EXC. EURO3 SPECIFICATION<NJX> (E)	1-22189-308-0	04	1	0605-		●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	01	1	9811-0211	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0211	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	9811-0211	●
35	BOLT; PLATE FIX (B)	1-22199-188-0	01	1	9811-0211	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9601-9810		●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9811-0206	●	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	0207-0211	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0212-	●	●
104	RING; RET	9-88510-331-0	01	1	9601-9810		●
104	RING; RET	9-88510-331-0	01	1	9811-0211	●	●
104	RING; RET	9-88510-331-0	01	1	0212-0604		●
104	RING; RET EXC. EURO3 SPECIFICATION<NJX>	9-88510-331-0	01	1	0605-		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9601-9810		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9811-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0212-0604		●
105	FILTER; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	9-88510-330-0	01	1	0605-		●
106	BRACKET; CONT CYL	1-22186-141-0	01	1	9601-0604		●
106	BRACKET; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22186-141-0	01	1	0605-		●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	9811-0211	●
107	NUT; CONT CYL (B)	9-83315-080-0	02	1	9601-0206		●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9601-9810		●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9811-0211	●	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	0212-0604		●
107	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (A)	9-83315-085-0	01	1	0605-		●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	9811-0206	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0207-0211	●	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0212-0604		●
107	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE	0-91150-110-0	02	1	0605-1301		●
107	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B)	1-89966-509-1	02	1	1302-		●
132	LEVER; BRK VLV	1-22196-347-1	01	1	9601-0604		●
132	LEVER; BRK VLV EXC. EURO3 SPECIFICATION<NJX>	1-22196-347-1	01	1	0605-		●
132	LEVER; BRK VLV	1-22196-342-0	01	1	9811-0211	●
133	NUT; LK (A) M8 FLANGE	0-91150-108-0	02	1	9601-0604		●
133	NUT; LK EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	02	1	0605-		●
133	NUT; LK (B) M8 W/LK WASHER	8-94279-050-0	01	1	9601-0604		●
133	NUT; LK EXC. EURO3 SPECIFICATION<NJX> (B) M8 W/LK WASHER	8-94279-050-0	01	1	0605-		●
133	NUT; LK (C) M8 FLANGE	0-91150-108-0	03	1	9811-0211	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9601-9810		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9811-0211	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0212-0604		●
134	BOLT; STOPPER EXC. EURO3 SPECIFICATION<NJX> M8X30	1-09000-112-1	02	1	0605-		●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9601-9810		●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9811-0211	●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	0212-0604		●
154	NUT; CLEVIS,CONT CYL EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0605-		●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9601-0604		●
159	COLLAR; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-151-0	02	1	0605-		●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9811-0211	●
160	JOINT; CONT CYL	1-22199-163-0	01	1	9601-0604		●
160	JOINT; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-163-0	01	1	0605-		●
160	JOINT; CONT CYL	1-22199-137-0	01	1	9811-0211	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9601-9810		●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9811-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0212-0604		●
161	PROTECTOR; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-146-0	01	1	0605-		●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9601-9810		●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9811-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0212-0604		●
162	GUIDE; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-147-0	01	1	0605-		●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9601-9810		●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9811-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0212-0604		●
163	WASHER; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-148-0	01	1	0605-		●
173	STUD; EXH BRK VLV M12X40 L=64	9-94321-240-0	03	1	9601-0604		●
173	STUD; EXH BRK VLV EXC. EURO3 SPECIFICATION<NJX> M12X40 L=64	9-94321-240-0	03	1	0605-		●

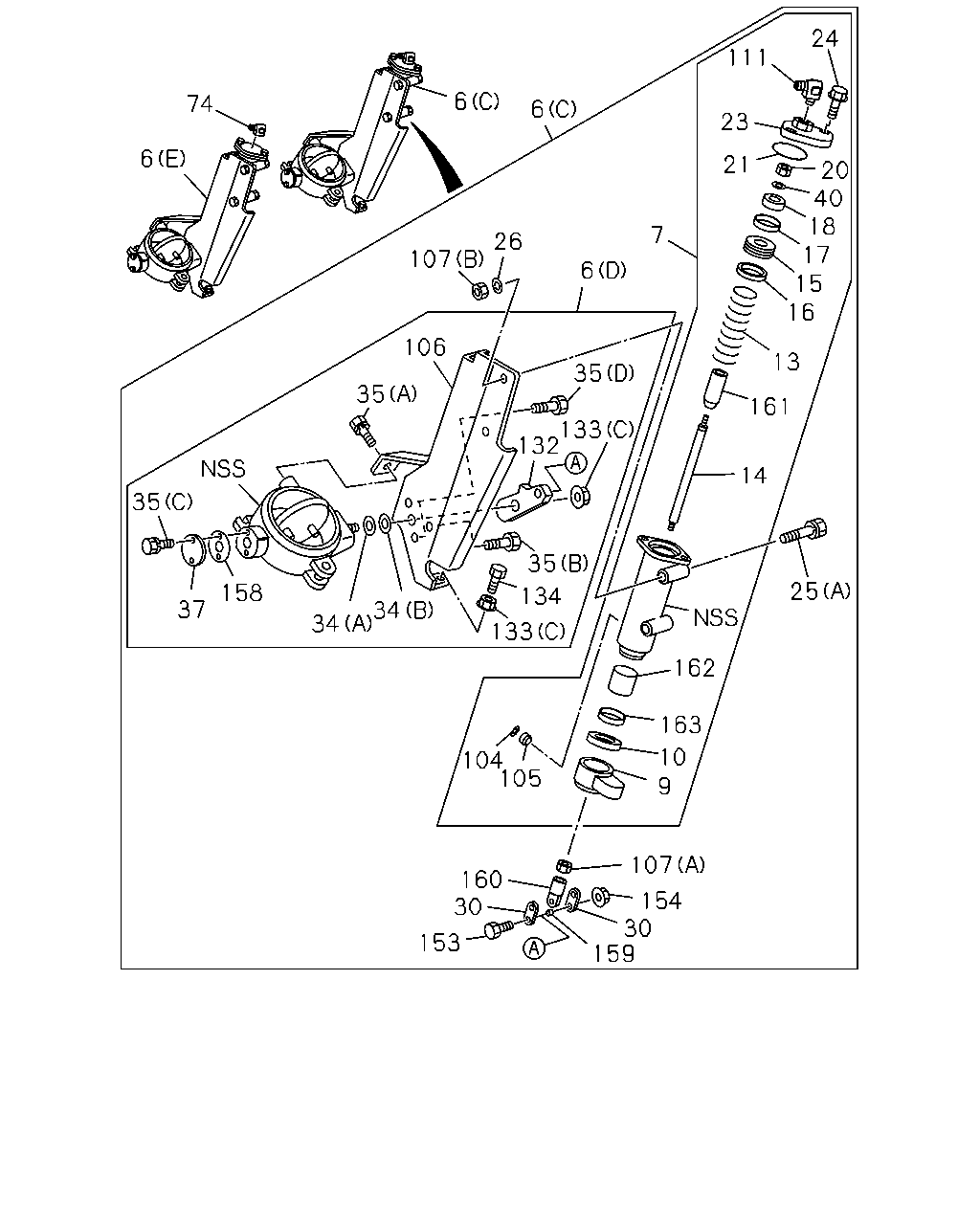

24 111 6 74 6 23 6 21 20 40 18 17 15 16 7 26 107 6 106 13 35 35 161 133 132 14 35 35 25 158 134 37 34 34 133 162 163 10 9 104 105 107 160 30 154 30 159 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (A)	1-14144-608-3	01	1	9601-0206		●
6	VALVE; EXH BRAKE (A)	1-14144-636-1	01	1	0207-0604		●
6	VALVE; EXH BRAKE EXC. EURO3 SPECIFICATION<NJX> (A)	1-14144-636-2	01	1	0605-		●
6	VALVE; EXH BRAKE (B)	1-22181-141-0	01	1	9601-0604		●
6	VALVE; EXH BRAKE EXC. EURO3 SPECIFICATION<NJX> (B)	1-22181-141-0	01	1	0605-		●
6	VALVE; EXH BRAKE (D)	1-22181-134-0	01	1	9811-0211	●
6	VALVE; EXH BRAKE (C)	8-94395-246-2	01	1	9811-0211	●
6	VALVE; EXH BRAKE (E)	8-97602-527-0	01	1	0212-0604	●
6	VALVE; EXH BRAKE EURO3 SPECIFICATION<NJX> (E)	8-97602-527-1	01	1	0605-		●
6	VALVE; EXH BRAKE (E)	8-97602-527-1	01	1	0605-	●
7	CYLINDER ASM; CONT	1-22190-635-0	01	1	9601-0206		●
7	CYLINDER ASM; CONT	1-22190-650-1	01	1	0207-0604		●
7	CYLINDER ASM; CONT EXC. EURO3 SPECIFICATION<NJX>	1-22190-650-1	01	1	0605-		●
7	CYLINDER ASM; CONT	1-22190-632-0	01	1	9811-0211	●
9	COVER; CYL	1-22199-070-0	01	1	9811-0211	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9601-9810		●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	9811-0211	●	●
10	SEAL; DUST,CONT	1-22199-071-0	01	1	0212-0604		●
10	SEAL; DUST,CONT EXC. EURO3 SPECIFICATION<NJX>	1-22199-071-0	01	1	0605-		●
13	SPRING; CONT CYL	1-22199-077-0	01	1	9601-0604		●
13	SPRING; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-077-0	01	1	0605-		●
13	SPRING; CONT CYL	1-09580-517-0	01	1	9811-0211	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9601-9810		●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	9811-0211	●	●
14	SHAFT; CONT CYL	1-22199-158-0	01	1	0212-0604		●
14	SHAFT; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-158-0	01	1	0605-		●
15	PLATE; CONT CYL	8-97600-316-0	01	1	0207-0604		●
15	PLATE; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	8-97600-316-0	01	1	0605-		●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9601-9810		●
15	PLATE; CONT CYL	1-22199-156-0	01	1	9811-0206	●	●
15	PLATE; CONT CYL	1-22199-156-0	01	1	0207-0211	●
16	RING; WEAR,CONT CYL	8-97600-317-0	01	1	0207-0604		●
16	RING; WEAR,CONT CYL EXC. EURO3 SPECIFICATION<NJX>	8-97600-317-0	01	1	0605-		●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9601-9810		●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	9811-0206	●	●
16	RING; WEAR,CONT CYL	1-22189-161-0	01	1	0207-0211	●
17	GASKET; CONT CYL	8-97600-318-0	01	1	0207-0604		●
17	GASKET; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	8-97600-318-0	01	1	0605-		●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9601-9810		●
17	GASKET; CONT CYL	1-22199-103-0	01	1	9811-0206	●	●
17	GASKET; CONT CYL	1-22199-103-0	01	1	0207-0211	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9601-9810		●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	9811-0206	●	●
18	RETAINER; CONT CYL	9-88510-324-0	01	1	0207-0211	●
20	NUT; CONT CYL M8 FLANGE	0-91150-108-0	01	1	0207-0604		●
20	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	01	1	0605-		●
20	NUT; CONT CYL	9-83315-085-0	01	1	9601-9810		●
20	NUT; CONT CYL	9-83315-085-0	01	1	9811-0206	●	●
20	NUT; CONT CYL	9-83315-085-0	01	1	0207-0211	●
21	GASKET; COVER	1-22199-072-0	01	1	9601-9810		●
21	GASKET; COVER	1-22199-072-0	01	1	9811-0211	●	●
21	GASKET; COVER	1-22199-072-0	01	1	0212-0604		●
21	GASKET; COVER EXC. EURO3 SPECIFICATION<NJX>	1-22199-072-0	01	1	0605-		●
23	COVER; CONT CYL	1-22199-066-0	01	1	9601-9810		●
23	COVER; CONT CYL	1-22199-066-0	01	1	9811-0211	●	●
23	COVER; CONT CYL	1-22199-066-0	01	1	0212-0604		●
23	COVER; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-066-0	01	1	0605-		●
24	BOLT; COVER	1-22199-217-0	02	1	0207-0604		●
24	BOLT; COVER EXC. EURO3 SPECIFICATION<NJX>	1-22199-217-0	02	1	0605-		●
24	BOLT; COVER	1-22199-155-0	02	1	9601-9810		●
24	BOLT; COVER	1-22199-155-0	02	1	9811-0206	●	●
24	BOLT; COVER	1-22199-155-0	02	1	0207-0211	●
25	BOLT; CONT CYL (A) M10X60 FLANGE	0-28081-060-0	02	1	9601-9810		●
25	BOLT; CONT CYL (A) M10X60 FLANGE	0-28081-060-0	02	1	9811-0211	●	●
25	BOLT; CONT CYL (A) M10X60 FLANGE	0-28081-060-0	02	1	0212-0604		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE	0-28081-060-0	02	1	0605-1301		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE	1-22199-160-0	02	1	1302-		●
25	BOLT; CONT CYL (B)	1-33739-200-0	02	1	9601-0604		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B)	1-33739-200-0	02	1	0605-1301		●
25	BOLT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B)	1-22199-211-0	02	1	1302-		●
26	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9601-0206		●
30	ROD; LINK,CONT CYL	1-22199-162-0	02	1	9601-0604		●
30	ROD; LINK,CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-162-0	02	1	0605-		●
30	ROD; LINK,CONT CYL	1-22199-124-0	02	1	9811-0211	●
34	RING; SEAL (C)	1-14149-207-0	02	1	9601-0604		●
34	RING; SEAL EXC. EURO3 SPECIFICATION<NJX> (C)	1-14149-207-0	02	1	0605-		●
34	RING; SEAL (B)	1-22189-272-0	02	1	9601-0604		●
34	RING; SEAL EXC. EURO3 SPECIFICATION<NJX> (B)	1-22189-272-0	02	1	0605-		●
34	RING; SEAL (A)	1-22189-273-0	02	1	9601-0604		●
34	RING; SEAL EXC. EURO3 SPECIFICATION<NJX> (A)	1-22189-273-0	02	1	0605-		●
34	RING; SEAL (A) ID=15	8-94397-184-0	02	1	9811-0211	●
34	RING; SEAL (B) ID=13.7	9-22189-124-0	02	1	9811-0211	●
35	BOLT; PLATE FIX (E) M8X16 FLANGE	0-28080-816-0	04	1	9601-0206		●
35	BOLT; PLATE FIX (E)	1-22189-308-0	04	1	0207-0604		●
35	BOLT; PLATE FIX EXC. EURO3 SPECIFICATION<NJX> (E)	1-22189-308-0	04	1	0605-		●
35	BOLT; PLATE FIX (A) M10X20	0-28021-020-0	01	1	9811-0211	●
35	BOLT; PLATE FIX (C) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-0211	●
35	BOLT; PLATE FIX (D)	1-22199-174-0	02	1	9811-0211	●
35	BOLT; PLATE FIX (B)	1-22199-188-0	01	1	9811-0211	●
37	COVER; BODY	1-22189-327-0	01	1	9811-0211	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9601-9810		●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	9811-0206	●	●
40	WASHER; LK,COVER ID=8.2	9-09150-508-0	01	1	0207-0211	●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0212-	●	●
104	RING; RET	9-88510-331-0	01	1	9601-9810		●
104	RING; RET	9-88510-331-0	01	1	9811-0211	●	●
104	RING; RET	9-88510-331-0	01	1	0212-0604		●
104	RING; RET EXC. EURO3 SPECIFICATION<NJX>	9-88510-331-0	01	1	0605-		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9601-9810		●
105	FILTER; CONT CYL	9-88510-330-0	01	1	9811-0211	●	●
105	FILTER; CONT CYL	9-88510-330-0	01	1	0212-0604		●
105	FILTER; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	9-88510-330-0	01	1	0605-		●
106	BRACKET; CONT CYL	1-22186-141-0	01	1	9601-0604		●
106	BRACKET; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22186-141-0	01	1	0605-		●
106	BRACKET; CONT CYL	8-94395-578-0	01	1	9811-0211	●
107	NUT; CONT CYL (B)	9-83315-080-0	02	1	9601-0206		●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9601-9810		●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	9811-0211	●	●
107	NUT; CONT CYL (A)	9-83315-085-0	01	1	0212-0604		●
107	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (A)	9-83315-085-0	01	1	0605-		●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	9811-0206	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0207-0211	●	●
107	NUT; CONT CYL (B) M10 FLANGE	0-91150-110-0	02	1	0212-0604		●
107	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE	0-91150-110-0	02	1	0605-1301		●
107	NUT; CONT CYL EXC. EURO3 SPECIFICATION<NJX> (B)	1-89966-509-1	02	1	1302-		●
111	ELBOW; CONT CYL	1-09650-358-1	01	1	9811-0211	●
132	LEVER; BRK VLV	1-22196-347-1	01	1	9601-0604		●
132	LEVER; BRK VLV EXC. EURO3 SPECIFICATION<NJX>	1-22196-347-1	01	1	0605-		●
132	LEVER; BRK VLV	1-22196-342-0	01	1	9811-0211	●
133	NUT; LK (A) M8 FLANGE	0-91150-108-0	02	1	9601-0604		●
133	NUT; LK EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91150-108-0	02	1	0605-		●
133	NUT; LK (B) M8 W/LK WASHER	8-94279-050-0	01	1	9601-0604		●
133	NUT; LK EXC. EURO3 SPECIFICATION<NJX> (B) M8 W/LK WASHER	8-94279-050-0	01	1	0605-		●
133	NUT; LK (C) M8 FLANGE	0-91150-108-0	03	1	9811-0211	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9601-9810		●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	9811-0211	●	●
134	BOLT; STOPPER M8X30	1-09000-112-1	02	1	0212-0604		●
134	BOLT; STOPPER EXC. EURO3 SPECIFICATION<NJX> M8X30	1-09000-112-1	02	1	0605-		●
153	BOLT; CLEVIS,CONT CYL	1-33739-200-0	02	1	9811-0211	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9601-9810		●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	9811-0211	●	●
154	NUT; CLEVIS,CONT CYL M8 FLANGE	0-91150-108-0	02	1	0212-0604		●
154	NUT; CLEVIS,CONT CYL EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0605-		●
158	GASKET; COVER	1-22189-286-0	01	1	9811-0211	●
159	COLLAR; CONT CYL	1-22199-151-0	02	1	9601-0604		●
159	COLLAR; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-151-0	02	1	0605-		●
159	COLLAR; CONT CYL	1-22199-138-0	02	1	9811-0211	●
160	JOINT; CONT CYL	1-22199-163-0	01	1	9601-0604		●
160	JOINT; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-163-0	01	1	0605-		●
160	JOINT; CONT CYL	1-22199-137-0	01	1	9811-0211	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9601-9810		●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	9811-0211	●	●
161	PROTECTOR; CONT CYL	1-22199-146-0	01	1	0212-0604		●
161	PROTECTOR; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-146-0	01	1	0605-		●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9601-9810		●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	9811-0211	●	●
162	GUIDE; CONT CYL	1-22199-147-0	01	1	0212-0604		●
162	GUIDE; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-147-0	01	1	0605-		●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9601-9810		●
163	WASHER; CONT CYL	1-22199-148-0	01	1	9811-0211	●	●
163	WASHER; CONT CYL	1-22199-148-0	01	1	0212-0604		●
163	WASHER; CONT CYL EXC. EURO3 SPECIFICATION<NJX>	1-22199-148-0	01	1	0605-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
