1-50 — EXHAUST PIPE AND SILENCER (#65075) — 572 parça

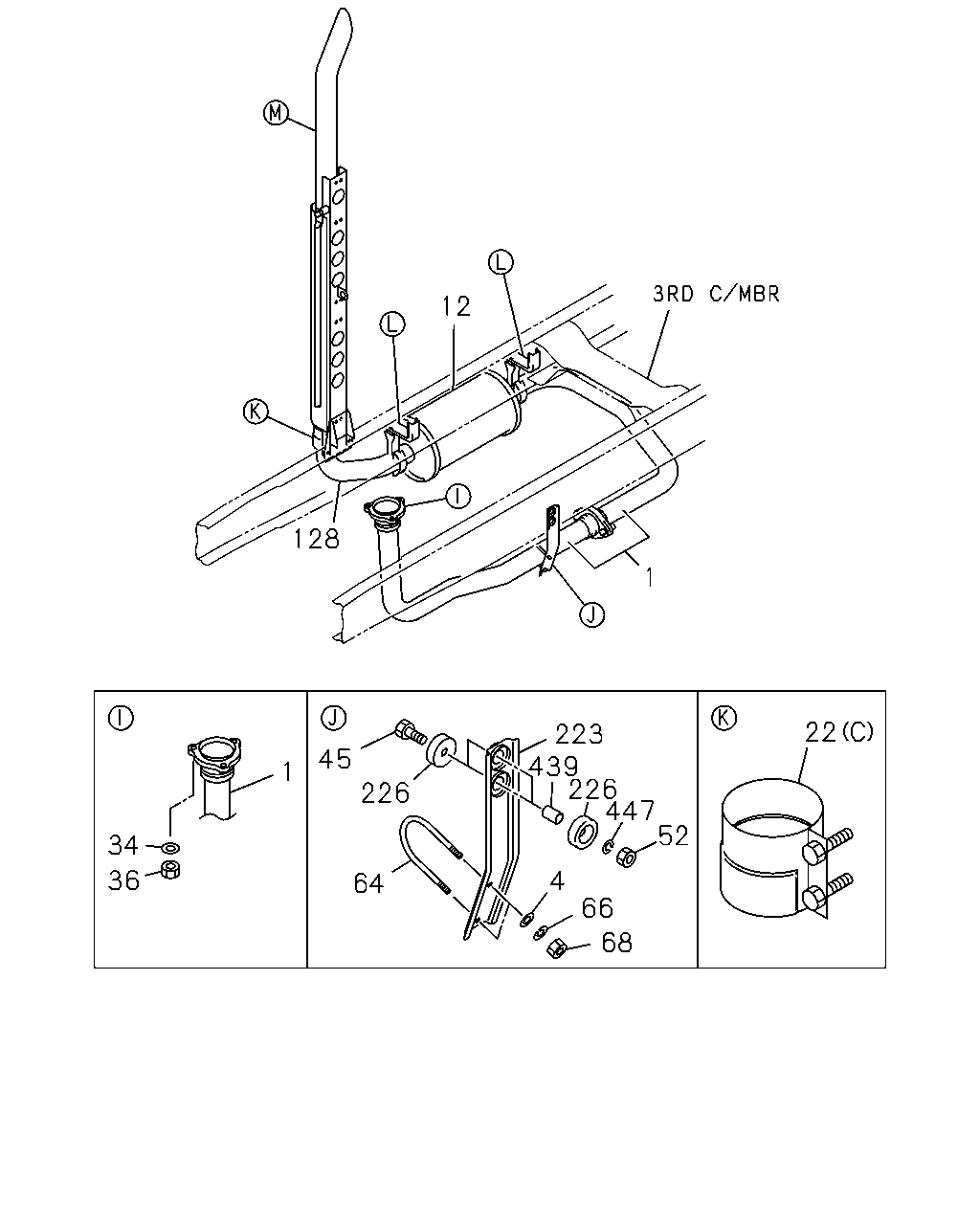

çizim 97225
12 128 1 22 223 439 226 447 52 45 226 1 34 36 4 64 66 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
EURO3 SPECIFICATION<NJX> 		8-98044-528-0 01 1 0605- ●
1 PIPE; EXH
AUSTRALIA EQUIPMENT(RR3) 		1-22122-677-1 01 1 9601-0004 ●
1 PIPE; EXH
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 0005-0604 ● ●
1 PIPE; EXH
EXC. EURO3 SPECIFICATION<NJX> 		1-22122-616-0 01 1 0605- ● ●
4 WASHER; PL,U BOLT
ID=8.4 		9-09160-508-0 02 1 9601-0605 ● ●
4 WASHER; PL,U BOLT
ID=8.4 OD=16 		0-91610-508-0 02 1 0606- ● ●
12 SILENCER ASM; EXH
EURO3 SPECIFICATION<NJX> 		1-22140-938-0 01 1 0605- ●
12 SILENCER ASM; EXH 1-22140-723-2 01 1 9601-0604 ●
12 SILENCER ASM; EXH
EXC. EURO3 SPECIFICATION<NJX> 		1-22140-723-2 01 1 0605- ●
12 SILENCER ASM; EXH 1-22140-649-1 01 1 9811- ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (B) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 04 1 0005-0604 ●
22 CLAMP; EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) ID=94-98 		1-22133-237-0 04 1 0605- ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (C) 		1-22133-253-0 01 1 9601-0001 ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (C) 		1-22133-284-0 01 1 0002-0004 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9601-0604 ● ●
22 CLAMP; EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) ID=80-84 		1-22133-233-0 02 1 0605- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 9811- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9601-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9601- ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9811- ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9601-0512 ● ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-0004 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
64 U-BOLT; EXH PIPE,RR 1-22139-033-1 01 1 9601-1105 ● ●
64 U-BOLT; EXH PIPE,RR 1-22113-101-0 01 1 1106- ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9601-0603 ● ●
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0604- ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9601-0512 ● ●
68 NUT; U BOLT
M8 		0-91110-508-0 02 1 0601- ● ●
128 PIPE; EXH,RR
VERTICAL TAIL PIPE<NC4> 		1-22122-563-1 01 1 9601-9804 ●
128 PIPE; EXH,RR
VERTICAL TAIL PIPE<NC4> 		1-22126-250-0 01 1 9805-0004 ●
223 BRACKET; EXH PIPE 1-22131-727-0 01 1 9601- ● ●
226 RUBBER; CUSHION
OD=40 		1-22159-094-0 04 1 9601- ● ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9601-0004 ● ●
439 TUBE; DIST,SUPPORT RUBBER
VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 02 1 9601-0004 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005- ● ●
447 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9601-0004 ● ●
çizim 97229
81 81 121 75 60 75 107 56 70 97 105 94 22 22 63 22 22 359 201 151 197 439 201 436 421 159 418 417 434 433
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (B) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 04 1 0005-0604 ●
22 CLAMP; EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) ID=94-98 		1-22133-237-0 04 1 0605- ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (C) 		1-22133-253-0 01 1 9601-0001 ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (C) 		1-22133-284-0 01 1 0002-0004 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9601-0604 ● ●
22 CLAMP; EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) ID=80-84 		1-22133-233-0 02 1 0605- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 9811- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 02 1 9601-9804 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9805-0604 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9805-0604 ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) 		8-94301-523-0 01 1 0605- ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) 		8-94301-523-0 01 1 0605- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 0605- ●
56 BRACKET; CLAMP,EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) L=204 		1-22131-520-1 01 1 9601-9810 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) L=204 		1-22131-520-1 01 1 9811-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 9811-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 0005-0604 ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) L=204 		1-22131-520-1 01 1 0605- ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 02 1 9601-9804 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9805-0604 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9805-0604 ● ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-22151-681-0 01 1 0605- ● ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-22151-681-0 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9601-9810 ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9811-0004 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 9811-0004 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 0005-0604 ● ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-22131-741-0 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 0605- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 9601-9804 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9805-0604 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9805-0604 ● ●
63 TUBE; DIST,BRKT
EXC. EURO3 SPECIFICATION<NJX> L=11 		1-22139-026-0 01 1 0605- ● ●
63 TUBE; DIST,BRKT
EXC. EURO3 SPECIFICATION<NJX> L=11 		1-22139-026-0 01 1 0605- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0605- ●
70 BOLT; BRKT
EURO3 SPECIFICATION<NJX> (C) M10X60 FLANGE 		0-28051-060-0 02 1 0605- ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 9601-9804 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9805-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9805-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0205-0512 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601-0604 ● ●
70 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10X50 		0-10856-050-0 02 1 0605- ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 02 1 0605- ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X55 		0-10806-055-0 01 1 9601-9810 ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X55 		0-10806-055-0 01 1 9811-0004 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 9811-0004 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 0005-0204 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0205-0512 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601-0604 ● ●
70 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10X50 		0-10856-050-0 01 1 0605- ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) OD=40 		1-22159-094-0 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 9601-9804 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9805-0604 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9805-0604 ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) OD=30 		1-22159-106-1 02 1 0605- ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) OD=30 		1-22159-106-1 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) OD=40 		1-22159-094-0 02 1 9601-9810 ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) OD=40 		1-22159-094-0 02 1 9811-0004 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 9811-0004 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 0005-0604 ● ●
75 RUBBER; SUPPORT,BRKT
EURO3 SPECIFICATION<NJX> (B) OD=40 		1-22159-094-0 08 1 0605- ●
81 NUT; BRKT
EURO3 SPECIFICATION<NJX> (C) M10 		0-91110-510-0 02 1 0605- ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 04 1 9601-9606 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9607-0004 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-0604 ● ●
81 NUT; BRKT
EURO3 SPECIFICATION<NJX> (A) M10 FLANGE 		0-91180-210-0 04 1 0605- ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 02 1 9601-9804 ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 01 1 9805-0603 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 01 1 9805-0603 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0604 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0604 ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10 		9-09110-510-0 01 1 9601-9810 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10 		9-09110-510-0 01 1 9811-0004 ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 01 1 9811-0004 ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 01 1 0005-0204 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 01 1 0205-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603-0604 ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10 FLANGE 		0-91180-210-0 01 1 0605- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0605- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-0604 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
94 BOLT; CLAMP
EURO3 SPECIFICATION<NJX> M10X70 FLANGE 		0-28051-070-0 02 1 0605- ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ● ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0604 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0605-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0605-0805 ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0604 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0605-0805 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
97 WASHER; PL,CLAMP
EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 		9-09164-510-0 02 1 9601-9810 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-9810 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-9810 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9811-0004 ● ●
97 WASHER; PL,CLAMP
EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 		9-09164-510-0 02 1 9811-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9811-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0604 ● ●
97 WASHER; PL,CLAMP
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 		9-09164-510-0 04 1 0605- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0605- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9811-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0005-0604 ● ●
97 WASHER; PL,CLAMP
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 		9-09164-510-0 02 1 0605- ● ●
105 NUT; CLAMP
EURO3 SPECIFICATION<NJX> M10 FLANGE 		0-91180-210-0 02 1 0605- ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9811-0004 ● ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0512 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601-0604 ● ●
105 NUT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10 		0-91110-510-0 04 1 0605- ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0605- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 0005-0512 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601-0604 ● ●
105 NUT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10 		0-91110-510-0 02 1 0605- ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 04 1 9607-0004 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-0604 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ●
107 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ●
107 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601-0604 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9601-9804 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9805-0604 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9805-0604 ● ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		9-09164-810-0 01 1 0605-0605 ● ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		9-09164-810-0 01 1 0605-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0605-0605 ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
151 PROTECTOR; HEAT,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22159-240-1 01 1 9601-0004 ●
159 BOLT; HEAT PROTECTOR
VERTICAL TAIL PIPE<NC4> M8X20 FLANGE 		0-28080-820-0 10 1 9601-0004 ●
197 BRACKET; EXH PIPE,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22131-723-4 01 1 9601-9804 ●
197 BRACKET; EXH PIPE,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22131-796-0 01 1 9805-0004 ●
201 BOLT; STAY
VERTICAL TAIL PIPE<NC4> (A) M10X25 FLANGE 		0-28081-025-0 01 1 9601-0004 ●
201 BOLT; STAY
VERTICAL TAIL PIPE<NC4> (B) M10X50 FLANGE 		0-28081-050-0 02 1 9601-0004 ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22122-564-1 01 1 9601-9804 ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22122-963-0 01 1 9805-9907 ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22123-295-0 01 1 9908-9908 ●
359 PIPE; EXH,VERTICAL
VERTICAL TAIL PIPE<NC4> 		1-22123-350-0 01 1 9909-0004 ●
417 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M10X30 FLANGE 		0-28081-030-0 06 1 9601-9606 ●
417 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M10X35 FLANGE 		0-28681-035-0 06 1 9607-0004 ●
418 NUT; BRKT
VERTICAL TAIL PIPE<NC4> M10 FLANGE 		0-91150-210-0 01 1 9601-0004 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X25 FLANGE 		0-28081-025-0 06 1 9601-9907 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X25 FLANGE 		0-28081-025-0 04 1 9908-9908 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X25 FLANGE 		0-28081-025-0 06 1 9909-0004 ●
421 BOLT; PIPE BRKT
VERTICAL TAIL PIPE<NC4> M10X30 FLANGE 		0-28681-030-0 02 1 9908-9908 ●
433 BRACKET; STAY,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22131-697-0 01 1 9601-9705 ●
433 BRACKET; STAY,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22131-790-1 01 1 9706-9804 ●
433 BRACKET; STAY,EXH PIPE
VERTICAL TAIL PIPE<NC4> 		1-22131-783-1 01 1 9805-0004 ●
434 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
434 BOLT; BRKT
VERTICAL TAIL PIPE<NC4> M8X25 FLANGE 		0-28680-825-0 02 1 9607-0004 ●
436 STAY; SUPPORT,EXH
VERTICAL TAIL PIPE<NC4> 		1-22131-698-2 01 1 9601-0004 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9601-0004 ● ●
439 TUBE; DIST,SUPPORT RUBBER
VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 02 1 9601-0004 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005- ● ●
çizim 184697
12 126 1 223 439 226 447 52 45 1 226 34 4 64 36 66 68 81 107 81 81 266 75 75 62 121 75 60 75 107 70 56 70 60 105 97 22 81 56 97 105 94 22 22 63 94 22 22 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
EURO3 SPECIFICATION<NJX> 		8-98044-528-0 01 1 0605- ●
1 PIPE; EXH
AUSTRALIA EQUIPMENT(RR3) 		1-22122-677-1 01 1 9601-0004 ●
1 PIPE; EXH
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 0005-0604 ● ●
1 PIPE; EXH
EXC. EURO3 SPECIFICATION<NJX> 		1-22122-616-0 01 1 0605- ● ●
4 WASHER; PL,U BOLT
ID=8.4 		9-09160-508-0 02 1 9601-0605 ● ●
4 WASHER; PL,U BOLT
ID=8.4 OD=16 		0-91610-508-0 02 1 0606- ● ●
12 SILENCER ASM; EXH
EURO3 SPECIFICATION<NJX> 		1-22140-938-0 01 1 0605- ●
12 SILENCER ASM; EXH 1-22140-723-2 01 1 9601-0604 ●
12 SILENCER ASM; EXH
EXC. EURO3 SPECIFICATION<NJX> 		1-22140-723-2 01 1 0605- ●
12 SILENCER ASM; EXH 1-22140-649-1 01 1 9811- ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (B) ID=94-98 		1-22133-237-0 02 1 9601-0004 ●
22 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 04 1 0005-0604 ●
22 CLAMP; EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) ID=94-98 		1-22133-237-0 04 1 0605- ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (C) 		1-22133-253-0 01 1 9601-0001 ●
22 CLAMP; EXH PIPE
VERTICAL TAIL PIPE<NC4> (C) 		1-22133-284-0 01 1 0002-0004 ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 9601-0604 ● ●
22 CLAMP; EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) ID=80-84 		1-22133-233-0 02 1 0605- ● ●
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 04 1 9811- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9601-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9601- ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9811- ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9601-0512 ● ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-0004 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 02 1 9601-9804 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9805-0604 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 9805-0604 ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) 		8-94301-523-0 01 1 0605- ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) 		8-94301-523-0 01 1 0605- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-94301-523-0 01 1 0605- ●
56 BRACKET; CLAMP,EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) L=204 		1-22131-520-1 01 1 9601-9810 ●
56 BRACKET; CLAMP,EXH PIPE
EXC. VERTICAL TAIL PIPE<NC4> (A) L=204 		1-22131-520-1 01 1 9811-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 9811-0004 ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 0005-0604 ● ●
56 BRACKET; CLAMP,EXH PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) L=204 		1-22131-520-1 01 1 0605- ●
56 BRACKET; CLAMP,EXH PIPE
(A) L=204 		1-22131-520-1 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 02 1 9601-9804 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9805-0604 ● ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 9805-0604 ● ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-22151-681-0 01 1 0605- ● ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-22151-681-0 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-681-0 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9601-9810 ●
60 BRACKET; FRAME TO BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) 		1-22131-741-0 01 1 9811-0004 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 9811-0004 ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 0005-0604 ● ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-22131-741-0 01 1 0605- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22131-741-0 01 1 0605- ●
62 TUBE; DIST,BRKT
EXC. VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 01 1 9601-9810 ●
62 TUBE; DIST,BRKT
EXC. VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 01 1 9811-0004 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 9811-0004 ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0005-0604 ● ●
62 TUBE; DIST,BRKT
EXC. EURO3 SPECIFICATION<NJX> L=22 		9-22159-024-0 01 1 0605- ●
62 TUBE; DIST,BRKT
L=22 		9-22159-024-0 01 1 0605- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 02 1 9601-9804 ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9805-0604 ● ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 9805-0604 ● ●
63 TUBE; DIST,BRKT
EXC. EURO3 SPECIFICATION<NJX> L=11 		1-22139-026-0 01 1 0605- ● ●
63 TUBE; DIST,BRKT
EXC. EURO3 SPECIFICATION<NJX> L=11 		1-22139-026-0 01 1 0605- ●
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0605- ●
64 U-BOLT; EXH PIPE,RR 1-22139-033-1 01 1 9601-1105 ● ●
64 U-BOLT; EXH PIPE,RR 1-22113-101-0 01 1 1106- ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9601-0603 ● ●
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0604- ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9601-0512 ● ●
68 NUT; U BOLT
M8 		0-91110-508-0 02 1 0601- ● ●
70 BOLT; BRKT
EURO3 SPECIFICATION<NJX> (C) M10X60 FLANGE 		0-28051-060-0 02 1 0605- ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 9601-9804 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9805-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9805-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0205-0512 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601-0604 ● ●
70 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10X50 		0-10856-050-0 02 1 0605- ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 02 1 0605- ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X55 		0-10806-055-0 01 1 9601-9810 ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X55 		0-10806-055-0 01 1 9811-0004 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 9811-0004 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 0005-0204 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0205-0512 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601-0604 ● ●
70 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10X50 		0-10856-050-0 01 1 0605- ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) OD=40 		1-22159-094-0 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 9601-9804 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9805-0604 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9805-0604 ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) OD=30 		1-22159-106-1 02 1 0605- ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) OD=30 		1-22159-106-1 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) OD=40 		1-22159-094-0 02 1 9601-9810 ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) OD=40 		1-22159-094-0 02 1 9811-0004 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 9811-0004 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 0005-0604 ● ●
75 RUBBER; SUPPORT,BRKT
EURO3 SPECIFICATION<NJX> (B) OD=40 		1-22159-094-0 08 1 0605- ●
81 NUT; BRKT
EURO3 SPECIFICATION<NJX> (C) M10 		0-91110-510-0 02 1 0605- ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 04 1 9601-9606 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9607-0004 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-0604 ● ●
81 NUT; BRKT
EURO3 SPECIFICATION<NJX> (A) M10 FLANGE 		0-91180-210-0 04 1 0605- ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 02 1 9601-9804 ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 01 1 9805-0603 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 01 1 9805-0603 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0604 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0604 ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10 		9-09110-510-0 01 1 9601-9810 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10 		9-09110-510-0 01 1 9811-0004 ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 01 1 9811-0004 ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 01 1 0005-0204 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 01 1 0205-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603-0604 ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10 FLANGE 		0-91180-210-0 01 1 0605- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0605- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-0604 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
94 BOLT; CLAMP
EURO3 SPECIFICATION<NJX> M10X70 FLANGE 		0-28051-070-0 02 1 0605- ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ● ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0604 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0605-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0605-0805 ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0604 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0605-0805 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
97 WASHER; PL,CLAMP
EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 		9-09164-510-0 02 1 9601-9810 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-9810 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9601-9810 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9811-0004 ● ●
97 WASHER; PL,CLAMP
EXC. VERTICAL TAIL PIPE<NC4> ID=10.5 		9-09164-510-0 02 1 9811-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 9811-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0005-0604 ● ●
97 WASHER; PL,CLAMP
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 		9-09164-510-0 04 1 0605- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0605- ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 9811-0004 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 04 1 0005-0604 ● ●
97 WASHER; PL,CLAMP
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 		9-09164-510-0 02 1 0605- ● ●
105 NUT; CLAMP
EURO3 SPECIFICATION<NJX> M10 FLANGE 		0-91180-210-0 02 1 0605- ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9811-0004 ● ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0512 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601-0604 ● ●
105 NUT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10 		0-91110-510-0 04 1 0605- ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0605- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 0005-0512 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601-0604 ● ●
105 NUT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10 		0-91110-510-0 02 1 0605- ● ●
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28081-030-0 04 1 9601-9606 ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 04 1 9607-0004 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28681-035-0 02 1 0005-0512 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0601-0604 ● ●
107 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ●
107 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ●
107 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10X35 FLANGE 		0-28651-035-0 02 1 0605- ● ●
107 BOLT; BRKT
(B) M10X30 FLANGE 		0-28081-030-0 02 1 9601-9606 ●
107 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10X35 FLANGE 		0-28681-035-0 02 1 9607-0004 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ●
107 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0601-0604 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 9601-9804 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9805-0604 ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 9805-0604 ● ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		9-09164-810-0 01 1 0605-0605 ● ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		9-09164-810-0 01 1 0605-0605 ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0605-0605 ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
121 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION<NJX> 		1-22126-229-0 01 1 0605- ●
126 PIPE; EXH,RR
EXC. VERTICAL TAIL PIPE<NC4> 		1-22122-678-0 01 1 9601-0004 ●
126 PIPE; EXH,RR 1-22122-678-0 01 1 0005-0604 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION<NJX> 		1-22122-678-0 01 1 0605- ●
126 PIPE; EXH,RR 1-22122-617-0 01 1 9811- ●
223 BRACKET; EXH PIPE 1-22131-727-0 01 1 9601- ● ●
226 RUBBER; CUSHION
OD=40 		1-22159-094-0 04 1 9601- ● ●
266 WASHER; LK,BRKT
EXC. VERTICAL TAIL PIPE<NC4> ID=10.2 		9-09150-510-0 01 1 9601-9810 ●
266 WASHER; LK,BRKT
EXC. VERTICAL TAIL PIPE<NC4> ID=10.2 		9-09150-510-0 01 1 9811-0004 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 9811-0004 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 0005-0204 ● ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9601-0004 ● ●
439 TUBE; DIST,SUPPORT RUBBER
VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 02 1 9601-0004 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005- ● ●
447 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9601-0004 ● ●

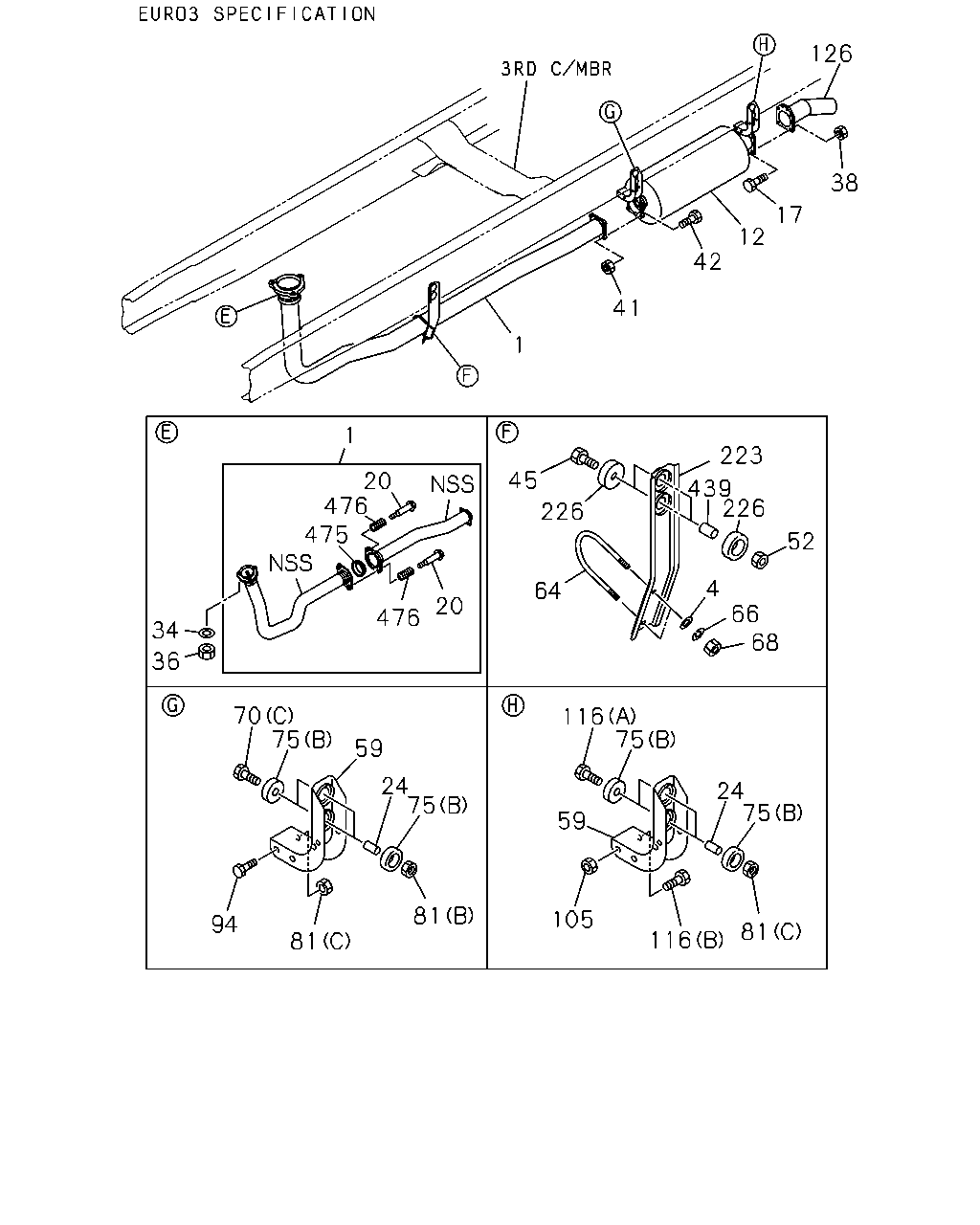

çizim 184699
126 38 17 12 42 41 1 1 223 45 20 476 475 439 226 226 52 4 64 20 66 68 476 34 36 70 75 116 75 59 24 75 24 75 59 81 105 94 81 116 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
EURO3 SPECIFICATION<NJX> 		8-98044-528-0 01 1 0605- ●
1 PIPE; EXH
AUSTRALIA EQUIPMENT(RR3) 		1-22122-677-1 01 1 9601-0004 ●
1 PIPE; EXH
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 9601-0004 ●
1 PIPE; EXH 1-22122-616-0 01 1 0005-0604 ● ●
1 PIPE; EXH
EXC. EURO3 SPECIFICATION<NJX> 		1-22122-616-0 01 1 0605- ● ●
4 WASHER; PL,U BOLT
ID=8.4 		9-09160-508-0 02 1 9601-0605 ● ●
4 WASHER; PL,U BOLT
ID=8.4 OD=16 		0-91610-508-0 02 1 0606- ● ●
12 SILENCER ASM; EXH
EURO3 SPECIFICATION<NJX> 		1-22140-938-0 01 1 0605- ●
12 SILENCER ASM; EXH 1-22140-723-2 01 1 9601-0604 ●
12 SILENCER ASM; EXH
EXC. EURO3 SPECIFICATION<NJX> 		1-22140-723-2 01 1 0605- ●
12 SILENCER ASM; EXH 1-22140-649-1 01 1 9811- ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION<NJX> M12X25 FLANGE 		1-09000-604-0 04 1 0605- ●
20 BOLT; FLANGE,EXH PIPE
EURO3 SPECIFICATION<NJX> M10X49.8 		8-97039-586-0 02 1 0605- ●
24 COLLAR; DIST,CLAMP
EURO3 SPECIFICATION<NJX> L=22 		9-22159-024-0 04 1 0605- ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9601-0410 ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411- ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9601- ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 9811- ●
38 NUT; SILENCER
EURO3 SPECIFICATION<NJX> M10 FLANGE 		0-91180-210-0 04 1 0605- ●
41 NUT; EXH PIPE TO EXH SILENCER
EURO3 SPECIFICATION<NJX> M10 FLANGE 		0-91180-210-0 04 1 0605- ●
42 BOLT; EXH PIPE TO EXH SILENCER
EURO3 SPECIFICATION<NJX> M12X25 FLANGE 		1-09000-604-0 04 1 0605- ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9601-0512 ● ●
45 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9601-0004 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
59 BRACKET; EXH SILENCER,FRT
EURO3 SPECIFICATION<NJX> 		1-22151-626-0 02 1 0605- ●
64 U-BOLT; EXH PIPE,RR 1-22139-033-1 01 1 9601-1105 ● ●
64 U-BOLT; EXH PIPE,RR 1-22113-101-0 01 1 1106- ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9601-0603 ● ●
66 WASHER; LK,U BOLT
ID=8.2 		0-91510-508-0 02 1 0604- ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9601-0512 ● ●
68 NUT; U BOLT
M8 		0-91110-508-0 02 1 0601- ● ●
70 BOLT; BRKT
EURO3 SPECIFICATION<NJX> (C) M10X60 FLANGE 		0-28051-060-0 02 1 0605- ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 9601-9804 ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9805-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 01 1 9805-0204 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10806-050-0 02 1 0205-0512 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601-0604 ● ●
70 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10X50 		0-10856-050-0 02 1 0605- ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 02 1 0605- ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X55 		0-10806-055-0 01 1 9601-9810 ●
70 BOLT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10X55 		0-10806-055-0 01 1 9811-0004 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 9811-0004 ●
70 BOLT; BRKT
(A) M10X55 		0-10806-055-0 01 1 0005-0204 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0205-0512 ● ●
70 BOLT; BRKT
(B) M10X50 		0-10856-050-0 02 1 0601-0604 ● ●
70 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10X50 		0-10856-050-0 01 1 0605- ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) OD=40 		1-22159-094-0 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 9601-9804 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9805-0604 ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 9805-0604 ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) OD=30 		1-22159-106-1 02 1 0605- ● ●
75 RUBBER; SUPPORT,BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) OD=30 		1-22159-106-1 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0605- ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) OD=40 		1-22159-094-0 02 1 9601-9810 ●
75 RUBBER; SUPPORT,BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) OD=40 		1-22159-094-0 02 1 9811-0004 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 9811-0004 ●
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-094-0 02 1 0005-0604 ● ●
75 RUBBER; SUPPORT,BRKT
EURO3 SPECIFICATION<NJX> (B) OD=40 		1-22159-094-0 08 1 0605- ●
81 NUT; BRKT
EURO3 SPECIFICATION<NJX> (C) M10 		0-91110-510-0 02 1 0605- ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 04 1 9601-9606 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 9607-0004 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0603-0604 ● ●
81 NUT; BRKT
EURO3 SPECIFICATION<NJX> (A) M10 FLANGE 		0-91180-210-0 04 1 0605- ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 02 1 9601-9804 ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 01 1 9805-0603 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		9-09131-510-0 01 1 9805-0603 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0604 ● ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0604-0604 ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ●
81 NUT; BRKT
(B) M10 LOCK NUT 		0-91370-010-0 01 1 0605- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10 		9-09110-510-0 01 1 9601-9810 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (A) M10 		9-09110-510-0 01 1 9811-0004 ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 01 1 9811-0004 ●
81 NUT; BRKT
(A) M10 		9-09110-510-0 01 1 0005-0204 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 01 1 0205-0602 ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0603-0604 ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M10 FLANGE 		0-91180-210-0 01 1 0605- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 01 1 0605- ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10 		9-09110-510-0 02 1 9601-9606 ●
81 NUT; BRKT
EXC. VERTICAL TAIL PIPE<NC4> (B) M10 FLANGE 		0-91150-210-0 02 1 9607-0004 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-0604 ● ●
81 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE 		0-91180-210-0 02 1 0605- ● ●
94 BOLT; CLAMP
EURO3 SPECIFICATION<NJX> M10X70 FLANGE 		0-28051-070-0 02 1 0605- ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9601-9810 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ● ●
94 BOLT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0005-0604 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0605-0805 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0605-0805 ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 04 1 0806- ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 9811-0004 ●
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 04 1 0005-0604 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0605-0805 ● ●
94 BOLT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806- ● ●
105 NUT; CLAMP
EURO3 SPECIFICATION<NJX> M10 FLANGE 		0-91180-210-0 02 1 0605- ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9601-9810 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9811-0004 ● ●
105 NUT; CLAMP
EXC. VERTICAL TAIL PIPE<NC4> M10 		9-09110-510-0 02 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0005-0512 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 02 1 0601-0604 ● ●
105 NUT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10 		0-91110-510-0 04 1 0605- ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0605- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9811-0004 ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 0005-0512 ● ●
105 NUT; CLAMP
M10 		0-91110-510-0 04 1 0601-0604 ● ●
105 NUT; CLAMP
EXC. EURO3 SPECIFICATION<NJX> M10 		0-91110-510-0 02 1 0605- ● ●
116 BOLT; BRKT
EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE 		0-28051-060-0 02 1 0605- ●
116 BOLT; BRKT
EURO3 SPECIFICATION<NJX> (B) M10X70 FLANGE 		0-28051-070-0 02 1 0605- ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION<NJX> 		1-22126-229-0 01 1 0605- ●
126 PIPE; EXH,RR
EXC. VERTICAL TAIL PIPE<NC4> 		1-22122-678-0 01 1 9601-0004 ●
126 PIPE; EXH,RR 1-22122-678-0 01 1 0005-0604 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION<NJX> 		1-22122-678-0 01 1 0605- ●
126 PIPE; EXH,RR 1-22122-617-0 01 1 9811- ●
223 BRACKET; EXH PIPE 1-22131-727-0 01 1 9601- ● ●
226 RUBBER; CUSHION
OD=40 		1-22159-094-0 04 1 9601- ● ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9601-0004 ● ●
439 TUBE; DIST,SUPPORT RUBBER
VERTICAL TAIL PIPE<NC4> L=22 		9-22159-024-0 02 1 9601-0004 ●
439 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 0005- ● ●
475 BEARING; SEAL,VIBNON,EXH PIPE
EURO3 SPECIFICATION<NJX> OD=112 		1-22119-294-1 01 1 0605- ●
476 SPRING; VIBNON,EXH PIPE
EURO3 SPECIFICATION<NJX> 		8-94141-851-0 02 1 0605- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
