Sayfa 1-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

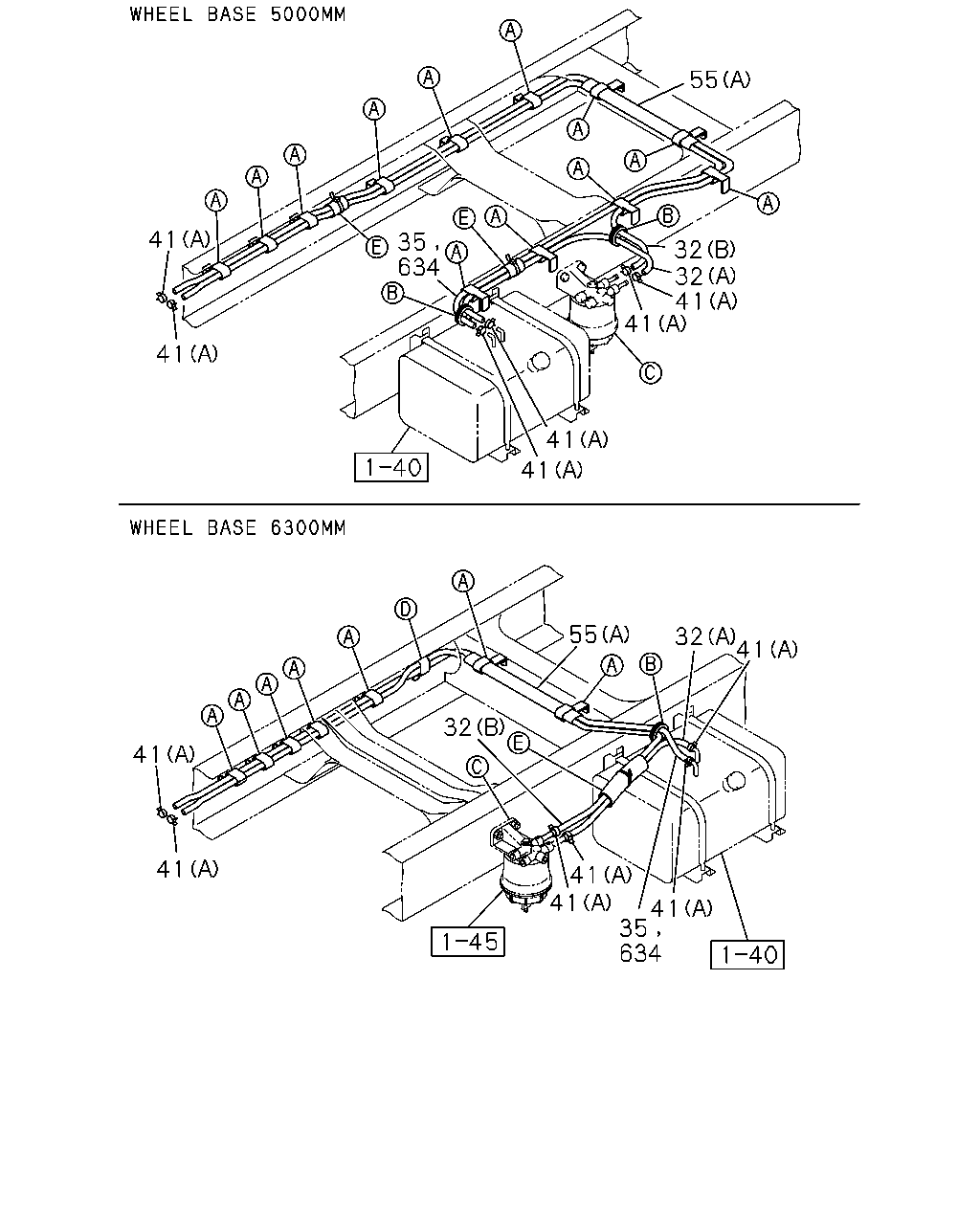

1-41 — FUEL PIPING; CHASSIS (#65073) — 134 parça

239 95 64 232 228 228 229 229 239 41 32 64 32 232 55 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK EURO3 SPECIFICATION<NJX> FUEL TANK 200L FRAME SIDE(N20) (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0605-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L(SDH) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L(SDH) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5000MM(50W) (A) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0012	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0101-0207	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0208-0604	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) EXC. EURO3 SPECIFICATION<NJX> (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0605-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5000MM(50W) (B) L=4200 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0012	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0101-0207	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0208-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=250	5-09707-030-1	06	1	0012-0201	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=250	5-09707-030-1	07	1	0202-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=250	5-09707-030-1	01	1	9601-0004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0011	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	04	1	0012-0201	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0202-0207	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0208-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0012-	●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	9607-	●	●
55	COVER; PIPE,FUEL TANK (A) L=800	1-09361-018-0	01	1	0006-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9606	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9607-0004	●	●
55	COVER; PIPE,FUEL TANK (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0005-0011	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0012-0207	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0208-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) L=250	9-09912-735-1	01	1	9607-9804	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) L=250 SERVICED BY L=1300	1-09360-677-1	01	1	9805-0004	●	●
64	NUT; CLIP FUEL TANK 400L(SDH) M8 FLANGE	0-91150-108-0	08	1	0101-0602	●
64	NUT; CLIP FUEL TANK 400L(SDH) M8 FLANGE	0-91180-108-0	08	1	0603-	●
64	NUT; CLIP WHEEL BASE 5000MM(50W) M8	9-09110-408-0	13	1	9601-9606	●	●
64	NUT; CLIP WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	13	1	9607-9804	●	●
64	NUT; CLIP WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	14	1	9805-0004	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	0005-0012	●	●
64	NUT; CLIP FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91150-108-0	11	1	0101-0207	●	●
64	NUT; CLIP FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91150-108-0	11	1	0208-0602	●	●
64	NUT; CLIP FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8 FLANGE	0-91180-108-0	11	1	0603-	●	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) M8	9-09110-408-0	09	1	9601-9606	●	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	09	1	9607-9807	●	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	13	1	9808-0004	●	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	11	1	9808-9901	●	●
64	NUT; CLIP WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8 FLANGE	0-91150-108-0	09	1	9902-0004	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-0004	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-	●	●
95	BUSHING; PIPE,FUEL TANK WHEEL BASE 5000MM(50W) ID=28 OD=35 T=25	1-09332-011-1	02	1	9601-0004	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-0209	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0512	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-0602	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
232	BOLT; CLIP,PIPE FUEL TANK 400L(SDH) M8X30 FLANGE	0-28680-830-0	08	1	0101-0512	●
232	BOLT; CLIP,PIPE FUEL TANK 400L(SDH) M8X30 FLANGE	0-28650-830-0	08	1	0601-	●
232	BOLT; CLIP,PIPE WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28080-830-0	13	1	9601-9606	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 5000MM(50W) M8X35 FLANGE	0-28680-835-0	13	1	9607-9804	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 5000MM(50W) M8X35 FLANGE	0-28680-835-0	14	1	9805-9807	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	14	1	9808-0004	●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	0005-0012	●	●
232	BOLT; CLIP,PIPE FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28680-830-0	11	1	0101-0207	●	●
232	BOLT; CLIP,PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28680-830-0	11	1	0208-0512	●	●
232	BOLT; CLIP,PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M8X30 FLANGE	0-28650-830-0	11	1	0601-	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28080-830-0	09	1	9601-9606	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	09	1	9607-9807	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	13	1	9808-0004	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	11	1	9808-9901	●	●
232	BOLT; CLIP,PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 FLANGE	0-28680-830-0	09	1	9902-0004	●	●
239	CLIP; FUEL PIPE FUEL TANK 400L(SDH) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0101-	●
239	CLIP; FUEL PIPE FUEL TANK 400L(SDH) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0101-	●
239	CLIP; FUEL PIPE (A) ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0012	●	●
239	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE(N20) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0101-0207	●	●
239	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0208-	●	●
239	CLIP; FUEL PIPE WHEEL BASE 5000MM(50W) (A) ID=14X29 H=30 L=25	1-09701-101-0	13	1	9601-9804	●	●
239	CLIP; FUEL PIPE WHEEL BASE 5000MM(50W) (A) ID=14X29 H=30 L=25	1-09701-101-0	14	1	9805-9901	●	●
239	CLIP; FUEL PIPE WHEEL BASE 5000MM(50W) (A) ID=14X29 H=30 L=25	1-09701-101-0	13	1	9902-0004	●	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0012	●	●
239	CLIP; FUEL PIPE FUEL TANK 200L FRAME SIDE(N20) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0101-0207	●	●
239	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0208-	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-9807	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-9901	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9902-0004	●	●
239	CLIP; FUEL PIPE (B) ID=32 L=50	1-09701-055-1	02	1	0005-	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	08	1	9601-9807	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (A) ID=14X29 H=30 L=25	1-09701-101-0	11	1	9808-9901	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (A) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9902-0004	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=14X29 H=30 L=25	1-09701-101-0	09	1	9808-9901	●	●
239	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	9902-0004	●	●

55 32 32 35 41 41 41 41 41 41 634 55 32 41 41 634 35 32 41 41 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK EURO3 SPECIFICATION<NJX> FUEL TANK 200L FRAME SIDE(N20) (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0605-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L(SDH) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L(SDH) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5000MM(50W) (A) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0012	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0101-0207	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0208-0604	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) EXC. EURO3 SPECIFICATION<NJX> (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	0605-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5000MM(50W) (B) L=4200 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0012	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0101-0207	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0208-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=3600 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-0004	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5000MM(50W) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) L=3400 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	9601-0004	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=250	5-09707-030-1	06	1	0012-0201	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=250	5-09707-030-1	07	1	0202-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=250	5-09707-030-1	01	1	9601-0004	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0011	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	04	1	0012-0201	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0202-0207	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=250	5-09707-030-1	05	1	0208-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0012-	●
55	COVER; PIPE,FUEL TANK (C) L=350	1-09360-460-1	01	1	9607-	●	●
55	COVER; PIPE,FUEL TANK (A) L=800	1-09361-018-0	01	1	0006-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9606	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9607-0004	●	●
55	COVER; PIPE,FUEL TANK (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0005-0011	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE(N20) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0012-0207	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0208-	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) L=250	9-09912-735-1	01	1	9607-9804	●	●
55	COVER; PIPE,FUEL TANK WHEEL BASE 6300MM(63W) AUSTRALIA EQUIPMENT(RR3) (B) L=250 SERVICED BY L=1300	1-09360-677-1	01	1	9805-0004	●	●
634	HOSE; RUBBER RETURN L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0012	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE(N20) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0101-0207	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0208-0604	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0605-	●	●
634	HOSE; RUBBER RETURN FUEL TANK 400L(SDH) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0101-	●
