Sayfa 1-40 - Isuzu EPC

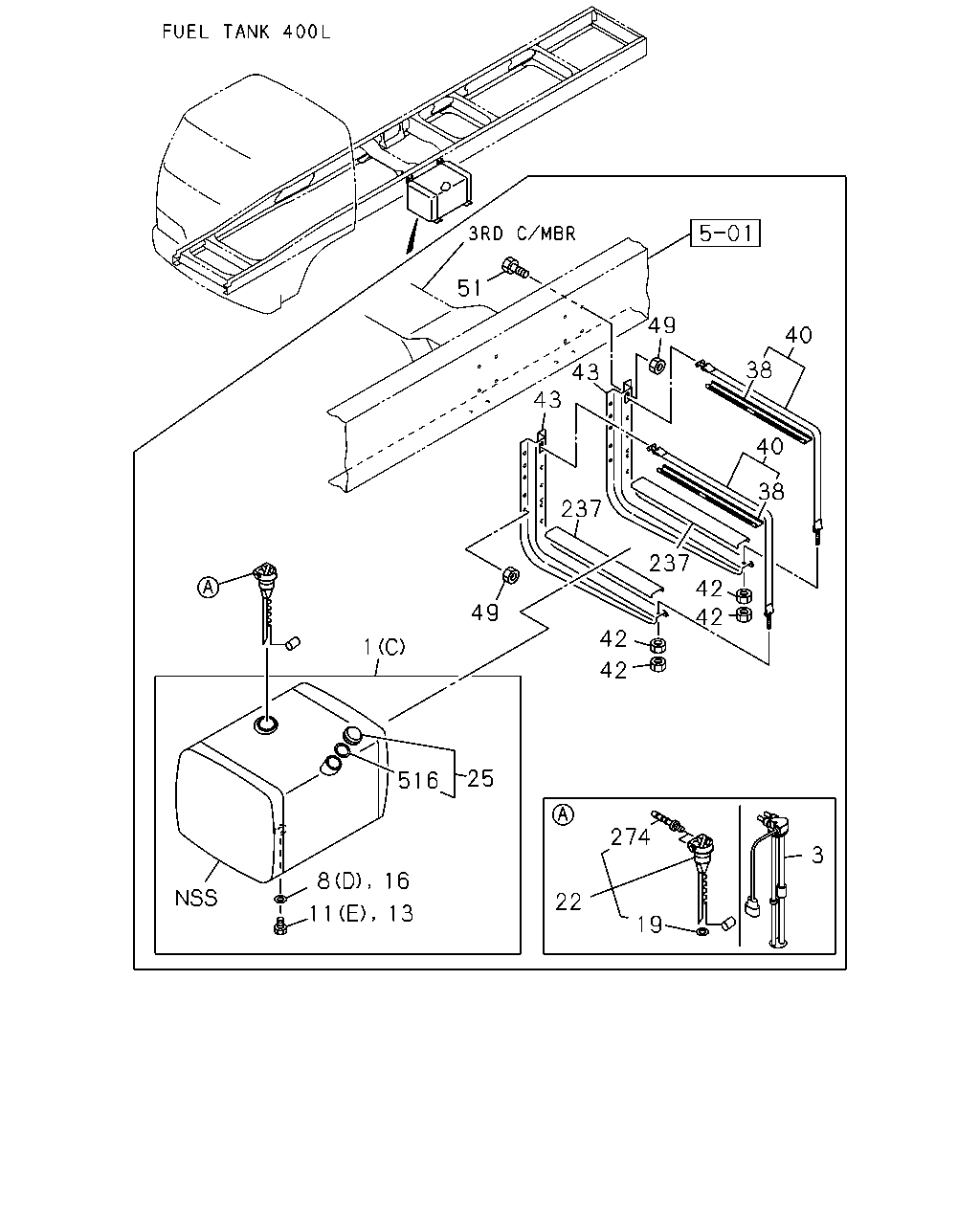

1-40 — FUEL TANK (#65072) — 863 parça

51 49 38 40 43 43 237 40 38 237 42 42 42 42 49 1 516 16 8 11 13 25 274 22 19 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X680X625 400L	1-87411-168-0	01	1	0101-1202	●	●
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-120-1	01	1	0004-0112	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (B) 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L(SDH)	8-98217-749-0	01	1	1211-	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	9811-0404	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L(SDH) (D) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7) (A) T=1.60	1-22416-001-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) T=1.60	1-22416-001-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) T=1.60	1-22416-001-0	01	1	9811-0112	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7) (B) T=2.0	9-09923-030-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) T=2.0	9-09923-030-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) T=2.0	9-09923-030-0	01	1	9811-0106	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L(SDH) (E) M18X12	0-92002-418-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (C)	1-09604-082-0	01	1	9601-0004	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9811-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	0004-0106	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (D) M14X14	9-09862-156-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9811-0112	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L(SDH) M18X12	9-99202-318-0	01	1	0101-0606	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L(SDH) M18X12	0-92002-418-0	01	1	0607-1210	●	●
16	GASKET; PLUG FUEL TANK 400L(SDH) T=1.60	1-22416-001-0	01	1	0101-0509	●	●
16	GASKET; PLUG FUEL TANK 400L(SDH) ID=18.2 T=1.6	8-98030-453-0	01	1	0510-1210	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=42 OD=71	5-83148-001-0	01	1	9811-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7)	9-83135-003-0	01	1	9601-9810	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	9-83135-003-0	01	1	9601-9810	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	9-83135-003-0	01	1	0605-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L(SDH) ID=58	1-83149-005-0	01	1	0101-1210	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L(SDH) ID=54.5	8-98299-580-0	01	1	1211-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-83141-121-0	01	1	9601-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9811-1505	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	8-98296-671-0	01	1	1506-	●	●
22	UNIT; FUEL TANK FUEL TANK 400L(SDH)	1-83141-132-0	01	1	0101-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-22440-050-0	01	1	9601-0004	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9811-0003	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0004-0109	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-069-0	01	1	0110-0112	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0201-0309	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-070-0	01	1	0310-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L(SDH)	1-22440-056-0	01	1	0101-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7) L=650	1-22553-022-1	02	1	9601-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=650	1-22553-022-1	02	1	9601-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L(SDH) L=1156	1-22553-039-1	02	1	0101-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L(SDH) L=1205	1-22550-227-2	02	1	0101-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L(SDH)	1-53461-525-1	02	1	0101-	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91150-212-0	12	1	0101-0602	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28081-245-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	9601-9810	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=580	1-22553-003-0	02	1	9601-9810	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	9811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=580	1-22553-003-0	02	1	9811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L(SDH)	1-22553-037-1	04	1	0101-	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L(SDH)	1-83149-006-0	02	1	0101-1210	●	●
516	GASKET; CAP FUEL TANK 400L(SDH) ID=78	8-98259-383-0	01	1	0101-	●	●

51 285 43 49 41 40 43 39 217 37 51 223 72 49 187 40 42 176 42 2 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) AUSTRALIA EQUIPMENT(RR3) (A) 869X597X413 200L	1-22400-867-0	01	1	9601-9604	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L FMCSR(TGS) (A) 869X597X413 200L	1-22400-867-0	01	1	9605-0004	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (B) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (B) 720X610X496 200L	1-22401-120-1	01	1	0004-0112	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (B) 720X610X496 200L	1-22401-192-0	01	1	0201-0404	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (C) 720X610X496 200L	1-22401-213-1	01	1	0405-	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L FMCSR(TGS) (C)	1-09604-082-0	01	1	9601-0004	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	9811-0003	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	0004-0106	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (D) M14X14	9-09862-156-0	02	1	0201-	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	9811-0112	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) ID=17	9-09164-516-0	02	1	9601-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) ID=17	9-09164-516-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L(SDH) L=1205	1-22550-227-2	02	1	0101-	●	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) OD=16 L=75	9-08224-675-0	02	1	9601-0004	●
41	PIN; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) OD=16 L=75	9-08224-675-0	02	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L(SDH)	1-53461-525-1	02	1	0101-	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91150-212-0	12	1	0101-0602	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28081-245-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	04	1	0601-	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	04	1	0601-	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L FMCSR(TGS)	1-22440-050-0	01	1	9601-0004	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-033-2	01	1	9811-0003	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-067-0	01	1	0004-0109	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-069-0	01	1	0110-0112	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-067-0	01	1	0201-0309	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-070-0	01	1	0310-0404	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-046-1	01	1	0405-	●	●
187	VALVE; GT,SUB TANK FUEL TANK 200L+200L FMCSR(TGS)	1-22453-005-0	01	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9811-	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9811-	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7) ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●

51 285 43 49 41 40 43 39 37 51 223 217 35 72 22 40 49 42 186 42 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X680X625 400L	1-87411-168-0	01	1	0101-1202	●	●
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-120-1	01	1	0004-0112	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (B) 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L(SDH) (E) M18X12	0-92002-418-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (C)	1-09604-082-0	01	1	9601-0004	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9811-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	0004-0106	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (D) M14X14	9-09862-156-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9811-0112	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-83141-121-0	01	1	9601-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9811-1505	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	8-98296-671-0	01	1	1506-	●	●
22	UNIT; FUEL TANK FUEL TANK 400L(SDH)	1-83141-132-0	01	1	0101-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-22440-050-0	01	1	9601-0004	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9811-0003	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0004-0109	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-069-0	01	1	0110-0112	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0201-0309	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-070-0	01	1	0310-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L(SDH)	1-22440-056-0	01	1	0101-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09187-007-0	05	1	9601-0004	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9811-0604	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	0-34218-510-0	05	1	0605-	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) ID=17	9-09164-516-0	02	1	9601-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) ID=17	9-09164-516-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L(SDH) L=1205	1-22550-227-2	02	1	0101-	●	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) OD=16 L=75	9-08224-675-0	02	1	9601-0004	●
41	PIN; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) OD=16 L=75	9-08224-675-0	02	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L(SDH)	1-53461-525-1	02	1	0101-	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91150-212-0	12	1	0101-0602	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28081-245-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	04	1	0601-	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	04	1	0601-	●	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-22453-005-0	01	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9811-	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9811-	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7) ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●

51 285 43 49 41 40 43 39 37 51 223 217 35 72 22 40 49 42 186 42 25 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X680X625 400L	1-87411-168-0	01	1	0101-1202	●	●
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-120-1	01	1	0004-0112	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (B) 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L(SDH) (E) M18X12	0-92002-418-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (C)	1-09604-082-0	01	1	9601-0004	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9811-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	0004-0106	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (D) M14X14	9-09862-156-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9811-0112	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-83141-121-0	01	1	9601-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9811-1505	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	8-98296-671-0	01	1	1506-	●	●
22	UNIT; FUEL TANK FUEL TANK 400L(SDH)	1-83141-132-0	01	1	0101-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-22440-050-0	01	1	9601-0004	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9811-0003	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0004-0109	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-069-0	01	1	0110-0112	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0201-0309	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-070-0	01	1	0310-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L(SDH)	1-22440-056-0	01	1	0101-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09187-007-0	05	1	9601-0004	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9811-0604	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	0-34218-510-0	05	1	0605-	●	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●
37	PIN; SPLIT,SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) OD=3.7 L=28	9-08114-028-0	02	1	9601-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) ID=17	9-09164-516-0	02	1	9601-0004	●
39	WASHER; PL,SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) ID=17	9-09164-516-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L(SDH) L=1205	1-22550-227-2	02	1	0101-	●	●
41	PIN; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) OD=16 L=75	9-08224-675-0	02	1	9601-0004	●
41	PIN; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS) OD=16 L=75	9-08224-675-0	02	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L(SDH)	1-53461-525-1	02	1	0101-	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91150-212-0	12	1	0101-0602	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28081-245-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	04	1	0601-	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	04	1	0601-	●	●
186	VALVE; GT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-22453-005-0	01	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9811-	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9811-	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7) ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●

51 43 43 49 40 285 38 217 40 51 35 32 38 35 237 223 32 29 72 22 237 42 42 49 19 25 42 42 1 8 8 8 8 11 11 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X680X625 400L	1-87411-168-0	01	1	0101-1202	●	●
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-120-1	01	1	0004-0112	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (B) 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L(SDH) (D) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7) (A) T=1.60	1-22416-001-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) T=1.60	1-22416-001-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) T=1.60	1-22416-001-0	01	1	9811-0112	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7) (B) T=2.0	9-09923-030-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) T=2.0	9-09923-030-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) T=2.0	9-09923-030-0	01	1	9811-0106	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L(SDH) (E) M18X12	0-92002-418-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (C)	1-09604-082-0	01	1	9601-0004	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9811-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	0004-0106	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (D) M14X14	9-09862-156-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9811-0112	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=42 OD=71	5-83148-001-0	01	1	9811-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7)	9-83135-003-0	01	1	9601-9810	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	9-83135-003-0	01	1	9601-9810	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	9-83135-003-0	01	1	0605-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L(SDH) ID=58	1-83149-005-0	01	1	0101-1210	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L(SDH) ID=54.5	8-98299-580-0	01	1	1211-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-83141-121-0	01	1	9601-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9811-1505	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	8-98296-671-0	01	1	1506-	●	●
22	UNIT; FUEL TANK FUEL TANK 400L(SDH)	1-83141-132-0	01	1	0101-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-22440-050-0	01	1	9601-0004	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9811-0003	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0004-0109	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-069-0	01	1	0110-0112	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0201-0309	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-070-0	01	1	0310-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L(SDH)	1-22440-056-0	01	1	0101-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.3	9-09160-505-0	01	1	9601-9810	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.3	9-09160-505-0	01	1	9601-9810	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.3	9-09160-505-0	01	1	9811-0605	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.3	0-91610-505-0	01	1	0606-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.1	9-09150-505-0	05	1	9601-9810	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.1	9-09150-505-0	05	1	9601-9810	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.1	9-09150-505-0	05	1	9811-0603	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.1	0-91510-505-0	05	1	0604-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09187-007-0	05	1	9601-0004	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9811-0604	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	0-34218-510-0	05	1	0605-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7) L=650	1-22553-022-1	02	1	9601-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=650	1-22553-022-1	02	1	9601-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L(SDH) L=1156	1-22553-039-1	02	1	0101-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L(SDH) L=1205	1-22550-227-2	02	1	0101-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L(SDH)	1-53461-525-1	02	1	0101-	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91150-212-0	12	1	0101-0602	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28081-245-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	04	1	0601-	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	04	1	0601-	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9811-	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9811-	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7) ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	9601-9810	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=580	1-22553-003-0	02	1	9601-9810	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	9811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=580	1-22553-003-0	02	1	9811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L(SDH)	1-22553-037-1	04	1	0101-	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●

51 49 40 285 43 43 217 38 40 2 1 51 223 38 6 32 183 35 6 32 183 29 184 35 237 56 55 72 237 42 42 55 3 22 617 49 25 176 7 19 166 42 42 2 1 35 32 29 25 11 11 166 8 9 8 9 617 11 12 11 12 11 12 11 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X680X625 400L	1-87411-168-0	01	1	0101-1202	●	●
1	TANK; FUEL FUEL TANK 400L(SDH) (C) 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 720X610X496 200L	1-22400-996-0	01	1	9601-9604	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9605-9810	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-120-1	01	1	0004-0112	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	1-22401-192-2	01	1	0201-1505	●	●
1	TANK; FUEL FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) 720X610X496 200L	8-98299-274-0	01	1	1506-	●	●
1	TANK; FUEL FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (B) 869X597X413 200L	1-22400-819-0	01	1	9601-0004	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) AUSTRALIA EQUIPMENT(RR3) (A) 869X597X413 200L	1-22400-867-0	01	1	9601-9604	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L FMCSR(TGS) (A) 869X597X413 200L	1-22400-867-0	01	1	9605-0004	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (B) 720X610X496 200L	1-22400-996-0	01	1	9811-0003	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (B) 720X610X496 200L	1-22401-120-1	01	1	0004-0112	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (B) 720X610X496 200L	1-22401-192-0	01	1	0201-0404	●	●
2	TANK ASM; FUEL,SUB FUEL TANK 200L+200L(NF7) (C) 720X610X496 200L	1-22401-213-1	01	1	0405-	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L(SDH)	8-98217-749-0	01	1	1211-	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	9811-0404	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK FUEL TANK 200L+200L(NF7) M5X10	9-93497-510-0	05	1	9811-0604	●	●
6	SCREW; TANK UNIT TO SUB FUEL TANK FUEL TANK 200L+200L(NF7) M5X10	0-34218-510-0	05	1	0605-	●	●
7	GASKET; TANK UNIT,SUB TANK FUEL TANK 200L+200L(NF7)	9-83135-003-0	01	1	9811-0404	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L(SDH) (D) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7) (A) T=1.60	1-22416-001-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) T=1.60	1-22416-001-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) T=1.60	1-22416-001-0	01	1	9811-0112	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7) (B) T=2.0	9-09923-030-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) T=2.0	9-09923-030-0	01	1	9601-9810	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) T=2.0	9-09923-030-0	01	1	9811-0106	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-	●	●
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (A) T=1.60	1-22416-001-0	01	1	9811-0112	●	●
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (B) T=2.0	9-09923-030-0	01	1	9811-0106	●	●
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-0112	●	●
9	GASKET; DRAIN PLUG,SUB TANK FUEL TANK 200L+200L(NF7) (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L(SDH) (E) M18X12	0-92002-418-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) (C)	1-09604-082-0	01	1	9601-0004	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	9811-0003	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M36	1-09604-052-0	01	1	0004-0106	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (D) M14X14	9-09862-156-0	02	1	0201-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9601-9810	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) (A) M18X12	1-09604-081-0	01	1	9811-0112	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L FMCSR(TGS) (C)	1-09604-082-0	01	1	9601-0004	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	9811-0003	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M36	1-09604-052-0	01	1	0004-0106	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (B) M14X14	9-09862-156-0	01	1	0107-0112	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (D) M14X14	9-09862-156-0	02	1	0201-	●	●
12	PLUG; DRAIN,SUB TANK FUEL TANK 200L+200L(NF7) (A) M18X12	1-09604-081-0	01	1	9811-0112	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=42 OD=71	5-83148-001-0	01	1	9811-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7)	9-83135-003-0	01	1	9601-9810	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	9-83135-003-0	01	1	9601-9810	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	9-83135-003-0	01	1	0605-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L(SDH) ID=58	1-83149-005-0	01	1	0101-1210	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L(SDH) ID=54.5	8-98299-580-0	01	1	1211-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-83141-121-0	01	1	9601-0004	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9601-9810	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-83141-124-0	01	1	9811-1505	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	8-98296-671-0	01	1	1506-	●	●
22	UNIT; FUEL TANK FUEL TANK 400L(SDH)	1-83141-132-0	01	1	0101-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-22440-050-0	01	1	9601-0004	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9601-9810	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-033-2	01	1	9811-0003	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0004-0109	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-069-0	01	1	0110-0112	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-067-0	01	1	0201-0309	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-070-0	01	1	0310-0404	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-22440-046-1	01	1	0405-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L(SDH)	1-22440-056-0	01	1	0101-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.3	9-09160-505-0	01	1	9601-9810	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.3	9-09160-505-0	01	1	9601-9810	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.3	9-09160-505-0	01	1	9811-0605	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.3	0-91610-505-0	01	1	0606-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.1	9-09150-505-0	05	1	9601-9810	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.1	9-09150-505-0	05	1	9601-9810	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.1	9-09150-505-0	05	1	9811-0603	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) ID=5.1	0-91510-505-0	05	1	0604-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09187-007-0	05	1	9601-0004	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9601-9810	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	9-93497-510-0	05	1	9811-0604	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M5X10	0-34218-510-0	05	1	0605-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7) L=650	1-22553-022-1	02	1	9601-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=650	1-22553-022-1	02	1	9601-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L(SDH) L=1156	1-22553-039-1	02	1	0101-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L FMCSR(TGS) L=1035	1-22550-221-0	02	1	9601-0004	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-1	02	1	9601-9810	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=1030	1-22550-204-2	02	1	9811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L(SDH) L=1205	1-22550-227-2	02	1	0101-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L FMCSR(TGS)	1-09487-027-1	04	1	9601-0004	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9601-9810	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M10	9-09110-510-0	04	1	9811-0012	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	9-09110-510-0	04	1	0101-0512	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7) M10	0-91110-510-0	04	1	0601-	●	●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20),FUEL TANK 400L(SDH) M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L FMCSR(TGS)	1-53461-354-2	02	1	9601-0004	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-279-4	02	1	9601-	●	●
43	BRACKET; FUEL TANK FUEL TANK 400L(SDH)	1-53461-525-1	02	1	0101-	●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	12	1	9703-9711	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9712-9810	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	12	1	9811-0004	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0005-0012	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	12	1	0101-0512	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91150-212-0	12	1	0101-0602	●	●
49	NUT; BRKT FUEL TANK 400L(SDH) M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X35 FLANGE	0-28681-235-0	12	1	9701-9810	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X40 FLANGE	0-28681-240-0	12	1	9811-0004	●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0005-0012	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28681-240-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X40 FLANGE	0-28651-240-0	12	1	0601-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28081-245-0	12	1	0101-0512	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 400L(SDH) M12X45 FLANGE	0-28051-245-0	12	1	0601-	●	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7) ID=14	1-09704-102-0	02	1	9601-9810	●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L(NF7) ID=14	1-09704-102-0	02	1	9811-	●	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L(NF7) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-9810	●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L(NF7) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9811-	●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12 FLANGE	0-91150-212-0	04	1	9601-9711	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9712-9810	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12	9-99110-512-0	04	1	9811-0004	●	●
72	NUT; BRKT M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0005-0012	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	9-99110-512-0	04	1	0101-0512	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7) M12	0-91110-512-0	04	1	0601-	●	●
72	NUT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12	0-91110-512-0	04	1	0601-	●	●
166	GASKET FUEL TANK 200L+200L(NF7)	8-94366-904-0	01	1	0405-	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L FMCSR(TGS)	1-22440-050-0	01	1	9601-0004	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-033-2	01	1	9811-0003	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-067-0	01	1	0004-0109	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-069-0	01	1	0110-0112	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-067-0	01	1	0201-0309	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-070-0	01	1	0310-0404	●	●
176	CAP ASM; FILLER,SUB TANK FUEL TANK 200L+200L(NF7)	1-22440-046-1	01	1	0405-	●	●
183	WASHER; LK,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.1	9-09150-505-0	05	1	9811-0603	●	●
183	WASHER; LK,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.1	0-91510-505-0	05	1	0604-	●	●
184	WASHER; PL,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.3	9-09160-505-0	01	1	9811-0605	●	●
184	WASHER; PL,SUB TANK UNIT FUEL TANK 200L+200L(NF7) ID=5.3	0-91610-505-0	01	1	0606-	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L FMCSR(PK6),FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L FMCSR(TGS)	1-53461-432-1	02	1	9601-0004	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9601-9810	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7)	1-53461-283-2	02	1	9811-	●	●
217	BRACKET; FUEL TANK,LOW FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20)	1-53461-283-2	02	1	9811-	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9712-9810	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) ID=12.5 OD=26	9-09160-612-0	04	1	9811-0004	●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
223	WASHER; PL,LWR BRKT FIX FUEL TANK 200L+200L(NF7) ID=12.5 OD=26	9-09160-612-0	04	1	0005-0006	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	9601-9810	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=580	1-22553-003-0	02	1	9601-9810	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7) L=580	1-22553-003-0	02	1	9811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) L=580	1-22553-003-0	02	1	9811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L(SDH)	1-22553-037-1	04	1	0101-	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9601-9810	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L+200L FMCSR(TGS) M12X50 FLANGE	0-28081-250-0	04	1	9811-0004	●	●
285	BOLT; BRKT M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0005-0012	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28081-250-0	04	1	0101-0512	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●
285	BOLT; BRKT FUEL TANK 200L+200L(NF7),FUEL TANK 200L FRAME SIDE(N20) M12X50 FLANGE	0-28051-250-0	04	1	0601-	●	●
617	PLATE FUEL TANK 200L+200L(NF7)	1-22419-021-0	01	1	0405-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
