Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10707 - FVZ-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

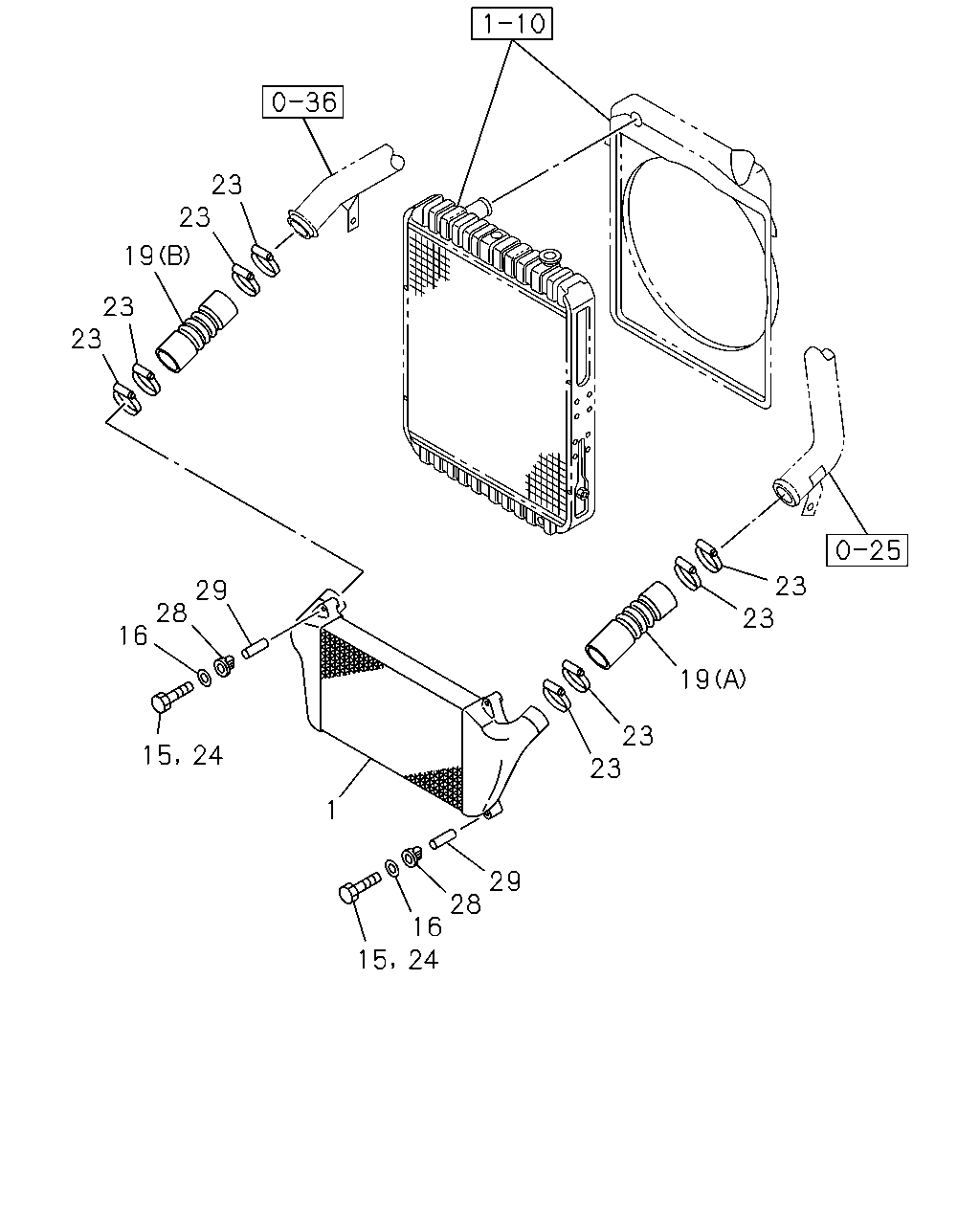

1-35 — CHARGE AIR COOLER
(#65071) — 23 parça
23
23
19
23
23
23
23
29
28
16
19
23
23
15
24
1
29
28
16
24
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
EXC. EURO3 SPECIFICATION<NJX>
1-14431-044-0
01
1
0607-
1
COOLER; CHARGE AIR
1-14431-044-0
01
1
9601-0606
1
COOLER; CHARGE AIR
EURO3 SPECIFICATION<NJX>
8-94392-923-2
01
1
0607-
15
BOLT; CHARGE AIR COOLER
EXC. EURO3 SPECIFICATION<NJX> M8X35 FLANGE
0-28080-835-0
04
1
0607-
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
9601-9804
15
BOLT; CHARGE AIR COOLER
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) M8X35 FLANGE
0-28080-835-0
04
1
9805-9903
15
BOLT; CHARGE AIR COOLER
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) M8X35 FLANGE
0-28080-835-0
04
1
9904-0004
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
0005-0606
16
WASHER; PL,CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX> ID=10.5 OD=32
9-09164-810-0
04
1
0607-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
EURO3 SPECIFICATION<NJX> (B)
8-94390-043-0
01
1
0605-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09360-911-0
01
1
9601-0212
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-118-0
01
1
0301-0604
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
EXC. EURO3 SPECIFICATION<NJX> (B)
1-09361-118-0
01
1
0605-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
8-94395-023-1
01
1
9601-
23
CLIP; HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
08
1
1002-
23
CLIP; HOSE
ID=58-79
8-94126-771-0
08
1
9601-0306
23
CLIP; HOSE
ID=58-76
1-09707-203-0
08
1
0307-0811
23
CLIP; HOSE
ID=55-75
8-98133-349-0
08
1
0812-1001
23
CLIP; HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
08
1
1002-
24
BOLT; COOLER TO RAD
EURO3 SPECIFICATION<NJX> M8X35 FLANGE
0-28080-835-0
04
1
0607-
24
BOLT; COOLER TO RAD
ALLISON MD3560P A/T(Y3B) M8X35 FLANGE
0-28080-835-0
04
1
9805-0004
28
RUBBER; MTG,CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX>
1-21467-015-1
04
1
0607-
29
COLLAR; MTG RUBBER,CAC BRKT
EURO3 SPECIFICATION<NJX>
1-21469-100-0
04
1
0607-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
