1-31 — AIR DUCT (#65070) — 80 parça

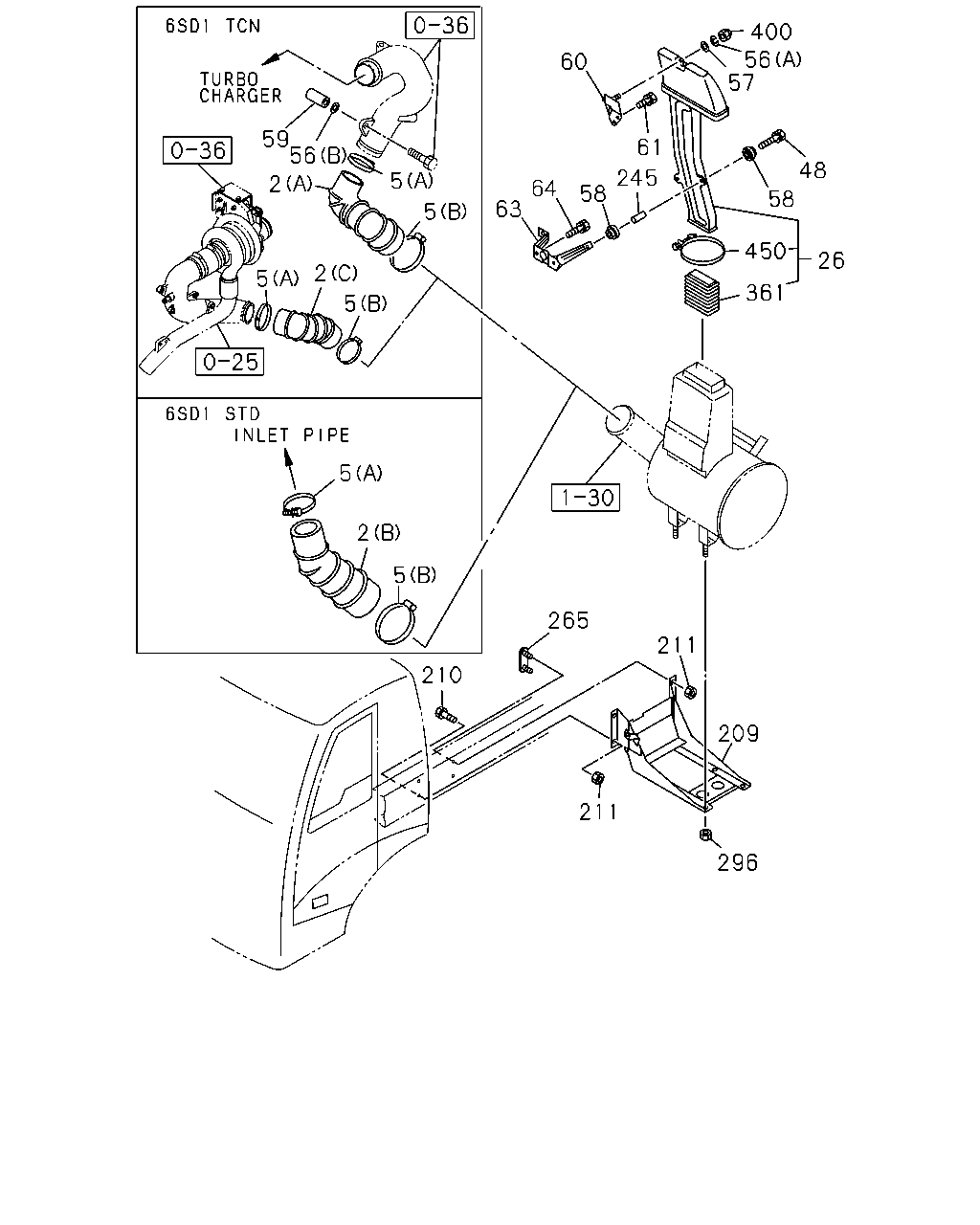

çizim 91771
400 56 57 60 59 56 61 48 245 5 2 64 58 58 63 5 450 26 2 5 361 5 5 2 5 265 211 210 209 211 296
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL
EURO3 SPECIFICATION<NJX> (C) 		1-14232-111-0 01 1 0605- ●
2 HOSE; ACL
(A) 		1-14231-914-1 01 1 9601-0604 ●
2 HOSE; ACL
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-14231-914-1 01 1 0605-0709 ●
2 HOSE; ACL
EXC. EURO3 SPECIFICATION<NJX> (A) 		8-98096-414-0 01 1 0710- ●
2 HOSE; ACL
(B) 		1-14231-936-1 01 1 9811- ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NJX> EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002- ●
5 CLIP; AIR DUCT
EXC. EURO3 SPECIFICATION<NJX>,KD PREPARATORY PACK<6HF> (A) ID=77-99 		1-09707-141-0 01 1 1002- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=130-169 		8-98155-950-0 01 1 1002- ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1002- ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9601-0212 ●
5 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-198-0 01 1 0301-0604 ●
5 CLIP; AIR DUCT
EXC. EURO3 SPECIFICATION<NJX> (A) ID=77-95 		1-09707-198-0 01 1 0605-0810 ●
5 CLIP; AIR DUCT
EXC. EURO3 SPECIFICATION<NJX> (A) ID=75-95 		8-98133-357-0 01 1 0811-1001 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> EXC. EURO3 SPECIFICATION<NJX> (A) ID=75-95 		8-98133-357-0 01 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 9601-0212 ●
5 CLIP; AIR DUCT
(B) ID=130-165 		1-09707-201-0 01 1 0301-0810 ●
5 CLIP; AIR DUCT
(B) ID=130-150 		8-98133-360-0 01 1 0811-1001 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=130-150 		8-98133-360-0 01 1 1002- ●
5 CLIP; AIR DUCT
(A) ID=87-116 		1-09707-144-0 01 1 9811-0212 ●
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0301-0811 ●
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 0812-1001 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1002- ●
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 01 1 9811-0212 ●
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0301-0604 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NJX> (B) ID=104-139 		1-09707-200-0 01 1 0605-0812 ●
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0605-0812 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NJX> (B) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NJX> KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002- ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002- ●
26 DUCT; AIR INT
EURO3 SPECIFICATION<NJX> 		1-14230-173-2 01 1 0605- ●
26 DUCT; AIR INT 1-14230-120-4 01 1 9601-9611 ●
26 DUCT; AIR INT 1-14230-156-0 01 1 9612-9712 ●
26 DUCT; AIR INT 1-14230-173-0 01 1 9801-9804 ●
26 DUCT; AIR INT 1-14230-175-2 01 1 9805-0604 ●
26 DUCT; AIR INT
EXC. EURO3 SPECIFICATION<NJX> 		1-14230-175-2 01 1 0605-0611 ●
26 DUCT; AIR INT
EXC. EURO3 SPECIFICATION<NJX> 		8-98064-760-0 01 1 0612- ●
26 DUCT; AIR INT 1-14230-177-2 01 1 9811-0611 ●
26 DUCT; AIR INT 8-98064-761-0 01 1 0612- ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 9601- ● ●
56 WASHER; LK,AIR INT DUCT
(B) T=5.5 		1-14149-042-0 02 1 9601-0604 ●
56 WASHER; LK,AIR INT DUCT
EXC. EURO3 SPECIFICATION<NJX> (B) T=5.5 		1-14149-042-0 02 1 0605- ●
56 WASHER; LK,AIR INT DUCT
(A) M10 		1-09500-046-0 01 1 9601- ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9601- ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 9601-9804 ●
58 SUPPORT; AIR INL DUCT 1-14119-397-0 04 1 9805-0211 ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0212- ● ●
59 TUBE; DIST,AIR INT DUCT
L=43 		1-14149-048-1 02 1 9601-0604 ●
59 TUBE; DIST,AIR INT DUCT
EXC. EURO3 SPECIFICATION<NJX> L=43 		1-14149-048-1 02 1 0605- ●
59 TUBE; DIST,AIR INT DUCT
L=55 		1-14149-166-0 02 1 9601-0604 ●
59 TUBE; DIST,AIR INT DUCT
EXC. EURO3 SPECIFICATION<NJX> L=55 		1-14149-166-0 02 1 0605- ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 9601- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9601- ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 9601- ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9601- ● ●
209 BRACKET; ACL 1-53497-525-0 01 1 9601-9607 ●
209 BRACKET; ACL
EXC. ENGINE REAR PTO<SV1> 		1-53497-525-0 01 1 9608-9804 ●
209 BRACKET; ACL
EXC. ENGINE REAR PTO<SV1> 		1-53497-587-0 01 1 9805- ●
209 BRACKET; ACL
ENGINE REAR PTO<SV1> 		1-53497-559-0 01 1 9608-9804 ●
209 BRACKET; ACL
ENGINE REAR PTO<SV1> 		1-53497-589-0 01 1 9805- ●
209 BRACKET; ACL 1-53497-480-2 01 1 9811- ●
210 BOLT; ACL BRKT
M12X35 FLANGE 		0-28081-235-0 02 1 9601-9606 ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 9607-0512 ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-112-0 04 1 9601-9606 ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 9607-0602 ●
211 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9811-0602 ●
211 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 9601- ● ●
265 BRACKET; STUD,ACL 1-53497-454-1 01 1 9601-9607 ●
265 BRACKET; STUD,ACL
EXC. ENGINE REAR PTO<SV1> 		1-53497-454-1 01 1 9608-9807 ●
265 BRACKET; STUD,ACL 1-53497-454-1 01 1 9808- ● ●
265 BRACKET; STUD,ACL
ENGINE REAR PTO<SV1> 		1-53497-523-0 01 1 9608-9807 ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 9601-0602 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 9612- ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 9601- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 9612- ●
