1-11 — RADIATOR HOSE AND SUB TANK (#65068) — 68 parça

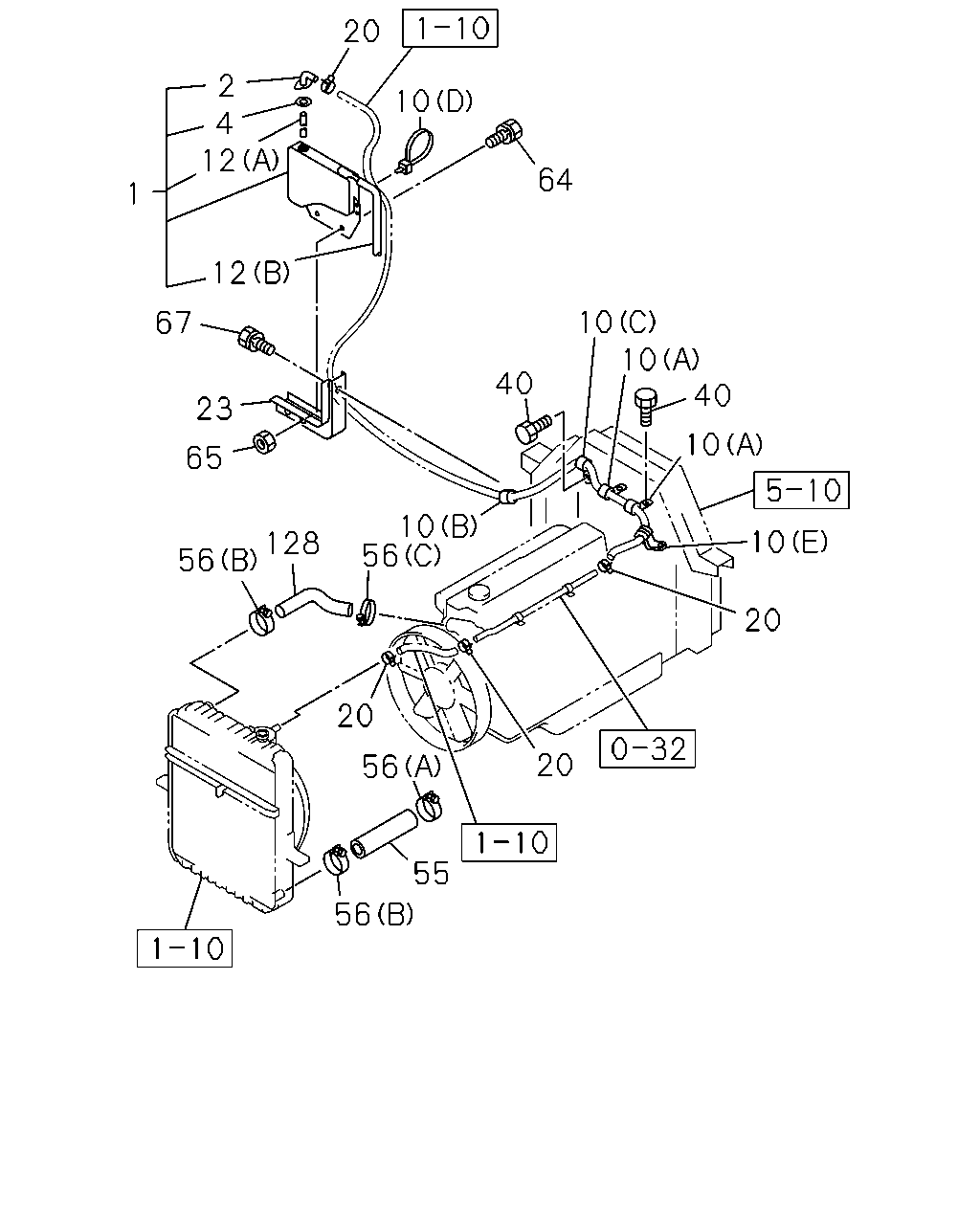

çizim 89254
20 2 4 12 10 64 1 12 10 10 67 40 40 23 10 65 10 56 10 128 56 20 20 20 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; SURGE,RAD 1-21480-077-2 01 1 9601-9812 ● ●
1 TANK; SURGE,RAD 1-21480-104-1 01 1 9901- ● ●
2 CAP; SURGE TANK 5-21483-001-1 01 1 9601-9812 ● ●
2 CAP; SURGE TANK 1-21483-008-0 01 1 9901- ● ●
4 GASKET; SURGE TANK 5-21489-006-0 01 1 9601- ● ●
10 CLIP; RUBBER HOSE
EXC. EURO3 SPECIFICATION<NJX> (A) ID=14.5 L=40 		1-09701-014-0 02 1 0802- ●
10 CLIP; RUBBER HOSE
(A) ID=14.5 L=40 		1-09701-014-0 02 1 0802- ●
10 CLIP; RUBBER HOSE
(E) ID=14 L=44 		9-09917-427-0 01 1 0201- ● ●
10 CLIP; RUBBER HOSE
(A) ID=14.5 L=40 		1-09701-014-0 02 1 9601-0801 ● ●
10 CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NJX> (A) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ●
10 CLIP; RUBBER HOSE
(D) L=140 		5-09707-031-1 01 1 9601- ● ●
10 CLIP; RUBBER HOSE
(C) ID=13 L=50 		9-09525-286-0 01 1 9601-0004 ● ●
10 CLIP; RUBBER HOSE
(C) ID=13 		9-09525-255-0 01 1 0005-0010 ● ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0011-0801 ● ●
10 CLIP; RUBBER HOSE
EXC. EURO3 SPECIFICATION<NJX> (C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0802- ●
10 CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0802- ●
10 CLIP; RUBBER HOSE
(B) ID=14 L=44 		9-09917-427-0 01 1 9601-0004 ● ●
10 CLIP; RUBBER HOSE
(B) ID=13 L=20 		9-09525-235-0 01 1 0005-0606 ● ●
10 CLIP; RUBBER HOSE
(B) ID=13 L=20 		0-95235-235-0 01 1 0607- ● ●
12 HOSE; SURGE TANK
(A) 		1-21489-203-0 01 1 0005- ● ●
12 HOSE; SURGE TANK
(B) L=300 		1-09366-199-0 01 1 9601- ● ●
20 CLIP; HOSE,RAD
ID=12 		8-94238-610-0 04 1 9601- ● ●
23 BRACKET; RESERVE TANK 1-21489-128-0 01 1 9601- ● ●
40 BOLT; CLIP
EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 04 1 0802- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0802- ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 03 1 9601-9606 ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 9607-0004 ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ●
40 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0601-0801 ● ●
40 BOLT; CLIP
EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 02 1 0802- ●
55 HOSE; WATER,RAD OUTLET 1-21437-543-0 01 1 9601-9804 ●
55 HOSE; WATER,RAD OUTLET
ALLISON MD3560P A/T(Y3B) 		1-21437-701-0 01 1 9805-0004 ●
55 HOSE; WATER,RAD OUTLET
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) 		1-21437-543-0 01 1 9805-9903 ●
55 HOSE; WATER,RAD OUTLET
FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) 		1-21437-543-0 01 1 9904-0004 ●
55 HOSE; WATER,RAD OUTLET 1-21437-543-0 01 1 0005- ●
55 HOSE; WATER,RAD OUTLET 1-21437-554-0 01 1 9811- ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9601-9804 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9805-9810 ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (B) ID=63 		1-09704-067-0 02 1 9805-9810 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9811-0004 ● ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (B) ID=63 		1-09704-067-0 02 1 9811-0004 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 0005- ● ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (D) ID=74 		1-09704-101-0 02 1 9805-0004 ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (E) ID=68 		8-94224-262-0 01 1 9805-0004 ●
56 CLIP; WATER HOSE,RAD
(C) ID=76 		1-09704-069-0 01 1 9601- ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=70 		1-09704-078-0 01 1 9601- ● ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-074-0 04 1 9601-0707 ● ●
64 BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 0708- ● ●
65 NUT; BRKT,SUB TANK
M8 		9-09110-408-0 04 1 9601-9606 ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91150-108-0 04 1 9607-0602 ● ●
65 NUT; BRKT,SUB TANK
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 9601-9606 ● ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28681-020-0 02 1 9607-0512 ● ●
67 BOLT; BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 0601- ● ●
128 HOSE; WATER,RAD INL
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-21437-700-0 01 1 9709-0004 ●
128 HOSE; WATER,RAD INL 1-21437-544-0 01 1 9601-9708 ● ●
128 HOSE; WATER,RAD INL
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-21437-544-0 01 1 9709-0004 ● ●
128 HOSE; WATER,RAD INL 1-21437-544-0 01 1 0005- ● ●

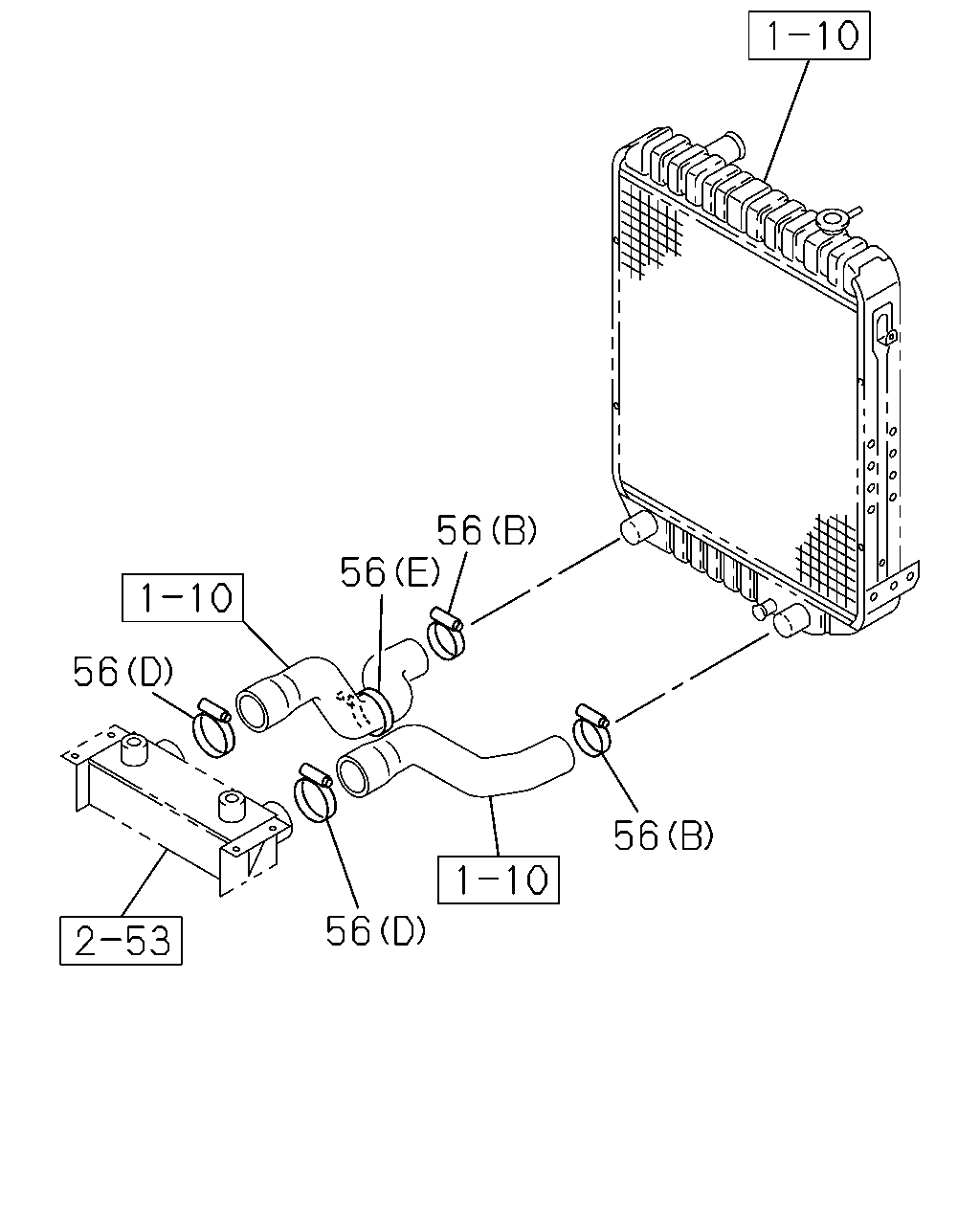

çizim 184692
56 56 56 56 56
BalonParca AdiParca NoAdetTipApplied Date A B
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9601-9804 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9805-9810 ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (B) ID=63 		1-09704-067-0 02 1 9805-9810 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9811-0004 ● ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (B) ID=63 		1-09704-067-0 02 1 9811-0004 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 0005- ● ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (D) ID=74 		1-09704-101-0 02 1 9805-0004 ●
56 CLIP; WATER HOSE,RAD
ALLISON MD3560P A/T(Y3B) (E) ID=68 		8-94224-262-0 01 1 9805-0004 ●
56 CLIP; WATER HOSE,RAD
(C) ID=76 		1-09704-069-0 01 1 9601- ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=70 		1-09704-078-0 01 1 9601- ● ●
