Sayfa 1-10 - Isuzu EPC

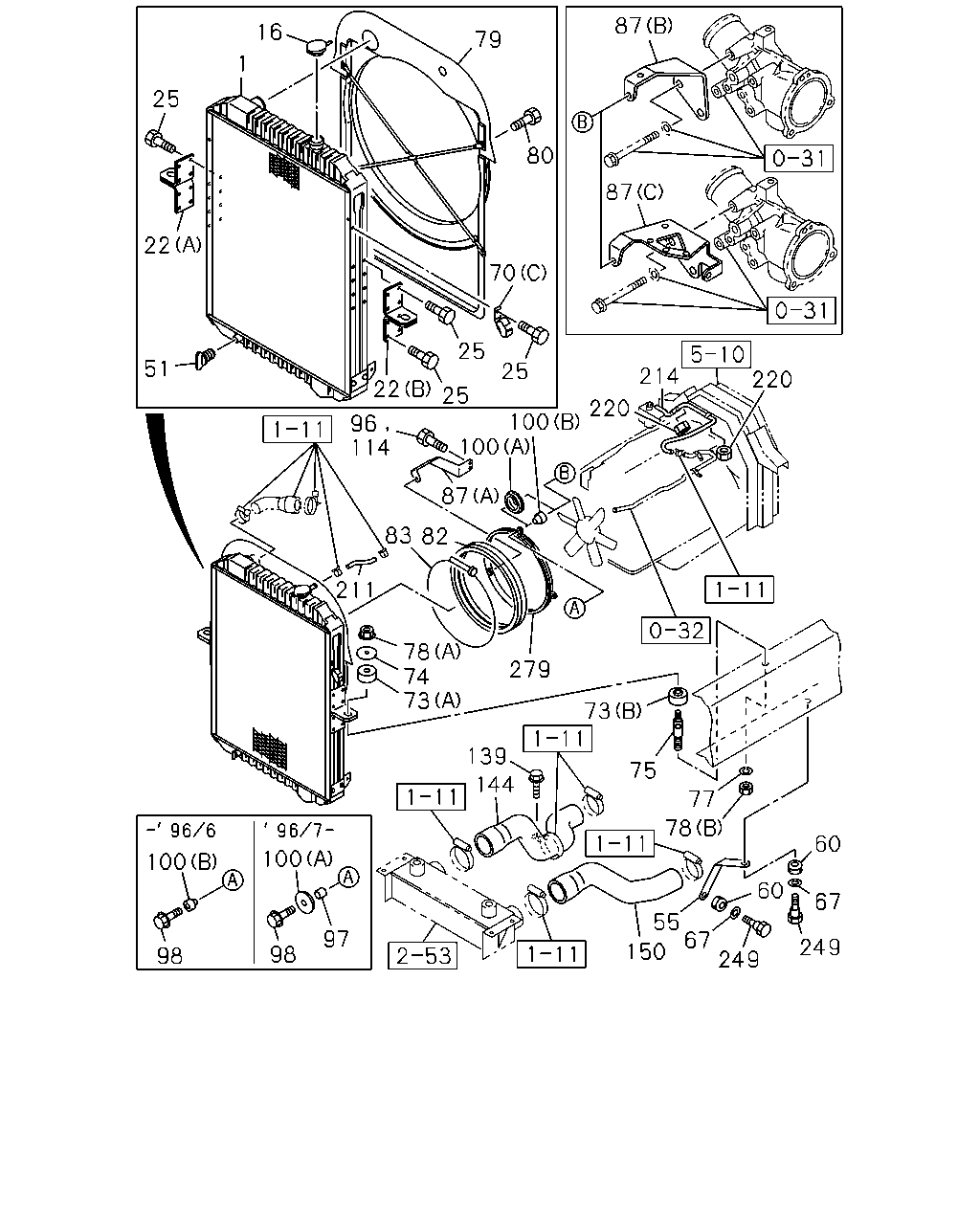

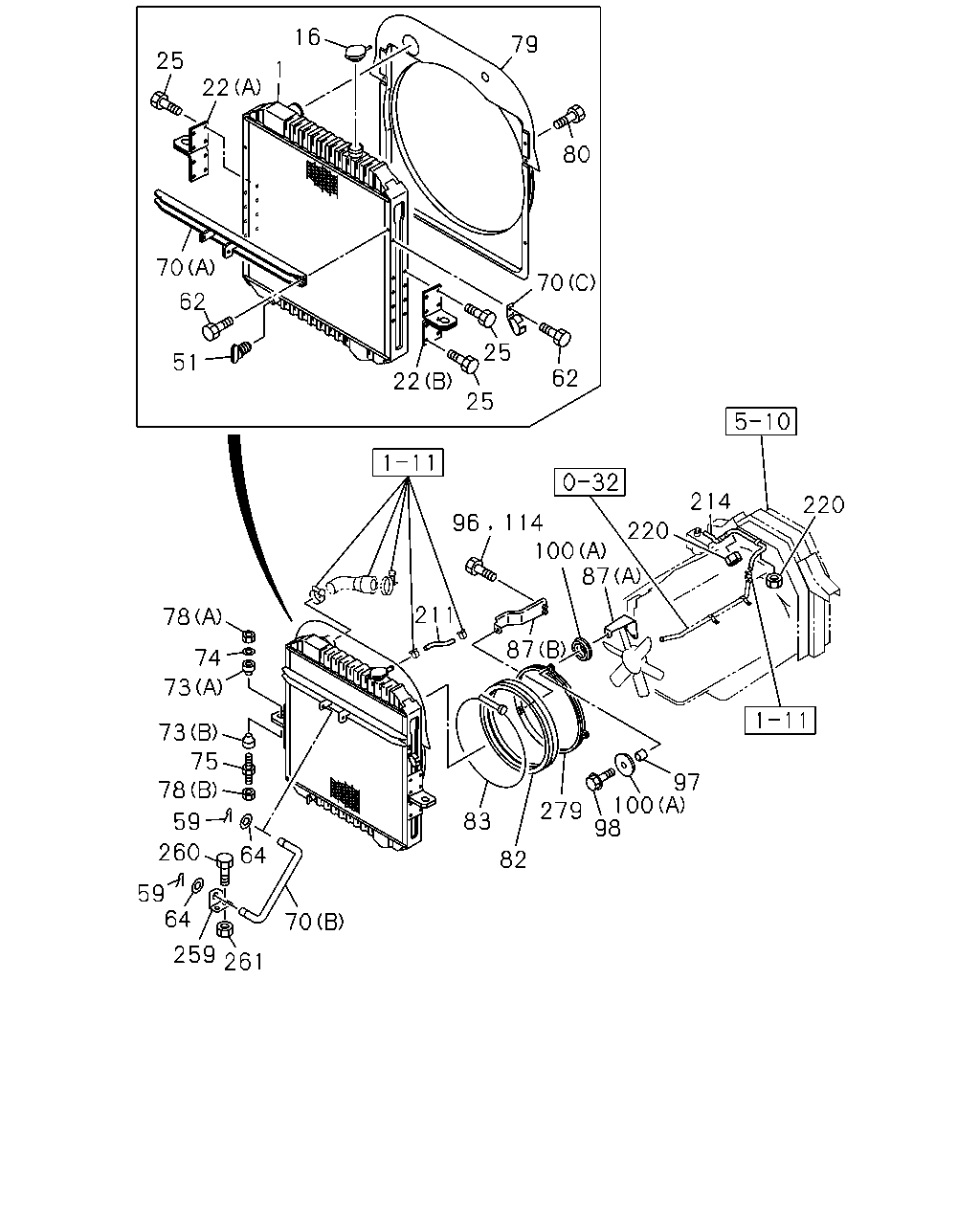

1-10 — RADIATOR (#65067) — 269 parça

16 79 25 1 22 80 70 70 62 25 51 62 22 25 214 220 96 114 100 87 220 211 78 87 74 73 73 75 78 97 100 98 279 83 59 260 64 82 59 64 70 259 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM EXC. EURO3 SPECIFICATION<NJX>	1-21410-708-0	01	1	0607-	●
1	RADIATOR ASM	1-21410-708-0	01	1	9601-9804	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)	1-21410-708-0	01	1	9805-9903	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y)	1-21410-708-0	01	1	9904-0004	●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0606	●
1	RADIATOR ASM EURO3 SPECIFICATION<NJX>	1-21410-875-0	01	1	0607-	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-773-0	01	1	9805-0004	●
1	RADIATOR ASM	1-21410-675-1	01	1	9811-		●
16	CAP; RAD	1-21450-053-1	01	1	9601-9810	●
16	CAP; RAD	1-21450-053-1	01	1	9811-0606	●	●
16	CAP; RAD EURO3 SPECIFICATION<NJX>	1-21450-053-1	01	1	0607-0607	●
16	CAP; RAD	1-21450-053-1	01	1	0607-0607		●
16	CAP; RAD	1-21450-053-1	01	1	0607-	●	●
22	BRACKET; RAD MTG EXC. EURO3 SPECIFICATION<NJX> (B)	1-21464-520-0	01	1	0607-	●
22	BRACKET; RAD MTG (A)	1-21464-458-0	01	1	9601-	●
22	BRACKET; RAD MTG ALLISON MD3560P A/T(Y3B) (B)	1-21464-459-0	01	1	9805-9810	●
22	BRACKET; RAD MTG ALLISON MD3560P A/T(Y3B) (B)	1-21464-459-0	01	1	9811-0004	●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	9811-0004		●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	0005-		●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	9601-9609	●	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	9610-9804	●	●
22	BRACKET; RAD MTG FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) (B)	1-21464-520-0	01	1	9805-9903	●
22	BRACKET; RAD MTG FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) (B)	1-21464-520-0	01	1	9904-0004	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0005-0606	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION<NJX> (B)	1-21464-749-0	01	1	0607-	●
22	BRACKET; RAD MTG (A)	1-21464-492-0	01	1	9811-		●
25	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8X12 FLANGE	0-28080-812-0	17	1	0607-	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	17	1	9601-0606	●
25	BOLT; BRKT EURO3 SPECIFICATION<NJX> M8X12 FLANGE	0-28080-812-0	14	1	0607-	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	9811-		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9811-0606		●
25	BOLT; BRKT EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28080-816-0	01	1	0607-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0607-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9601-9809	●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) W/GASKET	1-09609-009-0	01	1	9810-9810	●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) W/GASKET	1-09609-009-0	01	1	9811-9903	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9811-9903		●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) W/GASKET	1-09609-009-0	01	1	9904-0004	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9904-0004		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-0606	●	●
51	PLUG; DRAIN EURO3 SPECIFICATION<NJX> W/GASKET	1-09609-009-0	01	1	0607-0607	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0607-0607		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0607-	●	●
51	PLUG; DRAIN ALLISON MD3560P A/T(Y3B) W/GASKET	1-09609-009-0	02	1	9810-0004	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9811-		●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	03	1	9811-		●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9811-0605		●
64	WASHER; STAY TO RAD ID=12.5 OD=22	0-91610-512-0	02	1	0606-		●
70	STAY; RAD (C)	1-83571-875-0	01	1	9601-9810	●
70	STAY; RAD (C)	1-83571-875-0	01	1	9811-	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9811-		●
70	STAY; RAD (B)	1-21522-070-0	01	1	9811-		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9601-	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9601-	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9601-9604	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9605-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	9601-	●	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9601-9702	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9703-0602	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9601-	●	●
79	GUIDE; FAN,RAD EXC. EURO3 SPECIFICATION<NJX>	1-21551-397-2	01	1	0607-	●
79	GUIDE; FAN,RAD	1-21551-397-1	01	1	9601-9804	●
79	GUIDE; FAN,RAD FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)	1-21551-397-1	01	1	9805-9903	●
79	GUIDE; FAN,RAD FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y)	1-21551-397-1	01	1	9904-0004	●
79	GUIDE; FAN,RAD	1-21551-397-2	01	1	0005-0606	●
79	GUIDE; FAN,RAD EURO3 SPECIFICATION<NJX>	1-21551-531-0	01	1	0607-	●
79	GUIDE; FAN,RAD ALLISON MD3560P A/T(Y3B)	1-21551-444-0	01	1	9805-0004	●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	9811-		●
80	BOLT; FAN GUIDE EXC. EURO3 SPECIFICATION<NJX> M6X12 FLANGE	0-28080-612-0	04	1	0607-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9601-0606	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9811-0606		●
80	BOLT; FAN GUIDE EURO3 SPECIFICATION<NJX> M6X10 FLANGE	0-28080-610-0	04	1	0607-	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0607-		●
82	COVER; FAN,RAD	1-21559-369-0	01	1	9601-9610	●
82	COVER; FAN,RAD	1-21559-397-0	01	1	9611-	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9811-		●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9601-	●	●
87	STAY; FAN GUIDE (A)	1-21559-373-0	01	1	0605-	●
87	STAY; FAN GUIDE (A)	1-21559-373-0	01	1	9601-0604	●
87	STAY; FAN GUIDE EURO3 SPECIFICATION<NJX> (C)	1-21559-457-0	01	1	0605-	●
87	STAY; FAN GUIDE (B)	1-21559-379-0	01	1	9601-0604	●
87	STAY; FAN GUIDE EXC. EURO3 SPECIFICATION<NJX> (B)	1-21559-379-0	01	1	0605-	●
87	STAY; FAN GUIDE (A)	1-21559-394-0	01	1	9811-		●
87	STAY; FAN GUIDE (B)	1-21559-395-0	01	1	9811-		●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0109	●	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0110-0512	●	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0110-0512	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
96	BOLT; STAY FIX EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
96	BOLT; STAY FIX EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0605-		●
96	BOLT; STAY FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●
96	BOLT; STAY FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
96	BOLT; STAY FIX EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	04	1	0605-	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9601-9606	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9607-0512	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9811-0512		●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28050-845-0	03	1	0601-		●
100	RUBBER; MTG (B)	1-09337-027-0	06	1	9601-9606	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9607-	●	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	04	1	9601-9810	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9811-0004	●	●
114	BOLT; STAY M8X25 FLANGE	0-28080-825-0	02	1	9811-0004		●
211	HOSE; RAD TO PIPE EURO3 SPECIFICATION<NJX> L=260 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0109	●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0606	●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0607-0607		●
211	HOSE; RAD TO PIPE EXC. EURO3 SPECIFICATION<NJX> L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0607-		●
214	HOSE; PIPE TO RESERVE TANK EURO3 SPECIFICATION<NJX> L=760 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0109	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0606	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0607-0607		●
214	HOSE; PIPE TO RESERVE TANK EXC. EURO3 SPECIFICATION<NJX> L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0607-		●
220	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	04	1	0802-	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0802-		●
220	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-0004	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-0801	●	●
220	NUT; CLIP EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0802-	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	9811-		●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9811-0512		●
260	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602		●
261	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
279	BELL MOUTH	1-21551-395-0	01	1	9601-	●
279	BELL MOUTH	8-94394-174-1	01	1	9811-		●

87 16 79 1 25 80 87 22 70 25 220 51 25 22 214 25 220 100 100 96 114 87 83 82 211 78 74 73 279 73 139 75 144 77 78 60 100 100 60 67 55 67 249 97 249 150 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIATOR ASM EXC. EURO3 SPECIFICATION<NJX>	1-21410-708-0	01	1	0607-	●
1	RADIATOR ASM	1-21410-708-0	01	1	9601-9804	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)	1-21410-708-0	01	1	9805-9903	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y)	1-21410-708-0	01	1	9904-0004	●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0606	●
1	RADIATOR ASM EURO3 SPECIFICATION<NJX>	1-21410-875-0	01	1	0607-	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-773-0	01	1	9805-0004	●
1	RADIATOR ASM	1-21410-675-1	01	1	9811-		●
16	CAP; RAD	1-21450-053-1	01	1	9601-9810	●
16	CAP; RAD	1-21450-053-1	01	1	9811-0606	●	●
16	CAP; RAD EURO3 SPECIFICATION<NJX>	1-21450-053-1	01	1	0607-0607	●
16	CAP; RAD	1-21450-053-1	01	1	0607-0607		●
16	CAP; RAD	1-21450-053-1	01	1	0607-	●	●
22	BRACKET; RAD MTG EXC. EURO3 SPECIFICATION<NJX> (B)	1-21464-520-0	01	1	0607-	●
22	BRACKET; RAD MTG (A)	1-21464-458-0	01	1	9601-	●
22	BRACKET; RAD MTG ALLISON MD3560P A/T(Y3B) (B)	1-21464-459-0	01	1	9805-9810	●
22	BRACKET; RAD MTG ALLISON MD3560P A/T(Y3B) (B)	1-21464-459-0	01	1	9811-0004	●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	9811-0004		●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	0005-		●
22	BRACKET; RAD MTG (B)	1-21464-459-0	01	1	9601-9609	●	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	9610-9804	●	●
22	BRACKET; RAD MTG FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) (B)	1-21464-520-0	01	1	9805-9903	●
22	BRACKET; RAD MTG FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) (B)	1-21464-520-0	01	1	9904-0004	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0005-0606	●
22	BRACKET; RAD MTG EURO3 SPECIFICATION<NJX> (B)	1-21464-749-0	01	1	0607-	●
22	BRACKET; RAD MTG (A)	1-21464-492-0	01	1	9811-		●
25	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8X12 FLANGE	0-28080-812-0	17	1	0607-	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	17	1	9601-0606	●
25	BOLT; BRKT EURO3 SPECIFICATION<NJX> M8X12 FLANGE	0-28080-812-0	14	1	0607-	●
25	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	15	1	9811-		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	9811-0606		●
25	BOLT; BRKT EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28080-816-0	01	1	0607-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0607-		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9601-9809	●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) W/GASKET	1-09609-009-0	01	1	9810-9810	●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L) W/GASKET	1-09609-009-0	01	1	9811-9903	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9811-9903		●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y) W/GASKET	1-09609-009-0	01	1	9904-0004	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9904-0004		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-0606	●	●
51	PLUG; DRAIN EURO3 SPECIFICATION<NJX> W/GASKET	1-09609-009-0	01	1	0607-0607	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0607-0607		●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0607-	●	●
51	PLUG; DRAIN ALLISON MD3560P A/T(Y3B) W/GASKET	1-09609-009-0	02	1	9810-0004	●
55	STAY; RAD TO UPR MBR	1-21464-452-0	01	1	9601-	●
55	STAY; RAD TO UPR MBR	1-21464-453-0	01	1	9601-	●
60	GROMMET	1-09332-117-0	04	1	9601-	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	9601-0605	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●
70	STAY; RAD (C)	1-83571-875-0	01	1	9601-9810	●
70	STAY; RAD (C)	1-83571-875-0	01	1	9811-	●	●
70	STAY; RAD (A)	1-21522-064-0	01	1	9811-		●
70	STAY; RAD (B)	1-21522-070-0	01	1	9811-		●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9601-	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9601-	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	9601-9604	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	9605-	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	9601-	●	●
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9601-9702	●
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9601-9702	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	9703-0602	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9601-	●	●
79	GUIDE; FAN,RAD EXC. EURO3 SPECIFICATION<NJX>	1-21551-397-2	01	1	0607-	●
79	GUIDE; FAN,RAD	1-21551-397-1	01	1	9601-9804	●
79	GUIDE; FAN,RAD FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L)	1-21551-397-1	01	1	9805-9903	●
79	GUIDE; FAN,RAD FULLER RT7608LL M/T(X8P),ZF 9S109 OD M/T(Y2L),ZF 9S109 OD M/T SOUTH AFRICA(Y3Y)	1-21551-397-1	01	1	9904-0004	●
79	GUIDE; FAN,RAD	1-21551-397-2	01	1	0005-0606	●
79	GUIDE; FAN,RAD EURO3 SPECIFICATION<NJX>	1-21551-531-0	01	1	0607-	●
79	GUIDE; FAN,RAD ALLISON MD3560P A/T(Y3B)	1-21551-444-0	01	1	9805-0004	●
79	GUIDE; FAN,RAD	1-21551-409-0	01	1	9811-		●
80	BOLT; FAN GUIDE EXC. EURO3 SPECIFICATION<NJX> M6X12 FLANGE	0-28080-612-0	04	1	0607-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	9601-0606	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	9811-0606		●
80	BOLT; FAN GUIDE EURO3 SPECIFICATION<NJX> M6X10 FLANGE	0-28080-610-0	04	1	0607-	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0607-		●
82	COVER; FAN,RAD	1-21559-369-0	01	1	9601-9610	●
82	COVER; FAN,RAD	1-21559-397-0	01	1	9611-	●
82	COVER; FAN,RAD	1-21559-211-0	01	1	9811-		●
83	CLIP; FAN COVER	1-09707-177-2	01	1	9601-	●	●
87	STAY; FAN GUIDE (A)	1-21559-373-0	01	1	0605-	●
87	STAY; FAN GUIDE (A)	1-21559-373-0	01	1	9601-0604	●
87	STAY; FAN GUIDE EURO3 SPECIFICATION<NJX> (C)	1-21559-457-0	01	1	0605-	●
87	STAY; FAN GUIDE (B)	1-21559-379-0	01	1	9601-0604	●
87	STAY; FAN GUIDE EXC. EURO3 SPECIFICATION<NJX> (B)	1-21559-379-0	01	1	0605-	●
87	STAY; FAN GUIDE (A)	1-21559-394-0	01	1	9811-		●
87	STAY; FAN GUIDE (B)	1-21559-395-0	01	1	9811-		●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0109	●	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0110-0512	●	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0110-0512	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
96	BOLT; STAY FIX EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
96	BOLT; STAY FIX EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0605-		●
96	BOLT; STAY FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●
96	BOLT; STAY FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-		●
96	BOLT; STAY FIX EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	04	1	0605-	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	9607-	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28080-830-0	03	1	9601-9606	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	9607-0512	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28080-845-0	03	1	9811-0512		●
98	BOLT; RAD FAN GUIDE M8X45 FLANGE	0-28050-845-0	03	1	0601-		●
100	RUBBER; MTG (B)	1-09337-027-0	06	1	9601-9606	●
100	RUBBER; MTG (A) OD=32	8-94395-766-0	06	1	9607-	●	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	04	1	9601-9810	●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9811-0004	●	●
114	BOLT; STAY M8X25 FLANGE	0-28080-825-0	02	1	9811-0004		●
139	BOLT; CLIP BRKT ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28680-820-0	01	1	9805-0004	●
144	HOSE; RUBBER,PIPE ALLISON MD3560P A/T(Y3B)	1-21437-746-0	01	1	9805-0004	●
150	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B)	1-21437-747-0	01	1	9805-0004	●
211	HOSE; RAD TO PIPE EURO3 SPECIFICATION<NJX> L=260 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0109	●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0606	●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0607-0607		●
211	HOSE; RAD TO PIPE EXC. EURO3 SPECIFICATION<NJX> L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0607-		●
214	HOSE; PIPE TO RESERVE TANK EURO3 SPECIFICATION<NJX> L=760 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	9601-0109	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0606	●	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0607-0607		●
214	HOSE; PIPE TO RESERVE TANK EXC. EURO3 SPECIFICATION<NJX> L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0607-	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0607-		●
220	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	04	1	0802-	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0802-		●
220	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-0004	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0603-0801	●	●
220	NUT; CLIP EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0802-	●
249	BOLT; STAY,RAD MBR M8X22	1-09009-123-0	02	1	0206-	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	9601-0205	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0206-	●
279	BELL MOUTH	1-21551-395-0	01	1	9601-	●
279	BELL MOUTH	8-94394-174-1	01	1	9811-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
