Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#65066) — 312 parça

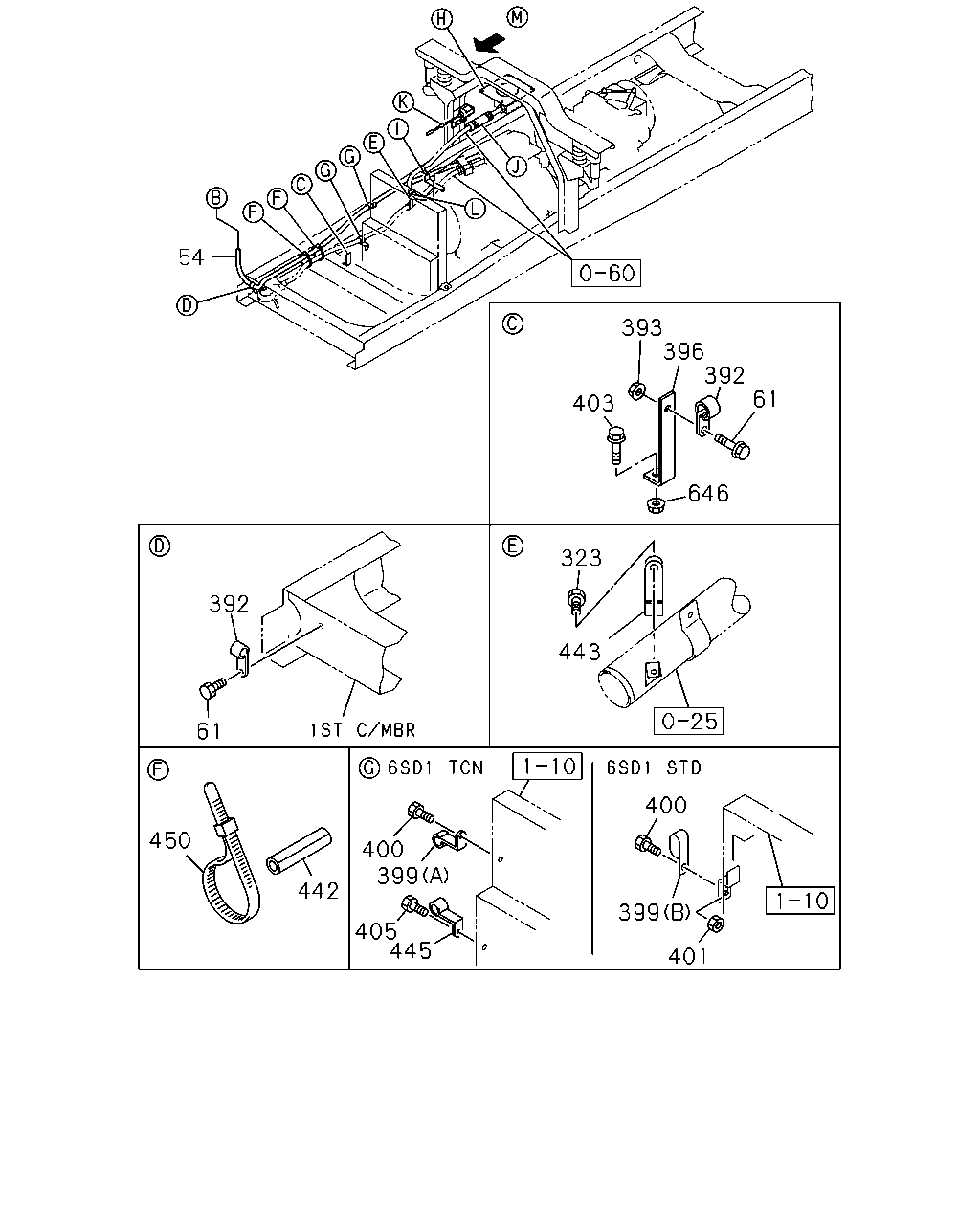

54 393 396 392 61 403 646 323 392 443 61 400 450 400 399 442 399 405 445 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT EURO3 SPECIFICATION<NJX> L=850	1-71907-257-0	01	1	0605-	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265	1-73996-561-0	01	1	0304-0604	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265	1-73996-561-0	01	1	0605-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004	●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004	●
54	CABLE; ENG CONT L=2206.5	1-73996-299-5	01	1	0005-0303	●
54	CABLE; ENG CONT EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0304-0604	●
54	CABLE; ENG CONT EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0605-	●
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9811-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9601-9804	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9805-9810	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9805-9810	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9811-0004	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0607-	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	0005-0512		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0512	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●
323	BOLT; CLIP EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	01	1	0607-	●
392	CLIP; ACCEL CONT CABLE ID=11 L=20	9-09525-035-0	01	1	0005-0606	●
392	CLIP; ACCEL CONT CABLE ID=11 L=20	0-95235-035-0	01	1	0607-0607	●
392	CLIP; ACCEL CONT CABLE EXC. EURO3 SPECIFICATION<NJX> ID=11 L=20	0-95235-035-0	01	1	0607-	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	01	1	9601-0606	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	01	1	0607-0607	●
392	CLIP; ACCEL CONT CABLE EXC. EURO3 SPECIFICATION<NJX> ID=13 L=32	0-95235-265-0	01	1	0607-	●	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	01	1	0005-0602	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
393	NUT; CLIP TO FRAME EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	0607-	●
396	BRACKET; CLIP L=145 B=25	1-47477-697-0	01	1	0005-0303	●
396	BRACKET; CLIP L=145 B=25	1-47479-123-0	01	1	0304-0606	●
396	BRACKET; CLIP EXC. EURO3 SPECIFICATION<NJX> L=145 B=25	1-47479-123-0	01	1	0607-	●
399	CLIP; CABLE,RAD SIDE (A) ID=9 L=25 H=45	1-09700-867-0	01	1	9601-9804	●
399	CLIP; CABLE,RAD SIDE (A) ID=9 L=25 H=45	1-09700-867-0	01	1	9805-9810	●
399	CLIP; CABLE,RAD SIDE (A) ID=9 L=25 H=45	1-09700-867-0	01	1	9805-9810	●
399	CLIP; CABLE,RAD SIDE (A) ID=9 L=25 H=45	1-09700-867-0	01	1	9811-0606	●
399	CLIP; CABLE,RAD SIDE EXC. EURO3 SPECIFICATION<NJX> (A) ID=9 L=25 H=45	1-09700-867-0	01	1	0607-	●
399	CLIP; CABLE,RAD SIDE (B)	1-09701-260-0	01	1	9811-0606		●
399	CLIP; CABLE,RAD SIDE EXC. EURO3 SPECIFICATION<NJX> (B)	1-09701-260-0	01	1	0607-		●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	9601-0512	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●	●
400	BOLT; CLIP,RAD SIDE EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	9811-0602		●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91180-108-0	01	1	0603-0606		●
401	NUT; CLIP,RAD SIDE EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	0607-		●
403	BOLT; BRKT,ACCEL PEDAL M8X20 FLANGE	0-28680-820-0	01	1	0005-0512	●
403	BOLT; BRKT,ACCEL PEDAL M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●
403	BOLT; BRKT,ACCEL PEDAL EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	01	1	0607-	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●
405	BOLT; CABLE CLIP EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	01	1	0607-	●
442	SLEEVE; RUBBER,OIL PIPE L=1300	1-09360-677-1	01	1	9903-0606	●
442	SLEEVE; RUBBER,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0607-	●	●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	9601-9804	●
443	CLIP; CABLE ID=7 L=16	9-09524-625-0	01	1	9807-0606	●
443	CLIP; CABLE ID=7 L=16	0-95234-625-0	01	1	0607-0607	●
443	CLIP; CABLE EXC. EURO3 SPECIFICATION<NJX> ID=7 L=16	0-95234-625-0	01	1	0607-	●
445	CLIP; RAD	1-09700-082-0	01	1	9601-0606	●
445	CLIP; RAD EXC. EURO3 SPECIFICATION<NJX>	1-09700-082-0	01	1	0607-	●
450	CLIP; BAND L=250	5-09707-030-1	01	1	9903-0606	●
450	CLIP; BAND EXC. EURO3 SPECIFICATION<NJX> L=250	5-09707-030-1	01	1	0607-	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	9601-	●	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	01	1	0005-0602	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
646	NUT; BRKT,LEVER EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	0607-	●

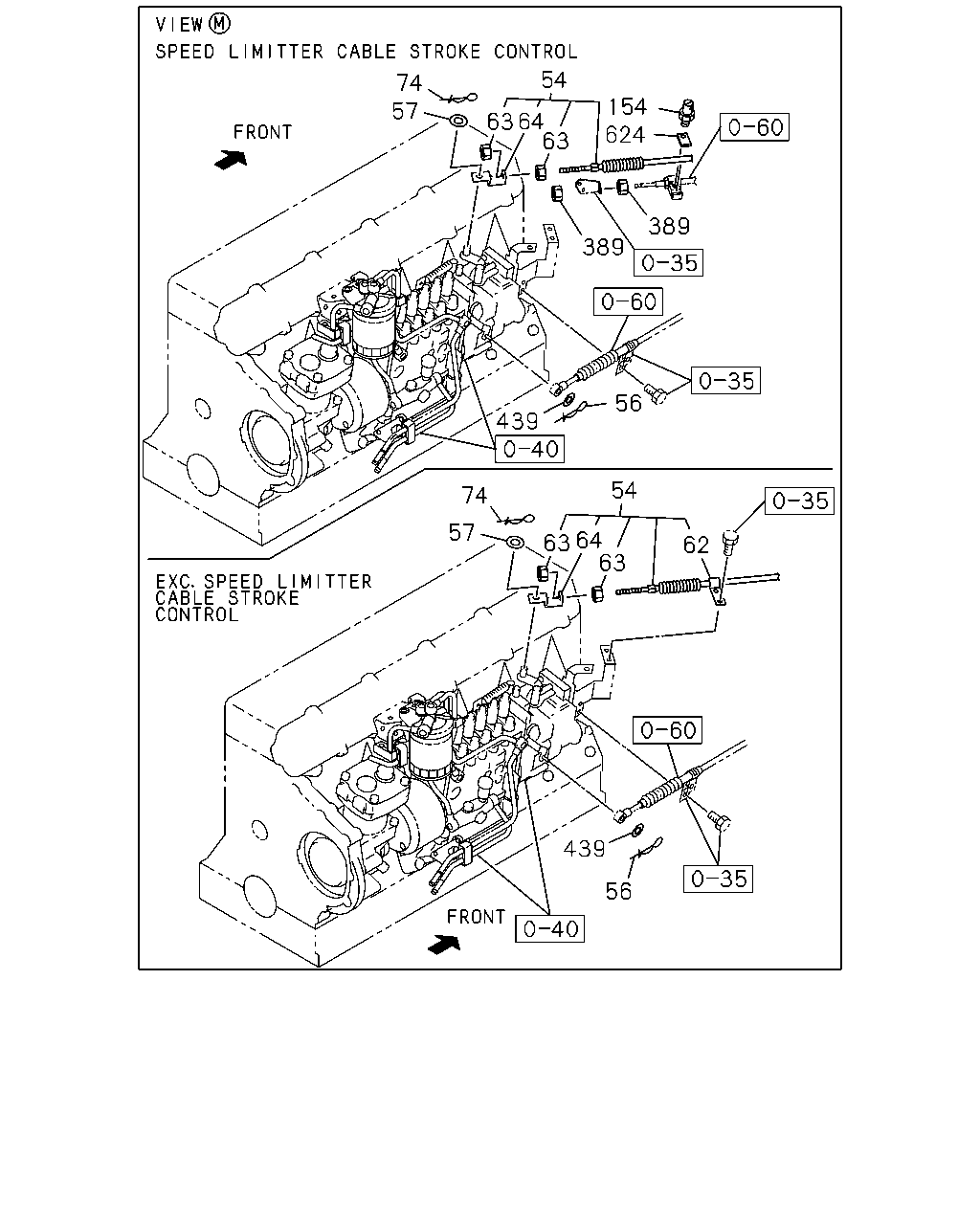

54 74 57 154 624 63 389 389 56 439 54 74 57 63 64 63 62 439 56 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT EURO3 SPECIFICATION<NJX> L=850	1-71907-257-0	01	1	0605-	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265	1-73996-561-0	01	1	0304-0604	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265	1-73996-561-0	01	1	0605-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004	●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004	●
54	CABLE; ENG CONT L=2206.5	1-73996-299-5	01	1	0005-0303	●
54	CABLE; ENG CONT EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0304-0604	●
54	CABLE; ENG CONT EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0605-	●
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9811-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9601-0606	●	●
56	PIN; SNAP,JAW JOINT EXC. EURO3 SPECIFICATION<NJX> L=17.9	1-09747-002-0	01	1	0607-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9601-0605	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-0606	●
57	WASHER; ENG CONT CABLE EXC. EURO3 SPECIFICATION<NJX> ID=8.4 OD=16	0-91610-508-0	01	1	0607-	●	●
62	CLIP; ENG CONT CABLE EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=16	1-09700-597-0	01	1	9601-0004	●
62	CLIP; ENG CONT CABLE L=16	1-09700-597-0	01	1	0005-0604	●
62	CLIP; ENG CONT CABLE EXC. EURO3 SPECIFICATION<NJX> L=16	1-09700-597-0	01	1	0605-	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9811-		●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9601-0604	●	●
63	NUT; LOCK,BRKT EXC. EURO3 SPECIFICATION<NJX> M8	9-09111-408-0	02	1	0605-	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0605-		●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	9601-0604	●	●
64	BRACKET; ENG CONT CABLE EXC. EURO3 SPECIFICATION<NJX>	1-23219-105-1	01	1	0605-	●
64	BRACKET; ENG CONT CABLE	1-23219-105-1	01	1	0605-		●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9601-0606	●	●
74	PIN; SNAP,CABLE END EXC. EURO3 SPECIFICATION<NJX> L=27.7	1-09747-005-0	01	1	0607-	●	●
154	BOLT; CABLE BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT>	9-23321-272-0	01	1	9601-0004	●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	02	1	9601-9804	●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	01	1	9805-9907	●
389	NUT; ACCEL CONT CABLE FIX SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE	0-91150-106-0	02	1	9908-0004	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9601-0605	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-0606	●
439	WASHER; PL,PIN,JAW JOINT EXC. EURO3 SPECIFICATION<NJX> ID=5.3	0-91610-505-0	01	1	0607-	●	●
624	PLATE; CONT LINK SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-47477-576-0	01	1	9601-0004	●	●

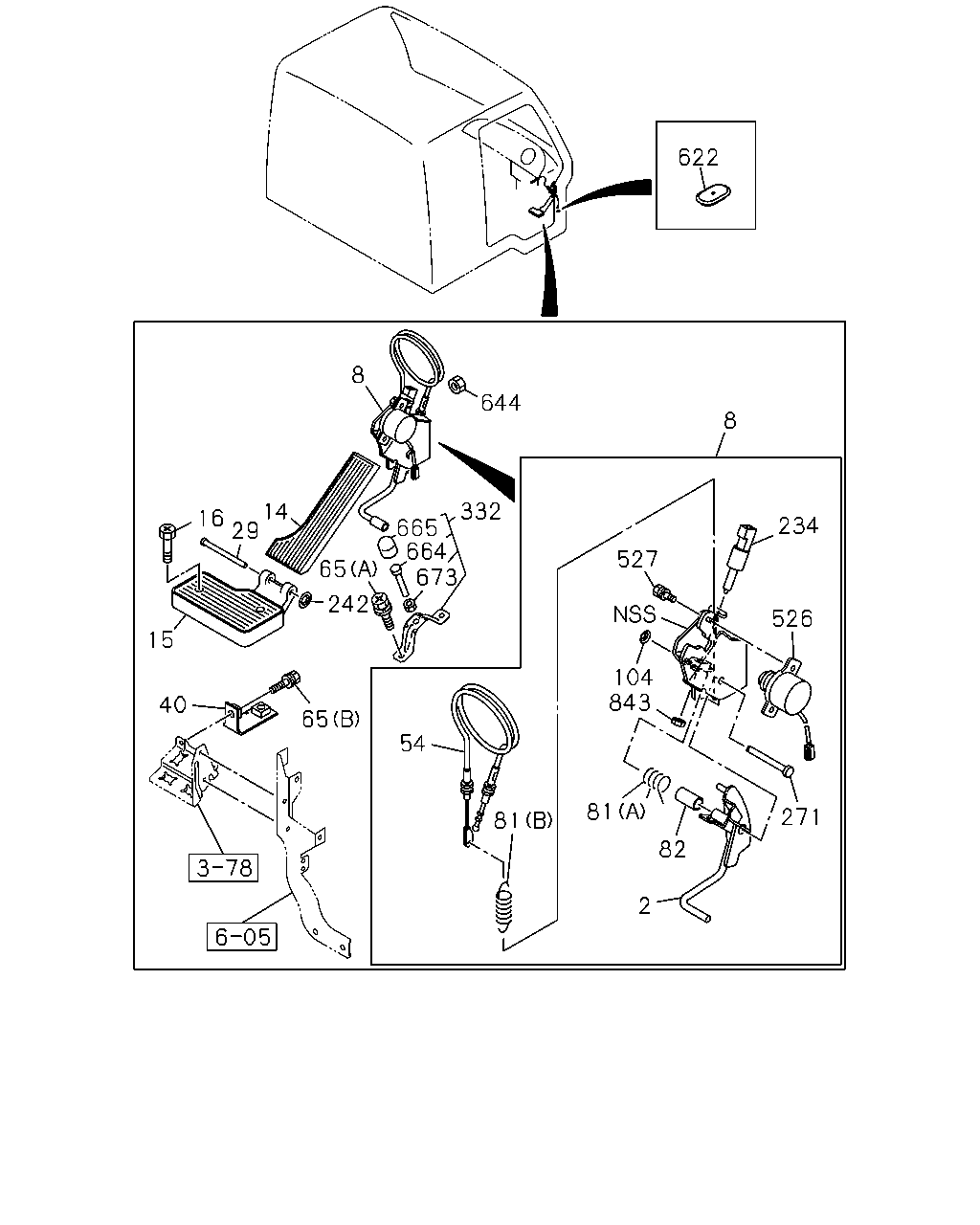

622 8 644 8 332 14 16 29 234 665 664 673 527 65 242 526 15 104 843 40 65 54 81 271 81 82 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT EURO3 SPECIFICATION<NJX>	1-71907-500-2	01	1	0605-	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9601-0604	●	●
2	LEVER; ENG CONT EXC. EURO3 SPECIFICATION<NJX>	1-71907-210-2	01	1	0605-	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0605-		●
8	LINK ASM; ENG CONT EURO3 SPECIFICATION<NJX>	1-71907-161-9	01	1	0605-0605	●
8	LINK ASM; ENG CONT EURO3 SPECIFICATION<NJX>	1-73996-545-3	01	1	0606-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9601-0604	●	●
8	LINK ASM; ENG CONT EXC. EURO3 SPECIFICATION<NJX>	1-73996-206-6	01	1	0605-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0605-		●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9601-9708	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	9601-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9601-9902	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9601-	●	●
40	BRACKET; ENG CONT CABLE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-844-2	01	1	0212-	●	●
40	BRACKET; ENG CONT CABLE	1-47477-148-2	01	1	9601-9908	●	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	9909-0211	●	●
40	BRACKET; ENG CONT CABLE EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-47478-612-0	01	1	0212-	●	●
54	CABLE; ENG CONT EURO3 SPECIFICATION<NJX> L=850	1-71907-257-0	01	1	0605-	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265	1-73996-561-0	01	1	0304-0604	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265	1-73996-561-0	01	1	0605-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004	●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004	●
54	CABLE; ENG CONT L=2206.5	1-73996-299-5	01	1	0005-0303	●
54	CABLE; ENG CONT EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0304-0604	●
54	CABLE; ENG CONT EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0605-	●
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9811-		●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606	●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X35 FLANGE	0-28680-835-0	04	1	9607-0004	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
81	SPRING; RETURN,ENG CONT LEVER EURO3 SPECIFICATION<NJX> (B)	8-97997-917-0	01	1	0605-	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9601-	●	●
82	BUSHING; ENG CONT LVR EURO3 SPECIFICATION<NJX> L=31.5	1-53459-627-0	01	1	0605-	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9601-0604	●	●
82	BUSHING; ENG CONT LVR EXC. EURO3 SPECIFICATION<NJX>	1-71907-244-1	02	1	0605-	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0605-		●
104	NUT; ENG CONT EXC. EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT	8-94368-617-0	02	1	0605-	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0605-		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9601-0604	●	●
104	NUT; ENG CONT EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT	8-94368-617-0	01	1	0605-	●
234	SWITCH; ACCEL EURO3 SPECIFICATION<NJX>	1-82380-131-2	01	1	0605-	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	9601-0604	●	●
234	SWITCH; ACCEL EXC. EURO3 SPECIFICATION<NJX>	1-82380-114-3	01	1	0605-	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0605-		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9601-	●	●
271	SHAFT; ENG CONT EURO3 SPECIFICATION<NJX> OD=8.0 L=69	1-71907-298-0	01	1	0605-	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9601-0604	●	●
271	SHAFT; ENG CONT EXC. EURO3 SPECIFICATION<NJX> OD=8.0 L=74	1-71907-212-1	01	1	0605-	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0605-		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9601-0212	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0301-	●	●
526	SENSOR; ACCEL EURO3 SPECIFICATION<NJX>	1-81534-003-2	01	1	0605-0605	●
526	SENSOR; ACCEL EURO3 SPECIFICATION<NJX>	1-80250-030-0	01	1	0606-	●
526	SENSOR; ACCEL ALLISON MD3560P A/T(Y3B)	1-80250-015-0	01	1	9805-0004	●	●
527	BOLT; ACCEL SENSOR EURO3 SPECIFICATION<NJX> M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0605-	●
527	BOLT; ACCEL SENSOR ALLISON MD3560P A/T(Y3B) M6X50 FLANGE	0-28080-650-0	03	1	9805-0004	●	●
622	GROMMET; ACCEL CONT CABLE EURO3 SPECIFICATION<NJX> OD=30	8-94107-655-0	01	1	0605-	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9601-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9601-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9601-0212	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9601-0512	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●
843	NUT EURO3 SPECIFICATION<NJX> M12	0-91111-512-0	01	1	0605-	●

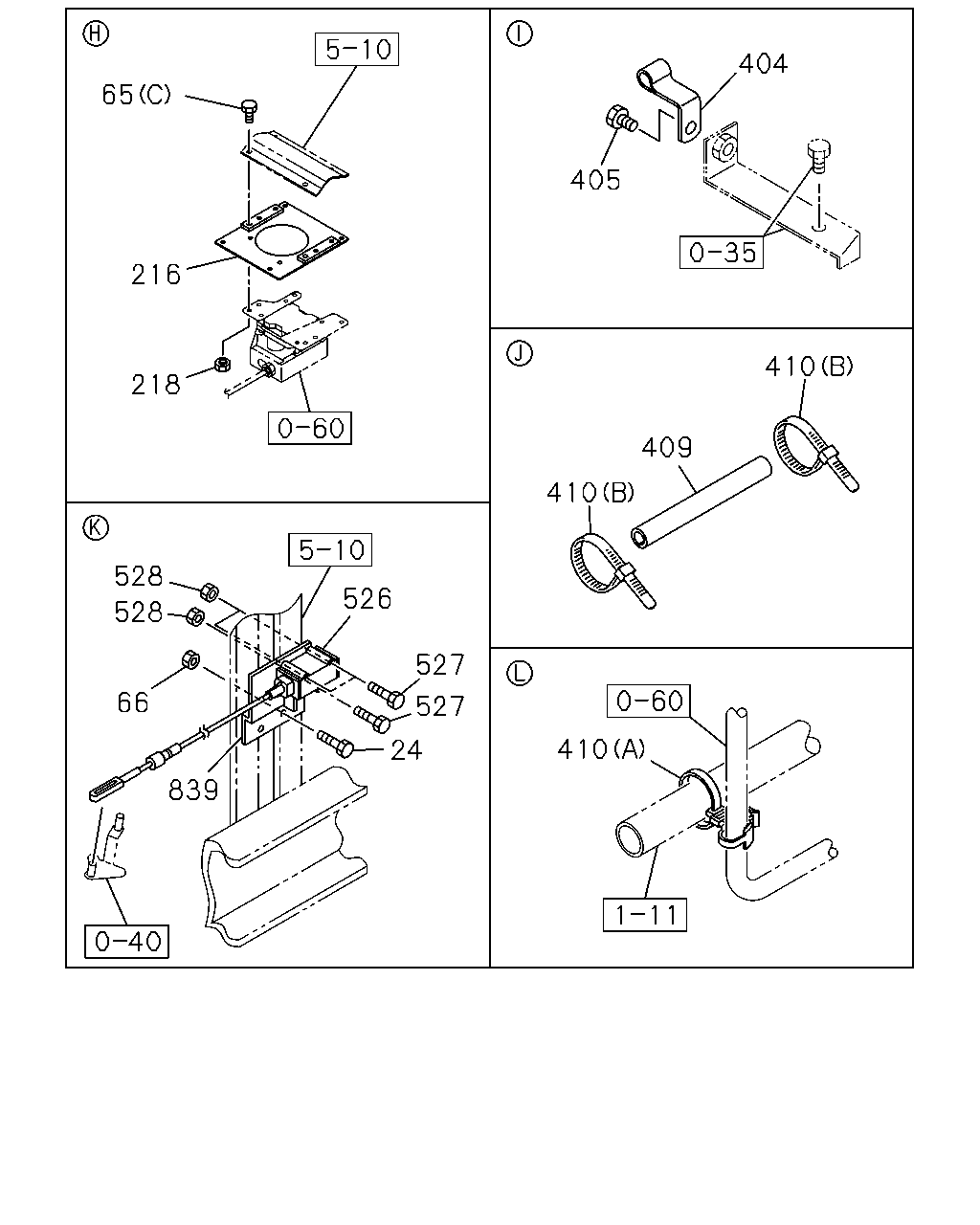

404 65 405 216 410 218 409 410 528 526 528 527 66 527 410 24 839

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BOLT; BRKT ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28680-820-0	02	1	9805-0004	●	●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606	●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X35 FLANGE	0-28680-835-0	04	1	9607-0004	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
66	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	02	1	9805-0004	●	●
216	BRACKET SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-47477-687-0	01	1	9601-0004	●
218	NUT; BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT> M8	9-09110-408-0	04	1	9601-9606	●
218	NUT; BRKT SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE	0-91150-108-0	04	1	9607-0004	●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=11 H=45 L=25	1-09700-866-0	01	1	9601-9708	●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50	1-09701-096-0	01	1	9709-9804	●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=11 H=45 L=25	1-09700-866-0	01	1	9805-9907	●
404	CLIP; CABLE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=18 L=25 H=50	1-09701-096-0	01	1	9908-0004	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●
405	BOLT; CABLE CLIP SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE	0-28080-816-0	01	1	9601-0004	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0512	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●
405	BOLT; CABLE CLIP EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	01	1	0607-	●
409	SLEEVE SPEED LIMITER CABLE STROKE CONTROL<TDT> ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	9601-9804	●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) L=140	5-09707-031-0	02	1	9601-9804	●
410	CLIP; BAND SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)	1-09707-187-0	01	1	9709-0004	●
526	SENSOR; ACCEL EURO3 SPECIFICATION<NJX>	1-81534-003-2	01	1	0605-0605	●
526	SENSOR; ACCEL EURO3 SPECIFICATION<NJX>	1-80250-030-0	01	1	0606-	●
526	SENSOR; ACCEL ALLISON MD3560P A/T(Y3B)	1-80250-015-0	01	1	9805-0004	●	●
527	BOLT; ACCEL SENSOR EURO3 SPECIFICATION<NJX> M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0605-	●
527	BOLT; ACCEL SENSOR ALLISON MD3560P A/T(Y3B) M6X50 FLANGE	0-28080-650-0	03	1	9805-0004	●	●
528	NUT; ACCEL SENSOR ALLISON MD3560P A/T(Y3B) M6 FLANGE	0-91150-106-0	03	1	9805-0004	●	●
839	BRACKET; THROTTLE SENSOR ALLISON MD3560P A/T(Y3B)	1-47478-001-2	01	1	9805-0004	●	●

67 644 8 70 75 332 8 14 16 665 664 673 59 29 73 6 242 58 234 33 15 54 65 6 104 86 82 40 271 60 104 87 82 6 81 469 12 6 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT EURO3 SPECIFICATION<NJX>	1-71907-500-2	01	1	0605-	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	9601-0604	●	●
2	LEVER; ENG CONT EXC. EURO3 SPECIFICATION<NJX>	1-71907-210-2	01	1	0605-	●
2	LEVER; ENG CONT	1-71907-210-2	01	1	0605-		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9601-0604	●	●
6	RING; SNAP,LINK TO LINK EXC. EURO3 SPECIFICATION<NJX> (A) ID=4	9-09185-404-0	02	1	0605-0605	●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	0605-0605		●
6	RING; SNAP,LINK TO LINK EXC. EURO3 SPECIFICATION<NJX> (A) ID=4	0-91805-504-0	02	1	0606-	●
6	RING; SNAP,LINK TO LINK (A) ID=4	0-91805-504-0	02	1	0606-		●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9601-9802	●	●
8	LINK ASM; ENG CONT EURO3 SPECIFICATION<NJX>	1-71907-161-9	01	1	0605-0605	●
8	LINK ASM; ENG CONT EURO3 SPECIFICATION<NJX>	1-73996-545-3	01	1	0606-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	9601-0604	●	●
8	LINK ASM; ENG CONT EXC. EURO3 SPECIFICATION<NJX>	1-73996-206-6	01	1	0605-	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0605-		●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9601-9802	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9601-9708	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	9601-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9601-9902	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9601-	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9601-0604	●	●
33	SPRING; IDLING CONT LEVER EXC. EURO3 SPECIFICATION<NJX>	8-94414-815-0	01	1	0605-	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0605-		●
40	BRACKET; ENG CONT CABLE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-79738-844-2	01	1	0212-	●	●
40	BRACKET; ENG CONT CABLE	1-47477-148-2	01	1	9601-9908	●	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	9909-0211	●	●
40	BRACKET; ENG CONT CABLE EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-47478-612-0	01	1	0212-	●	●
54	CABLE; ENG CONT EURO3 SPECIFICATION<NJX> L=850	1-71907-257-0	01	1	0605-	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2265	1-73996-561-0	01	1	0304-0604	●
54	CABLE; ENG CONT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> EXC. EURO3 SPECIFICATION<NJX> L=2265	1-73996-561-0	01	1	0605-	●
54	CABLE; ENG CONT SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2536.5	1-73996-239-4	01	1	9601-0004	●
54	CABLE; ENG CONT EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2206.5	1-73996-299-5	01	1	9601-0004	●
54	CABLE; ENG CONT L=2206.5	1-73996-299-5	01	1	0005-0303	●
54	CABLE; ENG CONT EXC. HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0304-0604	●
54	CABLE; ENG CONT EXC. EURO3 SPECIFICATION<NJX>,HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=2206.5	1-73996-299-5	01	1	0605-	●
54	CABLE; ENG CONT L=2397	1-73996-295-7	01	1	9811-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9601-0604	●	●
58	LEVER; IDLING CONT EXC. EURO3 SPECIFICATION<NJX>	1-71907-242-1	01	1	0605-	●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0605-		●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9601-0604	●	●
59	PIN; SNAP,ENG CONT CABLE EXC. EURO3 SPECIFICATION<NJX> L=27.7	1-09747-005-0	01	1	0605-	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0605-		●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X30 FLANGE	0-28080-830-0	04	1	9601-9606	●
65	BOLT SPEED LIMITER CABLE STROKE CONTROL<TDT> (C) M8X35 FLANGE	0-28680-835-0	04	1	9607-0004	●
65	BOLT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
65	BOLT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	9601-0204	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-0604	●	●
67	CABLE ASM; IDLE CONT EXC. EURO3 SPECIFICATION<NJX> L=315	1-73908-423-1	01	1	0605-	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-1	01	1	0605-		●
70	NUT; CONT CABLE	1-73908-045-1	01	1	9601-0604	●	●
70	NUT; CONT CABLE EXC. EURO3 SPECIFICATION<NJX>	1-73908-045-1	01	1	0605-	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0605-		●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9601-0604	●	●
73	WASHER; PL,ACCEL CONT CABLE EXC. EURO3 SPECIFICATION<NJX> ID=8.4	9-09160-508-0	01	1	0605-0605	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0605-0605		●
73	WASHER; PL,ACCEL CONT CABLE EXC. EURO3 SPECIFICATION<NJX> ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16	0-91610-508-0	01	1	0606-		●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9601-0109	●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-0604	●	●
75	KNOB ASM; IDLING CONT EXC. EURO3 SPECIFICATION<NJX>	1-73908-409-0	01	1	0605-	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0605-		●
81	SPRING; RETURN,ENG CONT LEVER EURO3 SPECIFICATION<NJX> (B)	8-97997-917-0	01	1	0605-	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9601-	●	●
82	BUSHING; ENG CONT LVR EURO3 SPECIFICATION<NJX> L=31.5	1-53459-627-0	01	1	0605-	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9601-0604	●	●
82	BUSHING; ENG CONT LVR EXC. EURO3 SPECIFICATION<NJX>	1-71907-244-1	02	1	0605-	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0605-		●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9601-0604	●	●
86	WASHER; PL,ENG CONT LEVER EXC. EURO3 SPECIFICATION<NJX> ID=6.4	9-09160-506-0	02	1	0605-	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0605-		●
87	LINK; ENG CONT	1-71907-211-1	01	1	9601-0604	●	●
87	LINK; ENG CONT EXC. EURO3 SPECIFICATION<NJX>	1-71907-211-1	01	1	0605-	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0605-		●
104	NUT; ENG CONT EXC. EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT	8-94368-617-0	02	1	0605-	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0605-		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9601-0604	●	●
104	NUT; ENG CONT EURO3 SPECIFICATION<NJX> ID=7.9 PUSH NUT	8-94368-617-0	01	1	0605-	●
234	SWITCH; ACCEL EURO3 SPECIFICATION<NJX>	1-82380-131-2	01	1	0605-	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	9601-0604	●	●
234	SWITCH; ACCEL EXC. EURO3 SPECIFICATION<NJX>	1-82380-114-3	01	1	0605-	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0605-		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9601-	●	●
271	SHAFT; ENG CONT EURO3 SPECIFICATION<NJX> OD=8.0 L=69	1-71907-298-0	01	1	0605-	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9601-0604	●	●
271	SHAFT; ENG CONT EXC. EURO3 SPECIFICATION<NJX> OD=8.0 L=74	1-71907-212-1	01	1	0605-	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0605-		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9601-0212	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0301-	●	●
469	LEVER ASM	1-71907-209-5	01	1	9601-0604	●	●
469	LEVER ASM EXC. EURO3 SPECIFICATION<NJX>	1-71907-209-5	01	1	0605-	●
469	LEVER ASM	1-71907-209-5	01	1	0605-		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9601-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9601-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9601-0212	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9601-0512	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●

443 439 56 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9601-0606	●	●
56	PIN; SNAP,JAW JOINT EXC. EURO3 SPECIFICATION<NJX> L=17.9	1-09747-002-0	01	1	0607-	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9601-0512	●
323	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●
323	BOLT; CLIP EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	01	1	0607-	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9601-0605	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-0606	●
439	WASHER; PL,PIN,JAW JOINT EXC. EURO3 SPECIFICATION<NJX> ID=5.3	0-91610-505-0	01	1	0607-	●	●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	9601-9804	●
443	CLIP; CABLE ID=7 L=16	9-09524-625-0	01	1	9807-0606	●
443	CLIP; CABLE ID=7 L=16	0-95234-625-0	01	1	0607-0607	●
443	CLIP; CABLE EXC. EURO3 SPECIFICATION<NJX> ID=7 L=16	0-95234-625-0	01	1	0607-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
