◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90 - POWER TAKE OFF; FLYWHEEL ▶
0-90 — POWER TAKE OFF; FLYWHEEL (#65065) — 115 parça

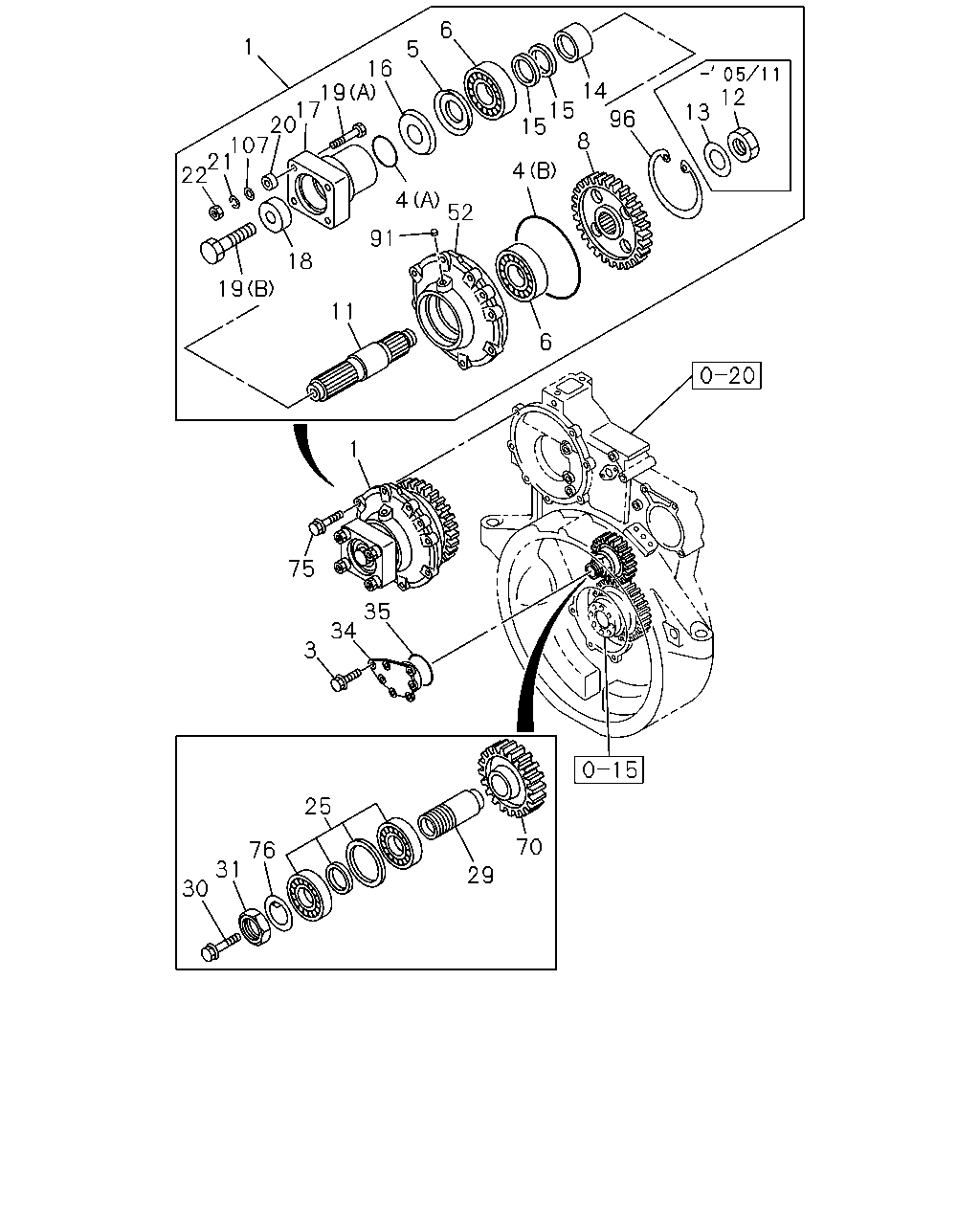

çizim 184689
70 29 25 76 31 30 3 75 1 35 34 11 91 4 18 19 52 4 15 15 14 8 96 13 12 6 5 16 19 17 20 107 21 22 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		1-38000-308-0 01 1 9608-0209
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		1-38000-387-0 01 1 0210-0303
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		1-38000-388-1 01 1 0304-0505
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		1-38000-394-1 01 1 0506-0604
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-38000-394-5 01 1 0605-
3 BOLT; BRG CASE
ENGINE REAR PTO<SV1> M8X20 FLANGE 		0-28680-820-0 07 1 9608-0512
3 BOLT; BRG CASE
ENGINE REAR PTO<SV1> M8X20 FLANGE 		0-28650-820-0 07 1 0601-0604
3 BOLT; BRG CASE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 07 1 0605-
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (A) 		9-09920-533-0 01 1 0702-
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) 		9-09920-778-0 01 1 0702-
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> 		1-09625-128-0 01 1 9608-0604
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-09625-128-0 01 1 0605-0701
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		8-97388-533-0 01 1 0702-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> JTEKT 		8-94248-088-2 02 1 0506-0604
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> JTEKT 		8-94248-088-2 02 1 0605-1204
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> JTEKT 		8-98171-254-0 02 1 1205-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> NSK 		9-00093-149-0 02 1 9608-0310
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> NSK 		9-00093-149-0 04 1 0311-0505
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> NSK 		9-00093-149-0 06 1 0506-0511
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> NSK 		9-00093-149-0 02 1 0512-0604
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> NSK 		9-00093-149-0 02 1 0605-
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> BEST VALUE PARTS 		1-87610-134-0 02 1 1205-
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> Z=61 		1-38241-105-0 01 1 9608-0209
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> Z=61 		1-38241-135-1 01 1 0210-0303
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> Z=61 		1-38241-136-0 01 1 0304-0511
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		8-98012-348-0 01 1 0512-0604
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		8-98012-348-0 01 1 0605-
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-38221-031-1 01 1 9608-0511
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		8-98012-349-0 01 1 0512-0604
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		8-98012-349-1 01 1 0605-
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-09853-865-0 01 1 9608-0511
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-09843-720-1 01 1 9608-0511
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=17.95 		9-38226-045-0 01 1 9608-0604
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=17.95 		9-38226-045-0 01 1 0605-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.20 		9-38226-046-0 01 1 9608-0604
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=18.20 		9-38226-046-0 01 1 0605-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.45 		9-38226-047-0 01 1 9608-0604
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=18.45 		9-38226-047-0 01 1 0605-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.70 		9-38226-048-0 01 1 9608-0604
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=18.70 		9-38226-048-0 01 1 0605-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.95 		9-38226-049-0 01 1 9608-0604
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=18.95 		9-38226-049-0 01 1 0605-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=19.20 		9-38226-050-0 01 1 9608-0604
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=19.20 		9-38226-050-0 01 1 0605-
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=19.45 		9-38226-051-0 01 1 9608-0604
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=19.45 		9-38226-051-0 01 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.50 		9-41229-324-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.50 		9-41229-324-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.51 		9-41229-325-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.51 		9-41229-325-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.52 		9-41229-326-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.52 		9-41229-326-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.53 		9-41229-327-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.53 		9-41229-327-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.54 		9-41229-328-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.54 		9-41229-328-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.55 		9-41229-329-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.55 		9-41229-329-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.56 		9-41229-330-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.56 		9-41229-330-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.57 		9-41229-331-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.57 		9-41229-331-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.58 		9-41229-332-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.58 		9-41229-332-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.59 		9-41229-333-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.59 		9-41229-333-0 AR 1 0605-
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.60 		9-41229-334-0 AR 1 9608-0604
15 SHIM; PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> T=3.60 		9-41229-334-0 AR 1 0605-
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-38175-011-0 01 1 9608-0604
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		9-38175-011-0 01 1 0605-
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-38189-010-2 01 1 9608-0604
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-38189-010-2 01 1 0605-
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		1-09509-014-1 01 1 9608-0604
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-09509-014-1 01 1 0605-
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (A) M20X60 		0-20852-060-0 01 1 0702-
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> (B) M12X70 		9-92621-270-0 04 1 9608-0505
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> (B) M12X40 		9-92061-240-0 04 1 0506-0512
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> (B) M12X40 		0-20951-240-0 04 1 0601-0604
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M12X40 		0-20951-240-0 04 1 0605-
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=13 ID=22.2 		9-38189-005-0 04 1 9608-0310
21 WASHER; LK,FLANGE
ENGINE REAR PTO<SV1> ID=12.2 		9-09150-612-0 04 1 9608-0603
21 WASHER; LK,FLANGE
ENGINE REAR PTO<SV1> ID=12.2 		0-91510-612-0 04 1 0604-0604
21 WASHER; LK,FLANGE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-612-0 04 1 0605-0701
21 WASHER; LK,FLANGE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-812-0 04 1 0702-
22 NUT; FLANGE
ENGINE REAR PTO<SV1> M12 		9-99110-512-0 04 1 9608-0512
22 NUT; FLANGE
ENGINE REAR PTO<SV1> M12 		0-91110-512-0 04 1 0601-0604
22 NUT; FLANGE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M12 		0-91110-512-0 04 1 0605-
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		1-09820-105-0 01 1 9608-0604
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-09820-105-0 01 1 0605-
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> 		1-12531-073-0 01 1 9608-0010
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> 		1-12531-108-0 01 1 0011-0604
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-12531-108-0 01 1 0605-
30 BOLT; SPINDLE
ENGINE REAR PTO<SV1> 		9-09805-081-1 01 1 9608-0604
30 BOLT; SPINDLE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		9-09805-081-1 01 1 0605-
31 NUT; IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09843-063-0 01 1 9608-0604
31 NUT; IDLE GEAR
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		9-09843-063-0 01 1 0605-
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-11343-008-1 01 1 9608-0604
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-11343-008-1 01 1 0605-
35 GASKET; COVER
ENGINE REAR PTO<SV1> 		9-09920-528-0 01 1 9608-0604
35 GASKET; COVER
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		9-09920-528-0 01 1 0605-
52 CASE; BRG,PTO
ENGINE REAR PTO<SV1> 		9-38181-007-2 01 1 9608-0604
52 CASE; BRG,PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		9-38181-007-4 01 1 0605-
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO<SV1> 		1-38261-022-1 01 1 9608-0604
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		1-38261-022-1 01 1 0605-
75 BOLT; COVER
ENGINE REAR PTO<SV1> M10X35 FLANGE 		0-28781-035-0 08 1 9608-0512
75 BOLT; COVER
ENGINE REAR PTO<SV1> M10X35 FLANGE 		0-28751-035-0 08 1 0601-0604
75 BOLT; COVER
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M10X35 FLANGE 		0-28751-035-0 08 1 0605-
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09854-034-0 01 1 9608-0604
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		9-09854-034-0 01 1 0605-
91 CUP; SEALING
ENGINE REAR PTO<SV1> 		8-97374-579-0 01 1 0311-0604
91 CUP; SEALING
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> 		8-97374-579-0 01 1 0605-
96 RING; GEAR PTO
ENGINE REAR PTO<SV1> 		1-38261-027-0 01 1 9608-0303
107 WASHER; PL,FLANGE
ENGINE REAR PTO<SV1> ID=12.5 		9-09160-512-0 04 1 0311-0604
107 WASHER; PL,FLANGE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> ID=12.5 		9-09160-512-0 04 1 0605-0605
107 WASHER; PL,FLANGE
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> ID=12.5 OD=22 		0-91610-512-0 04 1 0606-
