0-87 — COUPLING; INJECTION PUMP (#65064) — 79 parça

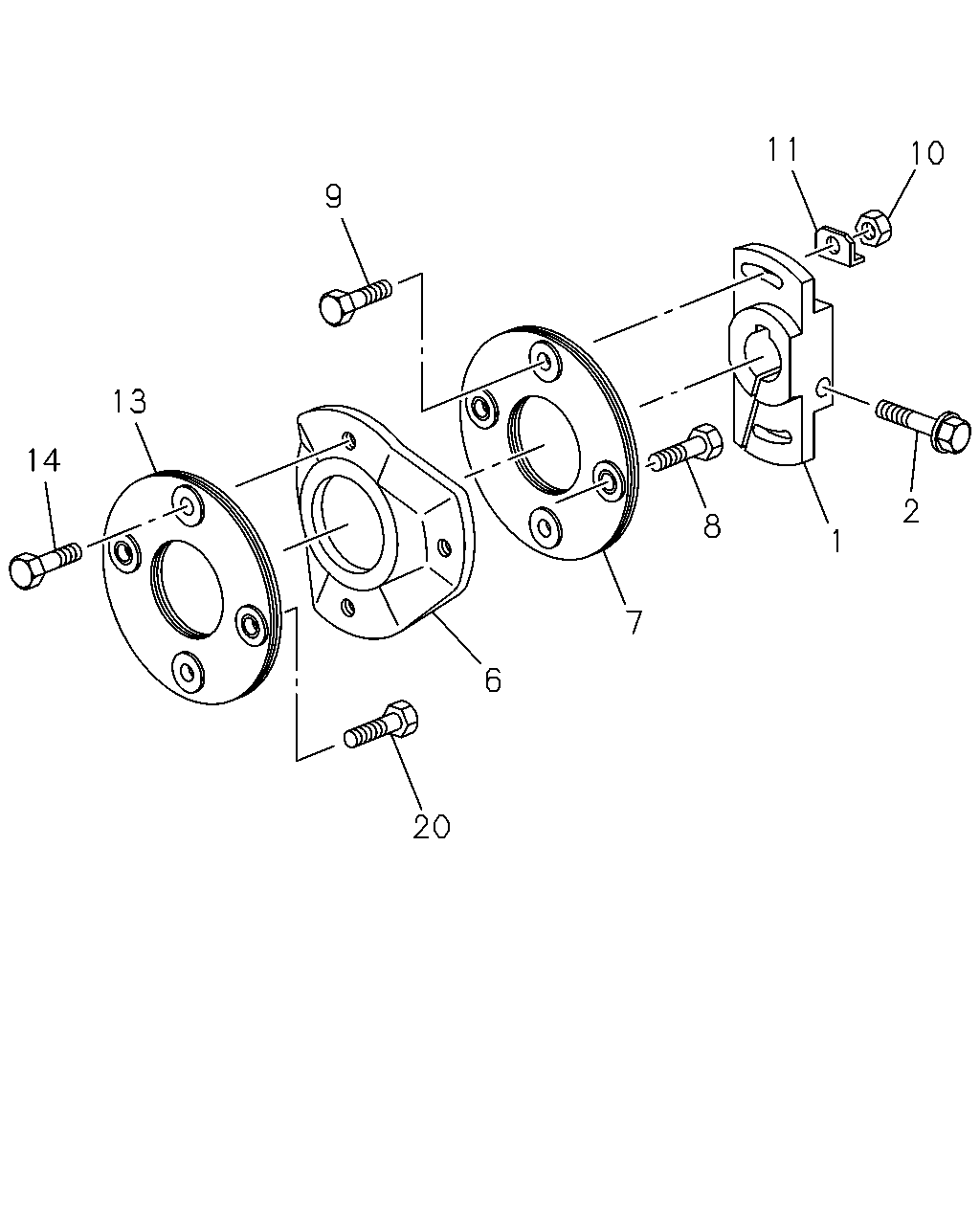

çizim 85020
11 10 9 13 14 2 8 1 7 6 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
EURO3 SPECIFICATION<NJX> 		1-15789-207-0 01 1 0605- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 9601-0604 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION<NJX> 		1-15781-039-0 01 1 0605- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-038-0 01 1 9811- ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-212-0 01 1 0605- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-0604 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-162-0 01 1 0605- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9811- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO3 SPECIFICATION<NJX> 		1-15789-208-0 01 1 0605- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-0604 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-161-0 01 1 0605- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9811- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO3 SPECIFICATION<NJX> 		1-15789-209-0 02 1 0605- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0604 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-181-0 01 1 0605- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9811- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-0604 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-183-0 02 1 0605- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9811- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-210-0 02 1 0605- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0604 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-159-0 02 1 0605- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9811- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-213-0 02 1 0605- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0604 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-165-0 02 1 0605- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9811- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15749-432-0 02 1 9811- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-0604 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-181-0 01 1 0605- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9811- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO3 SPECIFICATION<NJX> 		1-15789-211-0 04 1 0605- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-0604 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-183-0 02 1 0605- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9811- ●
20 BOLT; COUPLING TO INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-214-0 02 1 0605- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-0604 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-183-0 02 1 0605- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9811- ●

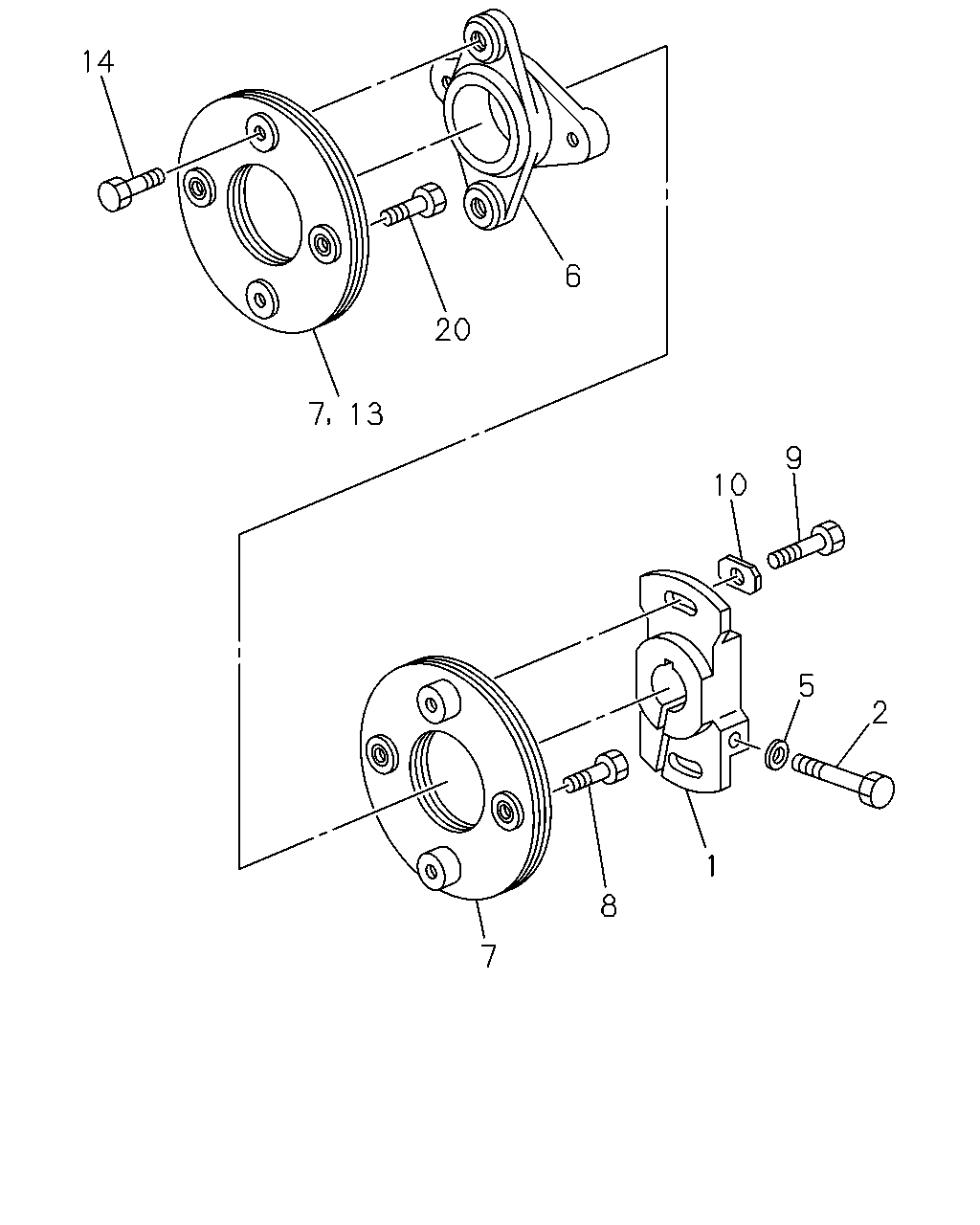

çizim 184690
14 6 20 7 13 9 10 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE
EURO3 SPECIFICATION<NJX> 		1-15789-207-0 01 1 0605- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-039-0 01 1 9601-0604 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION<NJX> 		1-15781-039-0 01 1 0605- ●
1 COUPLING; INJ PUMP DRIVE 1-15781-038-0 01 1 9811- ●
2 BOLT; COUPLING FIX,INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-212-0 01 1 0605- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-0604 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-162-0 01 1 0605- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-135-0 01 1 9811- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9601-0604 ●
5 WASHER; COUPLING FIX,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-021-0 01 1 0605- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EURO3 SPECIFICATION<NJX> 		1-15789-208-0 01 1 0605- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-0604 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-161-0 01 1 0605- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-104-0 01 1 9811- ●
7 PLATE; COUPLING,COUPLING SIDE
EURO3 SPECIFICATION<NJX> 		1-15789-209-0 02 1 0605- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0604 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-181-0 01 1 0605- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9811- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-0604 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-183-0 02 1 0605- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-120-0 02 1 9811- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-210-0 02 1 0605- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0604 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-159-0 02 1 0605- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15749-488-0 02 1 9811- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-213-0 02 1 0605- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0604 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15789-165-0 02 1 0605- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
M8 		9-09110-508-0 02 1 9811- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-0604 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-181-0 01 1 0605- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-065-0 01 1 9811- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EURO3 SPECIFICATION<NJX> 		1-15789-211-0 04 1 0605- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-0604 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-183-0 02 1 0605- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9811- ●
20 BOLT; COUPLING TO INJ PUMP
EURO3 SPECIFICATION<NJX> 		1-15789-214-0 02 1 0605- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-0604 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EURO3 SPECIFICATION<NJX> 		1-15619-183-0 02 1 0605- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9811- ●
