0-52 — OIL AND VACUUM PIPING; ENGINE (#65054) — 374 parça

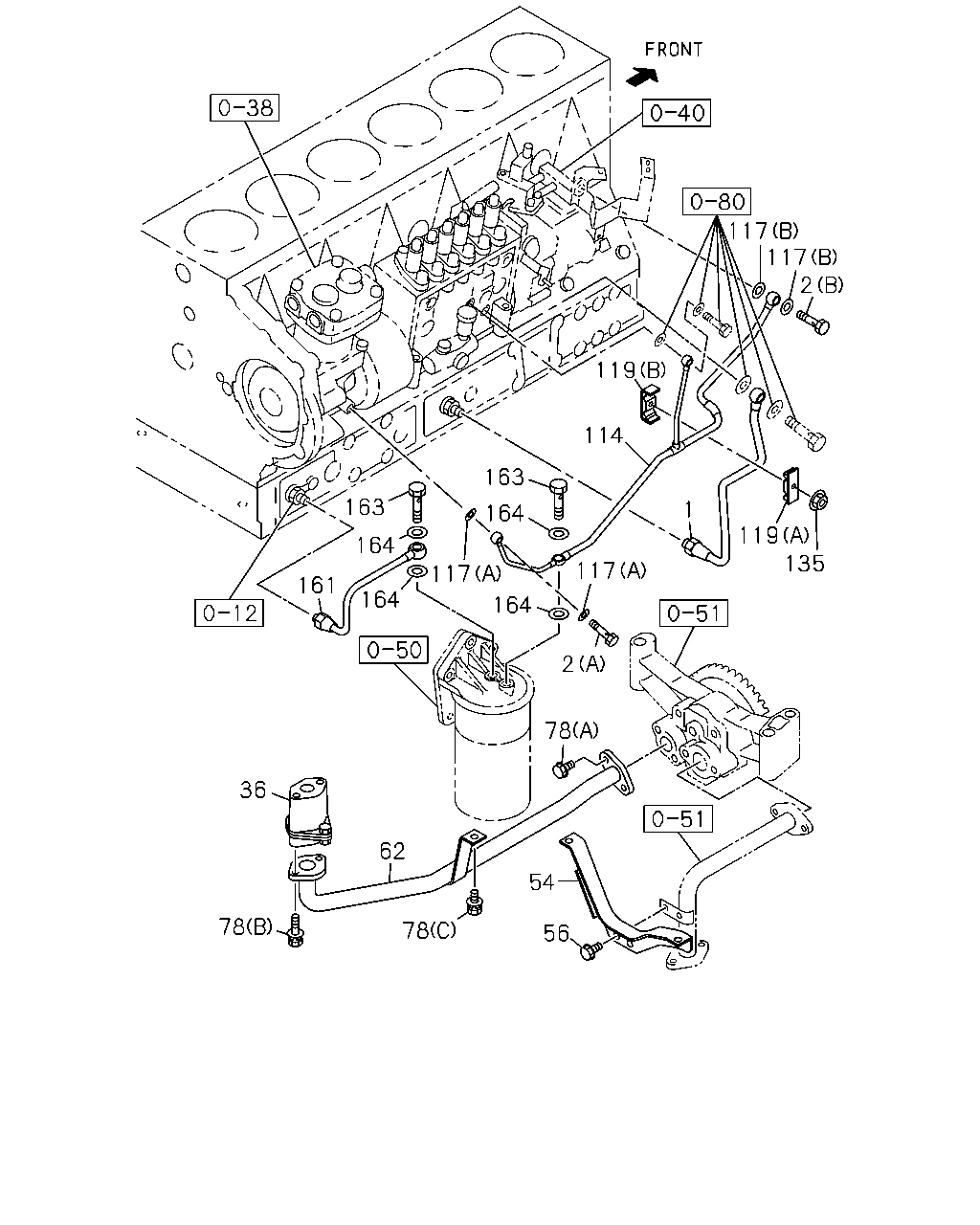

117 117 2 119 114 163 163 164 119 44 164 117 117 1 164 2 164 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL EURO3 SPECIFICATION<NJX>	1-13313-717-0	01	1	0605-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	9601-0604	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION<NJX>	1-13313-537-0	01	1	0605-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9811-		●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NJX> (C) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-9607	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9601-9810	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE	0-28650-635-0	01	1	0605-	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	9601-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9601-0604	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0605-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-13314-028-0	01	1	0605-	●
114	PIPE ASM; OIL,BODY EURO3 SPECIFICATION<NJX>	1-13313-960-1	01	1	0605-	●
114	PIPE ASM; OIL,BODY	1-13313-538-1	01	1	9601-0604	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-13313-538-1	01	1	0605-	●
114	PIPE ASM; OIL,BODY	1-13313-541-1	01	1	9811-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-9810	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9811-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9601-9810	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9811-1312	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	9601-0604	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-079-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	9601-0604	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-080-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	9811-0604		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION<NJX> (A) ID=9 & 9 L=25	1-09701-180-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	0605-		●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-2	01	1	9811-0604		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION<NJX> (B) ID=9 & 9 L=25	8-94393-280-3	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-3	01	1	0605-		●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION<NJX>	1-13313-961-0	01	1	0605-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9601-9810	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9811-0604	●	●
161	PIPE; OIL,PARTIAL FILTER RETURN EXC. EURO3 SPECIFICATION<NJX>	1-13313-352-0	01	1	0605-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0605-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION<NJX> M14X27 FLANGE	1-09675-086-0	03	1	0605-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9601-9810	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9811-0604	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION<NJX> M14X27 FLANGE	1-09675-086-0	02	1	0605-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0605-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	06	1	0605-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9810	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9811-0604	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>. ID=14.2 OD=19.2	1-09630-085-0	04	1	0605-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0605-1312		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>. ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●

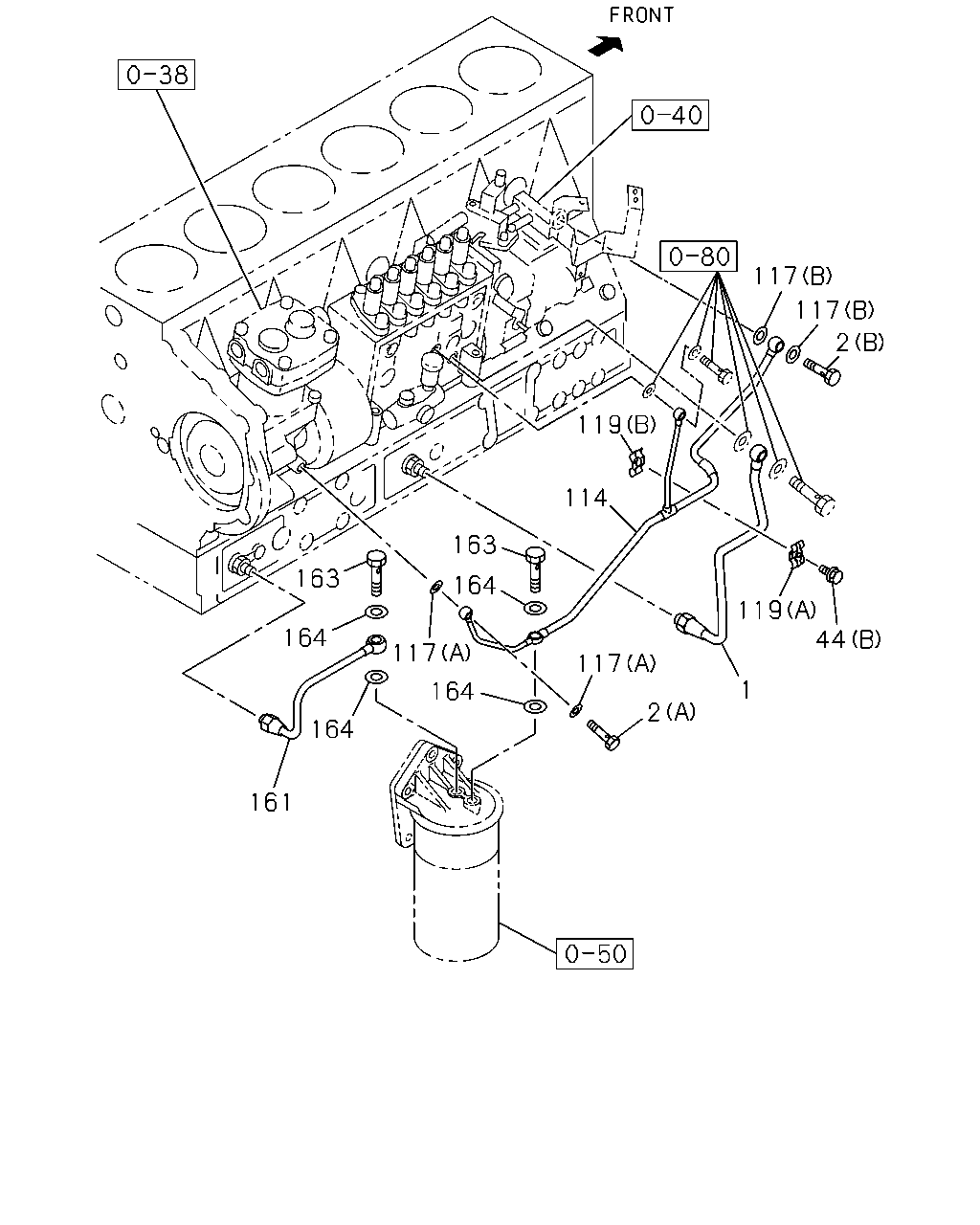

114 1 161 1 119 3 119 3 135 2 114 117 117 163 2 164 2 117 161 117 164 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL EURO3 SPECIFICATION<NJX>	1-13313-717-0	01	1	0605-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	9601-0604	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION<NJX>	1-13313-537-0	01	1	0605-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9811-		●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NJX> (C) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-9607	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9601-9810	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-13314-028-0	01	1	0605-	●
114	PIPE ASM; OIL,BODY EURO3 SPECIFICATION<NJX>	1-13313-960-1	01	1	0605-	●
114	PIPE ASM; OIL,BODY	1-13313-538-1	01	1	9601-0604	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-13313-538-1	01	1	0605-	●
114	PIPE ASM; OIL,BODY	1-13313-541-1	01	1	9811-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-9810	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9811-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9601-9810	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9811-1312	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	9601-0604	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-079-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	9601-0604	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-080-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	9811-0604		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION<NJX> (A) ID=9 & 9 L=25	1-09701-180-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	0605-		●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-2	01	1	9811-0604		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION<NJX> (B) ID=9 & 9 L=25	8-94393-280-3	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-3	01	1	0605-		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9601-0602	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-0604	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9811-0602		●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-0604		●
135	NUT; CLIP EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0605-		●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION<NJX>	1-13313-961-0	01	1	0605-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9601-9810	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9811-0604	●	●
161	PIPE; OIL,PARTIAL FILTER RETURN EXC. EURO3 SPECIFICATION<NJX>	1-13313-352-0	01	1	0605-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0605-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION<NJX> M14X27 FLANGE	1-09675-086-0	03	1	0605-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9601-9810	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9811-0604	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION<NJX> M14X27 FLANGE	1-09675-086-0	02	1	0605-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0605-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	06	1	0605-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9810	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9811-0604	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>. ID=14.2 OD=19.2	1-09630-085-0	04	1	0605-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0605-1312		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>. ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●

2 156 156 153 48 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NJX> (C) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-9607	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9601-9810	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NJX> (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0605-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NJX> (B) ID=7 & 9 L=25	1-09701-229-2	01	1	0605-	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	03	1	9601-0604	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) ID=7 & 9 L=25	1-09701-228-3	03	1	0605-	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	03	1	9601-0604	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) ID=7 & 9 L=25	1-09701-229-2	03	1	0605-	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> (C)	1-09701-132-1	02	1	9608-0604	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-132-1	02	1	0605-1210	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-240-0	02	1	1211-	●
100	BOLT; CLIP ENGINE REAR PTO<SV1> M6X30 FLANGE	0-28080-630-0	01	1	9608-0512	●
100	BOLT; CLIP ENGINE REAR PTO<SV1> M6X30 FLANGE	0-28050-630-0	01	1	0601-0604	●
100	BOLT; CLIP ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M6X30 FLANGE	0-28050-630-0	01	1	0605-	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO<SV1>	1-13313-647-0	01	1	9608-0604	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-13313-647-0	01	1	0605-	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO<SV1> ID=10.2 OD=15.2	1-09630-083-0	02	1	9608-0604	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> ID=10.2 OD=15.2	1-09630-083-0	02	1	0605-	●

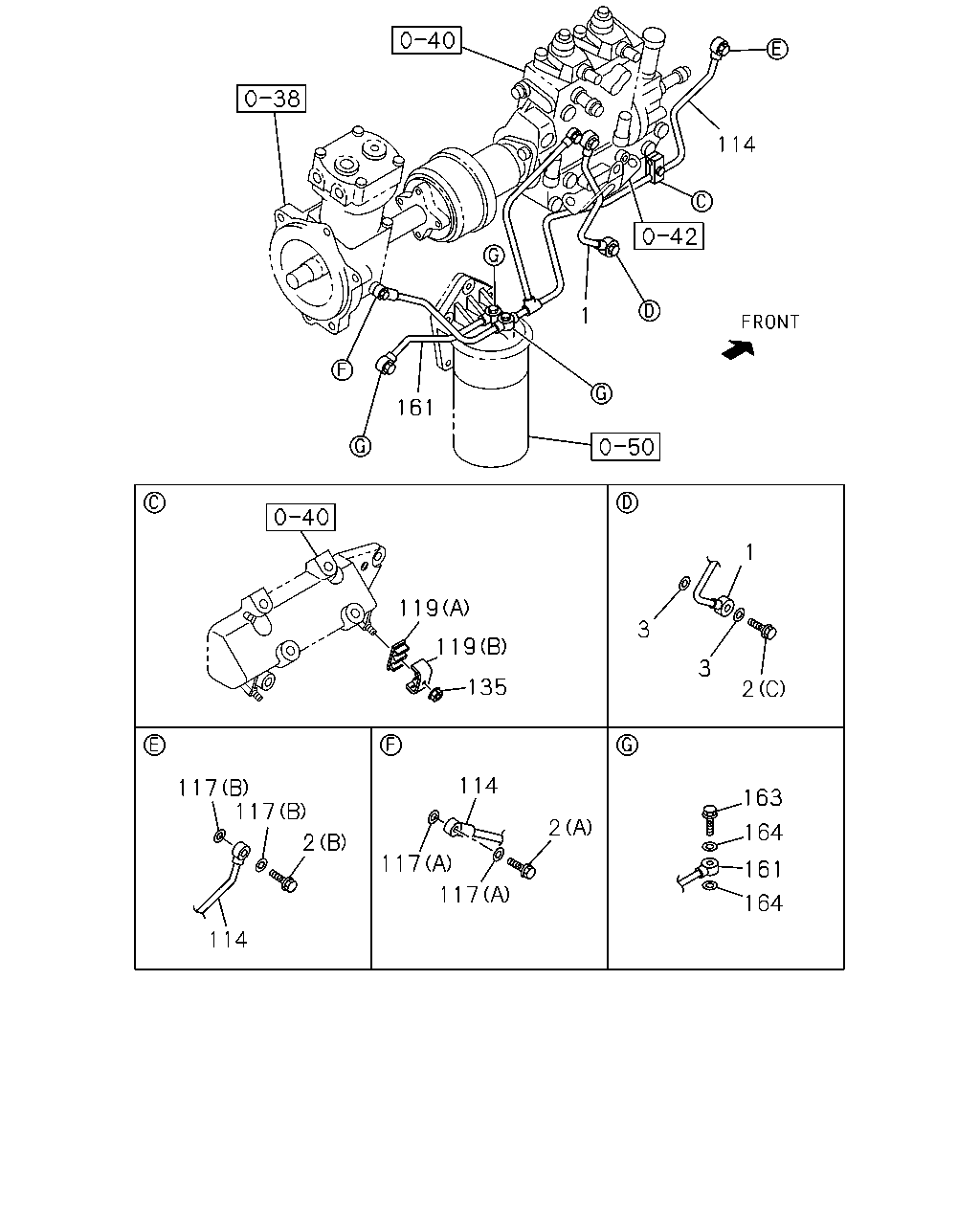

117 117 2 119 114 163 163 1 164 119 135 164 117 117 161 164 164 2 78 36 62 54 78 78 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL EURO3 SPECIFICATION<NJX>	1-13313-717-0	01	1	0605-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-537-0	01	1	9601-0604	●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION<NJX>	1-13313-537-0	01	1	0605-	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9811-		●
2	BOLT; EYE,OIL PIPE EURO3 SPECIFICATION<NJX> (C) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9601-9607	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9608-9810	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	1-09675-077-0	01	1	9811-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO<SV1> (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9601-9810	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-160-0	01	1	9811-0805	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-	●	●
36	SPACER; DRAIN BACK	1-13260-108-0	01	1	9811-0009		●
36	SPACER; DRAIN BACK OIL FILTER SETTING DOWNWARD<E7V>	1-13260-108-0	01	1	0010-		●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9601-9810	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9811-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9601-9810	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-396-0	01	1	9601-9701	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9702-9810	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9811-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9811-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9811-0906	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9811-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-13314-028-0	01	1	0605-	●
114	PIPE ASM; OIL,BODY EURO3 SPECIFICATION<NJX>	1-13313-960-1	01	1	0605-	●
114	PIPE ASM; OIL,BODY	1-13313-538-1	01	1	9601-0604	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-13313-538-1	01	1	0605-	●
114	PIPE ASM; OIL,BODY	1-13313-541-1	01	1	9811-		●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-9810	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9811-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9601-9810	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	1-09630-084-0	02	1	9811-1312	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2	8-98251-344-0	02	1	1401-	●	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) WO/NUT	1-09700-079-0	01	1	9601-0604	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-079-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) W/NUT	1-09700-080-0	01	1	9601-0604	●
119	CLIP; OIL PIPE,BODY TO CMPR EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-080-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	9811-0604		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION<NJX> (A) ID=9 & 9 L=25	1-09701-180-0	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (A) ID=9 & 9 L=25	1-09701-180-0	01	1	0605-		●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-2	01	1	9811-0604		●
119	CLIP; OIL PIPE,BODY TO CMPR EURO3 SPECIFICATION<NJX> (B) ID=9 & 9 L=25	8-94393-280-3	01	1	0605-	●
119	CLIP; OIL PIPE,BODY TO CMPR (B) ID=9 & 9 L=25	8-94393-280-3	01	1	0605-		●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9601-0602	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-0604	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9811-0602		●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-0604		●
135	NUT; CLIP EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0605-		●
161	PIPE; OIL,PARTIAL FILTER RETURN EURO3 SPECIFICATION<NJX>	1-13313-961-0	01	1	0605-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9601-9810	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9811-0604	●	●
161	PIPE; OIL,PARTIAL FILTER RETURN EXC. EURO3 SPECIFICATION<NJX>	1-13313-352-0	01	1	0605-	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	0605-		●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EURO3 SPECIFICATION<NJX> M14X27 FLANGE	1-09675-086-0	03	1	0605-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9601-9810	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9811-0604	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER EXC. EURO3 SPECIFICATION<NJX> M14X27 FLANGE	1-09675-086-0	02	1	0605-	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0605-		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	06	1	0605-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9601-9810	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9811-0604	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>. ID=14.2 OD=19.2	1-09630-085-0	04	1	0605-1312	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0605-1312		●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>. ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●

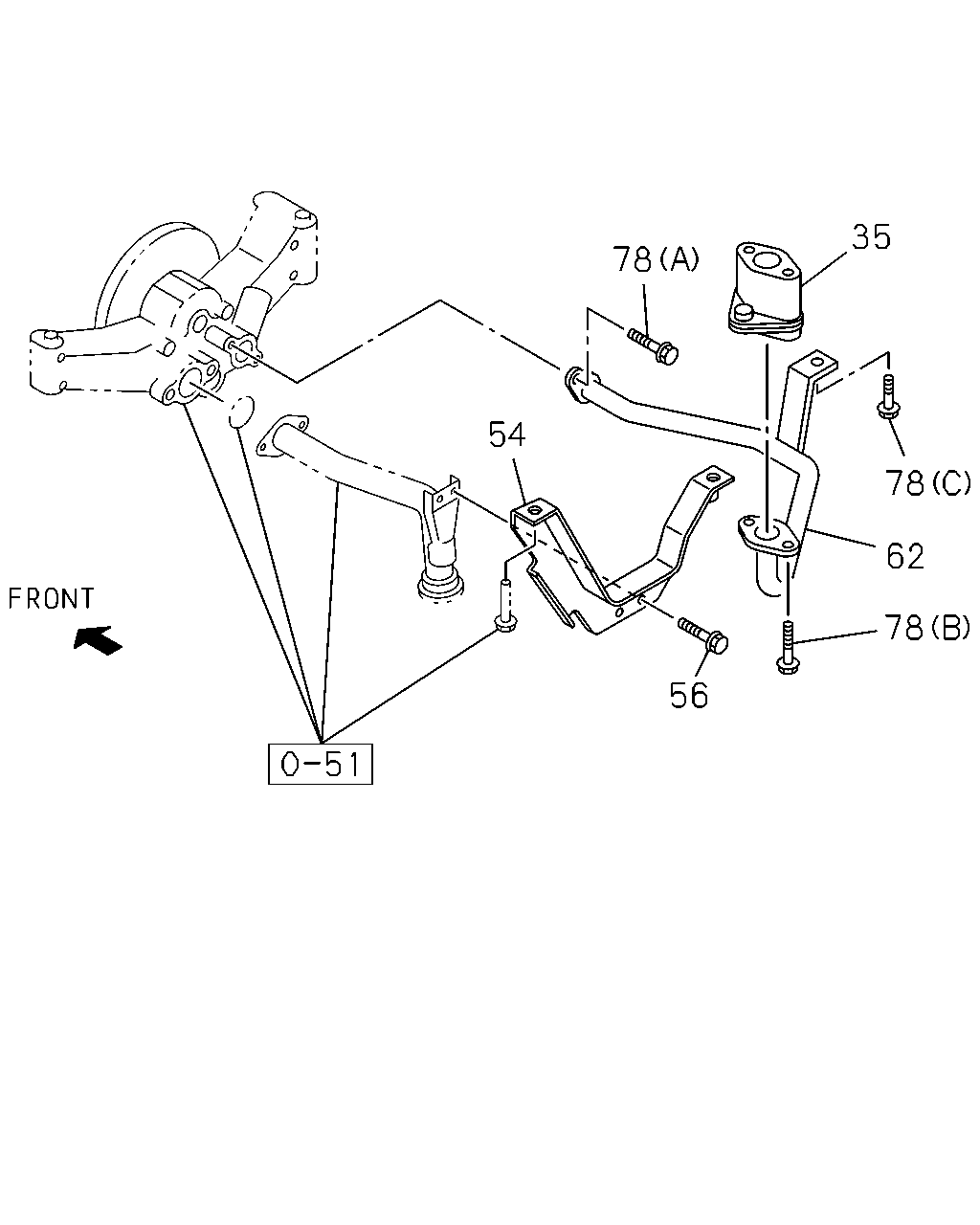

35 78 54 78 62 78 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	9601-0009	●
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	0010-	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0010-		●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9601-9810	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9811-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9601-9810	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-396-0	01	1	9601-9701	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9702-9810	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9811-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9811-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9811-0906	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9811-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●

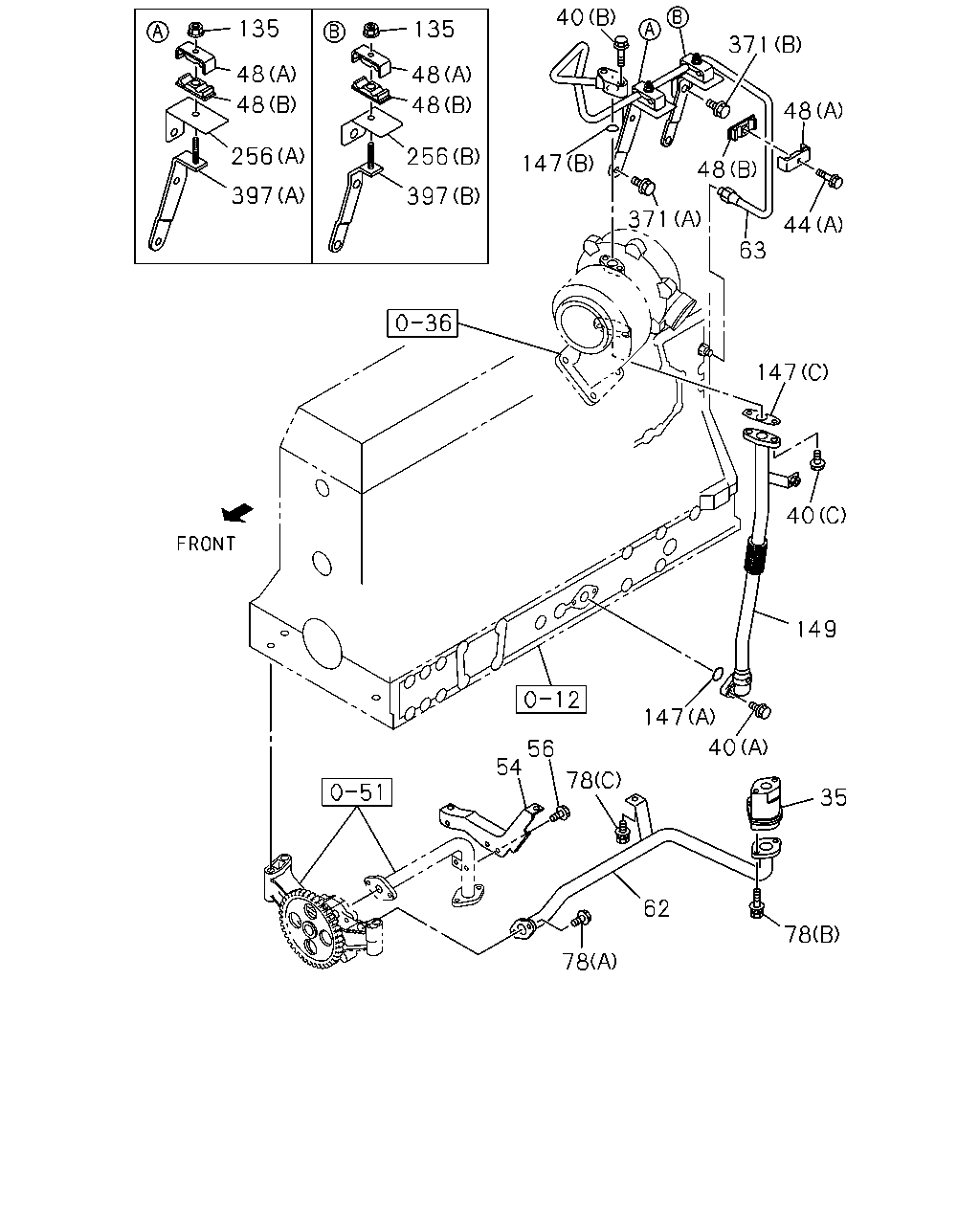

40 135 135 371 48 48 48 48 48 256 256 147 48 397 397 371 44 63 147 40 149 40 56 54 78 35 62 78 78 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	9601-0009	●
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	0010-	●
35	VALVE ASM; DRAIN BACK EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13260-086-0	01	1	0010-		●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NJX> (D) M6X50 FLANGE	0-28050-650-0	01	1	0605-	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NJX> (E) M10X30 FLANGE	0-28751-030-0	02	1	0605-	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-0512	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9601-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0604	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M8X30 FLANGE	0-28050-830-0	02	1	0605-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9601-0604	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (C) M10X22 FLANGE	0-28181-022-0	02	1	0605-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE	0-28650-635-0	01	1	0605-	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	9601-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9601-0604	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0605-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NJX> (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0605-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NJX> (B) ID=7 & 9 L=25	1-09701-229-2	01	1	0605-	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	03	1	9601-0604	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) ID=7 & 9 L=25	1-09701-228-3	03	1	0605-	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	03	1	9601-0604	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) ID=7 & 9 L=25	1-09701-229-2	03	1	0605-	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> (C)	1-09701-132-1	02	1	9608-0604	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-132-1	02	1	0605-1210	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-240-0	02	1	1211-	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9601-9810	●
54	STAY; OIL STRAINER	1-13345-130-1	01	1	9811-	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9601-9810	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●	●
56	BOLT; STAY TO BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-396-0	01	1	9601-9701	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9702-9810	●
62	PIPE; OIL,PUMP TO C/BL	1-13313-274-0	01	1	9811-	●	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NJX>	1-13313-958-0	01	1	0605-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	9601-0604	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION<NJX>	1-13313-567-0	01	1	0605-	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X18 FLANGE	0-28080-818-0	02	1	9811-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9811-0906	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50640-800-0	02	1	0907-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9601-9810	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9811-0512	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (C) M8X16 W/LK&PL WASHER	0-50640-816-0	01	1	0601-	●	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9601-0602	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	02	1	0603-0604	●
135	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9811-0602		●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-0604		●
135	NUT; CLIP EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
135	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0605-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (D) ID=22.1	8-94399-399-0	01	1	0605-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2	1-09623-297-0	01	1	9601-0604	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX> (A) ID=35.2	1-09623-297-0	01	1	0605-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9601-0604	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX> (B) ID=12.3	1-09623-481-0	01	1	0605-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-1	01	1	9601-0604	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX> (C)	1-09637-058-2	01	1	0605-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NJX>	1-13313-959-0	01	1	0605-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-500-0	01	1	9601-9701	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	9702-0604	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX>	1-13313-725-0	01	1	0605-	●
256	PROTECTOR; HEAT,PIPE (A)	1-14181-293-0	01	1	9601-0604	●
256	PROTECTOR; HEAT,PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-14181-293-0	01	1	0605-	●
256	PROTECTOR; HEAT,PIPE (B)	1-14181-294-0	01	1	9601-0604	●
256	PROTECTOR; HEAT,PIPE EXC. EURO3 SPECIFICATION<NJX> (B)	1-14181-294-0	01	1	0605-	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●
371	BOLT; STAY (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION<NJX> (A) M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28181-016-0	02	1	9601-0512	●
371	BOLT; STAY (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-0604	●
371	BOLT; STAY EXC. EURO3 SPECIFICATION<NJX> (B) M10X16 FLANGE	0-28151-016-0	02	1	0605-	●
397	STAY; OIL PIPE (A)	1-13319-038-0	01	1	9601-0604	●
397	STAY; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-13319-038-0	01	1	0605-	●
397	STAY; OIL PIPE (B)	1-13319-039-0	01	1	9601-0604	●
397	STAY; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B)	1-13319-039-0	01	1	0605-	●

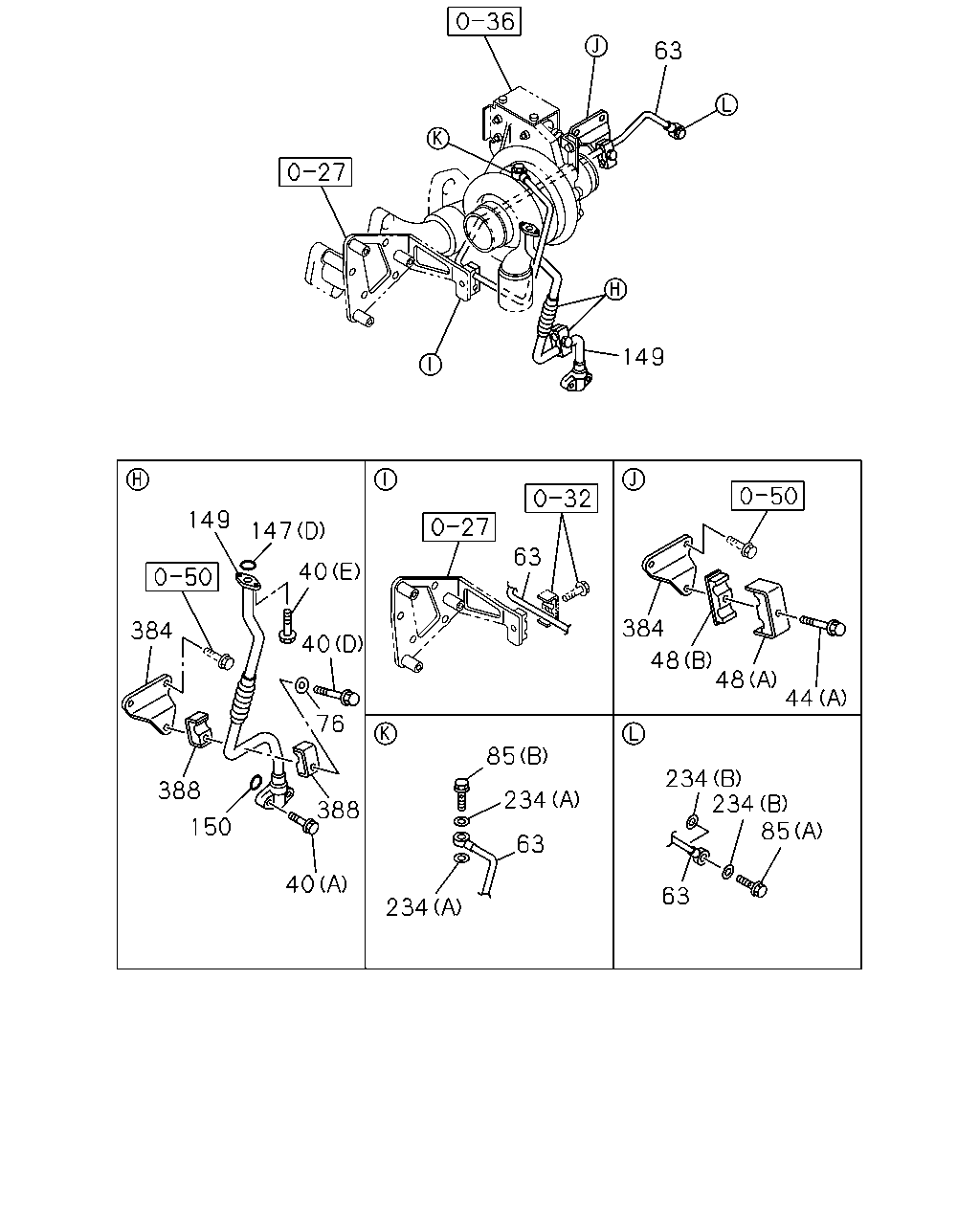

63 149 149 147 63 40 384 384 40 48 48 44 76 85 234 234 85 388 234 388 150 63 40 63 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NJX> (D) M6X50 FLANGE	0-28050-650-0	01	1	0605-	●
40	BOLT; OIL PIPE EURO3 SPECIFICATION<NJX> (E) M10X30 FLANGE	0-28751-030-0	02	1	0605-	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28080-825-0	02	1	9601-0512	●
40	BOLT; OIL PIPE (A) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9601-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0604	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M8X30 FLANGE	0-28050-830-0	02	1	0605-	●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9601-0604	●
40	BOLT; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (C) M10X22 FLANGE	0-28181-022-0	02	1	0605-	●
44	BOLT; CLIP,OIL PIPE EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE	0-28650-635-0	01	1	0605-	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28080-635-0	01	1	9601-0512	●
44	BOLT; CLIP,OIL PIPE (A) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
44	BOLT; CLIP,OIL PIPE (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	9601-0604	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M6X25 W/LK WASHER	0-50040-625-0	01	1	0605-0906	●
44	BOLT; CLIP,OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M6X25 W/LK WASHER	0-50540-625-0	01	1	0907-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NJX> (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0605-	●
48	CLIP; OIL PIPE EURO3 SPECIFICATION<NJX> (B) ID=7 & 9 L=25	1-09701-229-2	01	1	0605-	●
48	CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-2	03	1	9601-0604	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) ID=7 & 9 L=25	1-09701-228-3	03	1	0605-	●
48	CLIP; OIL PIPE (B) ID=7 & 9 L=25	1-09701-229-1	03	1	9601-0604	●
48	CLIP; OIL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) ID=7 & 9 L=25	1-09701-229-2	03	1	0605-	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> (C)	1-09701-132-1	02	1	9608-0604	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-132-1	02	1	0605-1210	●
48	CLIP; OIL PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-240-0	02	1	1211-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION<NJX>	1-13313-958-0	01	1	0605-	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-567-0	01	1	9601-0604	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION<NJX>	1-13313-567-0	01	1	0605-	●
76	WASHER; CLIP EURO3 SPECIFICATION<NJX> ID=6.4 OD=18	9-09160-706-0	01	1	0605-0605	●
76	WASHER; CLIP EURO3 SPECIFICATION<NJX> ID=6.4 OD=18	0-91610-706-0	01	1	0606-	●
85	BOLT; EYE,OIL PIPE FIX EURO3 SPECIFICATION<NJX> (A) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
85	BOLT; EYE,OIL PIPE FIX EURO3 SPECIFICATION<NJX> (B) M10X24	9-09906-205-1	01	1	0605-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (D) ID=22.1	8-94399-399-0	01	1	0605-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.2	1-09623-297-0	01	1	9601-0604	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX> (A) ID=35.2	1-09623-297-0	01	1	0605-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9601-0604	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX> (B) ID=12.3	1-09623-481-0	01	1	0605-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09637-058-1	01	1	9601-0604	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX> (C)	1-09637-058-2	01	1	0605-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION<NJX>	1-13313-959-0	01	1	0605-	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-500-0	01	1	9601-9701	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-725-0	01	1	9702-0604	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX>	1-13313-725-0	01	1	0605-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=35.2	1-09623-297-0	01	1	0605-	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0605-	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-1312	●
234	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EURO3 SPECIFICATION<NJX>	1-19199-315-0	02	1	0605-	●
388	CLIP; TURBOCHARGER RETURN PIPE EURO3 SPECIFICATION<NJX>	1-09701-281-1	02	1	0605-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
