Sayfa 0-50 - Isuzu EPC

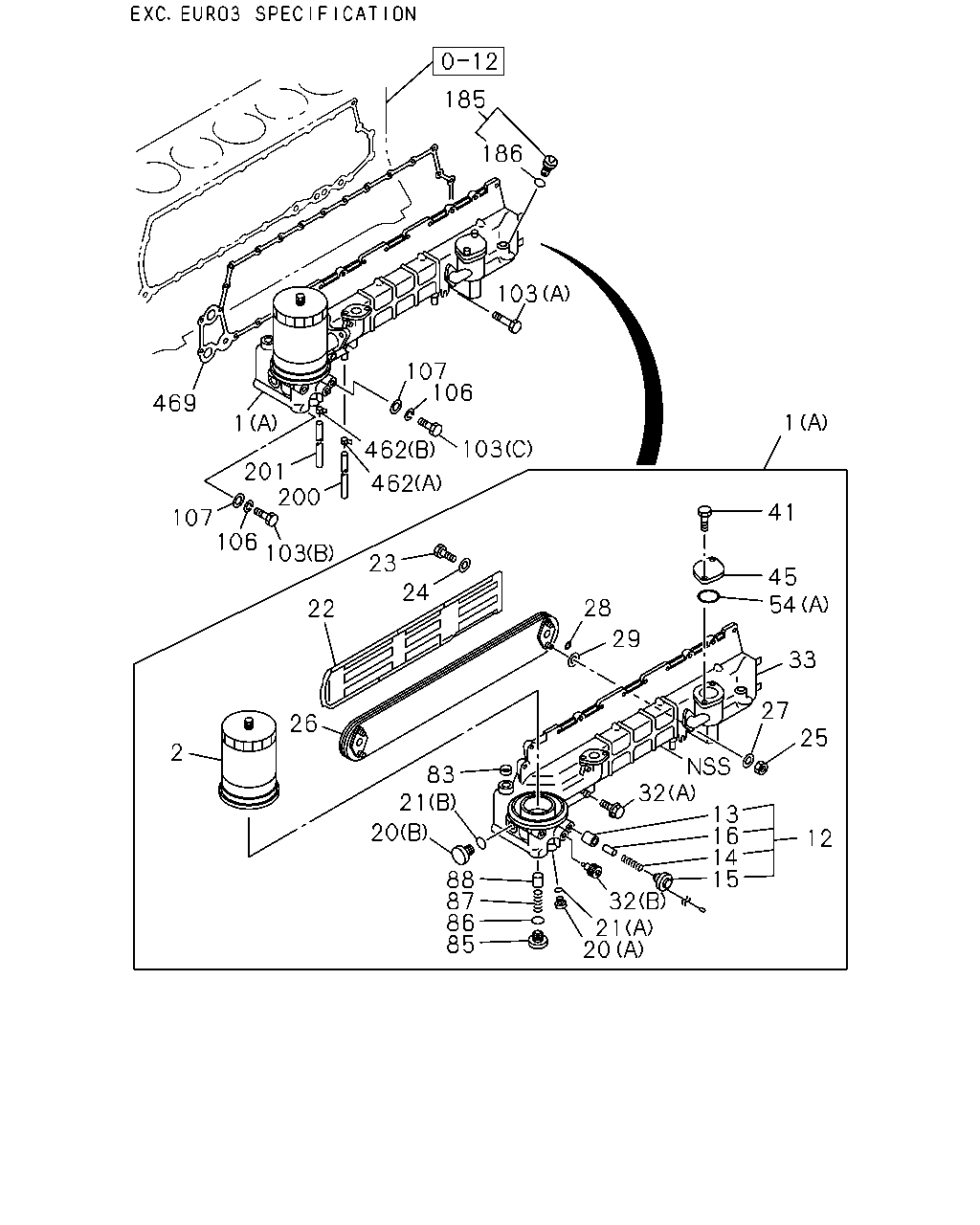

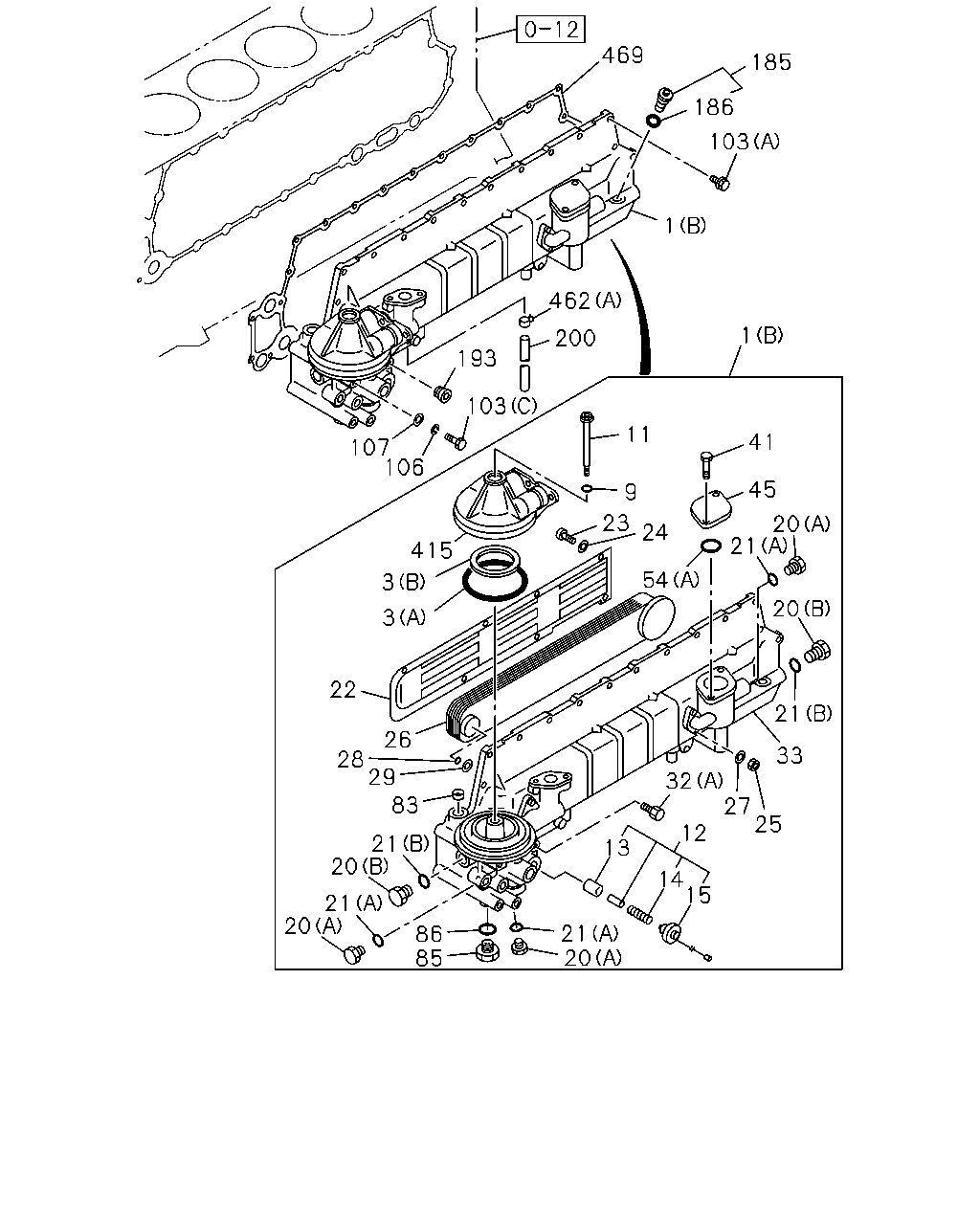

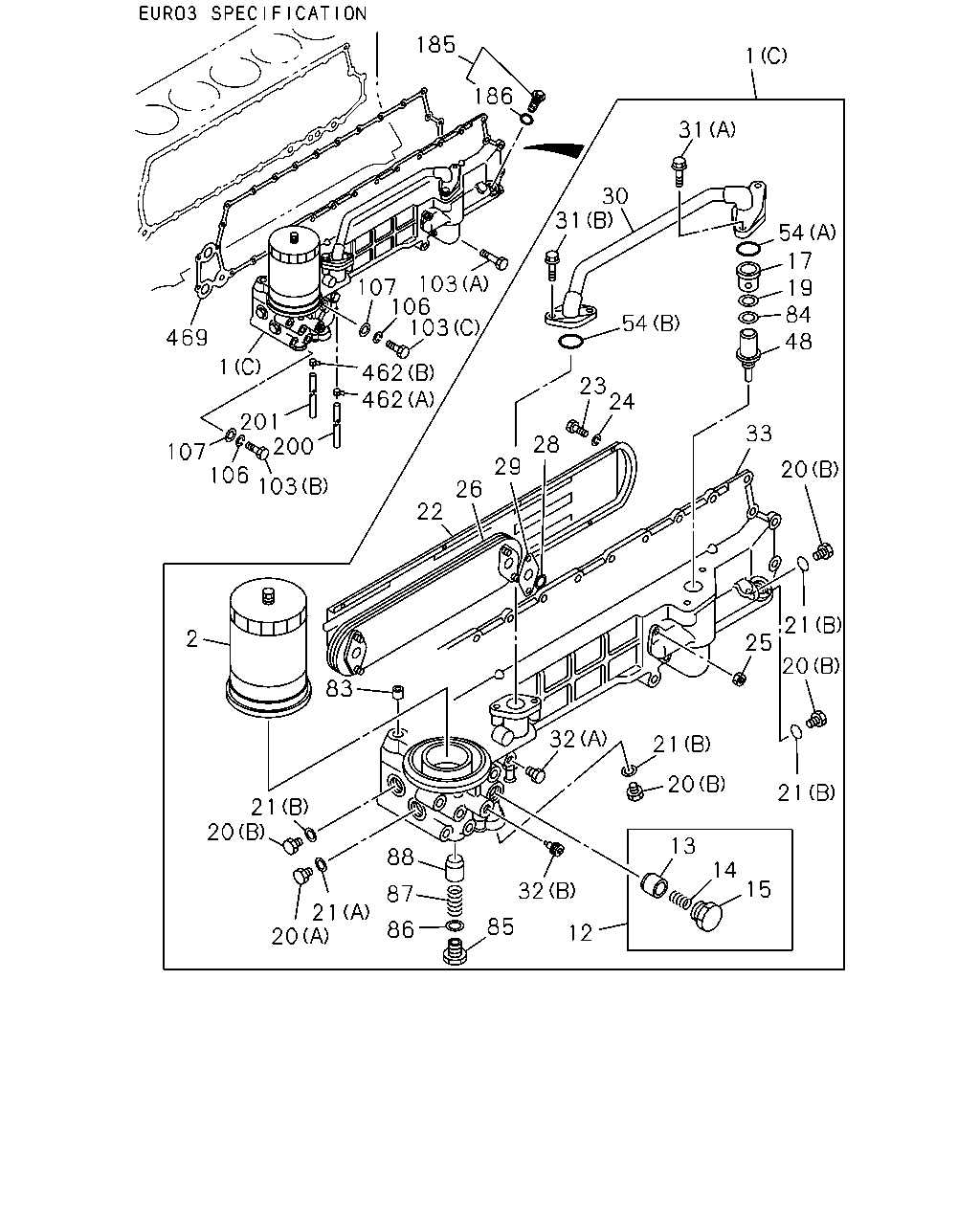

0-50 — OIL COOLER AND OIL FILTER (#65052) — 479 parça

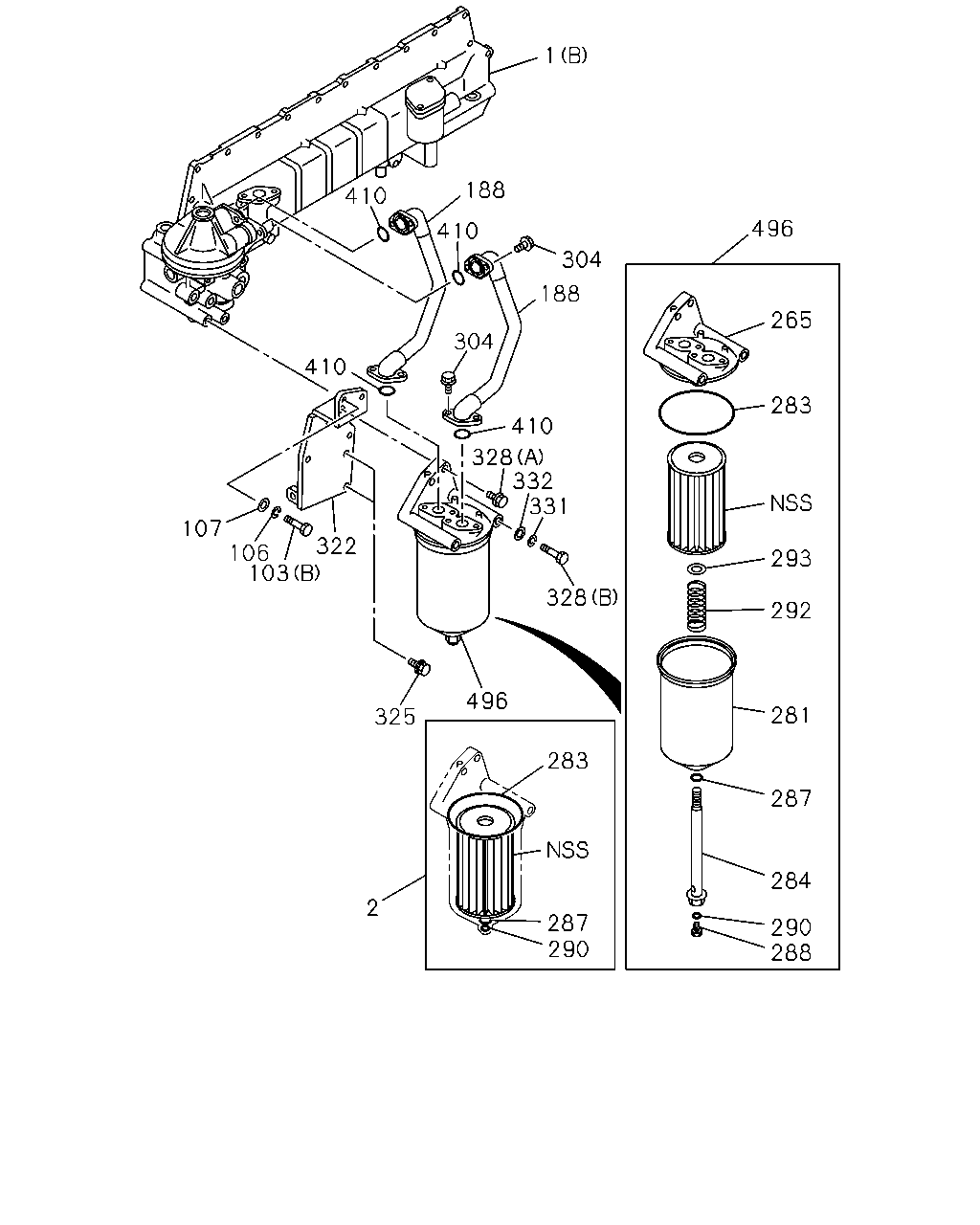

1 188 410 496 410 304 188 265 304 410 283 410 328 332 331 107 322 106 103 293 328 292 496 281 325 283 287 284 2 287 290 290 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL EURO3 SPECIFICATION<NJX> (C)	1-13201-022-0	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (A)	1-13200-936-2	01	1	9601-0604	●
1	FILTER & COOLER ASM; OIL EXC. EURO3 SPECIFICATION<NJX> (A)	1-13200-936-2	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (B)	1-21700-295-2	01	1	9811-0009		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-295-2	01	1	0010-0202		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-369-0	01	1	0203-		●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13200-935-2	01	1	0010-		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	9601-0009	●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	0010-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13240-168-1	01	1	0010-		●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9811-0009		●
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-87810-075-2	01	1	0010-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-9810	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9811-0512	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0009	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	0010-	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) M8X138	5-09000-031-1	02	1	0010-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-9810	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9811-	●	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9811-0009		●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145	1-09000-448-1	02	1	0010-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-9810	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9811-0603	●	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-9810	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9811-0605	●	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●	●
188	PIPE; BYPASS	1-13312-650-0	02	1	9811-0009		●
188	PIPE; BYPASS OIL FILTER SETTING DOWNWARD<E7V>	1-13312-650-0	02	1	0010-		●
265	BODY; OIL FILTER	1-13212-161-0	01	1	9811-0009		●
265	BODY; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13212-161-0	01	1	0010-		●
281	COVER; OIL FILTER	1-13211-153-0	01	1	9811-0009		●
281	COVER; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-153-0	01	1	0010-		●
283	GASKET; BODY TO COVER ID=27.7	1-09623-170-0	01	1	9811-0009		●
283	GASKET; BODY TO COVER OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-170-0	01	1	0010-		●
284	BOLT; CENTER,OIL FILTER	1-13231-047-0	01	1	9811-0009		●
284	BOLT; CENTER,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-047-0	01	1	0010-		●
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9811-0009		●
287	GASKET; CENTER BOLT OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	0010-		●
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9811-0009		●
288	PLUG; OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> M10	1-09000-105-0	01	1	0010-		●
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9811-0009		●
290	GASKET; PLUG,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V> ID=9.8	1-09623-055-0	01	1	0010-		●
292	SPRING; ELEMENT	9-09941-283-0	01	1	9811-0009		●
292	SPRING; ELEMENT OIL FILTER SETTING DOWNWARD<E7V>	9-09941-283-0	01	1	0010-		●
293	SEAT; SPR	1-13219-173-0	01	1	9811-0009		●
293	SEAT; SPR OIL FILTER SETTING DOWNWARD<E7V>	1-13219-173-0	01	1	0010-		●
304	BOLT; PIPE TO COVER M8X20 FLANGE	0-28080-820-0	08	1	9811-0009		●
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28080-820-0	08	1	0010-0512		●
304	BOLT; PIPE TO COVER OIL FILTER SETTING DOWNWARD<E7V> M8X20 FLANGE	0-28050-820-0	08	1	0601-		●
322	BRACKET; OIL FILTER	1-19755-122-1	01	1	9811-0009		●
322	BRACKET; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-19755-122-1	01	1	0010-		●
325	BOLT; BRKT TO BODY M10X22 W/LK WASHER	0-50051-022-0	02	1	9811-0009		●
325	BOLT; BRKT TO BODY OIL FILTER SETTING DOWNWARD<E7V> M10X22 W/LK WASHER	0-50051-022-0	02	1	0010-0906		●
325	BOLT; BRKT TO BODY OIL FILTER SETTING DOWNWARD<E7V> M10X22 W/LK WASHER	0-50551-022-0	02	1	0907-		●
328	BOLT; OIL FILTER (A) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9811-9910		●
328	BOLT; OIL FILTER (A) M10X35 FLANGE	0-28681-035-0	01	1	9911-0009		●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE	0-28681-035-0	01	1	0010-0512		●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-		●
328	BOLT; OIL FILTER (B) M10X142	5-09000-160-1	02	1	9811-9910		●
328	BOLT; OIL FILTER (B) M10X140 FLANGE	0-28086-014-0	02	1	9911-0009		●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE	0-28086-014-0	02	1	0010-0512		●
328	BOLT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V> (B) M10X140 FLANGE	0-28056-014-0	02	1	0601-		●
331	WASHER; PL,OIL FILTER ID=10.5 OD=18	9-09160-510-0	02	1	9811-9910		●
332	WASHER; LK,OIL FILTER ID=10.2	9-09150-510-0	02	1	9811-9910		●
410	GASKET ID=27.7	1-09623-450-0	04	1	9811-0009		●
410	GASKET OIL FILTER SETTING DOWNWARD<E7V> ID=27.7	1-09623-450-0	04	1	0010-		●
496	FILTER ASM; OIL	1-13200-848-0	01	1	9811-0009		●
496	FILTER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V>	1-13200-848-0	01	1	0010-		●

185 186 103 107 106 469 1 1 103 462 20 200 462 41 107 106 103 23 24 45 54 28 22 29 33 27 26 25 2 83 21 32 13 16 14 15 20 12 88 87 86 85 32 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL EURO3 SPECIFICATION<NJX> (C)	1-13201-022-0	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (A)	1-13200-936-2	01	1	9601-0604	●
1	FILTER & COOLER ASM; OIL EXC. EURO3 SPECIFICATION<NJX> (A)	1-13200-936-2	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (B)	1-21700-295-2	01	1	9811-0009		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-295-2	01	1	0010-0202		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-369-0	01	1	0203-		●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13200-935-2	01	1	0010-		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	9601-0009	●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	0010-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13240-168-1	01	1	0010-		●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9811-0009		●
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-87810-075-2	01	1	0010-		●
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-9810	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9811-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9601-9810	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9811-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9601-9810	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9811-	●	●
15	PLUG; RELIEF VLV	1-13265-023-0	01	1	9601-9605	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9606-9810	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9811-	●	●
16	VALVE ASM; RELIEF	1-13269-002-0	01	1	9601-9605	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9810	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9811-9906	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9810	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9811-9906	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9810	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9811-9906	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9810	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9811-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9601-9810	●
22	GUIDE; WATER	1-13219-155-1	01	1	9811-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9601-9810	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9811-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9601-9810	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9811-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9810	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9811-9906	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-	●	●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9811-9906		●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9810	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9811-9906	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9810	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9811-9906	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9601-9810	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9811-9906	●	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-	●	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9601-9906	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9601-0009	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	0010-	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-1	01	1	0010-		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9811-9906		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9907-	●	●
33	HOUSING ASM; COOLER	1-13211-250-0	01	1	9601-9906	●
33	HOUSING ASM; COOLER	1-13211-308-0	01	1	9907-	●
33	HOUSING ASM; COOLER	1-13211-254-0	01	1	9811-9906		●
33	HOUSING ASM; COOLER	1-13211-312-0	01	1	9907-0009		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-312-0	01	1	0010-0202		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-324-0	01	1	0203-		●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-307-0	01	1	0010-		●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0005-0604	●	●
41	BOLT; COVER FIX EXC. EURO3 SPECIFICATION<NJX> M10X25 FLANGE	8-98272-067-0	02	1	0605-	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0605-		●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9601-9810	●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9811-9906	●	●
41	BOLT; COVER FIX M8X25 FLANGE	0-28680-825-0	02	1	9907-0004	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9601-9810	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9811-0604	●	●
45	COVER; OIL PORT EXC. EURO3 SPECIFICATION<NJX>	1-13219-172-0	01	1	0605-	●
45	COVER; OIL PORT	1-13219-172-0	01	1	0605-		●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	0605-	●	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	9601-9810	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	9811-0604	●	●
54	GASKET; OIL PIPE EURO3 SPECIFICATION<NJX> (B)	1-13219-164-0	01	1	0605-	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9601-9810	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9811-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9601-0009	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	0010-	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	0010-		●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-252-0	01	1	9811-0009		●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	0010-		●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9601-9810	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9811-	●	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9601-0009	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	0010-	●
87	SPRING; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-148-0	01	1	0010-		●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9601-0009	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	0010-	●
88	VALVE; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-13262-009-0	01	1	0010-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-9810	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9811-0512	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0009	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	0010-	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) M8X138	5-09000-031-1	02	1	0010-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-9810	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9811-	●	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9811-0009		●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145	1-09000-448-1	02	1	0010-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-9810	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9811-0603	●	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-9810	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9811-0605	●	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●	●
185	VALVE; OIL RELIEF,OIL COOLER EURO3 SPECIFICATION<NJX>	1-13160-034-0	01	1	0605-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9601-9810	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9811-0604	●	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. EURO3 SPECIFICATION<NJX>	1-13160-017-1	01	1	0605-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0605-		●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9601-9810	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9811-	●	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9601-9810	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9811-0206	●	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-	●	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9601-9810	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9811-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9601-0009	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	0010-	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0010-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-0	01	1	9601-9810	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	9811-	●	●

469 185 186 103 1 462 1 200 193 103 11 41 107 106 45 9 23 20 21 24 415 54 3 20 3 22 21 26 33 28 29 83 32 27 25 12 21 20 13 14 15 21 20 86 85 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL EURO3 SPECIFICATION<NJX> (C)	1-13201-022-0	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (A)	1-13200-936-2	01	1	9601-0604	●
1	FILTER & COOLER ASM; OIL EXC. EURO3 SPECIFICATION<NJX> (A)	1-13200-936-2	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (B)	1-21700-295-2	01	1	9811-0009		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-295-2	01	1	0010-0202		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-369-0	01	1	0203-		●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13200-935-2	01	1	0010-		●
3	GASKET (A)	1-09623-352-0	01	1	9811-0009		●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (A)	1-09623-352-0	01	1	0010-		●
3	GASKET (B)	1-09630-109-0	01	1	9811-0009		●
3	GASKET OIL FILTER SETTING DOWNWARD<E7V> (B)	1-09630-109-0	01	1	0010-		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=15.5	9-09920-694-0	01	1	9811-0009		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). OIL FILTER SETTING DOWNWARD<E7V> ID=15.5	9-09920-694-0	01	1	0010-		●
11	BOLT; CENTER	1-13231-062-0	01	1	9811-0009		●
11	BOLT; CENTER OIL FILTER SETTING DOWNWARD<E7V>	1-13231-062-0	01	1	0010-		●
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-9810	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9811-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9601-9810	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9811-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9601-9810	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9811-	●	●
15	PLUG; RELIEF VLV	1-13265-023-0	01	1	9601-9605	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9606-9810	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9811-	●	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9810	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9811-9906	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9810	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9811-9906	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9810	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9811-9906	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9810	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9811-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9601-9810	●
22	GUIDE; WATER	1-13219-155-1	01	1	9811-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9601-9810	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9811-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9601-9810	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9811-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9810	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9811-9906	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-	●	●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9811-9906		●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9601-9810	●
27	WASHER; PL,CORE TO BODY	1-21729-075-0	04	1	9811-9906	●	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9810	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9811-9906	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9601-9810	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9811-9906	●	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-	●	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9601-9906	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9601-0009	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	0010-	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-1	01	1	0010-		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9811-9906		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9907-	●	●
33	HOUSING ASM; COOLER	1-13211-250-0	01	1	9601-9906	●
33	HOUSING ASM; COOLER	1-13211-308-0	01	1	9907-	●
33	HOUSING ASM; COOLER	1-13211-254-0	01	1	9811-9906		●
33	HOUSING ASM; COOLER	1-13211-312-0	01	1	9907-0009		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-312-0	01	1	0010-0202		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-324-0	01	1	0203-		●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-307-0	01	1	0010-		●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0005-0604	●	●
41	BOLT; COVER FIX EXC. EURO3 SPECIFICATION<NJX> M10X25 FLANGE	8-98272-067-0	02	1	0605-	●
41	BOLT; COVER FIX M10X25 FLANGE	8-98272-067-0	02	1	0605-		●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9601-9810	●
41	BOLT; COVER FIX	1-13219-161-0	02	1	9811-9906	●	●
41	BOLT; COVER FIX M8X25 FLANGE	0-28680-825-0	02	1	9907-0004	●	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9601-9810	●
45	COVER; OIL PORT	1-13219-172-0	01	1	9811-0604	●	●
45	COVER; OIL PORT EXC. EURO3 SPECIFICATION<NJX>	1-13219-172-0	01	1	0605-	●
45	COVER; OIL PORT	1-13219-172-0	01	1	0605-		●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	0605-	●	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	9601-9810	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	9811-0604	●	●
54	GASKET; OIL PIPE EURO3 SPECIFICATION<NJX> (B)	1-13219-164-0	01	1	0605-	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9601-9810	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9811-	●	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9601-0009	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	0010-	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	0010-		●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-252-0	01	1	9811-0009		●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	0010-		●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9601-9810	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9811-	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-9810	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9811-0512	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0009	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	0010-	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) M8X138	5-09000-031-1	02	1	0010-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-9810	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9811-	●	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9811-0009		●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145	1-09000-448-1	02	1	0010-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-9810	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9811-0603	●	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-9810	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9811-0605	●	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●	●
185	VALVE; OIL RELIEF,OIL COOLER EURO3 SPECIFICATION<NJX>	1-13160-034-0	01	1	0605-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9601-9810	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9811-0604	●	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. EURO3 SPECIFICATION<NJX>	1-13160-017-1	01	1	0605-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0605-		●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9601-9810	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9811-	●	●
193	PLUG; TAPER EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0	1-09605-066-0	01	1	9811-		●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9601-9810	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9811-0206	●	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-	●	●
415	COVER; OIL COOLER	1-21722-031-0	01	1	9811-0009		●
415	COVER; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-21722-031-0	01	1	0010-		●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9601-9810	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9811-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9601-0009	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	0010-	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0010-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-0	01	1	9601-9810	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	9811-	●	●

185 1 186 31 30 31 54 17 19 84 48 107 103 106 103 54 469 1 462 462 23 24 201 200 33 28 107 106 29 20 103 26 22 21 2 25 20 83 32 21 20 21 21 20 13 88 14 15 32 87 21 20 85 86 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER & COOLER ASM; OIL EURO3 SPECIFICATION<NJX> (C)	1-13201-022-0	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (A)	1-13200-936-2	01	1	9601-0604	●
1	FILTER & COOLER ASM; OIL EXC. EURO3 SPECIFICATION<NJX> (A)	1-13200-936-2	01	1	0605-	●
1	FILTER & COOLER ASM; OIL (B)	1-21700-295-2	01	1	9811-0009		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-295-2	01	1	0010-0202		●
1	FILTER & COOLER ASM; OIL OIL FILTER SETTING DOWNWARD<E7V> (B)	1-21700-369-0	01	1	0203-		●
1	FILTER & COOLER ASM; OIL EXC. OIL FILTER SETTING DOWNWARD<E7V> (A)	1-13200-935-2	01	1	0010-		●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	9601-0009	●
2	ELEMENT; OIL FILTER	1-13240-168-1	01	1	0010-	●
2	ELEMENT; OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13240-168-1	01	1	0010-		●
2	ELEMENT; OIL FILTER	1-87810-075-2	01	1	9811-0009		●
2	ELEMENT; OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-87810-075-2	01	1	0010-		●
12	VALVE ASM; BYPASS	1-13260-096-0	01	1	9601-9605	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9606-9810	●
12	VALVE ASM; BYPASS	1-13260-110-0	01	1	9811-	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9601-9810	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9811-	●	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9601-9810	●
14	SPRING; RELIEF VLV	1-13263-006-0	01	1	9811-	●	●
15	PLUG; RELIEF VLV	1-13265-023-0	01	1	9601-9605	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9606-9810	●
15	PLUG; RELIEF VLV	1-13219-322-0	01	1	9811-	●	●
17	STOPPER; VLV EURO3 SPECIFICATION<NJX>	1-13779-009-0	01	1	0605-	●
19	SEAL ASM; VLV EURO3 SPECIFICATION<NJX>	1-13779-007-0	01	1	0605-	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9601-9810	●
20	PLUG; COOLER BODY (A) M20	1-13219-152-0	03	1	9811-9906	●	●
20	PLUG; COOLER BODY (A) M24	1-13219-356-0	01	1	9907-	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9601-9810	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	02	1	9811-9906	●	●
20	PLUG; COOLER BODY (B) M26	1-13219-153-0	04	1	9907-	●	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9601-9810	●
21	GASKET; PLUG (A) M20	1-13219-158-0	03	1	9811-9906	●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9907-	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9601-9810	●
21	GASKET; PLUG (B) M26	1-13219-159-0	02	1	9811-9906	●	●
21	GASKET; PLUG (B) M26	1-13219-159-0	04	1	9907-	●	●
22	GUIDE; WATER	1-13219-155-1	01	1	9601-9810	●
22	GUIDE; WATER	1-13219-155-1	01	1	9811-	●	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9601-9810	●
23	SCREW; WATER GUIDE	1-13219-156-0	07	1	9811-	●	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9601-9810	●
24	WASHER; WATER GUIDE	1-13219-157-0	07	1	9811-	●	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9601-9810	●
25	NUT; CORE TO BODY	1-21729-074-0	04	1	9811-9906	●	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	9907-	●	●
26	CORE ASM; OIL COOLER	1-21723-049-0	01	1	9601-9906	●
26	CORE ASM; OIL COOLER	1-21723-058-0	01	1	9907-	●	●
26	CORE ASM; OIL COOLER	1-21723-039-0	01	1	9811-9906		●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9601-9810	●
28	GASKET; CORE TO BODY	1-21729-076-0	02	1	9811-9906	●	●
28	GASKET; CORE TO BODY	8-94396-810-0	02	1	9907-	●	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9601-9810	●
29	GASKET; CORE TO BODY	1-21729-077-0	02	1	9811-9906	●	●
29	GASKET; CORE TO BODY	8-94394-930-0	02	1	9907-	●	●
30	PIPE ASM; OIL COOLER EURO3 SPECIFICATION<NJX>	1-13312-247-0	01	1	0605-	●
31	BOLT; OIL PIPE EURO3 SPECIFICATION<NJX> (A) M10X25 FLANGE	8-98272-067-0	02	1	0605-	●
31	BOLT; OIL PIPE EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	1-13219-163-0	02	1	0605-	●
32	PLUG; DRAIN (A)	1-13219-151-0	01	1	9601-9906	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	9601-0009	●
32	PLUG; DRAIN (B)	1-13219-295-1	01	1	0010-	●
32	PLUG; DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B)	1-13219-295-1	01	1	0010-		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9811-9906		●
32	PLUG; DRAIN (A)	1-13219-276-0	01	1	9907-	●	●
33	HOUSING ASM; COOLER	1-13211-250-0	01	1	9601-9906	●
33	HOUSING ASM; COOLER	1-13211-308-0	01	1	9907-	●
33	HOUSING ASM; COOLER	1-13211-254-0	01	1	9811-9906		●
33	HOUSING ASM; COOLER	1-13211-312-0	01	1	9907-0009		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-312-0	01	1	0010-0202		●
33	HOUSING ASM; COOLER OIL FILTER SETTING DOWNWARD<E7V>	1-13211-324-0	01	1	0203-		●
33	HOUSING ASM; COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13211-307-0	01	1	0010-		●
48	VALVE; THERMO,OIL COOLER EURO3 SPECIFICATION<NJX>	8-98271-171-0	01	1	0605-	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	0605-	●	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	9601-9810	●
54	GASKET; OIL PIPE (A)	1-13219-162-0	01	1	9811-0604	●	●
54	GASKET; OIL PIPE EURO3 SPECIFICATION<NJX> (B)	1-13219-164-0	01	1	0605-	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9601-9810	●
83	CUP; SEALING,BODY,OIL COOLER & FILTER OD=20	9-11129-128-0	01	1	9811-	●	●
84	SUPPORT; VLV,OIL COOLER & FILTER EURO3 SPECIFICATION<NJX>	1-13779-010-0	01	1	0605-	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	9601-0009	●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-146-0	01	1	0010-	●
85	PLUG; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-146-0	01	1	0010-		●
85	PLUG; DRAIN UNIT,OIL FILTER	1-13219-252-0	01	1	9811-0009		●
85	PLUG; DRAIN UNIT,OIL FILTER OIL FILTER SETTING DOWNWARD<E7V>	1-13219-252-0	01	1	0010-		●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9601-9810	●
86	GASKET; DRAIN UNIT,OIL FILTER	1-13219-147-0	01	1	9811-	●	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	9601-0009	●
87	SPRING; DRAIN UNIT,OIL FILTER	1-13219-148-0	01	1	0010-	●
87	SPRING; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	1-13219-148-0	01	1	0010-		●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	9601-0009	●
88	VALVE; DRAIN UNIT,OIL FILTER	9-13262-009-0	01	1	0010-	●
88	VALVE; DRAIN UNIT,OIL FILTER EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-13262-009-0	01	1	0010-		●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9601-9810	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28080-825-0	24	1	9811-0512	●	●
103	BOLT; OIL COOLER (A) M8X25 FLANGE	0-28050-825-0	24	1	0601-	●	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	9601-0009	●
103	BOLT; OIL COOLER (B) M8X138	5-09000-031-1	02	1	0010-	●
103	BOLT; OIL COOLER EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) M8X138	5-09000-031-1	02	1	0010-		●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9601-9810	●
103	BOLT; OIL COOLER (C) M8X155	9-09801-275-0	02	1	9811-	●	●
103	BOLT; OIL COOLER (B) M8X145	1-09000-448-1	02	1	9811-0009		●
103	BOLT; OIL COOLER OIL FILTER SETTING DOWNWARD<E7V> (B) M8X145	1-09000-448-1	02	1	0010-		●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9601-9810	●
106	WASHER; LK,OIL COOLER ID=8.2	9-09150-508-0	04	1	9811-0603	●	●
106	WASHER; LK,OIL COOLER ID=8.2	0-91510-508-0	04	1	0604-	●	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9601-9810	●
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	04	1	9811-0605	●	●
107	WASHER; PL,OIL COOLER ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●	●
185	VALVE; OIL RELIEF,OIL COOLER EURO3 SPECIFICATION<NJX>	1-13160-034-0	01	1	0605-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9601-9810	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	9811-0604	●	●
185	VALVE; OIL RELIEF,OIL COOLER EXC. EURO3 SPECIFICATION<NJX>	1-13160-017-1	01	1	0605-	●
185	VALVE; OIL RELIEF,OIL COOLER	1-13160-017-1	01	1	0605-		●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9601-9810	●
186	GASKET; RELIEF VLV,OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09565-228-0	01	1	9811-	●	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9601-9810	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03157-300-0	01	1	9811-0206	●	●
200	PIPE; VINYL,WATER DRAIN L=360 SERVICED BY L=3000	0-03457-300-0	01	1	0207-	●	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9601-0009	●
201	PIPE; VINYL,OIL DRAIN L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0010-	●
201	PIPE; VINYL,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	0010-		●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9601-9810	●
462	CLIP; HOSE,DRAIN (A)	1-09704-100-0	01	1	9811-	●	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-0	01	1	9601-0009	●
462	CLIP; HOSE,DRAIN (B) ID=13.5	8-97015-754-1	01	1	0010-	●
462	CLIP; HOSE,DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) ID=13.5	8-97015-754-1	01	1	0010-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-0	01	1	9601-9810	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-177-1	01	1	9811-	●	●

339 338 390 339 340 76 340 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9601-9810	●
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	03	1	9811-0512	●	●
76	BOLT; OIL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	03	1	0601-	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	9601-9810	●
338	FILTER ASM; OIL PARTIAL	1-13200-744-0	01	1	9811-	●	●
339	BRACKET; PARTIAL OIL FILTER EURO3 SPECIFICATION<NJX> (B)	8-97604-630-0	01	1	0605-	●
339	BRACKET; PARTIAL OIL FILTER (A)	1-19755-062-1	01	1	9601-9810	●
339	BRACKET; PARTIAL OIL FILTER (A)	1-19755-062-1	01	1	9811-0604	●	●
339	BRACKET; PARTIAL OIL FILTER EXC. EURO3 SPECIFICATION<NJX> (A)	1-19755-062-1	01	1	0605-	●
339	BRACKET; PARTIAL OIL FILTER (A)	1-19755-062-1	01	1	0605-		●
340	BOLT; BRKT EURO3 SPECIFICATION<NJX> M10X35 FLANGE	0-28751-035-0	04	1	0605-	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9601-9810	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9811-0604	●	●
340	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M10X25 W/LK WASHER	0-50051-025-0	04	1	0605-0906	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	0605-0906		●
340	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M10X25 W/LK WASHER	0-50551-025-0	04	1	0907-	●
340	BOLT; BRKT M10X25 W/LK WASHER	0-50551-025-0	04	1	0907-		●
390	BODY; OIL FILTER,PARTIAL	1-13212-089-2	01	1	9601-9810	●
390	BODY; OIL FILTER,PARTIAL	1-13212-089-2	01	1	9811-	●	●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	9601-9810	●
391	CARTRIDGE; OIL FILTER,PARTIAL	1-13240-163-2	01	1	9811-	●	●
391	CARTRIDGE; OIL FILTER,PARTIAL BEST VALUE PARTS	1-87610-065-0	01	1	9601-9810	●
391	CARTRIDGE; OIL FILTER,PARTIAL BEST VALUE PARTS	1-87610-065-0	01	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
