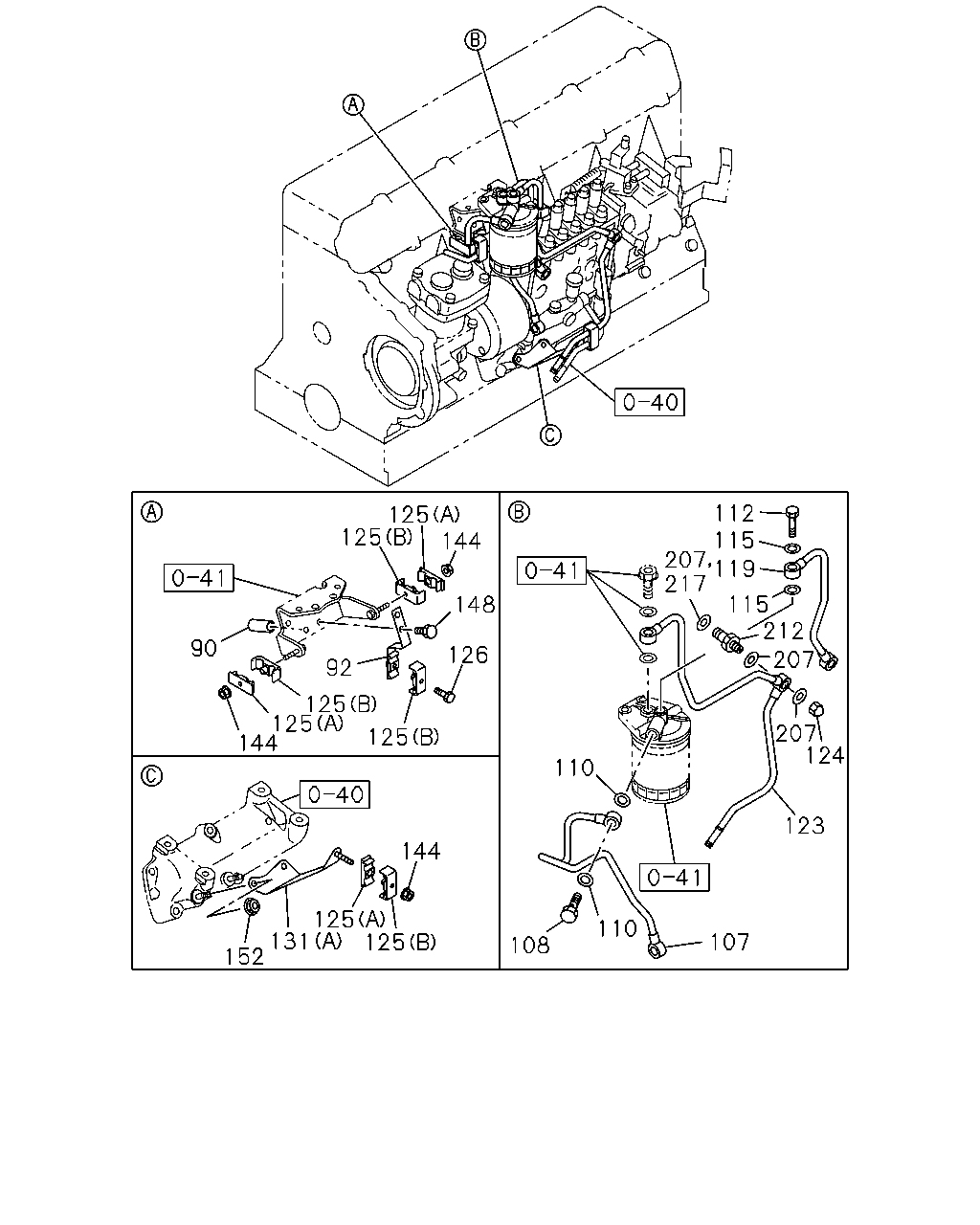

0-42 — FUEL PUMP AND PIPE (#65051) — 150 parça

112 115 207 119 217 125 125 144 115 212 148 90 126 207 92 125 125 144 207 124 125 110 123 144 125 131 125 152 110 107 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	TUBE; DIST L=43	1-14149-048-1	01	1	9601-9810	●
90	TUBE; DIST L=43	1-14149-048-1	01	1	9811-0604	●	●
90	TUBE; DIST EXC. EURO3 SPECIFICATION<NJX> L=43	1-14149-048-1	01	1	0605-	●
90	TUBE; DIST L=43	1-14149-048-1	01	1	0605-		●
92	BRACKET; FUEL PIPE	1-15419-433-0	01	1	9601-9810	●
92	BRACKET; FUEL PIPE	1-15419-433-0	01	1	9811-0604	●	●
92	BRACKET; FUEL PIPE EXC. EURO3 SPECIFICATION<NJX>	1-15419-433-0	01	1	0605-	●
92	BRACKET; FUEL PIPE	1-15419-433-0	01	1	0605-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO3 SPECIFICATION<NJX>	1-15416-691-0	01	1	0605-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-0604	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO3 SPECIFICATION<NJX>	1-15415-779-0	01	1	0605-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-784-0	01	1	9811-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO3 SPECIFICATION<NJX>	1-15416-692-0	01	1	0605-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-0604	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO3 SPECIFICATION<NJX>	1-15415-776-0	01	1	0605-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-780-0	01	1	9811-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO3 SPECIFICATION<NJX>	1-15416-690-0	01	1	0605-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-1	01	1	9601-0604	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-15415-775-1	01	1	0605-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-781-1	01	1	9811-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9601-9810	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9811-0604	●	●
124	NUT; CAP,FUEL PIPE EXC. EURO3 SPECIFICATION<NJX> M14	1-09468-002-1	01	1	0605-	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0605-		●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (C)	1-09701-172-3	01	1	0605-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (D)	1-09701-173-2	01	1	0605-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0605-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0605-	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	9601-9810	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	9811-0604	●	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0605-	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0605-		●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-1	04	1	9601-9810	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-2	04	1	9811-0604	●	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0605-	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0605-		●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28650-635-0	06	1	0605-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9601-9810	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9811-0512	●	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28050-635-0	01	1	0605-		●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (B)	1-15419-605-1	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (C)	1-15419-668-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (D)	1-15419-669-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (E)	1-15419-670-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (F)	1-15419-698-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-437-0	01	1	9708-0604	●
131	BRACKET; FUEL PIPE CLIP EXC. EURO3 SPECIFICATION<NJX> (A)	1-15419-437-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-436-0	01	1	9811-		●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9601-9810	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9811-0602	●	●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	03	1	0603-0604	●	●
144	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	03	1	0605-	●
144	NUT; CLIP M6 FLANGE	0-91180-106-0	03	1	0605-		●
148	BOLT; BRKT EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9810	●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9811-0512	●	●
148	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-0604	●	●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28050-825-0	02	1	0605-	●
148	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0605-		●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9601-0602	●
152	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
152	NUT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0605-	●
152	NUT; BRKT M6 FLANGE	0-91150-106-0	02	1	9811-0602		●
152	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0603-		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-1312	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0005-0604	●	●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	03	1	0605-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0605-1312		●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-		●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9610-0604	●
212	VALVE; OVERFLOW EXC. EURO3 SPECIFICATION<NJX>	8-94399-087-0	01	1	0605-	●
212	VALVE; OVERFLOW	1-13260-001-1	01	1	9811-		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-0604	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	01	1	0605-1312	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●

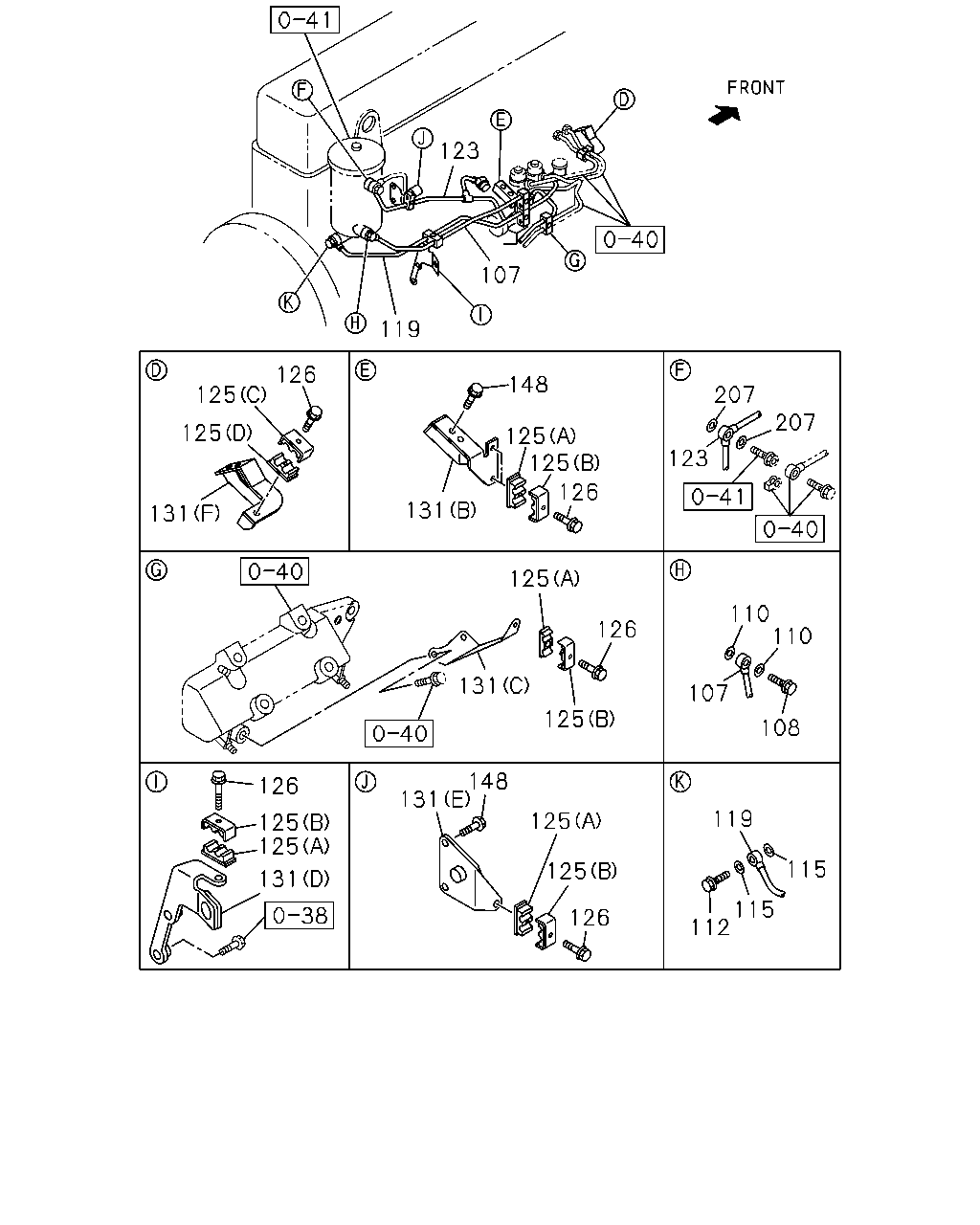

123 107 119 126 148 125 207 207 125 125 125 123 126 131 131 125 110 110 126 131 107 125 108 148 131 126 119 125 125 125 115 125 131 115 112 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO3 SPECIFICATION<NJX>	1-15416-691-0	01	1	0605-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-0604	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO3 SPECIFICATION<NJX>	1-15415-779-0	01	1	0605-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-784-0	01	1	9811-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO3 SPECIFICATION<NJX>	1-15416-692-0	01	1	0605-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-0604	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO3 SPECIFICATION<NJX>	1-15415-776-0	01	1	0605-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-780-0	01	1	9811-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO3 SPECIFICATION<NJX>	1-15416-690-0	01	1	0605-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-1	01	1	9601-0604	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-15415-775-1	01	1	0605-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-781-1	01	1	9811-		●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (C)	1-09701-172-3	01	1	0605-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (D)	1-09701-173-2	01	1	0605-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (A) ID=9 & 9 L=25	1-09701-180-0	05	1	0605-	●
125	CLIP; FUEL PIPE EURO3 SPECIFICATION<NJX> (B) ID=9 & 9 L=25	8-94393-280-3	05	1	0605-	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	9601-9810	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	9811-0604	●	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0605-	●
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	0605-		●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-1	04	1	9601-9810	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-2	04	1	9811-0604	●	●
125	CLIP; FUEL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0605-	●
125	CLIP; FUEL PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0605-		●
126	BOLT; CLIP,FUEL PIPE EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28650-635-0	06	1	0605-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9601-9810	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9811-0512	●	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28050-635-0	01	1	0605-		●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (B)	1-15419-605-1	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (C)	1-15419-668-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (D)	1-15419-669-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (E)	1-15419-670-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP EURO3 SPECIFICATION<NJX> (F)	1-15419-698-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-437-0	01	1	9708-0604	●
131	BRACKET; FUEL PIPE CLIP EXC. EURO3 SPECIFICATION<NJX> (A)	1-15419-437-0	01	1	0605-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-436-0	01	1	9811-		●
148	BOLT; BRKT EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9810	●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9811-0512	●	●
148	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-0604	●	●
148	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28050-825-0	02	1	0605-	●
148	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0605-		●
207	GASKET; EYE BOLT EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-1312	●
207	GASKET; EYE BOLT EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0005-0604	●	●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	03	1	0605-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	0605-1312		●
207	GASKET; EYE BOLT EXC. EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-		●
