0-41 — FUEL FILTER AND BRACKET (#65050) — 99 parça

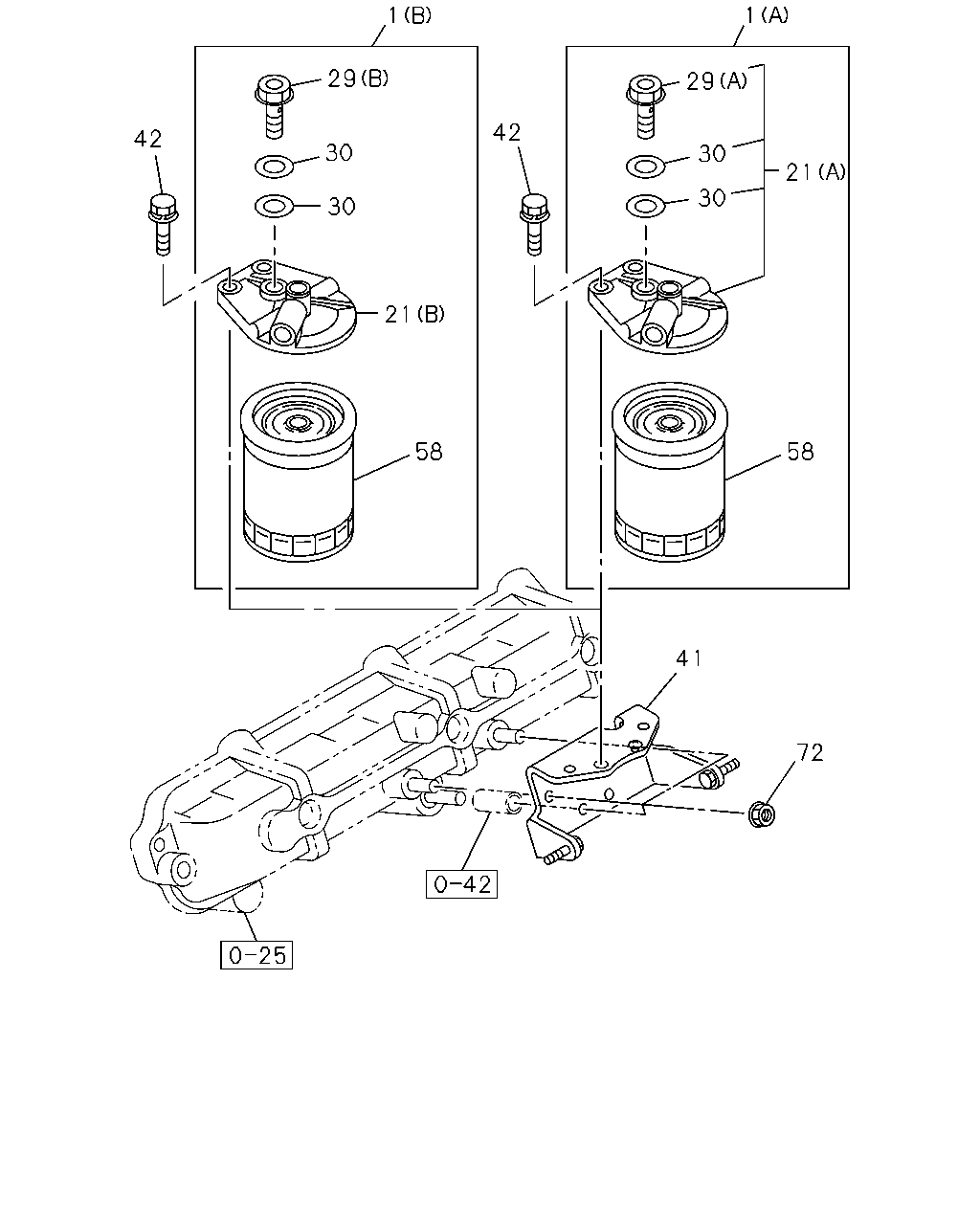

1 1 29 29 42 42 30 30 21 30 30 21 58 58 41 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL EURO3 SPECIFICATION<NJX> (C)	1-13200-996-1	01	1	0605-1106	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION<NJX> (C)	8-98175-166-0	01	1	1107-	●
1	FILTER ASM; FUEL (A)	1-13200-701-1	01	1	9601-9609	●
1	FILTER ASM; FUEL (B)	1-13200-973-1	01	1	9610-0604	●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION<NJX> (B)	1-13200-973-3	01	1	0605-	●
1	FILTER ASM; FUEL (A)	1-13200-701-4	01	1	9811-		●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION<NJX> (C)	1-13212-049-1	01	1	0605-	●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-0	01	1	9601-9609	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-1	01	1	9610-0604	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> (B)	1-13212-108-1	01	1	0605-0710	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> (B)	1-13212-108-1	01	1	0711-	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-1	01	1	0711-		●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-2	01	1	9811-		●
29	VALVE; OVERFLOW EURO3 SPECIFICATION<NJX> (C)	1-13260-115-0	01	1	0605-	●
29	VALVE; OVERFLOW (A)	1-13260-047-0	01	1	9601-9609	●
29	VALVE; OVERFLOW (B)	8-94399-170-0	01	1	9610-0604	●
29	VALVE; OVERFLOW EXC. EURO3 SPECIFICATION<NJX> (B)	8-94399-170-0	01	1	0605-	●
29	VALVE; OVERFLOW (A)	1-13260-047-0	01	1	9811-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9810	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-0206	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0207-0711		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1106	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1106		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-1312	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	02	1	1401-	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	03	1	9811-0004	●	●
41	BRACKET; FUEL FILTER	1-13219-312-1	01	1	9601-9810	●
41	BRACKET; FUEL FILTER	1-13219-312-2	01	1	9811-0604	●	●
41	BRACKET; FUEL FILTER EXC. EURO3 SPECIFICATION<NJX>	1-13219-312-2	01	1	0605-	●
41	BRACKET; FUEL FILTER	1-13219-312-2	01	1	0605-		●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION<NJX> M10X35 FLANGE	0-28651-035-0	04	1	0605-	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-9810	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9811-0512	●	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-0604	●	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0605-	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0605-		●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9601-9810	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9811-0604	●	●
58	ELEMENT; FUEL FILTER EXC. EURO3 SPECIFICATION<NJX>	1-13240-079-1	01	1	0605-0711	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0605-0711		●
58	ELEMENT; FUEL FILTER EXC. EURO3 SPECIFICATION<NJX>	8-98036-654-0	01	1	0712-	●
58	ELEMENT; FUEL FILTER	8-98036-654-0	01	1	0712-		●
58	ELEMENT; FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> BEST VALUE PARTS	1-87610-053-1	01	1	0712-	●
58	ELEMENT; FUEL FILTER BEST VALUE PARTS	1-87610-053-1	01	1	0712-		●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	9601-9810	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	9811-0602	●	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91180-108-0	03	1	0603-0604	●	●
72	NUT; BRKT,FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	03	1	0605-	●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91180-108-0	03	1	0605-		●

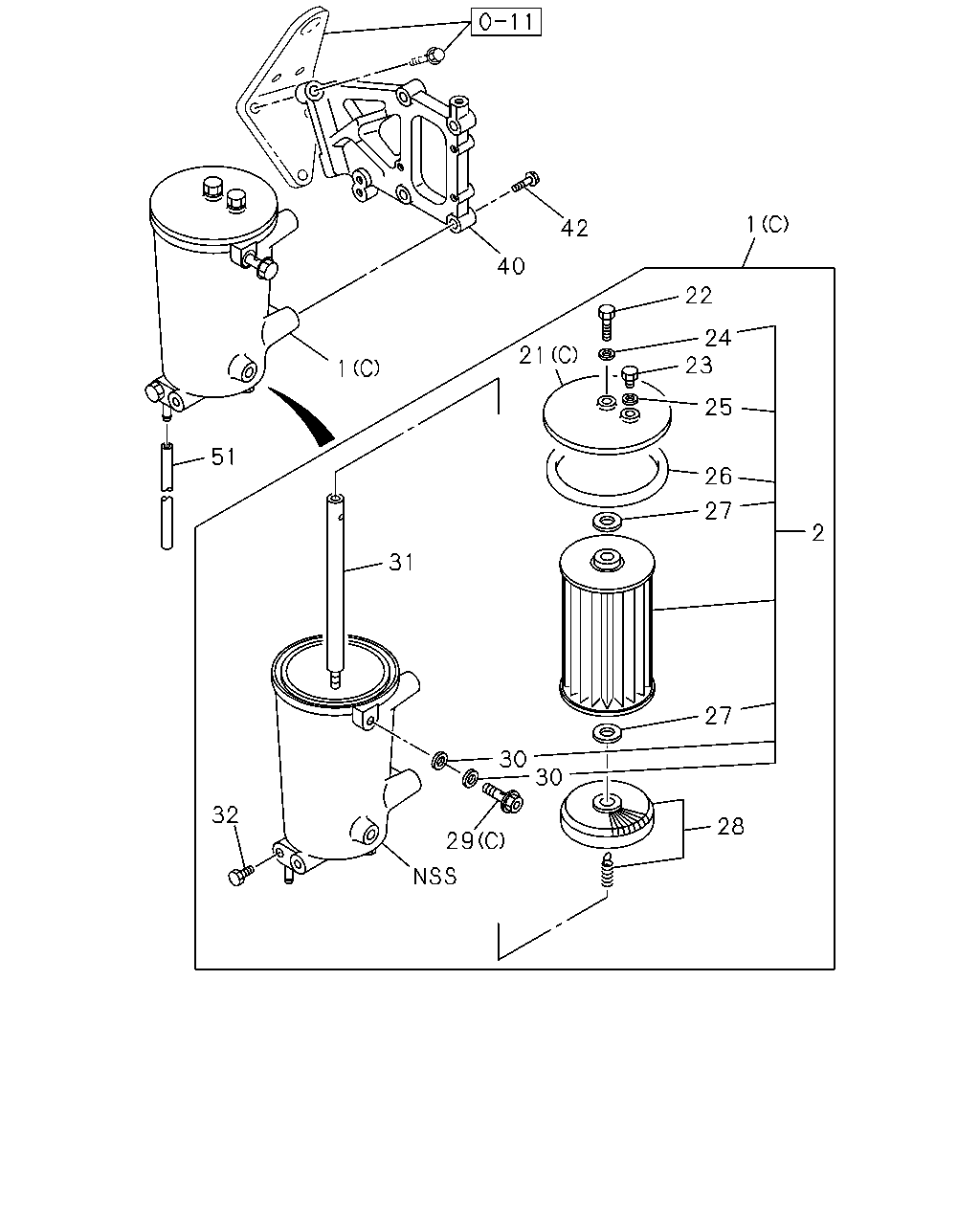

1 42 40 22 24 23 21 1 25 51 26 27 2 31 27 30 30 32 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL EURO3 SPECIFICATION<NJX> (C)	1-13200-996-1	01	1	0605-1106	●
1	FILTER ASM; FUEL EURO3 SPECIFICATION<NJX> (C)	8-98175-166-0	01	1	1107-	●
1	FILTER ASM; FUEL (A)	1-13200-701-1	01	1	9601-9609	●
1	FILTER ASM; FUEL (B)	1-13200-973-1	01	1	9610-0604	●
1	FILTER ASM; FUEL EXC. EURO3 SPECIFICATION<NJX> (B)	1-13200-973-3	01	1	0605-	●
1	FILTER ASM; FUEL (A)	1-13200-701-4	01	1	9811-		●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION<NJX> BEST VALUE PARTS	1-87610-152-0	02	1	1107-	●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION<NJX>	1-87810-976-0	01	1	0605-1106	●
2	ELEMENT KIT; FUEL FILTER EURO3 SPECIFICATION<NJX>	8-98174-903-0	01	1	1107-	●
21	COVER; UPR,FUEL FILTER EURO3 SPECIFICATION<NJX> (C)	1-13212-049-1	01	1	0605-	●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-0	01	1	9601-9609	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-1	01	1	9610-0604	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> (B)	1-13212-108-1	01	1	0605-0710	●
21	COVER; UPR,FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> (B)	1-13212-108-1	01	1	0711-	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-108-1	01	1	0711-		●
21	COVER; UPR,FUEL FILTER (A)	1-13212-087-2	01	1	9811-		●
22	BOLT; CENTER TUBE,COVER EURO3 SPECIFICATION<NJX>	1-13219-045-0	01	1	0605-	●
23	PLUG; COVER EURO3 SPECIFICATION<NJX>	1-13219-074-0	01	1	0605-	●
24	GASKET; CENTER TUBE BOLT EURO3 SPECIFICATION<NJX> ID=10.2 OD=15.2	1-09630-083-0	01	1	0605-	●
25	GASKET; AIR DRAIN PLUG EURO3 SPECIFICATION<NJX> ID=10.2 OD=15.2	1-09630-083-0	01	1	0605-	●
26	GASKET; COVER TO BODY EURO3 SPECIFICATION<NJX>	9-09720-797-0	01	1	0605-	●
27	GASKET; ELEMENT EURO3 SPECIFICATION<NJX>	1-09630-007-0	02	1	0605-	●
28	STRAINER; WATER,FUEL FILTER EURO3 SPECIFICATION<NJX>	1-13251-001-0	01	1	0605-	●
29	VALVE; OVERFLOW EURO3 SPECIFICATION<NJX> (C)	1-13260-115-0	01	1	0605-	●
29	VALVE; OVERFLOW (A)	1-13260-047-0	01	1	9601-9609	●
29	VALVE; OVERFLOW (B)	8-94399-170-0	01	1	9610-0604	●
29	VALVE; OVERFLOW EXC. EURO3 SPECIFICATION<NJX> (B)	8-94399-170-0	01	1	0605-	●
29	VALVE; OVERFLOW (A)	1-13260-047-0	01	1	9811-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	05	1	9601-9810	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-0206	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0207-0711		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1106	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1106		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-1312	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> ID=14.2 OD=19.2	1-09630-085-0	02	1	1401-	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	03	1	9811-0004	●	●
31	TUBE; CENTER BOLT EURO3 SPECIFICATION<NJX>	1-13231-026-0	01	1	0605-	●
32	BOLT; DRAIN,FUEL FILTER EURO3 SPECIFICATION<NJX>	1-13219-030-0	01	1	0605-	●
40	BRACKET; FUEL FILTER EURO3 SPECIFICATION<NJX>	1-13219-352-1	01	1	0605-	●
42	BOLT; FUEL FILTER EURO3 SPECIFICATION<NJX> M10X35 FLANGE	0-28651-035-0	04	1	0605-	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-9810	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9811-0512	●	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-0604	●	●
42	BOLT; FUEL FILTER EXC. EURO3 SPECIFICATION<NJX> M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0605-	●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0605-		●
51	PIPE; VINYL EURO3 SPECIFICATION<NJX> L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0605-	●
