Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#65049) — 682 parça

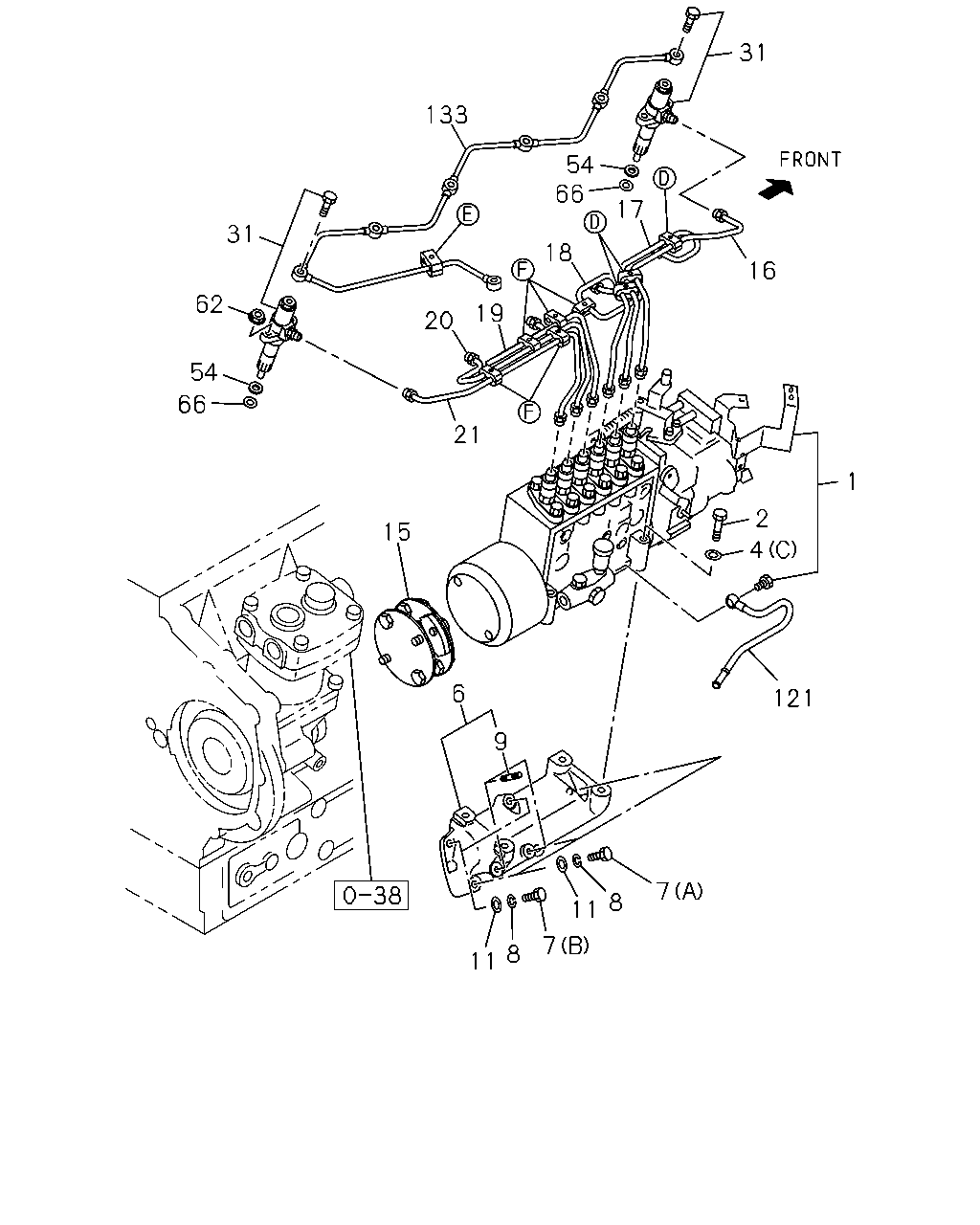

31 133 54 66 17 18 31 16 62 19 20 54 66 21 2 15 4 1 4 7 8 11 6 121 10 161 7 8 11 7 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-15603-129-5	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> AUSTRALIA EQUIPMENT(RR3) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-286-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-148-0	01	1	9703-9703	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-215-4	01	1	9704-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0005-0604	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. A/T<X9D>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-258-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-051-3	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-147-0	01	1	9607-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-214-3	01	1	9703-9804	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) A/T<X9D> SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-287-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-272-0	01	1	9811-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-		●
2	BOLT; INJ PUMP EURO3 SPECIFICATION<NJX> M8X90 FLANGE	0-28060-890-0	04	1	0605-	●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9601-0512	●
2	BOLT; INJ PUMP M10X90	0-16856-090-0	04	1	0601-0604	●
2	BOLT; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> M10X90	0-16856-090-0	04	1	0605-	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9811-		●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	9601-0603	●
4	WASHER; INJ PUMP (A) ID=10.2	0-91510-510-0	04	1	0604-0604	●
4	WASHER; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (A) ID=10.2	0-91510-510-0	04	1	0605-	●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	9601-0604	●
4	WASHER; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) ID=10.5 OD=18	9-09160-510-0	04	1	0605-0605	●
4	WASHER; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) ID=10.5	0-91610-510-0	04	1	0606-	●
4	WASHER; INJ PUMP (C) ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9811-		●
6	BRACKET; INJ PUMP TO C/BL EURO3 SPECIFICATION<NJX>	1-19751-158-1	01	1	0605-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-071-0	01	1	9601-0002	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0003-0502	●
6	BRACKET; INJ PUMP TO C/BL	8-97608-455-0	01	1	0503-0604	●
6	BRACKET; INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION<NJX>	8-97608-455-0	01	1	0605-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9811-		●
7	BOLT; INJ PUMP BRKT EURO3 SPECIFICATION<NJX> (D) M10X100 FLANGE	0-28151-000-0	02	1	0605-	●
7	BOLT; INJ PUMP BRKT EURO3 SPECIFICATION<NJX> (E) M10X35 FLANGE	0-28151-035-0	03	1	0605-	●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	03	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE	0-28151-060-0	03	1	0605-	●
7	BOLT; INJ PUMP BRKT (B) M10X22	0-23801-022-0	01	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (B) M10X25 FLANGE	0-28751-025-0	01	1	0605-	●
7	BOLT; INJ PUMP BRKT (C) M10X35	0-23801-035-0	01	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28751-040-0	01	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (C) M10X40 FLANGE	0-28751-040-0	01	1	0605-	●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9811-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16856-050-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9811-		●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	0-91510-510-0	05	1	1211-		●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9601-9810	●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9811-0002	●	●
10	DOWEL; INJ PUMP EURO3 SPECIFICATION<NJX>	1-11229-012-1	02	1	0605-	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9601-0604	●
10	DOWEL; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> OD=14 L=9	9-19759-019-1	02	1	0605-	●
11	WASHER; INJ PUMP BRKT ID=10.5	0-91610-510-0	05	1	1211-		●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9601-9810	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9811-0002	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-15780-192-0	01	1	0605-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	9601-0604	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>	1-15780-111-1	01	1	0605-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9811-		●
16	PIPE; INJ NO.1 EURO3 SPECIFICATION<NJX>	1-15416-329-1	01	1	0605-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0604	●
16	PIPE; INJ NO.1 EXC. EURO3 SPECIFICATION<NJX>	1-15415-763-0	01	1	0605-	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9811-		●
17	PIPE; INJ NO.2 EURO3 SPECIFICATION<NJX>	1-15416-175-1	01	1	0605-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0604	●
17	PIPE; INJ NO.2 EXC. EURO3 SPECIFICATION<NJX>	1-15415-764-0	01	1	0605-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9811-		●
18	PIPE; INJ NO.3 EURO3 SPECIFICATION<NJX>	1-15416-474-1	01	1	0605-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0604	●
18	PIPE; INJ NO.3 EXC. EURO3 SPECIFICATION<NJX>	1-15415-765-0	01	1	0605-	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9811-		●
19	PIPE; INJ NO.4 EURO3 SPECIFICATION<NJX>	1-15416-372-1	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0604	●
19	PIPE; INJ NO.4 EXC. EURO3 SPECIFICATION<NJX>	1-15415-766-0	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9811-		●
20	PIPE; INJ NO.5 EURO3 SPECIFICATION<NJX>	1-15416-397-1	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0604	●
20	PIPE; INJ NO.5 EXC. EURO3 SPECIFICATION<NJX>	1-15415-767-0	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9811-		●
21	PIPE; INJ NO.6 EURO3 SPECIFICATION<NJX>	1-15416-332-1	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0604	●
21	PIPE; INJ NO.6 EXC. EURO3 SPECIFICATION<NJX>	1-15415-768-0	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9811-		●
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NJX>	1-15300-415-1	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0604	●
31	NOZZLE ASM; INJ EXC. EURO3 SPECIFICATION<NJX>	1-15300-332-0	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9811-		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-9810	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9811-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9601-9810	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9811-0602	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-9810	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9811-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION EURO3 SPECIFICATION<NJX>	1-15416-689-0	01	1	0605-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	9601-0604	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. EURO3 SPECIFICATION<NJX>	1-15415-778-0	01	1	0605-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9811-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NJX>	1-15416-693-1	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0604	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-15415-777-0	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9811-		●
161	STUD; INJ PUMP M8X20 L=32	9-04110-820-0	02	1	9601-0604	●
161	STUD; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> M8X20 L=32	9-04110-820-0	02	1	0605-0605	●
161	STUD; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> M8X20 L=32	0-41010-820-0	02	1	0605-	●

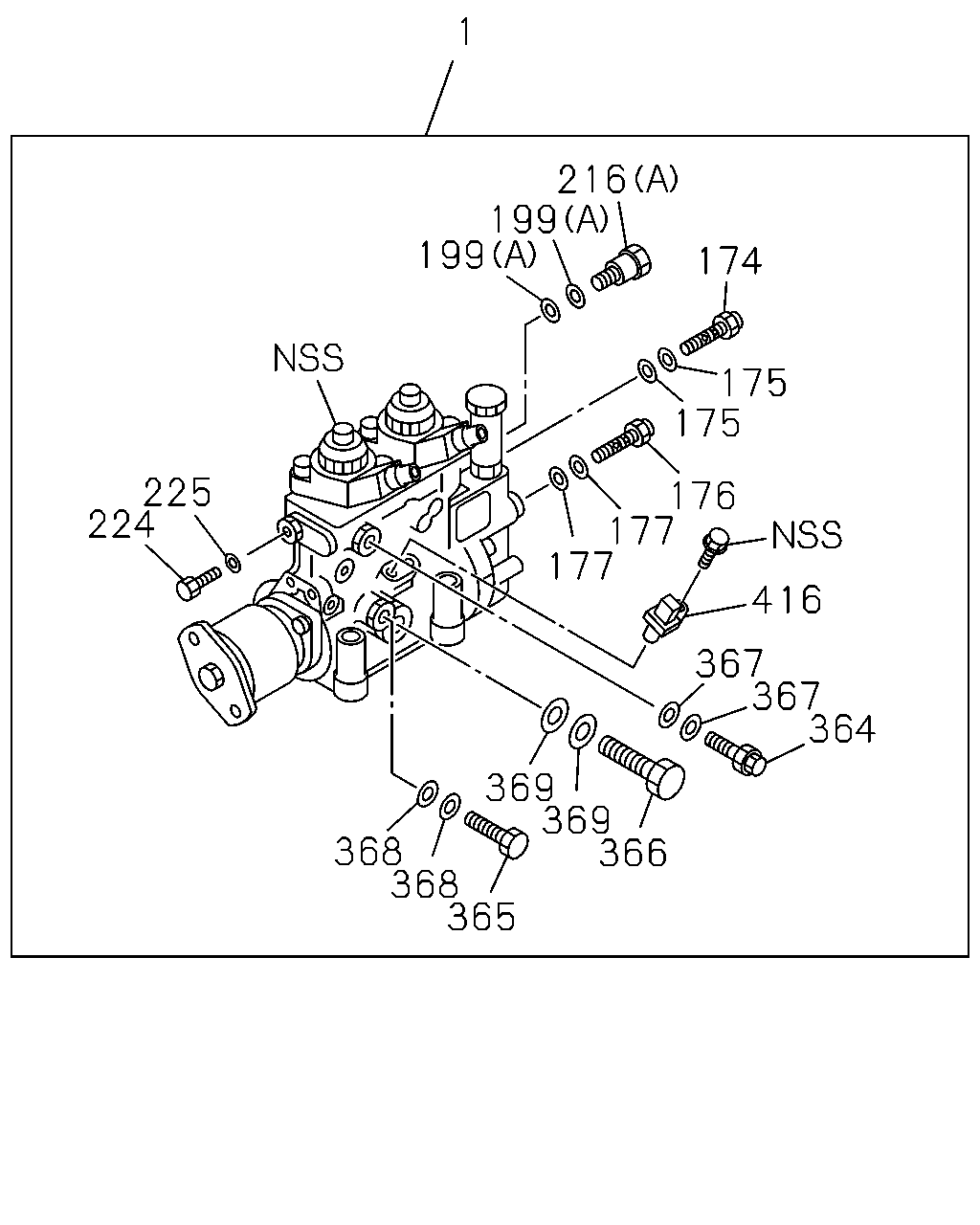

1 216 199 199 174 175 175 225 224 176 177 177 416 367 367 364 369 369 366 368 368 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-15603-129-5	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> AUSTRALIA EQUIPMENT(RR3) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-286-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-148-0	01	1	9703-9703	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-215-4	01	1	9704-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0005-0604	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. A/T<X9D>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-258-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-051-3	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-147-0	01	1	9607-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-214-3	01	1	9703-9804	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) A/T<X9D> SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-287-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-272-0	01	1	9811-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-		●
174	BOLT; EYE,FUEL OUTLET,FEED PUMP EURO3 SPECIFICATION<NJX>	5-15759-003-0	01	1	0605-	●
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP EURO3 SPECIFICATION<NJX>	1-15619-507-0	02	1	0605-	●
176	BOLT; EYE,FEED PUMP EURO3 SPECIFICATION<NJX>	1-15619-509-0	01	1	0605-	●
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP EURO3 SPECIFICATION<NJX>	1-15619-507-0	02	1	0605-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (B)	8-97602-218-0	02	1	0605-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A)	1-15619-507-0	02	1	0605-	●
216	BOLT; EYE EURO3 SPECIFICATION<NJX> (B)	8-97351-388-0	01	1	0605-	●
216	BOLT; EYE EURO3 SPECIFICATION<NJX> (A)	5-15759-003-0	01	1	0605-	●
224	PLUG; INJ PUMP EURO3 SPECIFICATION<NJX>	1-15619-500-0	01	1	0605-	●
225	GASKET; PLUG EURO3 SPECIFICATION<NJX>	1-15619-502-0	01	1	0605-	●
364	VALVE; OVER FLOW,INJ PUMP EURO3 SPECIFICATION<NJX>	1-15619-496-0	01	1	0605-	●
365	BOLT; EYE,OIL INLET EURO3 SPECIFICATION<NJX>	9-88130-088-0	01	1	0605-	●
366	BOLT; EYE,OIL OUTLET EURO3 SPECIFICATION<NJX>	1-15619-497-0	01	1	0605-	●
367	GASKET; VALVE,OVER FLOW EURO3 SPECIFICATION<NJX>	1-15619-501-0	02	1	0605-	●
368	GASKET; EYE BOLT,OIL INLET EURO3 SPECIFICATION<NJX>	1-15619-508-0	02	1	0605-	●
369	GASKET; EYE BOLT,OIL OUTLET EURO3 SPECIFICATION<NJX>	1-15619-504-0	02	1	0605-	●
416	SENSOR; POSITION,PUMP EURO3 SPECIFICATION<NJX>	8-97174-899-0	01	1	0605-	●

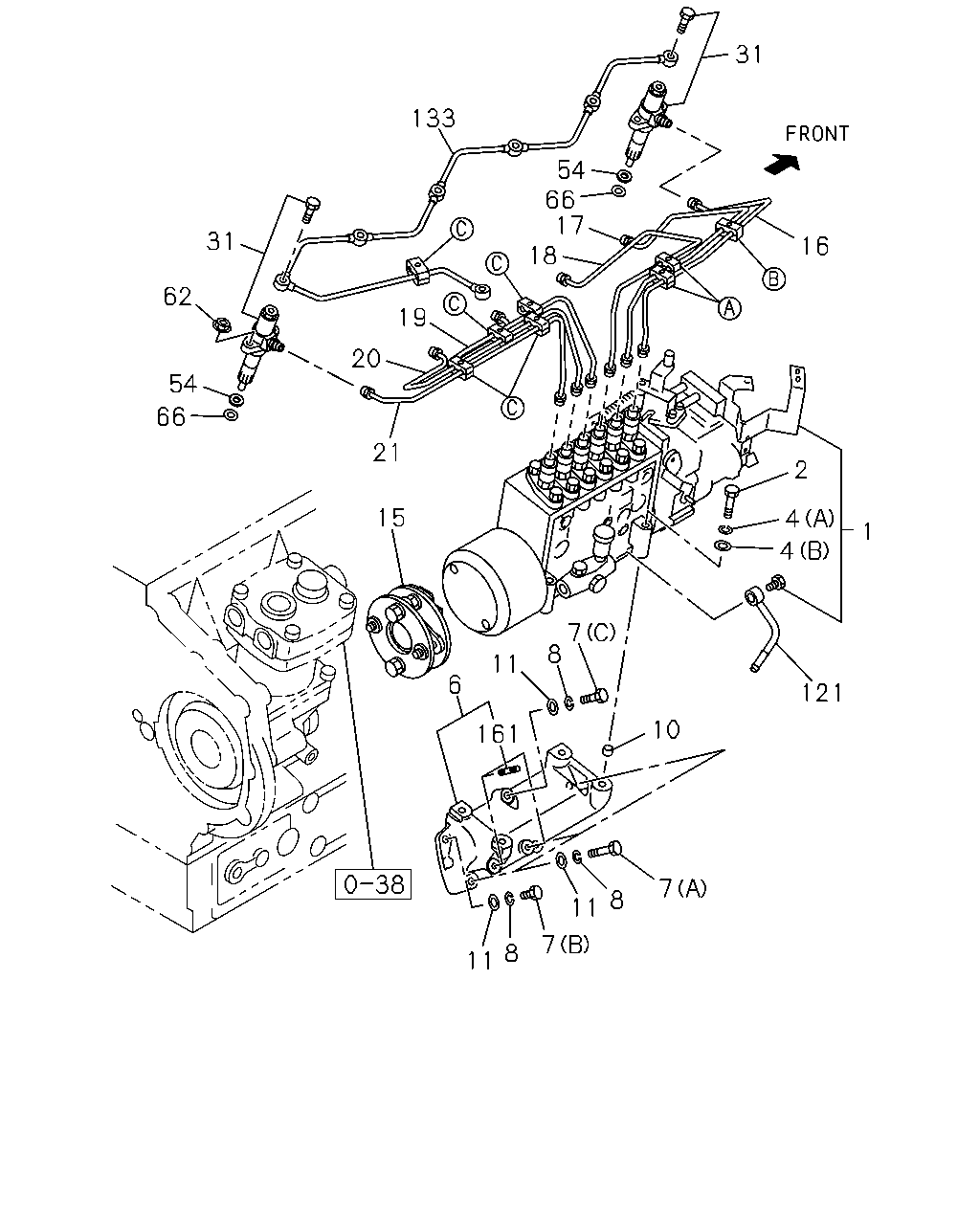

31 133 54 66 17 31 18 16 62 19 20 54 66 21 1 2 15 4 6 121 9 7 8 11 7 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-15603-129-5	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> AUSTRALIA EQUIPMENT(RR3) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-286-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-148-0	01	1	9703-9703	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-215-4	01	1	9704-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0005-0604	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. A/T<X9D>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-258-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-051-3	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-147-0	01	1	9607-9702	●

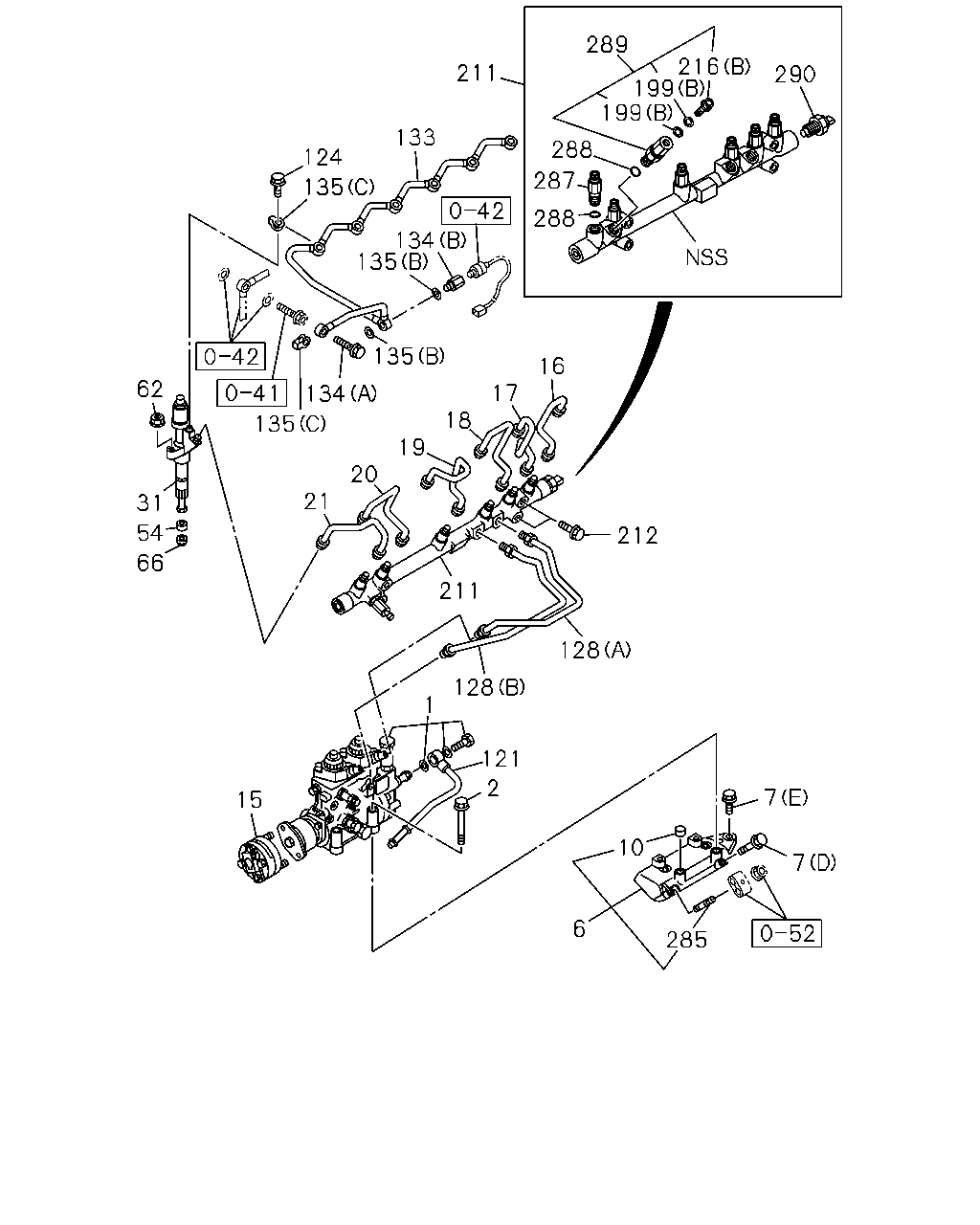

1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-214-3	01	1	9703-9804	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) A/T<X9D> SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-287-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-272-0	01	1	9811-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-		●
2	BOLT; INJ PUMP EURO3 SPECIFICATION<NJX> M8X90 FLANGE	0-28060-890-0	04	1	0605-	●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9601-0512	●
2	BOLT; INJ PUMP M10X90	0-16856-090-0	04	1	0601-0604	●
2	BOLT; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> M10X90	0-16856-090-0	04	1	0605-	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9811-		●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	9601-0603	●
4	WASHER; INJ PUMP (A) ID=10.2	0-91510-510-0	04	1	0604-0604	●
4	WASHER; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (A) ID=10.2	0-91510-510-0	04	1	0605-	●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	9601-0604	●
4	WASHER; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) ID=10.5 OD=18	9-09160-510-0	04	1	0605-0605	●
4	WASHER; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) ID=10.5	0-91610-510-0	04	1	0606-	●
4	WASHER; INJ PUMP (C) ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9811-		●
6	BRACKET; INJ PUMP TO C/BL EURO3 SPECIFICATION<NJX>	1-19751-158-1	01	1	0605-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-071-0	01	1	9601-0002	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0003-0502	●
6	BRACKET; INJ PUMP TO C/BL	8-97608-455-0	01	1	0503-0604	●
6	BRACKET; INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION<NJX>	8-97608-455-0	01	1	0605-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9811-		●
7	BOLT; INJ PUMP BRKT EURO3 SPECIFICATION<NJX> (D) M10X100 FLANGE	0-28151-000-0	02	1	0605-	●
7	BOLT; INJ PUMP BRKT EURO3 SPECIFICATION<NJX> (E) M10X35 FLANGE	0-28151-035-0	03	1	0605-	●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	03	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE	0-28151-060-0	03	1	0605-	●
7	BOLT; INJ PUMP BRKT (B) M10X22	0-23801-022-0	01	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (B) M10X25 FLANGE	0-28751-025-0	01	1	0605-	●
7	BOLT; INJ PUMP BRKT (C) M10X35	0-23801-035-0	01	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28751-040-0	01	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (C) M10X40 FLANGE	0-28751-040-0	01	1	0605-	●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9811-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16856-050-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9811-		●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	0-91510-510-0	05	1	1211-		●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9601-9810	●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9811-0002	●	●
9	STUD; CLIP	9-04010-612-0	02	1	9811-		●
11	WASHER; INJ PUMP BRKT ID=10.5	0-91610-510-0	05	1	1211-		●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9601-9810	●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9811-0002	●	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-15780-192-0	01	1	0605-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	9601-0604	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>	1-15780-111-1	01	1	0605-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9811-		●
16	PIPE; INJ NO.1 EURO3 SPECIFICATION<NJX>	1-15416-329-1	01	1	0605-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0604	●
16	PIPE; INJ NO.1 EXC. EURO3 SPECIFICATION<NJX>	1-15415-763-0	01	1	0605-	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9811-		●
17	PIPE; INJ NO.2 EURO3 SPECIFICATION<NJX>	1-15416-175-1	01	1	0605-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0604	●
17	PIPE; INJ NO.2 EXC. EURO3 SPECIFICATION<NJX>	1-15415-764-0	01	1	0605-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9811-		●
18	PIPE; INJ NO.3 EURO3 SPECIFICATION<NJX>	1-15416-474-1	01	1	0605-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0604	●
18	PIPE; INJ NO.3 EXC. EURO3 SPECIFICATION<NJX>	1-15415-765-0	01	1	0605-	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9811-		●
19	PIPE; INJ NO.4 EURO3 SPECIFICATION<NJX>	1-15416-372-1	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0604	●
19	PIPE; INJ NO.4 EXC. EURO3 SPECIFICATION<NJX>	1-15415-766-0	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9811-		●
20	PIPE; INJ NO.5 EURO3 SPECIFICATION<NJX>	1-15416-397-1	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0604	●
20	PIPE; INJ NO.5 EXC. EURO3 SPECIFICATION<NJX>	1-15415-767-0	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9811-		●
21	PIPE; INJ NO.6 EURO3 SPECIFICATION<NJX>	1-15416-332-1	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0604	●
21	PIPE; INJ NO.6 EXC. EURO3 SPECIFICATION<NJX>	1-15415-768-0	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9811-		●
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NJX>	1-15300-415-1	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0604	●
31	NOZZLE ASM; INJ EXC. EURO3 SPECIFICATION<NJX>	1-15300-332-0	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9811-		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-9810	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9811-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9601-9810	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9811-0602	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-9810	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9811-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION EURO3 SPECIFICATION<NJX>	1-15416-689-0	01	1	0605-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	9601-0604	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. EURO3 SPECIFICATION<NJX>	1-15415-778-0	01	1	0605-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9811-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NJX>	1-15416-693-1	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0604	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-15415-777-0	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9811-		●

34 36 37 38 31 39 32 44 45 42 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NJX>	1-15300-415-1	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0604	●
31	NOZZLE ASM; INJ EXC. EURO3 SPECIFICATION<NJX>	1-15300-332-0	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9811-		●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	9601-0604	●
32	HOLDER ASM; NOZZLE EXC. EURO3 SPECIFICATION<NJX>	1-15330-054-1	06	1	0605-	●
32	HOLDER ASM; NOZZLE	1-15330-088-1	06	1	9811-		●
33	NOZZLE; INJ	1-15311-265-0	06	1	9601-0604	●
33	NOZZLE; INJ EXC. EURO3 SPECIFICATION<NJX>	1-15311-265-0	06	1	0605-	●
33	NOZZLE; INJ	1-15311-216-0	06	1	9811-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9810	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9811-0604	●	●
34	BOLT; EYE,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15339-009-0	06	1	0605-	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0605-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9601-0604	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15332-017-0	06	1	0605-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-014-0	06	1	9811-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9601-0604	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX>	1-15339-010-0	12	1	0605-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	06	1	9811-		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	9601-0604	●
37	NUT; CAP,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15334-010-0	06	1	0605-	●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9811-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9601-0604	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>	9-15339-056-0	06	1	0605-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9811-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	9601-0604	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15345-004-0	06	1	0605-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9811-		●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15351-005-0	06	1	9601-0604	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15351-005-0	06	1	0605-	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9811-		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9601-9810	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9811-0604	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	5-15339-003-0	06	1	0605-	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0605-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	9601-0604	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	8-94246-531-0	06	1	0605-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9811-		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	06	1	9601-0604	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15341-004-0	06	1	0605-	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9811-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9601-9810	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9811-0604	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	9-15347-003-0	12	1	0605-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0605-		●

31 32 34 36 36 37 38 39 40 140 143 138 45 44 141 42 140 142 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NJX>	1-15300-415-1	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0604	●
31	NOZZLE ASM; INJ EXC. EURO3 SPECIFICATION<NJX>	1-15300-332-0	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9811-		●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	9601-0604	●
32	HOLDER ASM; NOZZLE EXC. EURO3 SPECIFICATION<NJX>	1-15330-054-1	06	1	0605-	●
32	HOLDER ASM; NOZZLE	1-15330-088-1	06	1	9811-		●
33	NOZZLE; INJ	1-15311-265-0	06	1	9601-0604	●
33	NOZZLE; INJ EXC. EURO3 SPECIFICATION<NJX>	1-15311-265-0	06	1	0605-	●
33	NOZZLE; INJ	1-15311-216-0	06	1	9811-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9601-9810	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9811-0604	●	●
34	BOLT; EYE,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15339-009-0	06	1	0605-	●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0605-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9601-0604	●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15332-017-0	06	1	0605-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-014-0	06	1	9811-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9601-0604	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX>	1-15339-010-0	12	1	0605-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	06	1	9811-		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	9601-0604	●
37	NUT; CAP,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15334-010-0	06	1	0605-	●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9811-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	9601-0604	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>	9-15339-056-0	06	1	0605-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9811-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	9601-0604	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15345-004-0	06	1	0605-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9811-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	06	1	9601-0604	●
40	NUT; ADJ SCREW,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15332-011-0	06	1	0605-	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15351-005-0	06	1	9601-0604	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15351-005-0	06	1	0605-	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9811-		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9601-9810	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9811-0604	●	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	5-15339-003-0	06	1	0605-	●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0605-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	9601-0604	●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	8-94246-531-0	06	1	0605-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9811-		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	06	1	9601-0604	●
45	ROD; PUSH,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15341-004-0	06	1	0605-	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9811-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9601-9810	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9811-0604	●	●
46	PIN; NOZZLE SET,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	9-15347-003-0	12	1	0605-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	0605-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	06	1	9601-0604	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15343-001-0	06	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.50	5-15339-007-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.60	5-15339-008-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.70	5-15339-009-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.80	5-15339-010-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.90	5-15339-011-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=1.00	5-15339-012-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.52	5-15339-018-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.54	5-15339-019-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.56	5-15339-020-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.58	5-15339-021-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.10	8-94128-982-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.20	8-94128-983-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.30	8-94128-984-0	AR	1	0605-	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9601-0604	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX> T=0.40	8-94128-985-0	AR	1	0605-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-006-0	06	1	9601-0604	●
141	ROD; PUSH,UPR,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15341-006-0	06	1	0605-	●
142	SPACER; PUSH ROD	1-15339-093-0	06	1	9601-0604	●
142	SPACER; PUSH ROD EXC. EURO3 SPECIFICATION<NJX>	1-15339-093-0	06	1	0605-	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	06	1	9601-0604	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER EXC. EURO3 SPECIFICATION<NJX>	1-15345-003-0	06	1	0605-	●

99 110 113 17 120 112 113 16 113 99 113 18 17 16 113 113 110 113 110 113 113 113 71 120 131 131 110 134 135 133 135 21 20 19 113 113 113 110 113 110

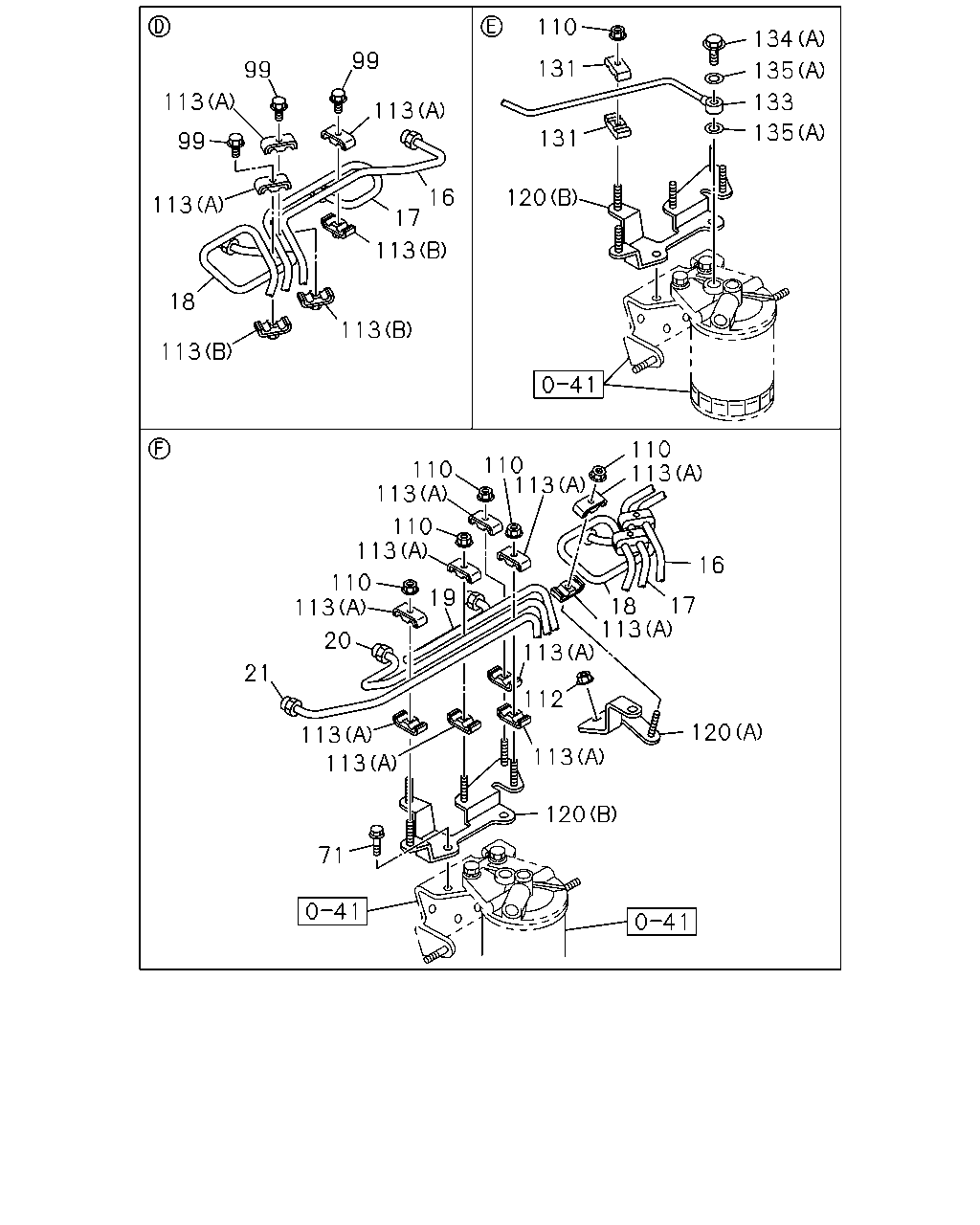

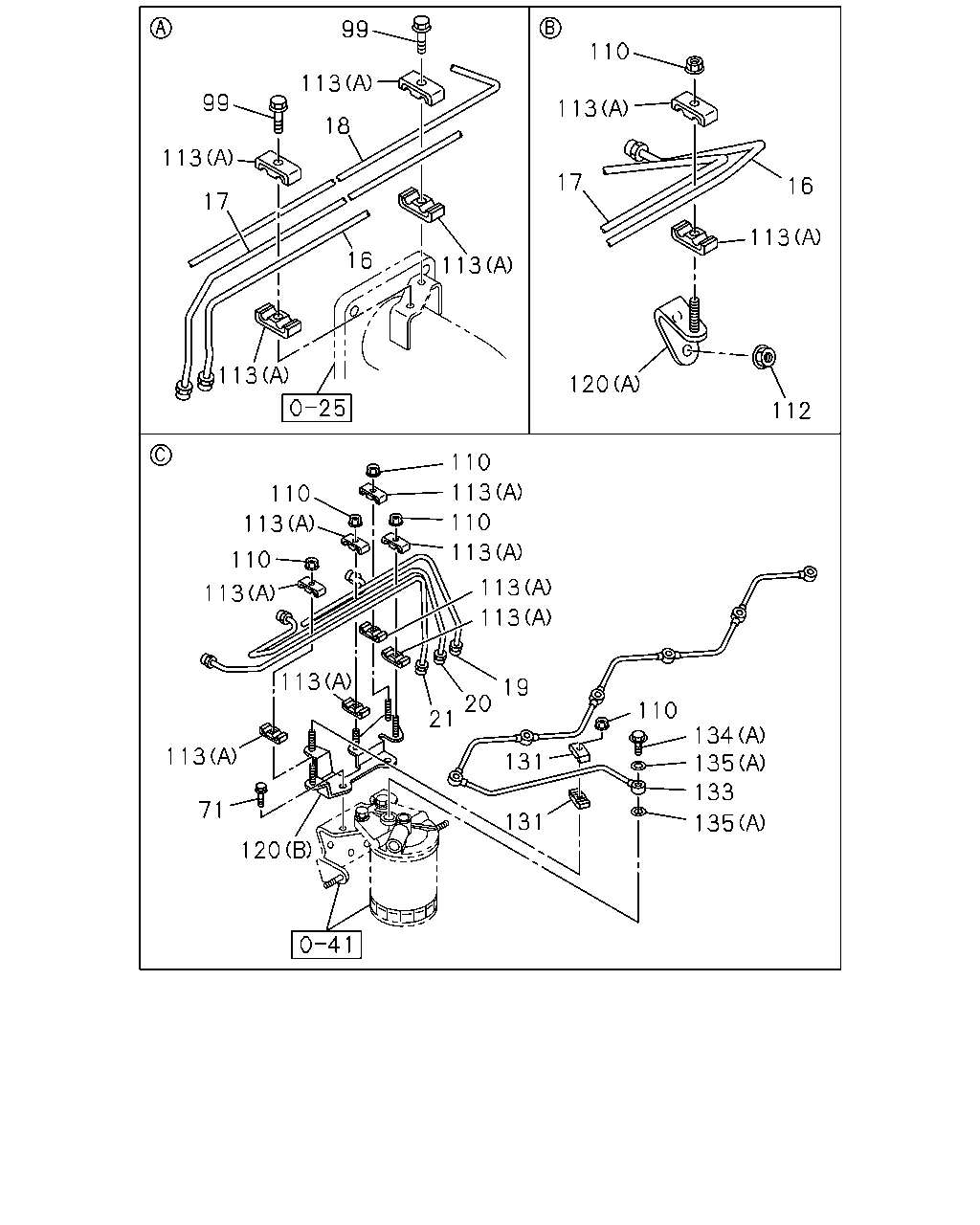

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 EURO3 SPECIFICATION<NJX>	1-15416-329-1	01	1	0605-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0604	●
16	PIPE; INJ NO.1 EXC. EURO3 SPECIFICATION<NJX>	1-15415-763-0	01	1	0605-	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9811-		●
17	PIPE; INJ NO.2 EURO3 SPECIFICATION<NJX>	1-15416-175-1	01	1	0605-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0604	●
17	PIPE; INJ NO.2 EXC. EURO3 SPECIFICATION<NJX>	1-15415-764-0	01	1	0605-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9811-		●
18	PIPE; INJ NO.3 EURO3 SPECIFICATION<NJX>	1-15416-474-1	01	1	0605-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0604	●
18	PIPE; INJ NO.3 EXC. EURO3 SPECIFICATION<NJX>	1-15415-765-0	01	1	0605-	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9811-		●
19	PIPE; INJ NO.4 EURO3 SPECIFICATION<NJX>	1-15416-372-1	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0604	●
19	PIPE; INJ NO.4 EXC. EURO3 SPECIFICATION<NJX>	1-15415-766-0	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9811-		●
20	PIPE; INJ NO.5 EURO3 SPECIFICATION<NJX>	1-15416-397-1	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0604	●
20	PIPE; INJ NO.5 EXC. EURO3 SPECIFICATION<NJX>	1-15415-767-0	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9811-		●
21	PIPE; INJ NO.6 EURO3 SPECIFICATION<NJX>	1-15416-332-1	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0604	●
21	PIPE; INJ NO.6 EXC. EURO3 SPECIFICATION<NJX>	1-15415-768-0	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9811-		●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9810	●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9811-0512	●	●
71	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-0604	●	●
71	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28050-825-0	02	1	0605-	●
71	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0605-		●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	9601-0512	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	02	1	0601-0604	●
99	BOLT; CLIP,INJ,PIPE EXC. EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	02	1	0605-	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	03	1	9811-0512		●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28050-630-0	03	1	0601-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9601-9611	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	9612-9810	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	9811-0602	●	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	06	1	0603-0604	●	●
110	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	06	1	0605-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	06	1	0605-		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9601-0602	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
112	NUT; BRKT,INJ PIPE CLIP EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0605-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9811-0602		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●
113	CLIP; INJ PIPE (A)	1-09701-132-1	14	1	9612-0604	●
113	CLIP; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-09701-132-1	14	1	0605-1210	●
113	CLIP; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-09701-240-0	14	1	1211-	●
113	CLIP; INJ PIPE (A)	1-09701-132-1	13	1	9811-1210		●
113	CLIP; INJ PIPE (A)	1-09701-240-0	13	1	1211-		●
113	CLIP; INJ PIPE (B)	1-09701-213-1	03	1	9811-		●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	9601-9810	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	9811-0604	●	●
120	BRACKET; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (B)	1-15419-431-0	01	1	0605-	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	0605-		●
120	BRACKET; INJ PIPE (A)	1-15419-430-0	01	1	9708-0604	●
120	BRACKET; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-15419-430-0	01	1	0605-	●
120	BRACKET; INJ PIPE (A)	1-15419-435-1	01	1	9811-		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-0	02	1	9601-9810	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	9811-0604	●	●
131	CLIP; OVERFLOW LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-09701-132-1	02	1	0605-1210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	0605-1210		●
131	CLIP; OVERFLOW LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-09701-240-0	02	1	1211-	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-240-0	02	1	1211-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NJX>	1-15416-693-1	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0604	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-15415-777-0	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9811-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0605-	●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-9810	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	9811-0604	●	●
134	BOLT; JOINT,LEAK OFF PIPE EURO3 SPECIFICATION<NJX> (B) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-0702	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-94395-214-0	07	1	0605-0702	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.3 OD=15.0	8-98065-992-0	07	1	0703-0704	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-94395-214-0	07	1	0705-1312	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-98246-930-0	07	1	1401-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-9810	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	9811-0604	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0605-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0605-		●

289 216 199 199 211 290 133 288 124 287 135 288 134 135 135 16 62 17 134 18 135 19 20 21 31 54 212 66 211 128 128 1 121 2 7 15 10 7 6 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-15603-129-5	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D> AUSTRALIA EQUIPMENT(RR3) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-286-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-148-0	01	1	9703-9703	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-215-4	01	1	9704-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0005-0604	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-246-3	01	1	0605-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-116-0	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-151-0	01	1	9607-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-217-1	01	1	9703-9705	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) SPEED LIMITER CABLE STROKE CONTROL<TDT> EXC. A/T<X9D>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-258-3	01	1	9706-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-051-3	01	1	9601-9606	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-147-0	01	1	9607-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-214-3	01	1	9703-9804	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) A/T<X9D> SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-15603-287-1	01	1	9805-0004	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. KENYA EQUIPMENT(PQ2)	1-15603-035-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-272-0	01	1	9811-0004		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. KENYA EQUIPMENT(PQ2)	1-15603-272-0	01	1	0005-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. TAMPER PROOF INJ PUMP SET<W44>	1-15603-036-0	01	1	0010-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-15603-025-1	01	1	0012-		●
2	BOLT; INJ PUMP EURO3 SPECIFICATION<NJX> M8X90 FLANGE	0-28060-890-0	04	1	0605-	●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	9601-0512	●
2	BOLT; INJ PUMP M10X90	0-16856-090-0	04	1	0601-0604	●
2	BOLT; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> M10X90	0-16856-090-0	04	1	0605-	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9811-		●
6	BRACKET; INJ PUMP TO C/BL EURO3 SPECIFICATION<NJX>	1-19751-158-1	01	1	0605-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-071-0	01	1	9601-0002	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0003-0502	●
6	BRACKET; INJ PUMP TO C/BL	8-97608-455-0	01	1	0503-0604	●
6	BRACKET; INJ PUMP TO C/BL EXC. EURO3 SPECIFICATION<NJX>	8-97608-455-0	01	1	0605-	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9811-		●
7	BOLT; INJ PUMP BRKT EURO3 SPECIFICATION<NJX> (D) M10X100 FLANGE	0-28151-000-0	02	1	0605-	●
7	BOLT; INJ PUMP BRKT EURO3 SPECIFICATION<NJX> (E) M10X35 FLANGE	0-28151-035-0	03	1	0605-	●
7	BOLT; INJ PUMP BRKT (A) M10X65	0-16806-065-0	03	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28151-060-0	03	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (A) M10X60 FLANGE	0-28151-060-0	03	1	0605-	●
7	BOLT; INJ PUMP BRKT (B) M10X22	0-23801-022-0	01	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28751-025-0	01	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (B) M10X25 FLANGE	0-28751-025-0	01	1	0605-	●
7	BOLT; INJ PUMP BRKT (C) M10X35	0-23801-035-0	01	1	9601-0002	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0003-0512	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28751-040-0	01	1	0601-0604	●
7	BOLT; INJ PUMP BRKT EXC. EURO3 SPECIFICATION<NJX> (C) M10X40 FLANGE	0-28751-040-0	01	1	0605-	●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9811-0512		●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16856-050-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9811-		●
10	DOWEL; INJ PUMP EURO3 SPECIFICATION<NJX>	1-11229-012-1	02	1	0605-	●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	9601-0604	●
10	DOWEL; INJ PUMP EXC. EURO3 SPECIFICATION<NJX> OD=14 L=9	9-19759-019-1	02	1	0605-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-15780-192-0	01	1	0605-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	9601-0604	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>	1-15780-111-1	01	1	0605-	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-167-0	01	1	9811-		●
16	PIPE; INJ NO.1 EURO3 SPECIFICATION<NJX>	1-15416-329-1	01	1	0605-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0604	●
16	PIPE; INJ NO.1 EXC. EURO3 SPECIFICATION<NJX>	1-15415-763-0	01	1	0605-	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9811-		●
17	PIPE; INJ NO.2 EURO3 SPECIFICATION<NJX>	1-15416-175-1	01	1	0605-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0604	●
17	PIPE; INJ NO.2 EXC. EURO3 SPECIFICATION<NJX>	1-15415-764-0	01	1	0605-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9811-		●
18	PIPE; INJ NO.3 EURO3 SPECIFICATION<NJX>	1-15416-474-1	01	1	0605-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0604	●
18	PIPE; INJ NO.3 EXC. EURO3 SPECIFICATION<NJX>	1-15415-765-0	01	1	0605-	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9811-		●
19	PIPE; INJ NO.4 EURO3 SPECIFICATION<NJX>	1-15416-372-1	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0604	●
19	PIPE; INJ NO.4 EXC. EURO3 SPECIFICATION<NJX>	1-15415-766-0	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9811-		●
20	PIPE; INJ NO.5 EURO3 SPECIFICATION<NJX>	1-15416-397-1	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0604	●
20	PIPE; INJ NO.5 EXC. EURO3 SPECIFICATION<NJX>	1-15415-767-0	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9811-		●
21	PIPE; INJ NO.6 EURO3 SPECIFICATION<NJX>	1-15416-332-1	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0604	●
21	PIPE; INJ NO.6 EXC. EURO3 SPECIFICATION<NJX>	1-15415-768-0	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9811-		●
31	NOZZLE ASM; INJ EURO3 SPECIFICATION<NJX>	1-15300-415-1	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	9601-0604	●
31	NOZZLE ASM; INJ EXC. EURO3 SPECIFICATION<NJX>	1-15300-332-0	06	1	0605-	●
31	NOZZLE ASM; INJ	1-15300-263-1	06	1	9811-		●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9601-9810	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9811-	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9601-9810	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9811-0602	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9601-9810	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	1-15315-013-1	06	1	9811-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION EURO3 SPECIFICATION<NJX>	1-15416-689-0	01	1	0605-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	9601-0604	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. EURO3 SPECIFICATION<NJX>	1-15415-778-0	01	1	0605-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-783-0	01	1	9811-		●
124	BOLT; EYE LEAK OFF PIPE EURO3 SPECIFICATION<NJX> M8X20 EYE-BOLT	5-09675-018-1	06	1	0605-	●
128	PIPE ASM; INJ EURO3 SPECIFICATION<NJX> (A)	1-15416-266-1	01	1	0605-	●
128	PIPE ASM; INJ EURO3 SPECIFICATION<NJX> (B)	1-15416-374-1	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NJX>	1-15416-693-1	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0604	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-15415-777-0	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9811-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0605-	●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-9810	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	9811-0604	●	●
134	BOLT; JOINT,LEAK OFF PIPE EURO3 SPECIFICATION<NJX> (B) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-0702	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-94395-214-0	07	1	0605-0702	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.3 OD=15.0	8-98065-992-0	07	1	0703-0704	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-94395-214-0	07	1	0705-1312	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-98246-930-0	07	1	1401-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-9810	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	9811-0604	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0605-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0605-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (B)	8-97602-218-0	02	1	0605-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A)	1-15619-507-0	02	1	0605-	●
211	RAIL ASM; COMMON EURO3 SPECIFICATION<NJX>	1-15651-003-3	01	1	0605-	●
212	BOLT; RAIL ASM EURO3 SPECIFICATION<NJX> M10X50 FLANGE	0-28151-050-0	04	1	0605-	●
216	BOLT; EYE EURO3 SPECIFICATION<NJX> (B)	8-97351-388-0	01	1	0605-	●
216	BOLT; EYE EURO3 SPECIFICATION<NJX> (A)	5-15759-003-0	01	1	0605-	●
285	STUD; BRKT EURO3 SPECIFICATION<NJX> M6X30 L=38	9-04110-630-0	02	1	0605-0605	●
285	STUD; BRKT EURO3 SPECIFICATION<NJX> M6X30 L=38	0-41010-630-0	02	1	0605-	●
287	DAMPER; FUEL FLOW EURO3 SPECIFICATION<NJX>	1-15641-053-0	06	1	0605-	●
288	GASKET EURO3 SPECIFICATION<NJX> ID=11 OD=16.3	1-15641-046-0	07	1	0605-	●
289	LIMITER; FUEL PRESS EURO3 SPECIFICATION<NJX>	1-15641-047-1	01	1	0605-	●
290	SENSOR; PRESS EURO3 SPECIFICATION<NJX>	1-80220-012-0	01	1	0605-1505	●
290	SENSOR; PRESS EURO3 SPECIFICATION<NJX>	8-98306-900-0	01	1	1506-	●

110 134 99 131 99 135 113 133 113 135 131 99 16 120 113 17 113 18 113 113 110 113 110 113 110 113 110 113 16 110 113 19 17 18 113 113 20 21 112 120 113 113 113 120 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1 EURO3 SPECIFICATION<NJX>	1-15416-329-1	01	1	0605-	●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	9601-0604	●
16	PIPE; INJ NO.1 EXC. EURO3 SPECIFICATION<NJX>	1-15415-763-0	01	1	0605-	●
16	PIPE; INJ NO.1	1-15416-112-0	01	1	9811-		●
17	PIPE; INJ NO.2 EURO3 SPECIFICATION<NJX>	1-15416-175-1	01	1	0605-	●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	9601-0604	●
17	PIPE; INJ NO.2 EXC. EURO3 SPECIFICATION<NJX>	1-15415-764-0	01	1	0605-	●
17	PIPE; INJ NO.2	1-15414-243-0	01	1	9811-		●
18	PIPE; INJ NO.3 EURO3 SPECIFICATION<NJX>	1-15416-474-1	01	1	0605-	●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	9601-0604	●
18	PIPE; INJ NO.3 EXC. EURO3 SPECIFICATION<NJX>	1-15415-765-0	01	1	0605-	●
18	PIPE; INJ NO.3	1-15416-133-0	01	1	9811-		●
19	PIPE; INJ NO.4 EURO3 SPECIFICATION<NJX>	1-15416-372-1	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	9601-0604	●
19	PIPE; INJ NO.4 EXC. EURO3 SPECIFICATION<NJX>	1-15415-766-0	01	1	0605-	●
19	PIPE; INJ NO.4	1-15415-772-0	01	1	9811-		●
20	PIPE; INJ NO.5 EURO3 SPECIFICATION<NJX>	1-15416-397-1	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	9601-0604	●
20	PIPE; INJ NO.5 EXC. EURO3 SPECIFICATION<NJX>	1-15415-767-0	01	1	0605-	●
20	PIPE; INJ NO.5	1-15415-773-0	01	1	9811-		●
21	PIPE; INJ NO.6 EURO3 SPECIFICATION<NJX>	1-15416-332-1	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	9601-0604	●
21	PIPE; INJ NO.6 EXC. EURO3 SPECIFICATION<NJX>	1-15415-768-0	01	1	0605-	●
21	PIPE; INJ NO.6	1-15415-774-0	01	1	9811-		●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9810	●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9811-0512	●	●
71	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-0604	●	●
71	BOLT; BRKT EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28050-825-0	02	1	0605-	●
71	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0605-		●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	9601-0512	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	02	1	0601-0604	●
99	BOLT; CLIP,INJ,PIPE EXC. EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	02	1	0605-	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	03	1	9811-0512		●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28050-630-0	03	1	0601-		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9601-9611	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	9612-9810	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	9811-0602	●	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	06	1	0603-0604	●	●
110	NUT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	06	1	0605-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	06	1	0605-		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9601-0602	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-0604	●
112	NUT; BRKT,INJ PIPE CLIP EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0605-	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9811-0602		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-		●
113	CLIP; INJ PIPE (A)	1-09701-132-1	14	1	9612-0604	●
113	CLIP; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-09701-132-1	14	1	0605-1210	●
113	CLIP; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-09701-240-0	14	1	1211-	●
113	CLIP; INJ PIPE (A)	1-09701-132-1	13	1	9811-1210		●
113	CLIP; INJ PIPE (A)	1-09701-240-0	13	1	1211-		●
113	CLIP; INJ PIPE (B)	1-09701-213-1	03	1	9811-		●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	9601-9810	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	9811-0604	●	●
120	BRACKET; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (B)	1-15419-431-0	01	1	0605-	●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	0605-		●
120	BRACKET; INJ PIPE (A)	1-15419-430-0	01	1	9708-0604	●
120	BRACKET; INJ PIPE EXC. EURO3 SPECIFICATION<NJX> (A)	1-15419-430-0	01	1	0605-	●
120	BRACKET; INJ PIPE (A)	1-15419-435-1	01	1	9811-		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-0	02	1	9601-9810	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	9811-0604	●	●
131	CLIP; OVERFLOW LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-09701-132-1	02	1	0605-1210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-1	02	1	0605-1210		●
131	CLIP; OVERFLOW LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-09701-240-0	02	1	1211-	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-240-0	02	1	1211-		●
133	PIPE; INJ NOZZLE LEAK OFF EURO3 SPECIFICATION<NJX>	1-15416-693-1	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-777-0	01	1	9601-0604	●
133	PIPE; INJ NOZZLE LEAK OFF EXC. EURO3 SPECIFICATION<NJX>	1-15415-777-0	01	1	0605-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15415-782-0	01	1	9811-		●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0605-	●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	9601-9810	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	9811-0604	●	●
134	BOLT; JOINT,LEAK OFF PIPE EURO3 SPECIFICATION<NJX> (B) M14X27 FLANGE	1-09675-086-0	01	1	0605-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0605-0702	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-94395-214-0	07	1	0605-0702	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.3 OD=15.0	8-98065-992-0	07	1	0703-0704	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-94395-214-0	07	1	0705-1312	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> (C) ID=8.6	8-98246-930-0	07	1	1401-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.2 OD=13.2	1-09630-082-0	02	1	9601-9810	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	9811-0604	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0605-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0605-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
