Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#65047) — 1123 parça

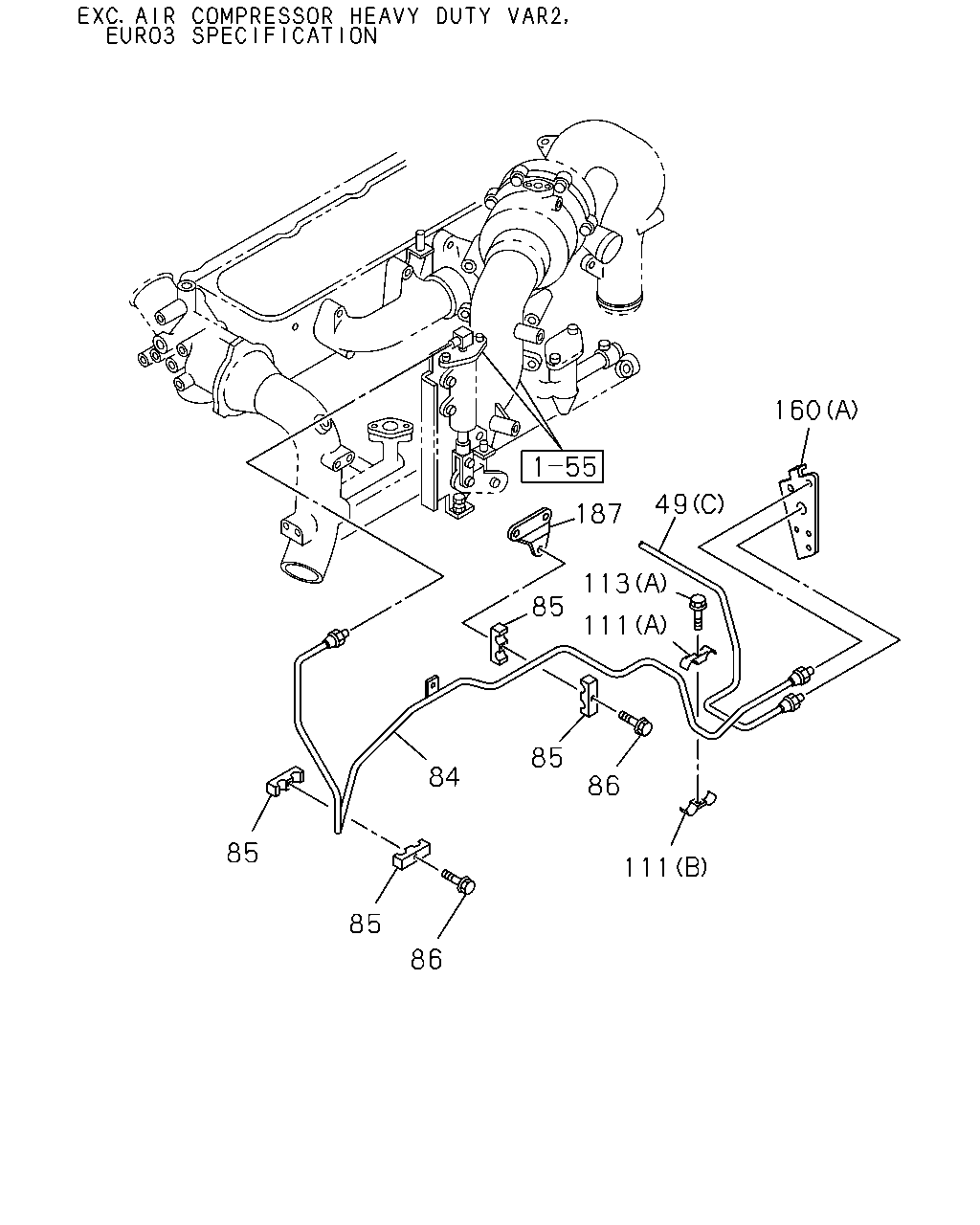

160 49 187 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
84	PIPE; AIR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-337-0	01	1	0605-	●
84	PIPE; AIR EURO3 SPECIFICATION<NJX>	1-19193-354-0	01	1	0605-	●
84	PIPE; AIR	1-19192-964-0	01	1	9601-9607	●
84	PIPE; AIR EXC. ENGINE REAR PTO<SV1>	1-19192-964-0	01	1	9608-0604	●
84	PIPE; AIR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-964-0	01	1	0605-	●
84	PIPE; AIR ENGINE REAR PTO<SV1>	1-19192-976-0	01	1	9608-0604	●
84	PIPE; AIR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-976-0	01	1	0605-	●
85	CLIP; PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-09701-240-0	04	1	0605-	●
85	CLIP; PIPE	1-09701-240-0	04	1	9601-0604	●
85	CLIP; PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-09701-240-0	06	1	0605-	●
86	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	02	1	0605-	●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	9601-0512	●
86	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	02	1	0601-0604	●
86	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-09701-272-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (G)	8-94393-037-0	03	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-547-0	02	1	0605-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-550-0	02	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-9810	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9811-0604	●	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	06	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0605-		●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> (C)	1-09701-208-0	02	1	9608-0604	●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	02	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9811-		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9811-		●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0605-0906	●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50540-632-0	02	1	0907-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-9810	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9811-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-0604	●	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-9607	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9608-9810	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512		●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28080-635-0	01	1	9608-0512	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
160	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D)	1-19199-351-1	01	1	0605-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-378-0	01	1	0605-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	9601-0604	●
160	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-19199-251-1	01	1	0605-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> (B)	1-19199-277-0	01	1	9608-0604	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-19199-277-0	01	1	0605-	●
160	BRACKET; AIR PIPE (C)	1-19199-120-0	01	1	9811-		●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	9601-0604	●
187	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-19199-261-0	01	1	0605-	●

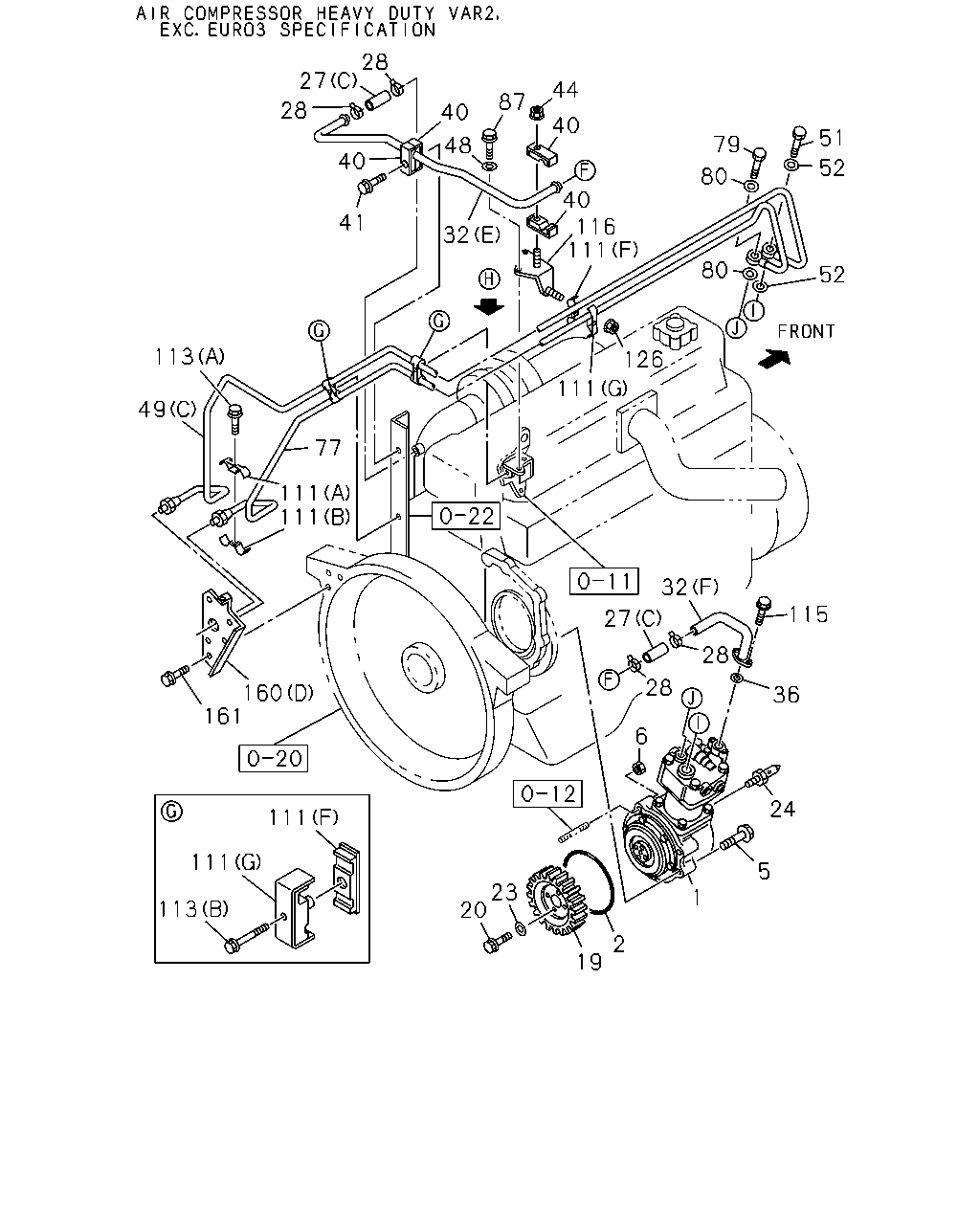

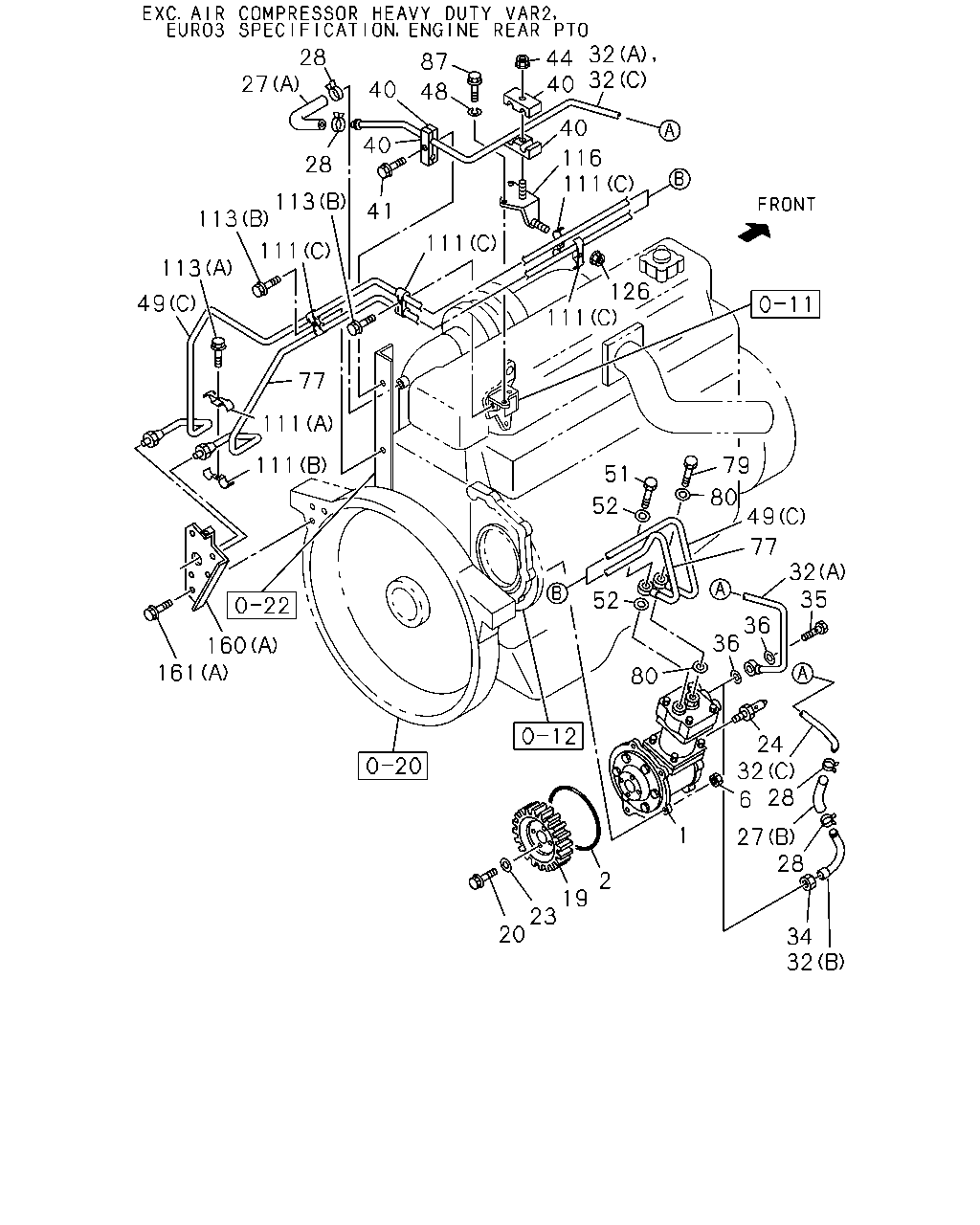

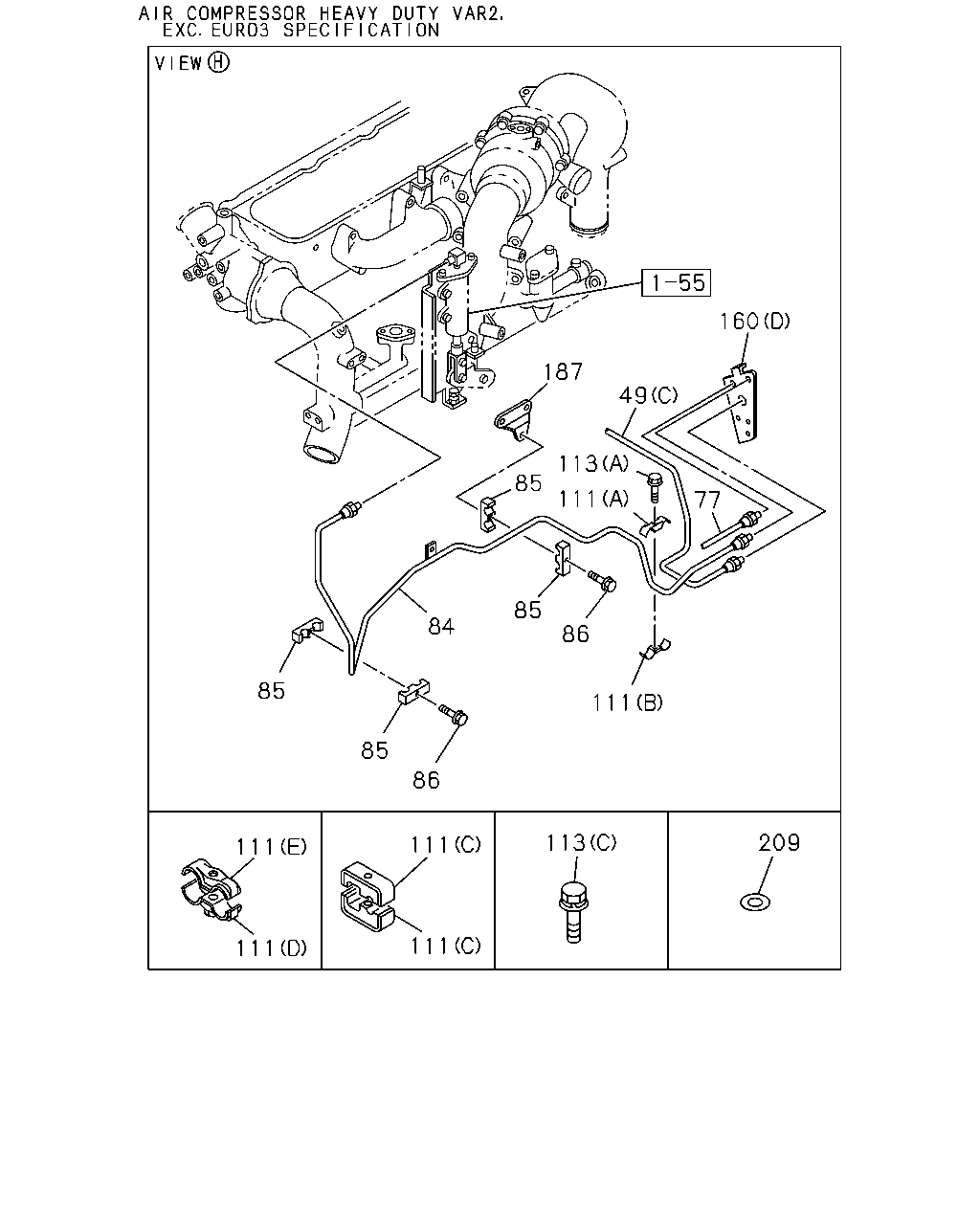

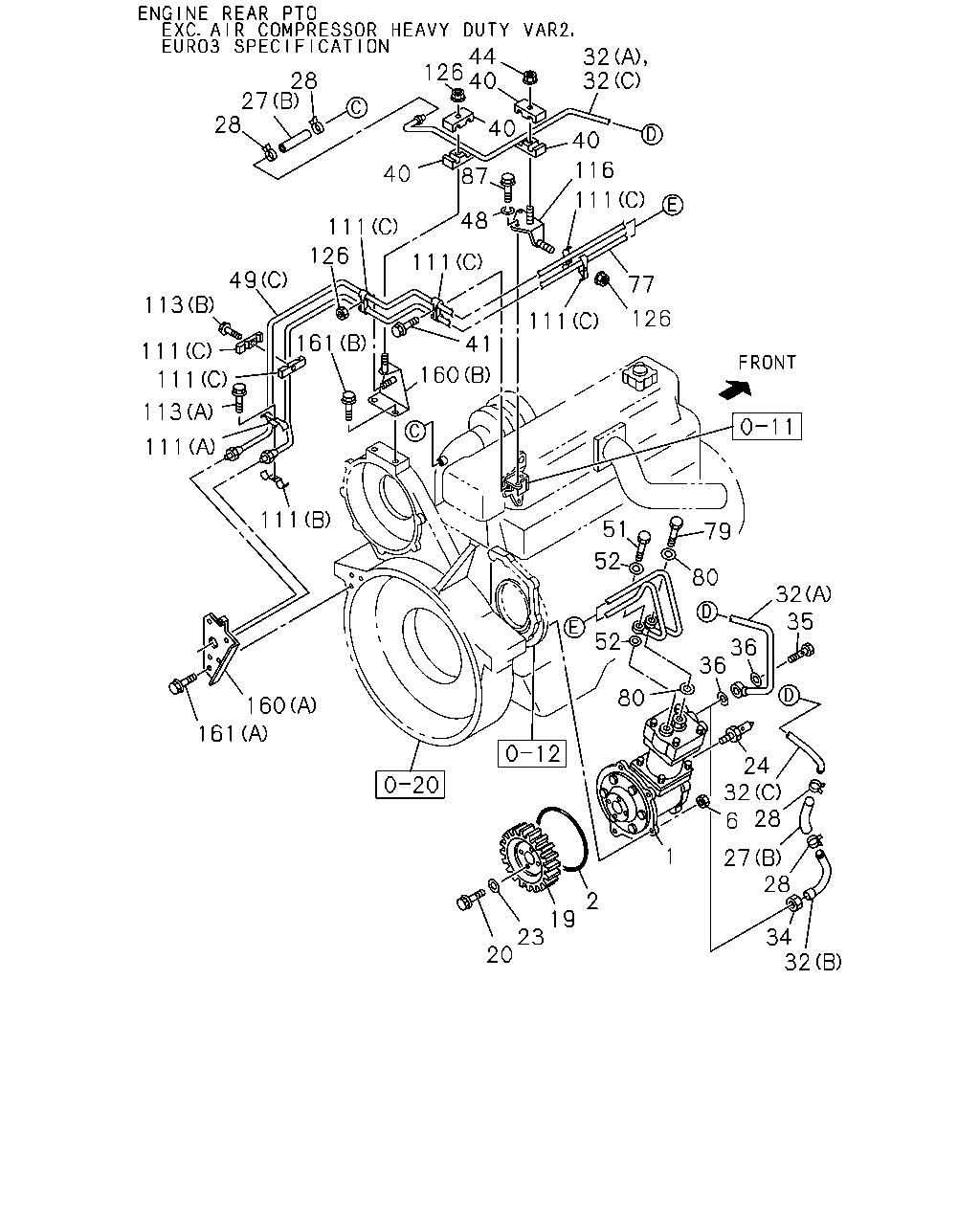

160 187 49 113 85 111 77 85 84 86 85 111 85 86 113 209 111 111 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-227-1	01	1	0605-	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION<NJX>	1-19193-351-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-9607	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9608-9810	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9811-0604	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9811-0604		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0605-		●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1>	1-19192-977-0	01	1	9608-0604	●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-977-0	01	1	0605-	●
84	PIPE; AIR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-337-0	01	1	0605-	●
84	PIPE; AIR EURO3 SPECIFICATION<NJX>	1-19193-354-0	01	1	0605-	●
84	PIPE; AIR	1-19192-964-0	01	1	9601-9607	●
84	PIPE; AIR EXC. ENGINE REAR PTO<SV1>	1-19192-964-0	01	1	9608-0604	●
84	PIPE; AIR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-964-0	01	1	0605-	●
84	PIPE; AIR ENGINE REAR PTO<SV1>	1-19192-976-0	01	1	9608-0604	●
84	PIPE; AIR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-976-0	01	1	0605-	●
85	CLIP; PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-09701-240-0	04	1	0605-	●
85	CLIP; PIPE	1-09701-240-0	04	1	9601-0604	●
85	CLIP; PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-09701-240-0	06	1	0605-	●
86	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	02	1	0605-	●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	9601-0512	●
86	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	02	1	0601-0604	●
86	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-09701-272-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (G)	8-94393-037-0	03	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-547-0	02	1	0605-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-550-0	02	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-9810	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9811-0604	●	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	06	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0605-		●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> (C)	1-09701-208-0	02	1	9608-0604	●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	02	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9811-		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9811-		●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0605-0906	●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50540-632-0	02	1	0907-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-9810	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9811-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-0604	●	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-9607	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9608-9810	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512		●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28080-635-0	01	1	9608-0512	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
160	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D)	1-19199-351-1	01	1	0605-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-378-0	01	1	0605-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	9601-0604	●
160	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-19199-251-1	01	1	0605-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> (B)	1-19199-277-0	01	1	9608-0604	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-19199-277-0	01	1	0605-	●
160	BRACKET; AIR PIPE (C)	1-19199-120-0	01	1	9811-		●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	9601-0604	●
187	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-19199-261-0	01	1	0605-	●
209	WASHER; PL EXC. EURO3 SPECIFICATION<NJX> ID=6.4 OD=18	9-09160-706-0	02	1	0605-0605	●
209	WASHER; PL EXC. EURO3 SPECIFICATION<NJX> ID=6.4 OD=18	0-91610-706-0	02	1	0606-	●

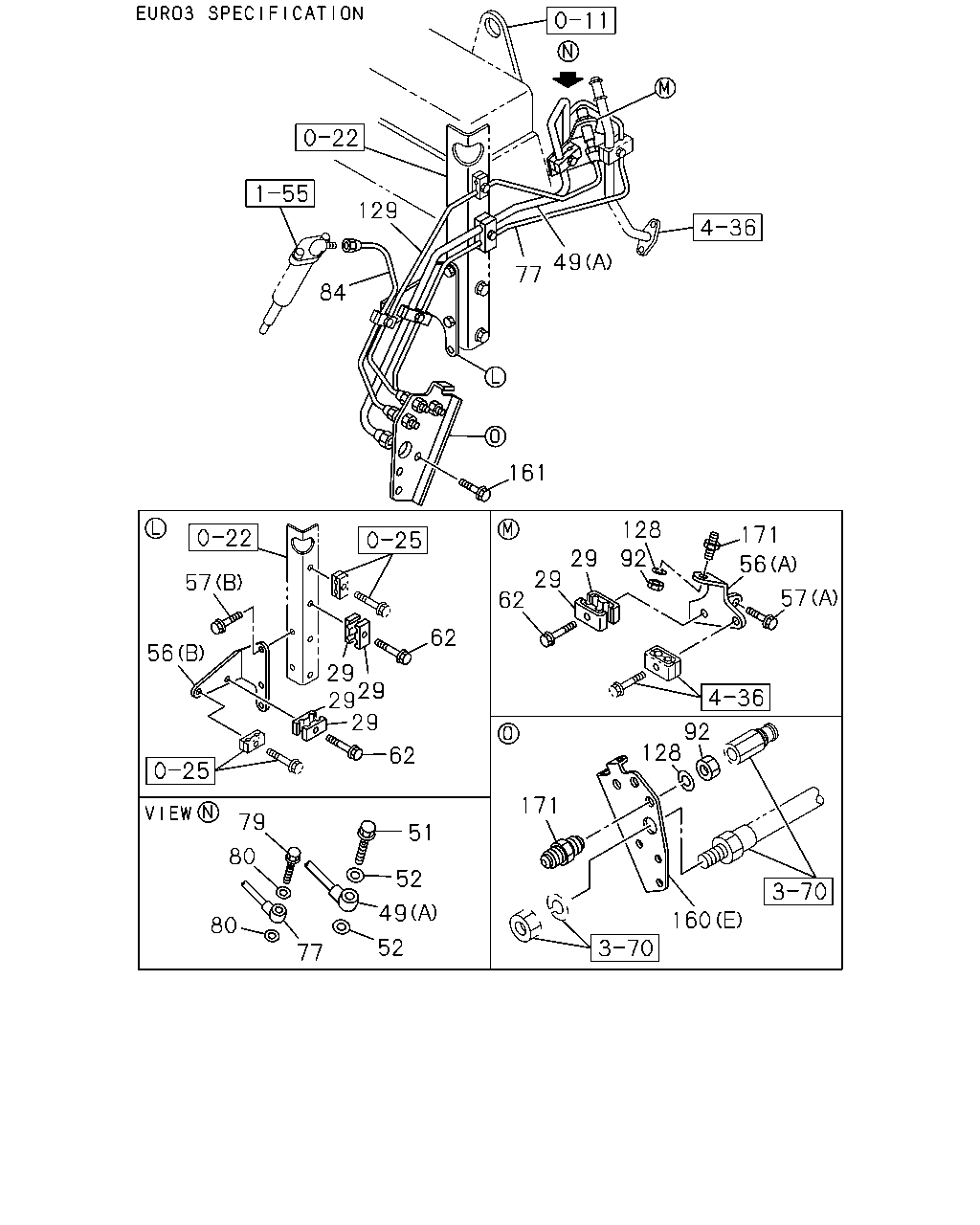

129 49 77 84 161 128 171 29 29 62 92 56 57 57 62 56 29 29 29 29 92 128 62 171 79 51 80 52 49 160 80 52 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-208-0	06	1	0605-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9811-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-	●	●
56	BRACKET; AIR PIPE FIX EURO3 SPECIFICATION<NJX> (A)	1-19193-353-0	01	1	0605-	●
56	BRACKET; AIR PIPE FIX EURO3 SPECIFICATION<NJX> (B)	1-19199-379-0	01	1	0605-	●
57	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION<NJX> (A) M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
57	BOLT; BRKT,AIR PIPE EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	0-28650-820-0	02	1	0605-	●
62	BOLT; CLIP EURO3 SPECIFICATION<NJX> M6X40 FLANGE	0-28650-640-0	03	1	0605-	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-227-1	01	1	0605-	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION<NJX>	1-19193-351-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-9607	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9608-9810	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9811-0604	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9811-0604		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0605-		●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1>	1-19192-977-0	01	1	9608-0604	●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-977-0	01	1	0605-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
84	PIPE; AIR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-337-0	01	1	0605-	●
84	PIPE; AIR EURO3 SPECIFICATION<NJX>	1-19193-354-0	01	1	0605-	●
84	PIPE; AIR	1-19192-964-0	01	1	9601-9607	●
84	PIPE; AIR EXC. ENGINE REAR PTO<SV1>	1-19192-964-0	01	1	9608-0604	●
84	PIPE; AIR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-964-0	01	1	0605-	●
84	PIPE; AIR ENGINE REAR PTO<SV1>	1-19192-976-0	01	1	9608-0604	●
84	PIPE; AIR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-976-0	01	1	0605-	●
92	NUT; UNION EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	04	1	0605-	●
128	WASHER; LK,UNION EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	04	1	0605-	●
129	PIPE; AIR,VGS EURO3 SPECIFICATION<NJX>	1-19193-355-0	01	1	0605-	●
160	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D)	1-19199-351-1	01	1	0605-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-378-0	01	1	0605-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	9601-0604	●
160	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-19199-251-1	01	1	0605-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> (B)	1-19199-277-0	01	1	9608-0604	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-19199-277-0	01	1	0605-	●
160	BRACKET; AIR PIPE (C)	1-19199-120-0	01	1	9811-		●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	9601-0512	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9608-9810	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0605-		●
171	UNION EURO3 SPECIFICATION<NJX> M12 L=66.5	9-09223-306-1	04	1	0605-0607	●
171	UNION EURO3 SPECIFICATION<NJX> M12 L=66.5	0-92113-306-0	04	1	0608-	●

28 27 28 49 28 27 28 32 36 116 116 35 36 79 80 77 80 24 51 52 1 6 49 2 5 52 19 23 20 41 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	9811-0604	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19100-327-6	01	1	0605-1306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	8-98242-645-1	01	1	1307-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9811-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-9810	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9811-	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M12X130 FLANGE	0-28166-213-0	02	1	0605-	●
5	BOLT; AIR CMPR FIX EURO3 SPECIFICATION<NJX> M12X70 FLANGE	0-28151-270-0	02	1	0605-	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-9810	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9811-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-0604	●	●
6	NUT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	04	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0605-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9811-		●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9811-		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-9810	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9811-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-9607	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9608-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9811-0604	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9811-0604		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0605-		●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9608-9804	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0010-0011	●	●
28	CLIP; HOSE,AIR CMPR EXC. NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0010-0011	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0012-0604	●	●
28	CLIP; HOSE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0012-0604	●
28	CLIP; HOSE,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0605-		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E)	1-19193-271-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-19193-272-1	01	1	0605-0802	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	8-98100-016-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION<NJX> (G)	1-19193-356-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-892-0	01	1	9601-9607	●
32	PIPE; AIR,AIR CMPR EXC. ENGINE REAR PTO<SV1>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	9608-0604	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> (B)	1-19193-037-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-19193-037-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (A)	1-19192-979-0	01	1	9608-9804	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> BRAKE REGULATION ADR<TDU> (C)	1-19193-075-0	01	1	9805-0004	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (C)	1-19193-075-0	01	1	0005-0604	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-075-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (D)	1-19192-908-0	01	1	9811-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9601-9804	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9805-9810	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9811-0009	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9811-0009		●
35	BOLT; EYE,AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M24X39	1-09675-175-1	01	1	0010-0604	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0010-0604		●
35	BOLT; EYE,AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU> ID=24.5 OD=32	9-09571-424-0	02	1	9805-9810	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=26.8	1-09623-415-0	01	1	0605-0802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=24.5	8-94399-398-0	01	1	0803-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-09701-281-1	04	1	0605-	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-281-1	08	1	0605-	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	9601-0604	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-09701-210-0	04	1	0605-	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> M8X50 FLANGE	0-28050-850-0	04	1	0605-	●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	9601-0003	●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0004-0512	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-0604	●
41	BOLT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	0605-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9811-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-227-1	01	1	0605-	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION<NJX>	1-19193-351-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-9607	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9608-9810	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9811-0604	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9811-0604		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0605-		●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1>	1-19192-977-0	01	1	9608-0604	●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-977-0	01	1	0605-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX>	1-14119-468-0	02	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-9810	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9811-0604	●	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-19199-357-0	01	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-		●

32 32 28 44 40 87 27 40 48 40 40 116 111 28 113 113 4 111 111 113 126 111 49 77 111 111 79 51 80 49 52 77 32 35 52 36 36 160 161 80 24 32 28 6 1 27 28 2 19 23 20 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	9811-0604	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19100-327-6	01	1	0605-1306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	8-98242-645-1	01	1	1307-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9811-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-9810	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9811-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9811-		●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-9810	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9811-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-0604	●	●
6	NUT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	04	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0605-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9811-		●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9811-		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-9810	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9811-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-9607	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9608-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9811-0604	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9811-0604		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0605-		●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9608-9804	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0010-0011	●	●
28	CLIP; HOSE,AIR CMPR EXC. NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0010-0011	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0012-0604	●	●
28	CLIP; HOSE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0012-0604	●
28	CLIP; HOSE,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0605-		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E)	1-19193-271-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-19193-272-1	01	1	0605-0802	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	8-98100-016-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION<NJX> (G)	1-19193-356-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-892-0	01	1	9601-9607	●
32	PIPE; AIR,AIR CMPR EXC. ENGINE REAR PTO<SV1>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	9608-0604	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> (B)	1-19193-037-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-19193-037-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (A)	1-19192-979-0	01	1	9608-9804	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> BRAKE REGULATION ADR<TDU> (C)	1-19193-075-0	01	1	9805-0004	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (C)	1-19193-075-0	01	1	0005-0604	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-075-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (D)	1-19192-908-0	01	1	9811-		●
34	NUT; LK SUCTION PIPE BRAKE REGULATION ADR<TDU>	9-09840-254-0	01	1	9805-0604	●
34	NUT; LK SUCTION PIPE EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-09840-254-0	01	1	0605-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9601-9804	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9805-9810	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9811-0009	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9811-0009		●
35	BOLT; EYE,AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M24X39	1-09675-175-1	01	1	0010-0604	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0010-0604		●
35	BOLT; EYE,AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU> ID=24.5 OD=32	9-09571-424-0	02	1	9805-9810	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=26.8	1-09623-415-0	01	1	0605-0802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=24.5	8-94399-398-0	01	1	0803-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-09701-281-1	04	1	0605-	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-281-1	08	1	0605-	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	9601-0604	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-09701-210-0	04	1	0605-	●
44	NUT M6 FLANGE	0-91150-106-0	01	1	9601-0602	●
44	NUT M6 FLANGE	0-91180-106-0	01	1	0603-0604	●
44	NUT EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0604	●	●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605		●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5	0-91610-510-0	02	1	0606-	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9811-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-227-1	01	1	0605-	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION<NJX>	1-19193-351-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-9607	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9608-9810	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9811-0604	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9811-0604		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0605-		●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1>	1-19192-977-0	01	1	9608-0604	●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-977-0	01	1	0605-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-9810	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9811-0003	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0512	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-0604	●	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28051-020-0	02	1	0605-	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0605-		●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-09701-272-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (G)	8-94393-037-0	03	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-547-0	02	1	0605-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-550-0	02	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-9810	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9811-0604	●	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	06	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0605-		●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> (C)	1-09701-208-0	02	1	9608-0604	●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	02	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9811-		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9811-		●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0605-0906	●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50540-632-0	02	1	0907-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-9810	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9811-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-0604	●	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-9607	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9608-9810	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512		●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28080-635-0	01	1	9608-0512	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX>	1-14119-468-0	02	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-9810	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9811-0604	●	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-19199-357-0	01	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-		●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-9810	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9811-0602	●	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-0604	●	●
126	NUT; CLIP FIX EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0605-		●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91150-106-0	02	1	9608-0602	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91180-106-0	02	1	0603-0604	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-	●
160	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D)	1-19199-351-1	01	1	0605-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-378-0	01	1	0605-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	9601-0604	●
160	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-19199-251-1	01	1	0605-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> (B)	1-19199-277-0	01	1	9608-0604	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-19199-277-0	01	1	0605-	●
160	BRACKET; AIR PIPE (C)	1-19199-120-0	01	1	9811-		●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	9601-0512	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9608-9810	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0605-		●

28 27 44 87 28 40 40 51 79 48 40 52 80 40 116 111 41 32 80 52 113 126 111 49 77 111 111 32 115 27 28 28 160 161 36 6 24 111 111 5 23 20 1 113 2 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	9811-0604	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19100-327-6	01	1	0605-1306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	8-98242-645-1	01	1	1307-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9811-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-9810	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9811-	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M12X130 FLANGE	0-28166-213-0	02	1	0605-	●
5	BOLT; AIR CMPR FIX EURO3 SPECIFICATION<NJX> M12X70 FLANGE	0-28151-270-0	02	1	0605-	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-9810	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9811-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-0604	●	●
6	NUT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	04	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0605-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9811-		●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9811-		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-9810	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9811-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-9607	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9608-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9811-0604	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9811-0604		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0605-		●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9608-9804	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0010-0011	●	●
28	CLIP; HOSE,AIR CMPR EXC. NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0010-0011	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0012-0604	●	●
28	CLIP; HOSE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0012-0604	●
28	CLIP; HOSE,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0605-		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E)	1-19193-271-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-19193-272-1	01	1	0605-0802	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	8-98100-016-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION<NJX> (G)	1-19193-356-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-892-0	01	1	9601-9607	●
32	PIPE; AIR,AIR CMPR EXC. ENGINE REAR PTO<SV1>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	9608-0604	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> (B)	1-19193-037-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-19193-037-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (A)	1-19192-979-0	01	1	9608-9804	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> BRAKE REGULATION ADR<TDU> (C)	1-19193-075-0	01	1	9805-0004	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (C)	1-19193-075-0	01	1	0005-0604	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-075-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (D)	1-19192-908-0	01	1	9811-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU> ID=24.5 OD=32	9-09571-424-0	02	1	9805-9810	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=26.8	1-09623-415-0	01	1	0605-0802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=24.5	8-94399-398-0	01	1	0803-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-09701-281-1	04	1	0605-	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-281-1	08	1	0605-	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	9601-0604	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-09701-210-0	04	1	0605-	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> M8X50 FLANGE	0-28050-850-0	04	1	0605-	●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	9601-0003	●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0004-0512	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-0604	●
41	BOLT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	0605-	●
44	NUT M6 FLANGE	0-91150-106-0	01	1	9601-0602	●
44	NUT M6 FLANGE	0-91180-106-0	01	1	0603-0604	●
44	NUT EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0604	●	●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605		●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5	0-91610-510-0	02	1	0606-	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9811-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-227-1	01	1	0605-	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION<NJX>	1-19193-351-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-9607	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9608-9810	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9811-0604	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9811-0604		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0605-		●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1>	1-19192-977-0	01	1	9608-0604	●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-977-0	01	1	0605-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-9810	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9811-0003	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0512	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-0604	●	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28051-020-0	02	1	0605-	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0605-		●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-09701-272-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (G)	8-94393-037-0	03	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-547-0	02	1	0605-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-550-0	02	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-9810	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9811-0604	●	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	06	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0605-		●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> (C)	1-09701-208-0	02	1	9608-0604	●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	02	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9811-		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9811-		●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0605-0906	●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50540-632-0	02	1	0907-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-9810	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9811-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-0604	●	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-9607	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9608-9810	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512		●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28080-635-0	01	1	9608-0512	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
115	BOLT; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX>	1-14119-468-0	02	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-9810	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9811-0604	●	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-19199-357-0	01	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-		●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-9810	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9811-0602	●	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-0604	●	●
126	NUT; CLIP FIX EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0605-		●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91150-106-0	02	1	9608-0602	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91180-106-0	02	1	0603-0604	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-	●
160	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D)	1-19199-351-1	01	1	0605-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-378-0	01	1	0605-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	9601-0604	●
160	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-19199-251-1	01	1	0605-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> (B)	1-19199-277-0	01	1	9608-0604	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-19199-277-0	01	1	0605-	●
160	BRACKET; AIR PIPE (C)	1-19199-120-0	01	1	9811-		●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	9601-0512	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9608-9810	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0605-		●

44 126 40 32 32 28 27 28 40 40 116 40 87 111 48 111 126 111 49 77 113 41 126 111 161 111 160 111 113 111 111 51 79 52 80 32 35 52 36 36 80 160 161 24 32 28 6 1 27 28 2 19 23 20 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	9811-0604	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19100-327-6	01	1	0605-1306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	8-98242-645-1	01	1	1307-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9811-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-9810	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9811-	●	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-9810	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9811-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-0604	●	●
6	NUT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	04	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0605-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9811-		●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9811-		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-9810	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9811-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-9607	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9608-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9811-0604	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9811-0604		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0605-		●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9608-9804	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0010-0011	●	●
28	CLIP; HOSE,AIR CMPR EXC. NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0010-0011	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0012-0604	●	●
28	CLIP; HOSE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0012-0604	●
28	CLIP; HOSE,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0605-		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E)	1-19193-271-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-19193-272-1	01	1	0605-0802	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	8-98100-016-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION<NJX> (G)	1-19193-356-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-892-0	01	1	9601-9607	●
32	PIPE; AIR,AIR CMPR EXC. ENGINE REAR PTO<SV1>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	9608-0604	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> (B)	1-19193-037-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-19193-037-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (A)	1-19192-979-0	01	1	9608-9804	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> BRAKE REGULATION ADR<TDU> (C)	1-19193-075-0	01	1	9805-0004	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (C)	1-19193-075-0	01	1	0005-0604	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-075-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (D)	1-19192-908-0	01	1	9811-		●
34	NUT; LK SUCTION PIPE BRAKE REGULATION ADR<TDU>	9-09840-254-0	01	1	9805-0604	●
34	NUT; LK SUCTION PIPE EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-09840-254-0	01	1	0605-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9601-9804	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9805-9810	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9811-0009	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9811-0009		●
35	BOLT; EYE,AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M24X39	1-09675-175-1	01	1	0010-0604	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0010-0604		●
35	BOLT; EYE,AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU> ID=24.5 OD=32	9-09571-424-0	02	1	9805-9810	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=26.8	1-09623-415-0	01	1	0605-0802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=24.5	8-94399-398-0	01	1	0803-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-09701-281-1	04	1	0605-	●
40	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-281-1	08	1	0605-	●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	9601-0604	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-09701-210-0	04	1	0605-	●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> M8X50 FLANGE	0-28050-850-0	04	1	0605-	●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	9601-0003	●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0004-0512	●
41	BOLT; CLIP M6X50 FLANGE	0-28050-650-0	01	1	0601-0604	●
41	BOLT; CLIP EXC. EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	0605-	●
44	NUT M6 FLANGE	0-91150-106-0	01	1	9601-0602	●
44	NUT M6 FLANGE	0-91180-106-0	01	1	0603-0604	●
44	NUT EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0604	●	●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605		●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5	0-91610-510-0	02	1	0606-	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9811-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-227-1	01	1	0605-	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION<NJX>	1-19193-351-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-9607	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9608-9810	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9811-0604	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9811-0604		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0605-		●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1>	1-19192-977-0	01	1	9608-0604	●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-977-0	01	1	0605-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-9810	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9811-0003	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0512	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-0604	●	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28051-020-0	02	1	0605-	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0605-		●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-09701-272-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (G)	8-94393-037-0	03	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-547-0	02	1	0605-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-550-0	02	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-9810	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9811-0604	●	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	06	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0605-		●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> (C)	1-09701-208-0	02	1	9608-0604	●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	02	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9811-		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9811-		●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0605-0906	●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50540-632-0	02	1	0907-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-9810	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9811-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-0604	●	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-9607	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9608-9810	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512		●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28080-635-0	01	1	9608-0512	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX>	1-14119-468-0	02	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-9810	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9811-0604	●	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-19199-357-0	01	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-		●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-9810	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9811-0602	●	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-0604	●	●
126	NUT; CLIP FIX EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0605-		●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91150-106-0	02	1	9608-0602	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91180-106-0	02	1	0603-0604	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-	●
160	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D)	1-19199-351-1	01	1	0605-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-378-0	01	1	0605-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	9601-0604	●
160	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-19199-251-1	01	1	0605-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> (B)	1-19199-277-0	01	1	9608-0604	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-19199-277-0	01	1	0605-	●
160	BRACKET; AIR PIPE (C)	1-19199-120-0	01	1	9811-		●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	9601-0512	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9608-9810	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0605-		●

27 51 52 28 193 79 126 111 87 32 80 48 111 28 111 113 116 35 111 80 113 111 52 36 36 24 1 111 113 4 6 111 77 111 2 49 160 161 19 22 23 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-19100-319-3	01	1	0605-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-1	01	1	9811-0604	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19100-327-6	01	1	0605-1306	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	8-98242-645-1	01	1	1307-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-253-6	01	1	9811-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9601-9810	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	9811-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	9811-		●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	02	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9601-9810	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	04	1	9811-0602	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0603-0604	●	●
6	NUT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> M12 FLANGE	0-91180-112-0	04	1	0605-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-112-0	04	1	0605-		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-	●
19	GEAR; INJ PUMP Z=36	1-12524-100-1	01	1	9811-		●
21	NUT; PUMP GEAR M24	9-99111-524-0	01	1	9811-0512		●
21	NUT; PUMP GEAR M24	0-91111-524-0	01	1	0601-		●
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	9-09150-524-0	01	1	9811-0603		●
22	WASHER; LK,INJ PUMP GEAR FIX ID=24.5	0-91510-524-0	01	1	0604-		●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-	●
23	WASHER; PL,PUMP GEAR ID=25	9-09160-524-0	01	1	9811-		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-9810	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9811-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION EURO3 SPECIFICATION<NJX> (C) L=55	1-09360-784-0	02	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9601-9607	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9608-9810	●
27	HOSE; AIR CMPR,SUCTION EXC. ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	9811-0604	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	9811-0604		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (A)	1-09360-916-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	01	1	0605-		●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9608-9804	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> (B)	0-02117-080-0	01	1	9805-0604	●
27	HOSE; AIR CMPR,SUCTION BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
27	HOSE; AIR CMPR,SUCTION ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	0-02117-080-0	01	1	0605-	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR EURO3 SPECIFICATION<NJX> ID=28.5	1-09707-150-0	04	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-9810	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9811-0009	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0010-0011	●	●
28	CLIP; HOSE,AIR CMPR EXC. NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0010-0011	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0012-0604	●	●
28	CLIP; HOSE,AIR CMPR NEW ZEALAND EQUIPMENT(PK5) ID=22.7	8-94466-382-0	02	1	0012-0604	●
28	CLIP; HOSE,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> ID=22.7	8-94466-382-0	02	1	0605-	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	0605-		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E)	1-19193-271-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-19193-272-1	01	1	0605-0802	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	8-98100-016-0	01	1	0803-	●
32	PIPE; AIR,AIR CMPR EURO3 SPECIFICATION<NJX> (G)	1-19193-356-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-892-0	01	1	9601-9607	●
32	PIPE; AIR,AIR CMPR EXC. ENGINE REAR PTO<SV1>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	9608-0604	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> (A)	1-19192-892-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> (B)	1-19193-037-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B)	1-19193-037-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	9805-0604	●
32	PIPE; AIR,AIR CMPR BRAKE REGULATION ADR<TDU> EXC. EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19193-038-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (A)	1-19192-979-0	01	1	9608-9804	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> BRAKE REGULATION ADR<TDU> (C)	1-19193-075-0	01	1	9805-0004	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> (C)	1-19193-075-0	01	1	0005-0604	●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-075-0	01	1	0605-	●
32	PIPE; AIR,AIR CMPR (D)	1-19192-908-0	01	1	9811-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9601-9804	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9805-9810	●
35	BOLT; EYE,AIR PIPE EXC. BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-1	01	1	9811-0009	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	9811-0009		●
35	BOLT; EYE,AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M24X39	1-09675-175-1	01	1	0010-0604	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-1	01	1	0010-0604		●
35	BOLT; EYE,AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M24X39	1-09675-175-2	01	1	0605-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>. ID=24.5 OD=32	9-09571-424-0	02	1	0605-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0605-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9804	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU> ID=24.5 OD=32	9-09571-424-0	02	1	9805-9810	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. BRAKE REGULATION ADR<TDU>. ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-0009		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. NEW ZEALAND EQUIPMENT(PK5). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0010-0604		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=26.8	1-09623-415-0	01	1	0605-0802	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> ID=24.5	8-94399-398-0	01	1	0803-	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0604	●	●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605	●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0605-0605		●
48	WASHER; PL,BRKT EXC. EURO3 SPECIFICATION<NJX> ID=10.5	0-91610-510-0	02	1	0606-	●
48	WASHER; PL,BRKT ID=10.5	0-91610-510-0	02	1	0606-		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-338-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (A)	1-19193-350-0	01	1	0605-	●
49	PIPE; AIR,CHARGE EURO3 SPECIFICATION<NJX> (B)	1-19193-357-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9601-9607	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9608-9810	●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	9811-0604	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	9811-0604		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1> (C)	1-19192-963-0	01	1	0605-	●
49	PIPE; AIR,CHARGE (C)	1-19192-963-0	01	1	0605-		●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> (C)	1-19192-978-0	01	1	9608-0604	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-19192-978-0	01	1	0605-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9601-9810	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9811-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9810	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9811-	●	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-19193-227-1	01	1	0605-	●
77	PIPE; AIR,GOV EURO3 SPECIFICATION<NJX>	1-19193-351-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-9607	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9608-9810	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	9811-0604	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9811-0604		●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>,ENGINE REAR PTO<SV1>	1-19192-962-0	01	1	0605-	●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	0605-		●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1>	1-19192-977-0	01	1	9608-0604	●
77	PIPE; AIR,GOV ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-19192-977-0	01	1	0605-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9810	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9811-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9810	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-1312	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-9810	●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9811-0003	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0512	●	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0601-0604	●	●
87	BOLT; BRKT FIX EXC. EURO3 SPECIFICATION<NJX> M10X20 FLANGE	0-28051-020-0	02	1	0605-	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28051-020-0	02	1	0605-		●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (F)	1-09701-272-0	03	1	0605-	●
111	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (G)	8-94393-037-0	03	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) WO/NUT	1-09700-547-0	02	1	0605-	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0604	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (B) W/NUT	1-09700-550-0	02	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-9810	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9811-0604	●	●
111	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	06	1	0605-	●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	0605-		●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> (C)	1-09701-208-0	02	1	9608-0604	●
111	CLIP; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C)	1-09701-208-0	02	1	0605-	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9811-		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9811-		●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0605-0906	●
113	BOLT; CLIP,AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C) M6X32 W/LK WASHER	0-50540-632-0	02	1	0907-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9601-9810	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	9811-0512	●	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0601-0604	●	●
113	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-	●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28050-625-0	02	1	0605-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9601-9607	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9608-9810	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	9811-0512		●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO<SV1> (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-		●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28080-635-0	01	1	9608-0512	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> (B) M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX>	1-14119-468-0	02	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-9810	●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9811-0604	●	●
116	BRACKET; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-19199-357-0	01	1	0605-	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0605-		●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-9810	●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9811-0602	●	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0603-0604	●	●
126	NUT; CLIP FIX EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0605-	●
126	NUT; CLIP FIX M6 FLANGE	0-91180-106-0	01	1	0605-		●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91150-106-0	02	1	9608-0602	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> M6 FLANGE	0-91180-106-0	02	1	0603-0604	●
126	NUT; CLIP FIX ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	02	1	0605-	●
160	BRACKET; AIR PIPE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (D)	1-19199-351-1	01	1	0605-	●
160	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (E)	1-19199-378-0	01	1	0605-	●
160	BRACKET; AIR PIPE (A)	1-19199-251-1	01	1	9601-0604	●
160	BRACKET; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-19199-251-1	01	1	0605-	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> (B)	1-19199-277-0	01	1	9608-0604	●
160	BRACKET; AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-19199-277-0	01	1	0605-	●
160	BRACKET; AIR PIPE (C)	1-19199-120-0	01	1	9811-		●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	03	1	9601-0512	●
161	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9608-9810	●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28080-816-0	02	1	9811-0512		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
161	BOLT; BRKT,AIR PIPE (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0604		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0605-		●
193	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9811-0512		●
193	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
