0-36 — TURBOCHARGER SYSTEM (#65045) — 97 parça

2 16 1 214 97 148 66 97 11 22 76 11 69 68 69 76 76 143 98 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-14400-407-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-5	01	1	9601-0604	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>	1-14400-339-5	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX>	1-14145-140-1	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-0604	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX>	1-14145-181-0	01	1	0605-	●
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	08	1	0605-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-0604	●
11	NUT; TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-0604	●
11	NUT; TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NJX>	1-14144-650-0	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-14134-347-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NJX>	1-14134-398-3	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-0604	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-14134-161-1	01	1	0605-	●
66	STUD; EXH PIPE EURO3 SPECIFICATION<NJX> M12X90 L=110	1-09302-035-0	02	1	0605-	●
68	HOSE; RUBBER,TURBOCHARGER TO INL COVER EURO3 SPECIFICATION<NJX>	1-09361-124-0	01	1	0605-	●
69	CLIP; RUBBER HOSE,TURBOCHARGER EURO3 SPECIFICATION<NJX> ID=68-85	1-09707-202-0	02	1	0605-0808	●
69	CLIP; RUBBER HOSE,TURBOCHARGER EURO3 SPECIFICATION<NJX> ID=68-85	8-94320-428-0	02	1	0809-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> (B) M10X60 FLANGE	0-28051-060-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> (A) M10X80 FLANGE	0-28051-080-0	02	1	0605-	●
76	BOLT; AIR DUCT (C) M10X90 FLANGE	0-28081-090-0	02	1	9601-0512	●
76	BOLT; AIR DUCT (C) M10X90 FLANGE	0-28051-090-0	02	1	0601-0604	●
76	BOLT; AIR DUCT EXC. EURO3 SPECIFICATION<NJX> (C) M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-139	1-09707-200-0	04	1	0605-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-0604	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO3 SPECIFICATION<NJX> ID=86	9-09915-592-0	02	1	0605-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●
148	HOSE; TURBOCHARGER,INL EURO3 SPECIFICATION<NJX>	1-09361-135-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-0604	●
148	HOSE; TURBOCHARGER,INL EXC. EURO3 SPECIFICATION<NJX>	1-09360-403-1	01	1	0605-	●
214	BAND; "V",TURBOCHARGER TO EXH PIPE EURO3 SPECIFICATION<NJX>	1-09709-094-1	01	1	0605-0609	●
214	BAND; "V",TURBOCHARGER TO EXH PIPE EURO3 SPECIFICATION<NJX>	8-98059-890-0	01	1	0610-	●

12 22 97 28 212 11 76 97 148 1 143 98 143 2 11 212 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NJX>	1-14400-407-5	01	1	0605-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	1-14400-339-5	01	1	9601-0604	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION<NJX>	1-14400-339-5	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX>	1-14145-140-1	01	1	0605-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-181-0	01	1	9601-0604	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX>	1-14145-181-0	01	1	0605-	●
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	08	1	0605-	●
11	NUT; TURBOCHARGER (A) M10	1-09420-005-0	01	1	9601-0604	●
11	NUT; TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> (A) M10	1-09420-005-0	01	1	0605-	●
11	NUT; TURBOCHARGER (B) M10 P=1.5 H=8	9-09842-007-0	03	1	9601-0604	●
11	NUT; TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> (B) M10 P=1.5 H=8	9-09842-007-0	03	1	0605-	●
12	STUD; TURBOCHARGER M10X30,M10X22.5 L=45	9-04731-030-0	01	1	9601-0604	●
12	STUD; TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> M10X30,M10X22.5 L=45	9-04731-030-0	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-14134-347-1	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NJX>	1-14134-398-3	01	1	0605-	●
22	DUCT; INL,ACL TO TURBOCHARGER	1-14134-161-1	01	1	9601-0604	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-14134-161-1	01	1	0605-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-123-0	01	1	9601-9907	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT	1-14181-221-0	01	1	9908-0604	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO3 SPECIFICATION<NJX>	1-14181-221-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> (B) M10X60 FLANGE	0-28051-060-0	01	1	0605-	●
76	BOLT; AIR DUCT EURO3 SPECIFICATION<NJX> (A) M10X80 FLANGE	0-28051-080-0	02	1	0605-	●
76	BOLT; AIR DUCT (C) M10X90 FLANGE	0-28081-090-0	02	1	9601-0512	●
76	BOLT; AIR DUCT (C) M10X90 FLANGE	0-28051-090-0	02	1	0601-0604	●
76	BOLT; AIR DUCT EXC. EURO3 SPECIFICATION<NJX> (C) M10X90 FLANGE	0-28051-090-0	02	1	0605-	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-139	1-09707-200-0	04	1	0605-0809	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-139	1-09707-200-0	02	1	0810-0812	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-142	1-09707-155-0	02	1	0901-	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO3 SPECIFICATION<NJX> ID=104-142	1-09707-155-0	02	1	0809-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9601-0604	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO3 SPECIFICATION<NJX> ID=86	9-09915-592-0	02	1	0605-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9601-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	8-98245-240-0	01	1	1409-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9601-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	04	1	0307-0809	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0810-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-	●
148	HOSE; TURBOCHARGER,INL EURO3 SPECIFICATION<NJX>	1-09361-135-1	01	1	0605-	●
148	HOSE; TURBOCHARGER,INL	1-09360-403-1	01	1	9601-0604	●
148	HOSE; TURBOCHARGER,INL EXC. EURO3 SPECIFICATION<NJX>	1-09360-403-1	01	1	0605-	●
156	CLIP; GLOW HARNESS ID=18 L=44	8-94225-185-0	01	1	9601-9810	●
156	CLIP; GLOW HARNESS ID=18 L=44	8-94225-185-0	01	1	9811-0604	●	●
156	CLIP; GLOW HARNESS EXC. EURO3 SPECIFICATION<NJX> ID=18 L=44	8-94225-185-0	01	1	0605-0801	●
156	CLIP; GLOW HARNESS ID=18 L=44	8-94225-185-0	01	1	0605-0801		●
156	CLIP; GLOW HARNESS EXC. EURO3 SPECIFICATION<NJX> ID=18 L=44	8-97367-985-1	01	1	0802-	●
156	CLIP; GLOW HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-		●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9601-0604	●
212	WASHER; PL,TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> ID=10	1-09503-033-1	04	1	0605-	●

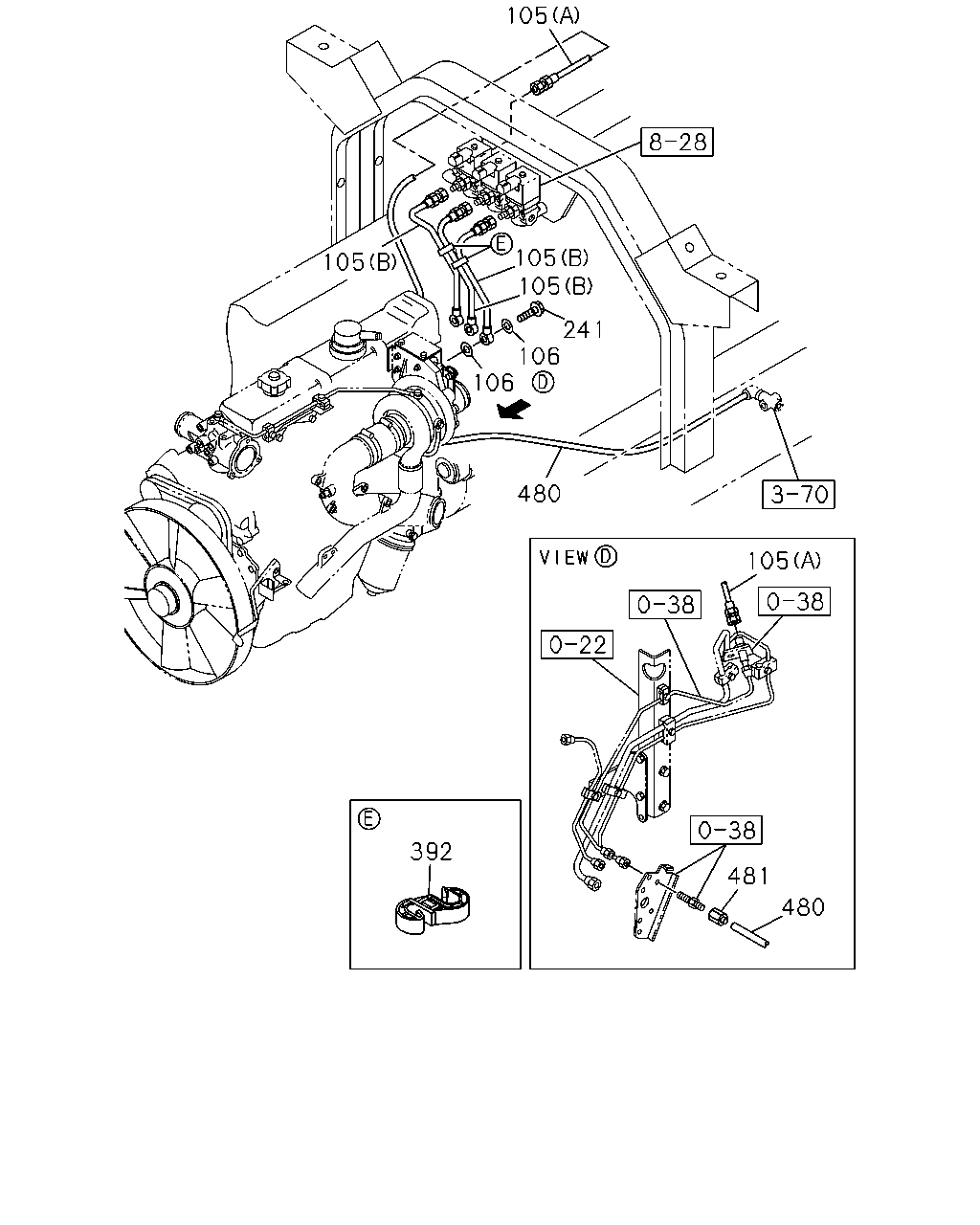

105 105 105 105 241 106 106 480 105 392 481 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
105	TUBE; FLEX MAG VLV EURO3 SPECIFICATION<NJX> (A) L=210	1-09363-614-0	01	1	0605-	●
105	TUBE; FLEX MAG VLV EURO3 SPECIFICATION<NJX> (B) L=390	1-09363-879-0	03	1	0605-	●
106	GASKET; FLEX TUBE EURO3 SPECIFICATION<NJX> ID=10.2 OD=15.2	1-09630-083-0	06	1	0605-	●
241	BOLT EURO3 SPECIFICATION<NJX>	8-94107-713-2	03	1	0605-	●
392	CLIP; FLEX HOSE EURO3 SPECIFICATION<NJX> ID=10 & 10	1-09709-277-1	02	1	0605-	●
480	TUBE; NYLON EURO3 SPECIFICATION<NJX> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0605-	●
481	ADAPTER EURO3 SPECIFICATION<NJX> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0605-	●
