Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10707 - FVZ-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

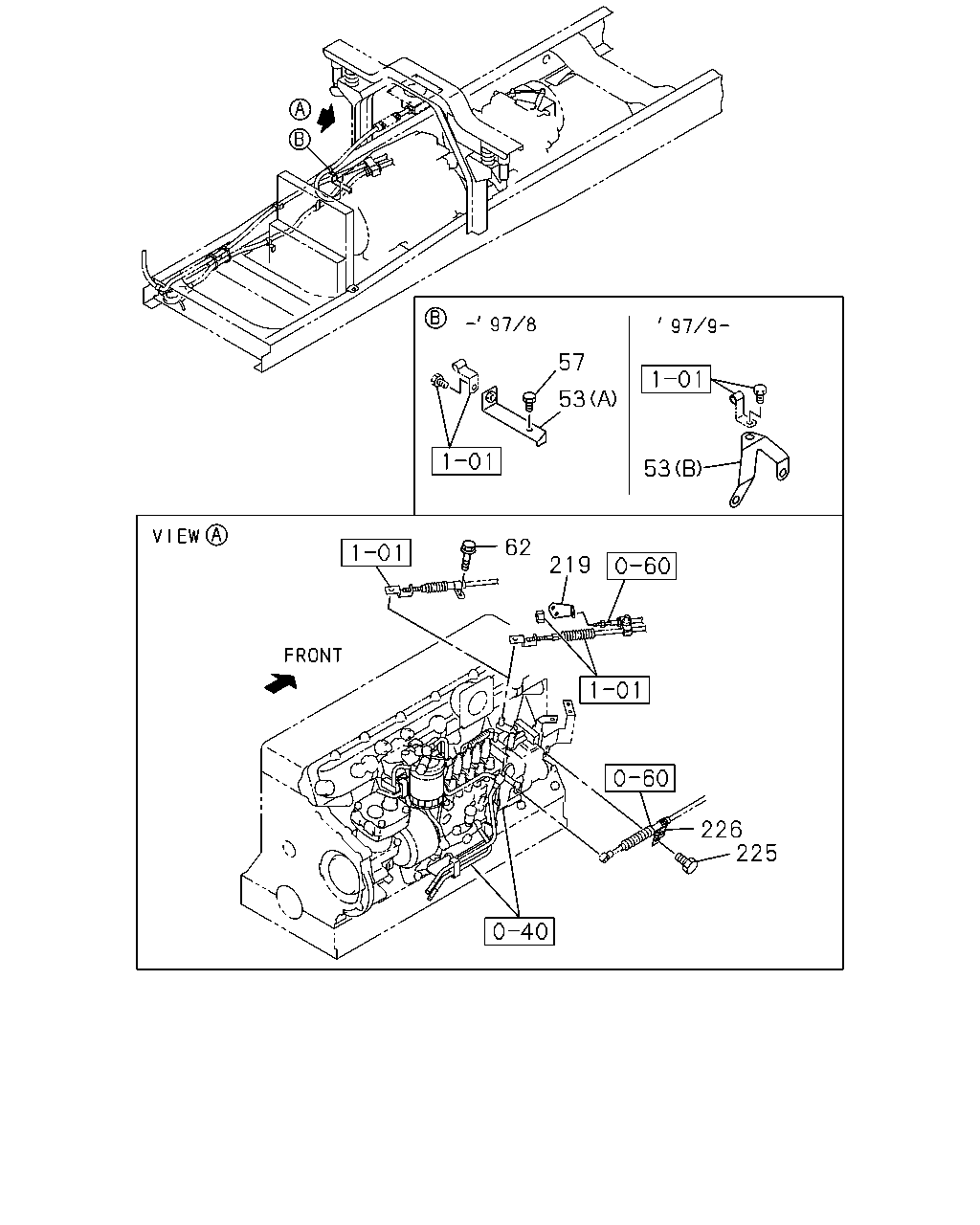

0-35 — ENGINE CONTROL VALVE AND LEVER
(#65044) — 19 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 STD ENG
57
53
53
62
219
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
BRACKET; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A)
1-47477-664-2
01
1
9601-9708
●
53
BRACKET; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B)
1-23319-103-0
01
1
9709-0004
●
57
BOLT; BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X20 FLANGE
0-28080-820-0
01
1
9601-9708
●
62
BOLT; CABLE END
M6X16 FLANGE
0-28080-616-0
02
1
9601-9810
●
62
BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X16 FLANGE
0-28080-616-0
02
1
9811-0004
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28680-620-0
02
1
0005-0512
●
●
62
BOLT; CABLE END
M6X20 FLANGE
0-28650-620-0
02
1
0601-0606
●
●
62
BOLT; CABLE END
EXC. EURO3 SPECIFICATION<NJX> M6X20 FLANGE
0-28650-620-0
02
1
0607-
●
●
219
BRACKET; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT>
1-23319-101-0
01
1
9601-0004
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28080-816-0
02
1
9601-0512
●
225
BOLT; CLIP FIX
M8X16 FLANGE
0-28050-816-0
02
1
0601-0606
●
225
BOLT; CLIP FIX
EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE
0-28050-816-0
02
1
0607-
●
225
BOLT; CLIP FIX
M6X16 FLANGE
0-28080-616-0
02
1
9811-0512
●
225
BOLT; CLIP FIX
M6X16 FLANGE
0-28050-616-0
02
1
0601-0606
●
225
BOLT; CLIP FIX
EXC. EURO3 SPECIFICATION<NJX> M6X16 FLANGE
0-28050-616-0
02
1
0607-
●
226
CLIP; CABLE END
1-23219-032-0
01
1
9601-0606
●
226
CLIP; CABLE END
EXC. EURO3 SPECIFICATION<NJX>
1-23219-032-0
01
1
0607-
●
226
CLIP; CABLE END
L=30
1-09700-326-0
01
1
9811-0606
●
226
CLIP; CABLE END
EXC. EURO3 SPECIFICATION<NJX> L=30
1-09700-326-0
01
1
0607-
●
