0-32 — WATER PIPING; ENGINE (#65042) — 113 parça

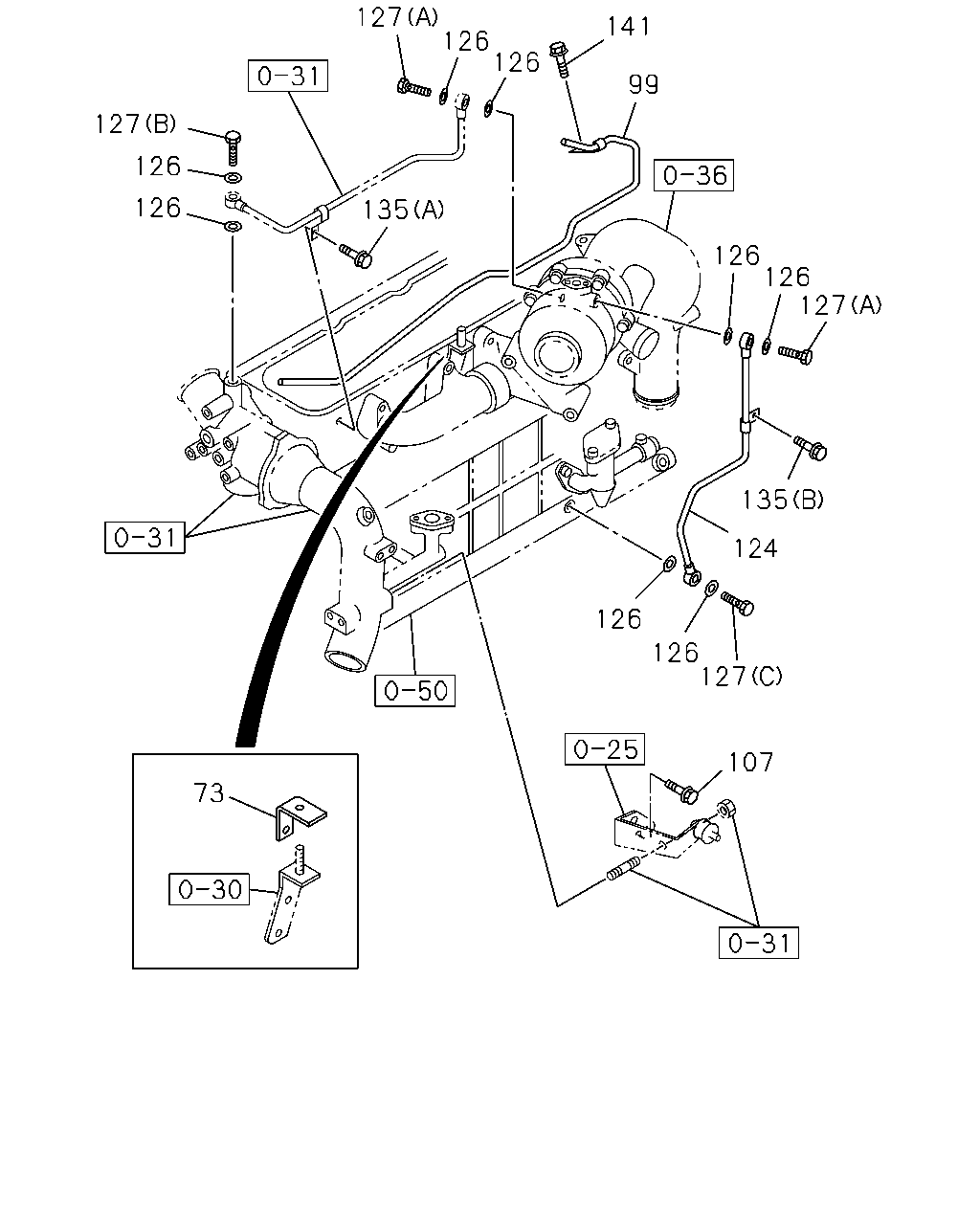

127 126 126 141 99 127 126 135 126 126 126 127 135 124 126 126 127 107 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	PROTECTOR; HEAT,WATER PIPE EURO3 SPECIFICATION<NJX>	1-14181-325-0	01	1	0605-	●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	9601-0604	●
73	PROTECTOR; HEAT,WATER PIPE EXC. EURO3 SPECIFICATION<NJX>	1-14181-293-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW EURO3 SPECIFICATION<NJX>	1-13722-004-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	9708-0604	●
99	PIPE; WATER,OVERFLOW EXC. EURO3 SPECIFICATION<NJX>	1-13721-629-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW	1-13711-699-0	01	1	9811-		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9708-9810	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9811-0512	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28081-020-0	01	1	9811-0512		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28051-020-0	01	1	0601-	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28051-020-0	01	1	0601-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EURO3 SPECIFICATION<NJX>	1-13721-948-0	01	1	0605-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-653-0	01	1	9601-9701	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-1	01	1	9702-0604	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EXC. EURO3 SPECIFICATION<NJX>	1-13721-738-1	01	1	0605-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0605-	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9601-0604	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION<NJX> (A) M14X31	1-09675-191-0	02	1	0605-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9601-0604	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0605-	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	9601-0604	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION<NJX> (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0605-	●
135	BOLT; STAY,THERMOSTAT HSG (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9701	●
135	BOLT; STAY,THERMOSTAT HSG (B) M8X25 FLANGE	0-28080-825-0	01	1	9601-0512	●
135	BOLT; STAY,THERMOSTAT HSG (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-	●
141	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	01	1	9708-0512	●
141	BOLT; WATER PIPE M8X12 FLANGE	0-28050-812-0	01	1	0601-0604	●
141	BOLT; WATER PIPE EXC. EURO3 SPECIFICATION<NJX> M8X12 FLANGE	0-28050-812-0	01	1	0605-	●

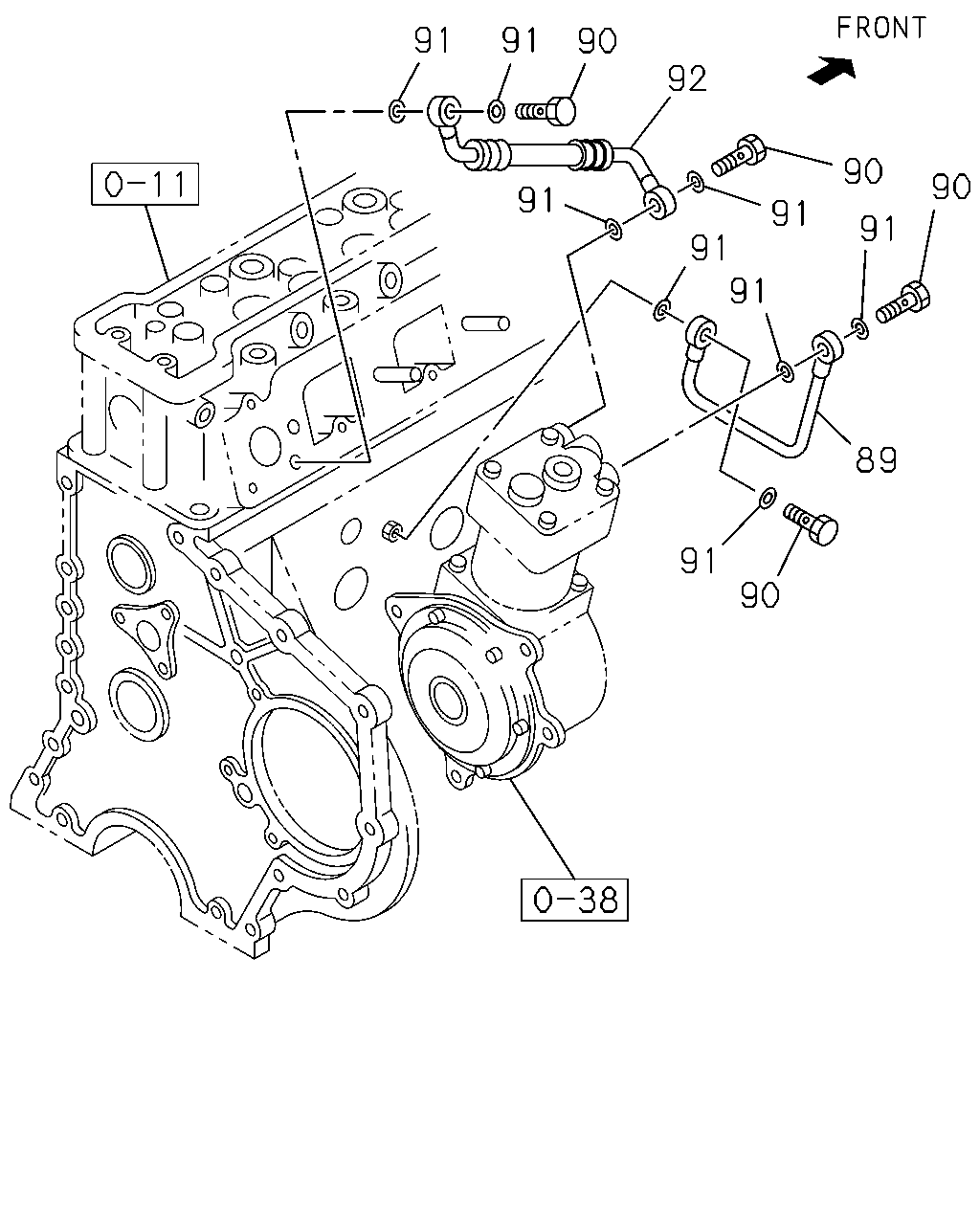

99 107 90 90 91 91 92 91 91 90 91 91 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-13721-857-0	01	1	0605-	●
89	PIPE; WATER,AIR CMPR,IN EURO3 SPECIFICATION<NJX>	1-13721-903-0	01	1	0605-	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	9601-9810	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	9811-0604	●	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-13721-409-0	01	1	0605-	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	0605-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9601-9810	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9811-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-9810	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9811-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>	1-13721-201-0	01	1	0605-	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	0605-		●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	9601-9810	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	9811-0604	●	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-13721-900-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW EURO3 SPECIFICATION<NJX>	1-13722-004-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	9708-0604	●
99	PIPE; WATER,OVERFLOW EXC. EURO3 SPECIFICATION<NJX>	1-13721-629-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW	1-13711-699-0	01	1	9811-		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9708-9810	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9811-0512	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28081-020-0	01	1	9811-0512		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28051-020-0	01	1	0601-	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28051-020-0	01	1	0601-		●

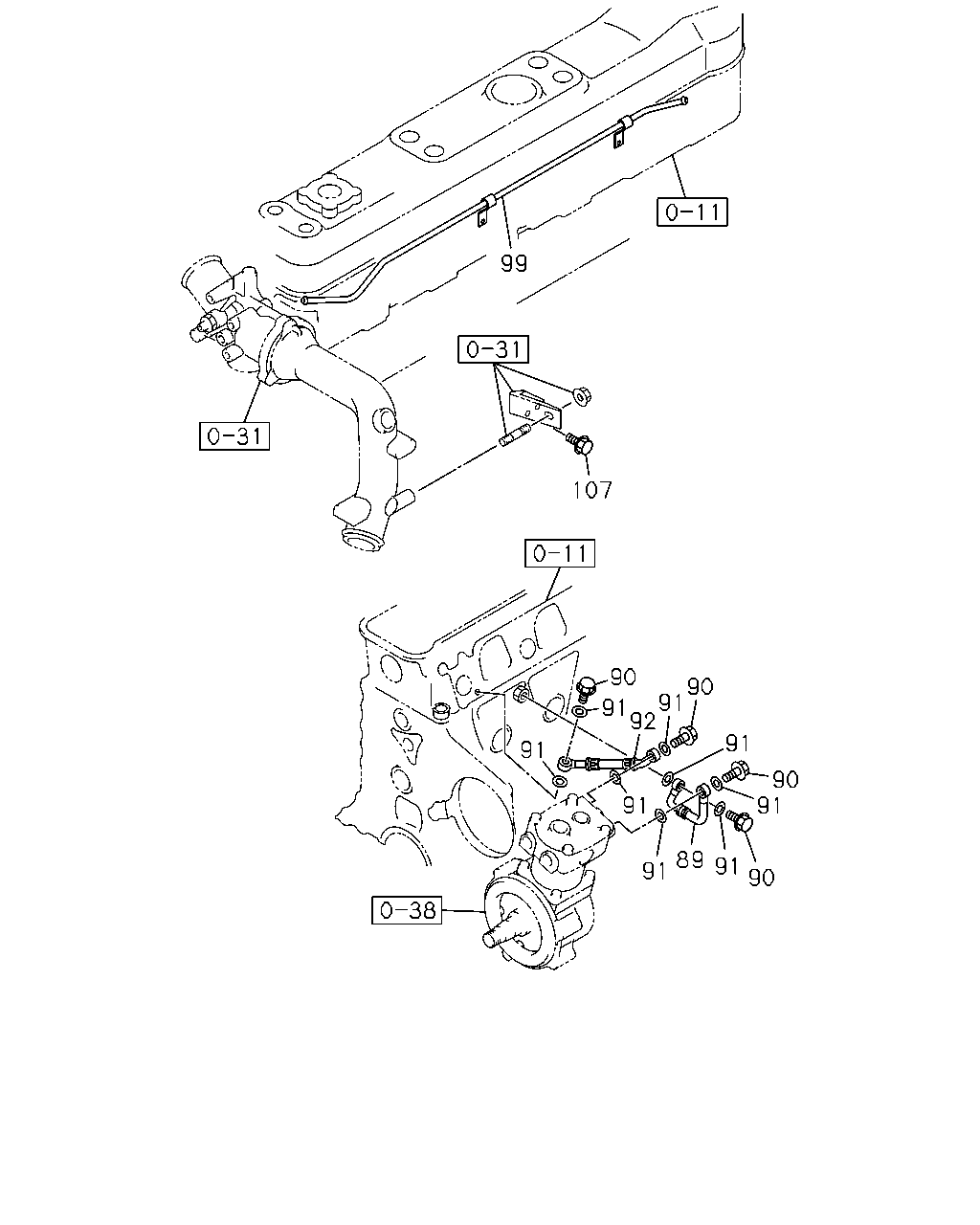

91 91 90 92 90 90 91 91 91 91 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-13721-857-0	01	1	0605-	●
89	PIPE; WATER,AIR CMPR,IN EURO3 SPECIFICATION<NJX>	1-13721-903-0	01	1	0605-	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	9601-9810	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	9811-0604	●	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX>	1-13721-409-0	01	1	0605-	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-409-0	01	1	0605-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9601-9810	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	9811-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-9810	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9811-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>	1-13721-201-0	01	1	0605-	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	0605-		●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	9601-9810	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-201-0	01	1	9811-0604	●	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX>	1-13721-900-0	01	1	0605-	●

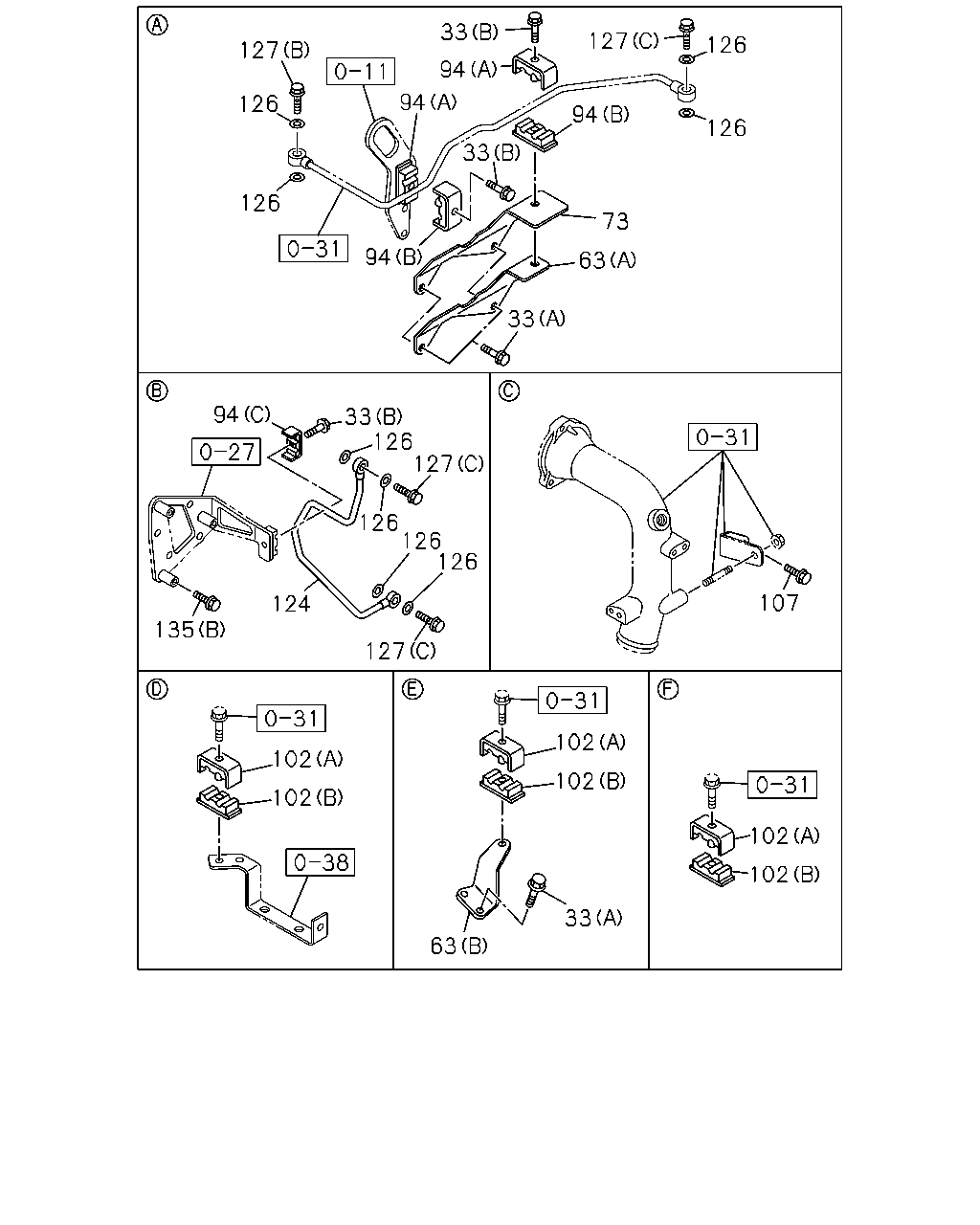

33 127 126 127 94 94 126 94 126 33 126 73 94 63 33 94 33 126 127 126 126 126 107 124 135 127 102 102 102 102 102 102 33 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> (A) M8X16 FLANGE	0-28050-816-0	04	1	0605-	●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28650-640-0	03	1	0605-	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13319-057-0	01	1	0605-	●
63	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-13729-089-0	01	1	0605-	●
73	PROTECTOR; HEAT,WATER PIPE EURO3 SPECIFICATION<NJX>	1-14181-325-0	01	1	0605-	●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	9601-0604	●
73	PROTECTOR; HEAT,WATER PIPE EXC. EURO3 SPECIFICATION<NJX>	1-14181-293-0	01	1	0605-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A) ID=7 & 11 L=28	1-09701-230-1	02	1	0605-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B) ID=7 & 11 L=28	1-09701-231-1	02	1	0605-	●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C) ID=9 & 11 L=28	1-09701-265-1	01	1	0605-	●
102	CLIP; WATER HOSE EURO3 SPECIFICATION<NJX> (A)	1-09701-172-3	04	1	0605-	●
102	CLIP; WATER HOSE EURO3 SPECIFICATION<NJX> (B)	1-09701-173-2	04	1	0605-	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9708-9810	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	9811-0512	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28081-020-0	01	1	9811-0512		●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28051-020-0	01	1	0601-	●
107	BOLT; WATER PIPE HEATER & DEFROSTER(C41) M10X20 FLANGE	0-28051-020-0	01	1	0601-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EURO3 SPECIFICATION<NJX>	1-13721-948-0	01	1	0605-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-653-0	01	1	9601-9701	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-1	01	1	9702-0604	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EXC. EURO3 SPECIFICATION<NJX>	1-13721-738-1	01	1	0605-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	9601-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0605-	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9601-0604	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION<NJX> (A) M14X31	1-09675-191-0	02	1	0605-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9601-0604	●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0605-	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	9601-0604	●
127	BOLT; EYE EXC. EURO3 SPECIFICATION<NJX> (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0605-	●
135	BOLT; STAY,THERMOSTAT HSG (A) M8X16 FLANGE	0-28080-816-0	01	1	9601-9701	●
135	BOLT; STAY,THERMOSTAT HSG (B) M8X25 FLANGE	0-28080-825-0	01	1	9601-0512	●
135	BOLT; STAY,THERMOSTAT HSG (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-	●

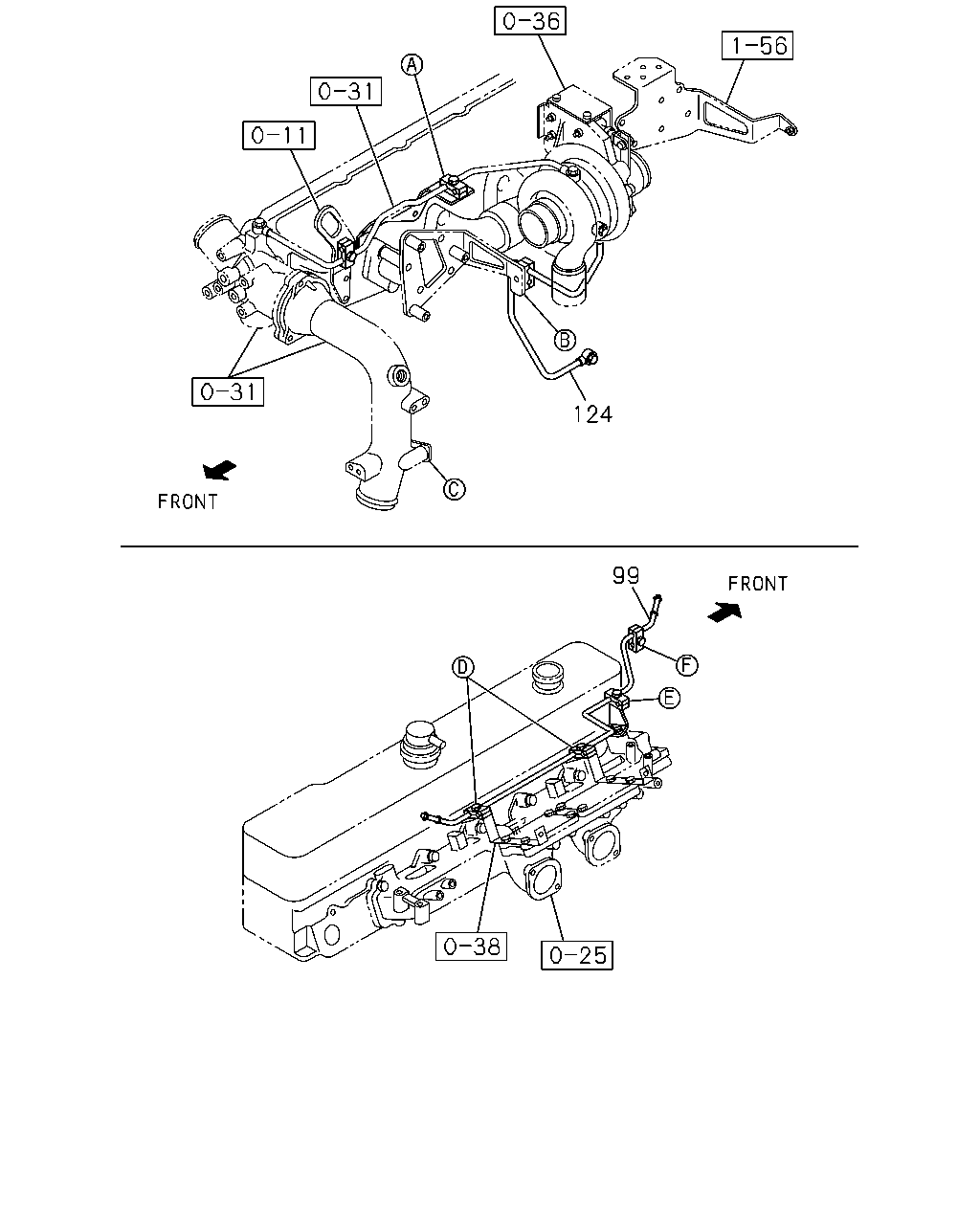

124 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
99	PIPE; WATER,OVERFLOW EURO3 SPECIFICATION<NJX>	1-13722-004-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	9708-0604	●
99	PIPE; WATER,OVERFLOW EXC. EURO3 SPECIFICATION<NJX>	1-13721-629-0	01	1	0605-	●
99	PIPE; WATER,OVERFLOW	1-13711-699-0	01	1	9811-		●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EURO3 SPECIFICATION<NJX>	1-13721-948-0	01	1	0605-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-653-0	01	1	9601-9701	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-1	01	1	9702-0604	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EXC. EURO3 SPECIFICATION<NJX>	1-13721-738-1	01	1	0605-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
