0-31 — THERMOSTAT AND HOUSING (#65041) — 174 parça

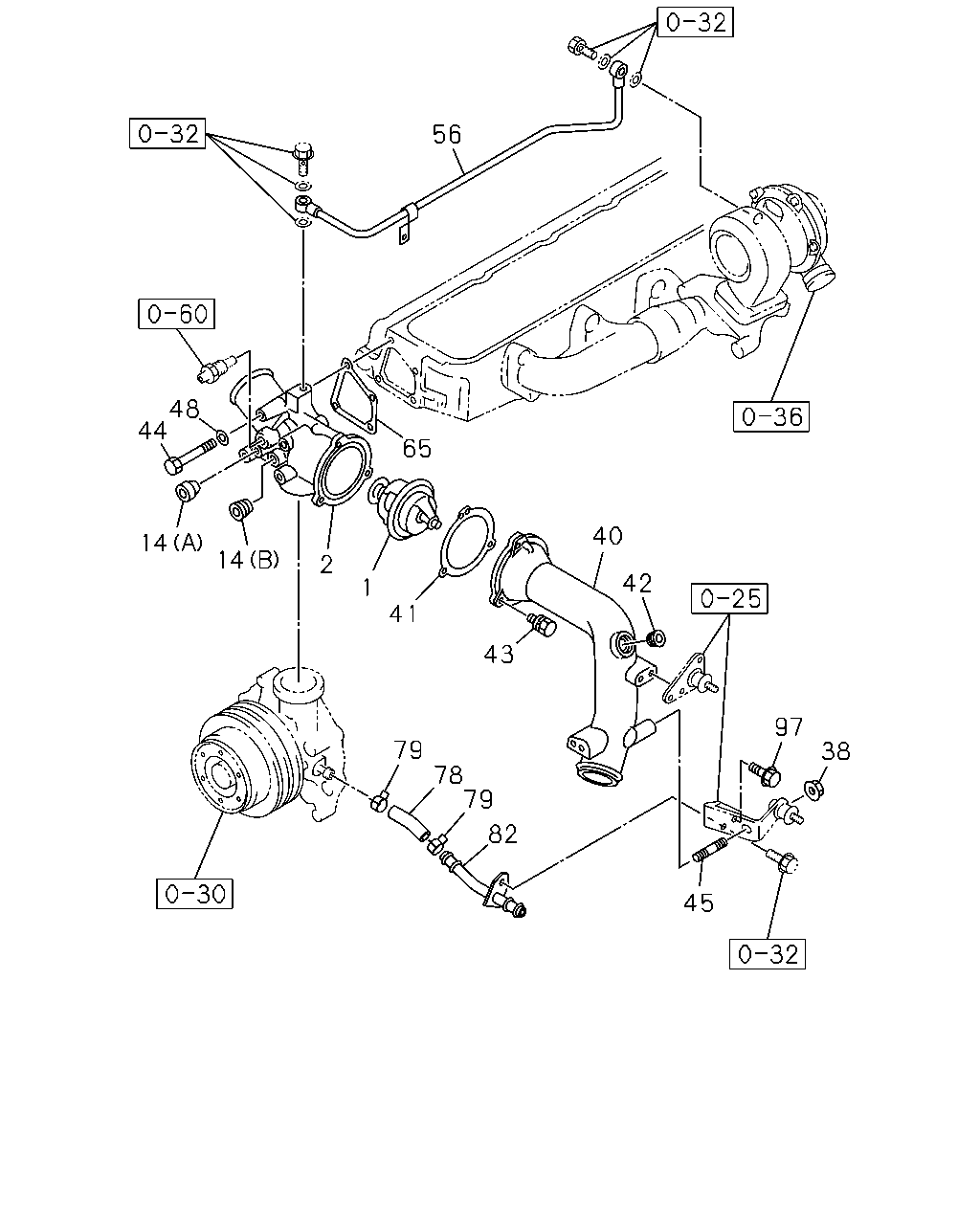

56 48 44 65 40 14 14 2 42 1 41 43 97 79 38 78 79 82 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT EURO3 SPECIFICATION<NJX> 79 CELSIUS	1-13770-097-0	01	1	0605-0609	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	9601-0009	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0010-0604	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0010-0604		●
1	THERMOSTAT EXC. EURO3 SPECIFICATION<NJX> 76.5 CELSIUS	1-13770-085-0	01	1	0605-0609	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0605-0609		●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0610-	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0610-		●
1	THERMOSTAT 65 CELSIUS	1-13770-087-0	01	1	9811-0009		●
1	THERMOSTAT OIL FILTER SETTING DOWNWARD<E7V> 65 CELSIUS	1-13770-087-0	01	1	0010-		●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	9601-9810	●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	9811-	●	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9601-9810	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9811-	●	●
14	PLUG; SW (B) PT3/8 T=8.0	1-09605-066-0	01	1	9601-	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	9601-9810	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	9811-0602	●	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
40	DUCT; WATER,SUCTION	1-13711-675-0	01	1	9601-9810	●
40	DUCT; WATER,SUCTION	1-13711-675-0	01	1	9811-	●	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	9601-9810	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	9811-	●	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	9601-9810	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	9811-	●	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	9601-9810	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	9811-0906	●	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50640-828-0	03	1	0907-	●	●
44	BOLT; HSG TO HD M8X100	0-10805-800-0	04	1	9601-9810	●
44	BOLT; HSG TO HD M8X100	0-10805-800-0	04	1	9811-0512	●	●
44	BOLT; HSG TO HD M8X100	0-10855-800-0	04	1	0601-	●	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	9601-9810	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	9811-	●	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	04	1	9601-9810	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	04	1	9811-0605	●	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION<NJX>	1-13721-949-0	01	1	0605-	●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-628-0	01	1	9601-0604	●
56	PIPE; WATER,THERMOSTAT HSG EXC. EURO3 SPECIFICATION<NJX>	1-13721-628-0	01	1	0605-	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	9601-9810	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	9811-	●	●
78	HOSE; RUBBER,WATER PIPE	1-09360-626-0	01	1	9708-9810	●
78	HOSE; RUBBER,WATER PIPE	1-09360-626-0	01	1	9811-	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41)	1-09360-626-0	01	1	9811-		●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9708-9810	●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9811-	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41) ID=20	1-09707-084-1	02	1	9811-		●
82	PIPE; WATER,HTR	1-13711-698-1	01	1	9601-9810	●
82	PIPE; WATER,HTR	1-13711-698-1	01	1	9811-	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41)	1-13711-698-1	01	1	9811-		●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	9601-9810	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	9811-0512	●	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●

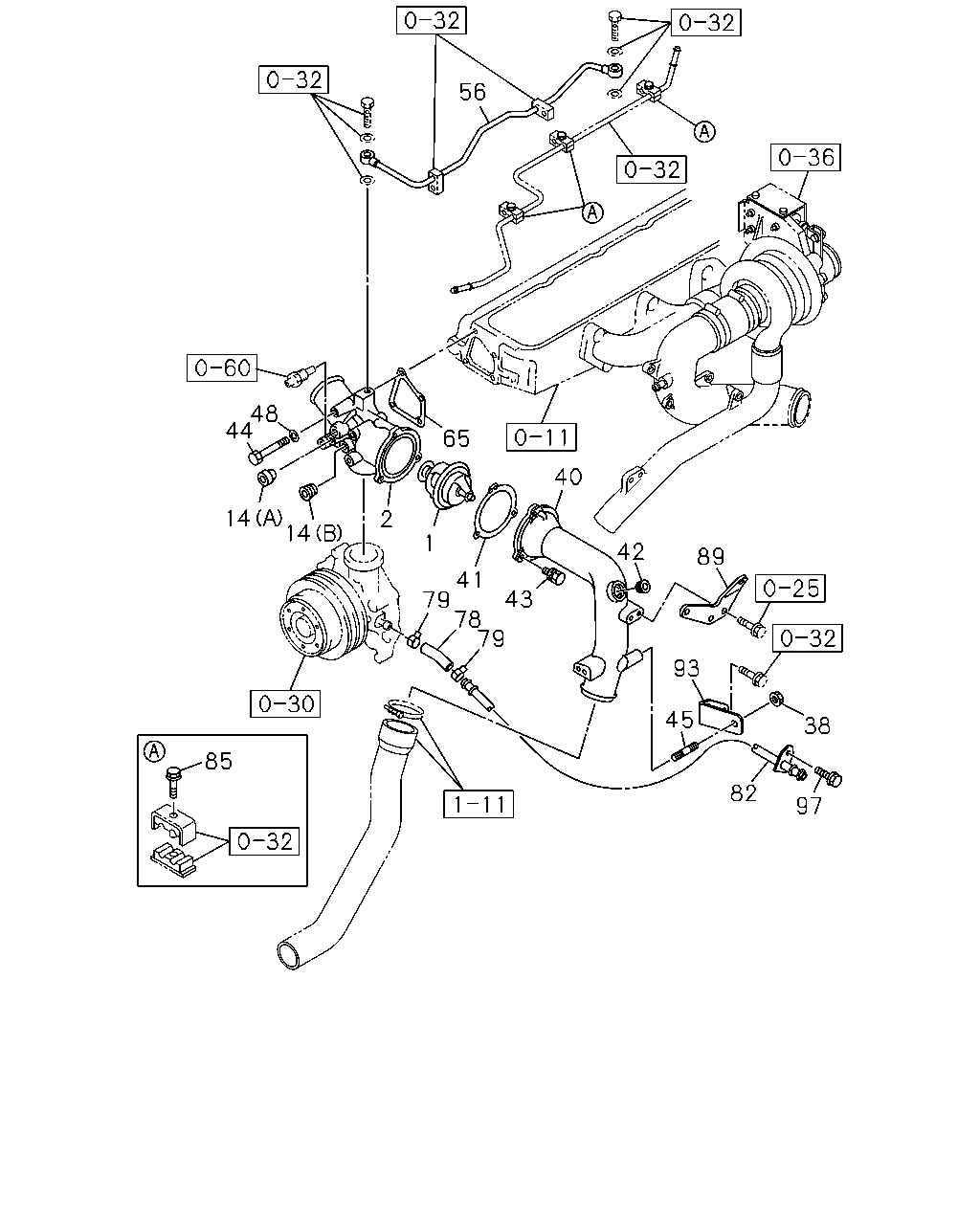

56 48 44 65 40 14 14 2 1 42 89 41 79 78 79 43 93 45 38 85 82 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT EURO3 SPECIFICATION<NJX> 79 CELSIUS	1-13770-097-0	01	1	0605-0609	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	9601-0009	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0010-0604	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0010-0604		●
1	THERMOSTAT EXC. EURO3 SPECIFICATION<NJX> 76.5 CELSIUS	1-13770-085-0	01	1	0605-0609	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0605-0609		●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0610-	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0610-		●
1	THERMOSTAT 65 CELSIUS	1-13770-087-0	01	1	9811-0009		●
1	THERMOSTAT OIL FILTER SETTING DOWNWARD<E7V> 65 CELSIUS	1-13770-087-0	01	1	0010-		●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	9601-9810	●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	9811-	●	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9601-9810	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9811-	●	●
14	PLUG; SW (B) PT3/8 T=8.0	1-09605-066-0	01	1	9601-	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	9601-9810	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	9811-0602	●	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
40	DUCT; WATER,SUCTION	1-13711-675-0	01	1	9601-9810	●
40	DUCT; WATER,SUCTION	1-13711-675-0	01	1	9811-	●	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	9601-9810	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	9811-	●	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	9601-9810	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	9811-	●	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	9601-9810	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	9811-0906	●	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50640-828-0	03	1	0907-	●	●
44	BOLT; HSG TO HD M8X100	0-10805-800-0	04	1	9601-9810	●
44	BOLT; HSG TO HD M8X100	0-10805-800-0	04	1	9811-0512	●	●
44	BOLT; HSG TO HD M8X100	0-10855-800-0	04	1	0601-	●	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	9601-9810	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	9811-	●	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	04	1	9601-9810	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	04	1	9811-0605	●	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●	●
56	PIPE; WATER,THERMOSTAT HSG EURO3 SPECIFICATION<NJX>	1-13721-949-0	01	1	0605-	●
56	PIPE; WATER,THERMOSTAT HSG	1-13721-628-0	01	1	9601-0604	●
56	PIPE; WATER,THERMOSTAT HSG EXC. EURO3 SPECIFICATION<NJX>	1-13721-628-0	01	1	0605-	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	9601-9810	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	9811-	●	●
78	HOSE; RUBBER,WATER PIPE	1-09360-626-0	01	1	9708-9810	●
78	HOSE; RUBBER,WATER PIPE	1-09360-626-0	01	1	9811-	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41)	1-09360-626-0	01	1	9811-		●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9708-9810	●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9811-	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41) ID=20	1-09707-084-1	02	1	9811-		●
82	PIPE; WATER,HTR	1-13711-698-1	01	1	9601-9810	●
82	PIPE; WATER,HTR	1-13711-698-1	01	1	9811-	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41)	1-13711-698-1	01	1	9811-		●
85	BOLT; CLIP EURO3 SPECIFICATION<NJX> M6X40 FLANGE	0-28650-640-0	04	1	0605-	●
89	BRACKET EURO3 SPECIFICATION<NJX>	1-13719-122-0	01	1	0605-	●
89	BRACKET HEATER & DEFROSTER(C41)	1-14119-389-0	01	1	9811-9903		●
89	BRACKET HEATER & DEFROSTER(C41)	1-14119-434-0	01	1	9904-0009		●
89	BRACKET HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V>	1-14119-434-0	01	1	0010-		●
89	BRACKET HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14119-389-0	01	1	0110-		●
93	STAY; WATER PIPE EURO3 SPECIFICATION<NJX>	1-13719-089-0	01	1	0605-	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	9601-9810	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	9811-0512	●	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●

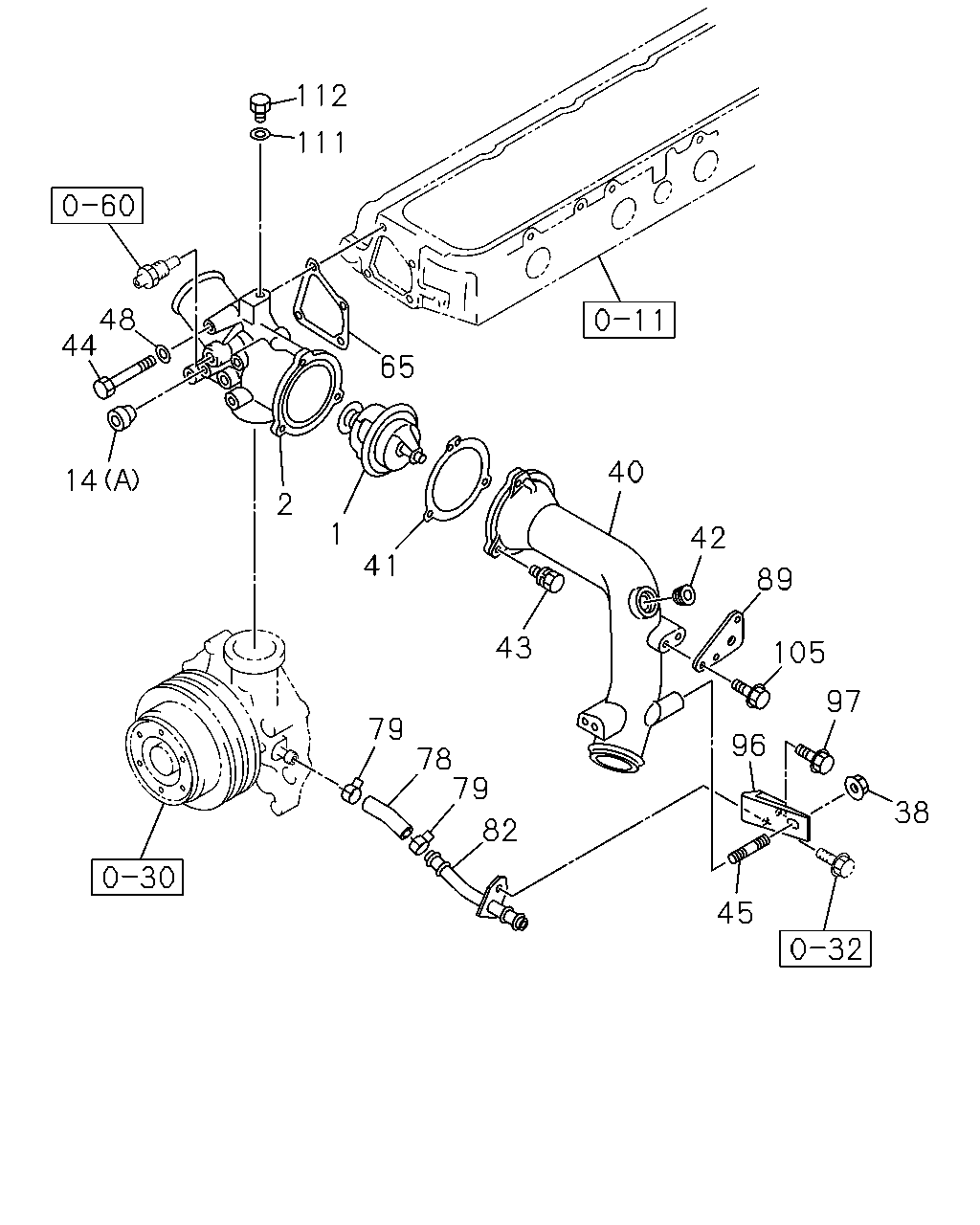

112 111 48 44 65 40 14 2 1 42 41 89 43 105 97 79 96 78 79 38 82 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	THERMOSTAT EURO3 SPECIFICATION<NJX> 79 CELSIUS	1-13770-097-0	01	1	0605-0609	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	9601-0009	●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0010-0604	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0010-0604		●
1	THERMOSTAT EXC. EURO3 SPECIFICATION<NJX> 76.5 CELSIUS	1-13770-085-0	01	1	0605-0609	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0605-0609		●
1	THERMOSTAT 76.5 CELSIUS	1-13770-085-0	01	1	0610-	●
1	THERMOSTAT EXC. OIL FILTER SETTING DOWNWARD<E7V> 76.5 CELSIUS	1-13770-085-0	01	1	0610-		●
1	THERMOSTAT 65 CELSIUS	1-13770-087-0	01	1	9811-0009		●
1	THERMOSTAT OIL FILTER SETTING DOWNWARD<E7V> 65 CELSIUS	1-13770-087-0	01	1	0010-		●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	9601-9810	●
2	HOUSING; THERMOSTAT	1-13716-180-0	01	1	9811-	●	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9601-9810	●
14	PLUG; SW (A) PT1/4	1-09605-019-0	01	1	9811-	●	●
14	PLUG; SW (B) PT3/8 T=8.0	1-09605-066-0	01	1	9601-	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	9601-9810	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91150-110-0	01	1	9811-0602	●	●
38	NUT; DUCT,SUCTION M10 FLANGE	0-91180-110-0	01	1	0603-	●	●
40	DUCT; WATER,SUCTION	1-13711-675-0	01	1	9601-9810	●
40	DUCT; WATER,SUCTION	1-13711-675-0	01	1	9811-	●	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	9601-9810	●
41	GASKET; DUCT TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	1-13742-026-0	01	1	9811-	●	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	9601-9810	●
42	PLUG; WATER DUCT PT3/4	9-09664-005-0	01	1	9811-	●	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	9601-9810	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50140-828-0	03	1	9811-0906	●	●
43	BOLT; WATER DUCT M8X28 W/LK&PL WASHER	0-50640-828-0	03	1	0907-	●	●
44	BOLT; HSG TO HD M8X100	0-10805-800-0	04	1	9601-9810	●
44	BOLT; HSG TO HD M8X100	0-10805-800-0	04	1	9811-0512	●	●
44	BOLT; HSG TO HD M8X100	0-10855-800-0	04	1	0601-	●	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	9601-9810	●
45	STUD; DUCT M10X20 L=35	9-04411-020-0	01	1	9811-	●	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	04	1	9601-9810	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4	9-09160-508-0	04	1	9811-0605	●	●
48	WASHER; PL,THERMOSTAT HSG ID=8.4 OD=16	0-91610-508-0	04	1	0606-	●	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	9601-9810	●
65	GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-13743-028-0	01	1	9811-	●	●
78	HOSE; RUBBER,WATER PIPE	1-09360-626-0	01	1	9708-9810	●
78	HOSE; RUBBER,WATER PIPE	1-09360-626-0	01	1	9811-	●
78	HOSE; RUBBER,WATER PIPE HEATER & DEFROSTER(C41)	1-09360-626-0	01	1	9811-		●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9708-9810	●
79	CLIP; RUBBER HOSE ID=20	1-09707-084-1	02	1	9811-	●
79	CLIP; RUBBER HOSE HEATER & DEFROSTER(C41) ID=20	1-09707-084-1	02	1	9811-		●
82	PIPE; WATER,HTR	1-13711-698-1	01	1	9601-9810	●
82	PIPE; WATER,HTR	1-13711-698-1	01	1	9811-	●
82	PIPE; WATER,HTR HEATER & DEFROSTER(C41)	1-13711-698-1	01	1	9811-		●
89	BRACKET EURO3 SPECIFICATION<NJX>	1-13719-122-0	01	1	0605-	●
89	BRACKET HEATER & DEFROSTER(C41)	1-14119-389-0	01	1	9811-9903		●
89	BRACKET HEATER & DEFROSTER(C41)	1-14119-434-0	01	1	9904-0009		●
89	BRACKET HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V>	1-14119-434-0	01	1	0010-		●
89	BRACKET HEATER & DEFROSTER(C41) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14119-389-0	01	1	0110-		●
96	STAY; WATER PIPE	1-13719-089-0	01	1	9811-		●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	9601-9810	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28181-020-0	02	1	9811-0512	●	●
97	BOLT; PIPE STAY M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●
105	BOLT; BRKT HEATER & DEFROSTER(C41) M8X16 FLANGE	0-28080-816-0	02	1	9811-0009		●
105	BOLT; BRKT HEATER & DEFROSTER(C41) OIL FILTER SETTING DOWNWARD<E7V> M8X16 FLANGE	0-28080-816-0	02	1	0010-0109		●
105	BOLT; BRKT HEATER & DEFROSTER(C41) M8X16 FLANGE	0-28080-816-0	02	1	0110-0512		●
105	BOLT; BRKT HEATER & DEFROSTER(C41) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=19.2	1-09630-085-0	01	1	9811-1312		●
111	GASKET; PLUG,WATER PIPE HOLE ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-		●
112	PLUG M14X9	9-99202-314-0	01	1	9811-0805		●
112	PLUG M14X9	8-98042-944-0	01	1	0806-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
