◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#65040) — 73 parça

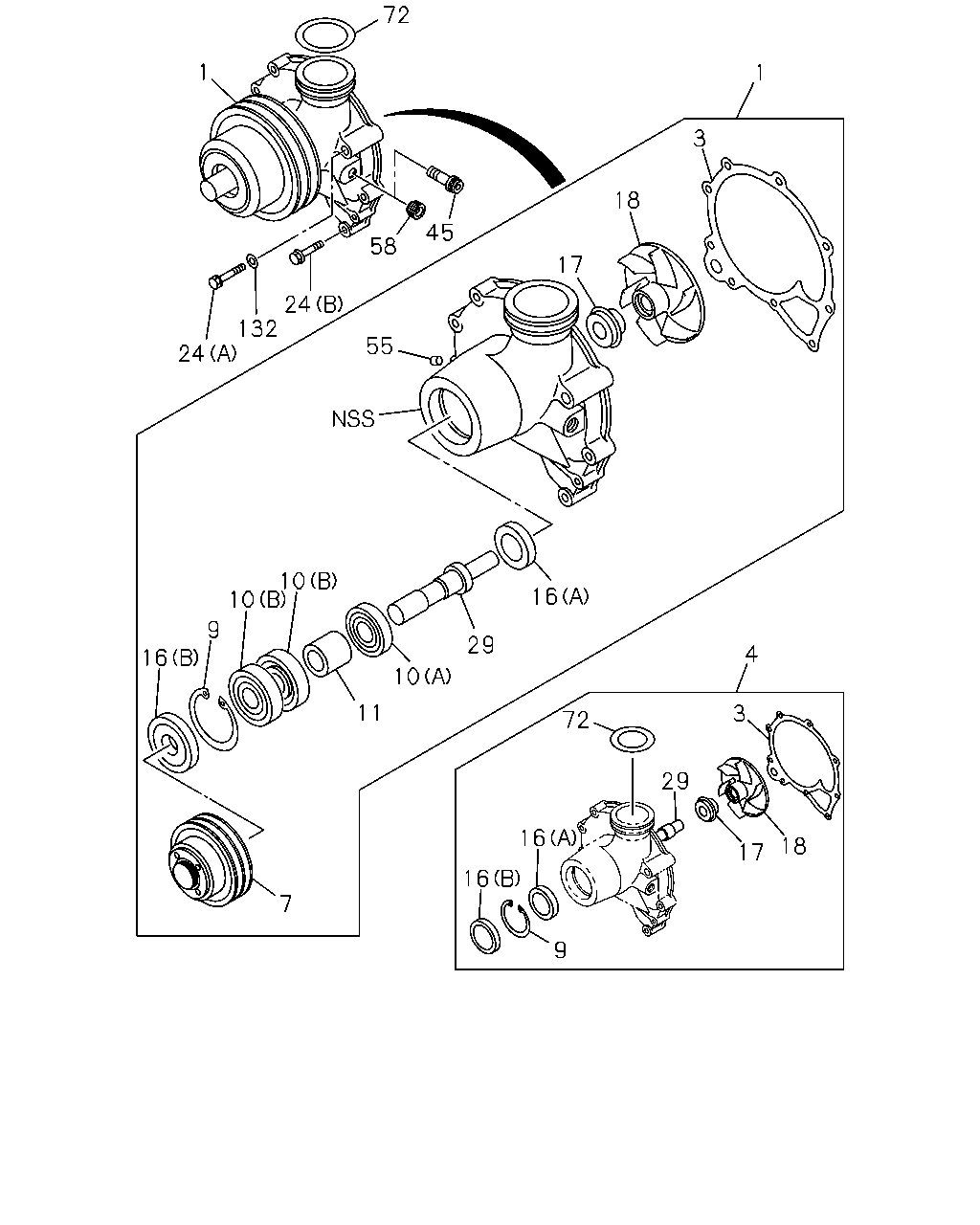

çizim 40649
72 1 1 3 18 58 45 17 24 132 55 24 10 10 16 9 16 29 4 10 11 3 72 29 16 18 17 16 7 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 1-13650-002-2 01 1 9601- ●
1 PUMP ASM; WATER,W/GASKET 1-13650-003-2 01 1 9811- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-0 01 1 9601-9810 ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-018-1 01 1 9811- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-181-0 01 1 9601-9807 ●
4 REPAIR KIT; WATER PUMP 1-87811-936-0 01 1 9808-9810 ●
4 REPAIR KIT; WATER PUMP 1-87811-936-0 01 1 9811-9911 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-019-1 01 1 9912- ● ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-174-0 01 1 9601- ●
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-173-0 01 1 9811- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9601-9810 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9811- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 9601-9810 ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 02 1 9811- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9601-9810 ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9811- ● ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 9601-9810 ●
11 SPACER; BRG,WATER PUMP 1-13634-029-0 01 1 9811- ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-381-0 01 1 9601-9810 ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-381-0 01 1 9811-9911 ● ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-388-0 01 1 9912- ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-382-0 01 1 9601-9810 ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-382-0 01 1 9811-9911 ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-389-0 01 1 9912- ● ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9601-9807 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9808-9810 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 9811- ● ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 9601-9810 ●
18 IMPELLER; WATER PUMP 1-13621-052-0 01 1 9811- ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 9601-9810 ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16806-070-0 02 1 9811-0512 ● ●
24 BOLT; WATER PUMP
(A) M10X70 		0-16856-070-0 02 1 0601- ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9601-9810 ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9811-0906 ● ●
24 BOLT; WATER PUMP
(B) M8X45 W/LK&PL WASHER 		0-50640-845-0 07 1 0907- ● ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 9601-9810 ●
29 SHAFT; WATER PUMP 1-13631-079-0 01 1 9811- ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9708-9810 ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9811- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9811- ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 9601-9810 ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 9811- ● ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9811- ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-307-0 01 1 9601-9810 ●
72 GASKET; PUMP TO THERMO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-307-0 01 1 9811- ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 9601-9810 ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 9811-0605 ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 		0-91610-510-0 02 1 0606- ● ●

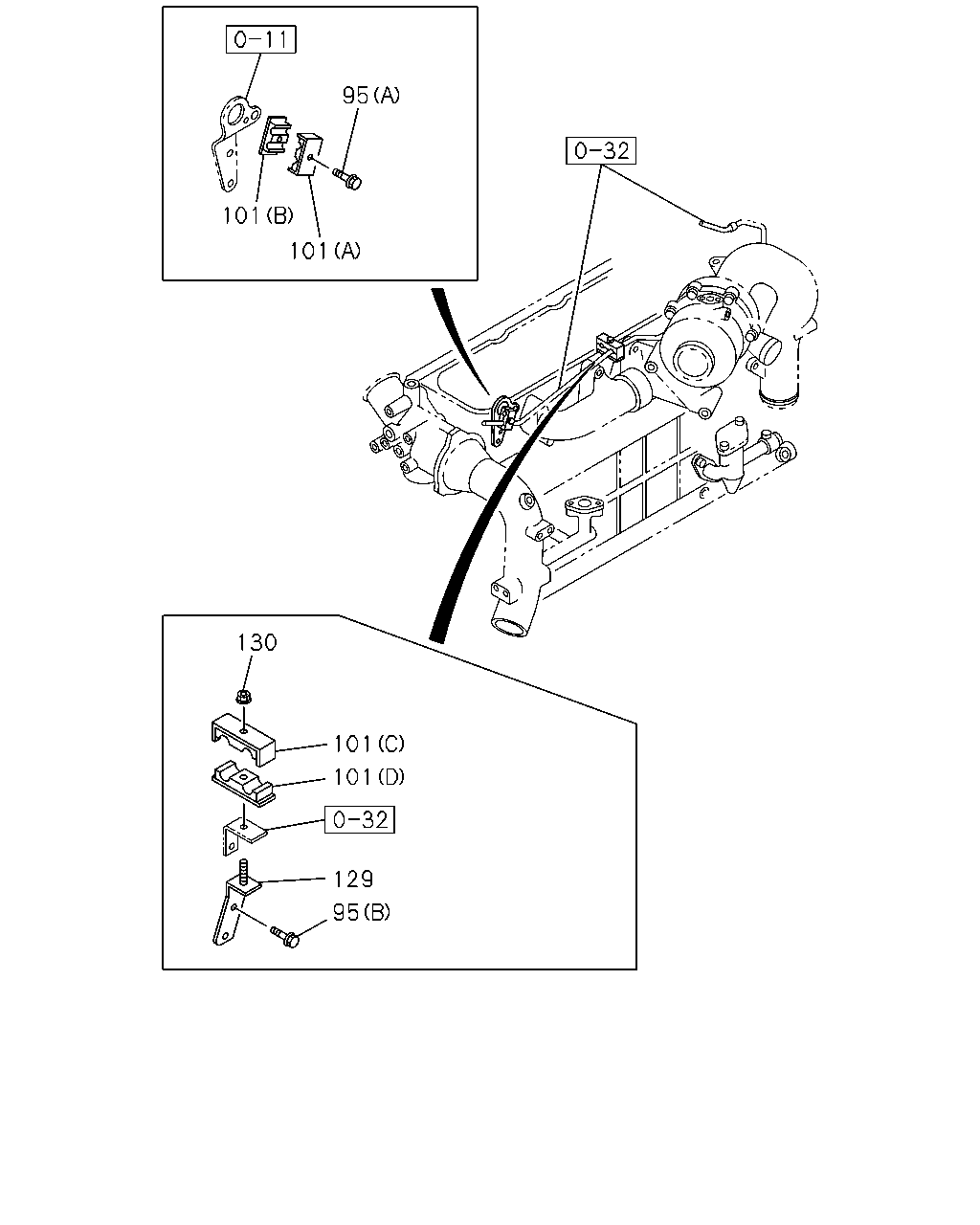

çizim 41467
95 101 101 130 101 101 129 95
BalonParca AdiParca NoAdetTipApplied Date A B
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28080-635-0 01 1 9601-9810 ●
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28080-635-0 01 1 9811-0512 ● ●
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0601-0604 ● ●
95 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (A) M6X35 FLANGE 		0-28050-635-0 01 1 0605- ●
95 BOLT; BRKT
(A) M6X35 FLANGE 		0-28050-635-0 01 1 0605- ●
95 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 02 1 9601-0512 ●
95 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-0604 ●
95 BOLT; BRKT
EXC. EURO3 SPECIFICATION<NJX> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0605- ●
101 CLIP; WATER PIPE
(A) 		1-09701-172-1 01 1 9601-9810 ●
101 CLIP; WATER PIPE
(A) 		1-09701-172-2 01 1 9811-0604 ● ●
101 CLIP; WATER PIPE
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-09701-172-3 01 1 0605- ●
101 CLIP; WATER PIPE
(A) 		1-09701-172-3 01 1 0605- ●
101 CLIP; WATER PIPE
(B) 		1-09701-173-0 01 1 9601-9810 ●
101 CLIP; WATER PIPE
(B) 		1-09701-173-1 01 1 9811-0604 ● ●
101 CLIP; WATER PIPE
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-09701-173-2 01 1 0605- ●
101 CLIP; WATER PIPE
(B) 		1-09701-173-2 01 1 0605- ●
101 CLIP; WATER PIPE
(C) ID=7 & 11 L=28 		1-09701-230-1 01 1 9601-0604 ●
101 CLIP; WATER PIPE
EXC. EURO3 SPECIFICATION<NJX> (C) ID=7 & 11 L=28 		1-09701-230-1 01 1 0605- ●
101 CLIP; WATER PIPE
(D) ID=7 & 11 L=28 		1-09701-231-1 01 1 9601-0604 ●
101 CLIP; WATER PIPE
EXC. EURO3 SPECIFICATION<NJX> (D) ID=7 & 11 L=28 		1-09701-231-1 01 1 0605- ●
129 BRACKET; CLIP 1-13319-038-0 01 1 9601-0604 ●
129 BRACKET; CLIP
EXC. EURO3 SPECIFICATION<NJX> 		1-13319-038-0 01 1 0605- ●
130 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9601-0602 ●
130 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603-0604 ●
130 NUT; CLIP
EXC. EURO3 SPECIFICATION<NJX> M6 FLANGE 		0-91180-106-0 01 1 0605- ●
