◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶
0-28 — VENTILATION SYSTEM (#65039) — 26 parça

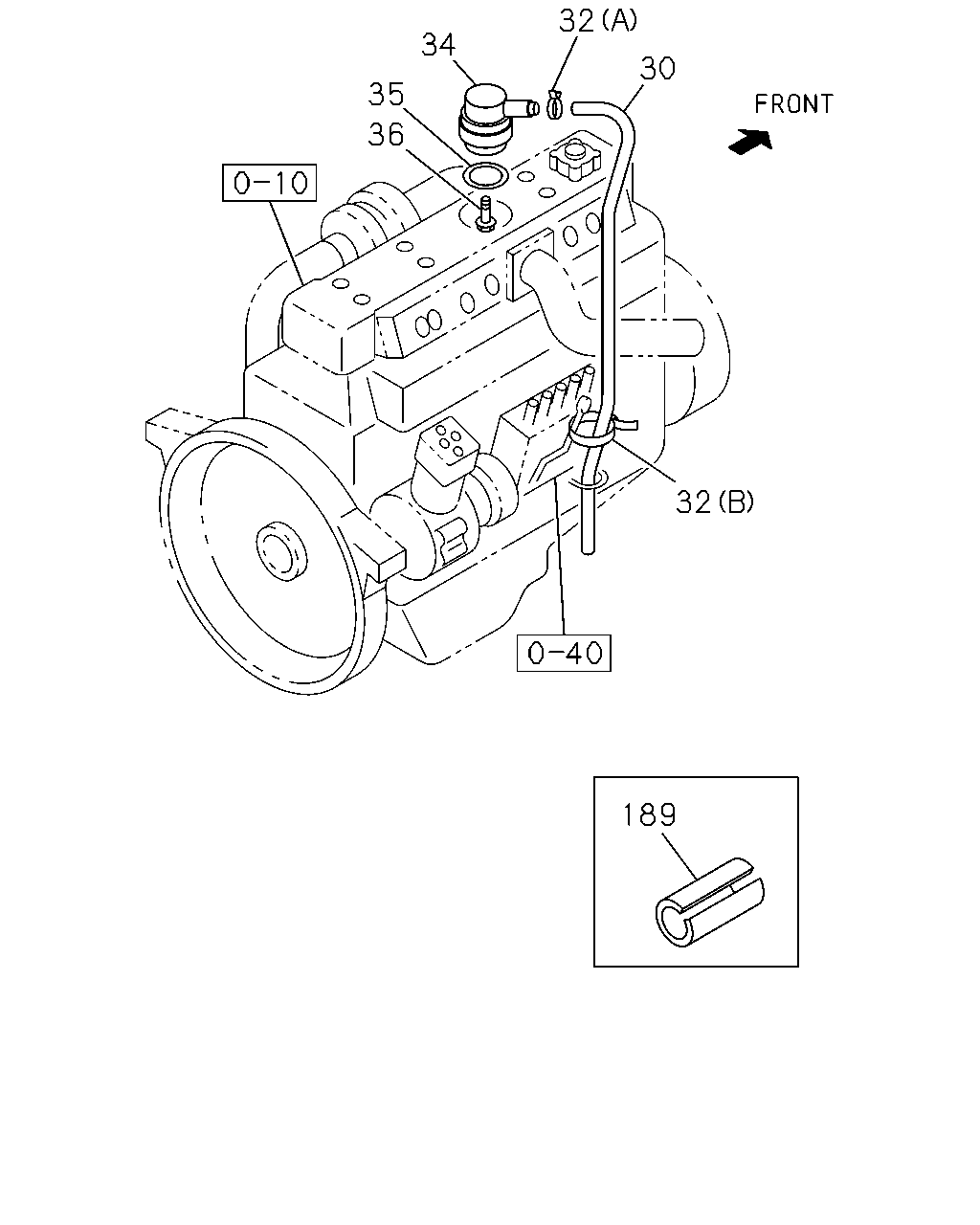

çizim 184665
32 34 30 35 36 32 189
BalonParca AdiParca NoAdetTipApplied Date A B
30 HOSE; VENTILATOR,CYL HD COVER 1-09360-730-0 01 1 9601-9810 ●
30 HOSE; VENTILATOR,CYL HD COVER 1-09360-730-1 01 1 9811- ● ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> (B) L=250 		5-09707-030-1 01 1 0605-1205 ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> (B) L=250 		8-98216-430-0 01 1 1206- ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> (B) L=140 		5-09707-031-1 01 1 0605-1205 ●
32 CLIP; VENT HOSE
EURO3 SPECIFICATION<NJX> (B) L=140 		8-98216-431-0 01 1 1206- ●
32 CLIP; VENT HOSE
(A) ID=20 		1-09707-084-1 01 1 9601-9810 ●
32 CLIP; VENT HOSE
(A) ID=20 		1-09707-084-1 01 1 9811- ● ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-0 01 1 9601-9810 ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 01 1 9811-0106 ● ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 02 1 0107-0604 ● ●
32 CLIP; VENT HOSE
EXC. EURO3 SPECIFICATION<NJX> (B) L=140 		5-09707-031-1 02 1 0605-1205 ●
32 CLIP; VENT HOSE
(B) L=140 		5-09707-031-1 02 1 0605-1205 ●
32 CLIP; VENT HOSE
EXC. EURO3 SPECIFICATION<NJX> (B) L=140 		8-98216-431-0 02 1 1206- ●
32 CLIP; VENT HOSE
(B) L=140 		8-98216-431-0 02 1 1206- ●
34 VENTILATOR 1-11740-172-2 01 1 9601-9810 ●
34 VENTILATOR 1-11740-172-2 01 1 9811- ● ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-209-0 01 1 9601-9810 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-209-0 01 1 9811- ● ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50051-025-0 01 1 9601-9810 ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50051-025-0 01 1 9811-0906 ● ●
36 BOLT; VENTILATOR
M10X25 W/LK WASHER 		0-50551-025-0 01 1 0907- ● ●
189 SLEEVE; RUBBER
EURO3 SPECIFICATION<NJX> ID=10 OD=14 L=30 		9-09956-682-0 01 1 0605- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0107-0604 ● ●
189 SLEEVE; RUBBER
EXC. EURO3 SPECIFICATION<NJX> ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ●
189 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0605- ●
