0-27 — EXHAUST MANIFOLD (#65038) — 151 parça

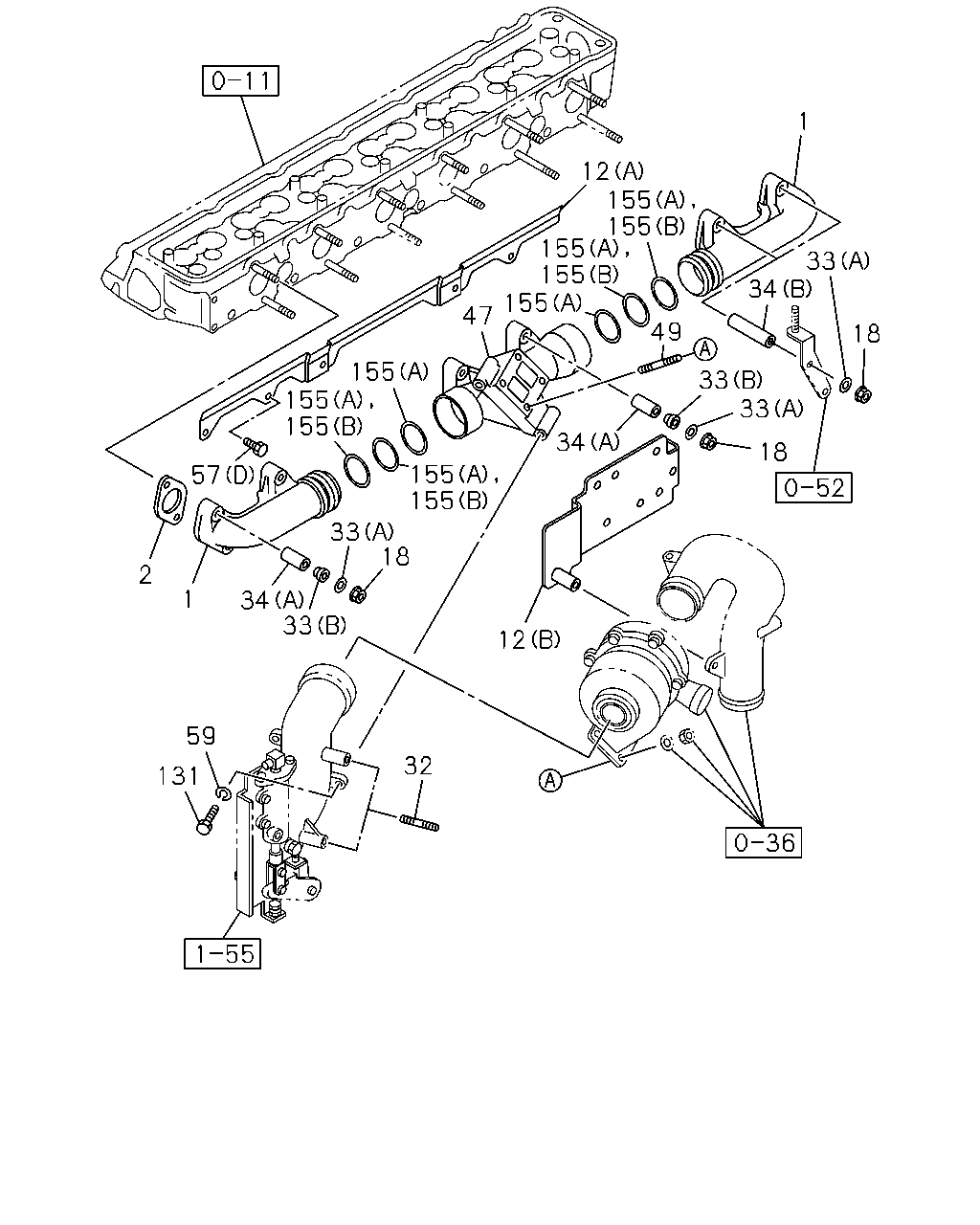

1 12 155 155 155 155 155 33 34 47 49 18 155 155 155 33 33 34 18 155 155 57 33 18 2 1 34 33 12 59 32 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	9601-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-9810	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9811-	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14119-396-0	01	1	9601-0604	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (A)	1-14119-396-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-234-0	01	1	9601-0604	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B)	1-14181-234-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9811-0604		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NJX> (A)	1-14181-236-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	0605-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9811-		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-9810	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9811-0602	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●	●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	9601-0604	●
32	STUD; EXH PIPE EXC. EURO3 SPECIFICATION<NJX> M10X60 L=75	9-04411-060-0	02	1	0605-0605	●
32	STUD; EXH PIPE EXC. EURO3 SPECIFICATION<NJX> M10X60 L=75	0-44011-060-0	02	1	0605-	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0605-	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9810	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9811-0604	●	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION<NJX> (A) T=5.5	1-14149-042-0	03	1	0605-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0604	●
33	WASHER; EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B) T=5.5	1-14149-042-0	08	1	0605-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9811-		●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION<NJX> (A) L=43	1-14149-048-1	03	1	0605-	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION<NJX> (B) L=83	1-14149-134-0	08	1	0605-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	9601-0604	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (A) L=43	1-14149-048-1	08	1	0605-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	9601-0604	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B) L=83	1-14149-134-0	04	1	0605-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9811-		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9811-		●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION<NJX>	1-14141-994-0	01	1	0605-	●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	9601-0604	●
47	MANIFOLD; EXH,CENTER EXC. EURO3 SPECIFICATION<NJX>	1-14141-880-0	01	1	0605-	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION<NJX> M10X25 L=47	8-97378-071-0	04	1	0605-	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	9601-0604	●
49	STUD; CENTER MANIF TO TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> M10X25 L=40	9-04731-025-0	03	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NJX> (E) M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NJX> (E) M10X16 FLANGE	0-28151-016-0	01	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X12 FLANGE	0-28080-812-0	01	1	9601-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X12 FLANGE	0-28050-812-0	01	1	0601-0604	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (D) M8X12 FLANGE	0-28050-812-0	01	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9811-0805		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	8-98038-400-0	02	1	0806-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0906		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9811-		●
59	WASHER; LK,EXH PIPE ID=10	1-09503-033-1	02	1	9601-0604	●
59	WASHER; LK,EXH PIPE EXC. EURO3 SPECIFICATION<NJX> ID=10	1-09503-033-1	02	1	0605-	●
131	BOLT; MTG	9-09804-206-0	02	1	9601-0604	●
131	BOLT; MTG EXC. EURO3 SPECIFICATION<NJX>	9-09804-206-0	02	1	0605-	●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	06	1	9601-0501	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	02	1	0502-	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9811-		●

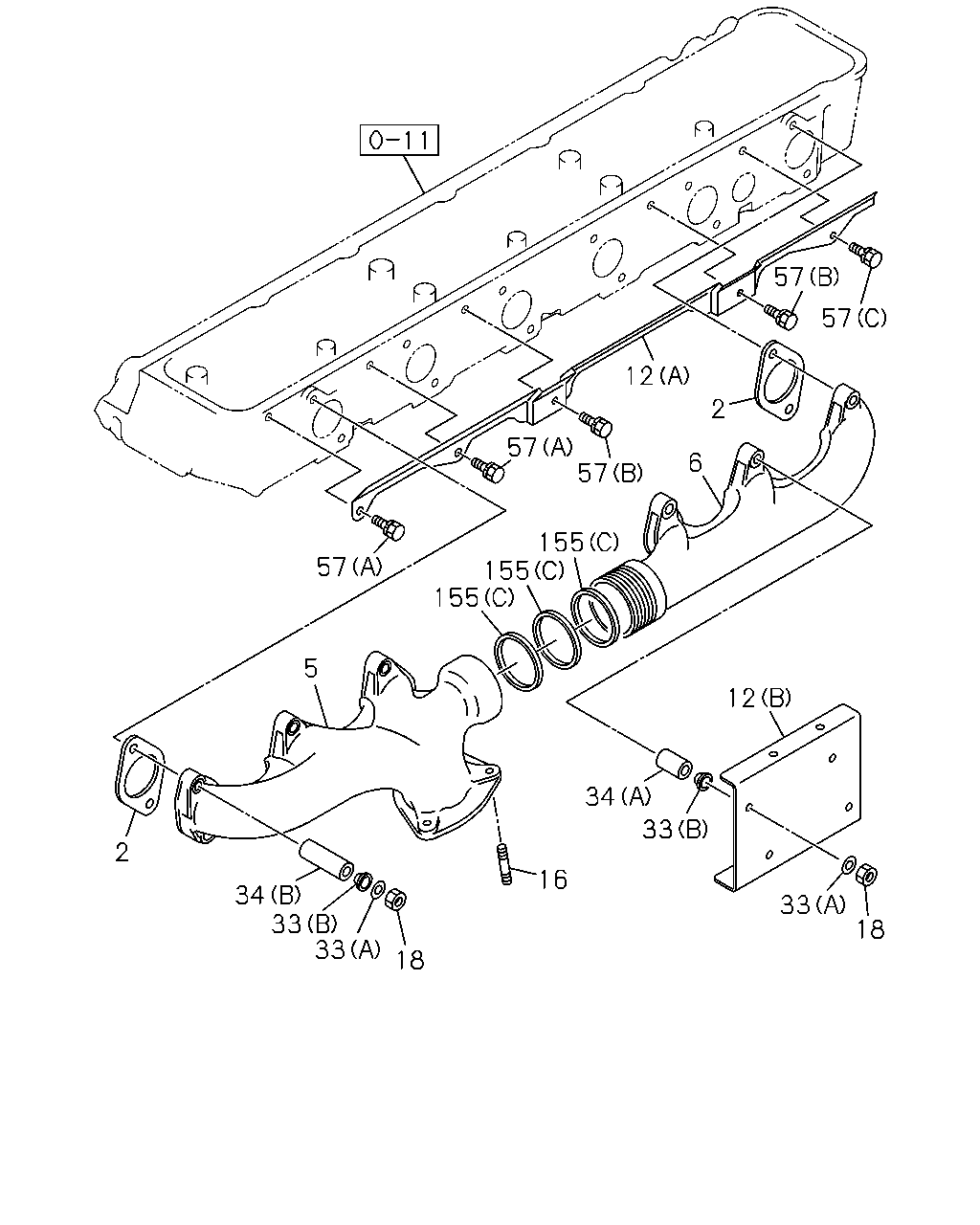

57 57 12 2 57 57 6 155 155 155 57 5 12 34 33 2 16 34 33 33 33 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-9810	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9811-	●	●
5	MANIFOLD; EXH,FRT	1-14141-784-0	01	1	9811-		●
6	MANIFOLD; EXH,RR	1-14141-785-0	01	1	9811-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14119-396-0	01	1	9601-0604	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (A)	1-14119-396-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-234-0	01	1	9601-0604	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B)	1-14181-234-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9811-0604		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NJX> (A)	1-14181-236-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	0605-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9811-		●
16	STUD; EXH PIPE TO MANIF M12X100 L=120	8-94397-322-0	03	1	9811-		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-9810	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9811-0602	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0605-	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9810	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9811-0604	●	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION<NJX> (A) T=5.5	1-14149-042-0	03	1	0605-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0604	●
33	WASHER; EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B) T=5.5	1-14149-042-0	08	1	0605-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9811-		●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION<NJX> (A) L=43	1-14149-048-1	03	1	0605-	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION<NJX> (B) L=83	1-14149-134-0	08	1	0605-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	9601-0604	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (A) L=43	1-14149-048-1	08	1	0605-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	9601-0604	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B) L=83	1-14149-134-0	04	1	0605-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9811-		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9811-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NJX> (E) M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NJX> (E) M10X16 FLANGE	0-28151-016-0	01	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X12 FLANGE	0-28080-812-0	01	1	9601-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X12 FLANGE	0-28050-812-0	01	1	0601-0604	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (D) M8X12 FLANGE	0-28050-812-0	01	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9811-0805		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	8-98038-400-0	02	1	0806-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0906		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9811-		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	06	1	9601-0501	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	02	1	0502-	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9811-		●

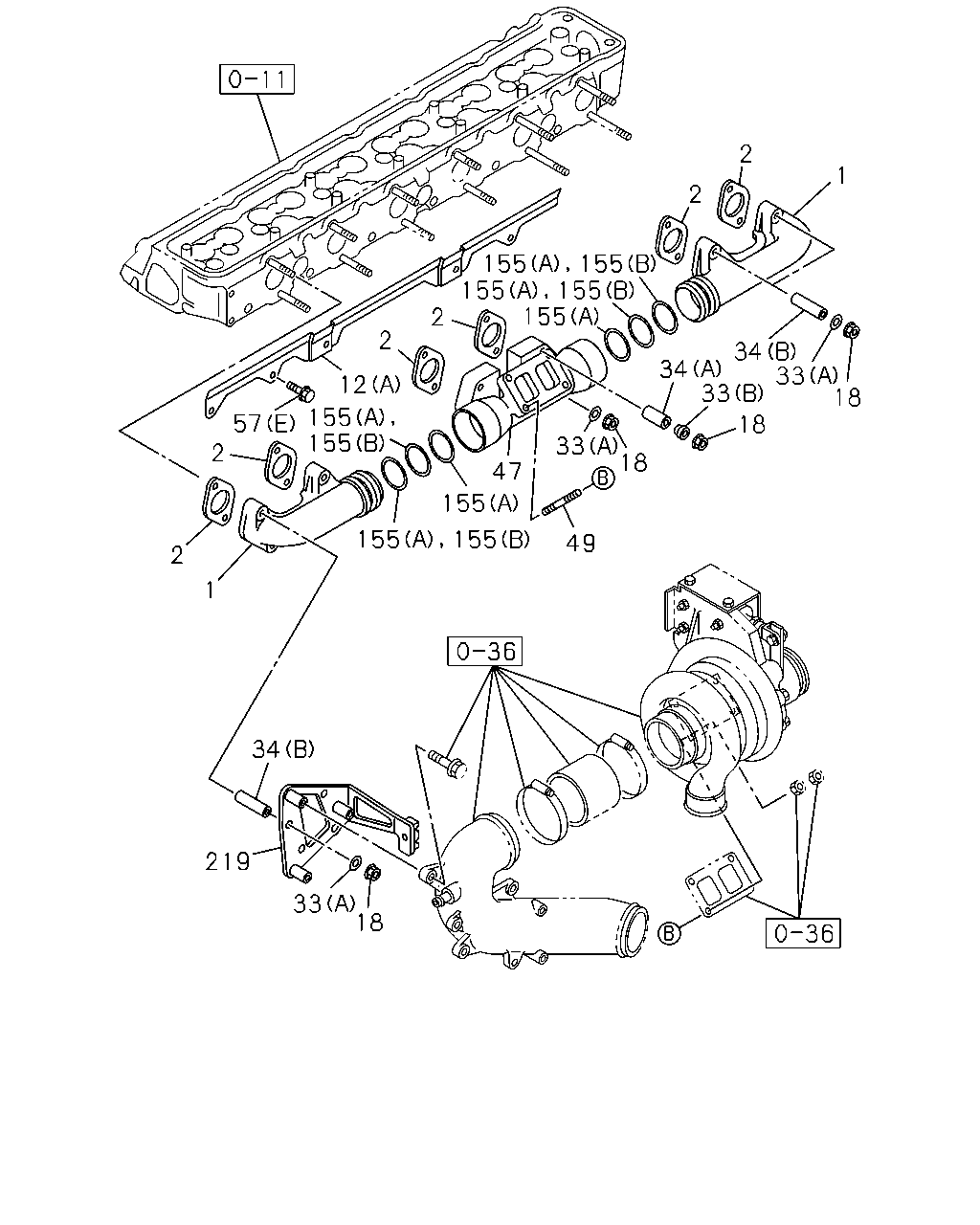

2 1 2 155 155 155 155 155 2 2 34 33 34 33 18 12 155 155 18 57 2 18 33 47 155 155 155 49 2 1 34 219 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	9601-	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-0	06	1	9601-9810	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	9811-	●	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14119-396-0	01	1	9601-0604	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (A)	1-14119-396-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-234-0	01	1	9601-0604	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B)	1-14181-234-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	9811-0604		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NJX> (A)	1-14181-236-0	01	1	0605-	●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-236-0	01	1	0605-		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14181-285-0	01	1	9811-		●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9601-9810	●
18	NUT; EXH MANIF M10 FLANGE	0-91150-210-0	12	1	9811-0602	●	●
18	NUT; EXH MANIF M10 FLANGE	0-91180-210-0	12	1	0603-	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0605-	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9601-9810	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	9811-0604	●	●
33	WASHER; EXH MANIF EURO3 SPECIFICATION<NJX> (A) T=5.5	1-14149-042-0	03	1	0605-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	9601-0604	●
33	WASHER; EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B) T=5.5	1-14149-042-0	08	1	0605-	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	06	1	9811-		●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION<NJX> (A) L=43	1-14149-048-1	03	1	0605-	●
34	COLLAR; DIST,EXH MANIF EURO3 SPECIFICATION<NJX> (B) L=83	1-14149-134-0	08	1	0605-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	9601-0604	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (A) L=43	1-14149-048-1	08	1	0605-	●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	9601-0604	●
34	COLLAR; DIST,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (B) L=83	1-14149-134-0	04	1	0605-	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	06	1	9811-		●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	06	1	9811-		●
47	MANIFOLD; EXH,CENTER EURO3 SPECIFICATION<NJX>	1-14141-994-0	01	1	0605-	●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	9601-0604	●
47	MANIFOLD; EXH,CENTER EXC. EURO3 SPECIFICATION<NJX>	1-14141-880-0	01	1	0605-	●
49	STUD; CENTER MANIF TO TURBOCHARGER EURO3 SPECIFICATION<NJX> M10X25 L=47	8-97378-071-0	04	1	0605-	●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	9601-0604	●
49	STUD; CENTER MANIF TO TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX> M10X25 L=40	9-04731-025-0	03	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NJX> (E) M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NJX> (E) M10X16 FLANGE	0-28151-016-0	01	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X12 FLANGE	0-28080-812-0	01	1	9601-0512	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X12 FLANGE	0-28050-812-0	01	1	0601-0604	●
57	BOLT; HEAT PROTECTOR,EXH MANIF EXC. EURO3 SPECIFICATION<NJX> (D) M8X12 FLANGE	0-28050-812-0	01	1	0605-	●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	0-50040-814-0	02	1	9811-0805		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X14 W/LK WASHER	8-98038-400-0	02	1	0806-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0906		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M10X16 W/LK WASHER	1-09033-012-0	01	1	9811-		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	06	1	9601-0501	●
155	RING; SEAL,EXH MANIF (A) STAMP RH	1-14149-151-0	02	1	0502-	●
155	RING; SEAL,EXH MANIF (C) STAMP RH	1-14149-151-0	03	1	9811-		●
219	BRACKET; DUCT EURO3 SPECIFICATION<NJX>	1-14149-244-0	01	1	0605-	●
