Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#65037) — 237 parça

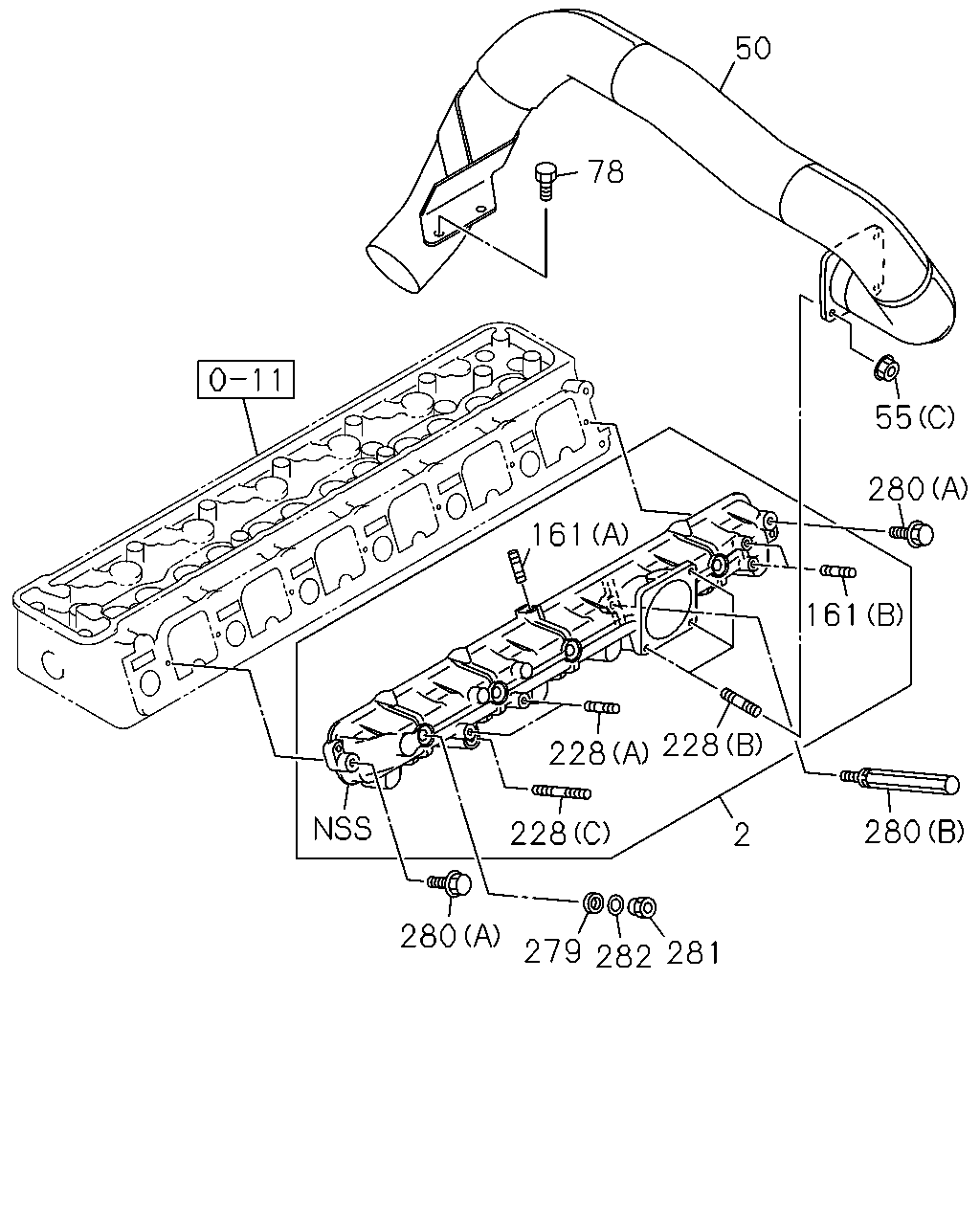

50 78 55 280 161 161 228 228 280 228 2 280 279 281 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL	1-14110-552-1	01	1	9601-0101	●
2	COVER; INL	1-14110-603-0	01	1	0102-0604	●
2	COVER; INL EXC. EURO3 SPECIFICATION<NJX>	1-14110-603-0	01	1	0605-	●
2	COVER; INL	1-14110-553-1	01	1	9811-0101		●
2	COVER; INL	1-14110-604-0	01	1	0102-		●
50	PIPE; INL	1-14134-197-0	01	1	9811-		●
55	NUT; INL PIPE EURO3 SPECIFICATION<NJX> (D) M10 FLANGE	0-91180-110-0	04	1	0605-	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	9601-0602	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	07	1	0603-0604	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	07	1	0605-	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	9601-0602	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	02	1	0603-0604	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE	0-91180-110-0	02	1	0605-	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	03	1	9811-0602		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	03	1	0603-		●
78	BOLT; INL PIPE TO INL MANIF M10X20 FLANGE	0-28081-020-0	02	1	9811-0512		●
78	BOLT; INL PIPE TO INL MANIF M10X20 FLANGE	0-28051-020-0	02	1	0601-		●
161	STUD; BRKT,INJ PUMP (B) M8X16 L=28	9-04110-816-0	02	1	9601-9605	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	9606-9810	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	9811-0604	●	●
161	STUD; BRKT,INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) M8X20 L=32	9-04110-820-0	02	1	0605-0605	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	0605-0605		●
161	STUD; BRKT,INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) M8X20 L=32	0-41010-820-0	02	1	0605-	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	0-41010-820-0	02	1	0605-		●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	9-04110-812-0	01	1	9811-0604		●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	0-41010-812-0	01	1	0605-		●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	9601-9810	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	9811-0604	●	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (A) M8X20 L=32	9-04110-820-0	02	1	0605-0605	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	0605-0605		●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (A) M8X20 L=32	0-41010-820-0	02	1	0605-	●
228	STUD; INL COVER (A) M8X20 L=32	0-41010-820-0	02	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	04	1	9601-0604	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (B) M8X25 L=37	9-04110-825-0	04	1	0605-0605	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (B) M8X25 L=37	0-41010-825-0	04	1	0605-	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	9601-9810	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	9811-0604	●	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (C) M8X60 L=72	9-04110-860-0	01	1	0605-0605	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	0605-0605		●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (C) M8X60 L=72	0-41010-860-0	01	1	0605-	●
228	STUD; INL COVER (C) M8X60 L=72	0-41010-860-0	01	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	03	1	9811-0604		●
228	STUD; INL COVER (B) M8X25 L=37	0-41010-825-0	03	1	0605-		●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9601-9810	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9811-0604	●	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0605-	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0605-		●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	9601-9810	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	9811-0512	●	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-0604	●	●
280	BOLT; INL COVER EXC. EURO3 SPECIFICATION<NJX> (A) M8X45 FLANGE	0-28050-845-0	02	1	0605-	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28050-845-0	02	1	0605-		●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	9601-9810	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	9811-0604	●	●
280	BOLT; INL COVER EXC. EURO3 SPECIFICATION<NJX> (B) M8X28.5	1-09009-125-1	01	1	0605-	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0605-		●
281	NUT; INL COVER	1-11175-011-1	04	1	9601-9810	●
281	NUT; INL COVER	1-11175-011-1	04	1	9811-0604	●	●
281	NUT; INL COVER EXC. EURO3 SPECIFICATION<NJX>	1-11175-011-1	04	1	0605-	●
281	NUT; INL COVER	1-11175-011-1	04	1	0605-		●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	9601-9810	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	9811-0604	●	●
282	WASHER; PL,INL CVR FIX EXC. EURO3 SPECIFICATION<NJX> ID=12.5	1-09503-186-0	04	1	0605-	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	0605-		●

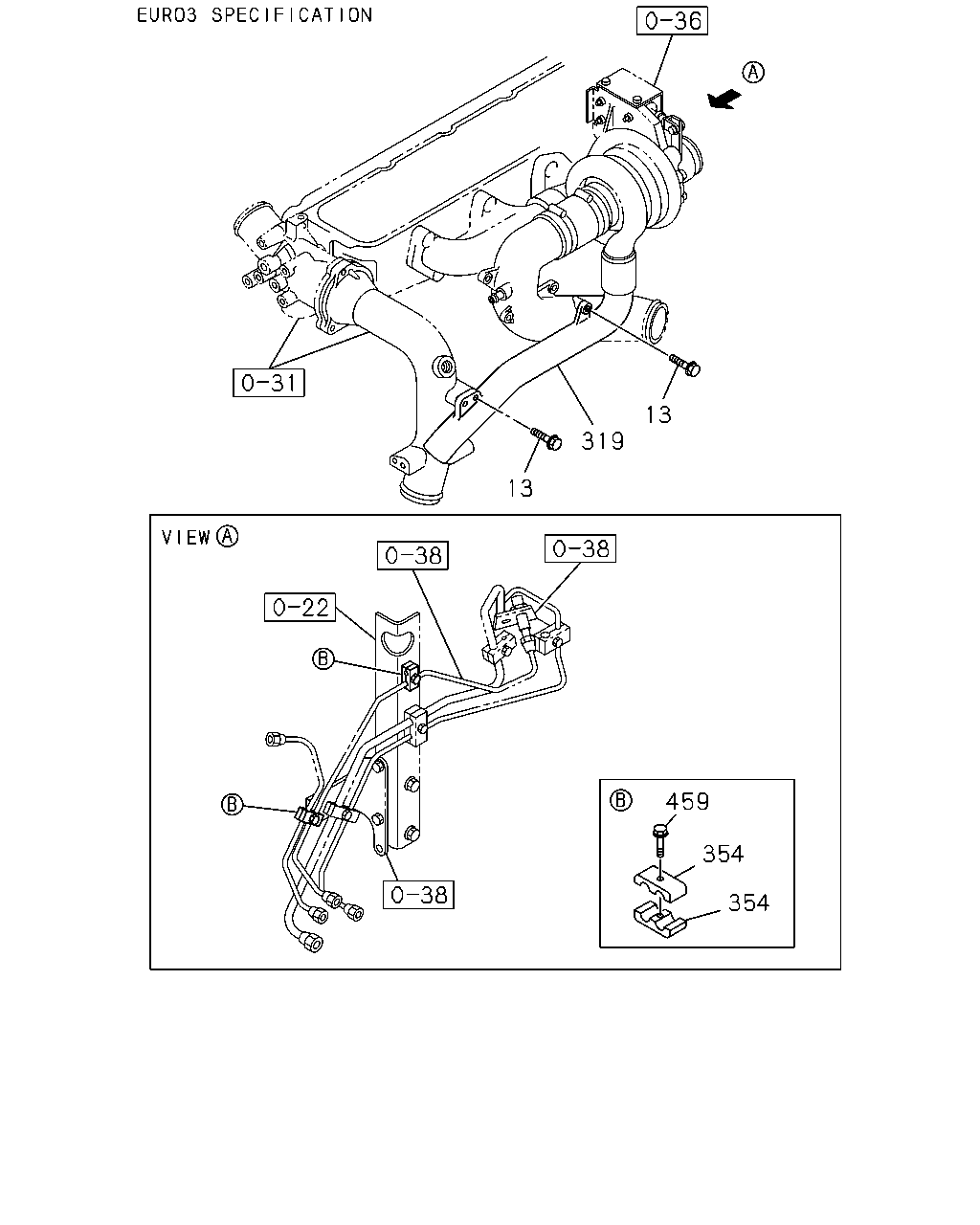

13 319 13 459 354 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
13	BOLT; INL MANIF EURO3 SPECIFICATION<NJX> M8X35 FLANGE	0-28050-835-0	04	1	0605-	●
13	BOLT; INL MANIF M10X85 FLANGE	8-97020-251-0	01	1	9601-0604	●
13	BOLT; INL MANIF EXC. EURO3 SPECIFICATION<NJX> M10X85 FLANGE	8-97020-251-0	01	1	0605-	●
319	DUCT; INL,TURBOCHARGER EURO3 SPECIFICATION<NJX>	1-14134-399-2	01	1	0605-	●
319	DUCT; INL,TURBOCHARGER	1-14134-168-2	01	1	9601-9701	●
319	DUCT; INL,TURBOCHARGER	1-14134-238-0	01	1	9702-9702	●
319	DUCT; INL,TURBOCHARGER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-0	01	1	9703-9804	●
319	DUCT; INL,TURBOCHARGER EXC. A/T<X9D>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-1	01	1	9805-0004	●
319	DUCT; INL,TURBOCHARGER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-1	01	1	0005-0604	●
319	DUCT; INL,TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-1	01	1	0605-	●
319	DUCT; INL,TURBOCHARGER A/T<X9D>	1-14134-291-0	01	1	9805-0004	●
319	DUCT; INL,TURBOCHARGER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-199-2	01	1	9703-	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-240-0	04	1	0605-	●
354	CLIP; AIR PIPE	1-09701-132-1	02	1	9601-0604	●
354	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-09701-132-1	02	1	0605-1210	●
354	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-09701-240-0	02	1	1211-	●
459	BOLT; CLIP FIX EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28650-635-0	02	1	0605-	●

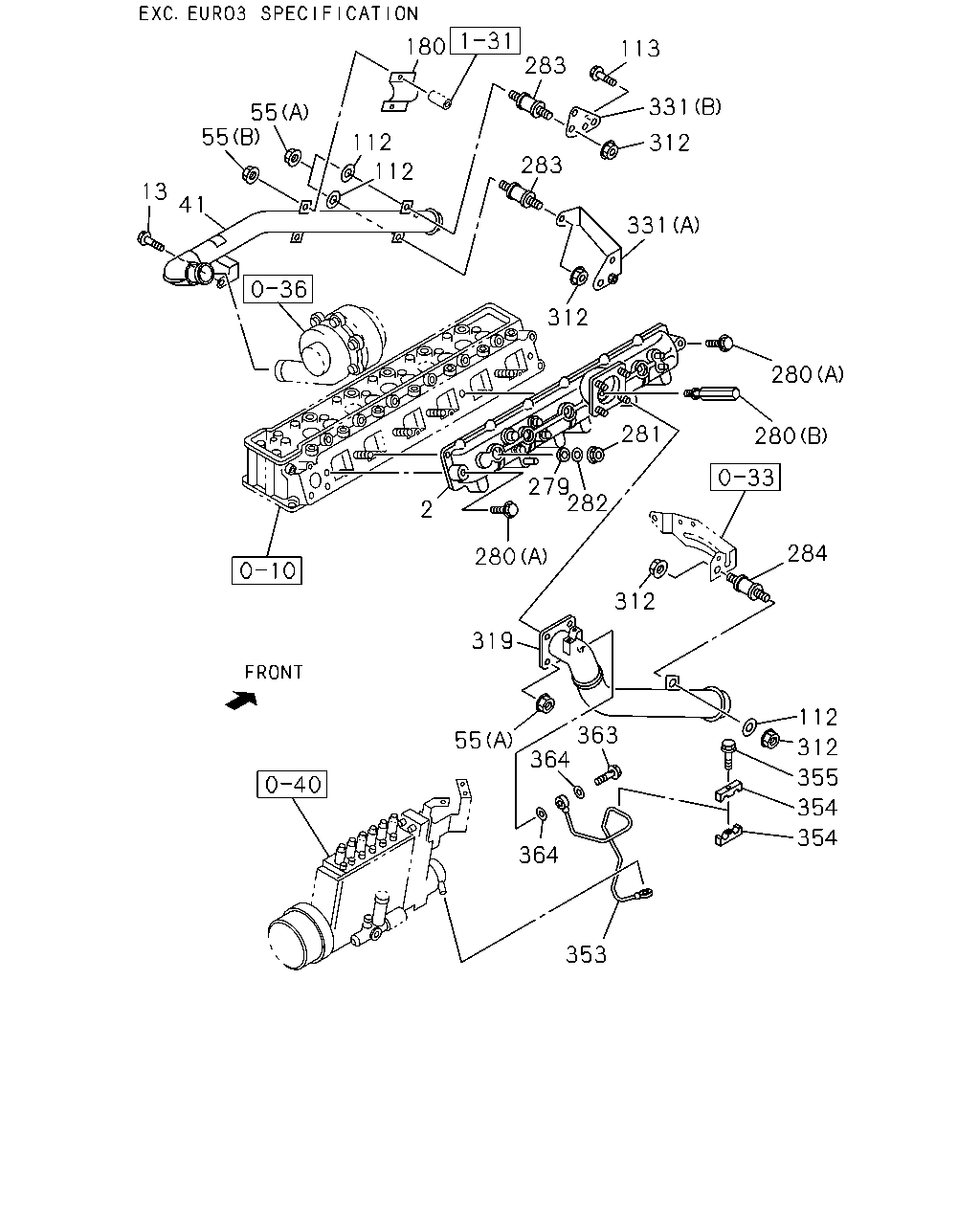

180 113 283 331 55 55 112 312 283 112 13 41 331 312 280 281 280 279 282 2 284 280 312 319 112 363 364 55 312 355 354 354 364 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL	1-14110-552-1	01	1	9601-0101	●
2	COVER; INL	1-14110-603-0	01	1	0102-0604	●
2	COVER; INL EXC. EURO3 SPECIFICATION<NJX>	1-14110-603-0	01	1	0605-	●
2	COVER; INL	1-14110-553-1	01	1	9811-0101		●
2	COVER; INL	1-14110-604-0	01	1	0102-		●
13	BOLT; INL MANIF EURO3 SPECIFICATION<NJX> M8X35 FLANGE	0-28050-835-0	04	1	0605-	●
13	BOLT; INL MANIF M10X85 FLANGE	8-97020-251-0	01	1	9601-0604	●
13	BOLT; INL MANIF EXC. EURO3 SPECIFICATION<NJX> M10X85 FLANGE	8-97020-251-0	01	1	0605-	●
41	DUCT; INT COVER	1-14134-146-2	01	1	9601-0604	●
41	DUCT; INT COVER EXC. EURO3 SPECIFICATION<NJX>	1-14134-146-2	01	1	0605-	●
55	NUT; INL PIPE EURO3 SPECIFICATION<NJX> (D) M10 FLANGE	0-91180-110-0	04	1	0605-	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	9601-0602	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	07	1	0603-0604	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	07	1	0605-	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	9601-0602	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	02	1	0603-0604	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE	0-91180-110-0	02	1	0605-	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	03	1	9811-0602		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	03	1	0603-		●
112	WASHER; PL ID=8.4 OD=26	9-09164-808-0	03	1	9607-0604	●
112	WASHER; PL EXC. EURO3 SPECIFICATION<NJX> ID=8.4 OD=26	9-09164-808-0	03	1	0605-0605	●
112	WASHER; PL EXC. EURO3 SPECIFICATION<NJX> ID=8.4 OD=26	0-91614-808-0	03	1	0606-	●
113	BOLT; STAY M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●
113	BOLT; STAY M8X16 FLANGE	0-28050-816-0	02	1	0601-0604	●
113	BOLT; STAY EXC. EURO3 SPECIFICATION<NJX> M8X16 FLANGE	0-28050-816-0	02	1	0605-	●
180	PROTECTOR; HEAT	1-14181-286-0	01	1	9601-0604	●
180	PROTECTOR; HEAT EXC. EURO3 SPECIFICATION<NJX>	1-14181-286-0	01	1	0605-	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9601-9810	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	9811-0604	●	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0605-	●
279	GASKET; FIX NUT,INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-046-0	04	1	0605-		●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	9601-9810	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28080-845-0	02	1	9811-0512	●	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-0604	●	●
280	BOLT; INL COVER EXC. EURO3 SPECIFICATION<NJX> (A) M8X45 FLANGE	0-28050-845-0	02	1	0605-	●
280	BOLT; INL COVER (A) M8X45 FLANGE	0-28050-845-0	02	1	0605-		●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	9601-9810	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	9811-0604	●	●
280	BOLT; INL COVER EXC. EURO3 SPECIFICATION<NJX> (B) M8X28.5	1-09009-125-1	01	1	0605-	●
280	BOLT; INL COVER (B) M8X28.5	1-09009-125-1	01	1	0605-		●
281	NUT; INL COVER	1-11175-011-1	04	1	9601-9810	●
281	NUT; INL COVER	1-11175-011-1	04	1	9811-0604	●	●
281	NUT; INL COVER EXC. EURO3 SPECIFICATION<NJX>	1-11175-011-1	04	1	0605-	●
281	NUT; INL COVER	1-11175-011-1	04	1	0605-		●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	9601-9810	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	9811-0604	●	●
282	WASHER; PL,INL CVR FIX EXC. EURO3 SPECIFICATION<NJX> ID=12.5	1-09503-186-0	04	1	0605-	●
282	WASHER; PL,INL CVR FIX ID=12.5	1-09503-186-0	04	1	0605-		●
283	RUBBER EURO3 SPECIFICATION<NJX>	1-14119-435-0	01	1	0605-	●
283	RUBBER	8-94394-268-1	02	1	9601-0604	●
283	RUBBER EXC. EURO3 SPECIFICATION<NJX>	8-94394-268-1	02	1	0605-	●
284	RUBBER; INL PIPE MTG	8-94394-268-1	01	1	9601-0604	●
284	RUBBER; INL PIPE MTG EXC. EURO3 SPECIFICATION<NJX>	8-94394-268-1	01	1	0605-	●
312	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	03	1	9601-0602	●
312	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	03	1	0603-0604	●
312	NUT; MTG RUBBER EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	03	1	0605-	●
319	DUCT; INL,TURBOCHARGER EURO3 SPECIFICATION<NJX>	1-14134-399-2	01	1	0605-	●
319	DUCT; INL,TURBOCHARGER	1-14134-168-2	01	1	9601-9701	●
319	DUCT; INL,TURBOCHARGER	1-14134-238-0	01	1	9702-9702	●
319	DUCT; INL,TURBOCHARGER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-0	01	1	9703-9804	●
319	DUCT; INL,TURBOCHARGER EXC. A/T<X9D>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-1	01	1	9805-0004	●
319	DUCT; INL,TURBOCHARGER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-1	01	1	0005-0604	●
319	DUCT; INL,TURBOCHARGER EXC. EURO3 SPECIFICATION<NJX>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-238-1	01	1	0605-	●
319	DUCT; INL,TURBOCHARGER A/T<X9D>	1-14134-291-0	01	1	9805-0004	●
319	DUCT; INL,TURBOCHARGER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-14134-199-2	01	1	9703-	●
331	STAY; INL DUCT (A)	1-13719-088-0	01	1	9601-0604	●
331	STAY; INL DUCT EXC. EURO3 SPECIFICATION<NJX> (A)	1-13719-088-0	01	1	0605-	●
331	STAY; INL DUCT (B)	1-14119-389-0	01	1	9601-0604	●
331	STAY; INL DUCT EXC. EURO3 SPECIFICATION<NJX> (B)	1-14119-389-0	01	1	0605-	●
353	PIPE; AIR,BOOST SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-19192-980-0	01	1	9601-0004	●
353	PIPE; AIR,BOOST EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>	1-19192-953-0	01	1	9601-0004	●
353	PIPE; AIR,BOOST	1-19192-953-0	01	1	0005-0604	●
353	PIPE; AIR,BOOST EXC. EURO3 SPECIFICATION<NJX>	1-19192-953-0	01	1	0605-	●
354	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-240-0	04	1	0605-	●
354	CLIP; AIR PIPE	1-09701-132-1	02	1	9601-0604	●
354	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-09701-132-1	02	1	0605-1210	●
354	CLIP; AIR PIPE EXC. EURO3 SPECIFICATION<NJX>	1-09701-240-0	02	1	1211-	●
355	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28080-635-0	01	1	9601-0512	●
355	BOLT; CLIP,AIR PIPE M6X35 FLANGE	0-28050-635-0	01	1	0601-0604	●
355	BOLT; CLIP,AIR PIPE EXC. EURO3 SPECIFICATION<NJX> M6X35 FLANGE	0-28050-635-0	01	1	0605-	●
363	BOLT; EYE EURO3 SPECIFICATION<NJX> M8X24	8-97257-826-0	01	1	0605-	●
363	BOLT; EYE	1-09675-184-0	01	1	9601-0604	●
363	BOLT; EYE EXC. EURO3 SPECIFICATION<NJX>	1-09675-184-0	01	1	0605-	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9601-0604	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX> ID=10.2 OD=15.2	1-09630-083-0	02	1	0605-	●

2 228 161 228 18 221 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL	1-14110-552-1	01	1	9601-0101	●
2	COVER; INL	1-14110-603-0	01	1	0102-0604	●
2	COVER; INL EXC. EURO3 SPECIFICATION<NJX>	1-14110-603-0	01	1	0605-	●
2	COVER; INL	1-14110-553-1	01	1	9811-0101		●
2	COVER; INL	1-14110-604-0	01	1	0102-		●
18	SCREW; PLATE,INL CVR	1-09054-019-0	08	1	9601-0604	●
18	SCREW; PLATE,INL CVR EXC. EURO3 SPECIFICATION<NJX>	1-09054-019-0	08	1	0605-	●
161	STUD; BRKT,INJ PUMP (B) M8X16 L=28	9-04110-816-0	02	1	9601-9605	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	9606-9810	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	9811-0604	●	●
161	STUD; BRKT,INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) M8X20 L=32	9-04110-820-0	02	1	0605-0605	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	9-04110-820-0	02	1	0605-0605		●
161	STUD; BRKT,INJ PUMP EXC. EURO3 SPECIFICATION<NJX> (B) M8X20 L=32	0-41010-820-0	02	1	0605-	●
161	STUD; BRKT,INJ PUMP (B) M8X20 L=32	0-41010-820-0	02	1	0605-		●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	9-04110-812-0	01	1	9811-0604		●
161	STUD; BRKT,INJ PUMP (A) M8X12 L=24	0-41010-812-0	01	1	0605-		●
221	PLATE; INL COVER	1-14119-261-0	04	1	9601-0604	●
221	PLATE; INL COVER EXC. EURO3 SPECIFICATION<NJX>	1-14119-261-0	04	1	0605-	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	9601-9810	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	9811-0604	●	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (A) M8X20 L=32	9-04110-820-0	02	1	0605-0605	●
228	STUD; INL COVER (A) M8X20 L=32	9-04110-820-0	02	1	0605-0605		●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (A) M8X20 L=32	0-41010-820-0	02	1	0605-	●
228	STUD; INL COVER (A) M8X20 L=32	0-41010-820-0	02	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	04	1	9601-0604	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (B) M8X25 L=37	9-04110-825-0	04	1	0605-0605	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (B) M8X25 L=37	0-41010-825-0	04	1	0605-	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	9601-9810	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	9811-0604	●	●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (C) M8X60 L=72	9-04110-860-0	01	1	0605-0605	●
228	STUD; INL COVER (C) M8X60 L=72	9-04110-860-0	01	1	0605-0605		●
228	STUD; INL COVER EXC. EURO3 SPECIFICATION<NJX> (C) M8X60 L=72	0-41010-860-0	01	1	0605-	●
228	STUD; INL COVER (C) M8X60 L=72	0-41010-860-0	01	1	0605-		●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	03	1	9811-0604		●
228	STUD; INL COVER (B) M8X25 L=37	0-41010-825-0	03	1	0605-		●

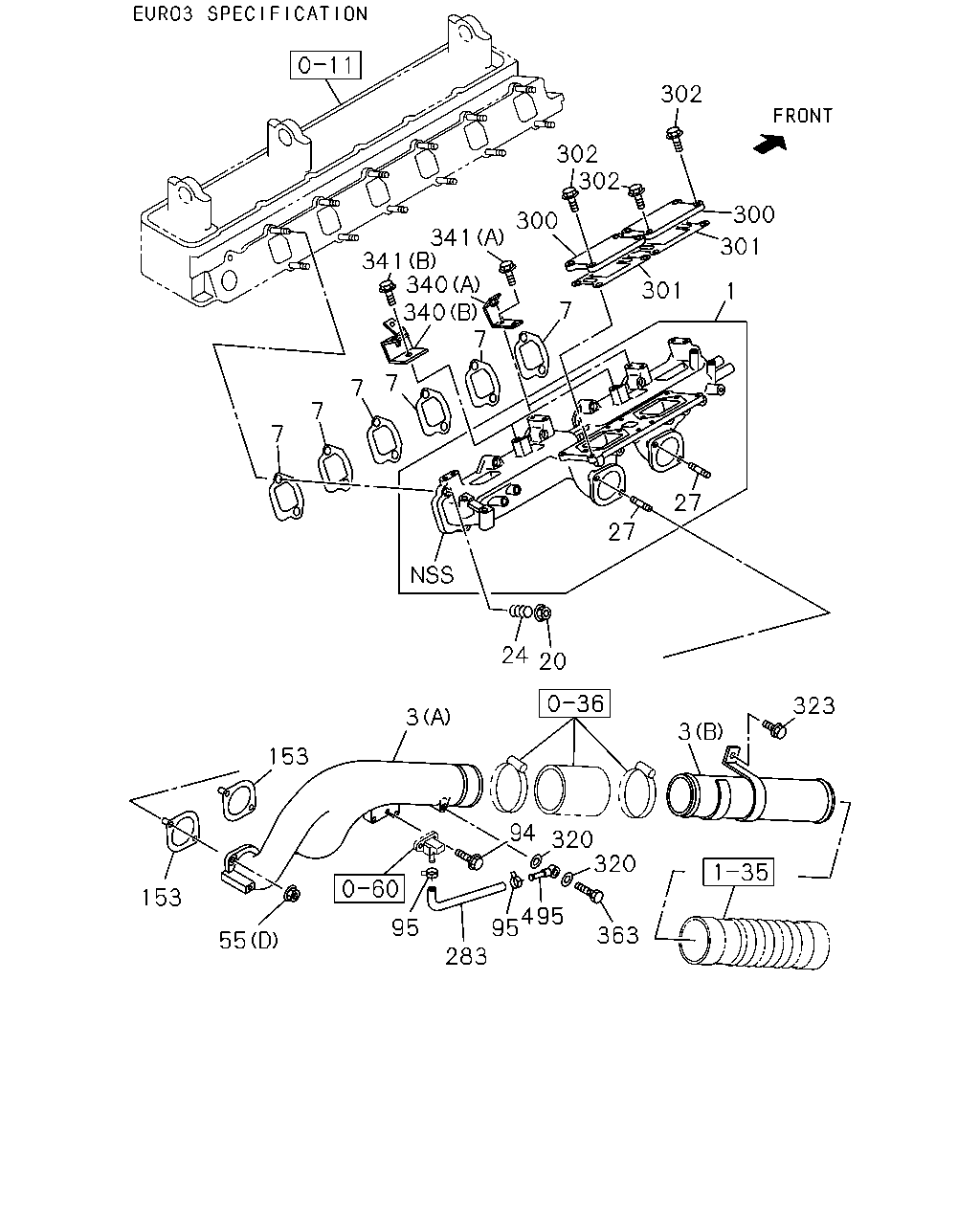

302 302 302 300 300 341 341 340 340 7 301 301 1 7 7 7 7 7 27 27 24 20 323 3 3 153 94 320 320 153 495 95 283 95 363 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL EURO3 SPECIFICATION<NJX>	1-14110-599-1	01	1	0605-	●
3	DUCT; INT EURO3 SPECIFICATION<NJX> (A)	1-14134-400-2	01	1	0605-	●
3	DUCT; INT EURO3 SPECIFICATION<NJX> (B)	1-14134-471-0	01	1	0605-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX>	1-14115-091-0	06	1	0605-	●
20	NUT; INL MANIF EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	12	1	0605-	●
24	SPRING; INL MANIF EURO3 SPECIFICATION<NJX>	8-94393-858-0	12	1	0605-	●
27	STUD; INL MANIF EURO3 SPECIFICATION<NJX> M10X25 L=40	9-04411-025-0	04	1	0605-0605	●
27	STUD; INL MANIF EURO3 SPECIFICATION<NJX> M10X25 L=40	0-44011-025-0	04	1	0605-	●
55	NUT; INL PIPE EURO3 SPECIFICATION<NJX> (D) M10 FLANGE	0-91180-110-0	04	1	0605-	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91150-108-0	07	1	9601-0602	●
55	NUT; INL PIPE (A) M8 FLANGE	0-91180-108-0	07	1	0603-0604	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION<NJX> (A) M8 FLANGE	0-91180-108-0	07	1	0605-	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91150-110-0	02	1	9601-0602	●
55	NUT; INL PIPE (B) M10 FLANGE	0-91180-110-0	02	1	0603-0604	●
55	NUT; INL PIPE EXC. EURO3 SPECIFICATION<NJX> (B) M10 FLANGE	0-91180-110-0	02	1	0605-	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	03	1	9811-0602		●
55	NUT; INL PIPE (C) M8 FLANGE	0-91180-108-0	03	1	0603-		●
94	BOLT EURO3 SPECIFICATION<NJX> M6X12 FLANGE	0-28050-612-0	02	1	0605-	●
95	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=11 WHITE	5-09707-005-1	02	1	0605-	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX>	1-14115-097-0	02	1	0605-	●
283	RUBBER EURO3 SPECIFICATION<NJX>	1-14119-435-0	01	1	0605-	●
283	RUBBER	8-94394-268-1	02	1	9601-0604	●
283	RUBBER EXC. EURO3 SPECIFICATION<NJX>	8-94394-268-1	02	1	0605-	●
300	COVER; INL MANIF EURO3 SPECIFICATION<NJX>	1-11749-208-0	02	1	0605-	●
301	GASKET; INL MANIF COVER ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX>	1-16185-004-0	02	1	0605-	●
302	BOLT; INL MANIF COVER EURO3 SPECIFICATION<NJX> M10X30 FLANGE	0-28151-030-0	08	1	0605-	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> ID=8.2 OD=13.2	1-09630-082-0	02	1	0605-	●
323	BOLT; DUCT EURO3 SPECIFICATION<NJX> M8X35 FLANGE	0-28650-835-0	02	1	0605-	●
340	BRACKET; HARNESS INL MANIF EURO3 SPECIFICATION<NJX> (B)	1-13729-052-0	02	1	0605-	●
340	BRACKET; HARNESS INL MANIF EURO3 SPECIFICATION<NJX> (A)	1-14119-463-0	03	1	0605-	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION<NJX> (A) M8X16 FLANGE	0-28050-816-0	03	1	0605-	●
341	BOLT; BRKT,INL COVER EURO3 SPECIFICATION<NJX> (B) M10X16 FLANGE	0-28151-016-0	02	1	0605-	●
363	BOLT; EYE EURO3 SPECIFICATION<NJX> M8X24	8-97257-826-0	01	1	0605-	●
363	BOLT; EYE	1-09675-184-0	01	1	9601-0604	●
363	BOLT; EYE EXC. EURO3 SPECIFICATION<NJX>	1-09675-184-0	01	1	0605-	●
495	PIPE; BOOST SENSOR EURO3 SPECIFICATION<NJX>	8-94428-807-0	01	1	0605-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
