◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10707 - FVZ-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#65036) — 77 parça

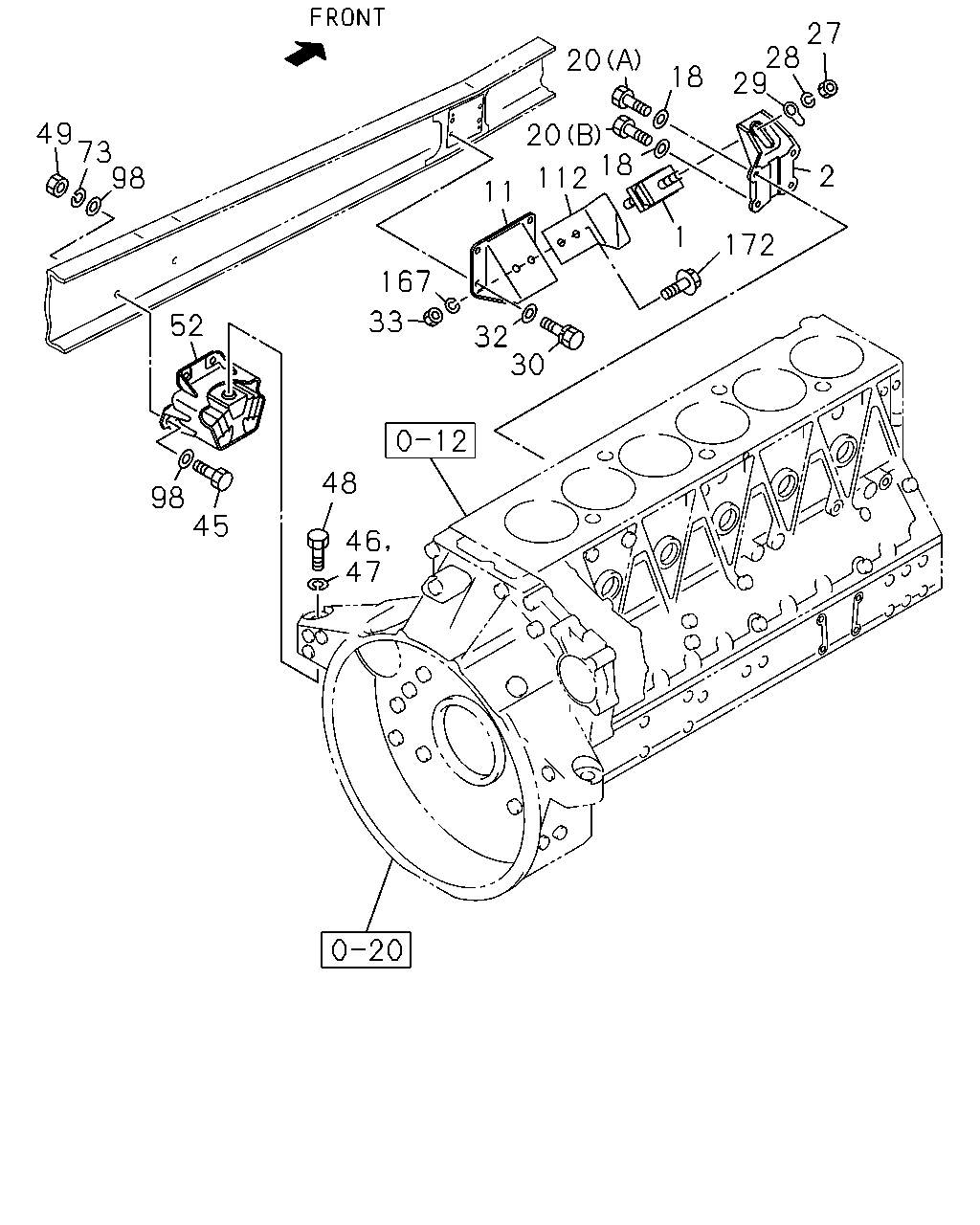

çizim 38510
27 28 29 20 18 20 18 49 73 98 2 112 11 1 172 167 33 52 32 30 48 98 45 46 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 1-53215-132-2 02 1 9601-9804 ●
1 RUBBER; ENG FOOT,FRT
FULLER M/T<X9B>,ZF M/T<X9E> 		1-53215-132-2 02 1 9805-9810 ●
1 RUBBER; ENG FOOT,FRT
FULLER M/T<X9B>,ZF M/T<X9E> 		1-53215-132-2 02 1 9811-0004 ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-132-2 02 1 0005- ● ●
1 RUBBER; ENG FOOT,FRT
A/T<X9D> 		1-53215-131-2 02 1 9805-0004 ●
2 FOOT; ENG 1-11771-172-0 02 1 9601-9810 ●
2 FOOT; ENG 1-11771-172-0 02 1 9811- ● ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-226-0 02 1 9601-9810 ●
11 BRACKET; CUSHION RUBBER,FRT 1-53211-226-0 02 1 9811- ● ●
18 WASHER; PL,ENG FOOT
ID=12.2 		1-09503-008-0 08 1 9601-9810 ●
18 WASHER; PL,ENG FOOT
ID=12.2 		1-09503-008-0 08 1 9811- ● ●
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 9601-9810 ●
20 BOLT; ENG FOOT
(A) M12X28.5 		1-09020-100-0 04 1 9811- ● ●
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 9601-9810 ●
20 BOLT; ENG FOOT
(B) M12X24 		1-09020-101-0 04 1 9811- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-418-0 02 1 9601-9802 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9803-9810 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		9-99110-518-0 02 1 9811-0512 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M18 		0-91110-518-0 02 1 0601- ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9601-9810 ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		9-09150-518-0 02 1 9811-0603 ● ●
28 WASHER; LK,SUPPORT BRKT
ID=18.2 		0-91510-518-0 02 1 0604- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9601-9810 ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-040-0 02 1 9811- ● ●
30 BOLT; BRKT TO FRAME
M12X40 		9-92061-240-0 08 1 9601-9810 ●
30 BOLT; BRKT TO FRAME
M12X40 		9-92061-240-0 08 1 9811-0512 ● ●
30 BOLT; BRKT TO FRAME
M12X40 		0-20951-240-0 08 1 0601- ● ●
32 WASHER; PL,BRKT TO FRAME
ID=12.5 		1-09503-171-0 08 1 9601-9810 ●
32 WASHER; PL,BRKT TO FRAME
ID=12.5 		1-09503-171-0 08 1 9811- ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9601-9810 ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		9-99110-414-0 04 1 9811-0512 ● ●
33 NUT; CUSHION RUBBER TO BRKT
M14 		0-91110-514-0 04 1 0601- ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9601-9810 ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		9-92061-450-0 08 1 9811-0512 ● ●
45 BOLT; CUSHION RUBBER TO FRAME
M14X50 		0-20951-450-0 08 1 0601- ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		9-09164-522-0 02 1 0010-0605 ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=23 		0-91614-522-0 02 1 0606- ● ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9601-9810 ●
47 WASHER; LK,CUSHION RUBBER
ID=22.5 		9-09150-622-0 02 1 9811-0009 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M22X60 		1-09020-143-0 02 1 9601-9604 ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 9605-9810 ●
48 BOLT; CUSHION RUBBER TO ENG
M22X75 		1-09020-087-2 02 1 9811- ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9601-9810 ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		9-99110-514-0 08 1 9811-0512 ● ●
49 NUT; CUSHION RUBBER TO FRAME
M14 		0-91110-514-0 08 1 0601- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 9601-9810 ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-302-0 02 1 9811- ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-614-0 08 1 9601-9810 ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-614-0 08 1 9811-0202 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		9-09150-814-0 08 1 0203-0603 ● ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2 		0-91510-814-0 08 1 0604- ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9601-9810 ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		9-09651-069-0 16 1 9811-1201 ● ●
98 WASHER; PL,CUSHION RUBBER TO FRAME,RR
ID=15 		8-98010-627-1 16 1 1202- ● ●
112 PROTECTOR; HEAT 1-53219-754-0 01 1 9601-9810 ●
112 PROTECTOR; HEAT 1-53219-754-0 01 1 9811- ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		9-09150-614-0 04 1 9601-9810 ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		9-09150-614-0 04 1 9811-0202 ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		9-09150-514-0 04 1 0203-0603 ● ●
167 WASHER; LK,CUSHION RUBBER
ID=14.2 		0-91510-514-0 04 1 0604- ● ●
172 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 9601-9810 ●
172 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28680-820-0 02 1 9811-0512 ● ●
172 BOLT; HEAT PROTECTOR
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●

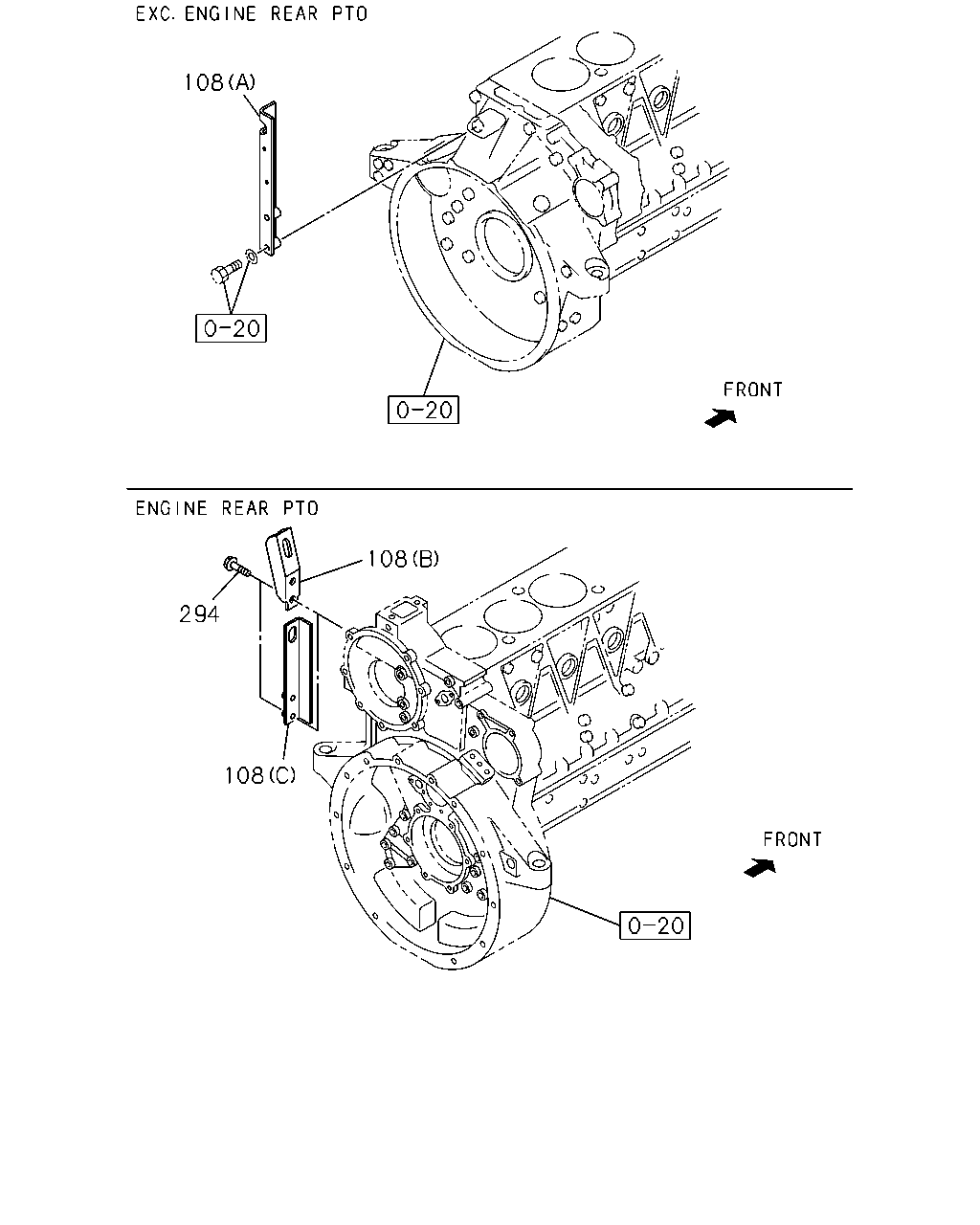

çizim 184656
108 108 294 108
BalonParca AdiParca NoAdetTipApplied Date A B
108 HANGER; ENG FLYWHEEL HSG
EURO3 SPECIFICATION<NJX> (A) 		1-11777-254-0 01 1 0605- ●
108 HANGER; ENG FLYWHEEL HSG
(A) 		1-11777-208-0 01 1 9601-9607 ●
108 HANGER; ENG FLYWHEEL HSG
EXC. ENGINE REAR PTO<SV1> (A) 		1-11777-208-0 01 1 9608-9810 ●
108 HANGER; ENG FLYWHEEL HSG
EXC. ENGINE REAR PTO<SV1> (A) 		1-11777-208-0 01 1 9811-0209 ●
108 HANGER; ENG FLYWHEEL HSG
(A) 		1-11777-208-0 01 1 9811-0209 ●
108 HANGER; ENG FLYWHEEL HSG
EXC. ENGINE REAR PTO<SV1> (A) 		1-11777-268-0 01 1 0210- ●
108 HANGER; ENG FLYWHEEL HSG
(A) 		1-11777-268-0 01 1 0210- ●
108 HANGER; ENG FLYWHEEL HSG
ENGINE REAR PTO<SV1> (B) 		1-11777-087-0 01 1 9608-9608 ●
108 HANGER; ENG FLYWHEEL HSG
ENGINE REAR PTO<SV1> (C) 		1-11777-224-0 01 1 9609-0604 ●
108 HANGER; ENG FLYWHEEL HSG
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C) 		1-11777-224-0 01 1 0605- ●
294 BOLT; HANGER
ENGINE REAR PTO<SV1> 		0-28191-220-0 02 1 9608-9608 ●
294 BOLT; HANGER
ENGINE REAR PTO<SV1> M12X40 FLANGE 		0-28181-240-0 02 1 9609-0604 ●
294 BOLT; HANGER
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M12X40 FLANGE 		0-28181-240-0 02 1 0605-0804 ●
294 BOLT; HANGER
ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M12X40 FLANGE 		0-28151-240-0 02 1 0805- ●
