0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#65035) — 158 parça

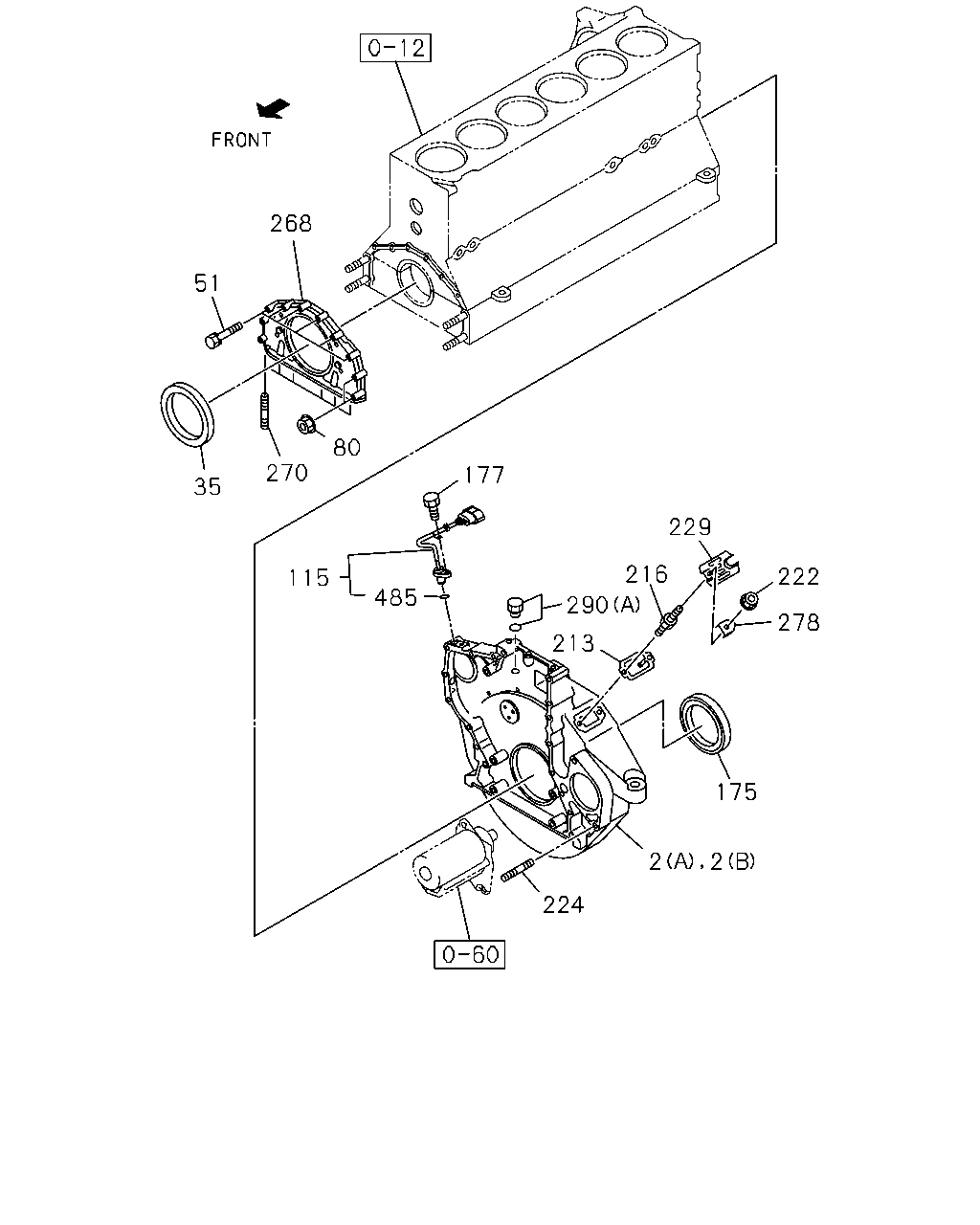

268 51 80 270 177 35 229 216 222 115 485 290 278 213 175 2 2 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL EURO3 SPECIFICATION<NJX> (A)	1-11341-668-1	01	1	0605-	●
2	HOUSING; FLYWHEEL (A)	1-11341-498-1	01	1	9601-9607	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1> (A)	1-11341-498-3	01	1	9608-9804	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D> (A)	1-11341-498-3	01	1	9805-9810	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D> (A)	1-11341-498-3	01	1	9811-0004	●
2	HOUSING; FLYWHEEL (A)	1-11341-498-3	01	1	9811-0004		●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1> (A)	1-11341-498-5	01	1	0005-	●
2	HOUSING; FLYWHEEL (A)	1-11341-498-5	01	1	0005-		●
2	HOUSING; FLYWHEEL A/T<X9D> (A)	1-11341-538-0	01	1	9805-0004	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1> (B)	1-11341-507-1	01	1	9608-0304	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1> (B)	1-11341-685-0	01	1	0305-0604	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-11341-685-0	01	1	0605-	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-2	01	1	9601-9810	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	9811-	●	●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9601-9810	●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9811-0906	●	●
51	BOLT; GEAR CASE COVER M8X45 W/LK&PL WASHER	0-50640-845-0	08	1	0907-	●	●
80	NUT; COVER M10 FLANGE	0-91150-110-0	04	1	9601-9810	●
80	NUT; COVER M10 FLANGE	0-91150-110-0	04	1	9811-0602	●	●
80	NUT; COVER M10 FLANGE	0-91180-110-0	04	1	0603-	●	●
115	SENSOR; REVOLUTION,ENG SPD EURO3 SPECIFICATION<NJX>	8-94390-279-0	01	1	0605-	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-343-2	01	1	9601-9810	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-343-2	01	1	9811-0604	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	9811-0604		●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7> EXC. EURO3 SPECIFICATION<NJX>	1-81510-343-2	01	1	0605-	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-343-2	01	1	0605-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	9601-9810	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	9811-	●	●
177	BOLT; SENSOR EURO3 SPECIFICATION<NJX> M6X16 FLANGE	0-28650-616-0	01	1	0605-	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	9601-9810	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	9811-0604	●	●
177	BOLT; SENSOR EXC. EURO3 SPECIFICATION<NJX> M6X18 W/LK WASHER	0-50040-618-0	01	1	0605-0906	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50040-618-0	01	1	0605-0906		●
177	BOLT; SENSOR EXC. EURO3 SPECIFICATION<NJX> M6X18 W/LK WASHER	0-50540-618-0	01	1	0907-	●
177	BOLT; SENSOR M6X18 W/LK WASHER	0-50540-618-0	01	1	0907-		●
213	POINTER; FLYWHEEL HSG EURO3 SPECIFICATION<NJX>	1-11342-029-0	01	1	0605-	●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	9601-9810	●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	9811-0604	●	●
213	POINTER; FLYWHEEL HSG EXC. EURO3 SPECIFICATION<NJX>	1-11342-018-0	01	1	0605-	●
213	POINTER; FLYWHEEL HSG	1-11342-018-0	01	1	0605-		●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9601-9810	●
216	STUD; COVER,TIMING CHECK HOLE M8X14,M8X14 L=33	1-09300-058-1	02	1	9811-	●	●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	9601-9810	●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91150-108-0	02	1	9811-0602	●	●
222	NUT; COVER,TIMING CHECK HOLE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9601-9810	●
224	STUD; STARTER M14X40 L=61	9-04411-440-0	02	1	9811-0604	●	●
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	0605-	●	●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	9601-9810	●
229	COVER; TIMING CHECK HOLE	1-11349-126-0	01	1	9811-	●	●
268	COVER; FRT	1-11321-085-3	01	1	9601-9810	●
268	COVER; FRT	1-11321-085-3	01	1	9811-	●	●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	9601-9810	●
270	STUD; FRT COVER M8X20	9-04010-820-0	06	1	9811-	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9601-9810	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9811-	●	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-9810	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9811-0604	●	●
290	PLUG; SENSOR HOLE EXC. EURO3 SPECIFICATION<NJX> (B) M16X12	9-99202-316-0	01	1	0605-0606	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	0605-0606		●
290	PLUG; SENSOR HOLE EXC. EURO3 SPECIFICATION<NJX> (B) M16X12	0-92002-416-0	01	1	0607-	●
290	PLUG; SENSOR HOLE (B) M16X12	0-92002-416-0	01	1	0607-		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	1-11349-157-0	01	1	9811-0205		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0206-		●
485	GASKET; SENSOR	9-09565-212-0	01	1	9601-9810	●
485	GASKET; SENSOR	9-09565-212-0	01	1	9811-0604	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9811-0604		●
485	GASKET; SENSOR TACHOMETER<UD7> EXC. EURO3 SPECIFICATION<NJX>	9-09565-212-0	01	1	0605-	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0605-		●

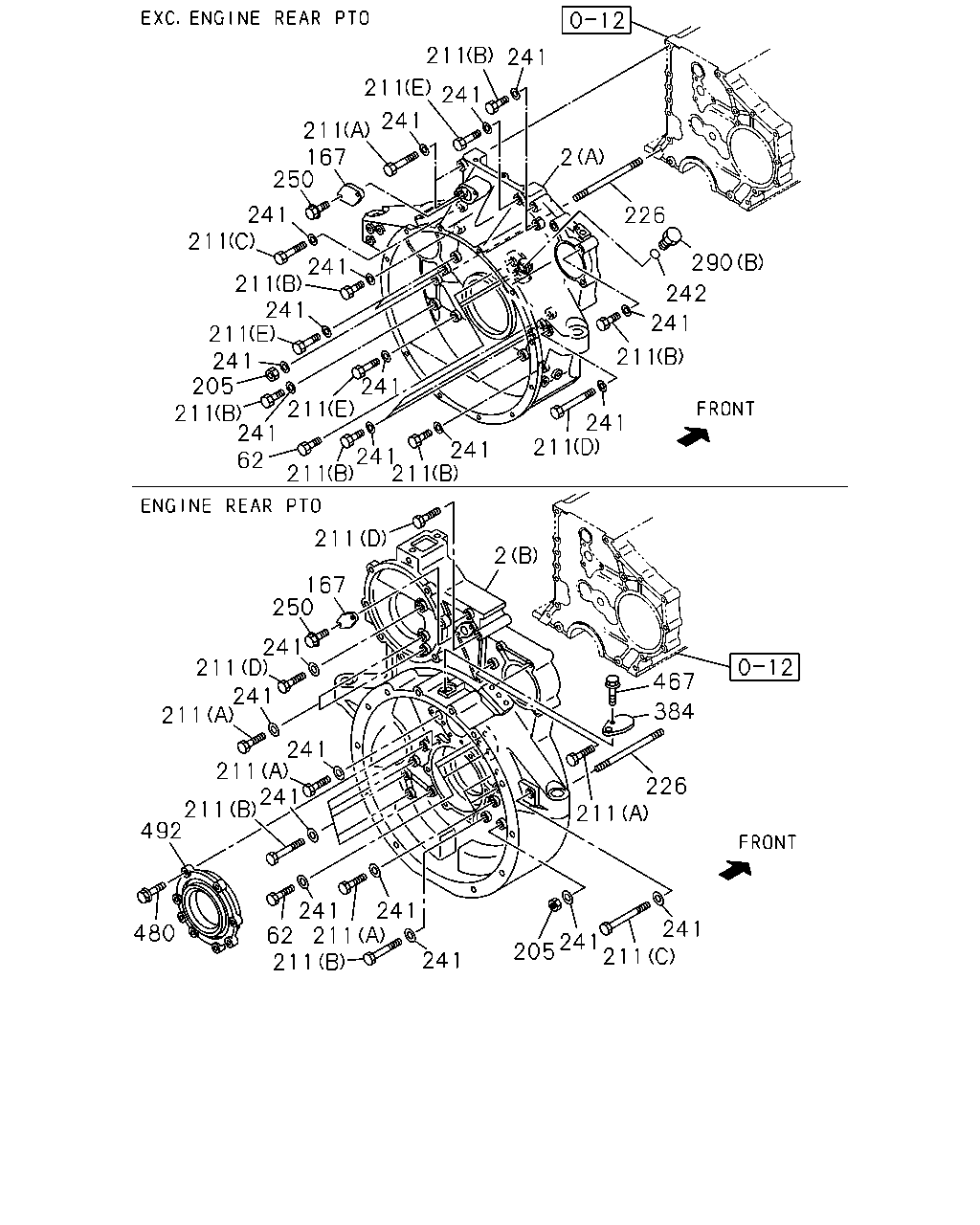

211 241 211 241 241 211 167 250 2 241 211 226 241 211 241 211 241 205 211 241 62 290 242 241 211 241 211 241 211 241 241 211 211 211 2 167 250 467 241 211 241 384 211 241 211 241 211 492 226 211 241 241 211 480 241 241 205 211 241 62 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL EURO3 SPECIFICATION<NJX> (A)	1-11341-668-1	01	1	0605-	●
2	HOUSING; FLYWHEEL (A)	1-11341-498-1	01	1	9601-9607	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1> (A)	1-11341-498-3	01	1	9608-9804	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D> (A)	1-11341-498-3	01	1	9805-9810	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D> (A)	1-11341-498-3	01	1	9811-0004	●
2	HOUSING; FLYWHEEL (A)	1-11341-498-3	01	1	9811-0004		●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1> (A)	1-11341-498-5	01	1	0005-	●
2	HOUSING; FLYWHEEL (A)	1-11341-498-5	01	1	0005-		●
2	HOUSING; FLYWHEEL A/T<X9D> (A)	1-11341-538-0	01	1	9805-0004	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1> (B)	1-11341-507-1	01	1	9608-0304	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1> (B)	1-11341-685-0	01	1	0305-0604	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-11341-685-0	01	1	0605-	●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	9601-9607	●
62	BOLT; COVER EXC. ENGINE REAR PTO<SV1> M8X14 FLANGE	0-28080-814-0	03	1	9608-9810	●
62	BOLT; COVER EXC. ENGINE REAR PTO<SV1> M8X14 FLANGE	0-28080-814-0	03	1	9811-	●
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	9811-		●
62	BOLT; COVER ENGINE REAR PTO<SV1> M8X25 FLANGE	0-28680-825-0	03	1	9608-0512	●
62	BOLT; COVER ENGINE REAR PTO<SV1> M8X25 FLANGE	0-28650-825-0	03	1	0601-0604	●
62	BOLT; COVER ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28650-825-0	03	1	0605-	●
167	COVER; OIL	1-11749-103-0	01	1	9601-9810	●
167	COVER; OIL	1-11749-103-0	01	1	9811-	●	●
205	NUT; HSG M12	9-99110-412-0	01	1	9601-9810	●
205	NUT; HSG M12	9-99110-412-0	01	1	9811-0512	●	●
205	NUT; HSG M12	0-91110-512-0	01	1	0601-	●	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9601-9607	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (A) M12X100	0-16806-200-0	02	1	9608-9810	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (A) M12X100	0-16806-200-0	02	1	9811-0512	●
211	BOLT; HSG (A) M12X100	0-16806-200-0	02	1	9811-0512		●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (A) M12X100	0-16856-200-0	02	1	0601-	●
211	BOLT; HSG (A) M12X100	0-16856-200-0	02	1	0601-		●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9601-9607	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (B) M12X60	0-16806-260-0	09	1	9608-9810	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (B) M12X60	0-16806-260-0	09	1	9811-0512	●
211	BOLT; HSG (B) M12X60	0-16806-260-0	09	1	9811-0512		●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (B) M12X60	0-16856-260-0	09	1	0601-	●
211	BOLT; HSG (B) M12X60	0-16856-260-0	09	1	0601-		●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9601-9607	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (C) M12X90	0-16806-290-0	01	1	9608-9810	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (C) M12X90	0-16806-290-0	01	1	9811-0512	●
211	BOLT; HSG (C) M12X90	0-16806-290-0	01	1	9811-0512		●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (C) M12X90	0-16856-290-0	01	1	0601-	●
211	BOLT; HSG (C) M12X90	0-16856-290-0	01	1	0601-		●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9601-9607	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (D) M12X173	1-09020-057-1	01	1	9608-9810	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (D) M12X173	1-09020-057-1	01	1	9811-	●
211	BOLT; HSG (D) M12X173	1-09020-057-1	01	1	9811-		●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9601-9607	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (E) M12X75	9-01666-275-0	05	1	9608-9810	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (E) M12X75	9-01666-275-0	05	1	9811-	●
211	BOLT; HSG (E) M12X75	9-01666-275-0	05	1	9811-		●
211	BOLT; HSG ENGINE REAR PTO<SV1> (A) M12X60	0-16806-260-0	08	1	9608-0512	●
211	BOLT; HSG ENGINE REAR PTO<SV1> (A) M12X60	0-16856-260-0	08	1	0601-0604	●
211	BOLT; HSG ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (A) M12X60	0-16856-260-0	08	1	0605-	●
211	BOLT; HSG ENGINE REAR PTO<SV1> (B) M12X130	1-09020-040-0	06	1	9608-0604	●
211	BOLT; HSG ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B) M12X130	1-09020-040-0	06	1	0605-	●
211	BOLT; HSG ENGINE REAR PTO<SV1> (C) M12X185	8-94393-483-0	01	1	9608-0604	●
211	BOLT; HSG ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (C) M12X185	8-94393-483-0	01	1	0605-	●
211	BOLT; HSG ENGINE REAR PTO<SV1> (D) M12X75	9-01666-275-0	03	1	9608-0604	●
211	BOLT; HSG ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (D) M12X75	9-01666-275-0	03	1	0605-	●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	9601-9810	●
226	STUD; HSG M12X60 L=78	9-94411-260-0	01	1	9811-0604	●	●
226	STUD; HSG M12X60 L=78	0-44011-260-0	01	1	0605-	●	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9601-9810	●
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	9811-	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	9601-9810	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	9811-0604	●	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO3 SPECIFICATION<NJX>. ID=16.2 OD=24	9-09571-416-0	01	1	0605-	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	0605-		●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9601-9810	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28080-816-0	02	1	9811-0512	●	●
250	BOLT; COVER,OIL M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9601-9810	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	9811-0604	●	●
290	PLUG; SENSOR HOLE EXC. EURO3 SPECIFICATION<NJX> (B) M16X12	9-99202-316-0	01	1	0605-0606	●
290	PLUG; SENSOR HOLE (B) M16X12	9-99202-316-0	01	1	0605-0606		●
290	PLUG; SENSOR HOLE EXC. EURO3 SPECIFICATION<NJX> (B) M16X12	0-92002-416-0	01	1	0607-	●
290	PLUG; SENSOR HOLE (B) M16X12	0-92002-416-0	01	1	0607-		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	1-11349-157-0	01	1	9811-0205		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7> (A)	8-97101-974-0	01	1	0206-		●
384	PLATE ENGINE REAR PTO<SV1>	1-11349-237-0	01	1	0305-0604	●
384	PLATE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-11349-237-0	01	1	0605-	●
467	BOLT; PLATE ENGINE REAR PTO<SV1> M6X12 FLANGE	0-28080-612-0	01	1	0305-0512	●
467	BOLT; PLATE ENGINE REAR PTO<SV1> M6X12 FLANGE	0-28050-612-0	01	1	0601-0604	●
467	BOLT; PLATE ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M6X12 FLANGE	0-28050-612-0	01	1	0605-	●
480	BOLT; COVER ENGINE REAR PTO<SV1> M8X25 FLANGE	0-28680-825-0	08	1	9608-0512	●
480	BOLT; COVER ENGINE REAR PTO<SV1> M8X25 FLANGE	0-28650-825-0	08	1	0601-0604	●
480	BOLT; COVER ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> M8X25 FLANGE	0-28650-825-0	08	1	0605-	●
492	COVER; OIL SEAL ENGINE REAR PTO<SV1>	1-12363-041-0	01	1	9608-0604	●
492	COVER; OIL SEAL ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-12363-041-0	01	1	0605-	●
