0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#65034) — 235 parça

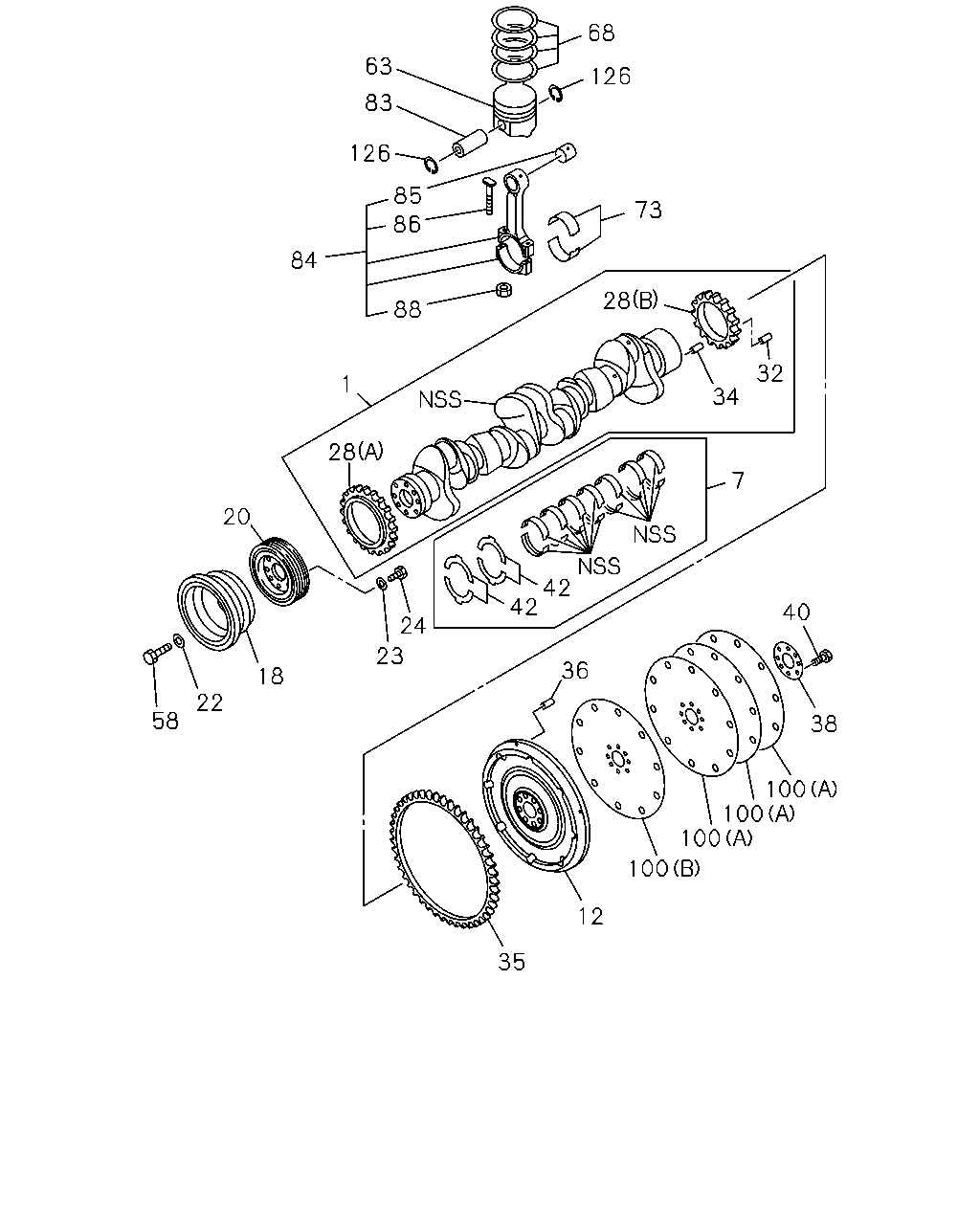

68 63 126 83 126 85 73 86 84 28 88 32 1 34 28 7 20 42 42 40 24 23 36 18 22 58 38 100 100 100 100 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	1-12310-668-0	01	1	9601-	●
1	CRANKSHAFT	1-12310-671-0	01	1	9811-		●
7	METAL KIT; CRANKSHAFT,STANDARD EURO3 SPECIFICATION<NJX>	1-11510-108-3	01	1	0605-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	9601-9810	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-1	01	1	9811-0604	●	●
7	METAL KIT; CRANKSHAFT,STANDARD EXC. EURO3 SPECIFICATION<NJX>	1-11510-087-2	01	1	0605-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-2	01	1	0605-		●
12	FLYWHEEL EURO3 SPECIFICATION<NJX>	1-12331-388-0	01	1	0605-	●
12	FLYWHEEL	1-12331-162-4	01	1	9601-9607	●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-12331-162-4	01	1	9608-9804	●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-12331-162-4	01	1	9805-9810	●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-12331-162-4	01	1	9811-0004	●
12	FLYWHEEL	1-12331-162-4	01	1	9811-0004		●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-12331-162-4	01	1	0005-	●
12	FLYWHEEL	1-12331-162-4	01	1	0005-		●
12	FLYWHEEL A/T<X9D>	1-12331-321-1	01	1	9805-0004	●
12	FLYWHEEL ENGINE REAR PTO<SV1>	1-12331-313-0	01	1	9608-0604	●
12	FLYWHEEL ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-12331-313-0	01	1	0605-	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-359-2	01	1	9601-	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-414-1	01	1	9811-		●
20	DAMPER; CR/SHF	1-12375-180-2	01	1	9601-	●
20	DAMPER; CR/SHF	1-12375-131-0	01	1	9811-		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9601-9810	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9811-	●	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9601-	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	06	1	9811-		●
24	BOLT; DAMPER	9-02361-220-0	08	1	9601-	●
24	BOLT; DAMPER	9-02361-220-0	06	1	9811-		●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	9601-9810	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	9811-	●	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-0	01	1	9601-9810	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	9811-	●	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9601-9810	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9811-	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9601-9810	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9811-	●	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9601-9810	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9811-0501	●	●
35	GEAR; RING Z=140	1-12333-025-0	01	1	0502-	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9601-9804	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	9805-9810	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	9811-0004	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9811-0004		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-	●	●
36	PIN; FLYWHEEL A/T<X9D> ID=6 L=12	9-08160-612-0	02	1	9805-0004	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9601-9810	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9811-	●	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9601-9607	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-09000-183-1	08	1	9608-9804	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-09000-183-1	08	1	9805-9810	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-09000-183-1	08	1	9811-0004	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9811-0004		●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-09000-183-1	08	1	0005-0905	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	0005-0905		●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1> M16X62	1-09070-146-1	08	1	0906-	●
40	BOLT; FLYWHEEL M16X62	1-09070-146-1	08	1	0906-		●
40	BOLT; FLYWHEEL A/T<X9D>	1-09070-134-1	08	1	9805-9902	●
40	BOLT; FLYWHEEL A/T<X9D>	1-09070-149-0	08	1	9903-0004	●
40	BOLT; FLYWHEEL ENGINE REAR PTO<SV1>	1-09000-607-1	08	1	9608-0604	●
40	BOLT; FLYWHEEL ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-09000-607-1	08	1	0605-	●
42	WASHER; THRUST,CR/SHF	1-11599-007-0	02	1	9601-9810	●
42	WASHER; THRUST,CR/SHF	1-11599-007-1	02	1	9811-	●	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9601-	●
58	BOLT; CR/SHF PULLEY M16X60	9-91066-660-0	04	1	9811-0512		●
58	BOLT; CR/SHF PULLEY M16X60	0-10956-660-0	04	1	0601-		●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX> GRADE=AX	1-12112-013-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX> GRADE=CX	1-12112-014-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	9601-0604	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> GRADE=AX	1-12111-842-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	9601-0604	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> GRADE=CX	1-12111-843-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-924-0	06	1	9811-0004		●
63	PISTON ALSO INCLUDED IN LINER SET. KENYA EQUIPMENT(PQ2) GRADE=AX	1-12111-924-1	06	1	0005-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-925-0	06	1	9811-0004		●
63	PISTON ALSO INCLUDED IN LINER SET. KENYA EQUIPMENT(PQ2) GRADE=CX	1-12111-925-1	06	1	0005-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. KENYA EQUIPMENT(PQ2) GRADE=AX	1-12111-840-1	06	1	0005-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. KENYA EQUIPMENT(PQ2) GRADE=CX	1-12111-841-1	06	1	0005-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-12121-149-0	06	1	0605-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-119-3	06	1	9601-9709	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	9710-0604	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX>	1-12121-137-1	06	1	0605-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-088-2	06	1	9811-		●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9601-9810	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9811-0211	●	●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0212-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-12211-037-0	06	1	0605-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9601-9810	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9811-0604	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0605-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0605-		●
84	ROD ASM; CONN EURO3 SPECIFICATION<NJX>	1-12230-180-1	06	1	0605-	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9601-9810	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9811-0604	●	●
84	ROD ASM; CONN EXC. EURO3 SPECIFICATION<NJX>	1-12230-097-1	06	1	0605-	●
84	ROD ASM; CONN	1-12230-097-1	06	1	0605-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-12251-043-0	06	1	0605-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9601-9810	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9811-0604	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0605-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0605-		●
86	BOLT; CONNROD	1-12235-025-1	12	1	9601-9810	●
86	BOLT; CONNROD	1-12235-025-1	12	1	9811-	●	●
88	NUT; CONNROD	1-09840-003-1	12	1	9601-9810	●
88	NUT; CONNROD	1-09840-003-1	12	1	9811-	●	●
100	PLATE; FLEX A/T<X9D> (A)	1-32213-057-0	03	1	9805-0004	●
100	PLATE; FLEX A/T<X9D> (B)	1-32213-058-0	01	1	9805-0004	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-09587-099-0	12	1	0605-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9601-9810	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9811-0604	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0605-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0605-		●

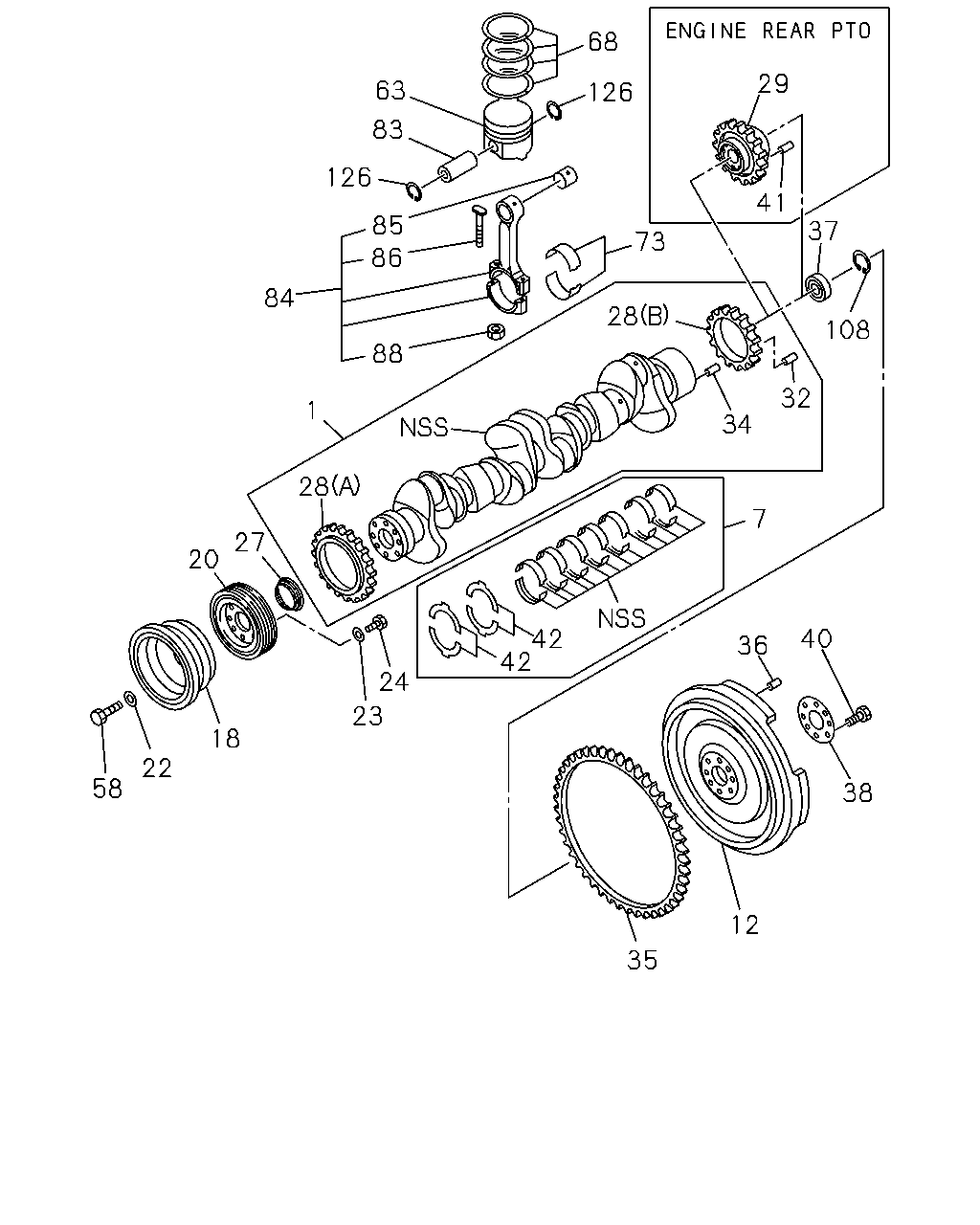

68 126 63 83 126 85 86 84 1 88 73 29 41 37 108 28 32 34 7 28 27 20 42 42 24 23 18 22 58 40 36 38 12 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	1-12310-668-0	01	1	9601-	●
1	CRANKSHAFT	1-12310-671-0	01	1	9811-		●
7	METAL KIT; CRANKSHAFT,STANDARD EURO3 SPECIFICATION<NJX>	1-11510-108-3	01	1	0605-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-0	01	1	9601-9810	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-1	01	1	9811-0604	●	●
7	METAL KIT; CRANKSHAFT,STANDARD EXC. EURO3 SPECIFICATION<NJX>	1-11510-087-2	01	1	0605-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-087-2	01	1	0605-		●
12	FLYWHEEL EURO3 SPECIFICATION<NJX>	1-12331-388-0	01	1	0605-	●
12	FLYWHEEL	1-12331-162-4	01	1	9601-9607	●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-12331-162-4	01	1	9608-9804	●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-12331-162-4	01	1	9805-9810	●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-12331-162-4	01	1	9811-0004	●
12	FLYWHEEL	1-12331-162-4	01	1	9811-0004		●
12	FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-12331-162-4	01	1	0005-	●
12	FLYWHEEL	1-12331-162-4	01	1	0005-		●
12	FLYWHEEL A/T<X9D>	1-12331-321-1	01	1	9805-0004	●
12	FLYWHEEL ENGINE REAR PTO<SV1>	1-12331-313-0	01	1	9608-0604	●
12	FLYWHEEL ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-12331-313-0	01	1	0605-	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-359-2	01	1	9601-	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-414-1	01	1	9811-		●
20	DAMPER; CR/SHF	1-12375-180-2	01	1	9601-	●
20	DAMPER; CR/SHF	1-12375-131-0	01	1	9811-		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9601-9810	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9811-	●	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9601-	●
23	WASHER; DAMPER ID=12.5	9-09851-682-0	06	1	9811-		●
24	BOLT; DAMPER	9-02361-220-0	08	1	9601-	●
24	BOLT; DAMPER	9-02361-220-0	06	1	9811-		●
27	THROWER; DUST	1-12362-004-0	01	1	9811-		●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	9601-9810	●
28	GEAR; CR/SHF (A) Z=53	1-12521-027-1	01	1	9811-	●	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-0	01	1	9601-9810	●
28	GEAR; CR/SHF (B) Z=46	1-12521-053-1	01	1	9811-	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO<SV1>	1-38261-026-1	01	1	9608-0604	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-38261-026-1	01	1	0605-	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9601-9810	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	01	1	9811-	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9601-9810	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9811-	●	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9601-9810	●
35	GEAR; RING Z=140	1-12333-016-0	01	1	9811-0501	●	●
35	GEAR; RING Z=140	1-12333-025-0	01	1	0502-	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9601-9804	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	9805-9810	●
36	PIN; FLYWHEEL EXC. A/T<X9D> OD=10 L=22	9-08151-022-0	02	1	9811-0004	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9811-0004		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0005-	●	●
36	PIN; FLYWHEEL A/T<X9D> ID=6 L=12	9-08160-612-0	02	1	9805-0004	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9601-9804	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	1-09800-214-0	01	1	9805-9810	●
37	BEARING; PILOT,TOP GEAR SHAFT EXC. A/T<X9D>	1-09800-214-0	01	1	9811-0004	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9811-0004		●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	0005-	●	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9601-9810	●
38	WASHER; FLYWHEEL	1-12336-005-1	01	1	9811-	●	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9601-9607	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-09000-183-1	08	1	9608-9804	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-09000-183-1	08	1	9805-9810	●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>,A/T<X9D>	1-09000-183-1	08	1	9811-0004	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	9811-0004		●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-09000-183-1	08	1	0005-0905	●
40	BOLT; FLYWHEEL	1-09000-183-1	08	1	0005-0905		●
40	BOLT; FLYWHEEL EXC. ENGINE REAR PTO<SV1> M16X62	1-09070-146-1	08	1	0906-	●
40	BOLT; FLYWHEEL M16X62	1-09070-146-1	08	1	0906-		●
40	BOLT; FLYWHEEL A/T<X9D>	1-09070-134-1	08	1	9805-9902	●
40	BOLT; FLYWHEEL A/T<X9D>	1-09070-149-0	08	1	9903-0004	●
40	BOLT; FLYWHEEL ENGINE REAR PTO<SV1>	1-09000-607-1	08	1	9608-0604	●
40	BOLT; FLYWHEEL ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX>	1-09000-607-1	08	1	0605-	●
41	PIN; GEAR,CR/SHF PTO ENGINE REAR PTO<SV1> OD=8 L=16	9-08150-816-0	01	1	9608-0604	●
41	PIN; GEAR,CR/SHF PTO ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> OD=8 L=16	9-08150-816-0	01	1	0605-	●
42	WASHER; THRUST,CR/SHF	1-11599-007-0	02	1	9601-9810	●
42	WASHER; THRUST,CR/SHF	1-11599-007-1	02	1	9811-	●	●
58	BOLT; CR/SHF PULLEY M16X45	9-92061-645-0	04	1	9601-	●
58	BOLT; CR/SHF PULLEY M16X60	9-91066-660-0	04	1	9811-0512		●
58	BOLT; CR/SHF PULLEY M16X60	0-10956-660-0	04	1	0601-		●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX> GRADE=AX	1-12112-013-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX> GRADE=CX	1-12112-014-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-842-0	06	1	9601-0604	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> GRADE=AX	1-12111-842-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-843-0	06	1	9601-0604	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> GRADE=CX	1-12111-843-0	06	1	0605-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	1-12111-924-0	06	1	9811-0004		●
63	PISTON ALSO INCLUDED IN LINER SET. KENYA EQUIPMENT(PQ2) GRADE=AX	1-12111-924-1	06	1	0005-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	1-12111-925-0	06	1	9811-0004		●
63	PISTON ALSO INCLUDED IN LINER SET. KENYA EQUIPMENT(PQ2) GRADE=CX	1-12111-925-1	06	1	0005-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. KENYA EQUIPMENT(PQ2) GRADE=AX	1-12111-840-1	06	1	0005-		●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. KENYA EQUIPMENT(PQ2) GRADE=CX	1-12111-841-1	06	1	0005-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-12121-149-0	06	1	0605-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-119-3	06	1	9601-9709	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-137-1	06	1	9710-0604	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX>	1-12121-137-1	06	1	0605-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-088-2	06	1	9811-		●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9601-9810	●
73	METAL SET; CONN ROD,STANDARD	1-12271-068-0	06	1	9811-0211	●	●
73	METAL SET; CONN ROD,STANDARD	1-12271-084-0	06	1	0212-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-12211-037-0	06	1	0605-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9601-9810	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	9811-0604	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0605-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-022-0	06	1	0605-		●
84	ROD ASM; CONN EURO3 SPECIFICATION<NJX>	1-12230-180-1	06	1	0605-	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9601-9810	●
84	ROD ASM; CONN	1-12230-097-0	06	1	9811-0604	●	●
84	ROD ASM; CONN EXC. EURO3 SPECIFICATION<NJX>	1-12230-097-1	06	1	0605-	●
84	ROD ASM; CONN	1-12230-097-1	06	1	0605-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-12251-043-0	06	1	0605-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9601-9810	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	9811-0604	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0605-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-021-1	06	1	0605-		●
86	BOLT; CONNROD	1-12235-025-1	12	1	9601-9810	●
86	BOLT; CONNROD	1-12235-025-1	12	1	9811-	●	●
88	NUT; CONNROD	1-09840-003-1	12	1	9601-9810	●
88	NUT; CONNROD	1-09840-003-1	12	1	9811-	●	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9601-9804	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	9805-9810	●
108	RING; SNAP,BRG SET EXC. A/T<X9D> OD=59.2	9-09180-155-0	01	1	9811-0004	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9811-0004		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0005-	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EURO3 SPECIFICATION<NJX>	1-09587-099-0	12	1	0605-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9601-9810	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	9811-0604	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0605-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	12	1	0605-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
