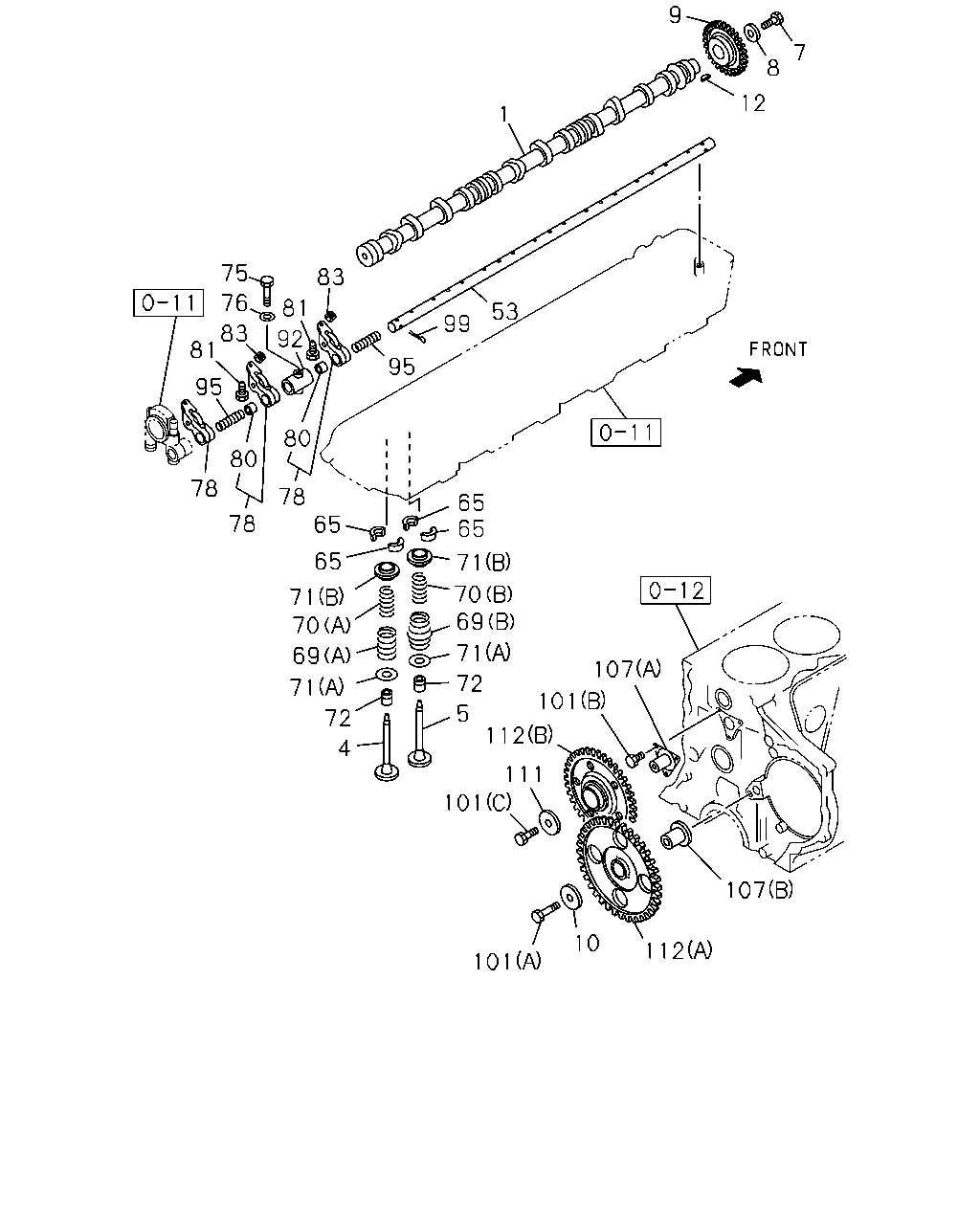

0-14 — CAMSHAFT AND VALVE (#65033) — 88 parça

9 7 8 12 1 75 83 76 81 92 53 99 83 81 95 95 80 80 78 78 65 65 65 78 65 71 70 69 71 70 71 69 107 72 71 101 5 72 112 4 111 101 107 10 112 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT EURO3 SPECIFICATION<NJX>	1-12511-274-1	01	1	0605-	●
1	CAMSHAFT	1-12511-249-1	01	1	9601-0604	●
1	CAMSHAFT EXC. EURO3 SPECIFICATION<NJX>	1-12511-249-1	01	1	0605-	●
1	CAMSHAFT	1-12511-254-1	01	1	9811-		●
4	VALVE; INL	1-12551-126-1	06	1	9601-0204	●
4	VALVE; INL	1-12551-161-4	06	1	0205-	●
4	VALVE; INL	1-12551-158-3	06	1	9811-		●
5	VALVE; EXH EURO3 SPECIFICATION<NJX>	1-12552-099-2	06	1	0605-	●
5	VALVE; EXH	1-12552-085-0	06	1	9601-9810	●
5	VALVE; EXH	1-12552-085-0	06	1	9811-9902	●	●
5	VALVE; EXH	1-12552-108-2	06	1	9903-0604	●	●
5	VALVE; EXH EXC. EURO3 SPECIFICATION<NJX>	1-12552-108-2	06	1	0605-	●
5	VALVE; EXH	1-12552-108-2	06	1	0605-		●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9601-9810	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	9811-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9601-9810	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9811-	●	●
9	GEAR; CM/SHF Z=36	1-12522-037-0	01	1	9601-9810	●
9	GEAR; CM/SHF Z=36	1-12522-037-2	01	1	9811-	●	●
10	PLATE; THRUST ID=24.5 OD=62	1-12535-021-0	01	1	9601-9810	●
10	PLATE; THRUST ID=24.5 OD=62	1-12535-021-1	01	1	9811-	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9601-9810	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9811-	●	●
53	SHAFT; ROCKER ARM	1-12621-084-0	01	1	9601-9810	●
53	SHAFT; ROCKER ARM	1-12621-084-1	01	1	9811-	●	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9601-9810	●
65	COLLAR; SPLIT	1-12565-007-0	24	1	9811-	●	●
69	SPRING; VLV,OUTER (A)	1-12561-051-0	06	1	9601-9810	●
69	SPRING; VLV,OUTER (A)	1-12561-051-0	06	1	9811-	●	●
69	SPRING; VLV,OUTER (B)	1-12561-072-0	06	1	9601-	●
69	SPRING; VLV,OUTER (B)	1-12561-052-0	06	1	9811-		●
70	SPRING; VLV,INNER (B)	1-12561-073-0	06	1	9601-	●
70	SPRING; VLV,INNER (A)	1-12562-032-0	06	1	9601-9810	●
70	SPRING; VLV,INNER (A)	1-12562-032-0	06	1	9811-	●	●
70	SPRING; VLV,INNER (B)	1-12562-033-0	06	1	9811-		●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9601-9810	●
71	SEAT; SPR (B)	1-12563-033-1	12	1	9811-0009	●	●
71	SEAT; SPR (B)	1-12563-059-1	12	1	0010-0401	●	●
71	SEAT; SPR (B)	8-97603-239-0	12	1	0402-	●	●
71	SEAT; SPR (A)	9-12563-231-0	12	1	9601-9810	●
71	SEAT; SPR (A)	9-12563-231-1	12	1	9811-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9601-9810	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	12	1	9811-	●	●
75	BOLT; BRKT M8X55	9-01065-855-0	03	1	9601-9810	●
75	BOLT; BRKT M8X55	9-01065-855-0	03	1	9811-	●	●
76	WASHER; PL,BRKT	9-09851-430-0	03	1	9601-9810	●
76	WASHER; PL,BRKT	9-09851-430-0	03	1	9811-	●	●
78	ARM; ROCKER	1-12610-045-1	12	1	9601-9810	●
78	ARM; ROCKER	1-12610-045-3	12	1	9811-	●	●
80	BUSHING; ROCKER ARM	1-12615-013-1	12	1	9601-9810	●
80	BUSHING; ROCKER ARM	1-12615-013-1	12	1	9811-	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9601-9810	●
81	SCREW; ADJ,ROCKER ARM	1-12616-038-0	12	1	9811-	●	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9601-9810	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	12	1	9811-	●	●
92	BRACKET; ROCKER ARM	1-12628-045-0	03	1	9601-9810	●
92	BRACKET; ROCKER ARM	1-12628-045-0	03	1	9811-	●	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9601-9810	●
95	SPRING; ROCKER SHAFT	1-09580-335-0	06	1	9811-	●	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	9-08112-025-0	02	1	9601-9810	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	9-08112-025-0	02	1	9811-0606	●	●
99	PIN; SPLIT,ROCKER ARM SHAFT OD=1.8 L=25	0-81122-025-0	02	1	0607-	●	●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	9601-9810	●
101	BOLT; THRUST COLLAR (B) M8X14 FLANGE	0-28080-814-0	03	1	9811-	●	●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	9601-9810	●
101	BOLT; THRUST COLLAR (C) M14X16	1-09000-284-0	01	1	9811-	●	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	9601-9810	●
101	BOLT; THRUST COLLAR (A) M12X57	1-09070-127-0	01	1	9811-	●	●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	9601-9810	●
107	SHAFT; IDLE GEAR (A)	1-12531-054-1	01	1	9811-0011	●	●
107	SHAFT; IDLE GEAR (A)	1-12531-097-2	01	1	0012-	●	●
107	SHAFT; IDLE GEAR (B)	1-12531-064-0	01	1	9601-9607	●
107	SHAFT; IDLE GEAR EXC. ENGINE REAR PTO<SV1> (B)	1-12531-064-0	01	1	9608-9810	●
107	SHAFT; IDLE GEAR EXC. ENGINE REAR PTO<SV1> (B)	1-12531-064-0	01	1	9811-0011	●
107	SHAFT; IDLE GEAR (B)	1-12531-064-0	01	1	9811-0011		●
107	SHAFT; IDLE GEAR EXC. ENGINE REAR PTO<SV1> (B)	1-12531-099-0	01	1	0012-	●
107	SHAFT; IDLE GEAR (B)	1-12531-099-0	01	1	0012-		●
107	SHAFT; IDLE GEAR ENGINE REAR PTO<SV1> (B)	1-12530-015-0	01	1	9608-0604	●
107	SHAFT; IDLE GEAR ENGINE REAR PTO<SV1> EXC. EURO3 SPECIFICATION<NJX> (B)	1-12530-015-0	01	1	0605-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9601-9810	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-94370-688-0	01	1	9811-0306	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	0307-	●	●
112	GEAR; IDLE (A) Z=69-27	1-12523-241-0	01	1	9601-9810	●
112	GEAR; IDLE (A) Z=69-27	1-12523-241-0	01	1	9811-0011	●	●
112	GEAR; IDLE (A) Z=69-27	1-12523-346-0	01	1	0012-	●	●
112	GEAR; IDLE (B) Z=62	1-12523-242-0	01	1	9601-9810	●
112	GEAR; IDLE (B) Z=62	1-12523-242-0	01	1	9811-0011	●	●
112	GEAR; IDLE (B) Z=62	1-12523-347-0	01	1	0012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
