0-13 — OIL PAN AND LEVEL GAUGE (#65032) — 122 parça

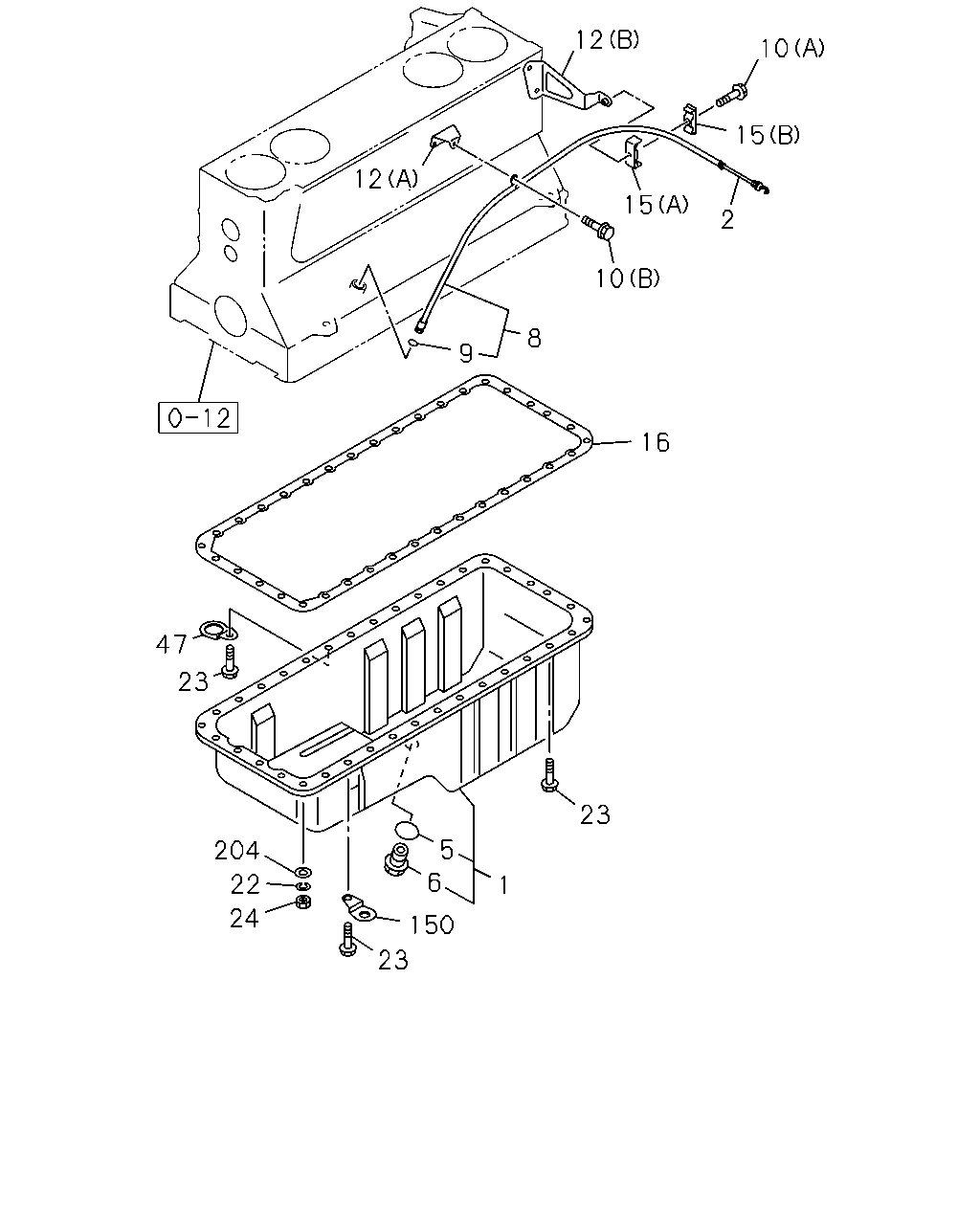

10 10 15 12 12 12 15 10 2 8 16 9 47 23 23 5 204 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-708-2	01	1	9601-9810	●
1	PAN ASM; OIL	1-11360-708-3	01	1	9811-	●	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9601-9810	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9811-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9601-9810	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9811-	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9601-9810	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9811-0111	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-483-0	01	1	9601-9810	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-483-0	01	1	9811-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9601-9810	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9811-	●	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9601-9810	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9811-0512	●	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	02	1	9601-0512	●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0604	●
10	BOLT; GUIDE TUBE EXC. EURO3 SPECIFICATION<NJX> (C) M8X12 FLANGE	0-28050-812-0	02	1	0605-	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9601-9810	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9811-0512	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-11769-167-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION<NJX> (A)	1-11769-167-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	0605-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9601-9810	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9811-0604	●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-11769-193-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-169-0	01	1	9601-0604	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION<NJX> (B)	1-11769-169-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-168-0	01	1	9811-		●
15	CLIP; GUIDE TUBE (B) ID=9 & 11 L=28	1-09701-193-1	01	1	9601-9810	●
15	CLIP; GUIDE TUBE (B) ID=9 & 11 L=28	1-09701-193-1	01	1	9811-	●	●
15	CLIP; GUIDE TUBE (A) ID=9 & 11 L=28	1-09701-194-0	01	1	9601-9810	●
15	CLIP; GUIDE TUBE (A) ID=9 & 11 L=28	1-09701-194-1	01	1	9811-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	9601-9810	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	9811-0205	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0206-1103	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-	●	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9601-9810	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9811-0603	●	●
22	WASHER; LK,OIL PAN ID=8.2	0-91510-508-0	06	1	0604-	●	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9601-9810	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9811-0906	●	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-	●	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9601-9810	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9811-0512	●	●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-	●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9601-9810	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9811-	●	●
150	CLIP; WATER,OIL DRAIN EURO3 SPECIFICATION<NJX>	9-11229-070-0	03	1	0605-	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	02	1	9601-0009	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	02	1	0010-0604	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	02	1	0010-0604		●
150	CLIP; WATER,OIL DRAIN EXC. EURO3 SPECIFICATION<NJX>	9-11229-070-0	02	1	0605-	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	02	1	0605-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9811-0009		●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	01	1	0010-		●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	9601-9810	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	9811-0605	●	●
204	WASHER; PL,OIL PAN ID=8.4 OD=16	0-91610-508-0	06	1	0606-	●	●

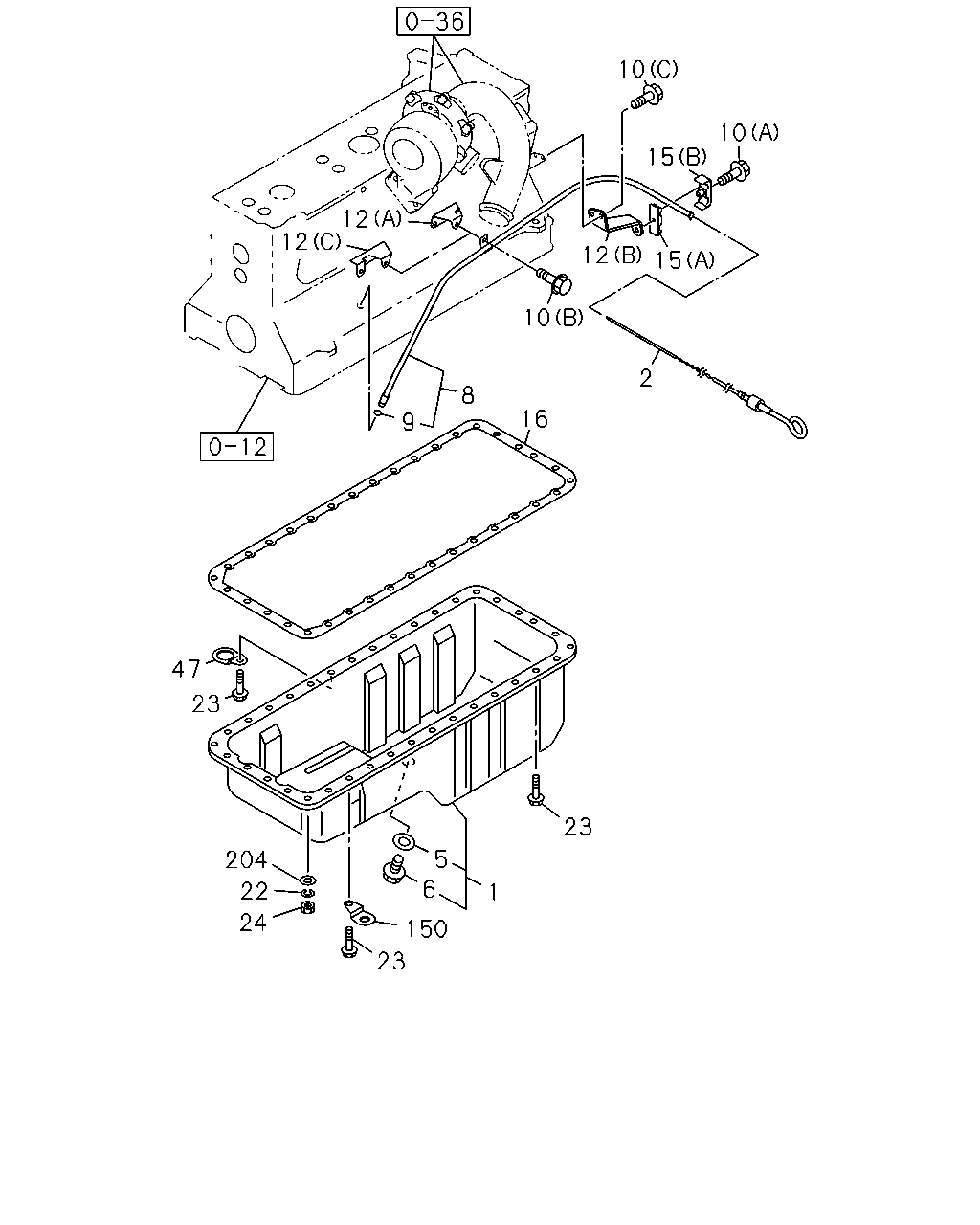

12 10 15 12 15 2 10 8 9 16 47 23 23 5 204 6 22 1 24 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-708-2	01	1	9601-9810	●
1	PAN ASM; OIL	1-11360-708-3	01	1	9811-	●	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9601-9810	●
2	GAUGE; OIL LEVEL	1-11760-395-0	01	1	9811-	●	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9601-9810	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-058-0	01	1	9811-	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9601-9810	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	9811-0111	●	●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-022-0	01	1	0112-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-483-0	01	1	9601-9810	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-483-0	01	1	9811-	●	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9601-9810	●
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	9811-	●	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9601-9810	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28080-640-0	01	1	9811-0512	●	●
10	BOLT; GUIDE TUBE (A) M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28080-812-0	02	1	9601-0512	●
10	BOLT; GUIDE TUBE (C) M8X12 FLANGE	0-28050-812-0	02	1	0601-0604	●
10	BOLT; GUIDE TUBE EXC. EURO3 SPECIFICATION<NJX> (C) M8X12 FLANGE	0-28050-812-0	02	1	0605-	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9601-9810	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28080-820-0	01	1	9811-0512	●	●
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. AIR COMPRESSOR HEAVY DUTY VAR2<E6A>,EURO3 SPECIFICATION<NJX> (A)	1-11769-167-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EURO3 SPECIFICATION<NJX> (A)	1-11769-167-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	0605-		●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9601-9810	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (A)	1-11769-167-0	01	1	9811-0604	●	●
12	BRACKET; TUBE,OIL LEVEL GAUGE AIR COMPRESSOR HEAVY DUTY VAR2<E6A> EXC. EURO3 SPECIFICATION<NJX> (C)	1-11769-193-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-169-0	01	1	9601-0604	●
12	BRACKET; TUBE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION<NJX> (B)	1-11769-169-0	01	1	0605-	●
12	BRACKET; TUBE,OIL LEVEL GAUGE (B)	1-11769-168-0	01	1	9811-		●
15	CLIP; GUIDE TUBE (B) ID=9 & 11 L=28	1-09701-193-1	01	1	9601-9810	●
15	CLIP; GUIDE TUBE (B) ID=9 & 11 L=28	1-09701-193-1	01	1	9811-	●	●
15	CLIP; GUIDE TUBE (A) ID=9 & 11 L=28	1-09701-194-0	01	1	9601-9810	●
15	CLIP; GUIDE TUBE (A) ID=9 & 11 L=28	1-09701-194-1	01	1	9811-	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	9601-9810	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-113-0	01	1	9811-0205	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-129-1	01	1	0206-1103	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98187-258-0	01	1	1104-	●	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9601-9810	●
22	WASHER; LK,OIL PAN ID=8.2	9-09150-508-0	06	1	9811-0603	●	●
22	WASHER; LK,OIL PAN ID=8.2	0-91510-508-0	06	1	0604-	●	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9601-9810	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50140-822-0	30	1	9811-0906	●	●
23	BOLT; OIL PAN M8X22 W/LK&PL WASHER	0-50640-822-0	30	1	0907-	●	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9601-9810	●
24	NUT; OIL PAN M8	9-09110-408-0	06	1	9811-0512	●	●
24	NUT; OIL PAN M8	0-91110-508-0	06	1	0601-	●	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9601-9810	●
47	CLIP; HOSE,AIR BREATHER	1-11229-014-0	01	1	9811-	●	●
150	CLIP; WATER,OIL DRAIN EURO3 SPECIFICATION<NJX>	9-11229-070-0	03	1	0605-	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	02	1	9601-0009	●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	02	1	0010-0604	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	02	1	0010-0604		●
150	CLIP; WATER,OIL DRAIN EXC. EURO3 SPECIFICATION<NJX>	9-11229-070-0	02	1	0605-	●
150	CLIP; WATER,OIL DRAIN EXC. OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	02	1	0605-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	9811-0009		●
150	CLIP; WATER,OIL DRAIN OIL FILTER SETTING DOWNWARD<E7V>	9-11229-070-0	01	1	0010-		●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	9601-9810	●
204	WASHER; PL,OIL PAN ID=8.4	9-09160-508-0	06	1	9811-0605	●	●
204	WASHER; PL,OIL PAN ID=8.4 OD=16	0-91610-508-0	06	1	0606-	●	●
