0-11 — CYLINDER HEAD (#65030) — 128 parça

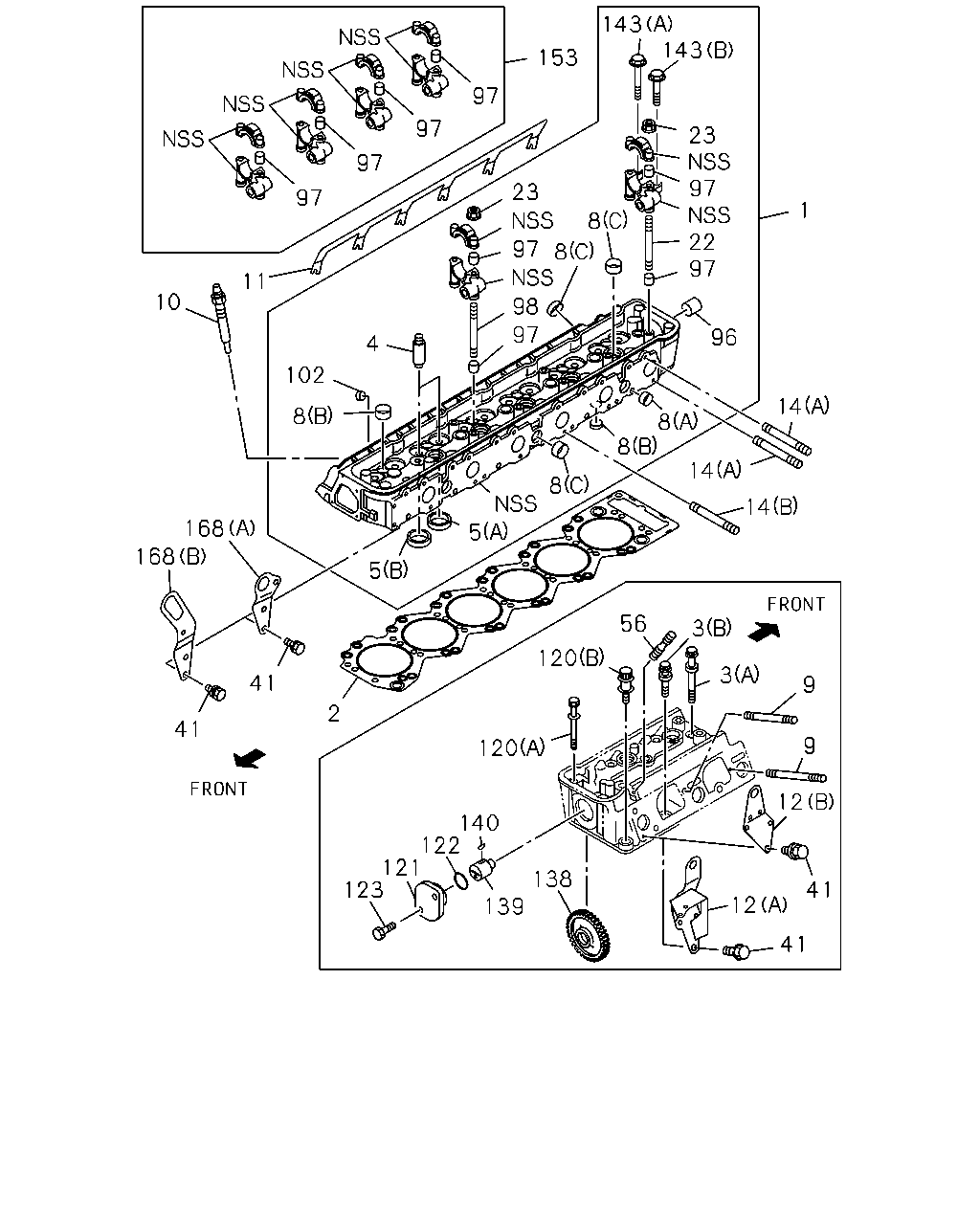

çizim 184658
143 143 153 97 97 23 97 22 97 97 23 97 1 8 97 8 11 10 98 97 96 4 102 14 8 8 8 14 8 14 168 168 5 5 56 3 120 3 41 9 2 41 9 120 12 140 122 121 123 138 41 12 139 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL
EURO3 SPECIFICATION<NJX> 		1-11110-924-4 01 1 0605- ●
1 HEAD ASM; CYL 1-11110-814-1 01 1 9601-9605 ●
1 HEAD ASM; CYL 1-11110-875-0 01 1 9606-9608 ●
1 HEAD ASM; CYL 1-11110-856-2 01 1 9609-0604 ●
1 HEAD ASM; CYL
EXC. EURO3 SPECIFICATION<NJX> 		1-11110-856-2 01 1 0605- ●
1 HEAD ASM; CYL 1-11110-816-7 01 1 9811- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NJX> 		1-11141-278-2 01 1 0605- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-2 01 1 9601-9810 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 9811-0604 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO3 SPECIFICATION<NJX> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 0605- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-216-4 01 1 0605- ●
3 BOLT; CYL HD TO BLOCK
EURO3 SPECIFICATION<NJX> (A) M14X125 FLANGE W/PL WASHER 		1-09070-143-0 20 1 0605- ●
3 BOLT; CYL HD TO BLOCK
EURO3 SPECIFICATION<NJX> (B) M14X67 FLANGE W/PL WASHER 		1-09070-144-0 06 1 0605- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9601-9810 ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 9811-0604 ● ●
3 BOLT; CYL HD TO BLOCK
EXC. EURO3 SPECIFICATION<NJX> (A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 0605- ●
3 BOLT; CYL HD TO BLOCK
(A) M14X125 FLANGE W/PL WASHER 		1-09070-043-1 20 1 0605- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9601-9810 ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 9811-0604 ● ●
3 BOLT; CYL HD TO BLOCK
EXC. EURO3 SPECIFICATION<NJX> (B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 0605- ●
3 BOLT; CYL HD TO BLOCK
(B) M14X67 FLANGE W/PL WASHER 		1-09070-044-1 06 1 0605- ●
4 GUIDE; VLV 1-11721-008-0 12 1 9601-9810 ●
4 GUIDE; VLV 1-11721-008-0 12 1 9811- ● ●
5 SEAT; VLV INSERT
EURO3 SPECIFICATION<NJX> (A) 		1-11711-085-0 06 1 0605- ●
5 SEAT; VLV INSERT
EURO3 SPECIFICATION<NJX> (B) 		1-11715-118-0 06 1 0605- ●
5 SEAT; VLV INSERT
(A) 		1-11711-060-1 06 1 9601-9810 ●
5 SEAT; VLV INSERT
(A) 		1-11711-060-1 06 1 9811-0004 ● ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0005-0604 ● ●
5 SEAT; VLV INSERT
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-11711-051-0 06 1 0605- ●
5 SEAT; VLV INSERT
(A) 		1-11711-051-0 06 1 0605- ●
5 SEAT; VLV INSERT
(B) 		1-11715-095-1 06 1 9601-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-122-0 06 1 0005-0604 ●
5 SEAT; VLV INSERT
EXC. EURO3 SPECIFICATION<NJX> (B) 		1-11715-122-0 06 1 0605- ●
5 SEAT; VLV INSERT
(B) 		1-11715-100-0 06 1 9811-0004 ●
5 SEAT; VLV INSERT
(B) 		1-11715-121-0 06 1 0005- ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9601-9810 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 06 1 9811-0406 ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-1 12 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(A) OD=12 		1-09600-010-2 06 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9601-9810 ●
8 CUP; SEALING,WATER JACKET
(B) OD=22 		1-09600-011-2 11 1 9811- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9601-9810 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 14 1 9811-0105 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 09 1 0106-0406 ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-1 18 1 0407-0502 ●
8 CUP; SEALING,WATER JACKET
(C) OD=32 		1-09600-012-2 09 1 0503- ● ●
8 CUP; SEALING,WATER JACKET
(C) OD=30 		8-94241-638-0 05 1 0106- ● ●
9 STUD; INL MANIF
EURO3 SPECIFICATION<NJX> M8X12,M8X17 L=96 		1-09309-020-1 12 1 0605- ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 9601-9810 ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 9811-0604 ● ●
9 STUD; INL MANIF
EXC. EURO3 SPECIFICATION<NJX> M8X86 L=99 		9-09630-026-0 04 1 0605- ●
9 STUD; INL MANIF
M8X86 L=99 		9-09630-026-0 04 1 0605- ●
10 PLUG; GLOW 9-82513-928-9 06 1 9601-9809 ●
10 PLUG; GLOW 1-82513-043-0 06 1 9810-9810 ●
10 PLUG; GLOW 1-82513-043-2 06 1 9811- ● ●
11 CONNECTOR; GLOW PLUG 1-19732-011-0 01 1 9601-9810 ●
11 CONNECTOR; GLOW PLUG 1-19732-011-1 01 1 9811- ● ●
12 HANGER; ENG,RR
EURO3 SPECIFICATION<NJX> (B) 		1-11777-222-0 01 1 0605- ●
12 HANGER; ENG,RR
(A) 		1-11777-099-0 01 1 9601-9810 ●
12 HANGER; ENG,RR
(A) 		1-11777-099-0 01 1 9811-0604 ● ●
12 HANGER; ENG,RR
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-11777-099-0 01 1 0605- ●
12 HANGER; ENG,RR
(A) 		1-11777-099-0 01 1 0605- ●
14 STUD; EXH MANIF
EURO3 SPECIFICATION<NJX> (A) M10X95 L=110 		1-09302-063-0 03 1 0605- ●
14 STUD; EXH MANIF
EURO3 SPECIFICATION<NJX> (B) M10X135 L=150 		1-09302-159-0 08 1 0605- ●
14 STUD; EXH MANIF
EURO3 SPECIFICATION<NJX> (A) M10X45 L=65 		9-04321-045-0 01 1 0605-0605 ●
14 STUD; EXH MANIF
EURO3 SPECIFICATION<NJX> (A) M10X45 L=65 		0-43211-045-0 01 1 0605- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 08 1 9601-0604 ●
14 STUD; EXH MANIF
EXC. EURO3 SPECIFICATION<NJX> (B) M10X104 L=119 		1-09302-104-1 08 1 0605- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 04 1 9601-0604 ●
14 STUD; EXH MANIF
EXC. EURO3 SPECIFICATION<NJX> (A) M10X130 L=145 		1-09302-107-0 04 1 0605- ●
14 STUD; EXH MANIF
(B) M10X104 L=119 		1-09302-104-1 06 1 9811- ●
14 STUD; EXH MANIF
(A) M10X130 L=145 		1-09302-107-0 06 1 9811- ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 9601-9810 ●
22 STUD; CAM BRKT
M8X124 L=142 		1-09300-033-1 02 1 9811- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9601-9810 ●
23 NUT; CAM BRKT
M8 FLANGE 		9-09844-190-0 08 1 9811-0809 ● ●
23 NUT; CAM BRKT
M8 FLANGE 		8-98053-188-0 08 1 0810- ● ●
41 BOLT; ENG HANGER
EURO3 SPECIFICATION<NJX> M10X25 FLANGE 		0-28751-025-0 02 1 0605- ●
41 BOLT; ENG HANGER
EURO3 SPECIFICATION<NJX> M10X40 FLANGE 		0-28761-040-0 03 1 0605- ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50051-020-0 05 1 9601-9810 ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50051-020-0 05 1 9811-0512 ● ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50551-020-0 05 1 0601-0604 ● ●
41 BOLT; ENG HANGER
EXC. EURO3 SPECIFICATION<NJX> M10X20 W/LK WASHER 		0-50551-020-0 05 1 0605- ●
41 BOLT; ENG HANGER
M10X20 W/LK WASHER 		0-50551-020-0 05 1 0605- ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9601-9810 ●
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9811- ● ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 9601-9810 ●
96 BUSHING; IDLE SHAFT 1-12528-007-0 01 1 9811- ● ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 9601-9810 ●
97 DOWEL; CAM BRKT SET 1-11229-012-1 16 1 9811- ● ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 9601-9810 ●
98 STUD; CAM BRKT
M8X114 L=132 		1-09300-028-1 06 1 9811- ● ●
102 SEAT; VLV 1-11119-021-0 06 1 9811- ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9601-9810 ●
120 BOLT; CYL HD TO HSG
(B) M10X34 FLANGE W/PL WASHER 		1-09070-059-0 01 1 9811- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9601-9810 ●
120 BOLT; CYL HD TO HSG
(A) M10X122 FLANGE W/PL WASHER 		1-09070-060-0 02 1 9811- ● ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 9601-9810 ●
121 COVER; IDLE GEAR,CYL HD 1-11321-100-0 01 1 9811- ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 9601-9810 ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-208-0 01 1 9811- ● ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 9601-9810 ●
123 BOLT; COVER
M8X16 FLANGE 		0-28080-816-0 02 1 9811-0512 ● ●
123 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
138 GEAR; IDLE
Z=48 		1-12523-246-0 01 1 9601-9810 ●
138 GEAR; IDLE
Z=48 		1-12523-246-1 01 1 9811- ● ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9601-9810 ●
139 SHAFT; IDLE GEAR 1-12531-014-2 01 1 9811-0011 ● ●
139 SHAFT; IDLE GEAR 1-12531-098-0 01 1 0012- ● ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 9601-9810 ●
140 KEY; IDLE GEAR 9-08055-522-0 01 1 9811- ● ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 9601-9810 ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28080-800-0 01 1 9811-0512 ● ●
143 BOLT; FIX
(A) M8X100 FLANGE 		0-28050-800-0 01 1 0601- ● ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 9601-9810 ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28090-860-0 01 1 9811-0512 ● ●
143 BOLT; FIX
(B) M8X60 FLANGE 		0-28060-860-0 01 1 0601- ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-178-0 01 1 9609-9709 ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 01 1 9710-9810 ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 01 1 9811-0701 ● ●
153 BRACKET KIT; CAM,CYL HD 1-12516-180-0 AR 1 0702- ● ●
168 HANGER; ENG,FRT
EURO3 SPECIFICATION<NJX> (B) 		1-11777-247-0 01 1 0605- ●
168 HANGER; ENG,FRT
(A) 		1-11777-207-0 01 1 9601-9810 ●
168 HANGER; ENG,FRT
(A) 		1-11777-207-0 01 1 9811-0604 ● ●
168 HANGER; ENG,FRT
EXC. EURO3 SPECIFICATION<NJX> (A) 		1-11777-207-0 01 1 0605- ●
168 HANGER; ENG,FRT
(A) 		1-11777-207-0 01 1 0605- ●
