Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10707 - FVZ-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

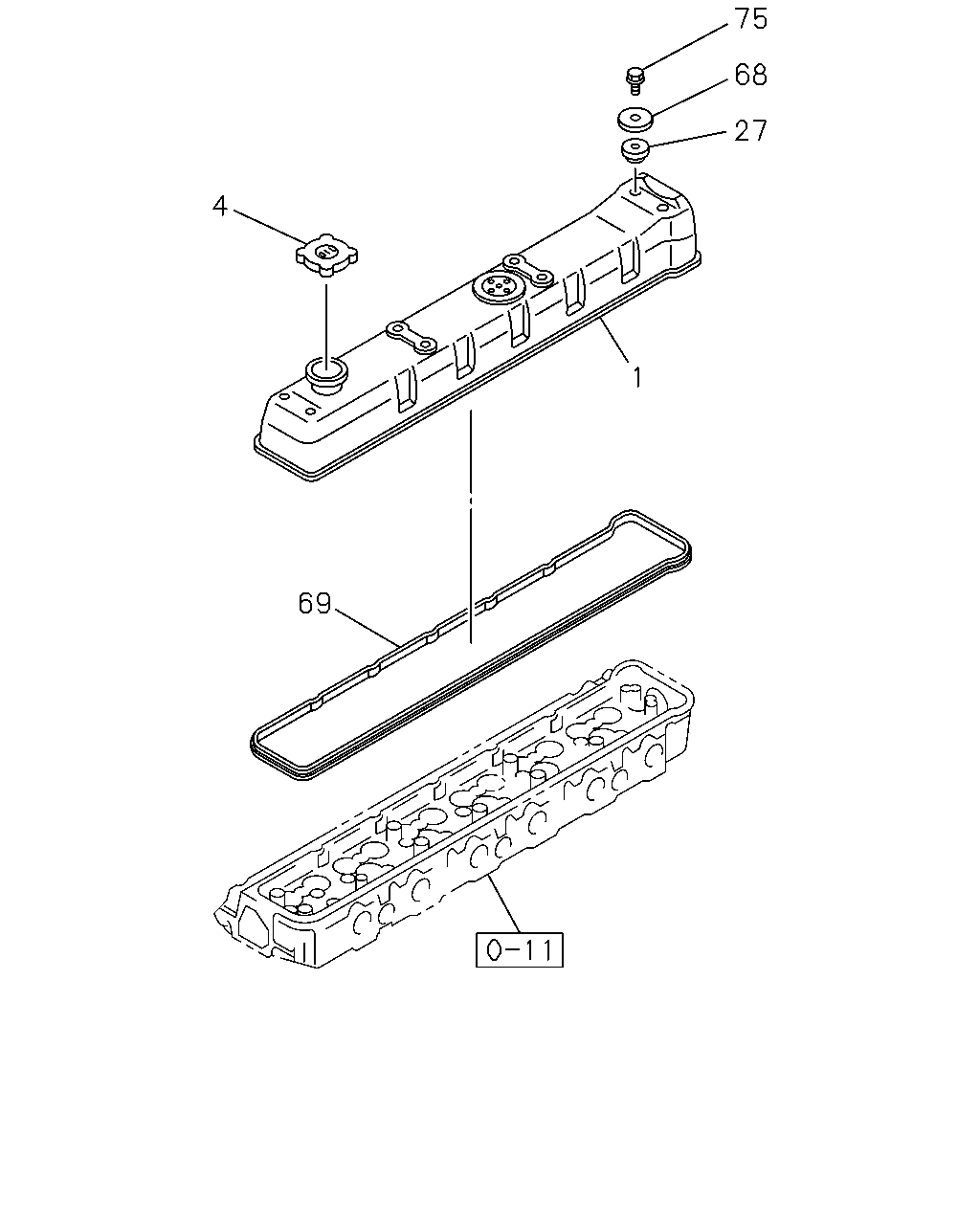

0-10 — CYLINDER HEAD COVER
(#65029) — 13 parça
Tümü
A - 6SD1 TCN ENG
B - 6SD1 STD ENG
75
68
27
4
1
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
1-11171-392-0
01
1
9601-9810
●
1
COVER; CYL HD
1-11171-392-0
01
1
9811-0206
●
●
1
COVER; CYL HD
1-11171-411-1
01
1
0207-
●
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
9601-9810
●
4
CAP; OIL FILLER
1-11750-020-0
01
1
9811-
●
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-032-0
08
1
9601-9810
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09639-032-0
08
1
9811-
●
●
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
08
1
9601-9810
●
68
WASHER; CAP NUT,HD COVER
9-11179-105-0
08
1
9811-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
9601-9810
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-11173-085-0
01
1
9811-
●
●
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
08
1
9601-9810
●
75
NUT; CAP,HD COVER
M8 CAP NUT OD=22
8-94340-192-0
08
1
9811-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
