9-01 — TOOLS (#65026) — 197 parça

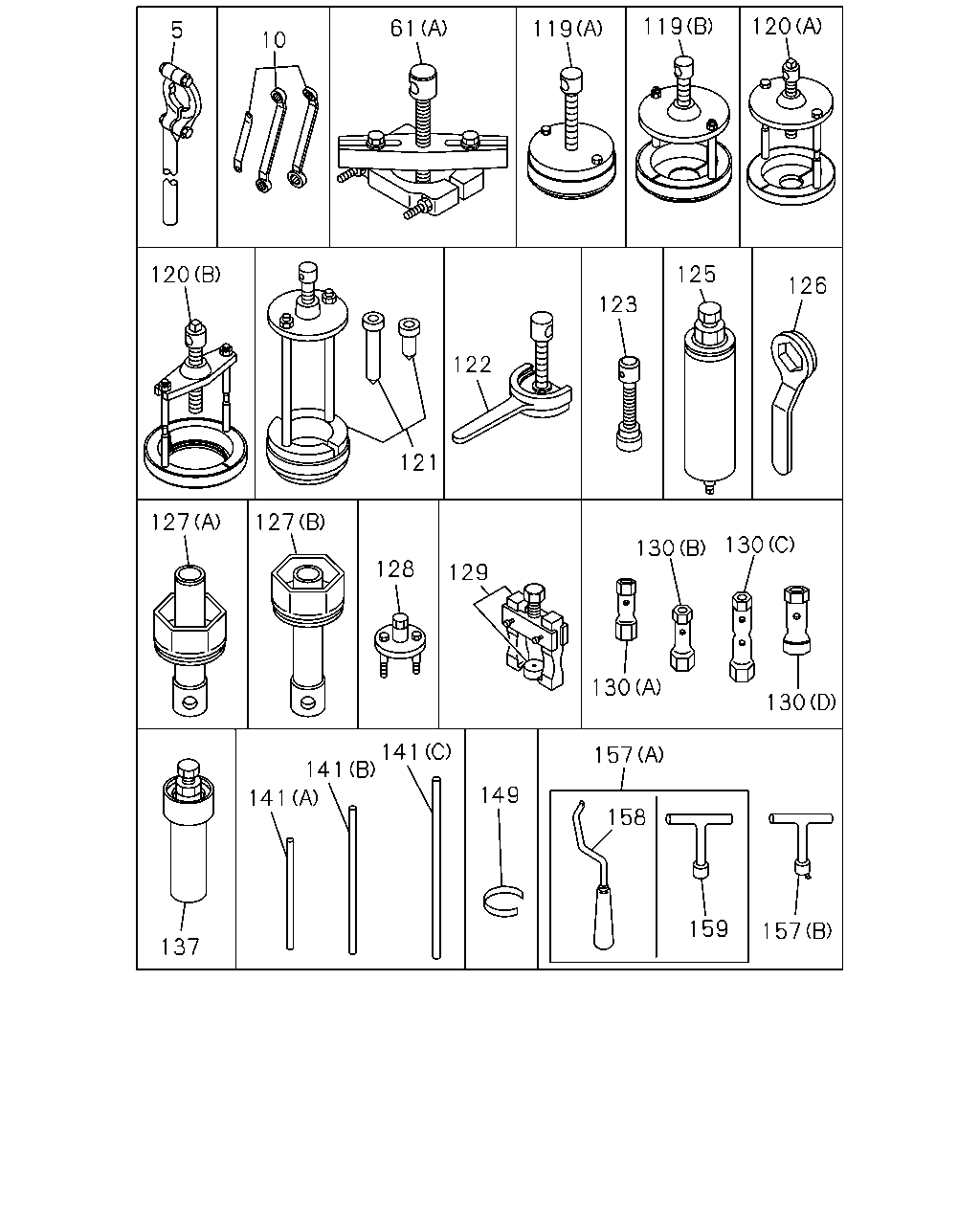

119 120 61 119 5 10 125 120 126 123 122 121 127 127 130 130 128 129 130 130 141 141 157 149 141 158 159 157 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	WRENCH ASM; NUT,MAINSHAFT MAL6S M/T(Y1V)	1-85110-010-0	01	1	9601-
10	WRENCH KIT; BRK ADJ	9-85110-013-0	01	1	9805-
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9601-9804
61	PULLER ASM; PILOT BRG 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85210-050-0	01	1	9805-
61	PULLER ASM; PILOT BRG 6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	9805-0004
119	PULLER ASM; TOP GEAR BRG MAL6S M/T(Y1V) (B) L=235	9-85210-190-0	01	1	9601-
119	PULLER ASM; TOP GEAR BRG MLD6Q M/T(X5J) (B)	9-85210-185-0	01	1	9805-0004
119	PULLER ASM; TOP GEAR BRG MLD6Q M/T(X5J) (A)	9-85210-186-0	01	1	9805-0004
120	PULLER ASM; MAIN REAR BRG MAL6S M/T(Y1V) (A) L=285	9-85210-184-0	01	1	9601-
120	PULLER ASM; MAIN REAR BRG MLD6Q M/T(X5J) (B)	9-85210-192-0	01	1	9805-0004
121	PULLER ASM; COUNTER REAR MAL6S M/T(Y1V) L=285	9-85210-184-0	01	1	9805-
122	PULLER ASM; COUNTER FRT MAL6S M/T(Y1V)	9-85210-129-1	01	1	9601-9804
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A>	9-85210-129-1	01	1	9805-0004
123	PULLER; SPEEDOMETER BUSHING MAL6S M/T(Y1V)	9-85210-091-0	01	1	9601-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9601-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	9601-
127	WRENCH ASM; HUB BRG NUT (B) B=98 L=305	9-85113-533-2	01	1	9601-
127	WRENCH ASM; HUB BRG NUT (A) L=400 B=105	9-85113-509-0	01	1	9805-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9601-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9601-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9601-0004
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9601-0004
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9601-0004
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	9601-0004
137	PLIER; SHOE,RETURN SPRING	1-85210-025-0	01	1	9601-9804
137	PLIER; SHOE,RETURN SPRING	9-85220-026-0	01	1	9805-0004
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	9601-0004
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9601-0004
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	9601-1501
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1502-
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	9601-9804
149	PLATE; PILOT BRG PULLER ISUZU M/T<X9A>	1-85219-009-0	01	1	9805-0004
157	REPLACER KIT; RETURN SPR (B) ID=16	1-85237-002-0	01	1	9601-
157	REPLACER KIT; RETURN SPR (A)	9-85231-554-0	01	1	9601-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9601-
159	REMOVER; RETURN SPR ID=12.5	9-85231-555-0	01	1	9601-

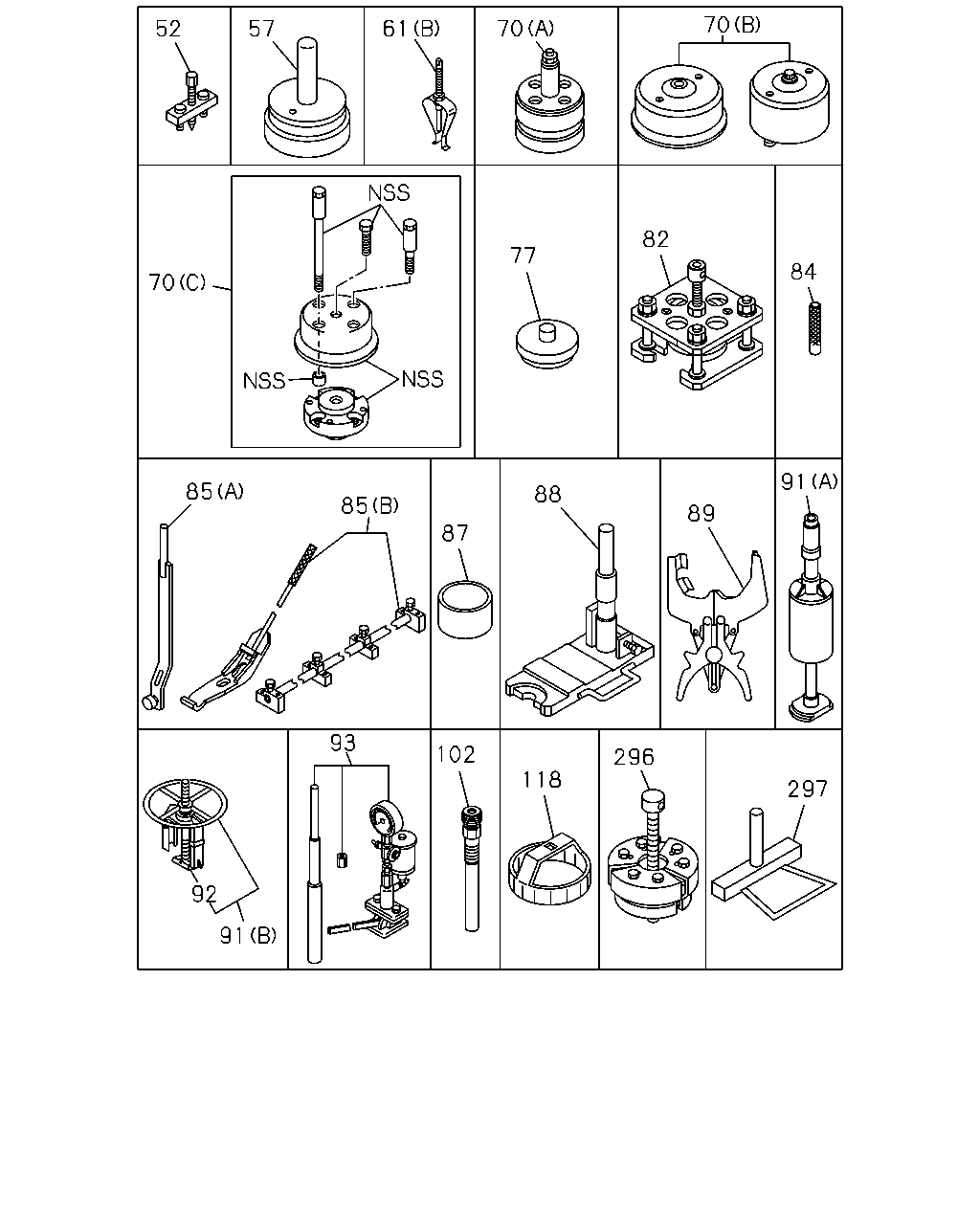

70 52 57 61 70 82 77 84 70 91 85 88 85 89 87 93 102 296 118 297 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	9601-9804
52	REMOVER; WATER PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-85210-047-0	01	1	9805-0004
52	REMOVER; WATER PUMP 6SD1 STD ENG(37L)	1-85210-047-0	01	1	0005-
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	9601-9804
57	TOOL; SETTING CRANK GEAR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=144.5	1-85221-072-0	01	1	9805-0004
57	TOOL; SETTING CRANK GEAR 6SD1 STD ENG(37L) ID=144.5	1-85221-072-0	01	1	0005-
57	TOOL; SETTING CRANK GEAR 6HH1 STD ENG(65L) ID=134.5	8-94396-819-0	01	1	9805-0004
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9601-9804
61	PULLER ASM; PILOT BRG 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85210-050-0	01	1	9805-
61	PULLER ASM; PILOT BRG 6HH1 STD ENG(65L) (B)	9-85210-157-0	01	1	9805-0004
70	TOOL; SETTING,OIL SEAL (A)	1-85220-025-1	01	1	9601-9804
70	TOOL; SETTING,OIL SEAL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85220-025-1	01	1	9805-0004
70	TOOL; SETTING,OIL SEAL 6SD1 STD ENG(37L) (A)	1-85220-025-1	01	1	0005-1108
70	TOOL; SETTING,OIL SEAL 6SD1 STD ENG(37L) (C)	8-98194-607-0	01	1	1109-
70	TOOL; SETTING,OIL SEAL 6HH1 STD ENG(65L) (B)	8-94396-856-0	01	1	9805-0004
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	9601-9804
77	TOOL; SETTING,CYL LINER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-85221-073-0	01	1	9805-0004
77	TOOL; SETTING,CYL LINER 6SD1 STD ENG(37L)	1-85221-073-0	01	1	0005-
82	PULLER ASM; CR/SHF GEAR 6HH1 STD ENG(65L)	8-94396-818-0	01	1	9805-0004
84	REPLACER; VALVE SEAL 6HH1 STD ENG(65L)	8-94396-815-0	01	1	9805-
85	REPLACER ASM; VALVE SPR (A)	1-85235-007-0	01	1	9601-9804
85	REPLACER ASM; VALVE SPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85235-007-0	01	1	9805-0004
85	REPLACER ASM; VALVE SPR 6SD1 STD ENG(37L) (A)	1-85235-007-0	01	1	0005-
85	REPLACER ASM; VALVE SPR 6HH1 STD ENG(65L) (B)	8-94396-861-0	01	1	9805-0004
87	TOOL; PISTON	1-85221-082-0	01	1	9601-9804
87	TOOL; PISTON 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-85221-082-0	01	1	9805-0004
87	TOOL; PISTON 6SD1 STD ENG(37L)	1-85221-082-0	01	1	0005-
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	9601-9804
88	TOOL; CONNROD BUSHING 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-85220-037-0	01	1	9805-0004
88	TOOL; CONNROD BUSHING 6SD1 STD ENG(37L)	1-85220-037-0	01	1	0005-
89	TOOL; PISTON RING	1-85221-029-0	01	1	9601-0004
91	REPLACER ASM; CYL LINER (A)	1-85231-021-0	01	1	9601-9804
91	REPLACER ASM; CYL LINER 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-85231-021-0	01	1	9805-0004
91	REPLACER ASM; CYL LINER 6SD1 STD ENG(37L) (A)	1-85231-021-0	01	1	0005-
91	REPLACER ASM; CYL LINER 6HH1 STD ENG(65L) (B)	8-94396-849-0	01	1	9805-
92	ANKLE; REPLACER,CYL LINER 6HH1 STD ENG(65L)	8-94396-821-0	01	1	9805-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	9601-9804
93	SETTING KIT; VALVE GUIDE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=260	9-85231-202-0	01	1	9805-0004
93	SETTING KIT; VALVE GUIDE 6SD1 STD ENG(37L) L=260	9-85231-202-0	01	1	0005-
93	SETTING KIT; VALVE GUIDE 6HH1 STD ENG(65L)	1-85220-001-0	01	1	9805-
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	9601-9804
102	ADAPTER; COMP GAGE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	5-85317-001-0	01	1	9805-0004
102	ADAPTER; COMP GAGE 6SD1 STD ENG(37L)	5-85317-001-0	01	1	0005-
118	WRENCH; OIL FILTER 6HH1 STD ENG(65L)	1-85221-097-0	01	1	9805-0004
296	REPLACER; SLINGER 6HH1 STD ENG(65L)	8-94396-858-0	01	1	9805-0004
297	CUTTER; SEAL,OIL PAN 6HH1 STD ENG(65L)	8-94393-112-0	01	1	9805-0004

274 271 268 209 285 281 280 283 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9601-0708
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9601-0604
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9601-0708
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9601-0604
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-3	01	1	9601-
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9601-
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9601-9606
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9601-0603
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	0-91510-510-0	04	1	0604-
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9601-9606
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-0512
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28651-020-0	04	1	0601-
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9601-9606
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-

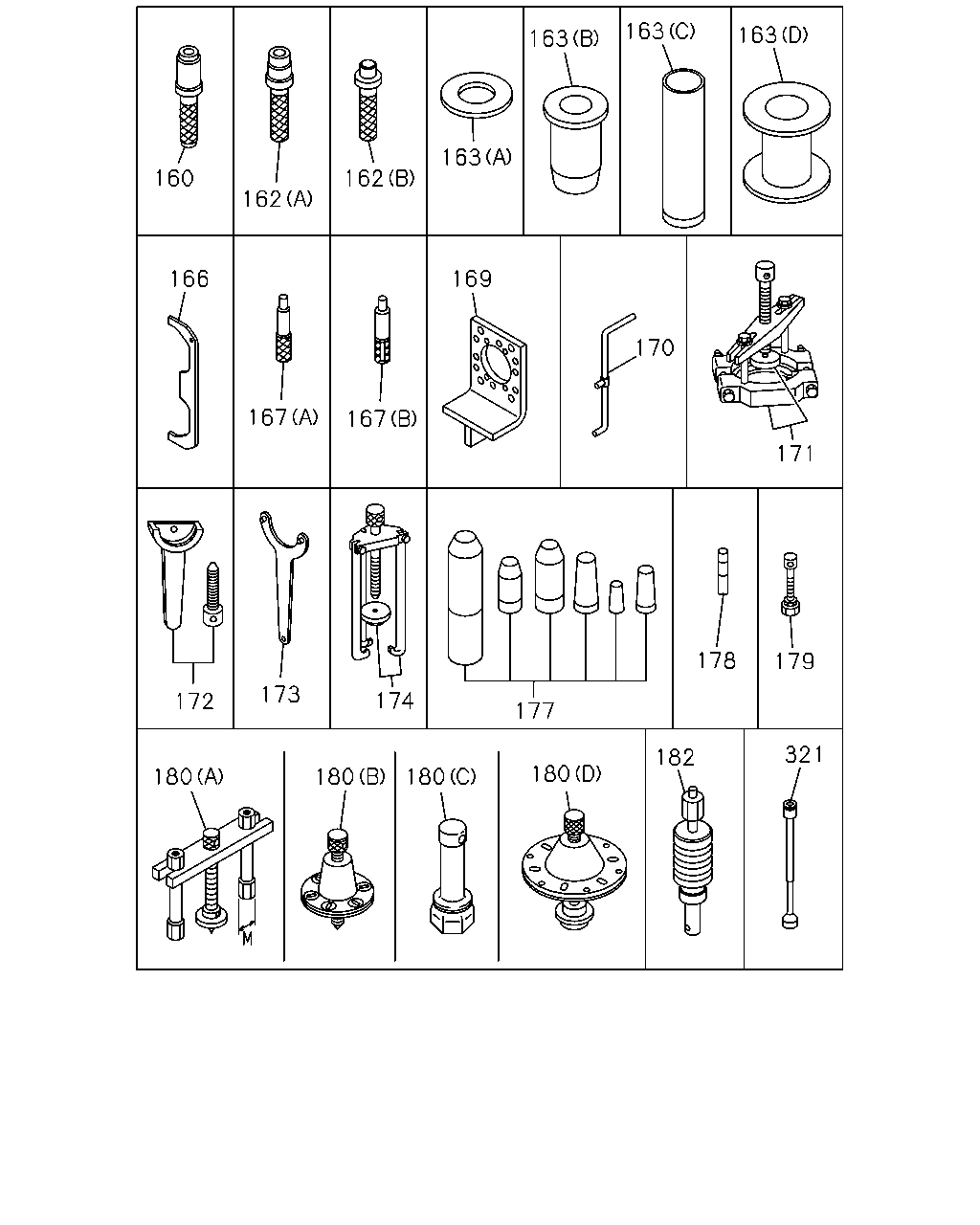

163 163 163 163 160 162 162 169 166 170 167 167 171 178 179 173 174 172 177 321 182 180 180 180 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	9601-
162	SETTING TOOL; NEEDLE BRG (A) L=200	1-85238-005-0	01	1	9601-0004
162	SETTING TOOL; NEEDLE BRG (B) L=175	1-85238-006-0	01	1	9601-0004
162	SETTING TOOL; NEEDLE BRG (B) L=181	1-85238-008-0	01	1	9805-
162	SETTING TOOL; NEEDLE BRG (A) L=213	1-85238-009-0	01	1	9805-
163	TOOL; SETTING 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=195	1-85221-162-1	01	1	0005-
163	TOOL; SETTING 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (D) L=150	1-85221-163-0	01	1	0005-
163	TOOL; SETTING MAL6S M/T(Y1V) (B) L=195	1-85221-162-1	01	1	9601-9804
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=195	1-85221-162-1	01	1	9805-0004
163	TOOL; SETTING MAL6S M/T(Y1V) (D) L=150	1-85221-163-0	01	1	9601-9804
163	TOOL; SETTING ISUZU M/T<X9A> (D) L=150	1-85221-163-0	01	1	9805-0004
163	TOOL; SETTING MLD6Q M/T(X5J) (A) OD=120	1-85221-164-0	01	1	9805-0004
163	TOOL; SETTING MLD6Q M/T(X5J) (B) L=150	9-85221-248-0	01	1	9805-0004
163	TOOL; SETTING MLD6Q M/T(X5J) (C) L=350	9-85221-310-0	01	1	9805-0004
166	ALIGNER; CLU RELEASE LEVER L=480	1-85253-011-0	01	1	9601-0004
167	ALIGNER; CLU PILOT (B) D=36 L=190	1-85253-022-0	01	1	9601-9804
167	ALIGNER; CLU PILOT MLD6Q M/T(X5J) (A) D=30.6 L=185	1-85253-012-0	01	1	9805-
167	ALIGNER; CLU PILOT FULLER RT7608LL M/T(X8P),MAL6S M/T(Y1V),FULLER FS8209 DD M/T(Y2S) (B) D=36 L=190	1-85253-022-0	01	1	9805-0004
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9601-0004
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9601-0004
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9601-0004
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9601-0004
173	WRENCH; COUPLING DRIVER	9-85111-942-0	01	1	9805-0004
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9601-
177	SETTING TOOL KIT	9-85220-040-0	01	1	9601-9804
177	SETTING TOOL KIT ISUZU M/T<X9A>	9-85220-040-0	01	1	9805-0004
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9601-9804
178	BAR; TRANS GUIDE ISUZU M/T<X9A>	9-85291-203-0	01	1	9805-
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9601-9804
179	PULLER; SPD METER GEAR MLD6Q M/T(X5J)	9-85210-181-0	01	1	9805-0004
180	PULLER; FRT & RR HUB (B)	1-85210-002-0	01	1	9601-
180	PULLER; FRT & RR HUB (C) L=260 B=90	9-85113-534-0	01	1	9601-9804
180	PULLER; FRT & RR HUB (C) B=98 L=305	9-85113-533-2	01	1	9805-
180	PULLER; FRT & RR HUB (A) M20	9-85210-187-0	01	1	9601-0004
180	PULLER; FRT & RR HUB (D)	1-85210-003-0	01	1	9805-0004
180	PULLER; FRT & RR HUB (C) L=400 B=116	9-85113-524-0	01	1	9805-0004
182	REMOVER ASM	9-85210-095-0	01	1	9601-9804
182	REMOVER ASM ISUZU M/T<X9A>	9-85210-095-0	01	1	9805-0004
321	SOCKET; PROP SHAFT L=300	1-85115-024-0	01	1	9601-0004

1 12 9 23 13 22 21 20 19 17 29 29 192 29 115 237 193 232 208 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9601-0004
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0005-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	9601-9804
9	WRENCH; WHEEL PIN DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00V 165-13(Q62) B=41X21 L=440	1-85113-015-1	01	1	9805-0208
9	WRENCH; WHEEL PIN DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00V 165-13(Q62) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=41X21 L=440	1-85113-015-1	01	1	0209-
9	WRENCH; WHEEL PIN DISC WHEEL 8STUD 20X7.00T 162-12(Q54),DISC WHEEL 8STUD 20X7.00V 165-13(Q62) B=41X21 L=445	8-97118-906-0	01	1	9805-9903
9	WRENCH; WHEEL PIN DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) B=33X30 L=450	1-85111-033-1	01	1	9805-0208
9	WRENCH; WHEEL PIN DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL 10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V 165-12(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) TOOL A KIT<SK9>,TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	0209-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0005-0208
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT<SK9> TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0209-1501
12	HANDLE; WRENCH,WHEEL PIN TOOL A KIT<SK9> TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9601-0004
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9601-0208
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER	9-85121-406-0	01	1	9601-0208
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-
19	WRENCH; 7X8 8X10	9-99592-108-0	01	1	9601-9602
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9601-0208
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9601-0208
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9601-0208
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9601-0208
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9601-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-0611
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9601-0208
29	DRIVER; SCREW TOOL A KIT<SK9> TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0209-
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9601-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-
115	PLIER	5-85171-001-0	01	1	9601-9602
115	PLIER	5-85171-002-0	01	1	9603-0208
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9805-9912
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-
193	JACK ASM 10TON	1-85510-013-1	01	1	9601-0208
193	JACK ASM TOOL A KIT<SK9> TOOL B KIT<SL1> 10TON	1-85510-013-1	01	1	0209-0504
193	JACK ASM TOOL A KIT<SK9> TOOL B KIT<SL1> 10TON	8-97607-599-0	01	1	0505-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9601-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-
230	PUMP; GREASE	1-85556-007-2	01	1	9601-0208
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9601-0004
237	BAG; TOOL	8-97130-902-0	01	1	9601-0208
237	BAG; TOOL TOOL A KIT<SK9> TOOL B KIT<SL1>	8-97130-902-1	01	1	0209-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
