8-73 — BLOWER UNIT (#65023) — 51 parça

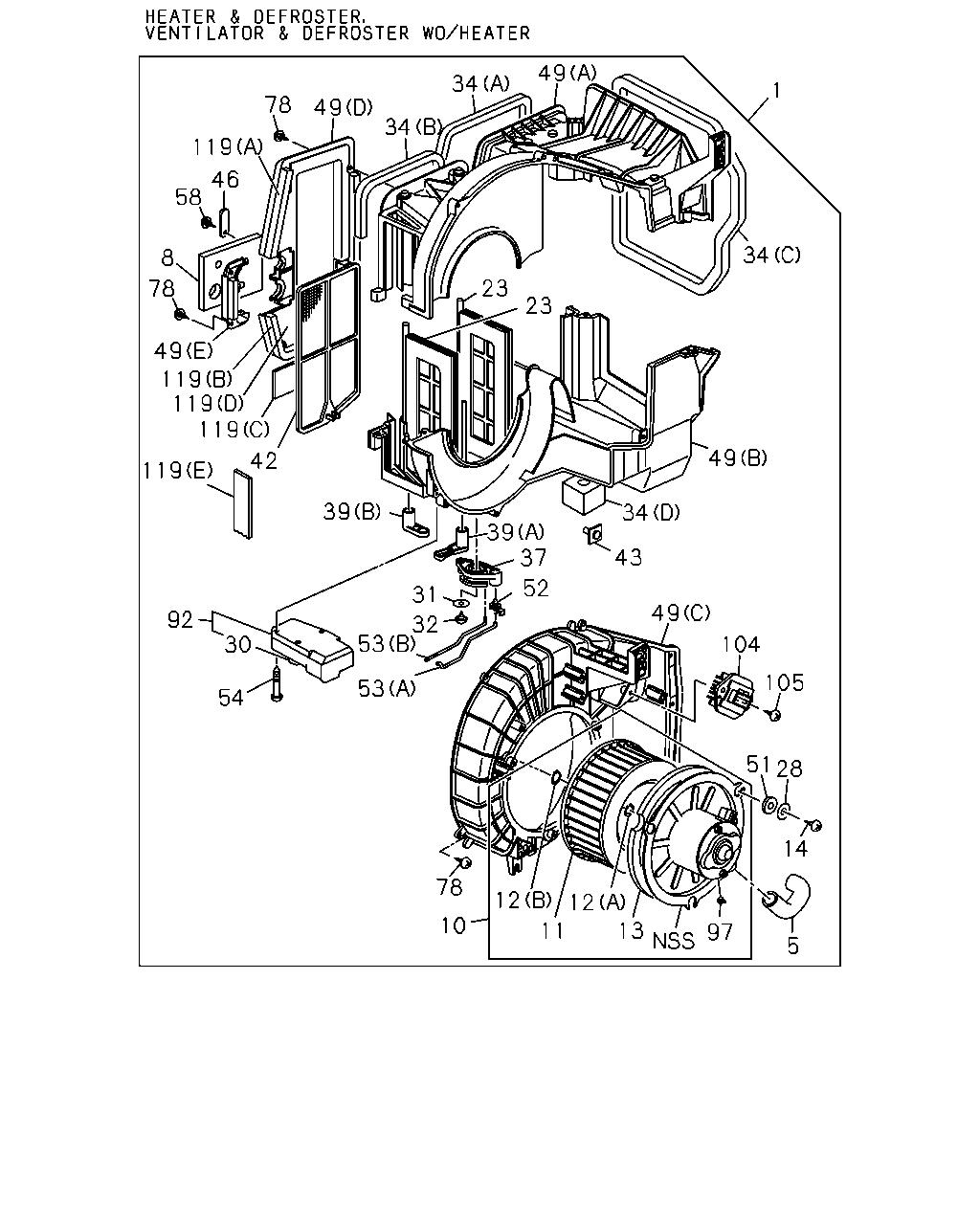

çizim 184578
49 34 1 78 49 34 119 46 58 34 8 23 78 23 49 119 119 119 49 42 119 39 34 39 37 43 52 31 49 92 32 53 104 30 105 53 54 51 28 14 78 12 12 13 10 11 97 5
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-105-9 01 1 9601-0703
1 BLOWER ASM
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98065-903-0 01 1 0704-
5 HOSE; AIR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83563-140-0 01 1 9601-
8 SEAL; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-801-1 01 1 9601-
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-100-1 01 1 9601-9901
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83561-161-0 01 1 9902-
11 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-635-0 01 1 9601-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		5-83569-088-0 01 1 9601-
12 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-94243-962-0 01 1 9601-
13 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-636-0 01 1 9601-
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 03 1 9601-9901
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 03 1 9902-
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-637-0 02 1 9601-
28 WASHER; PL,FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-170-0 03 1 9601-
30 LEVER; ACTUATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-345-1 01 1 9601-
31 WASHER; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-095-0 01 1 9601-
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97130-601-0 01 1 9601-9901
32 SCREW; LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 		9-09829-324-1 01 1 9902-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-633-2 01 1 9601-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-634-2 01 1 9601-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-644-0 01 1 9601-
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-687-0 01 1 9601-9901
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83564-344-0 01 1 9601-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-342-0 01 1 9601-
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-343-0 01 1 9601-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-643-3 01 1 9601-
43 BOLT; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-657-2 04 1 9601-
46 PLATE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83571-870-1 01 1 9601-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83564-337-4 01 1 9601-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83564-339-1 01 1 9601-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83564-351-1 01 1 9601-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83564-352-5 01 1 9601-
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83564-353-1 01 1 9601-
51 ISOLATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-496-0 03 1 9601-
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-488-0 02 1 9601-9901
52 CLIP; LEVER TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94248-794-0 02 1 9902-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-638-0 01 1 9601-
53 ROD; ACTUATOR,BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-639-0 01 1 9601-
54 SCREW; ACTUATOR TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-94348-809-0 02 1 9601-
58 SCREW; PLATE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 01 1 9601-
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 17 1 9601-
92 ACTUATOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-640-1 01 1 9601-
97 PLUG; FAN MOTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83579-248-0 01 1 9601-9702
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-073-1 01 1 9601-0703
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83519-092-0 01 1 0704-
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 		8-94324-850-0 02 1 9601-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		1-83579-670-1 01 1 9601-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-83579-671-1 01 1 9601-
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-83579-672-0 01 1 9601-9901
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		1-83579-673-1 01 1 9601-9901
119 LINING; CASE
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) 		1-83579-839-0 02 1 9601-
